Tuff Post Mini Anchor
Total Height Safety
All products

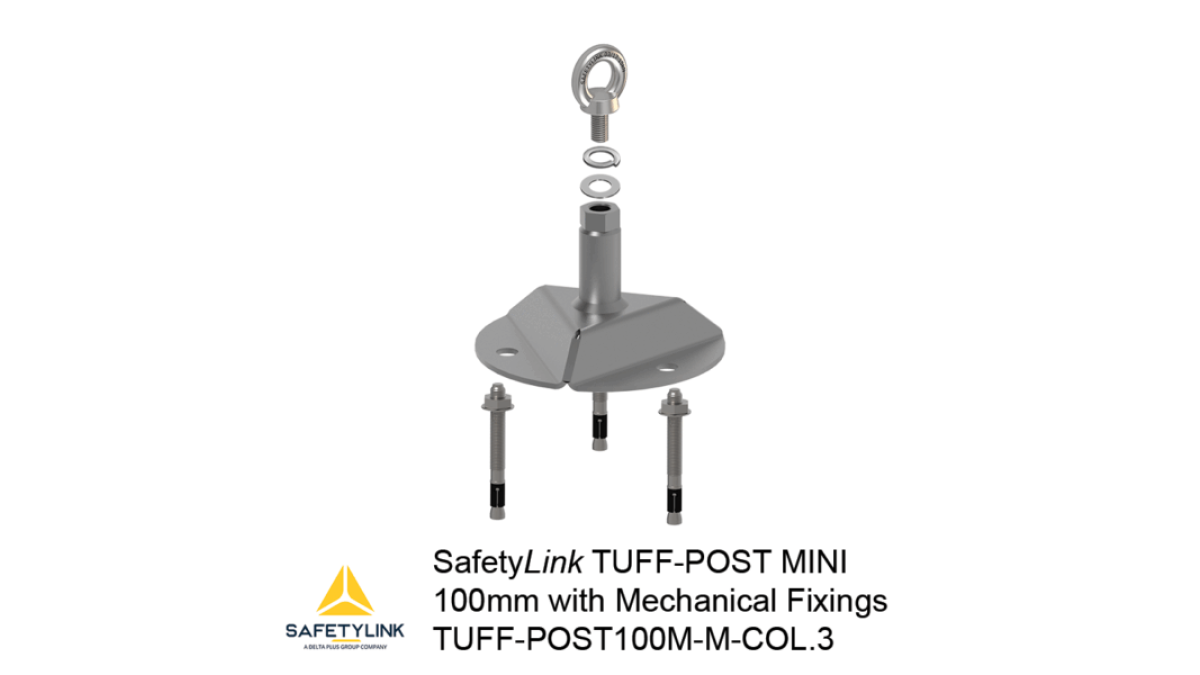

TUFF POST100M M COL.3 600x600
Description

The SafetyLink TUFF-POST Mini Anchor is a permanent low-profile roof anchor designed to raise the connection point above the roof surface while maintaining a compact installation. Manufactured from 316 stainless steel, the TUFF-POST Mini is designed for installation onto reinforced concrete using approved chemical or mechanical fixings.

Available in 100mm and 150mm heights, the TUFF-POST Mini is suitable as a single anchor point or as the support for SafetyLink FrogLine horizontal lifeline and X-Rail rigid rail systems.

Key Features
  • Low-profile permanent roof anchor.
  • Available in 100mm and 150mm heights.
  • 316 stainless steel construction.
  • 15 kN rated anchor.
  • Suitable for fall arrest and rope access.
  • Compatible with FrogLine lifeline and X-Rail systems.
  • Chemical or mechanical fixing into reinforced concrete.
  • Suitable for wet environments and landscaped roof areas.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Concrete Roof Access Systems Concrete Warm-Roof Access Systems Green Roof | Garden Bed Access Systems Roof Anchor Systems — Fall Arrest Abseil Anchorage Systems
Scope of Use
  • Commercial, industrial and institutional buildings.
  • Reinforced concrete roof structures.
  • New construction and retrofit.
  • Permanent roof access systems.
  • Roof-mounted plant and equipment access.
  • Suitable for fall arrest and rope access.
  • Compatible with FrogLine lifeline and X-Rail systems.
  • Chemical or mechanical fixing into reinforced concrete.
  • Suitable for wet environments and landscaped roof areas.



Limitations on Use
  • Concrete substrates only.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspect and recertify in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Manufactured to AS 5532:2025. Installed and maintained in accordance with AS/NZS 1891.4:2025.

Other Performance Attributes
  • 316 stainless steel construction

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
Data Sheet: SafetyLink Tuff Post Mini Anchor
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: Tuff Post Anchor
pdf
Flyer: SafetyLink Tuff Post
pdf
