Abseil Rope Guide Bracket
Description

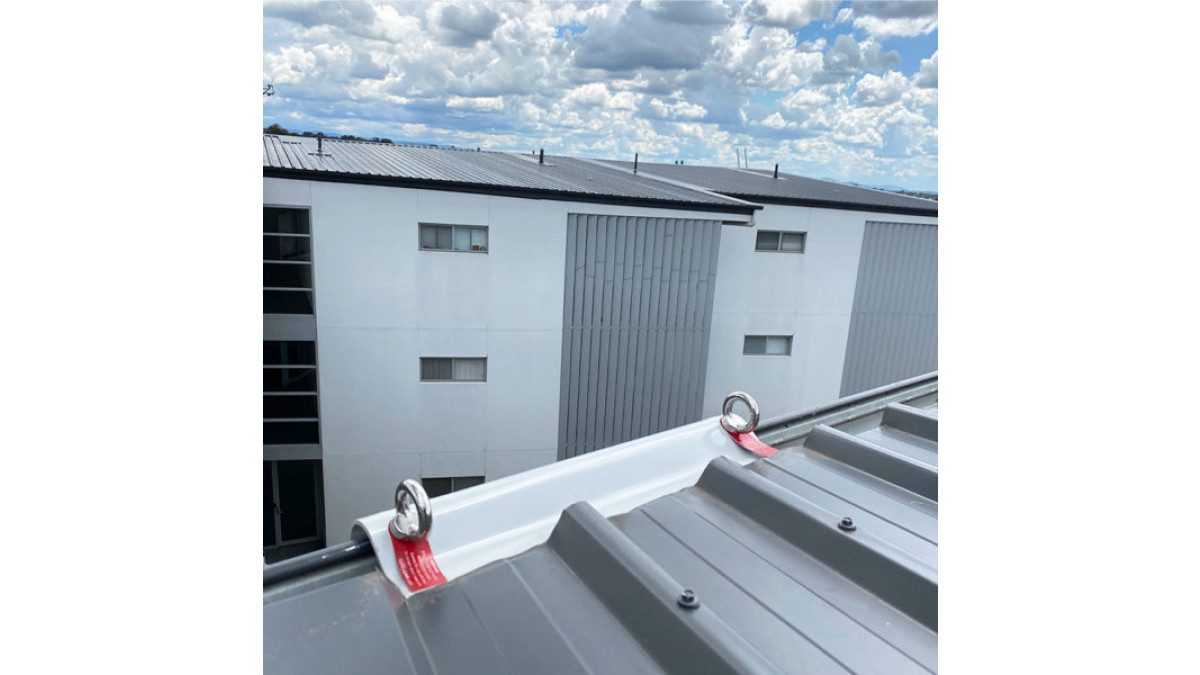

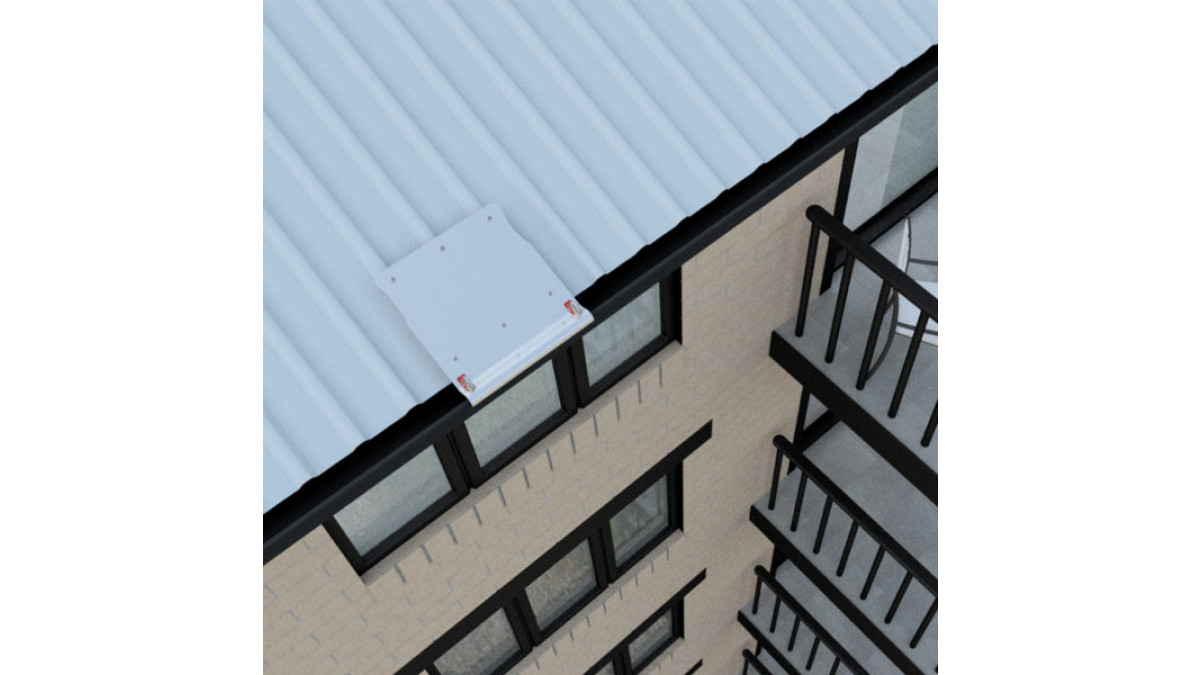

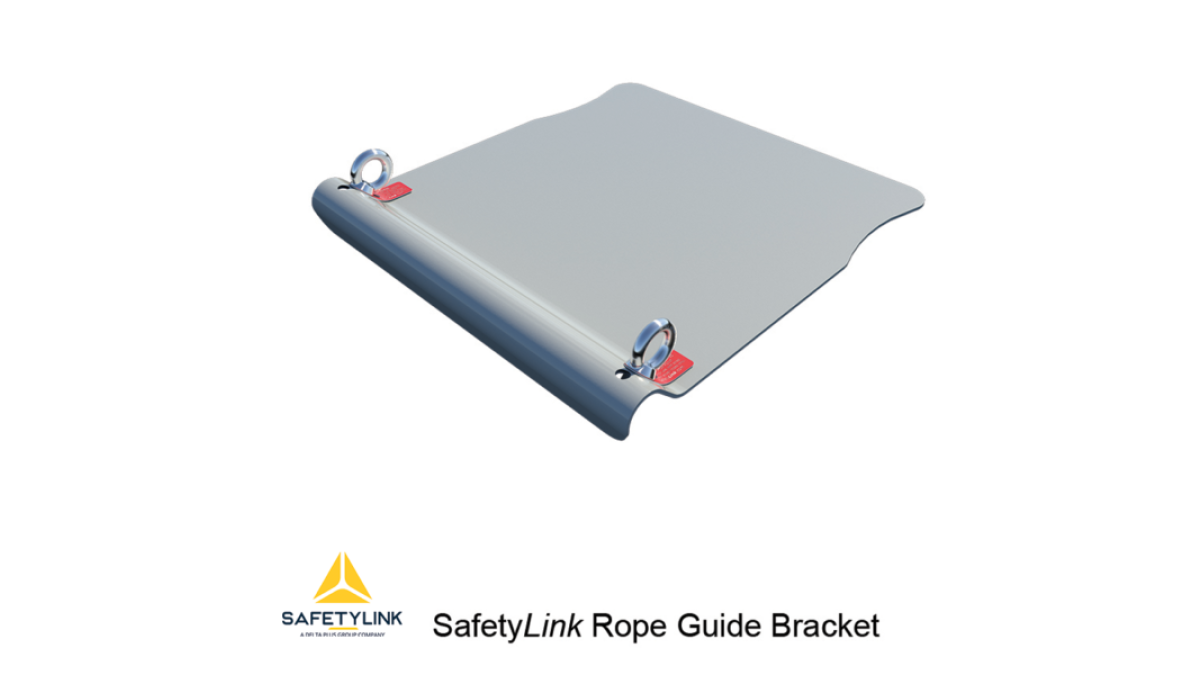

The SafetyLink Rope Guide Bracket is designed to guide and protect abseil ropes from sharp roof edges and gutters, reducing wear on both the rope and the building. Manufactured from marine-grade aluminium, it can be permanently installed or temporarily fitted to provide a simple, low-profile solution for rope access applications.

Key Features
  • Protects ropes from abrasion over roof edges and gutters.
  • Helps prevent damage to guttering systems during rope access work.
  • Marine-grade aluminium construction for durability.
  • Suitable for permanent or temporary installation.
  • Designed for one-person use.
  • Integrated rope-retaining eyebolts (not load-rated anchors).
Scope of Use

The SafetyLink Rope Guide Bracket is designed for rope access and suspended access applications where ropes pass over roof edges or gutters. It guides and protects ropes from abrasion while helping prevent damage to the building edge and guttering systems.

Suitable for permanent or temporary installation on commercial, industrial and infrastructure buildings.

Limitations on Use
  • Intended only for guiding and protecting ropes over roof edges and gutters.
  • Not designed or certified as a fall protection anchor or load-rated anchorage device.
  • Integrated eyebolts are for rope retention only and must not be used for personal fall protection.
  • Suitable for one-person use only.
  • Installation must be in accordance with the manufacturer's requirements.



Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Tested and manufactured in accordance with AS 1657:2018.

Other Performance Attributes
  • Marine grade aluminium compents.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
Documents
Data Sheet: Rope Guide Bracket
7938TH Product Specification
Total Height Safety on Masterspec
Flyer: Rope Guide Bracket

Specialising in fall protection solutions, Total Height Safety design, supply, install, and certify engineered height safety and roof access systems for New Zealand's commercial construction sector.
