• Commercial, industrial and residential buildings.
• Surface-mounted anchor for plywood roof substrates.
• Permanent roof fall protection systems.
• New construction and retrofit applications.
• Maintenance access to roofs and rooftop plant.
• Single-person energy-absorbing anchor rated to 15 kN.

Installation:

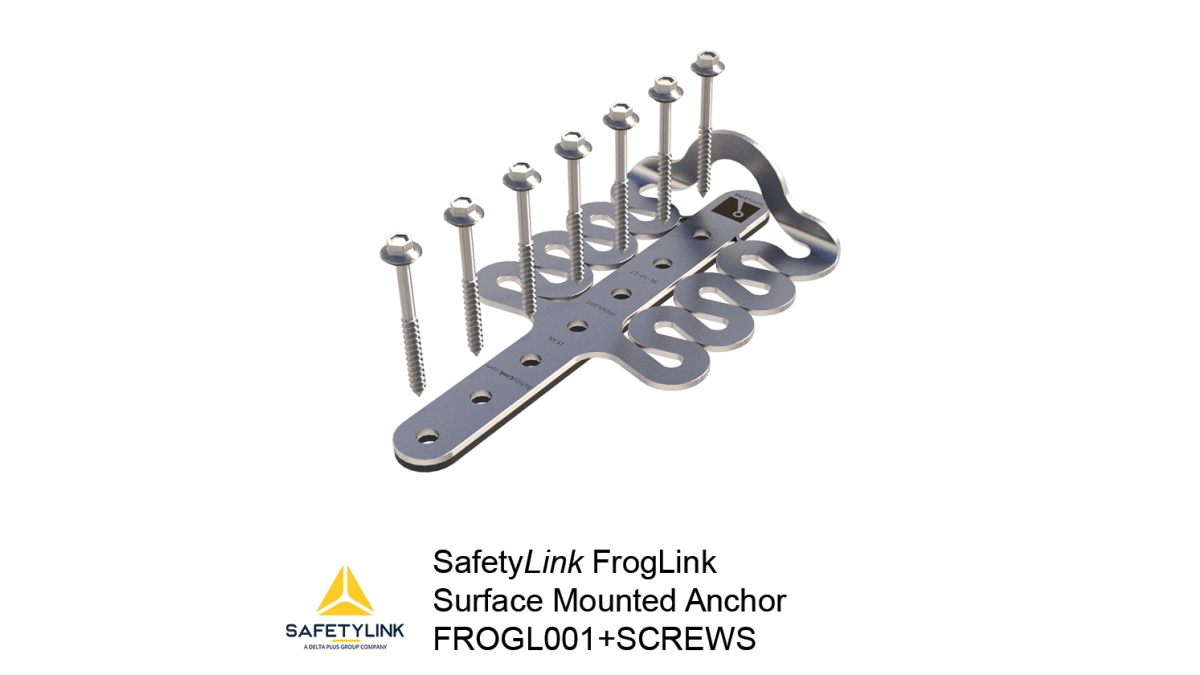

Install using seven 14-gauge roofing screws in accordance with the SafetyLink Installation Manual and approved fixing requirements.

• Suitable for compatible plywood roof substrates only.
• System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
• Periodic inspection and recertification required in accordance with AS/NZS 1891.4.

Contributes towards compliance with NZBC:

• B1 Structure
• B2 Durability
• F4 Safety from Falling

Tested and/or certified to AS/NZS 5532 and AS/NZS 1891.4.

• 316 stainless steel construction.

Warranty & Maintenance

• Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
• Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
