FrogLine — Tuff Post Lifeline
Total Height Safety
All products

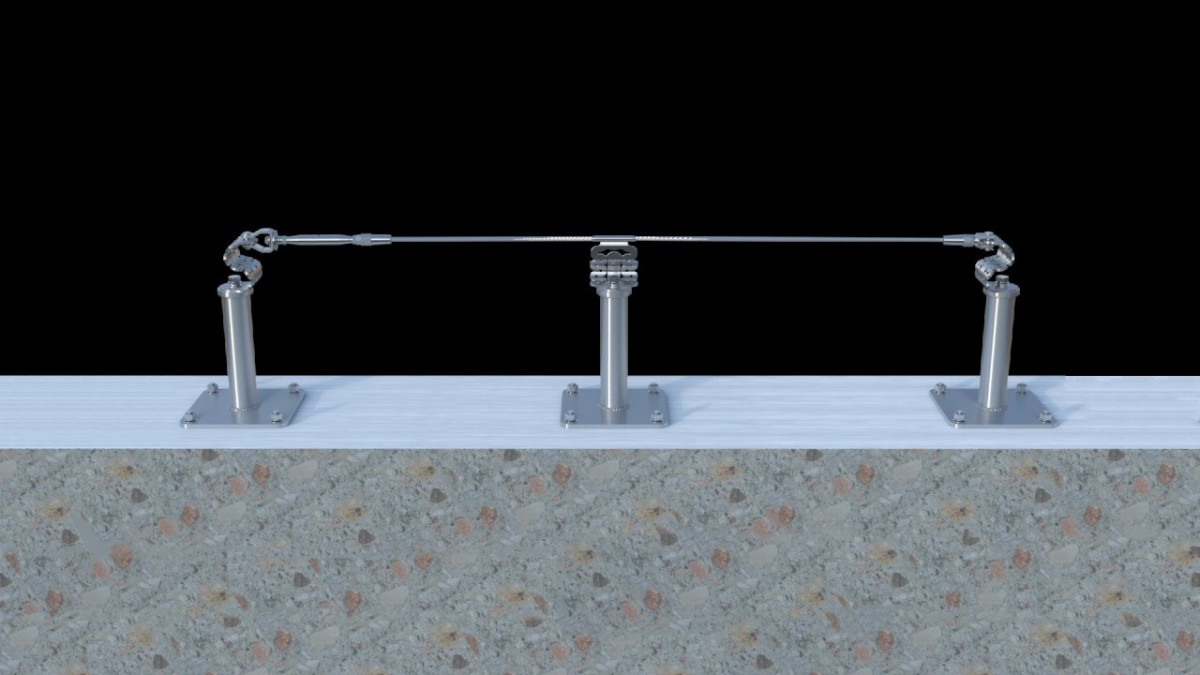

TUFF POST CONCRETE 01

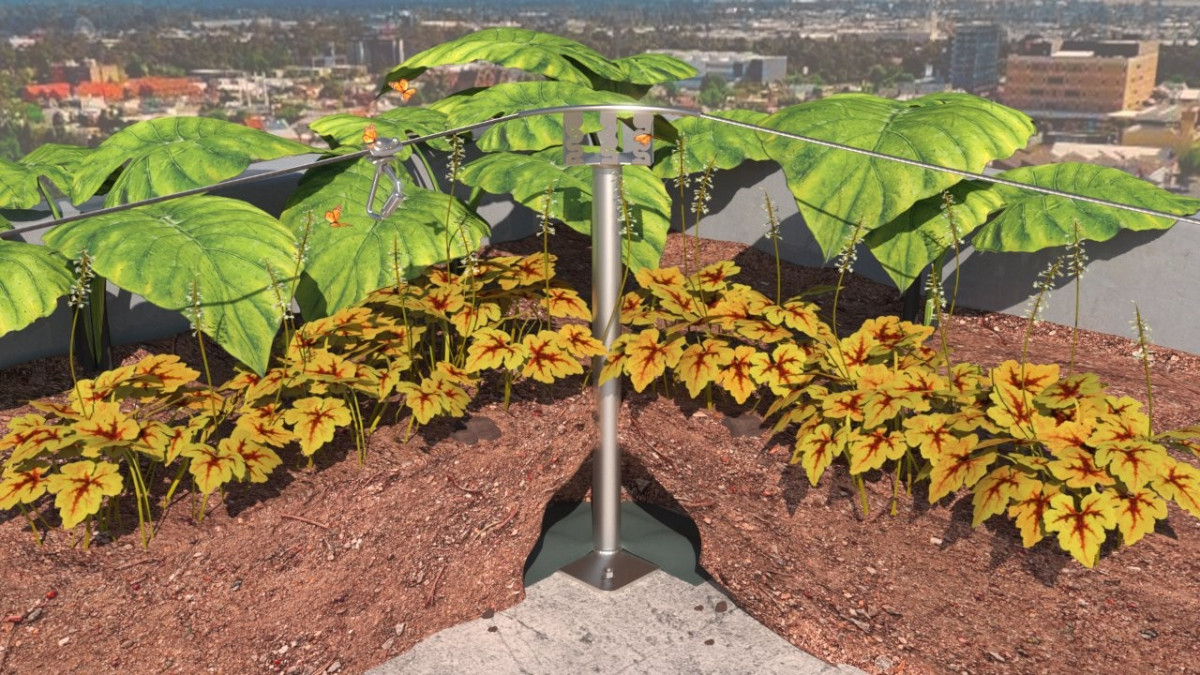

TUFF POST 900 installed

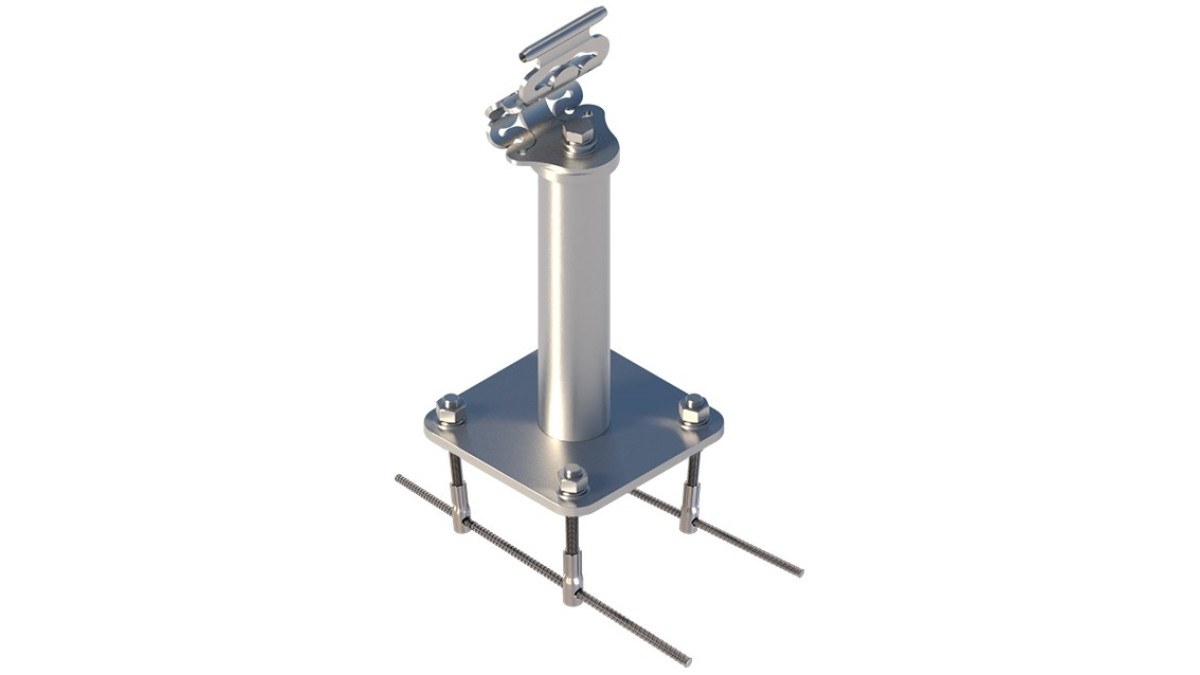

Tuff Post 300mm Intermediate Cast In Cage

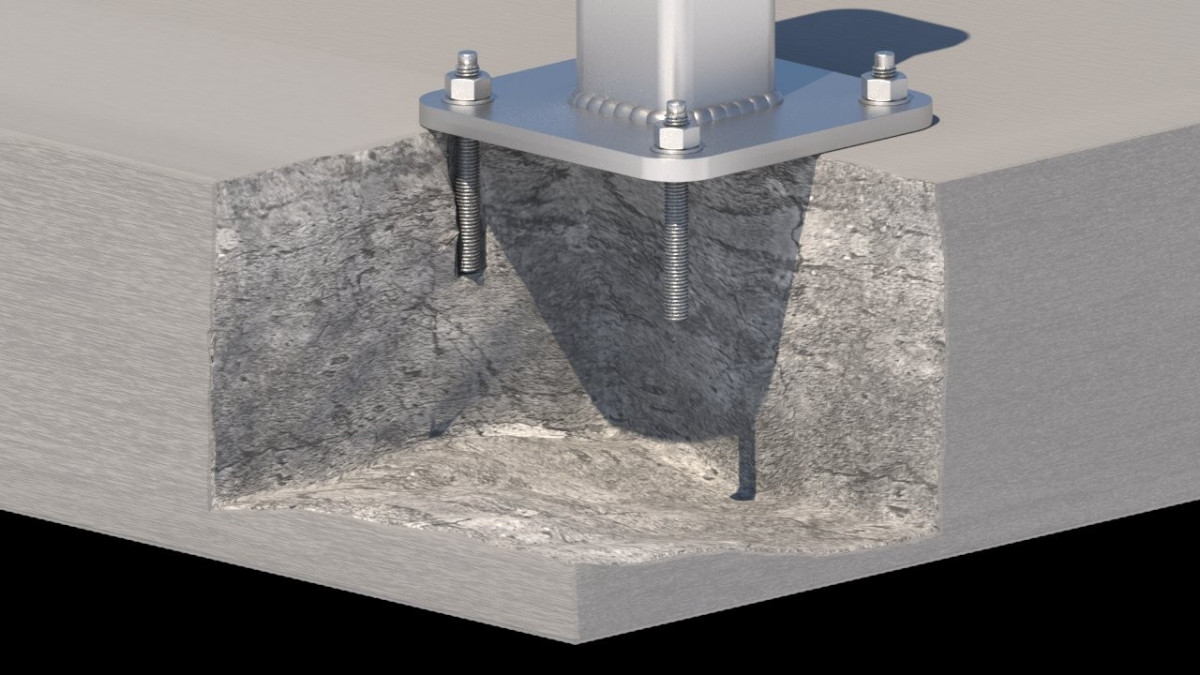

TUFF POST CONCRETE CUTAWAY

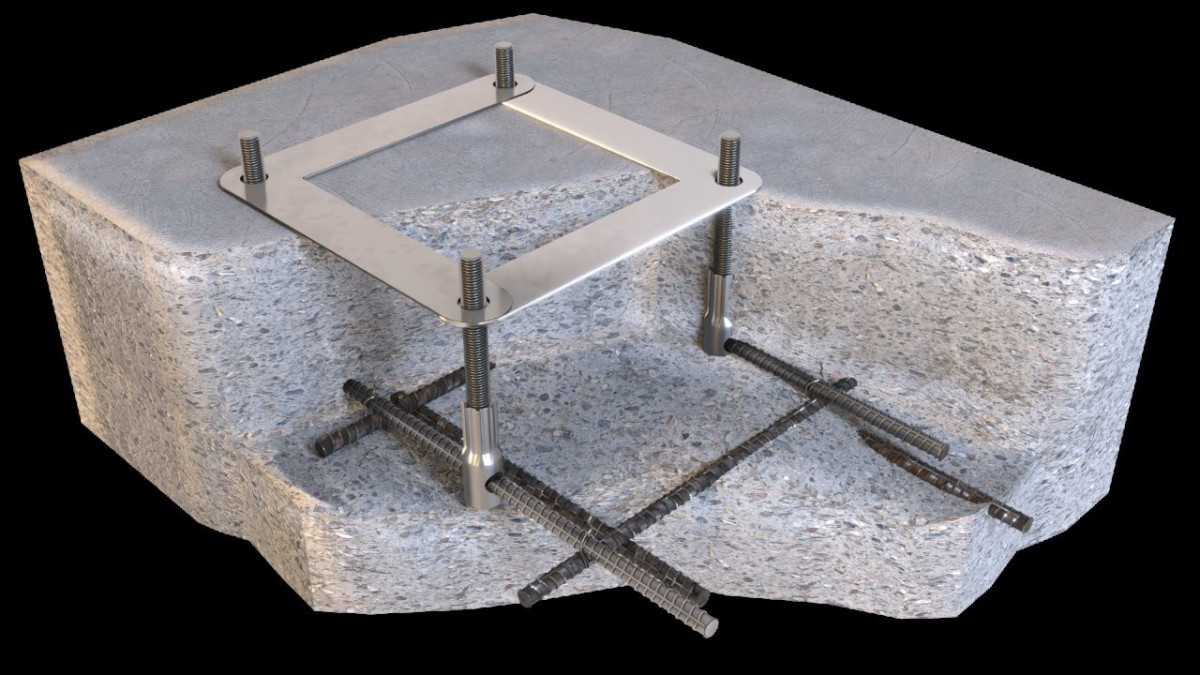

TUFF POST 600 900 CAST IN CAGE 1
Description

The SafetyLink FrogLine TUFF-POST Warm Roof Lifeline System is a permanent horizontal lifeline system designed for warm roof construction where the waterproof membrane is flashed directly to the TUFF-POST MINI / TUFF POST, maintaining the integrity and weatherproof performance of the roofing system.

The TUFF-POST raises the lifeline connection above the finished roof level, allowing the membrane build-up to continue uninterrupted while providing continuous fall protection for personnel working at height.

The system is available with 100, 150, 300, 600 and 900 mm TUFF-POSTs to suit varying insulation depths and roof build-ups. Depending on the roof structure, the TUFF-POSTs are installed using chemical anchors into reinforced concrete or mechanically fixed to structural steel. Manufactured from 316 stainless steel, the system is suitable for commercial and industrial roof access applications.

Key Features
  • Permanent horizontal lifeline system.
  • Designed specifically for warm roof construction.
  • Waterproof membrane flashed directly to the TUFF-POST.
  • Continuous fall protection along designated access routes.
  • 316 stainless steel construction.
  • 100, 150, 300, 600 and 900mm TUFF-POST options.
  • Suitable for reinforced concrete and structural steel roof structures.
  • Chemical anchor or mechanical fixing installation options.
  • Compatible with SafetyLink FrogLine shuttles.
  • Energy absorbing end anchors.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Concrete Roof Access Systems Concrete Warm-Roof Access Systems Green Roof | Garden Bed Access Systems Roof Lifeline Systems — Fall Arrest
Scope of Use
  • Commercial, industrial and institutional buildings.
  • Warm roof membrane systems.
  • Suitable for reinforced concrete and structural steel roof structures.
  • Roof-mounted plant and equipment access.
  • Solar maintenance access.
  • New construction and retrofit projects.
  • 100, 150, 300, 600 and 900 mm TUFF-POST options.
  • Chemical anchor or mechanical fixing installation options.
  • Compatible with SafetyLink FrogLine shuttles.



Limitations on Use
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspect and recertify in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC B1, B2 and F4.

  • Manufactured and tested to AS 5532.
  • Installed and maintained in accordance with AS/NZS 1891.4.



Other Performance Attributes
  • 316 stainless steel construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
Data Sheet: SafetyLink Tuff Post FrogLine
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: FrogLine
pdf
Operation Manual: FrogLine Lifeline
pdf
Flyer: SafetyLink Tuff Post FrogLine
pdf
