FrogLine — RetroLink Lifeline
Total Height Safety
All products

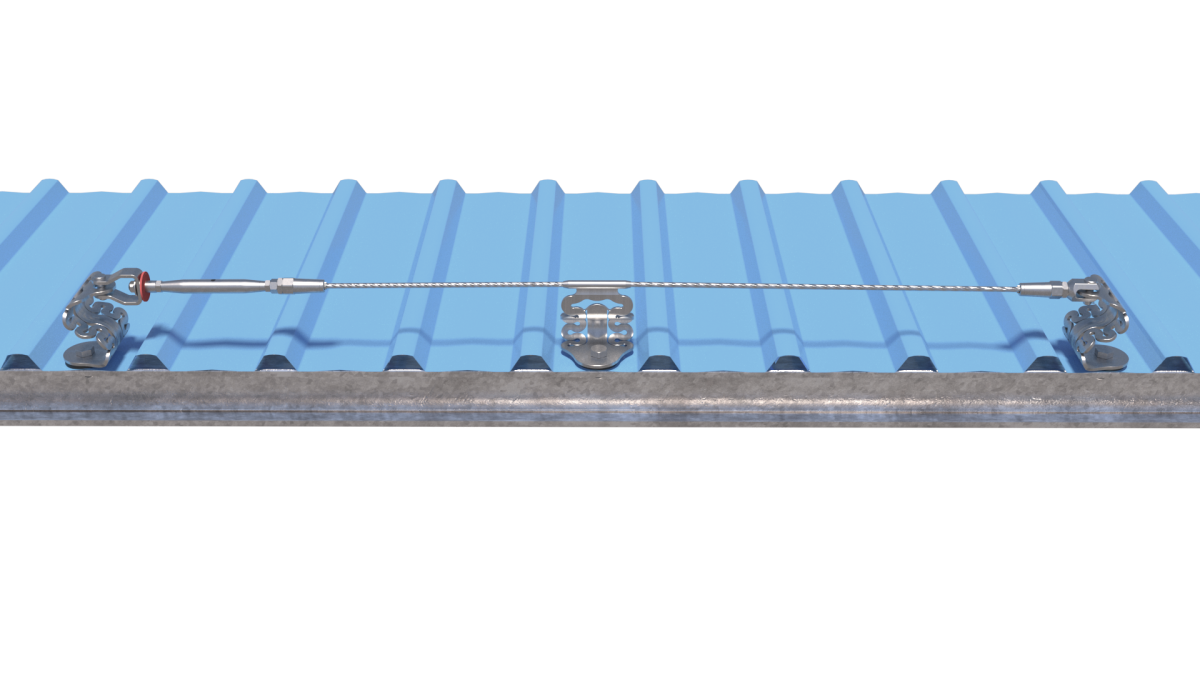

FROGLINE RETRO2

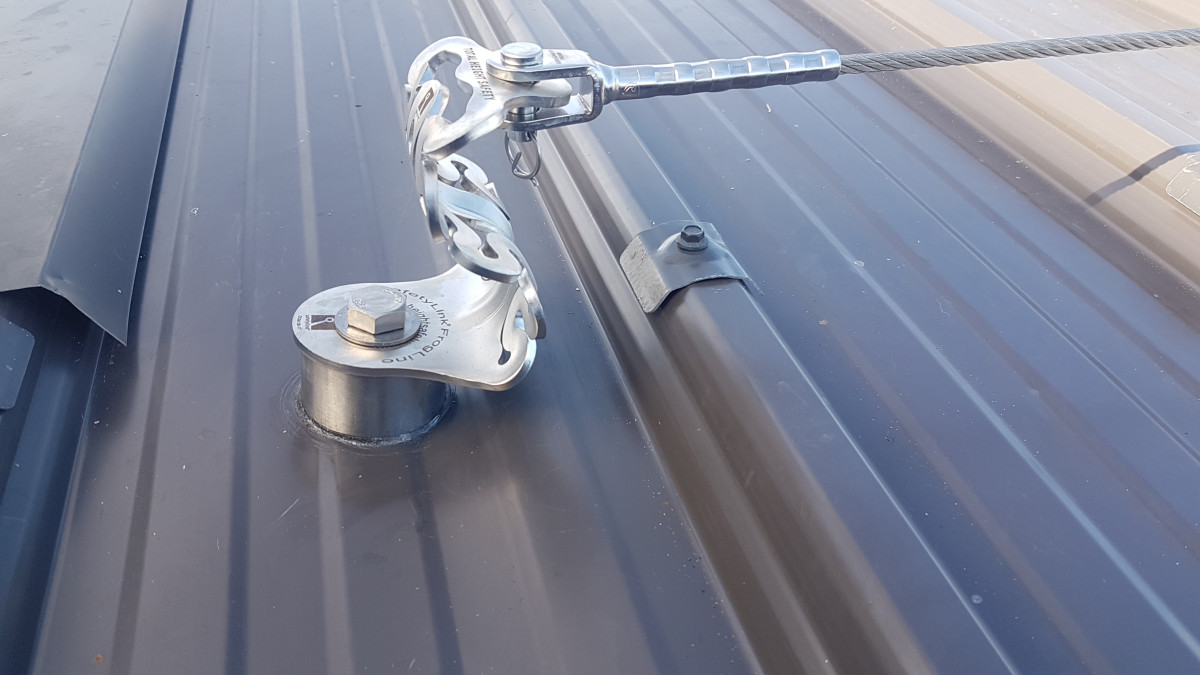

2019 06 06 11.59.28

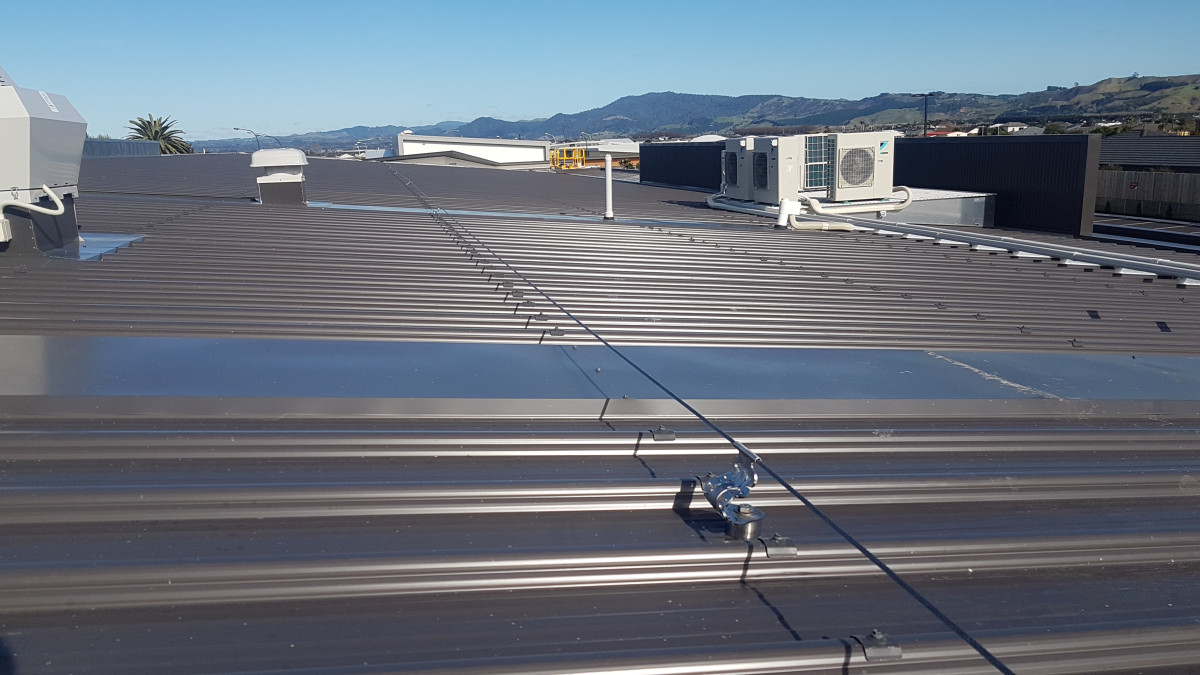

2019 06 06 12.00.53

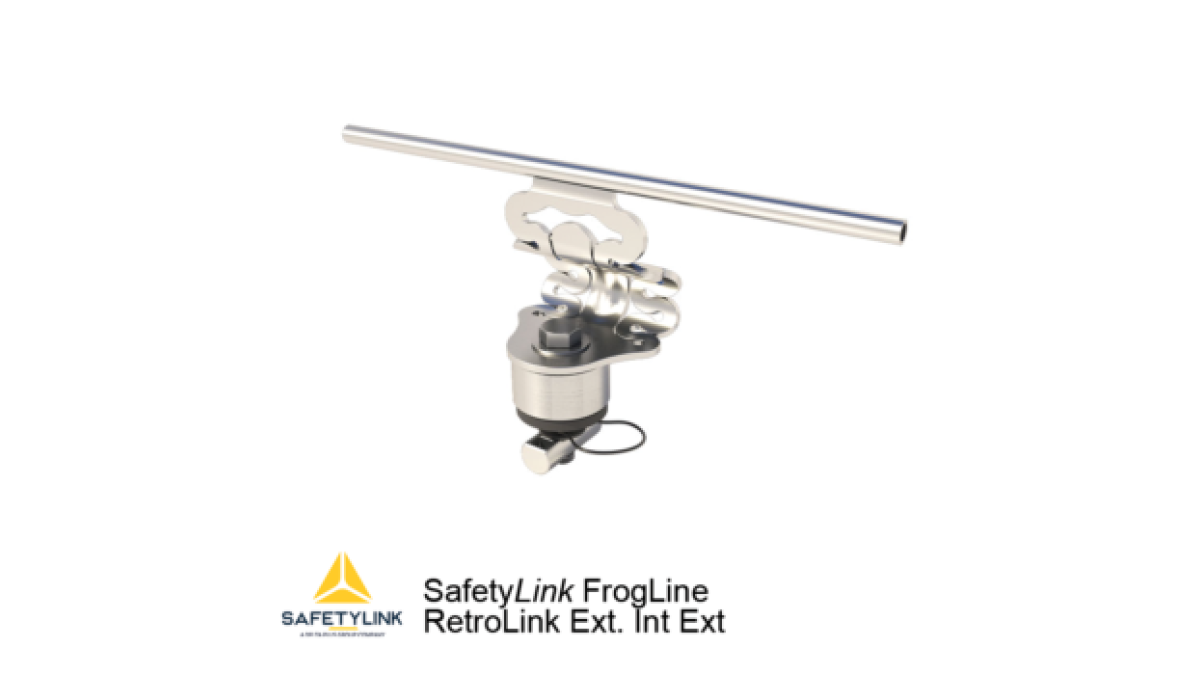

STAT.FROGRET008 EXT 350x350
Description

The SafetyLink FrogLine RetroLink Lifeline System is a permanent horizontal lifeline designed for installation through metal roof sheeting into steel purlin construction. Manufactured from 316 stainless steel, the system incorporates engineered energy-absorbing anchor components to minimise loads on users and the supporting structure in the event of a fall. The RetroLink system uses an 8mm stainless steel lifeline and the SafetyLink FrogLine shuttle to provide continuous connection during roof access. Extension heights of 35, 55and 90mm are available to suit a range of roof profiles.

Key Features
  • Permanent horizontal lifeline system.
  • Designed for metal roof sheeting fixed to steel purlins.
  • Engineered energy-absorbing anchor system.
  • Available with 35, 55 and 90mm extensions.
  • 8 mm stainless steel lifeline.
  • Continuous connection using the FrogLine shuttle.
  • 316 stainless steel construction.
  • Foam barrier tape to assist weather sealing.
  • Suitable for roof pitches up to 25°.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Metal Roof Access Systems Roof Lifeline Systems — Fall Arrest
Scope of Use
  • Commercial, industrial and institutional buildings.
  • Metal roof sheeting over steel purlins.
  • Permanent roof access routes.
  • New construction and retrofit applications.
  • Available with 35, 55 and 90mm extensions.
  • Suitable for roof pitches up to 25°.
Limitations on Use
  • Commercial, industrial and institutional buildings.
  • Metal roof sheeting over steel purlins.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Use approved SafetyLink components only.
  • Inspect and re-certify in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Tested and manufactured in accordance with AS/NZS 1891.2 and other referenced international standards.

Other Performance Attributes
  • 316 stainless steel components.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: FrogLine
pdf
Operation Manual: FrogLine Lifeline
pdf
Flyer: FrogLine RetroLink
pdf
