FrogLine — Overhead Lifeline
Total Height Safety
All products
FrogLine Overhead steel 2 600x600
20190717 204839
20220622 113345
20220622 104939
Description

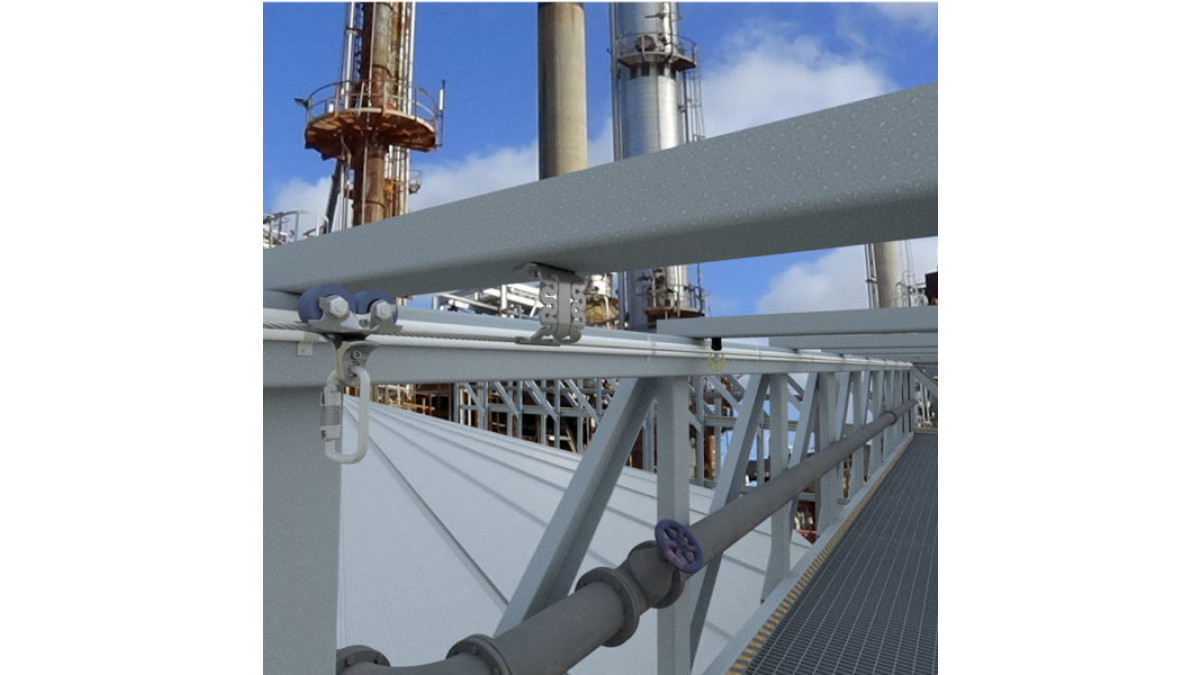

The SafetyLink FrogLine Overhead Horizontal Lifeline System is a permanent overhead-mounted horizontal lifeline designed to provide continuous fall protection for personnel working beneath structural steel or concrete structures.

Key Features
  • Permanent overhead horizontal lifeline.
  • Suitable for steel or concrete structures.
  • Patented engineered energy-absorbing anchors.
  • Continuous attachment using the SafetyLink Overhead Shuttle.
  • Shuttle passes smoothly through intermediate anchors.
  • Supports up to four users per system (maximum two users per span).
  • Built-in fall indicator technology.
  • Low-profile engineered design.
  • Fast, simplified installation.
  • Corrosion-resistant for harsh environments.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Overhead Lifeline System — Fall Arrest
Scope of Use
  • Suitable for permanent overhead fall protection in:
    • Commercial buildings
    • Industrial facilities
    • Manufacturing plants
    • Warehouses
    • Overhead crane access areas
    • Maintenance walkways
    • Infrastructure projects
    • New construction
  • Suitable for installation onto compatible steel and concrete structures.
  • Supports up to four users per system (maximum two users per span).
  • Corrosion-resistant for harsh environments.
Limitations on Use
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Use approved SafetyLink components only.
  • Inspect and re-certify in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance
  • Manufactured and tested to AS 5532.
  • Installed and maintained in accordance with AS/NZS 1891.4.
Other Performance Attributes
  • 316 stainless steel construction.
Warranty & Maintenance
  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Data Sheet: FrogLine Overhead
pdf
7938TH Product Specification
docx
Total Height Safety on Masterspec
docx
Flyer: FrogLine Overhead
pdf
