AltiRail — Rigid Incline Rail System
Description

The SafetyLink ALTIRAIL Horizontal and Vertical Rail System is a permanent rigid rail fall protection system designed to provide continuous personal fall protection across horizontal, vertical and inclined access routes.

The system utilises a rigid rail and mobile carriage to enable uninterrupted movement while remaining continuously connected. Unlike conventional cable systems, ALTIRAIL can transition seamlessly through 180° to 90° incline configurations, making it suitable for roof access systems, façades, industrial facilities and complex structures where changing angles or low fall clearance exist.

Available in horizontal, vertical and inclined configurations with options for suspended, tensioned and direct-fixed installations. The rigid rail and mobile carriage provide smooth, uninterrupted movement while maintaining continuous attachment. The system's ability to transition seamlessly through 180° to 90° incline configurations enables designers to create continuous fall protection systems across complex structures without requiring users to disconnect or transfer between separate systems.

Key Features
  • Permanent rigid horizontal, vertical and inclined rail system.

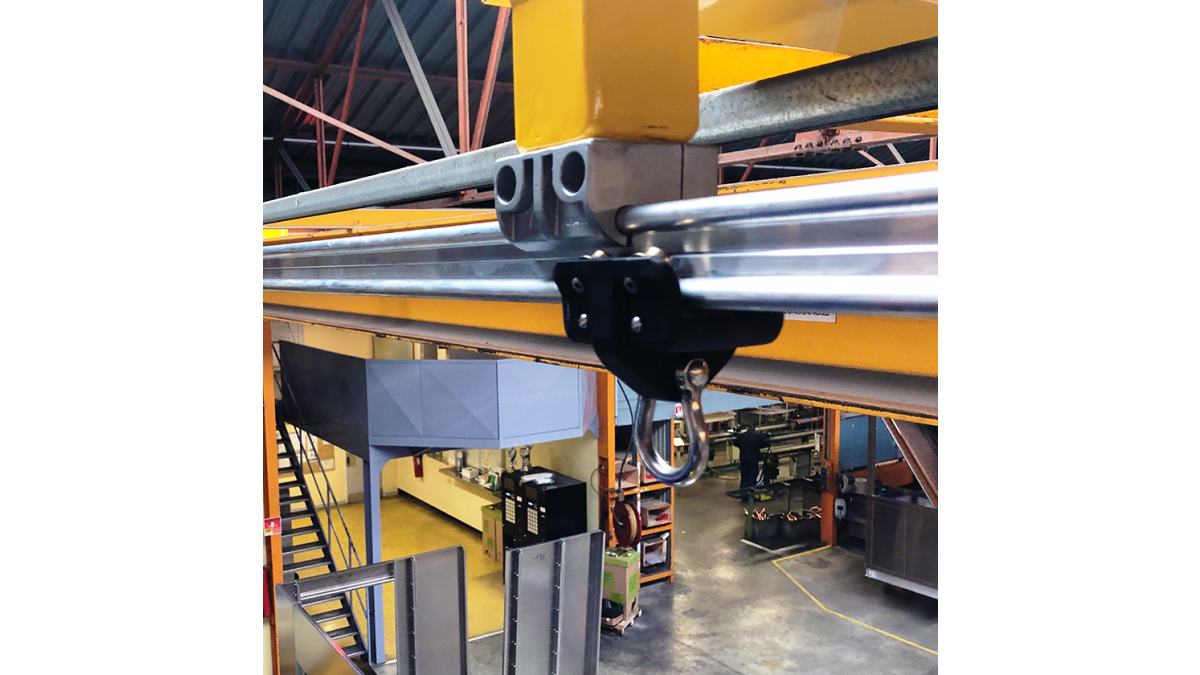

  • Continuous attachment using a mobile carriage.

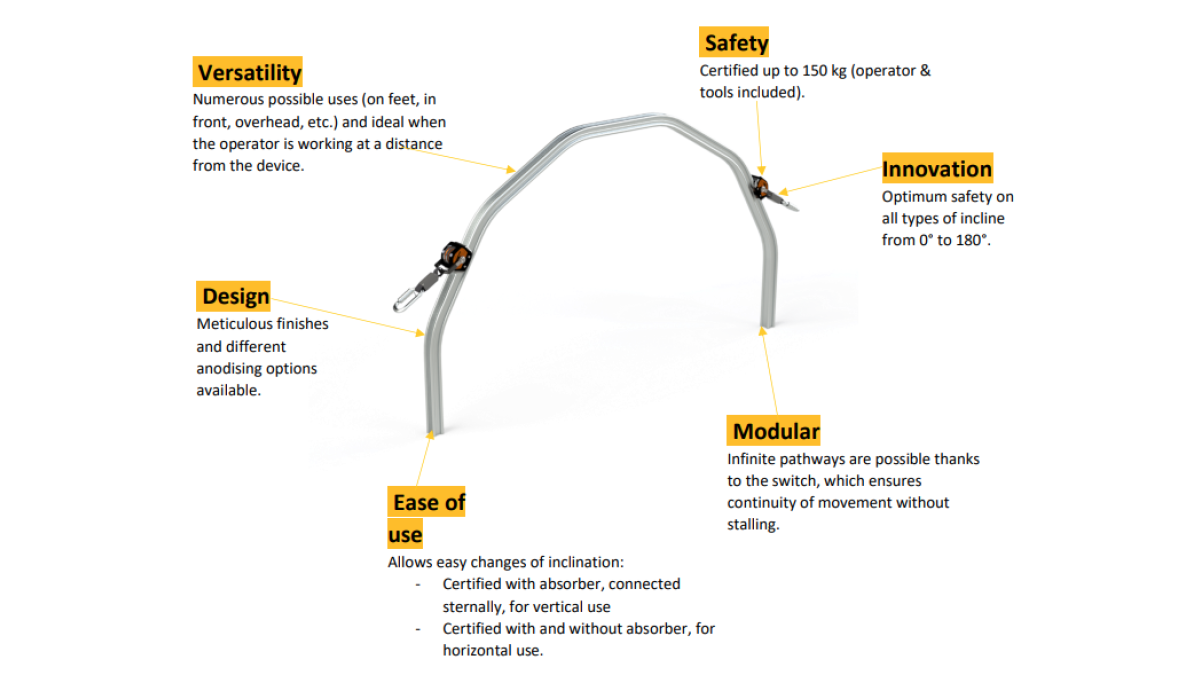

  • Continuous movement through 180° to 90° incline configurations.
  • Suitable for fall arrest, fall restraint and rope access applications.
  • Provides smooth, uninterrupted user movement throughout the access route.
Scope of Use
  • Commercial, industrial and infrastructure buildings.
  • Roof and façade access systems.
  • Building maintenance and plant access.

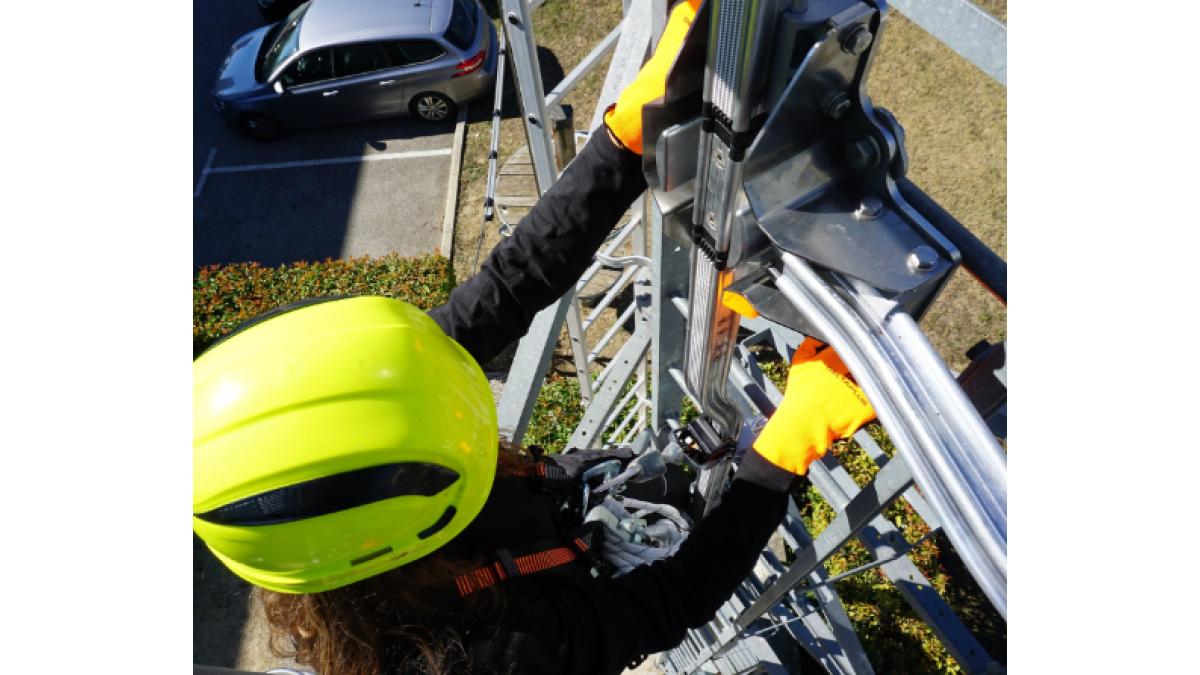

  • Vertical ladder systems.

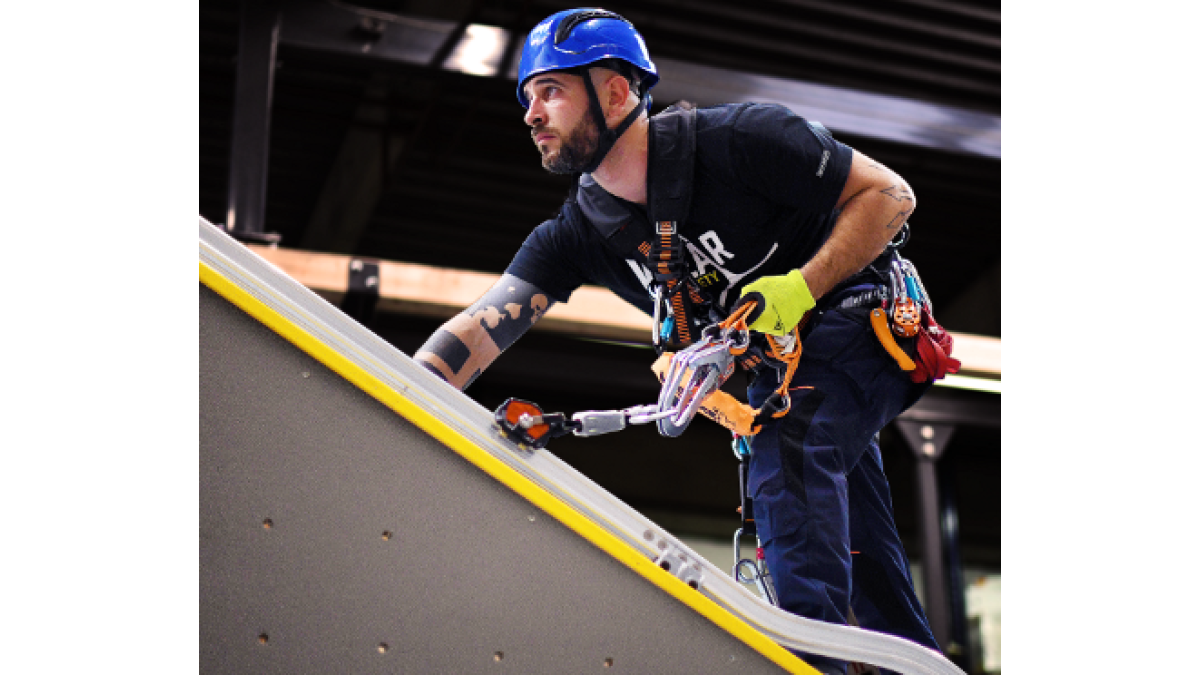

  • Horizontal and inclined access routes.
  • Steel, concrete and timber structures.
  • New construction and retrofit projects.
Limitations on Use
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspection and recertification in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling.

Tested and/or certified to AS/NZS 5532 and AS/NZS 1891.4.

Other Performance Attributes
  • Marine grade aluminiumn construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Handbook: AltiRail
Height Safety Systems and Design Guide
7938TH Product Specification
Specification Guide
Total Height Safety on Masterspec
Installation: AltiRail
