Solatube HP Series Tube Skylight

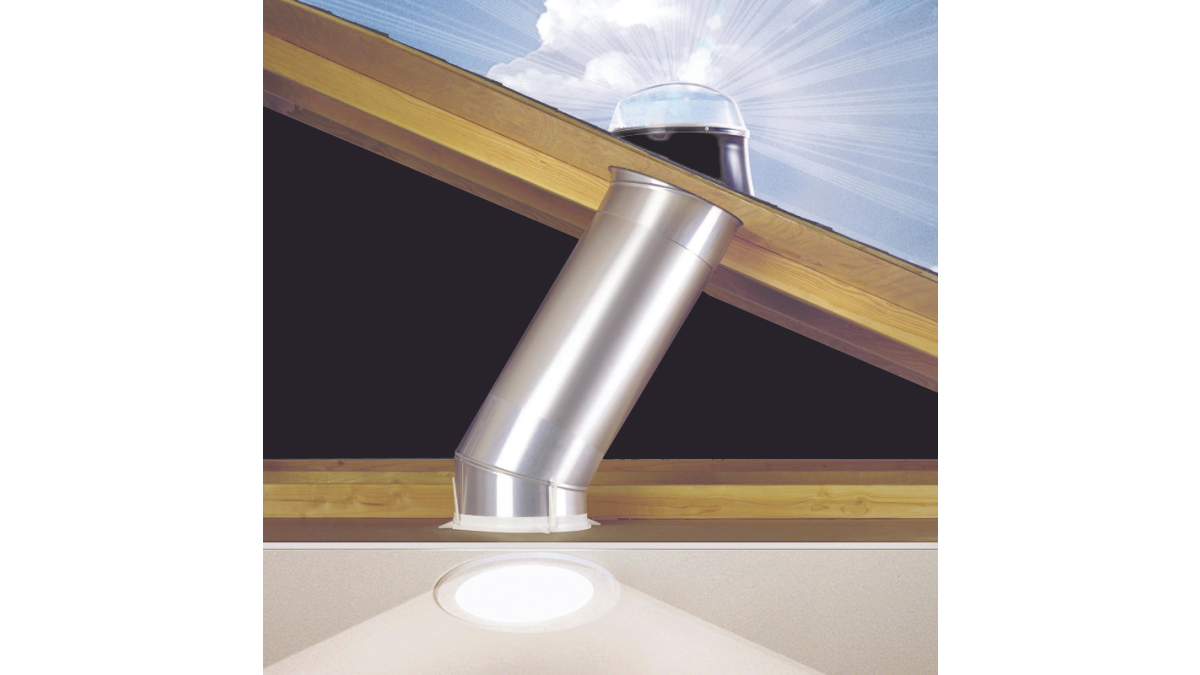

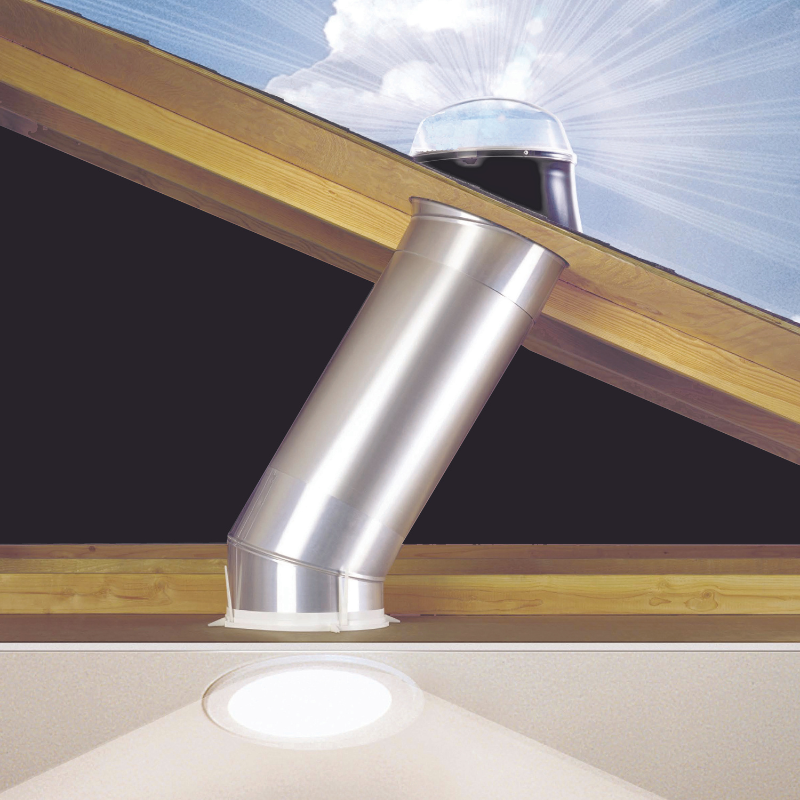

The HP250 & HP350 are premium tube skylights for providing additional daylight to residential spaces such as living rooms, kitchens, bedrooms, bathrooms, and closets. Featuring an engineered clear dome for light and strength, and a miro silver tube, delivering evenly distributed light via a range of stylish diffusers. Available in 250mm & 350mm diameter.

Key Features
  • Leak-proof design with proprietary roof flashings
  • High performing during summer and when the sun is high in the sky
  • Flexible installation: angle adapters and highly reflective tubes allows light to move horizontally and around corners
  • Dimmable — daylight dimmer accessories available
  • Modern look with multiple diffuser options to choose from
  • Peace of mind: 10 year product warranty
Scope of Use
  • Suitable for bathrooms, hallways, corridors, utility rooms, dens, home offices, kitchens, dining rooms, and closets
  • New builds or retro-fits
  • Use with proprietary roof flashings
  • Flexible placement of dome on roof (subject to maximum tube run)
Limitations on Use
  • Installation to be carried out by authorised Solatube licensee
  • Installation requires access to the roof interior and exterior
  • Maximum total tube run:
    • HP 250: <6m
    • HP 350: <9m
  • Maximum recommended ceiling height: 3m
Statement of Building Code Compliance

Solatube Daylight Systems and Roof Penetrations, if designed, used, installed, and maintained in accordance with the statements and conditions the Solatube technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (b), 15 years
  • Clause E2 External Moisture: Performance E2.3.1 and E2.3.2
  • Clause F2 Hazardous Building Materials: Performance F2.3.1
  • Clause G7 Natural Light: Performance G7.3.1 and G7.3.2
Other Performance Attributes
  • 10 year product warranty when using Solatube's proprietary roof flashings
Data Sheet: HP 250
Data Sheet: HP 350
HP Series Comparison Table

Solatube daylighting systems deliver beautiful natural light into any space, with the most advanced
technologies available.
