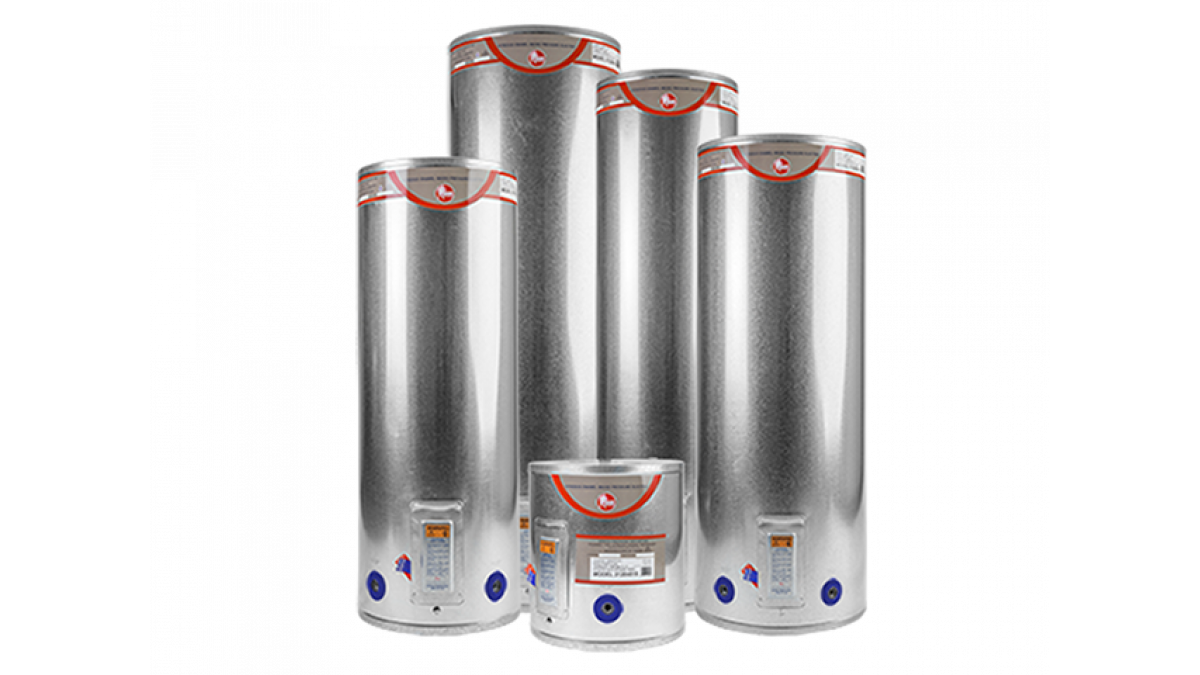

Mains Pressure Vitreous Enamel Electric Hot Water Cylinders
Description

Vitreous Enamel lined hot water cylinders provide greater corrosion resistance to a wide range of water conditions including varying pH levels, high chlorides, hard water and MIC (Microbiological Induced Corrosion) as found in parts of New Zealand or in areas with untreated bore water. Models range from 25 litre to 300 litre capacity.

Key Features
  • Abundant hot water suitable for all water pressures
  • Galvanised steel exterior
  • Inner steel cylinder coated with vitreous enamel to suit a wide range of water conditions
  • Fitted with a sacrificial zinc/magnesium anode to provide additional corrosion protection to the cylinder in adverse water conditions
  • Solstice Green insulation helps maintain the optimum water temperature, reducing energy use and providing economic and environmental benefits
  • Designed and manufactured in New Zealand
  • Twin and dual element models available
  • 10 year domestic residential cylinder warranty

Available in the following model configurations:

  • MPVE 31202519V | 25L | 398 x 400mm | 2.0kW
  • MPVE 31204513 | 45L | 525 x 490mm | 2.0kW
  • MPVE 31204515 | 45L | 525 x 490mm | 3.0kW
  • MPVE 31209013 | 90L | 925 x 490mm | 2.0kW
  • MPVE 31209015 | 90L | 925 x 490mm | 3.0kW
  • MPVE 31213513 | 135L | 1325 x 490mm | 2.0kW
  • MPVE 31213515 | 135L | 1325 x 490mm | 3.0kW
  • MPVE 32213515 | 135L | 935 x 580mm | 3.0kW
  • MPVE 31218013 | 180L | 1710 x 490mm | 2.0kW
  • MPVE 31218015 | 180L | 1710 x 490mm | 3.0kW
  • MPVE 32218015 | 180L | 1165 x 580mm | 3.0kW
  • MPVE 31218025 | 180L | 1710 x 490mm | 2 x 3.0kW non-simultaneous
  • MPVE 31225015 | 250L | 1555 x 580mm | 3.0 kW
  • MPVE 31225025 | 250L | 1555 x 580mm | 2 x 3.0 kW non-simultaneous
  • MPVE 31230015 | 300L | 1815 x 580mm | 3.0 kW
  • MPVE 31230033 | 300L | 1815 x 580mm | 2 x 3.0 kW simultaneous
  • MPVE 31230055 | 300L | 1815 x 580mm | 2 x 5.0 kW simultaneous
NZ Made
NZ Made
Scope of Use
  • Residential hot water cylinder
  • Indoor installation
  • 135 litre model is suitable for 1-2 people in moderate climates
  • 300 litre model is suitable for 3-5 people in moderate climates
  • Suitable for mains pressure, unequal pressure and low pressure use
  • Suitable for a wide range of water conditions including hard water, bore water and high chloride
Limitations on Use
  • Not suitable for outdoor installation
  • Not suitable for uncontrolled heat source (solar and/or wetback)
High Pressure
High Pressure
Low Pressure
Low Pressure
Unequal Pressure
Unequal Pressure
Statement of Building Code Compliance
  • NZ MEPS Compliant
Other Performance Attributes
  • Domestic Warranty: Cylinder/Tank (Replacement): 10 year
  • Domestic Warranty: Cylinder/Tank (Labour): 5 year
  • Domestic Warranty: Parts (Parts/Labour): 1 year
Documents
Data Sheet
Supplier Declaration of Conformity
Warranty
Installation Instructions & Owner's Guide (25L)
Installation Instructions & Owner's Guide (45L - 300L)
Brochure: Hot Water For Your Home
