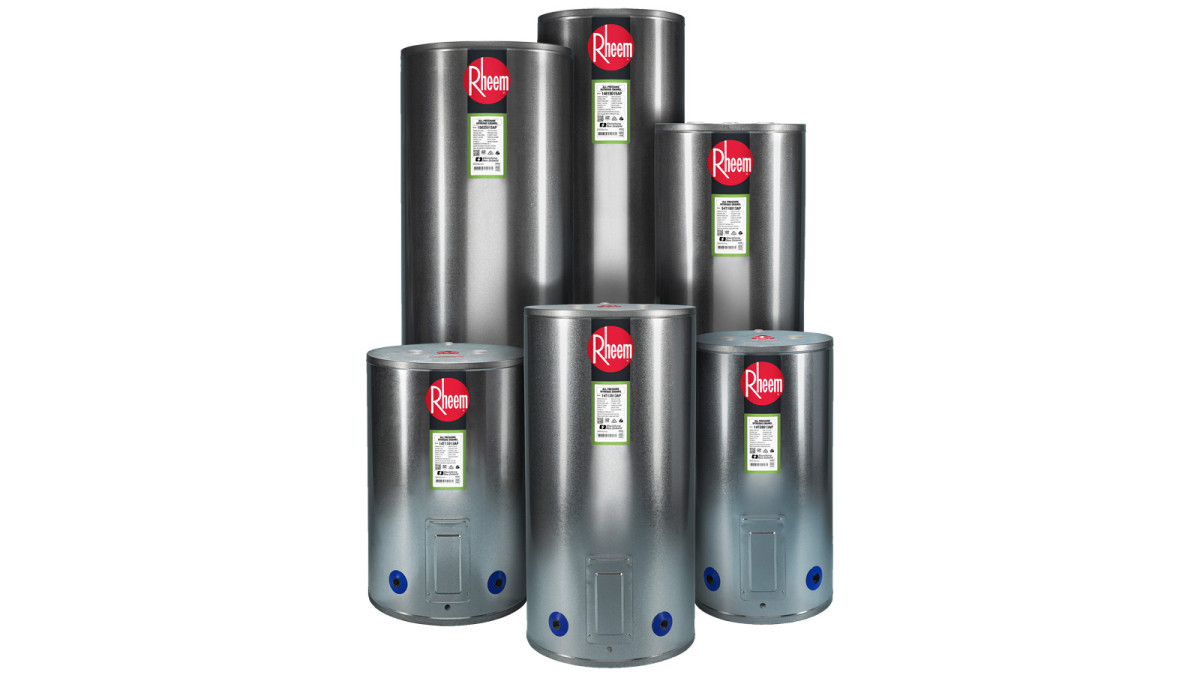

All Pressure™ Vitreous Enamel Electric Hot Water Cylinders by Rheem

All Pressure™ Vitreous Enamel Electric Hot Water Cylinders

Description

The Rheem® APVE™ range makes upgrading to Mains Pressure simple. APVE™ cylinders are a drop in replacement that can be easily connected to existing low and mains pressure systems. Even if initially installed as low pressure, APVE™ cylinders can be upgraded to mains pressure in the future.

Key Features

Height and diameter to match popular low-pressure copper sizes for easy and convenient direct replacement as a 'like for like'
Install as a mains pressure or as a medium/low pressure and upgrade later with a valving change
Bottom entry for direct replacement with low-pressure
Suitable for a wide range of water conditions
Superior durability compared to Stainless Steel and copper
10 years cylinder warranty — double the warranty period of copper cylinders

Available in the following model configurations:

APVE 14809013AP | 90L | 488 x 920H | 2.0kW
APVE 14809015AP | 90L | 488 x 920H | 3.0kW
APVE 14T09013AP | 90L | 510 x 780H | 2.0kW
APVE 14T11013AP | 110L | 510 x 945H | 2.0kW
APVE 14813513AP | 135L | 488 x 1320H | 2.0kW
APVE 14813515AP | 135L | 488 x 1320H | 3.0kW
APVE 12T13513AP | 135L | 610 x 795H | 2.0kW
APVE 16T13513AP | 135L | 510 x 1140H | 2.0kW
APVE 54T13513AP | 135L | 540 x 1030H | 2.0kW
APVE 14T13513AP | 135L | 560 x 950H | 2.0kW
APVE 15813513AP | 135L | 580 x 885H | 2.0kW
APVE 15813515AP | 135L | 580 x 885H | 3.0kW
APVE 14818013AP | 180L | 488 x 1715H | 2.0kW
APVE 14818015AP | 180L | 488 x 1715H | 3.0kW
APVE 54T18013AP | 180L | 540 x 1350H | 2.0kW
APVE 54T18015AP | 180L | 540 x 1350H | 3.0kW
APVE 14T18013AP | 180L | 560 x 1220H | 2.0kW
APVE 14T18015AP | 180L | 560 x 1220H | 3.0kW
APVE 15818013AP | 180L | 580 x 1135H | 2.0kW
APVE 15818015AP | 180L | 580 x 1135H | 3.0kW
APVE 12T18013AP | 180L | 610 x 1015H | 2.0kW
APVE 12T18015AP | 180L | 610 x 1015H | 3.0kW
APVE 16T18013AP | 180L | 510 x 1505H | 2.0kW
APVE 16T18015AP | 180L | 510 x 1505H | 3.0kW
APVE 14T25015AP | 250L | 560 x 1710H | 3.0kW
APVE 15825015AP | 250L | 580 x 1540H | 3.0kW
APVE 12T25015AP | 250L | 610 x 1410H | 3.0kW

Ranges

Hot Water Heating for the Home Domestic Electric Water Heaters

NZ Made

Scope of Use

Residential hot water cylinder
Indoor installation
135 litre model is suitable for 2-3 people in moderate climates
180 litre model is suitable for 3-4 people in moderate climates
250 litre model is suitable for 5+ people in moderate climates
Suitable for a wide range of water conditions
Install as a mains pressure or as a medium/low pressure and upgrade later with a valving change
