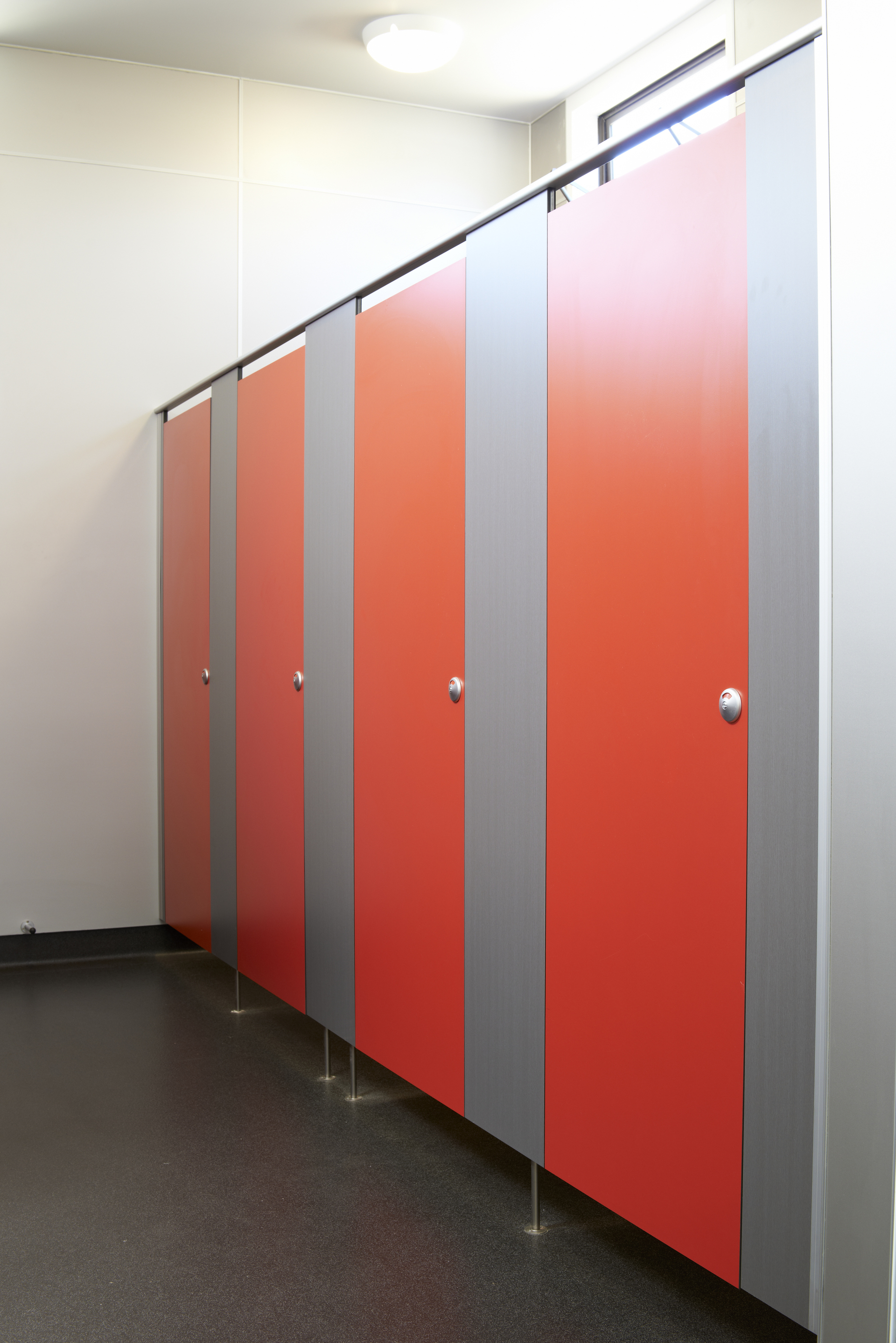

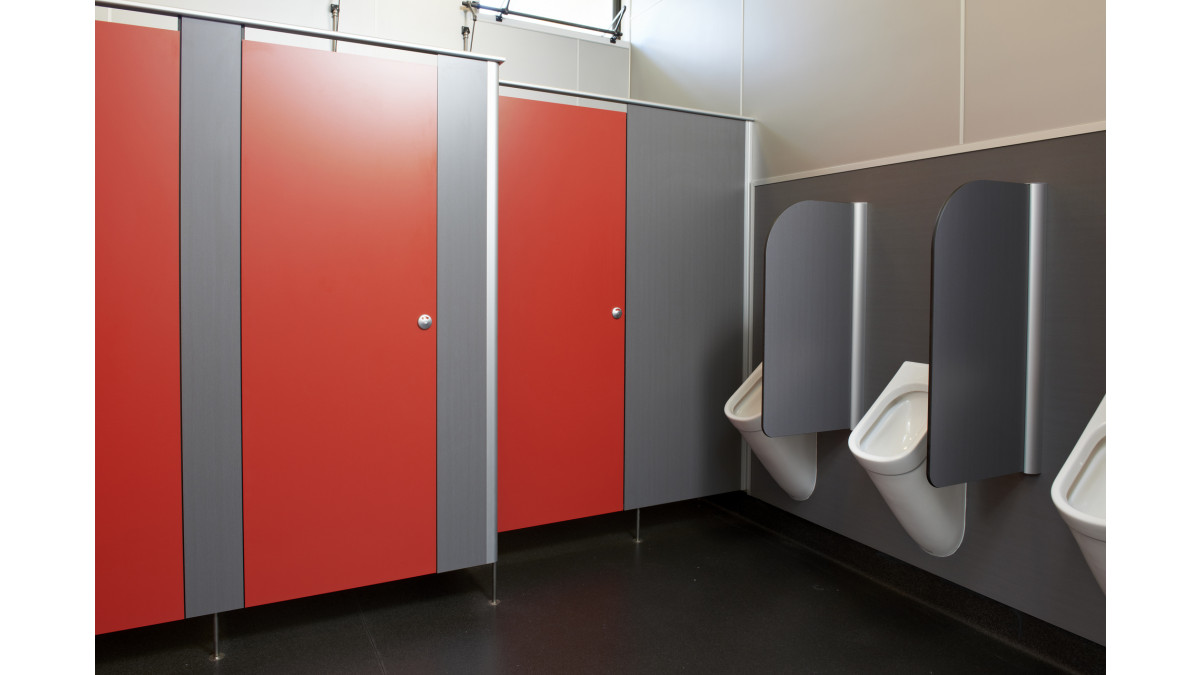

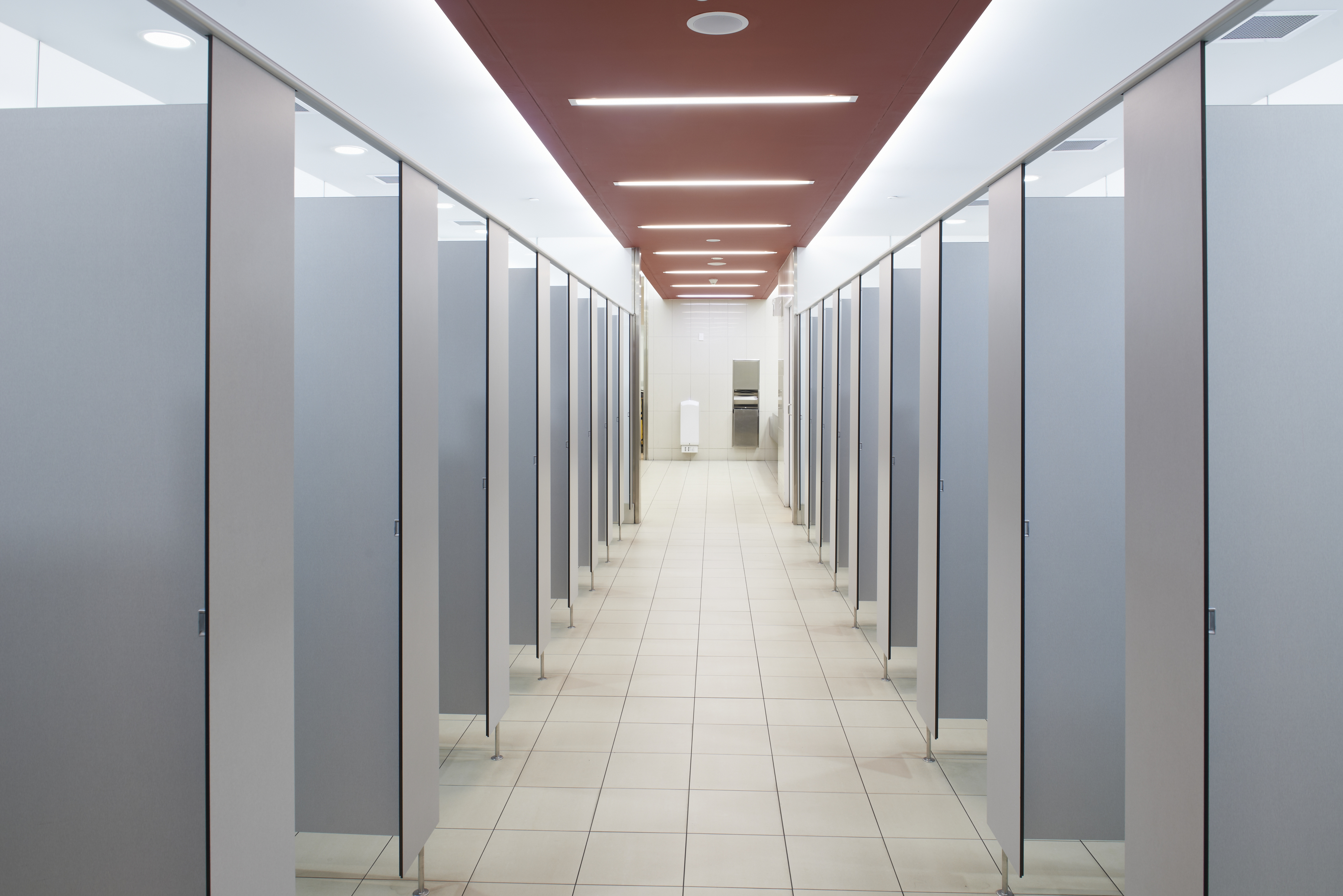

5000 Series Toilet Partition
Description

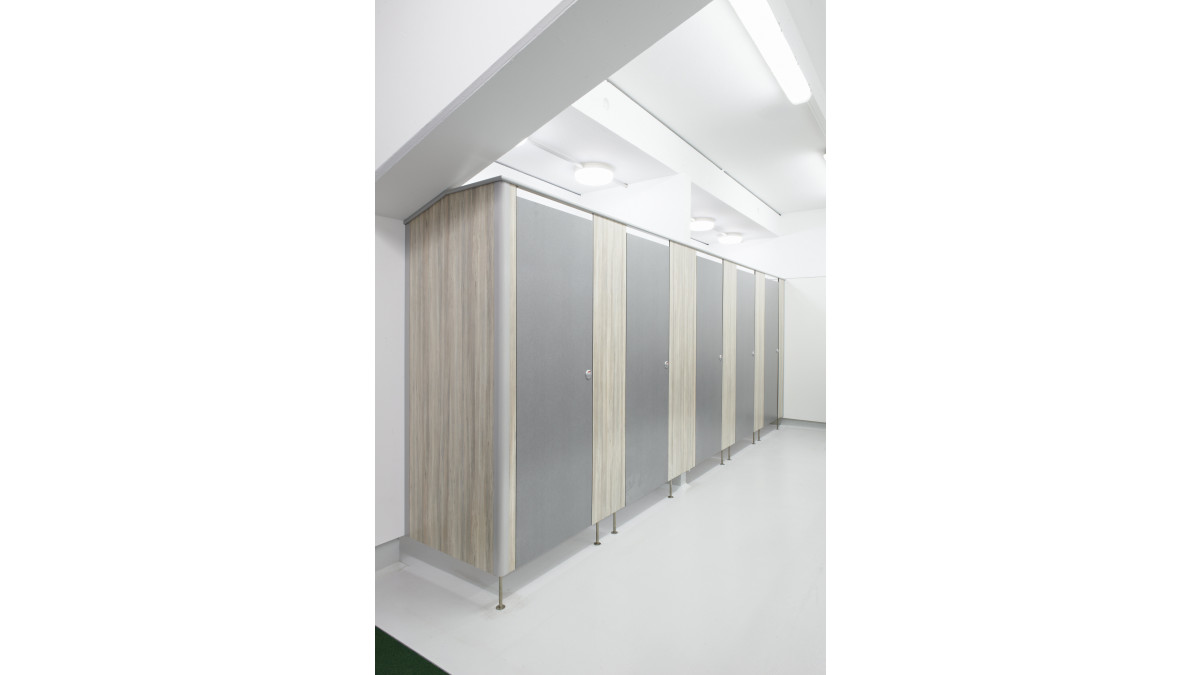

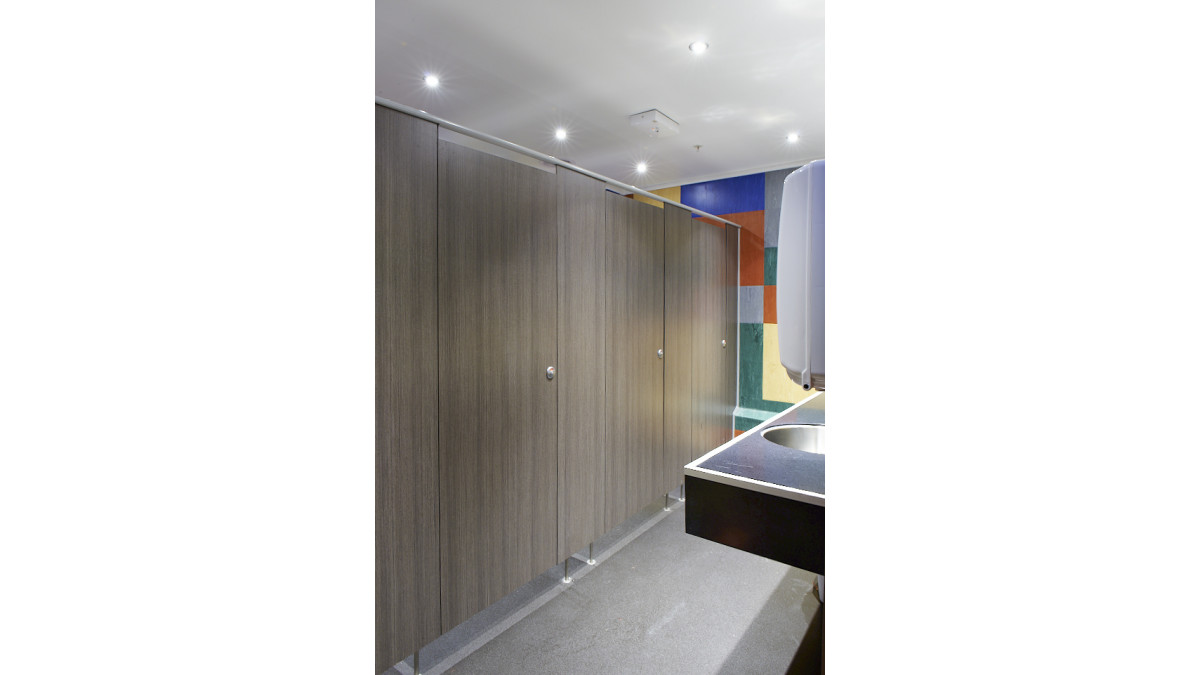

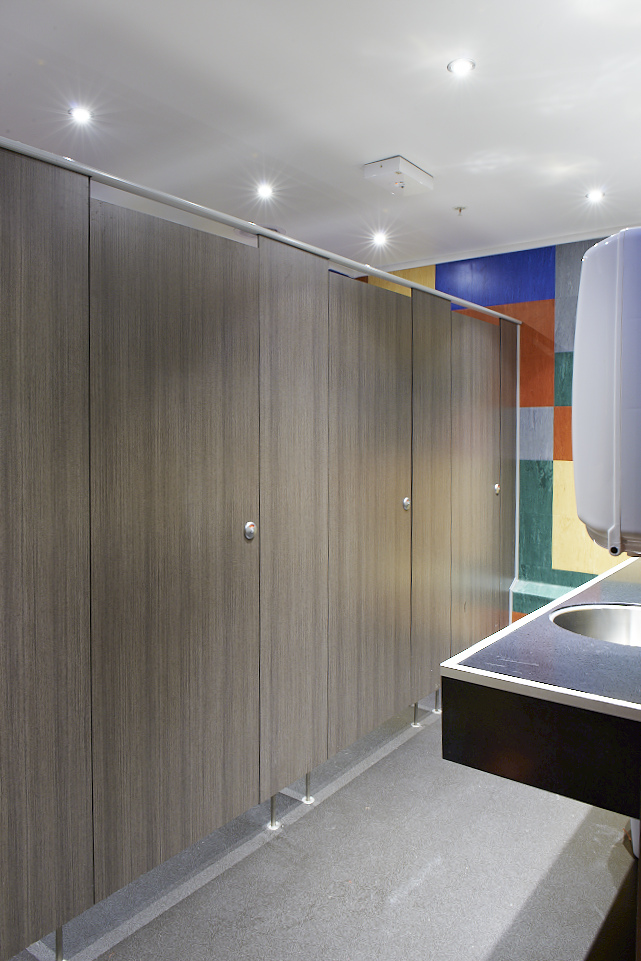

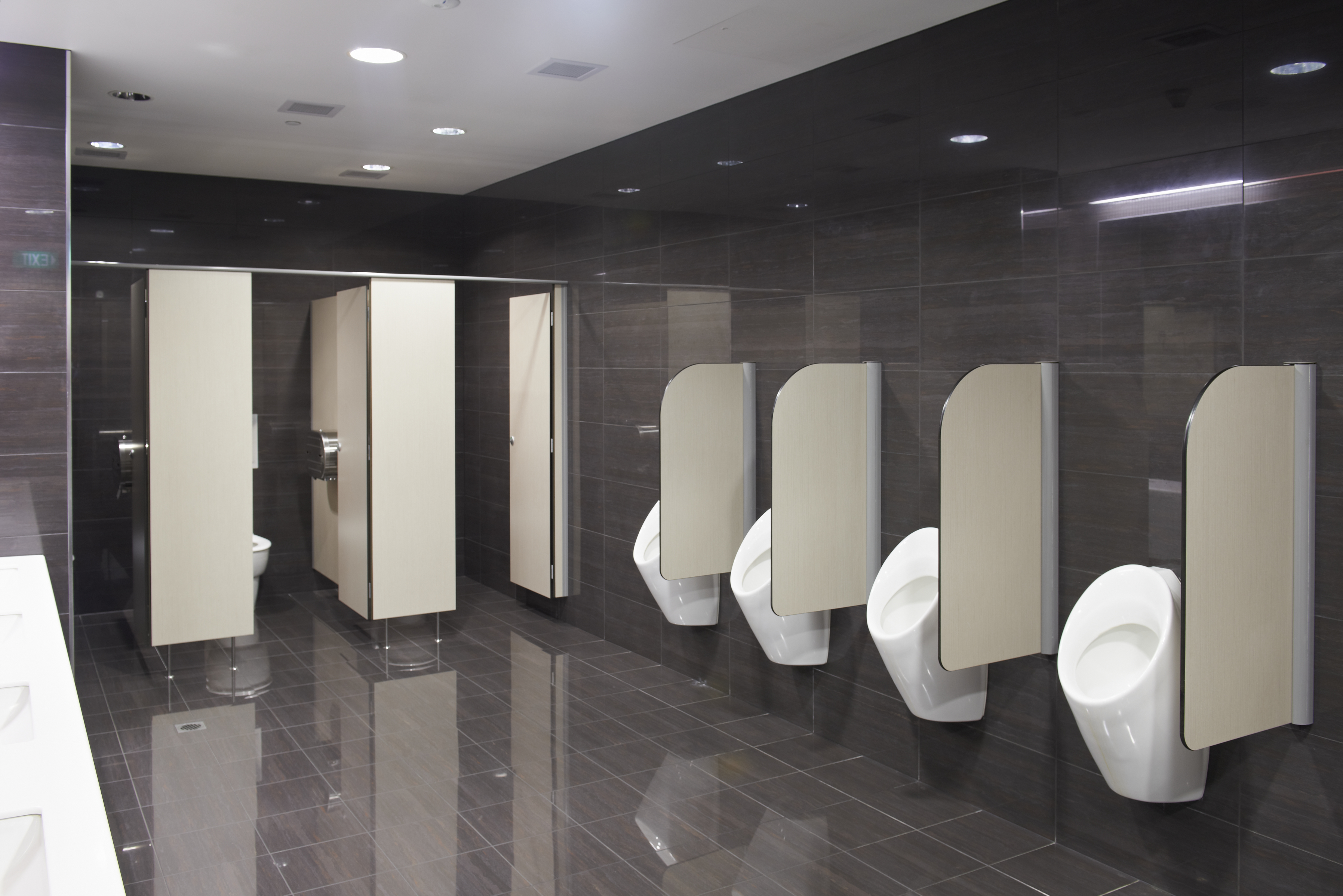

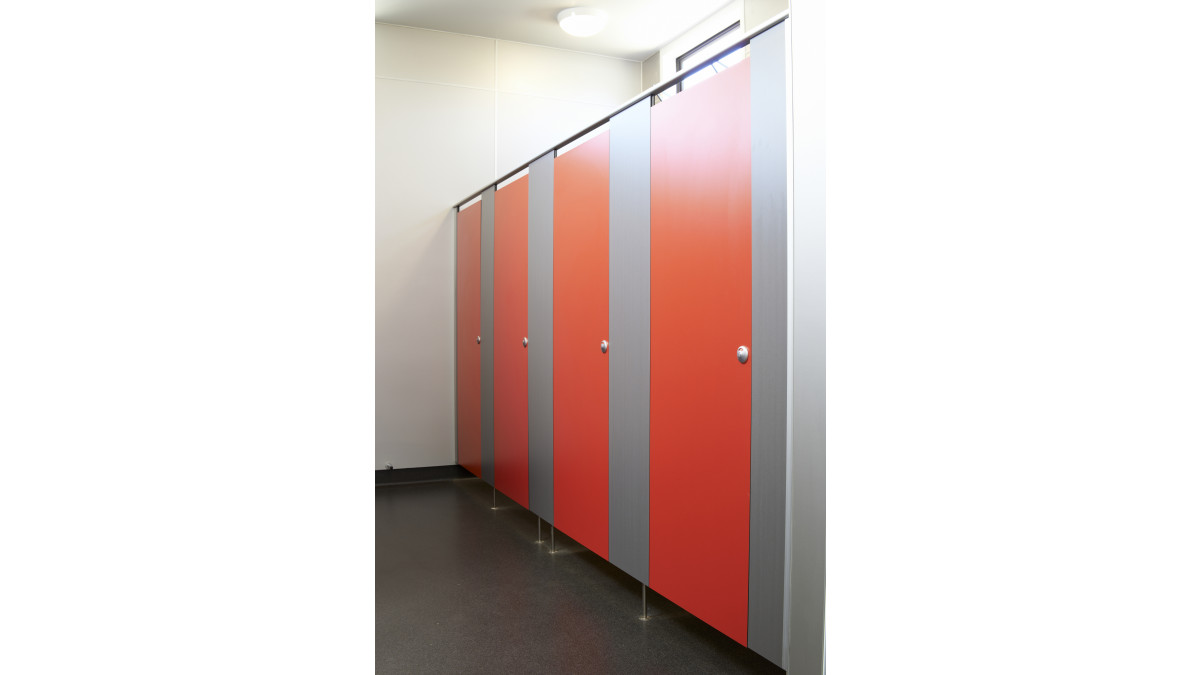

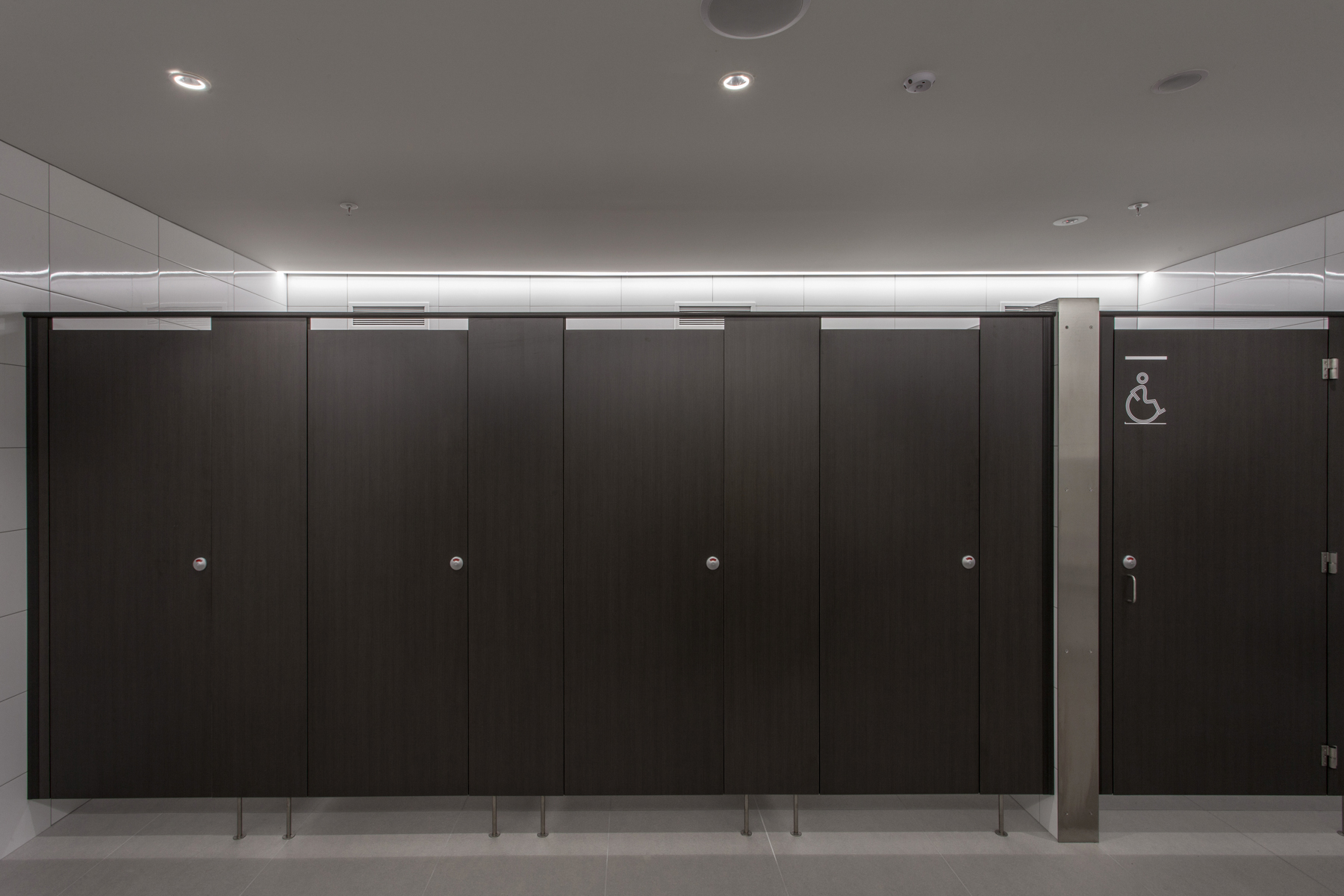

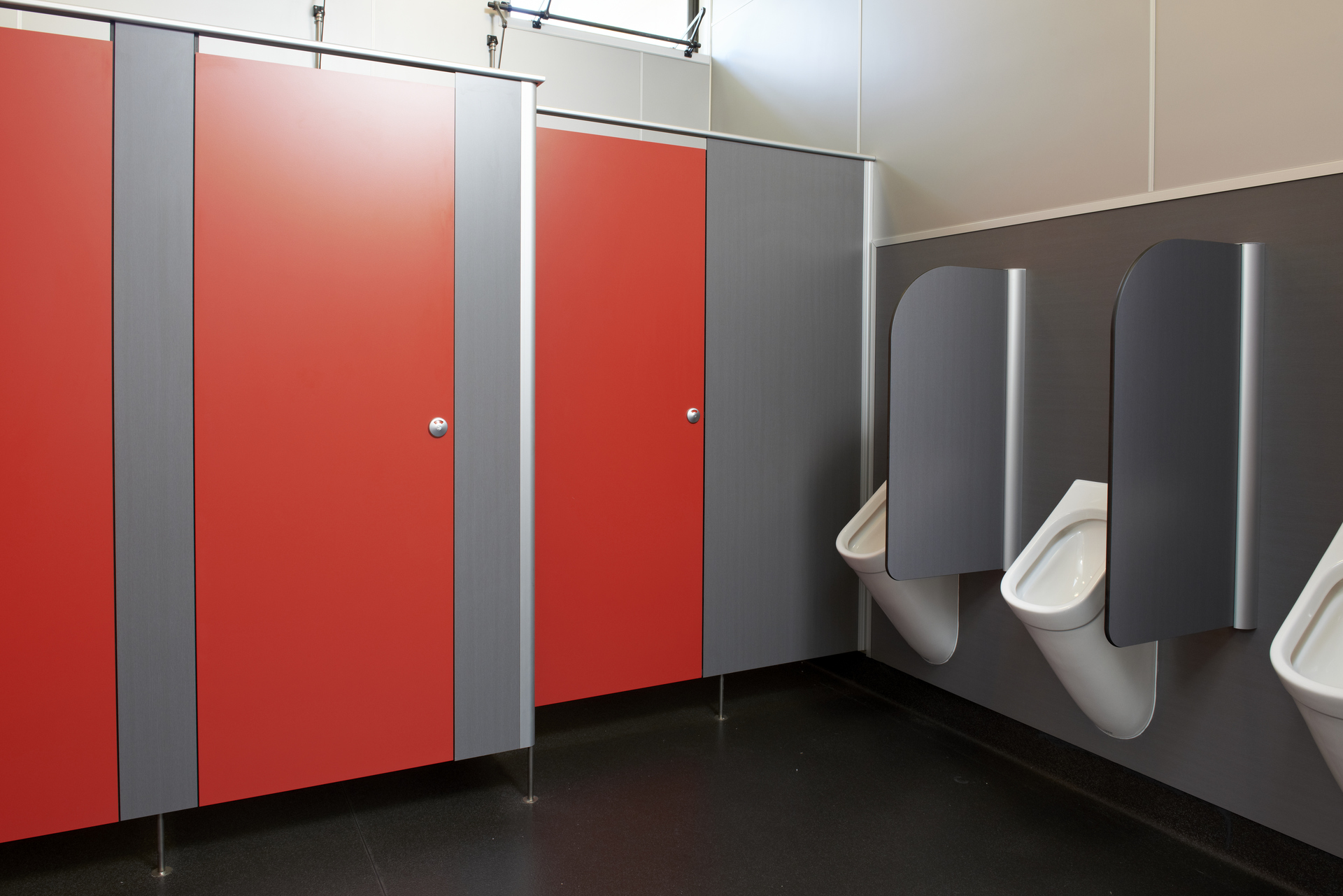

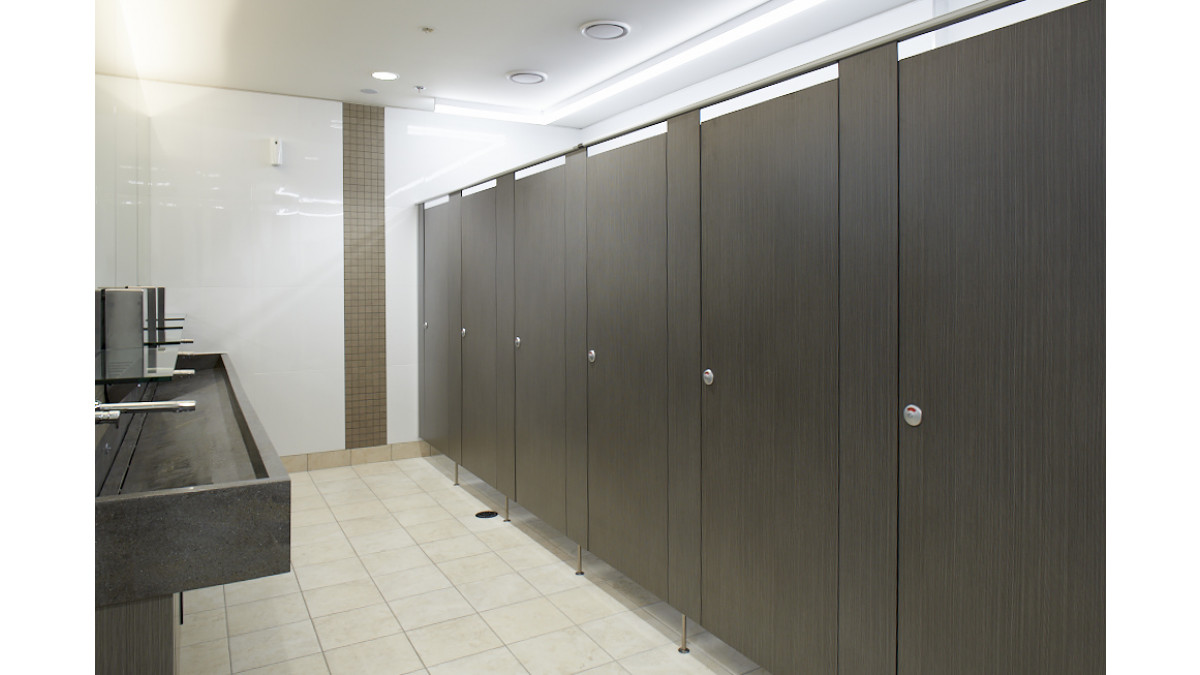

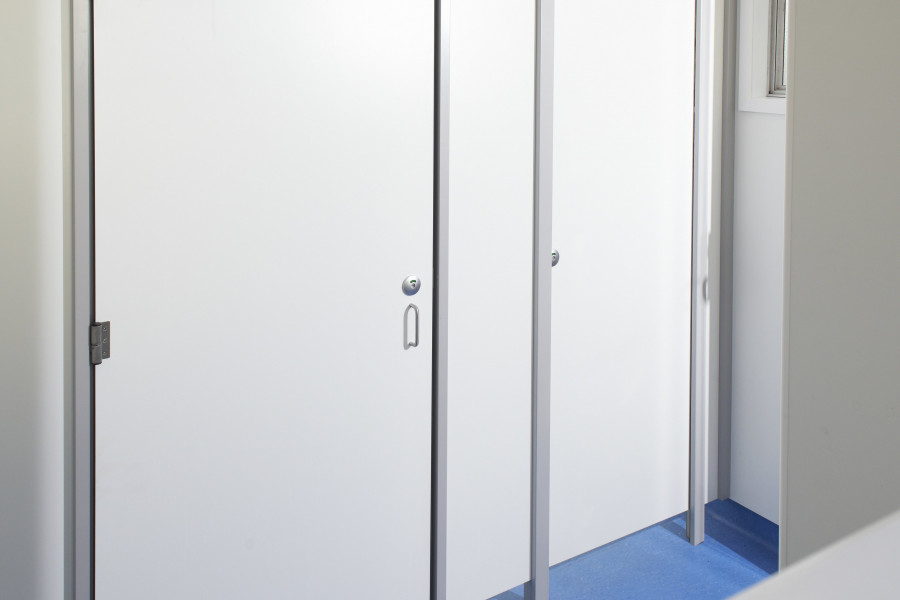

The Series 5000 is Resco's most popular cubicle system. With uncluttered lines and rebated doors this is a functional, practical, economical solution that easily blends with any room or design style. The Series 5000’s minimal dirt traps ensure cubicles are easily cleaned, with the option of self-opening and self-closing doors. Resco's most cost effective system, the series 5000 retains all the strength and durability of any of its compact laminate products.

Key Features
  • Cubicles are custom made for each job
  • Resco's most cost effective system
  • Resco installers can install or partitions can come in kitset form with full instructions
  • Available nationwide

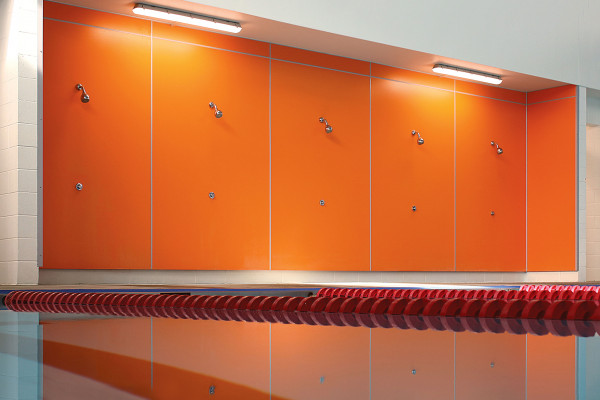

  • Compact laminate panels provide solutions for both toilet and shower situations

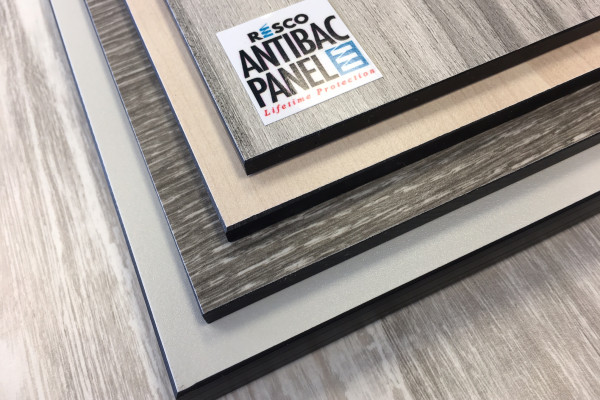

  • Available in Resco Antibac panels that kill bacteria for the lifetime of the panel
  • Large range of compact laminate colours and finishes
  • Easy to clean and low maintenance

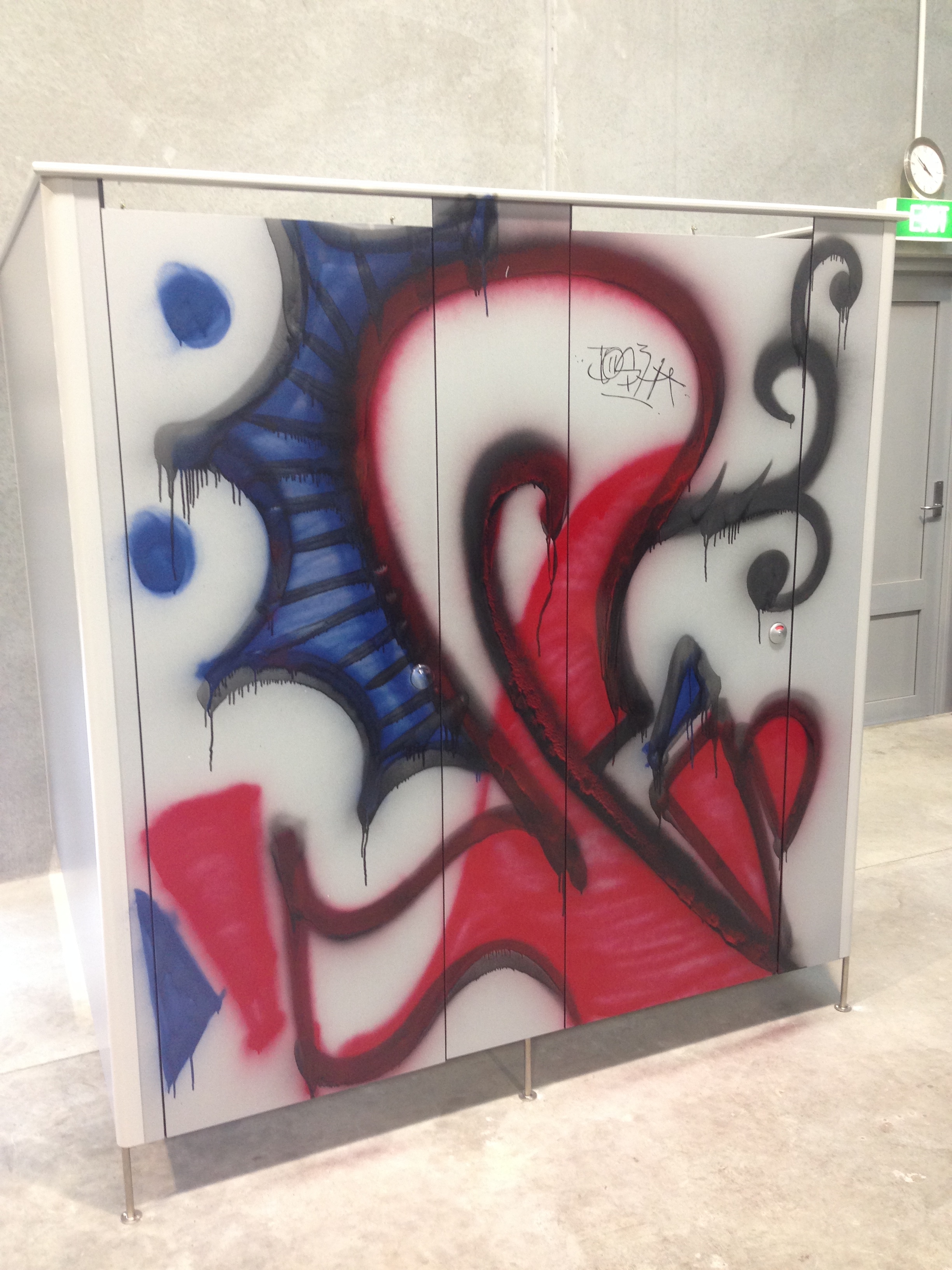

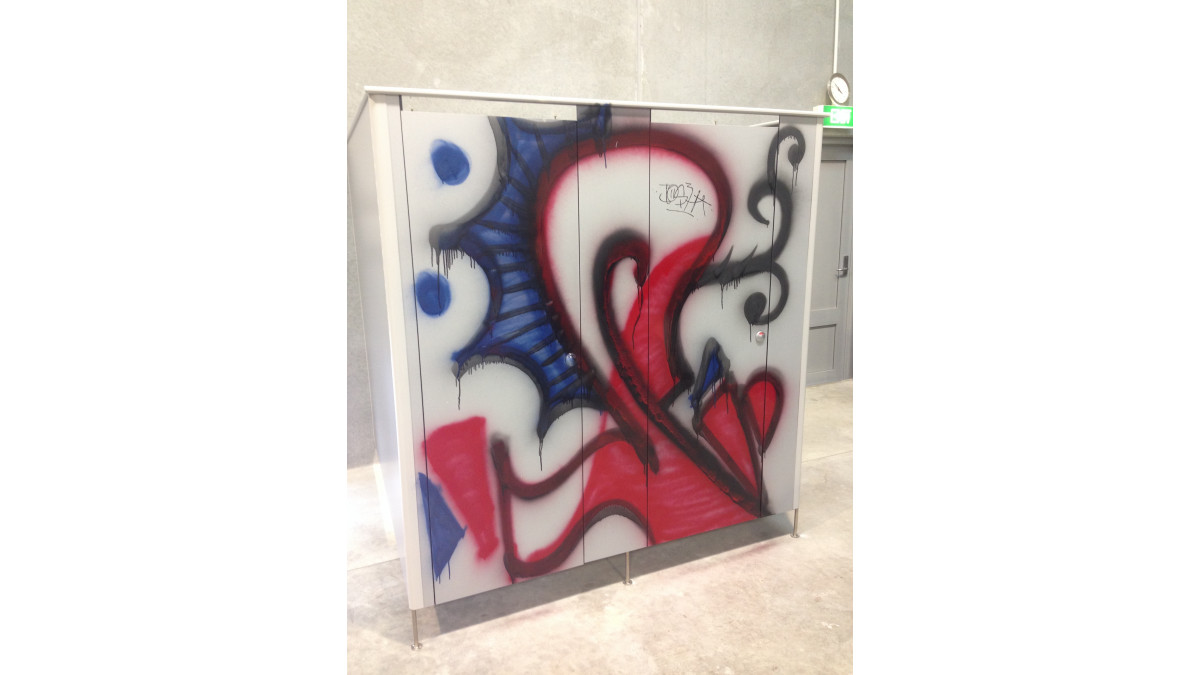

  • Anti-grafitti — most graffiti can be removed
  • Available in 28 stocked colours and another 20 in the designer range (12-week lead time)
  • 10 year guarantee on panel integrity and two year guarantee on hardware
Scope of Use

The Series 5000 has a minimalistic approach with a significant reduction in dirt traps. These cubicles will save cleaning and maintenance costs.

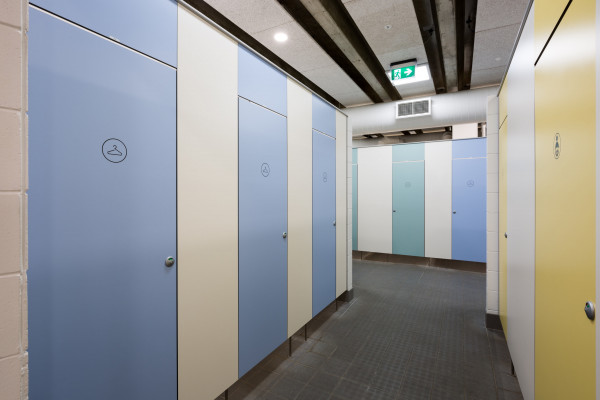

Resco's partitions are used in communal toilet, shower or change room facilities to offer privacy. The compact laminate panels are extremely versatile, allowing Resco systems to be installed in wet and high-abuse environments.

Limitations on Use

Resco products are meant for internal use. Its compact laminate panels are not colourfast in New Zealand’s UV conditions and the colours fade when used outdoors.

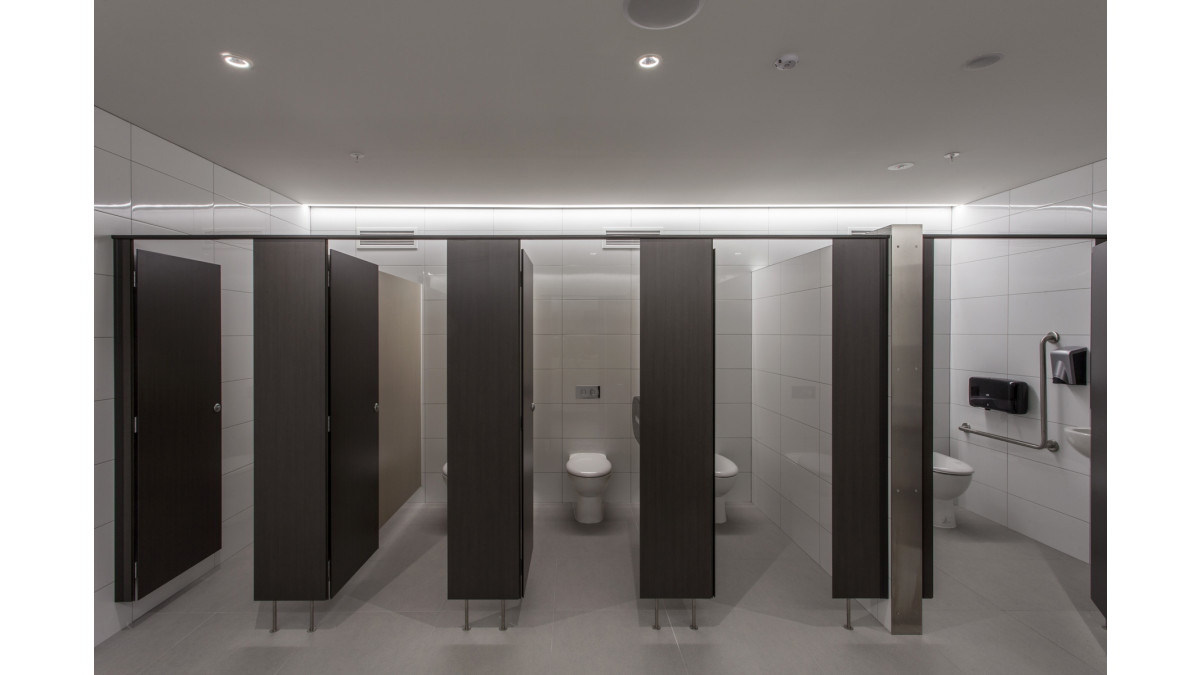

In case of unisex facilities, Resco recommends building solid walls running floor to ceiling. Resco's partitioning systems are a standard height of 1976mm with a 160mm gap on the bottom.

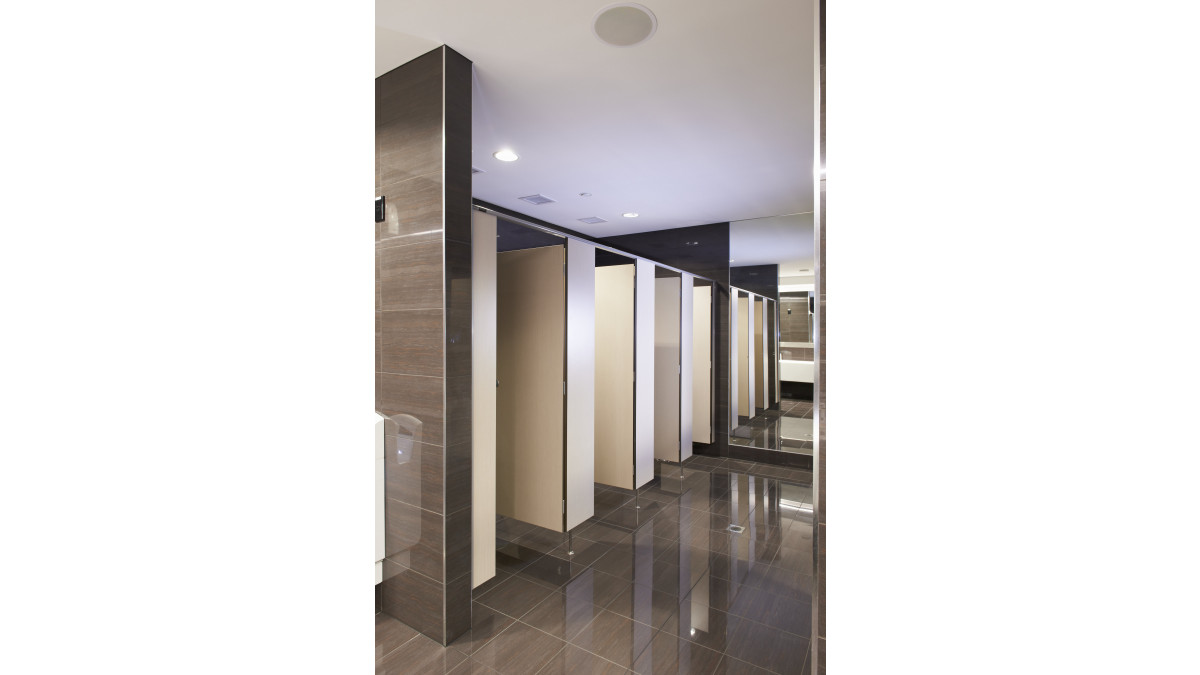

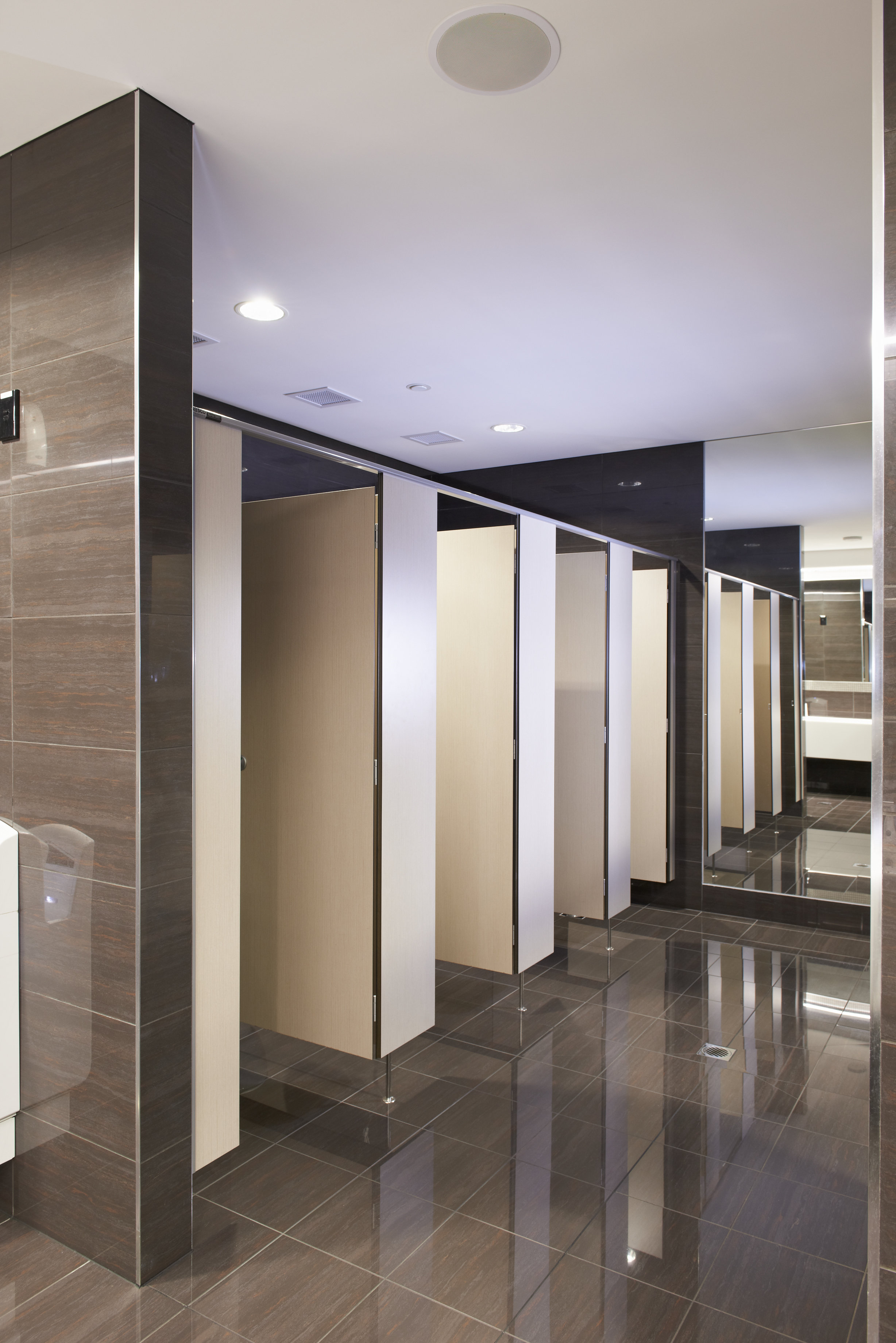

Open-out doors are more prone to damage; cubicles are recommended in an open-in door option.

Statement of Building Code Compliance

Resco's 5000 partitioning system meets the following provisions of the NZBC:

  • Clause B2 Durability: the code requires 5 years — Resco compact laminate has a 10 year guarantee on the panel.
  • Clause C Fire Safety: Resco compact laminate has a group rating of 3 which meets the surface finish requirements for C/AS1 — C/AS7.
  • Clause E3 Internal Moisture: surfaces of building elements likely to be splashed must be impervious and easily cleaned; Resco compact laminate meets these requirements.
  • Clause G1 Personal Hygiene: sanitary fixtures shall provide appropriate privacy, allow effective cleaning, avoid dirt or germs and facilitate sanitation; Resco cubicles are designed to meet these requirements.

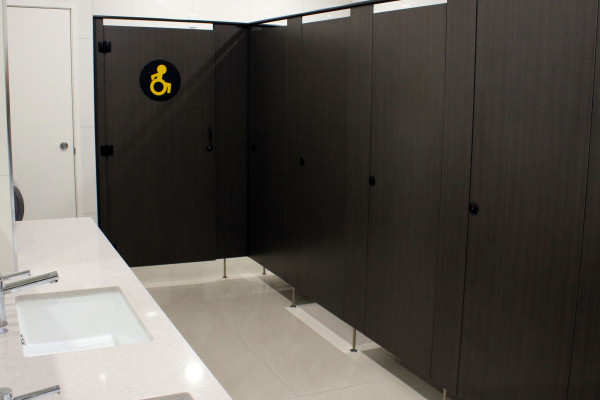

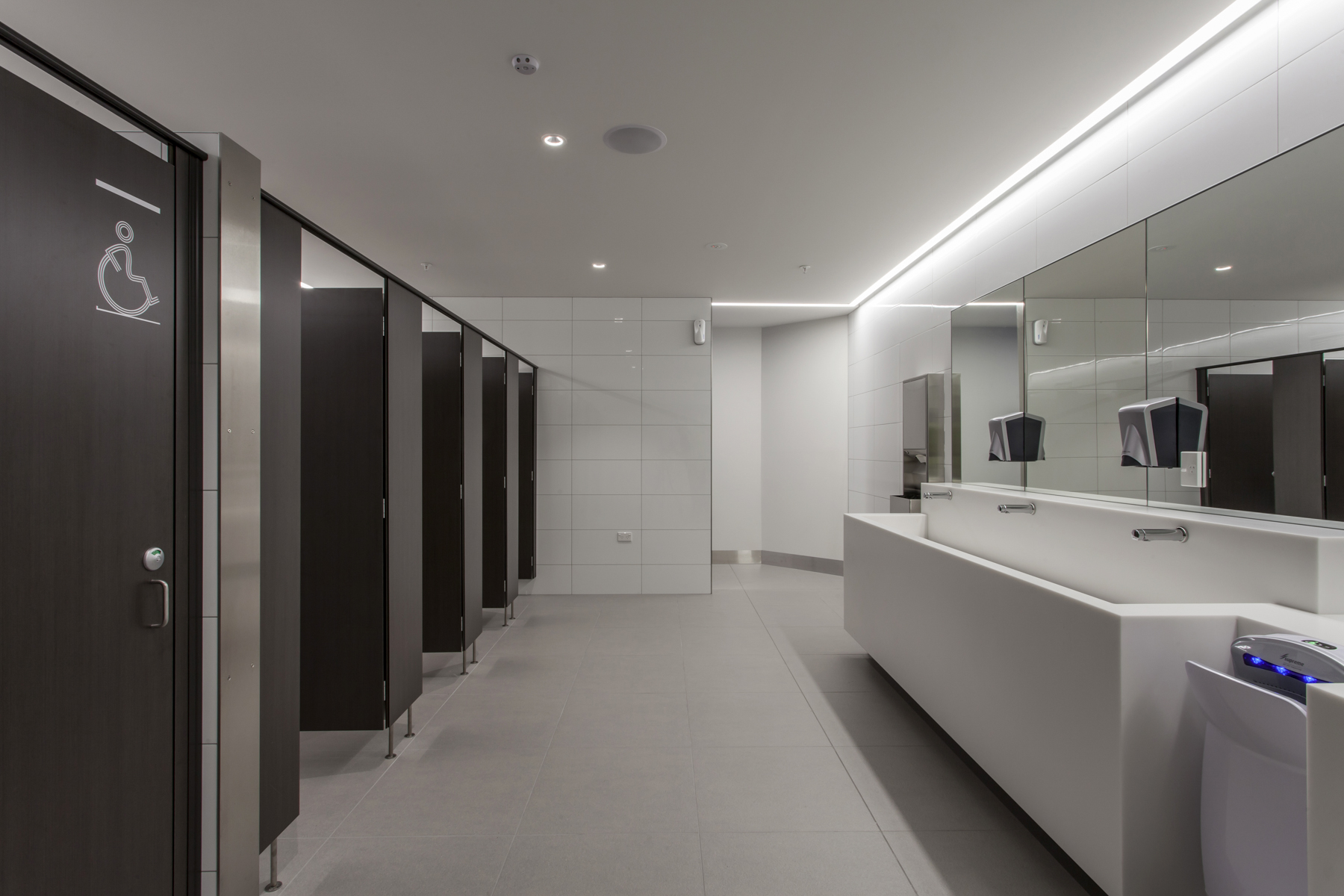

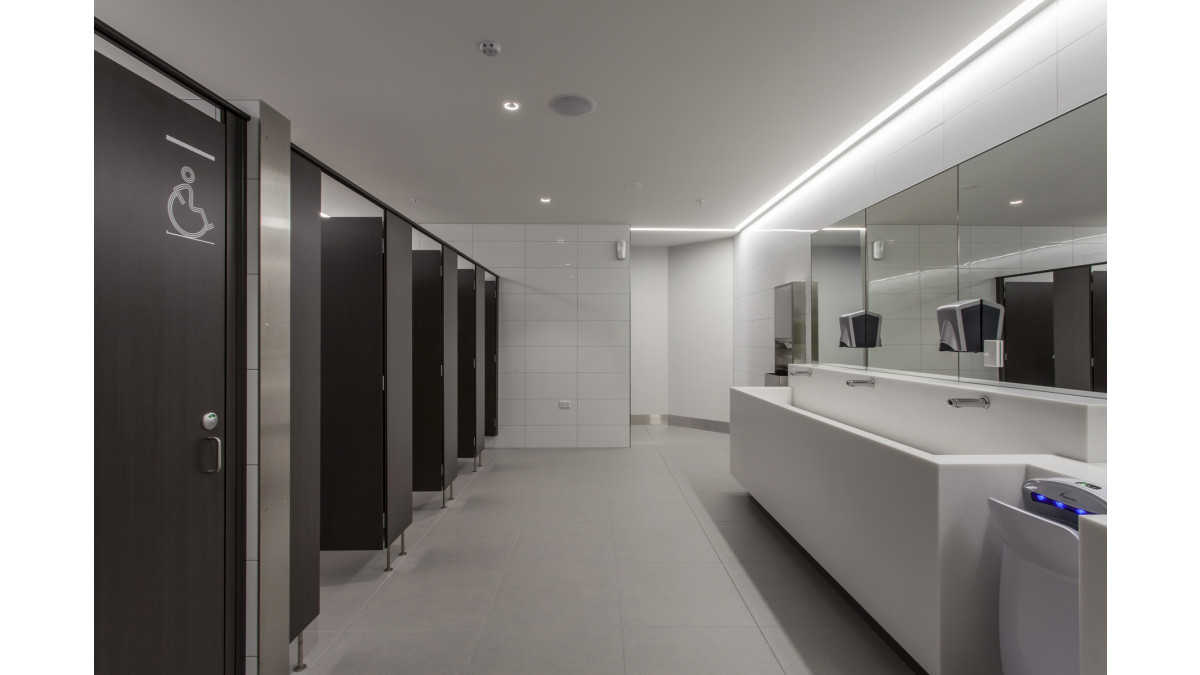

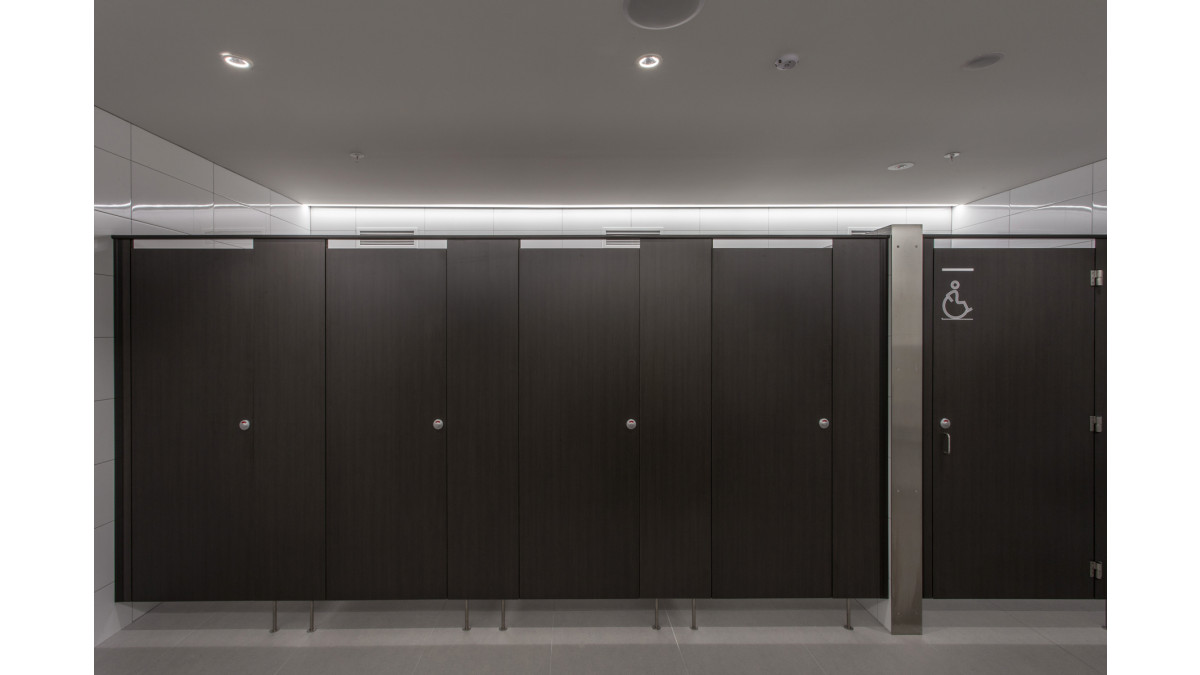

  • Clause G1 AS1 Accessibility: personal hygiene facilities provided for people with disabilities shall be accessible; Resco cubicles are designed to meet these requirements.
In-Service History

Resco has been at the forefront in New Zealand in introducing and innovating toilet and shower block solutions and its products have been installed over the last 20 years. All of its panel is compact laminate — this is the right product for these often wet, high use and abuse areas.

Originating in Europe in the 1959, compact laminate has proven popular throughout the world and is the main choice for cubicles in Europe, America, Asia and Australasia.

Other Performance Attributes

The use of Resco systems is a sound choice for the Greenstar rating system, as they meet the requirements of IEQ-3 Indoor Air Quality due to low formaldehyde and VOC emissions.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
G1 Personal Hygiene compliant
Personal Hygiene
