Screens for Toilet Partitions
Description

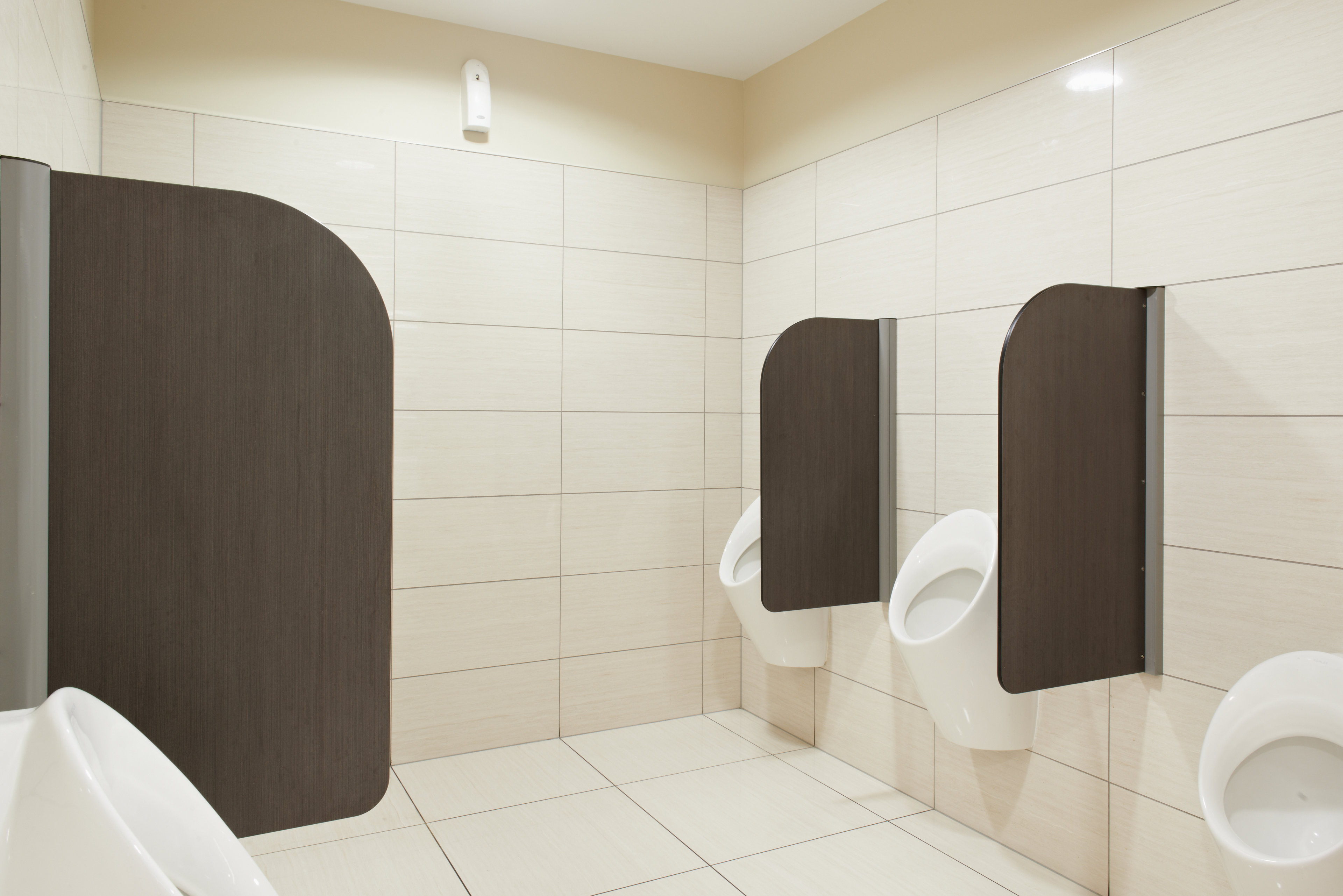

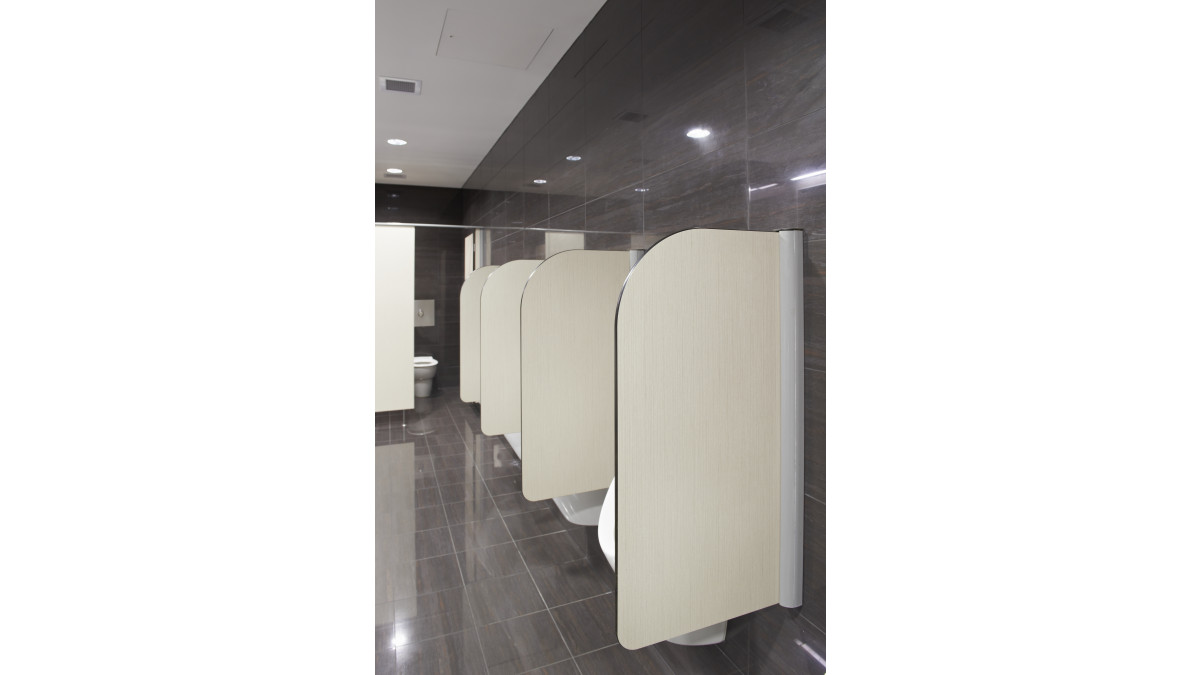

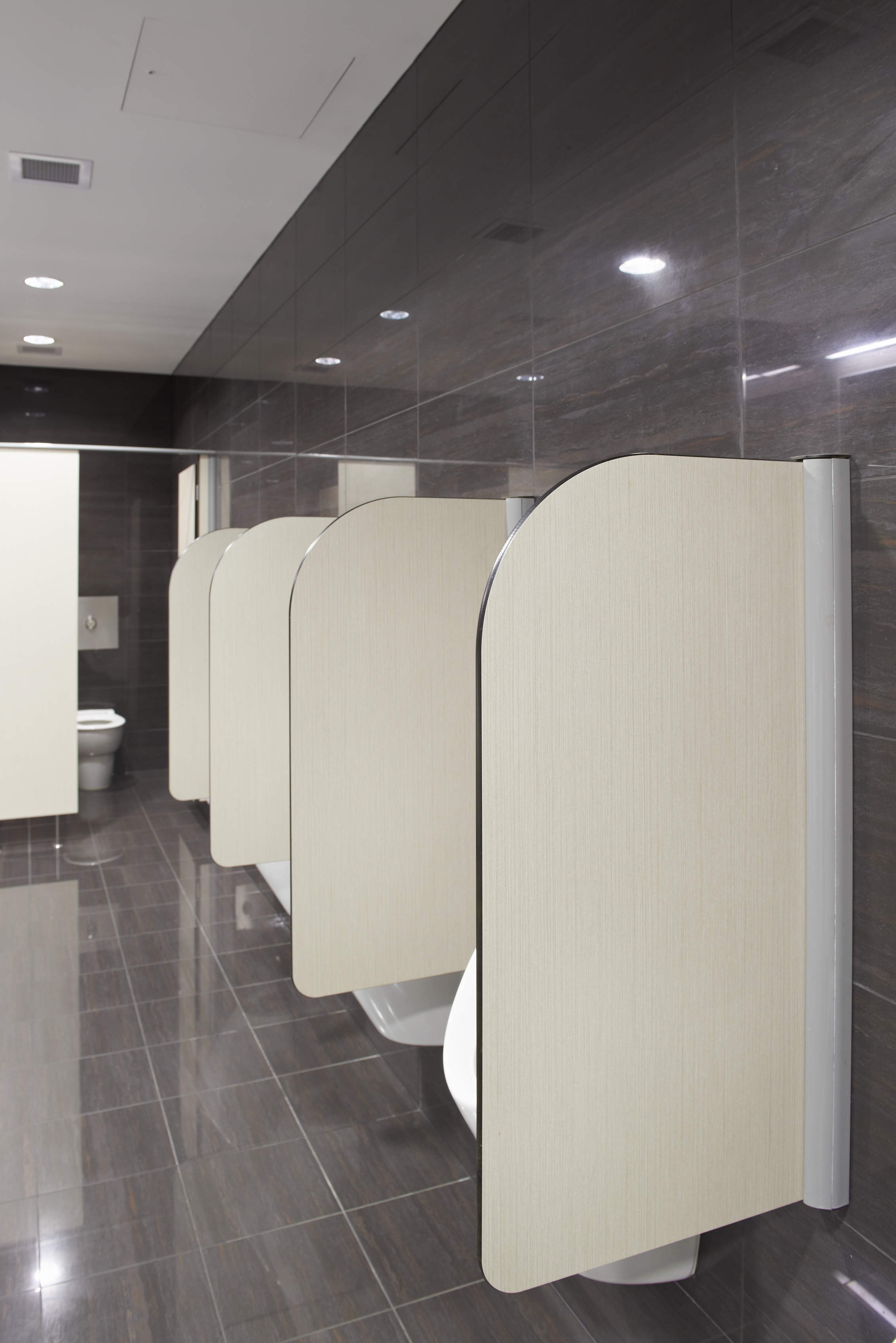

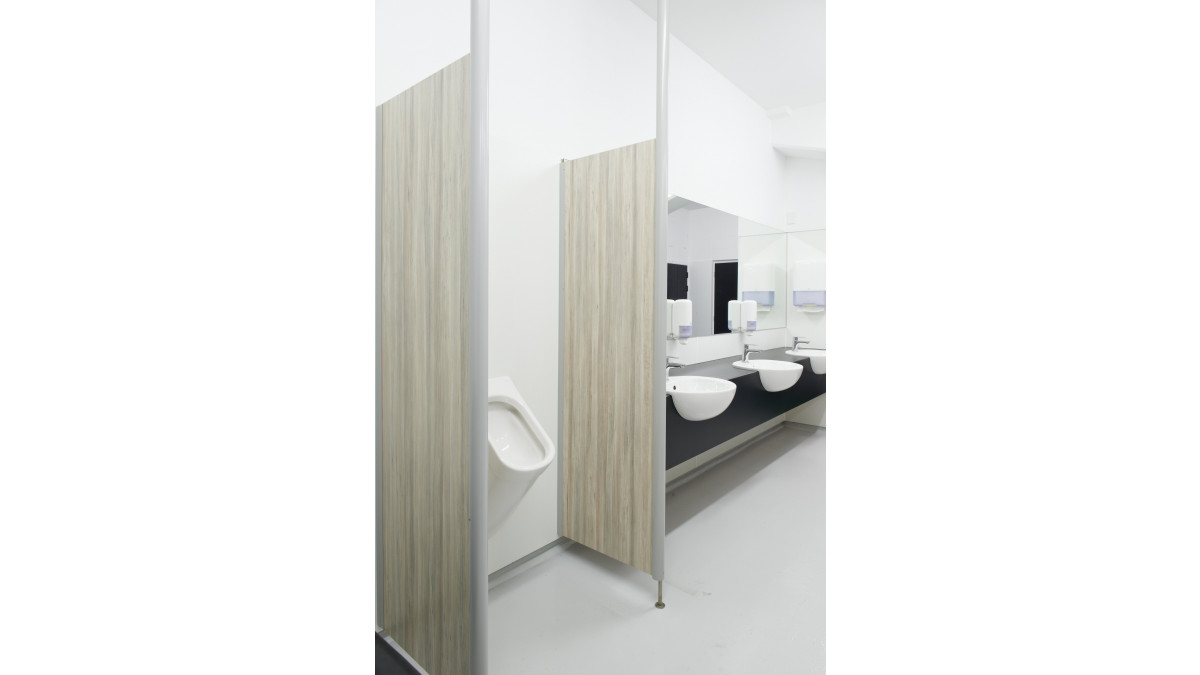

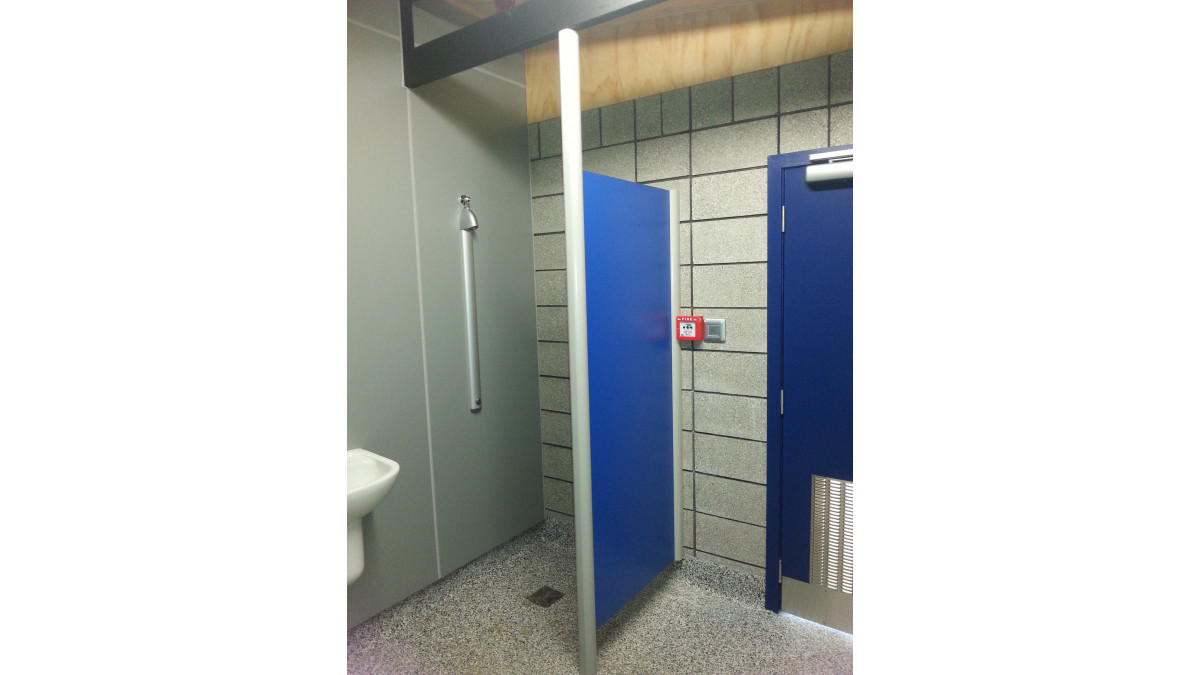

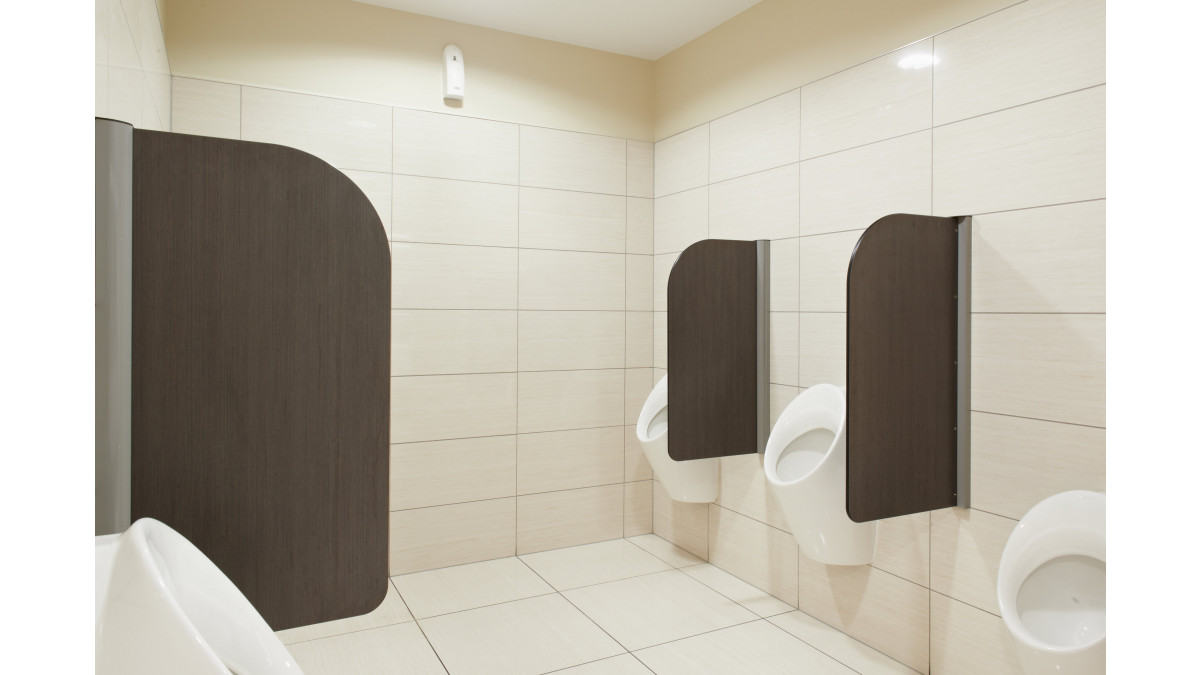

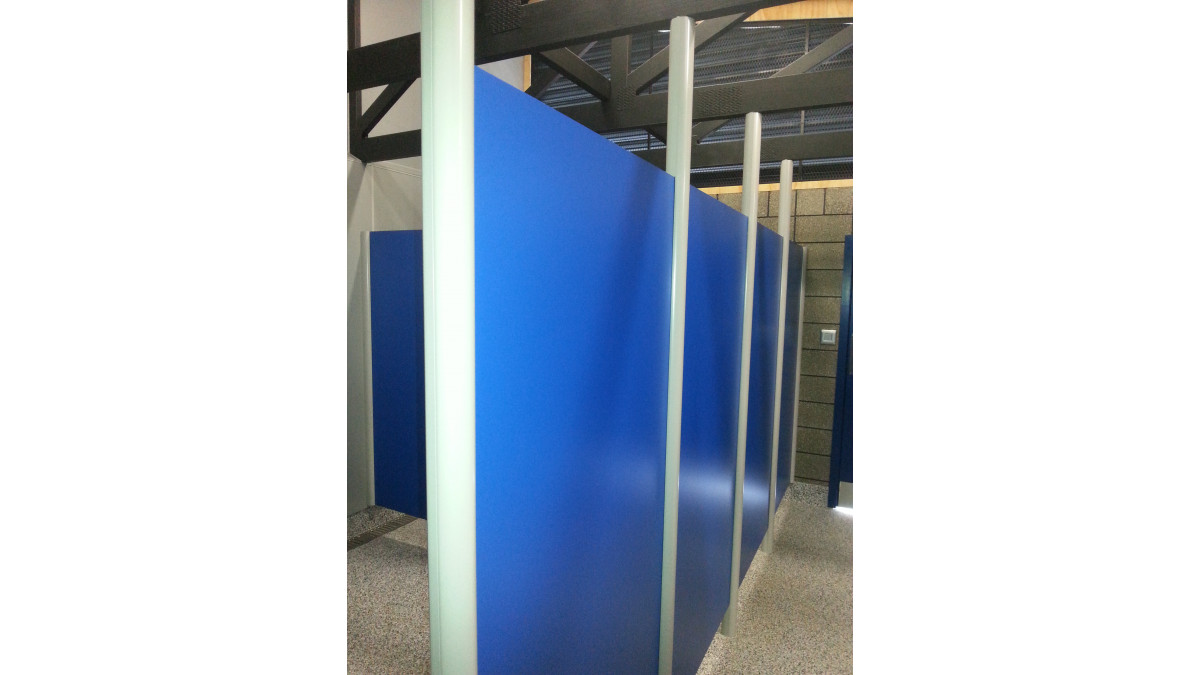

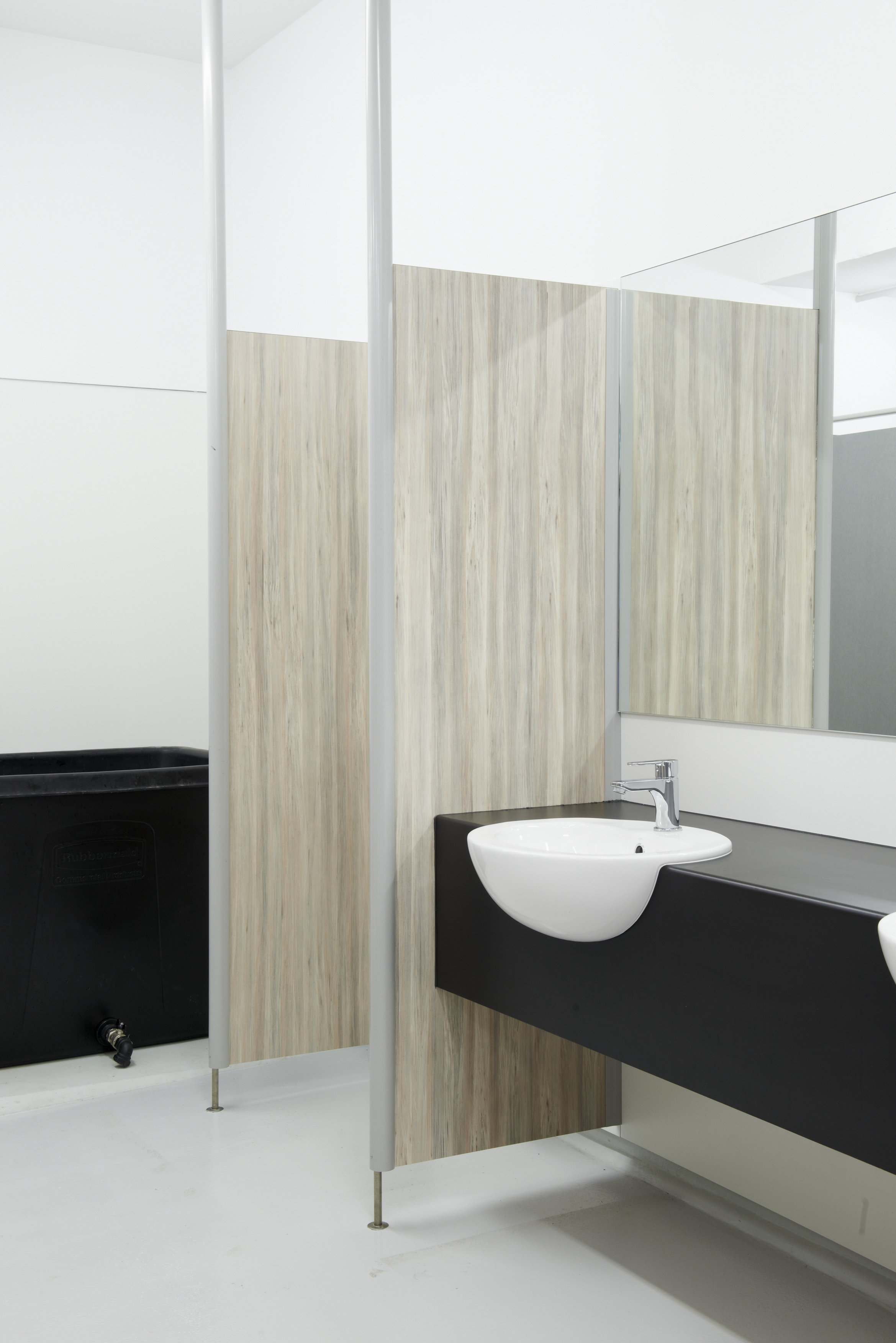

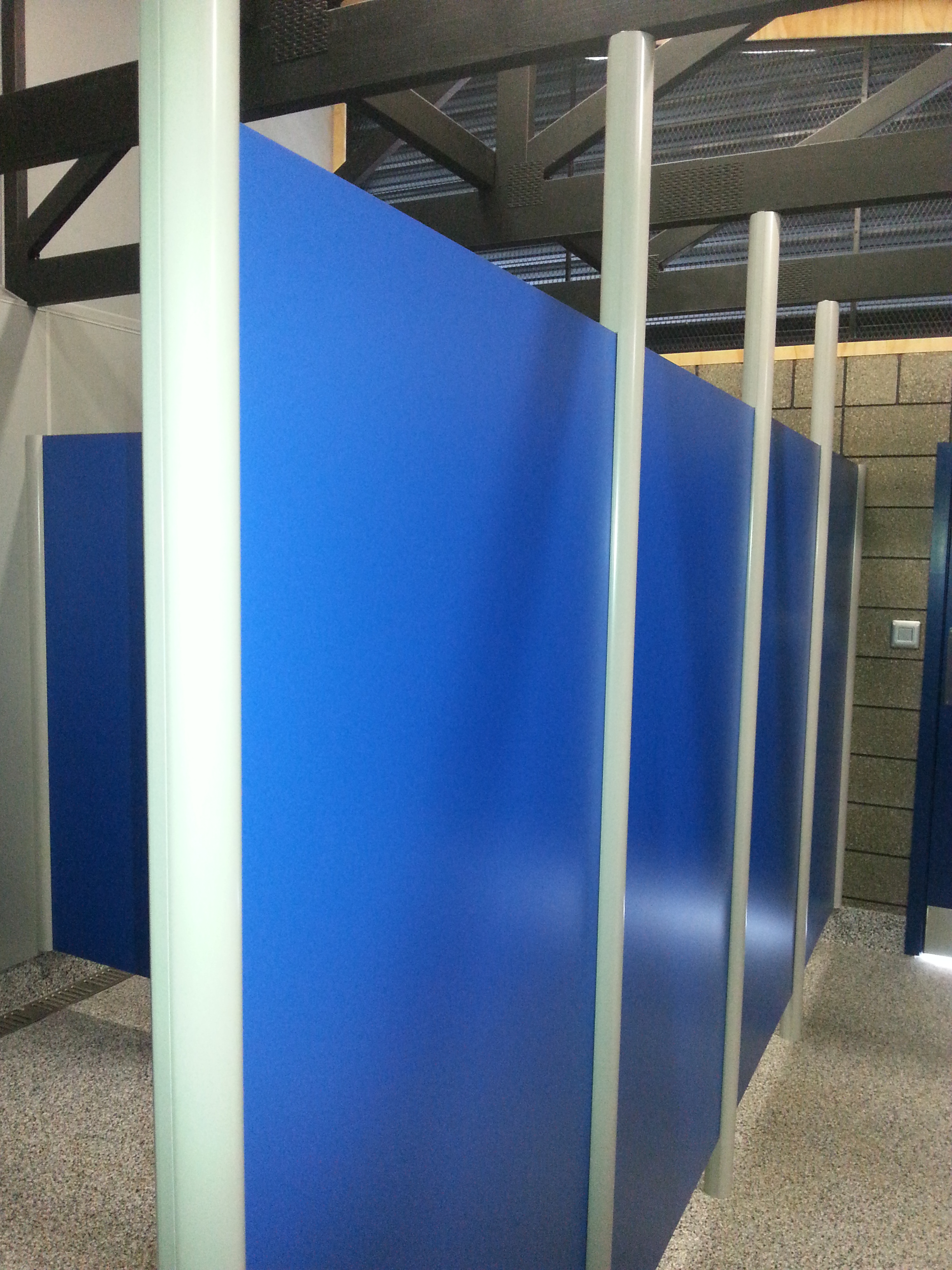

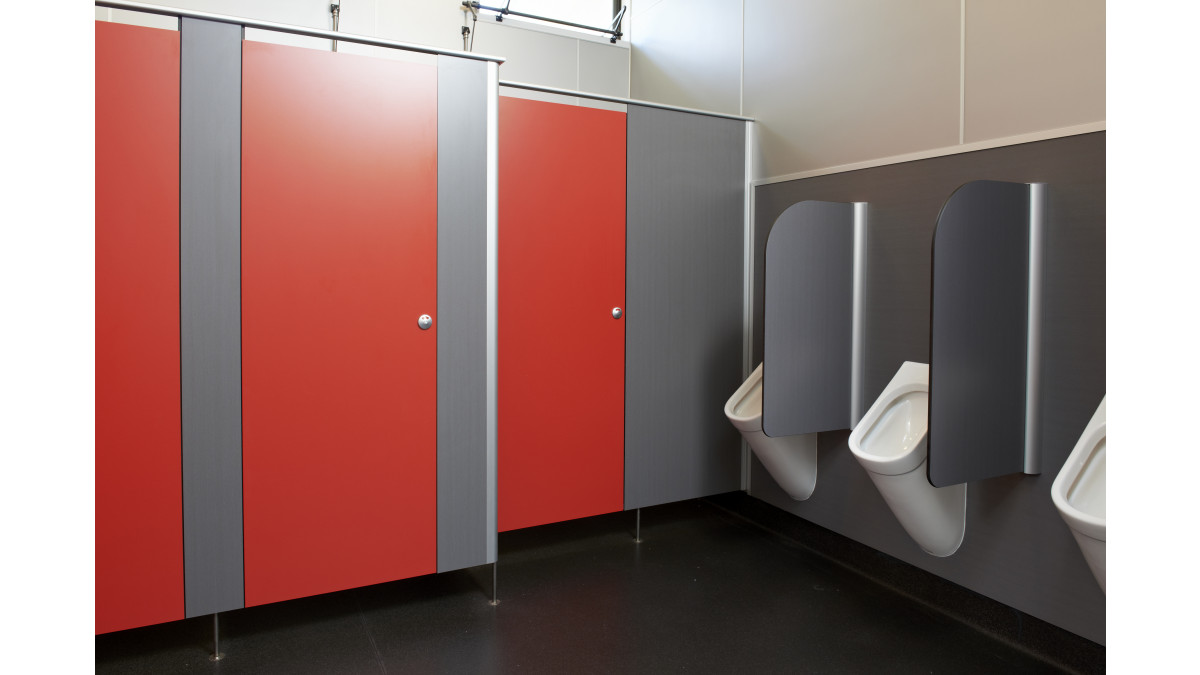

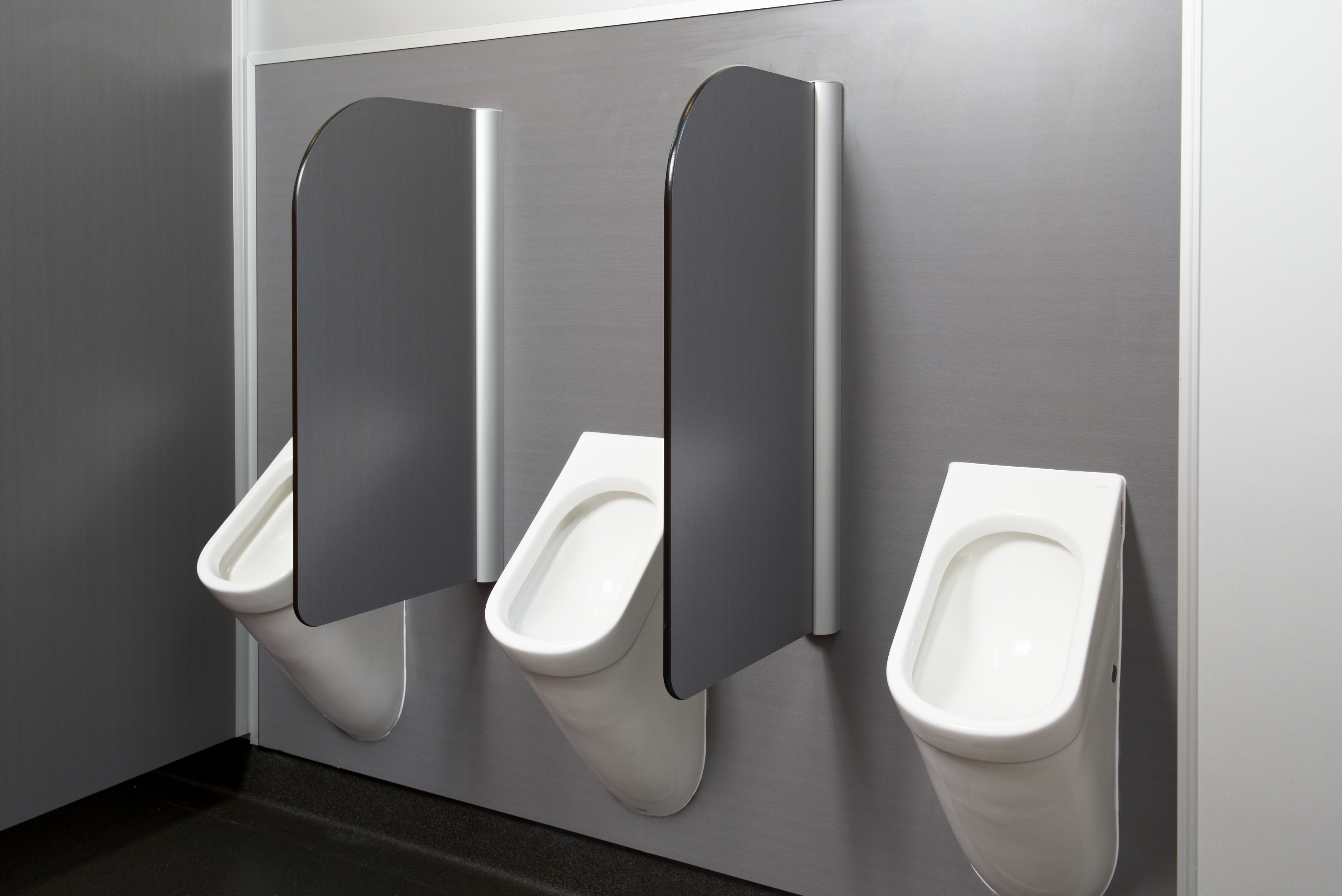

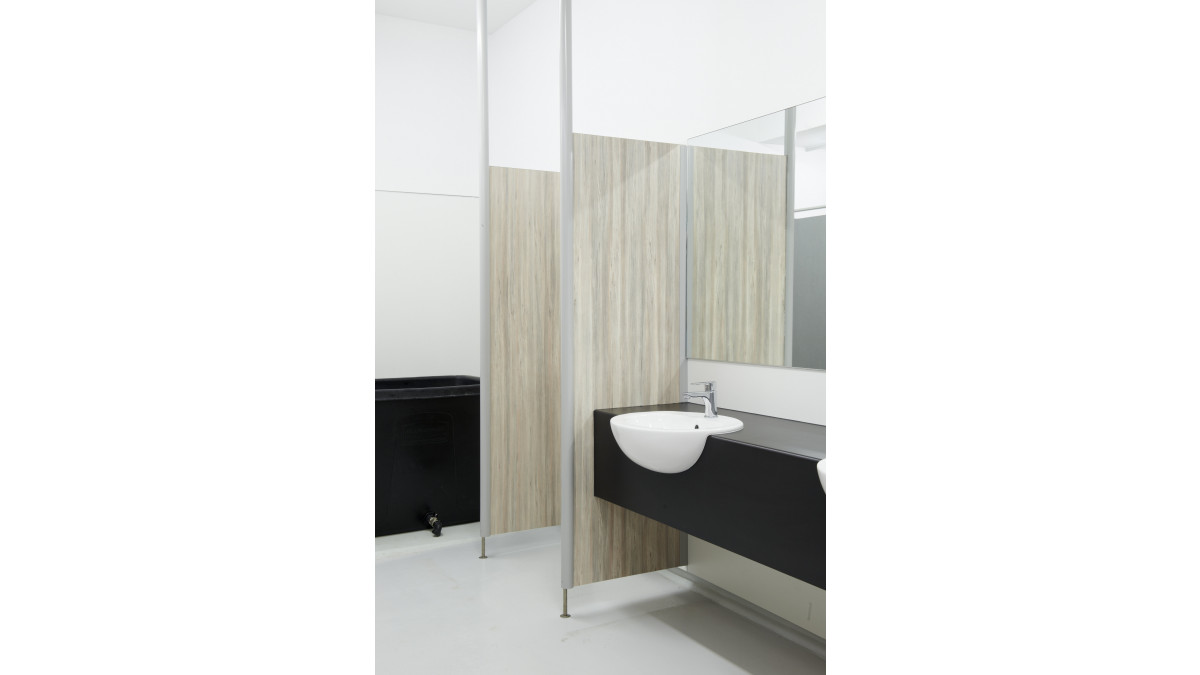

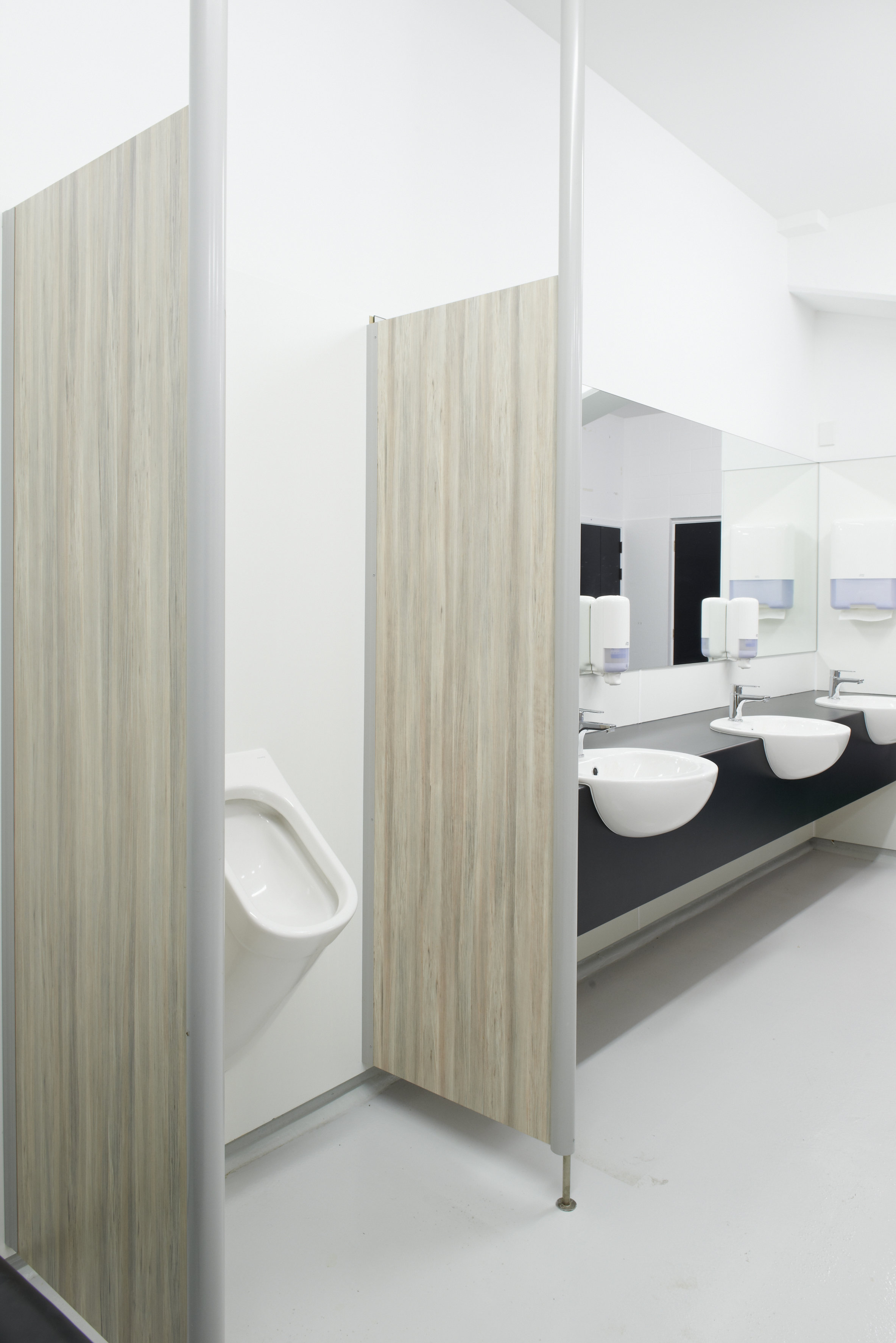

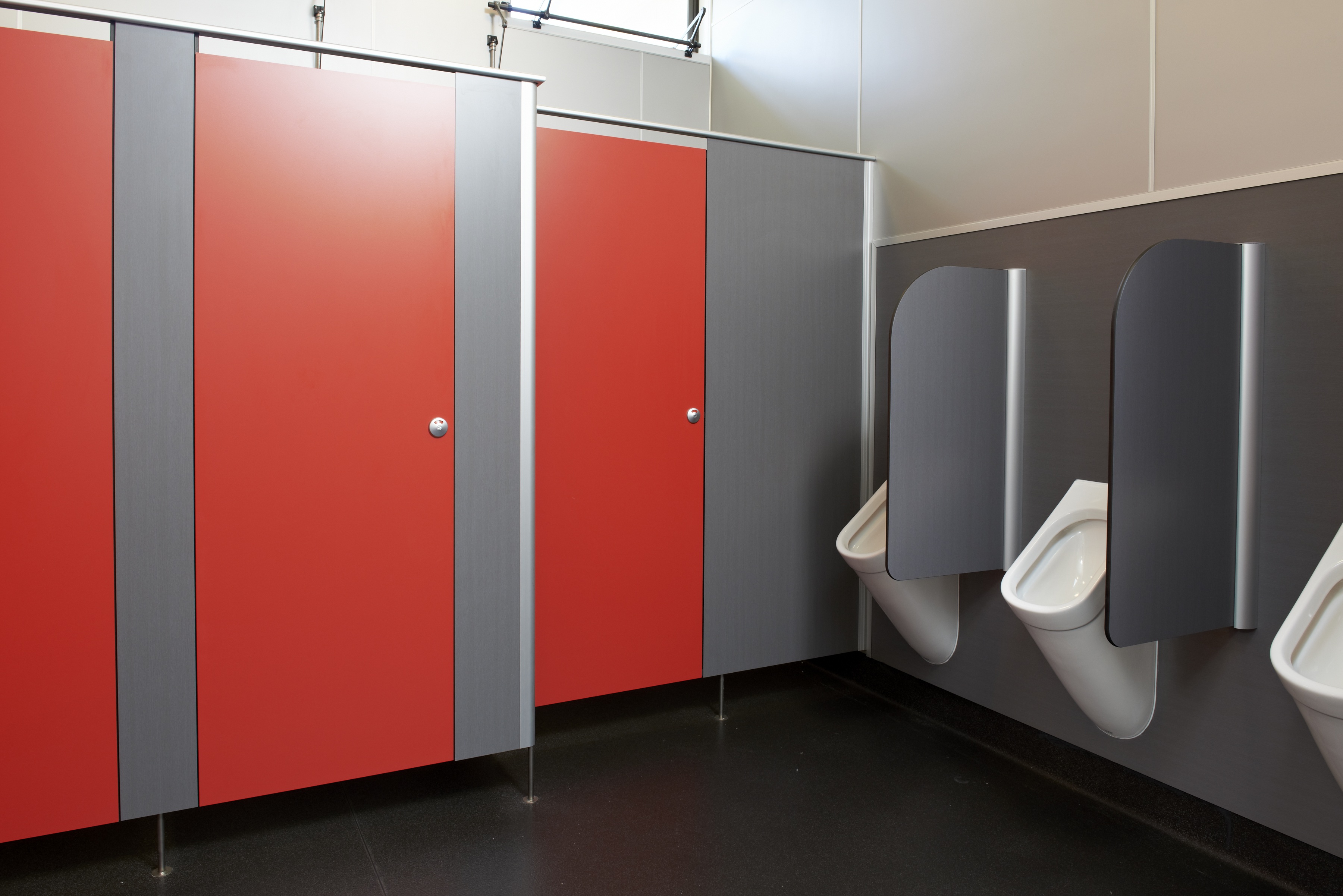

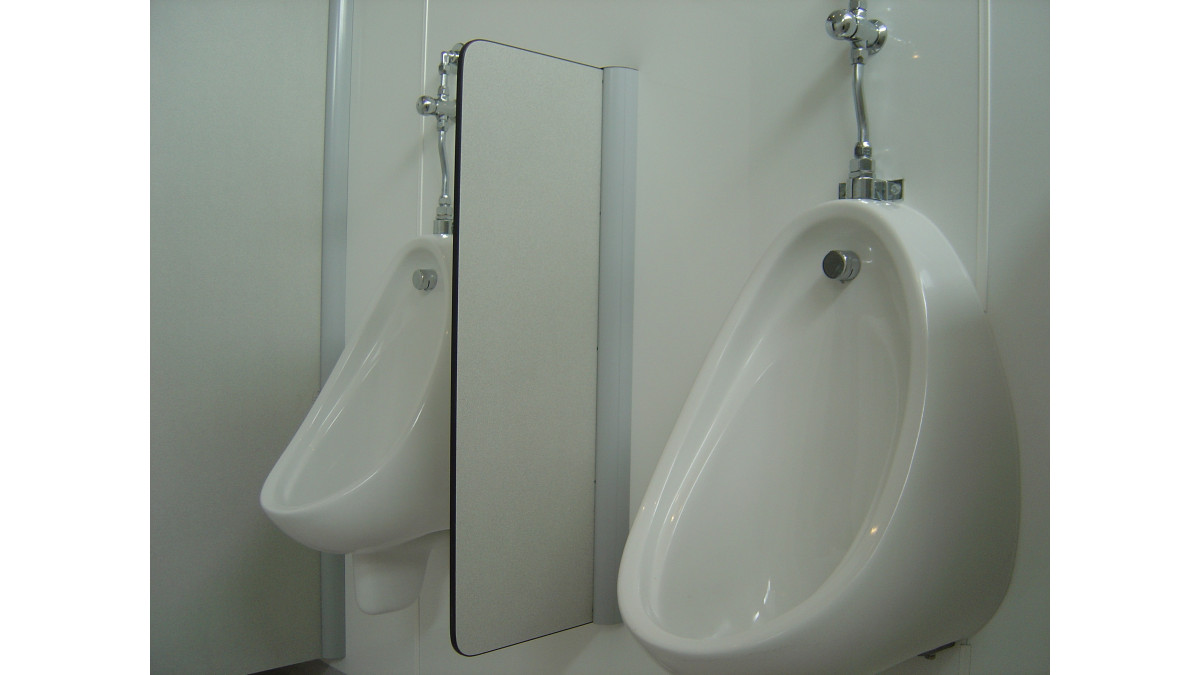

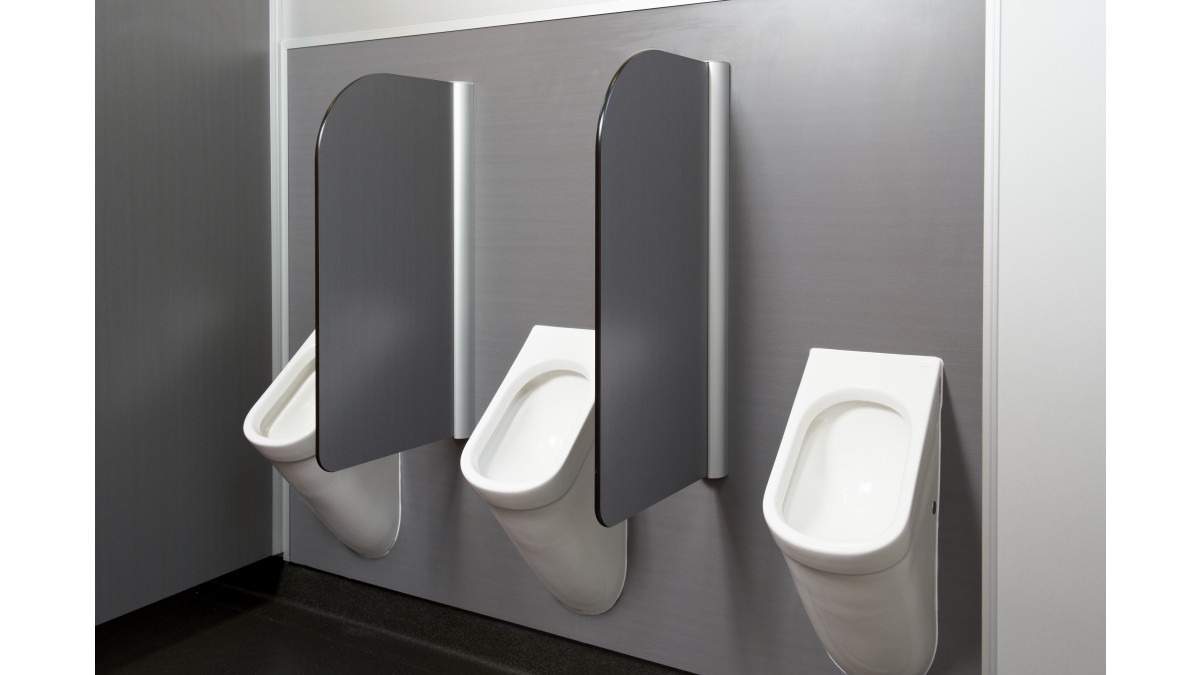

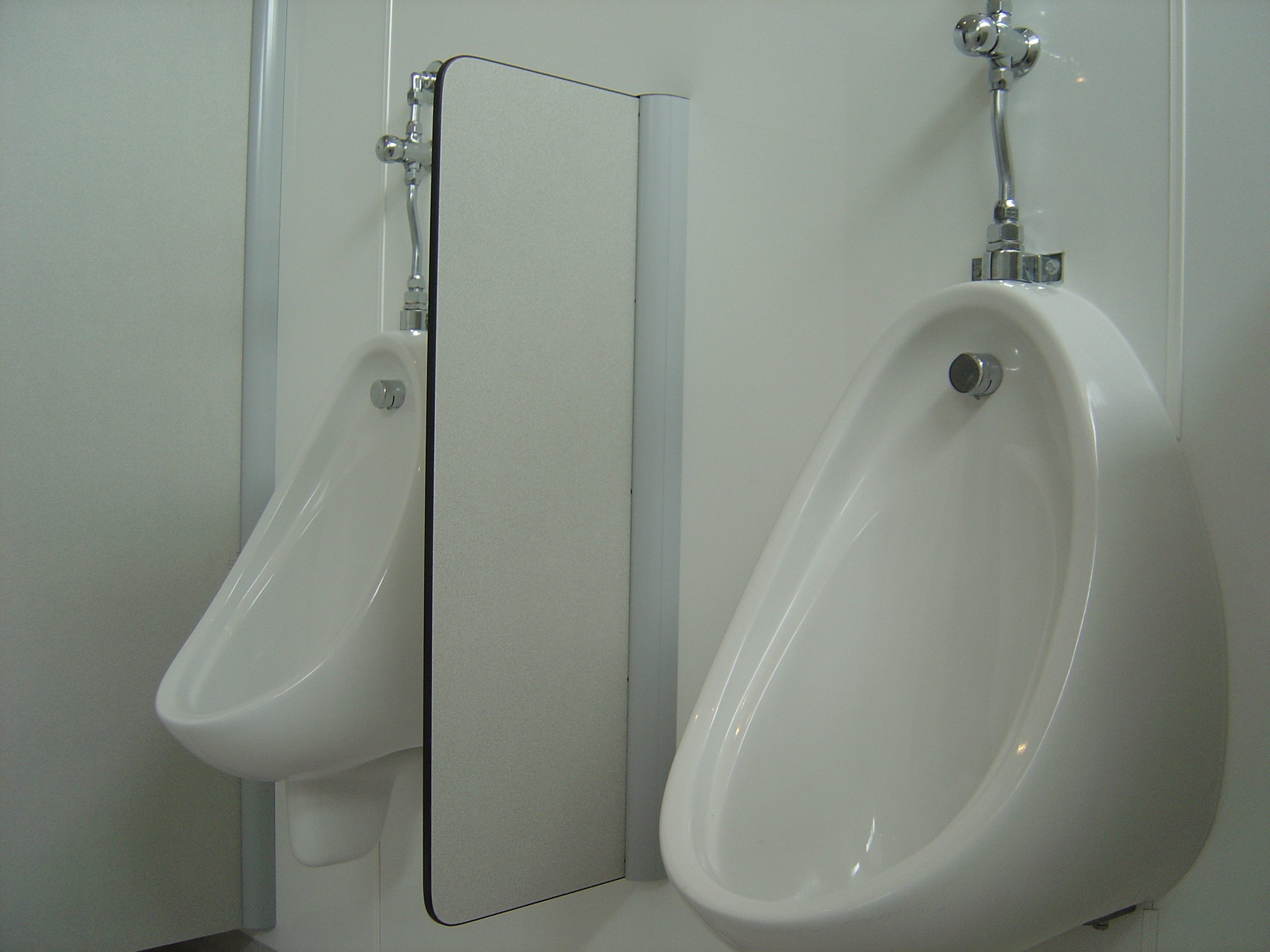

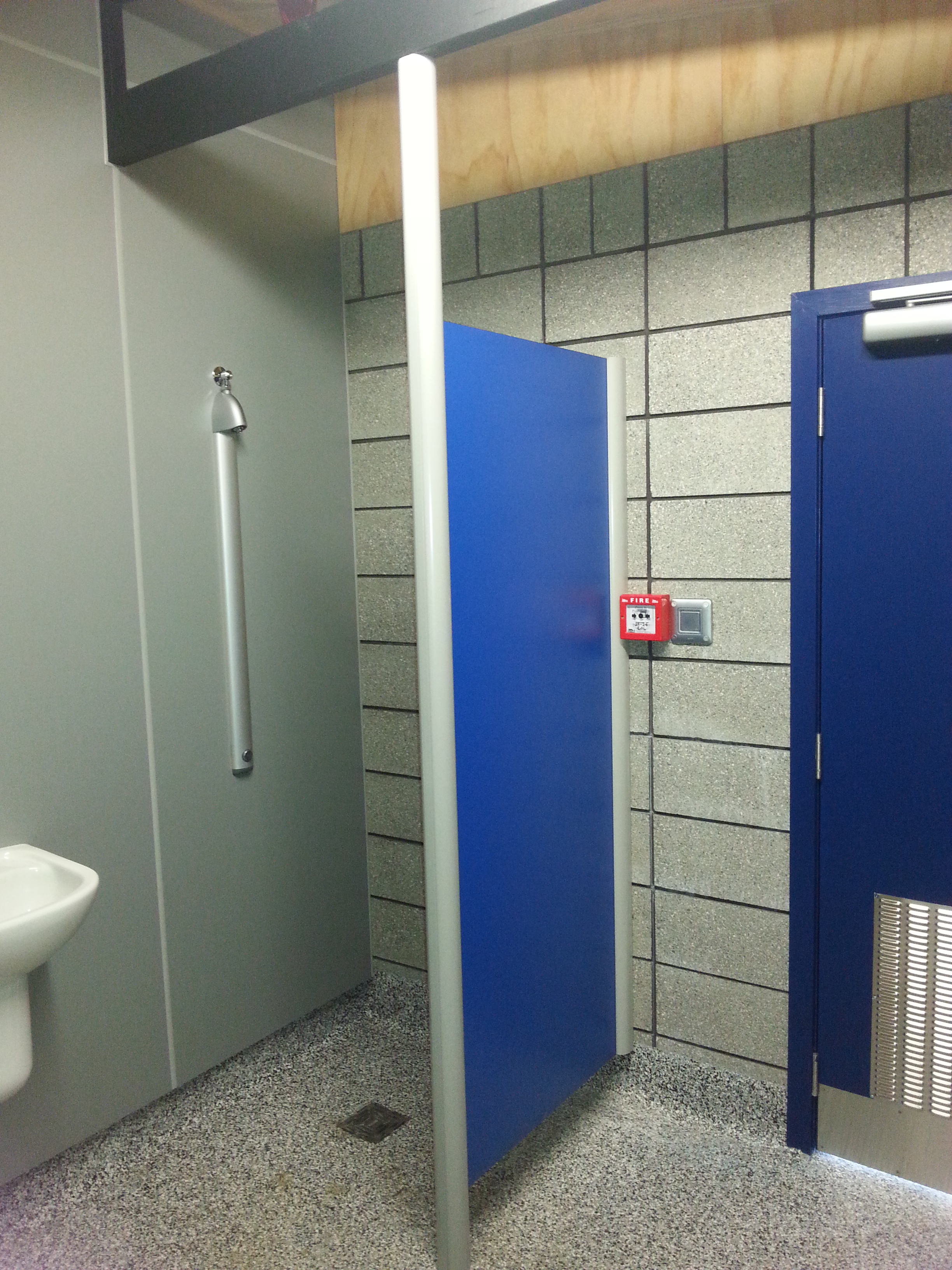

Resco's privacy screens are perfect for high use and wet areas. The compact laminate panels provide extended product life, and the screen colour can be matched or contrasted to the cubicle systems or Multicom wall panelling. Modesty screens or full height screens available in the 5000 series or the 7000 series.

Key Features
  • Easy to clean and low maintenance
  • Impervious to water — suitable for high use and wet areas
  • Cost effective way to meet the building code
  • CNC-machined half round edging
  • Custom-made to suit
  • Easy to clean and low maintenance
  • Available nationwide
  • Compact laminate panels provide solutions for both toilet and shower situations
  • Available in Resco Antibac panels that kill bacteria for the lifetime of the panel
  • Resco has New Zealand’s largest range of compact laminate colours and finishes (28 stocked colours and 20 in the designer range with a 12-week lead time)
  • Anti-grafitti — most graffiti can be removed
  • 10 year guarantee on panel integrity and 2 year guarantee on hardware
Scope of Use

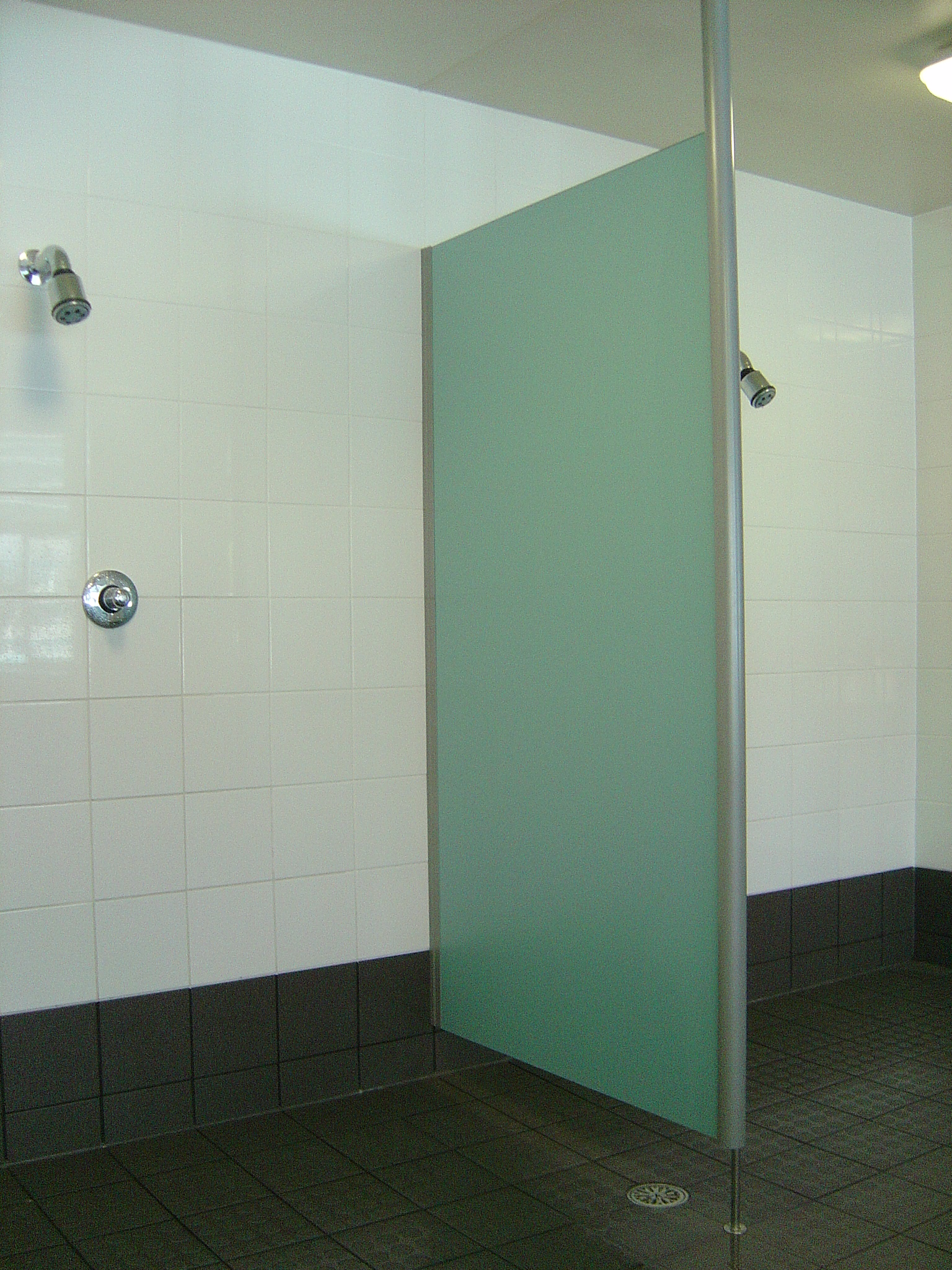

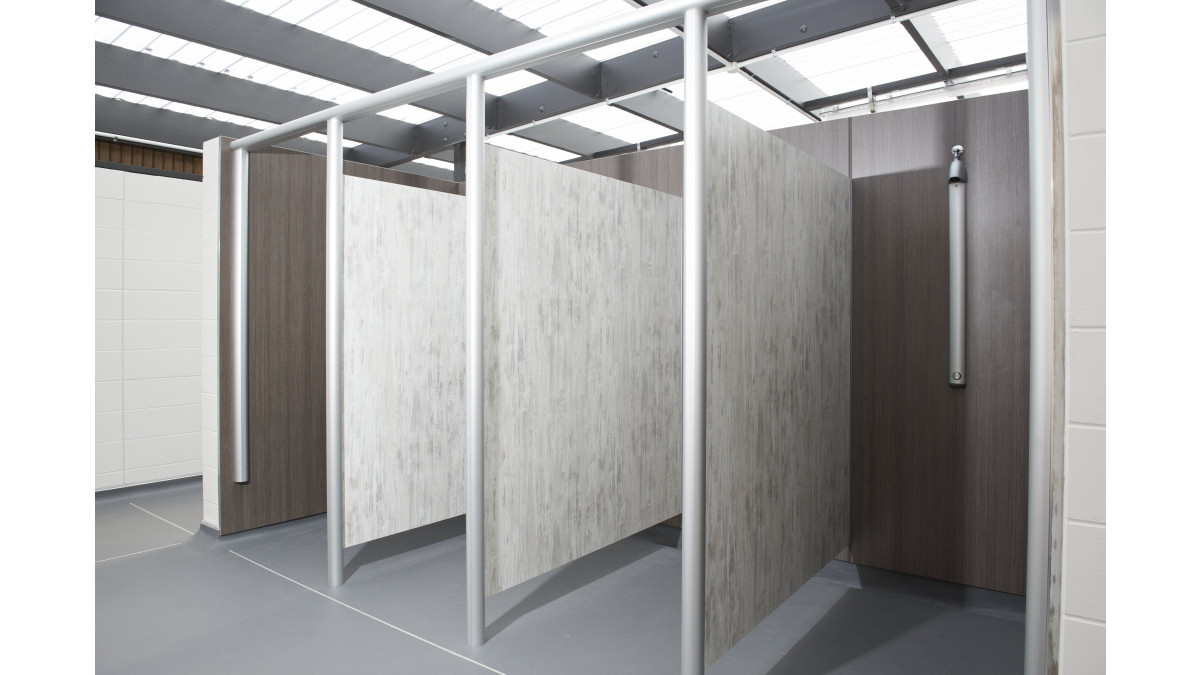

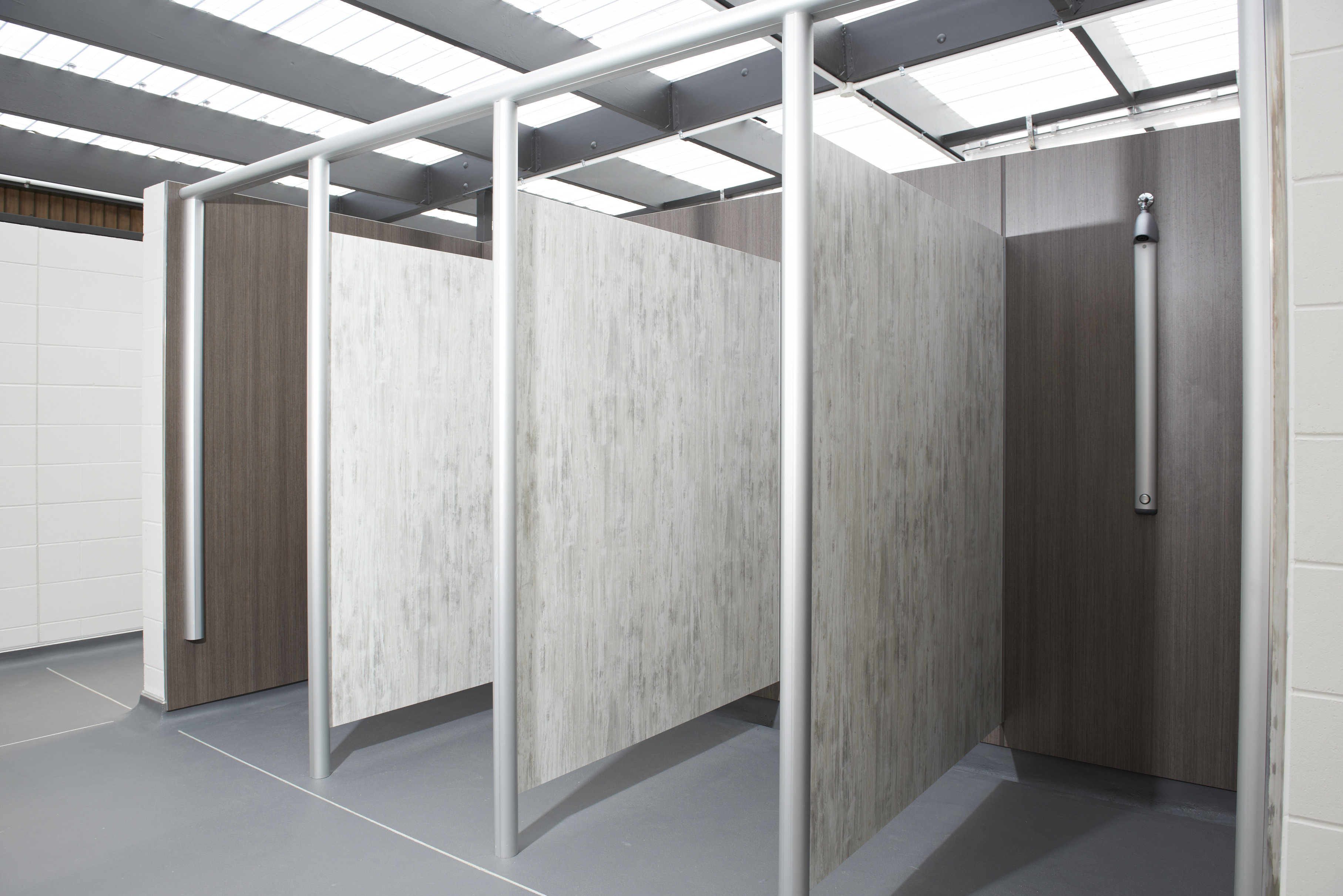

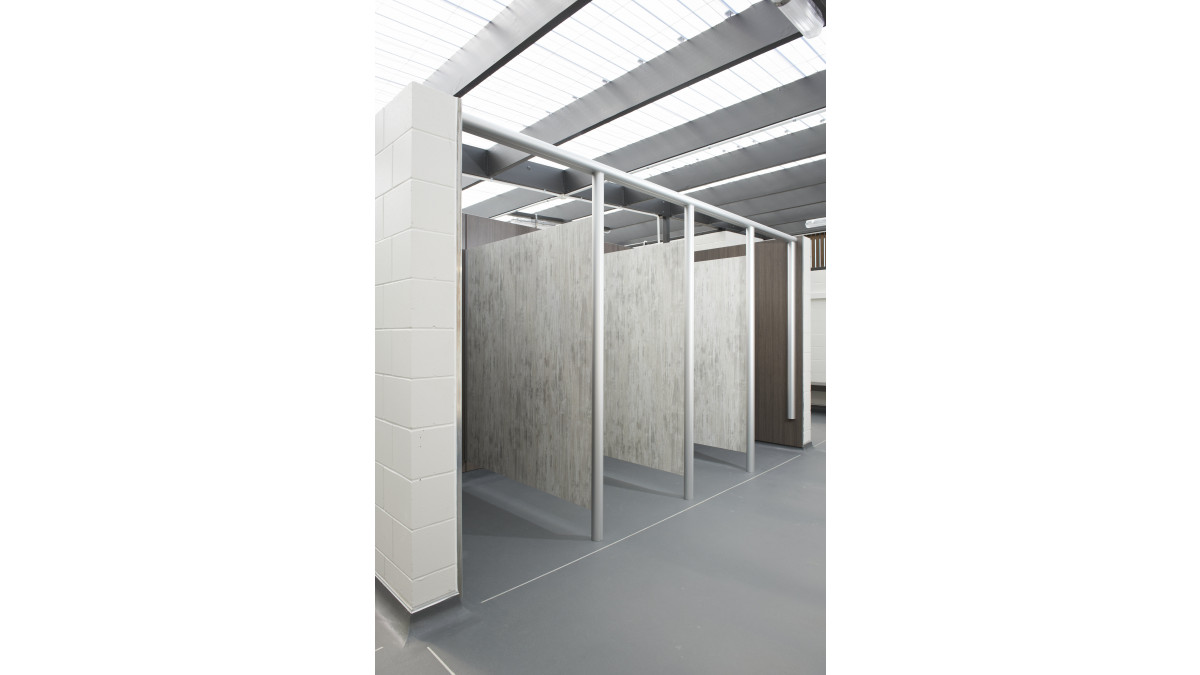

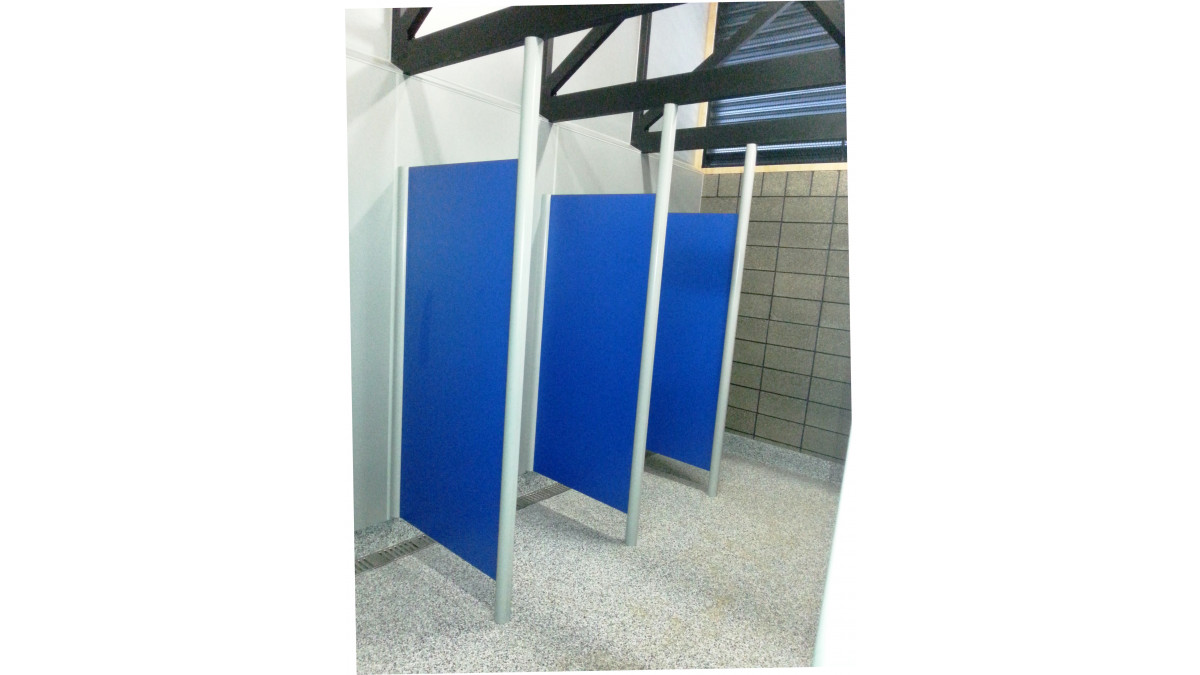

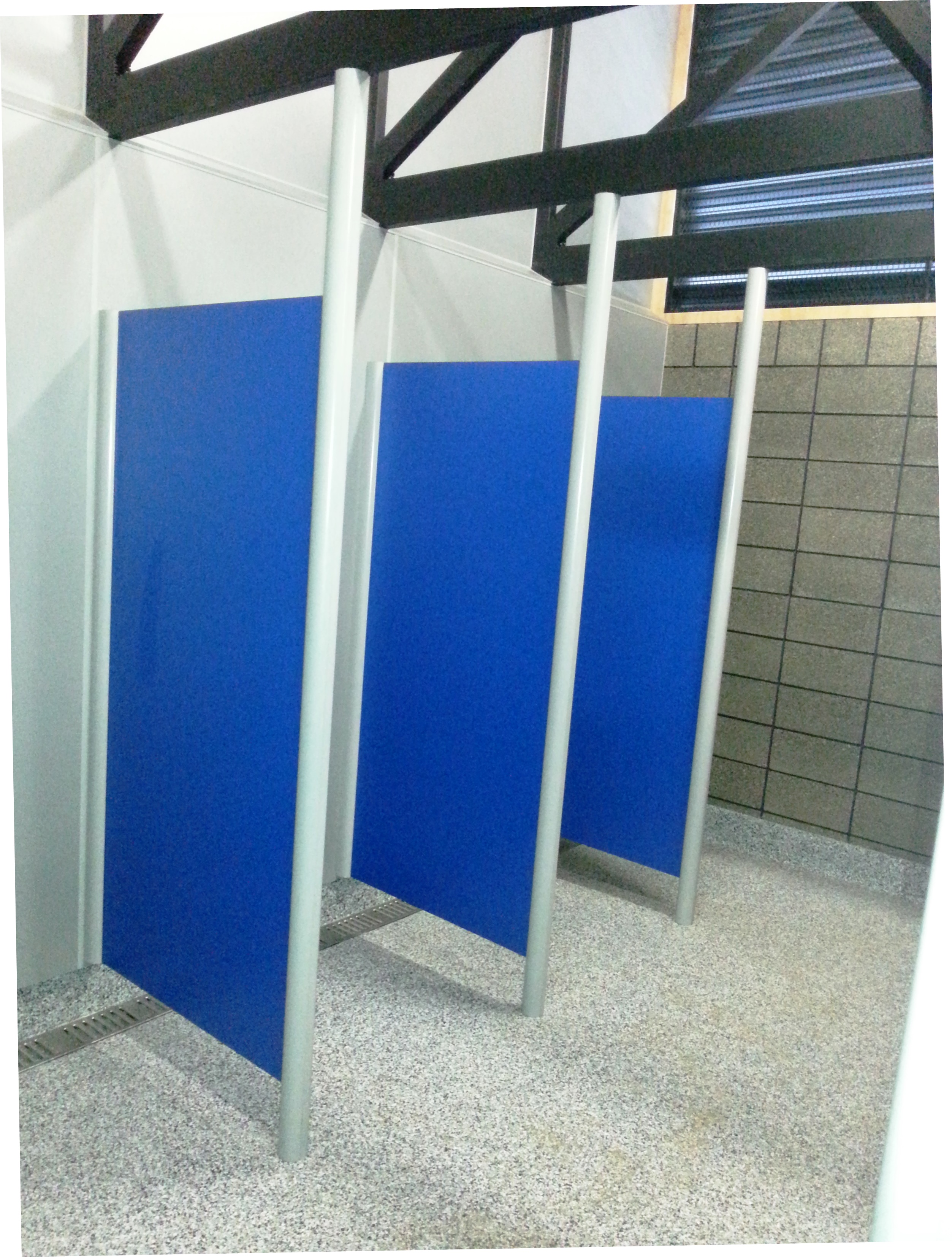

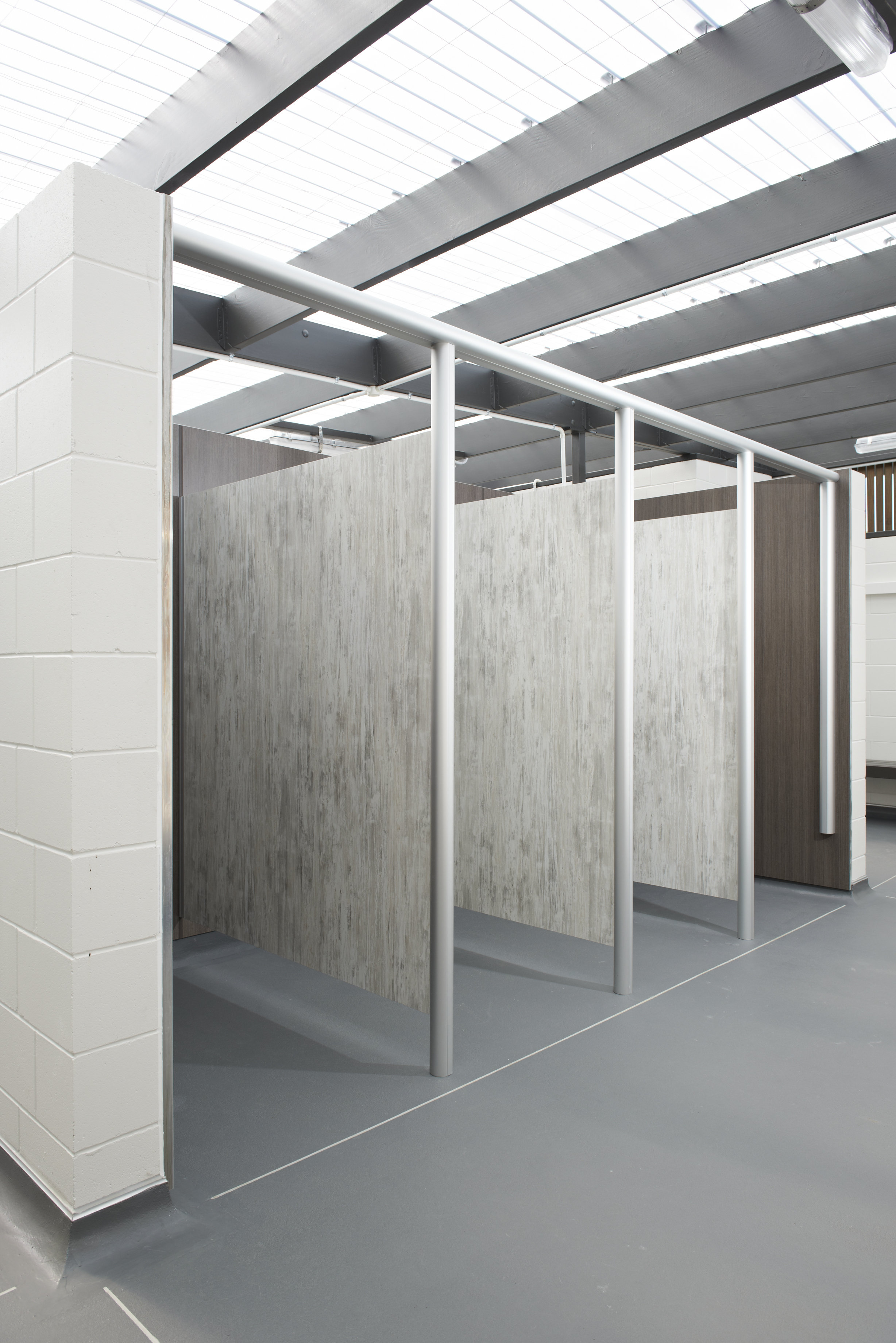

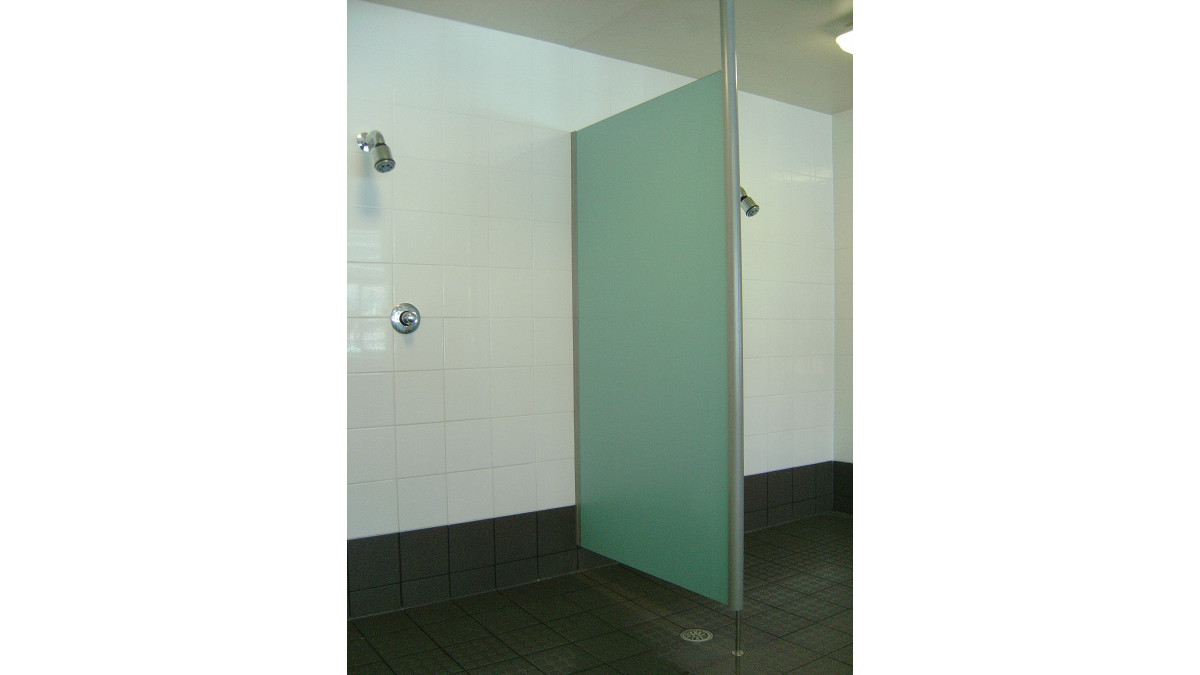

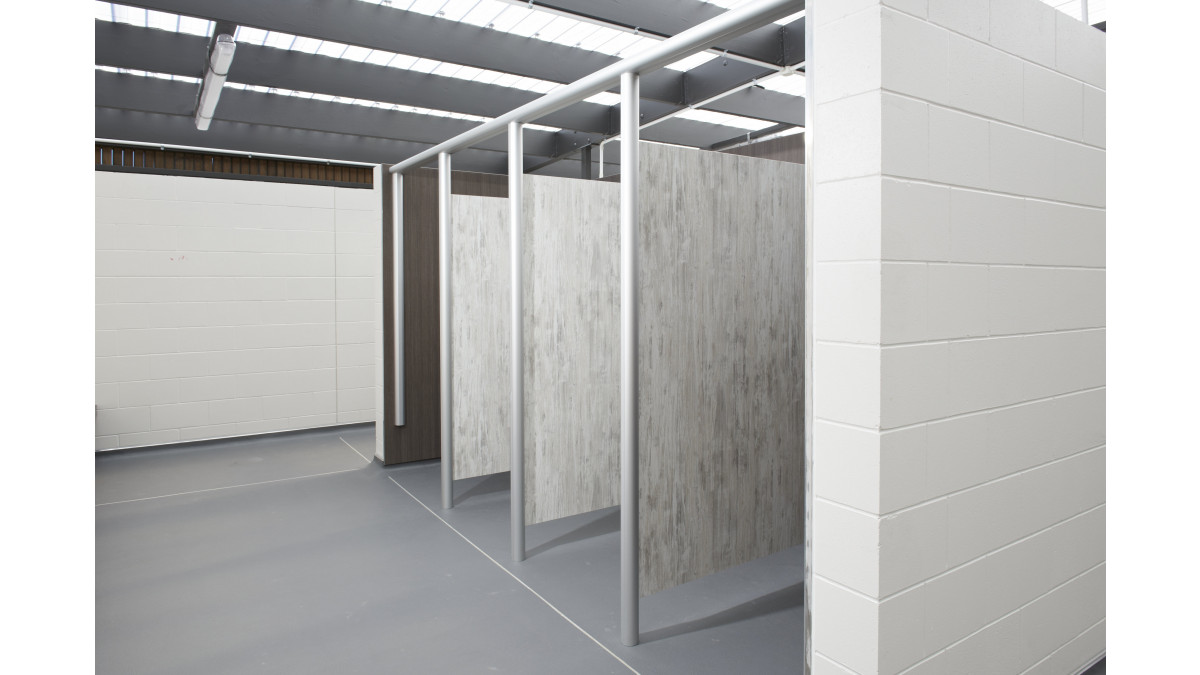

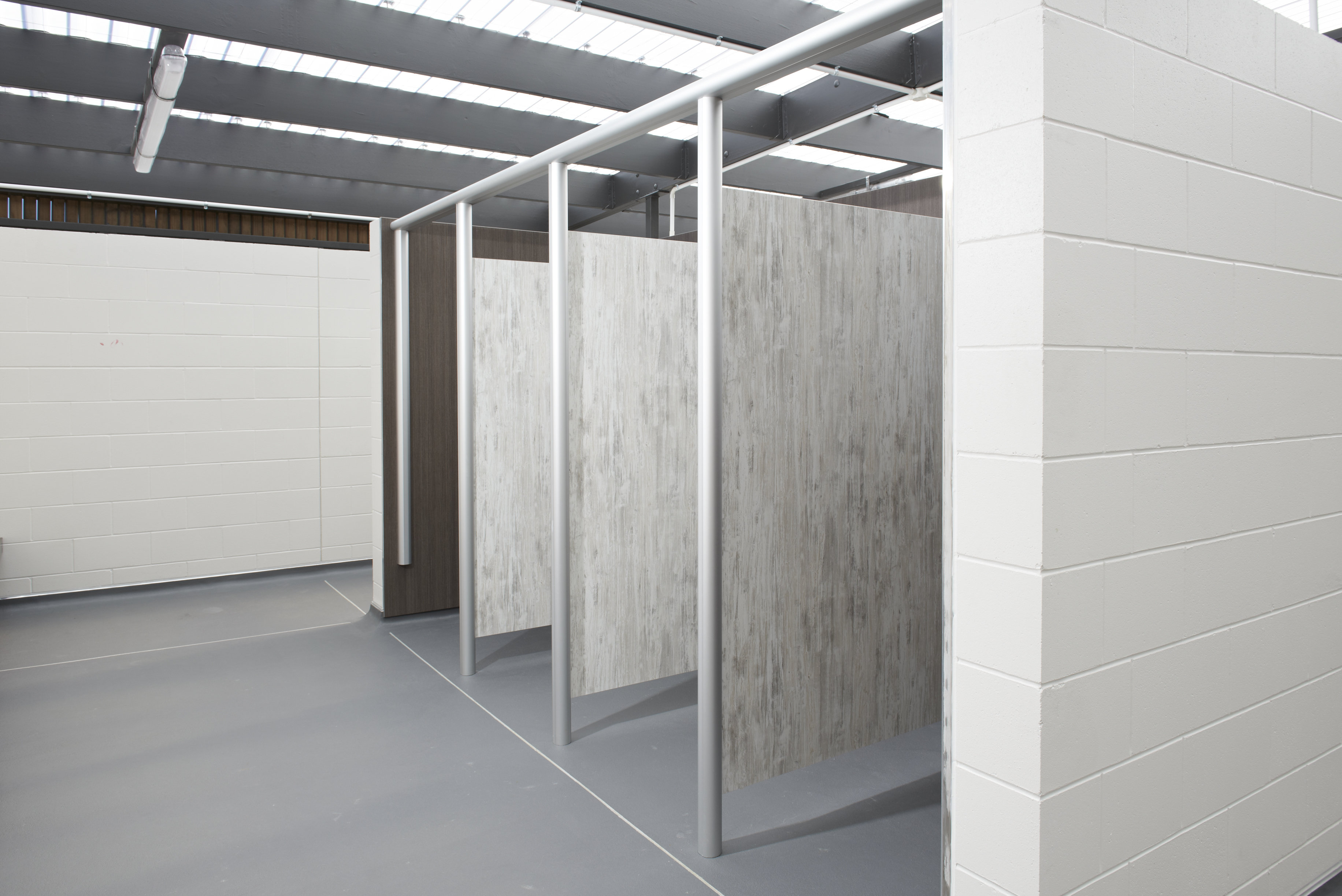

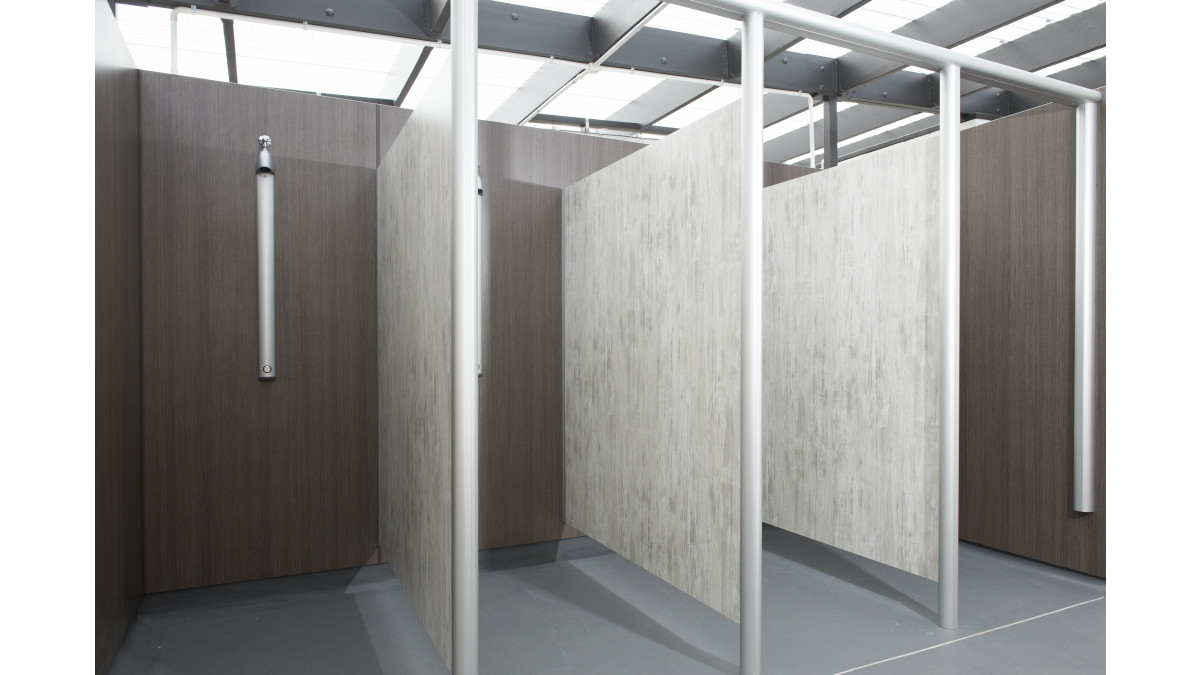

Resco's screens are used to offer privacy in communal toilet, shower or change room facilities and are designed to meet the building code. The compact laminate panels that Resco uses are extremely versatile, allowing its systems to be installed in wet and high-abuse environments.

Limitations on Use

Resco products are meant for internal use as the compact laminate panels are not colourfast in New Zealand's UV conditions.

Statement of Building Code Compliance

Resco's screens meets the following provisions of the NZBC:

  • Clause B2 Durability: the code requires 5 years — Resco compact laminate has a 10 year guarantee on the panel.
  • Clause C Fire Safety: Resco compact laminate has a group rating of 3 which meets the surface finish requirements for C/AS1 — C/AS7.
  • Clause E3 Internal Moisture: surfaces of building elements likely to be splashed must be impervious and easily cleaned; Resco compact laminate meets these requirements.
  • Clause G1 Personal Hygiene: sanitary fixtures shall provide appropriate privacy, allow effective cleaning, avoid dirt or germs and facilitate sanitation; Resco cubicles are designed to meet these requirements
  • Clause G1 AS1 Accessibility: personal hygiene facilities provided for people with disabilities shall be accessible; Resco cubicles are designed to meet these requirements.
In-Service History

Resco's products have been installed over the last 20 years. Its compact laminate panel originated in Europe in 1959, and has proven popular throughout the world, being the main choice for cubicles in Europe, America, Asia and Australasia.

Other Performance Attributes

Resco systems are a good choice when meeting the Greenstar rating system, as its compact laminate meets the requirements of IEQ-3 Indoor Air Quality due to its low formaldehyde and VOC emissions.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
G1 Personal Hygiene compliant
Personal Hygiene
Documents
Product Technical Statement
Data Sheet
Material Safety Data Sheet
Anti-bacterial information
Anti-fungi information
Anti-termite information
Environmental Information
Accreditation
Environmental Information
Accreditation
Test Results
Environmental Information
Accreditation
Maintenance Instructions
Warranty
Specification Clause/Guide
Installation and Operation
Additional Information

Resco custom manufactures a range of cubicles, wall linings, lab benches and screens perfect for wet, high traffic and high-abuse areas.
