Multicube Toilet Partition
Description

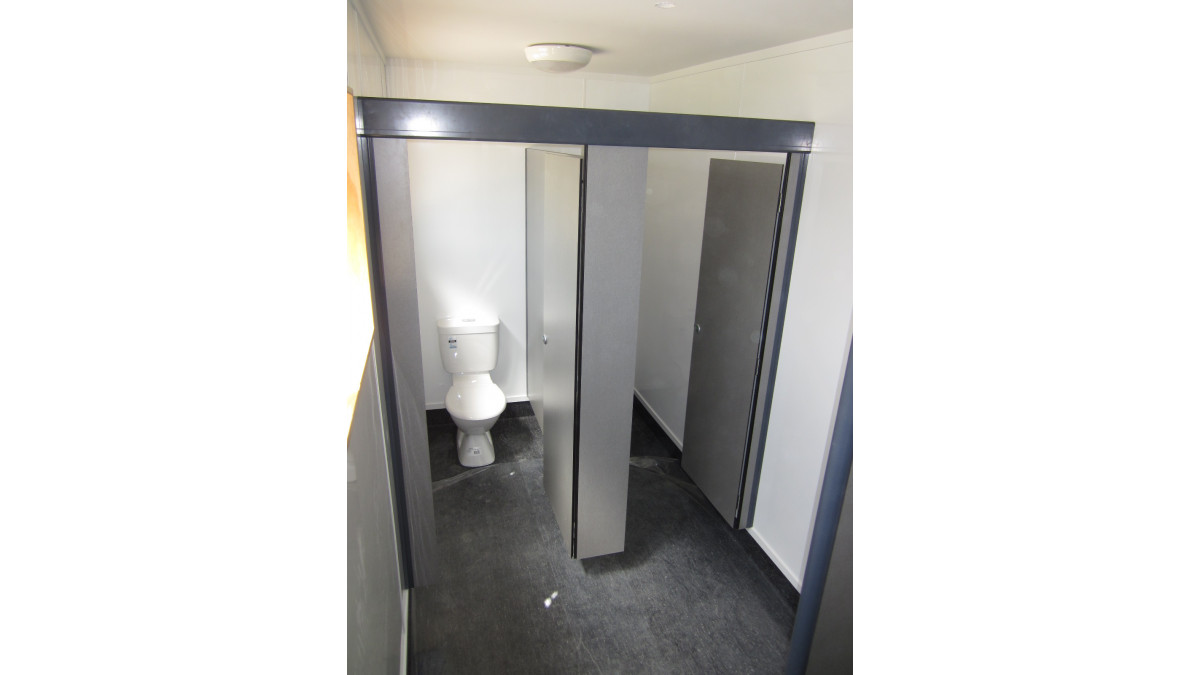

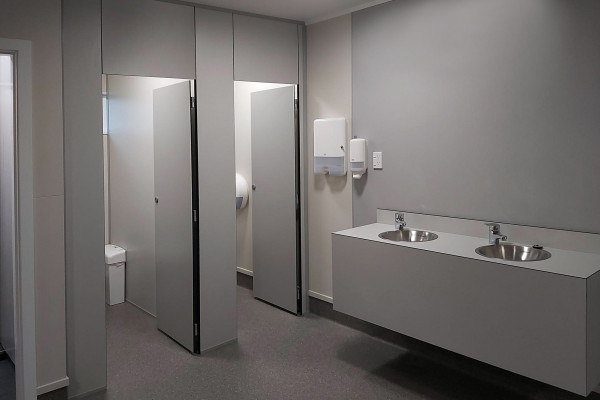

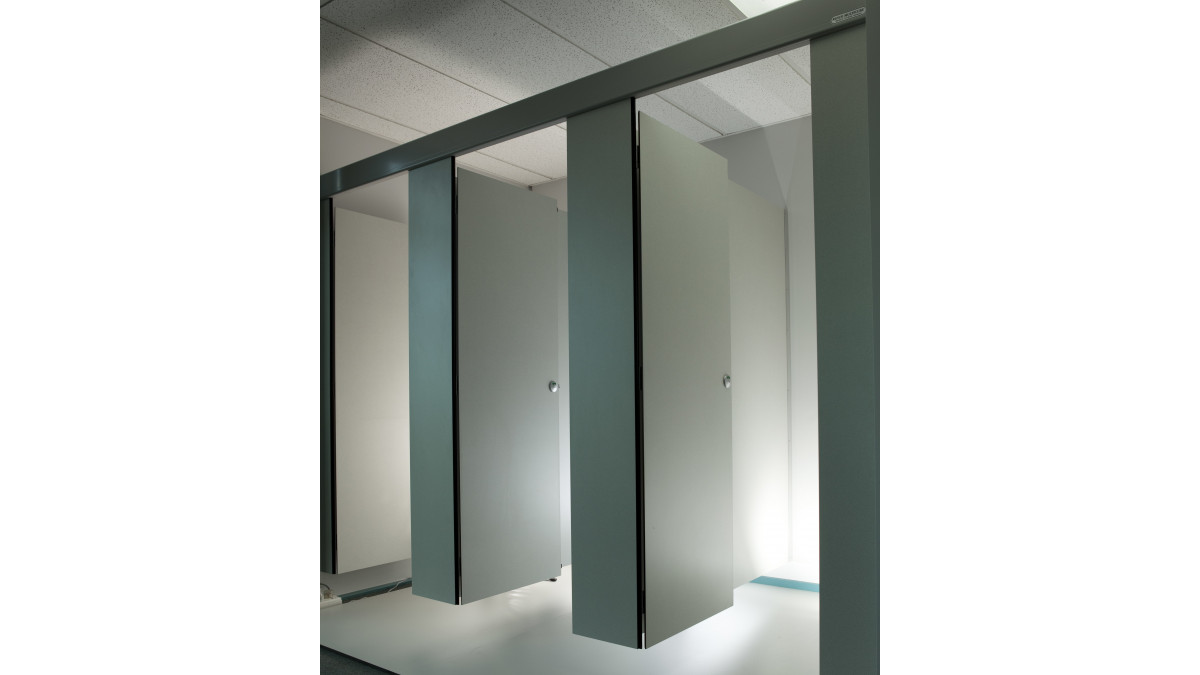

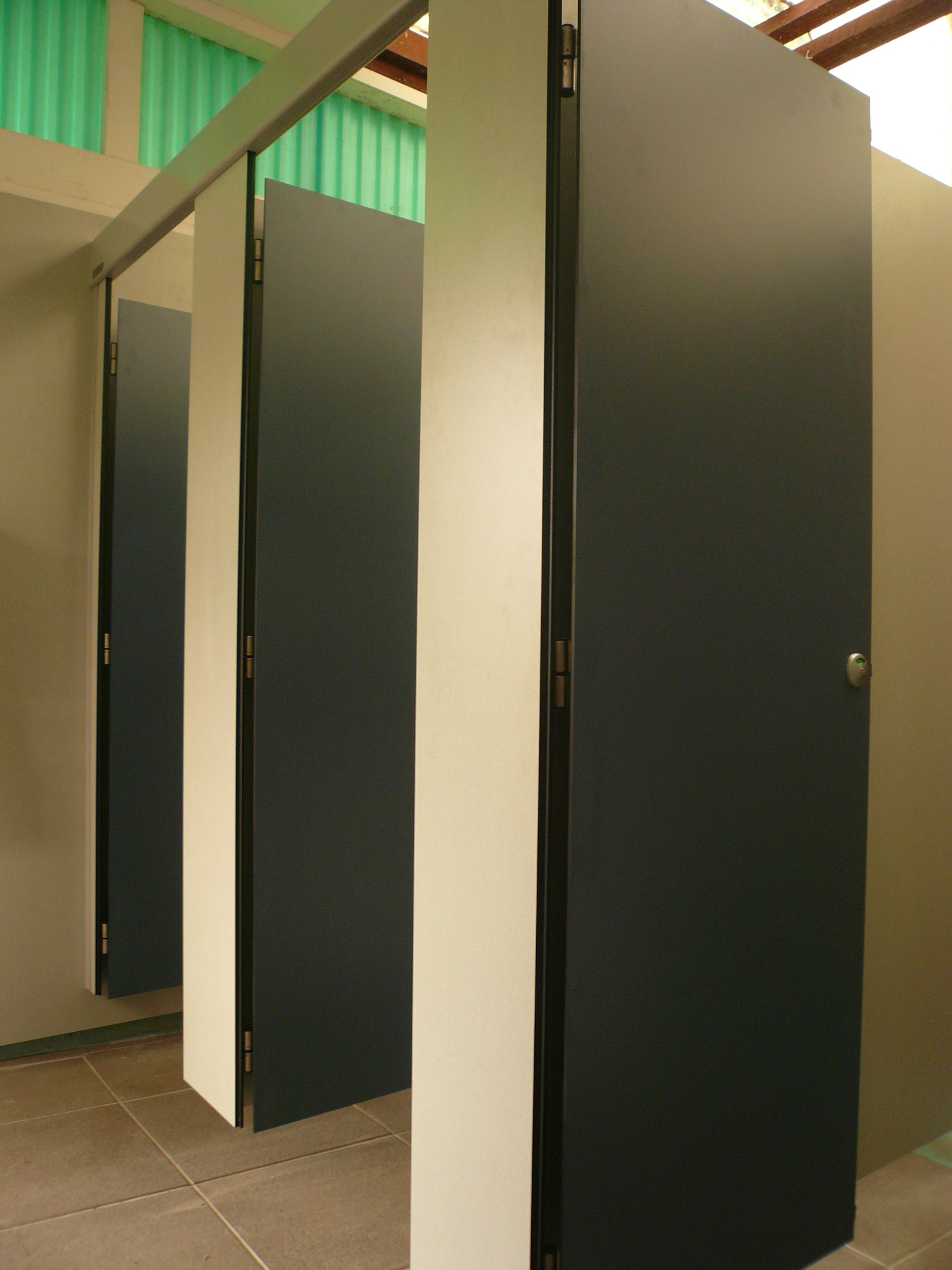

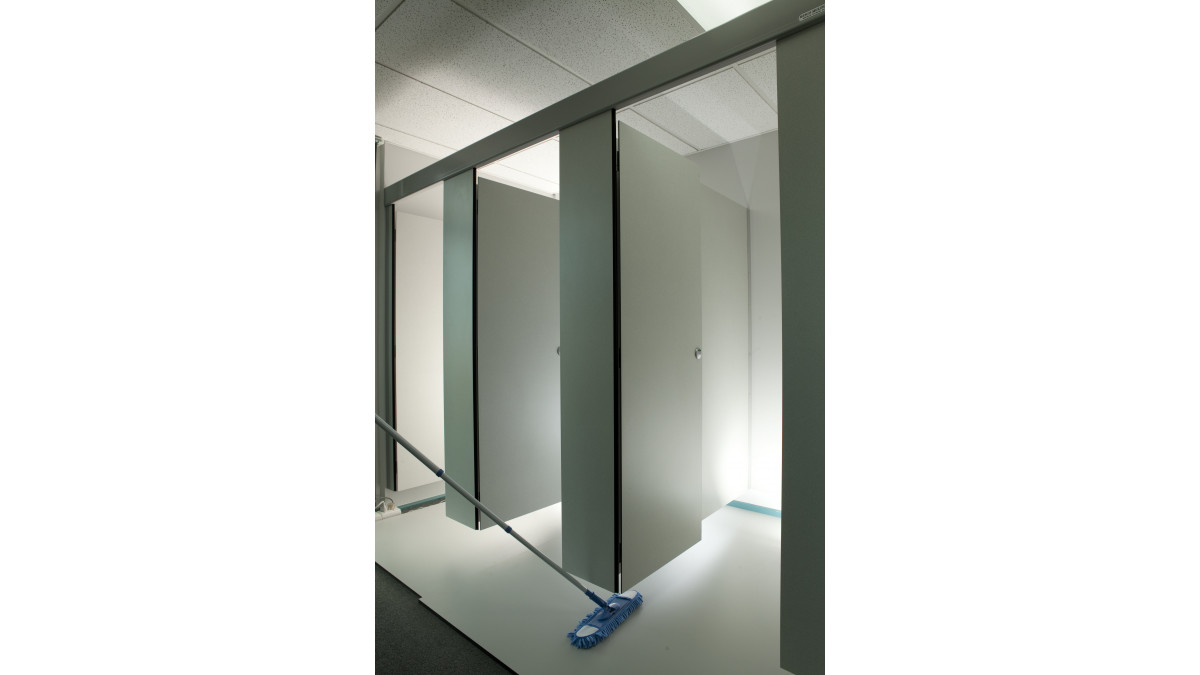

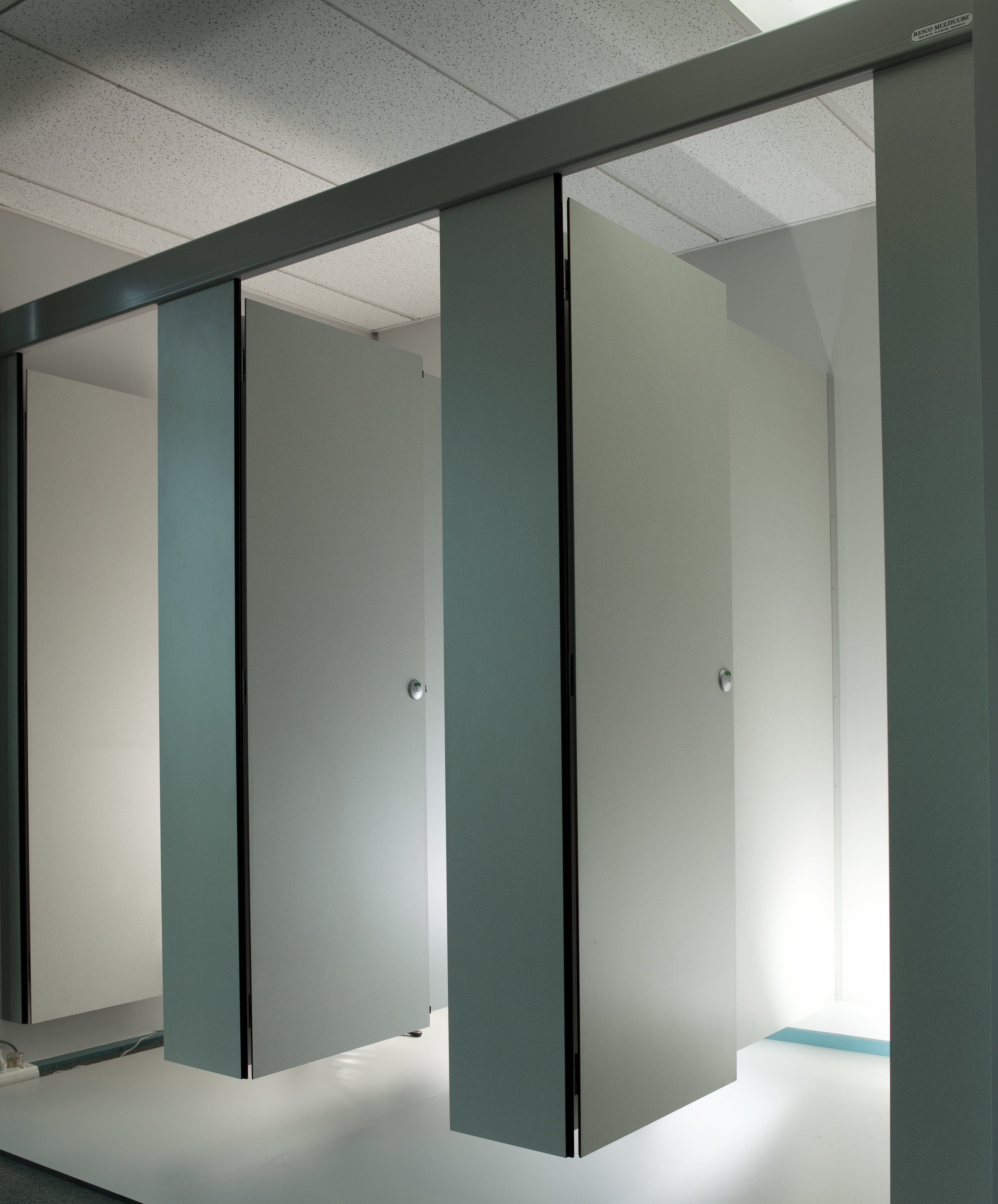

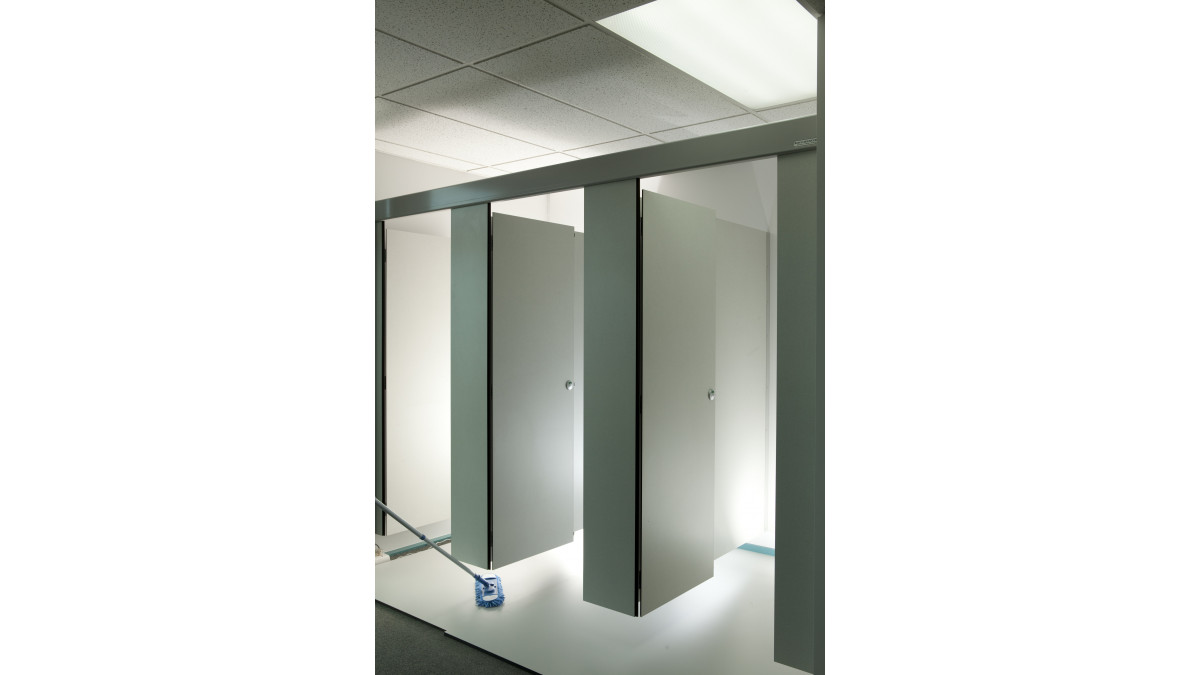

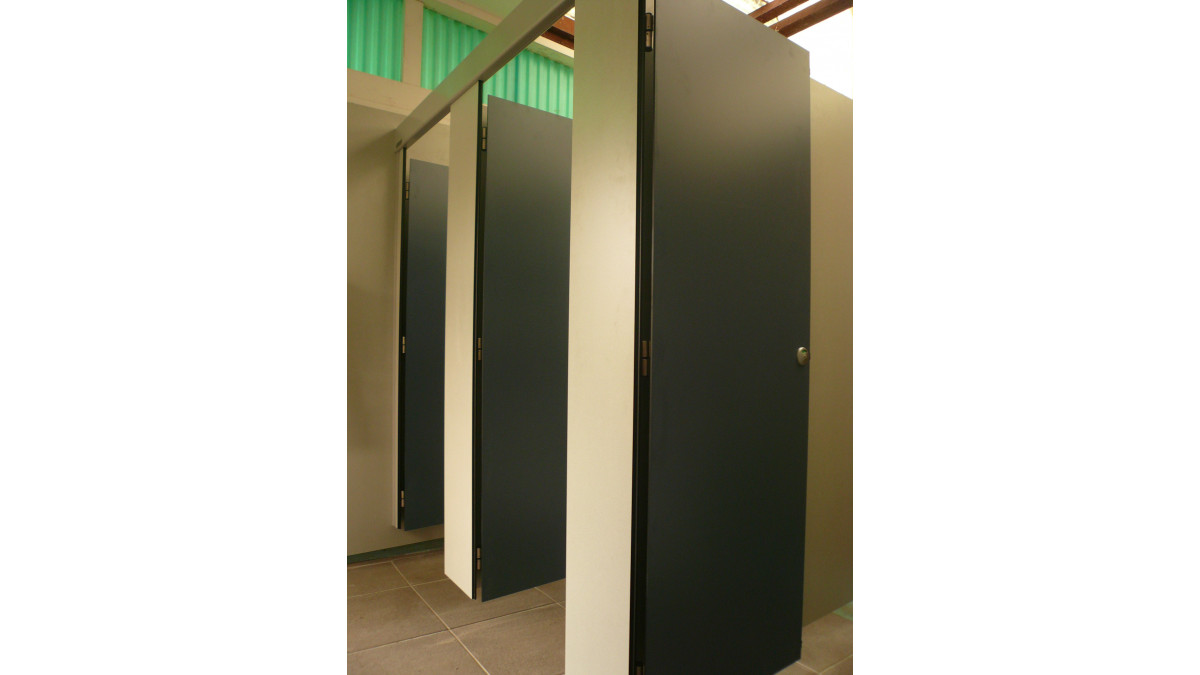

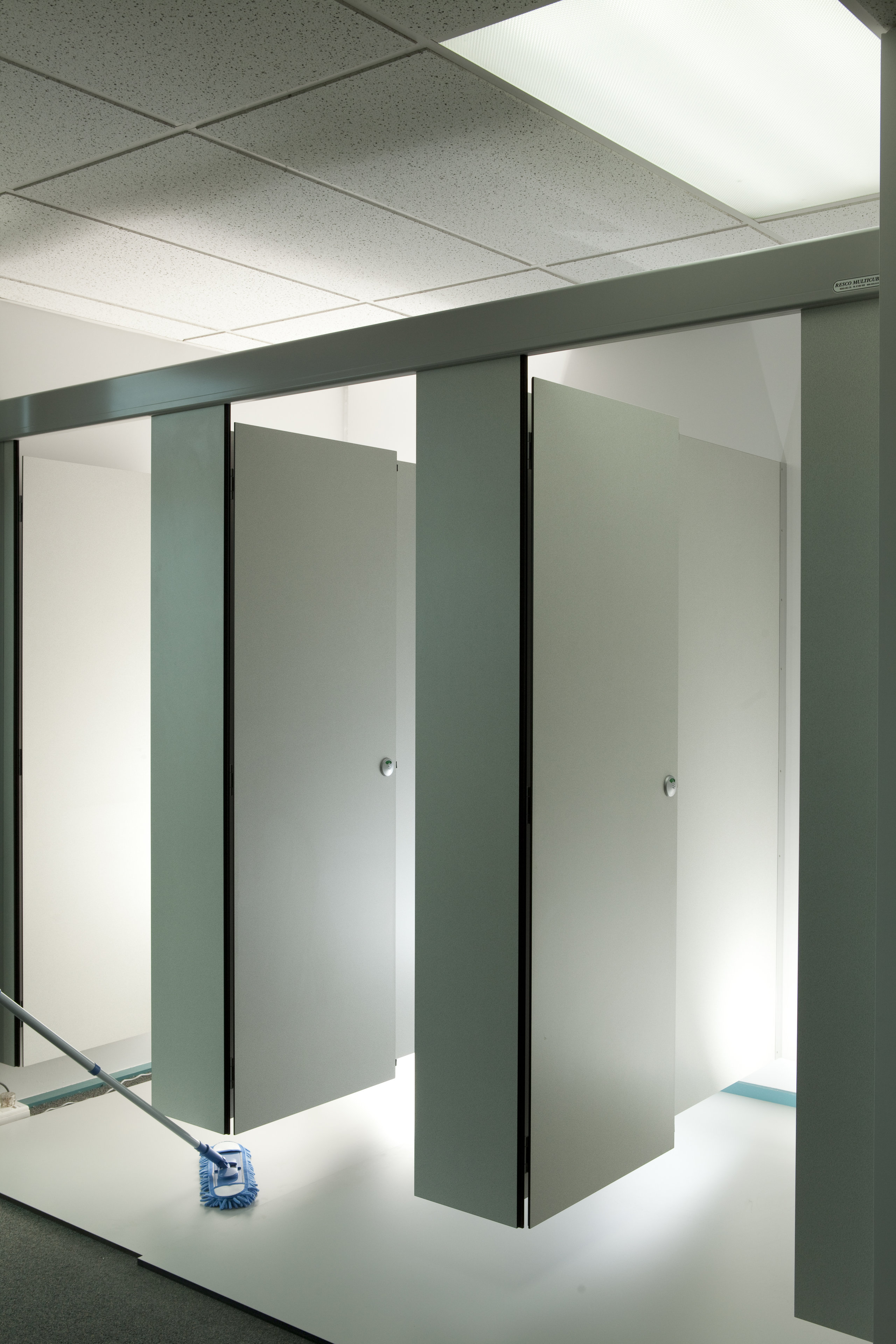

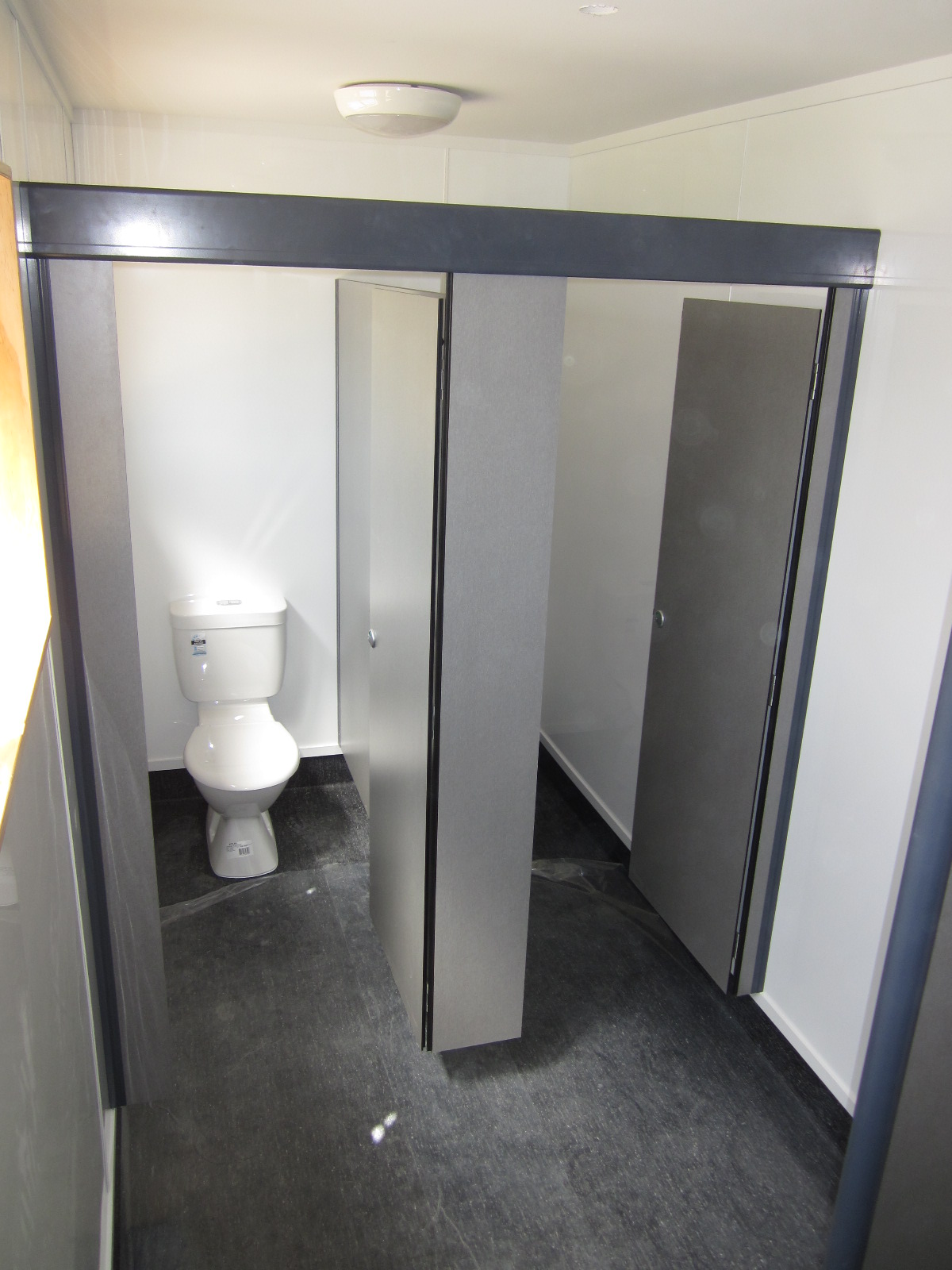

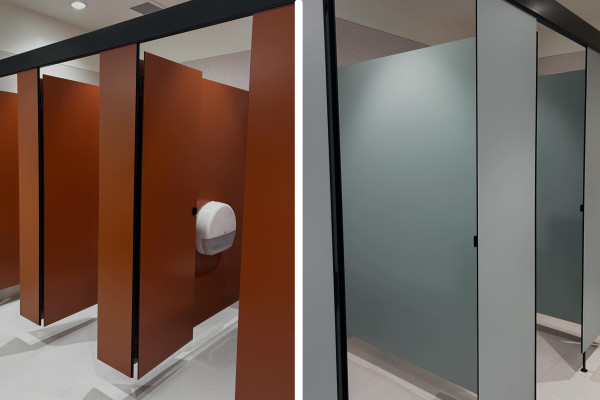

The Multicube cubicle system, cantilevered off the back wall, is designed to be suspended above the floor with no fixing to the ceiling or the floor. Easy cleaning is made possible by the absence of floor fixing. The use of compact laminate ensures Multicube is strong and durable and has a functional but floating look with its clean lines and rebated doors.

Key Features
  • Cubicles are custom-made for each job

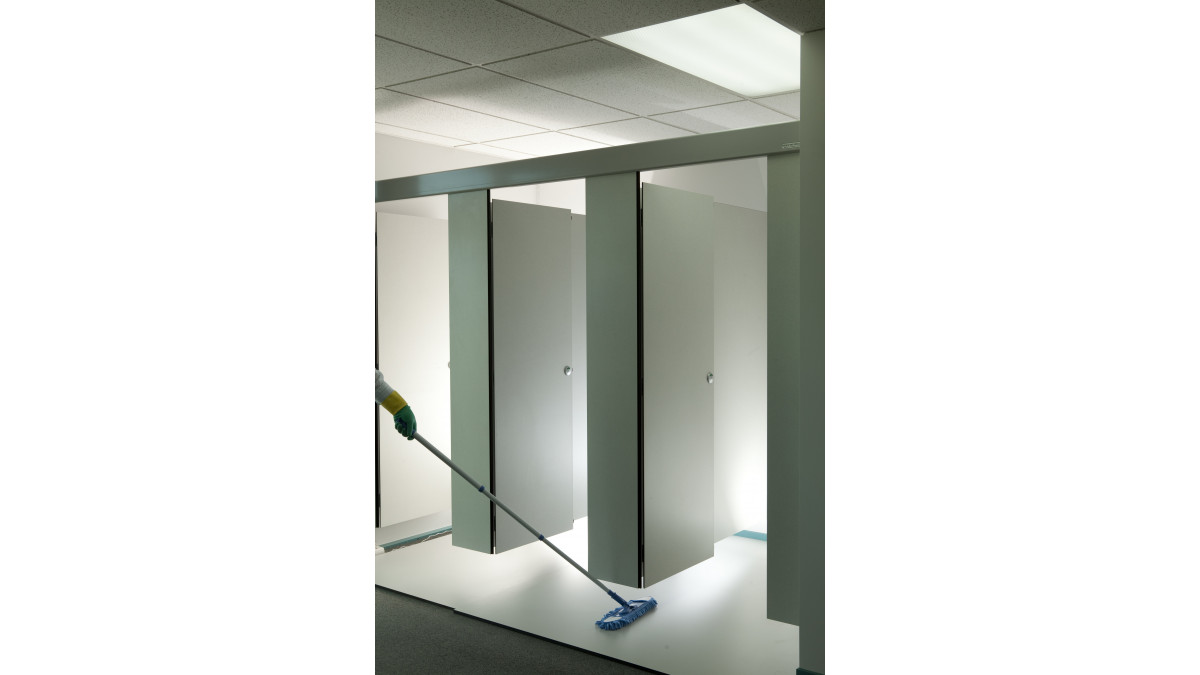

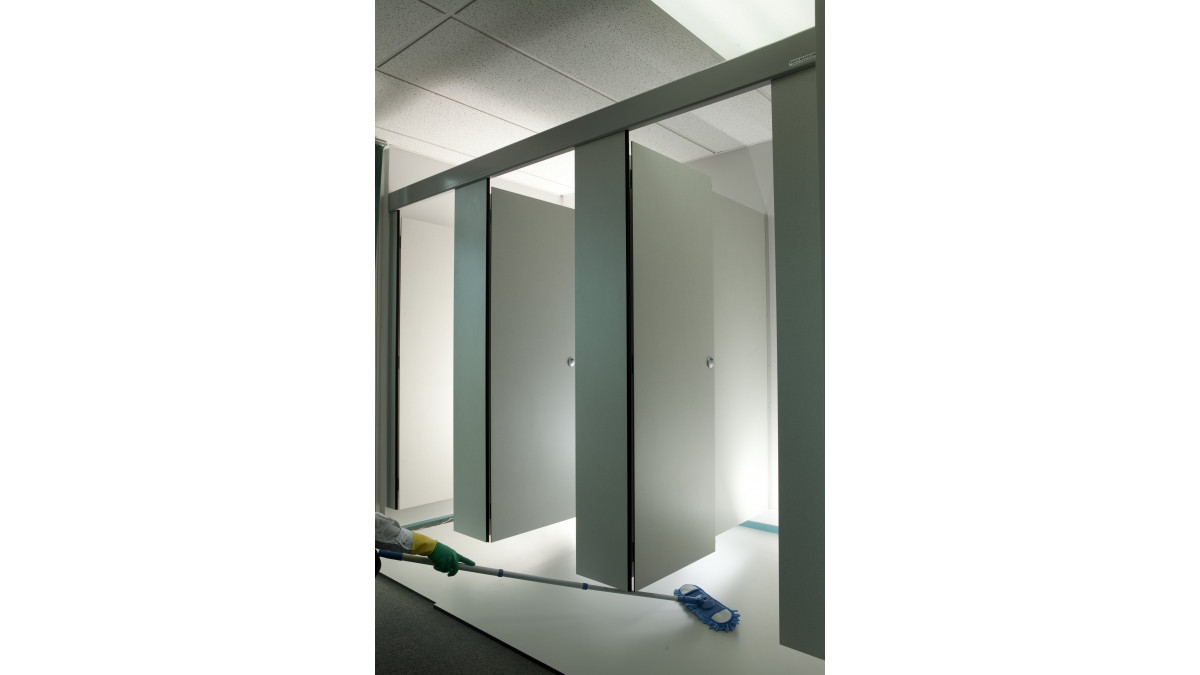

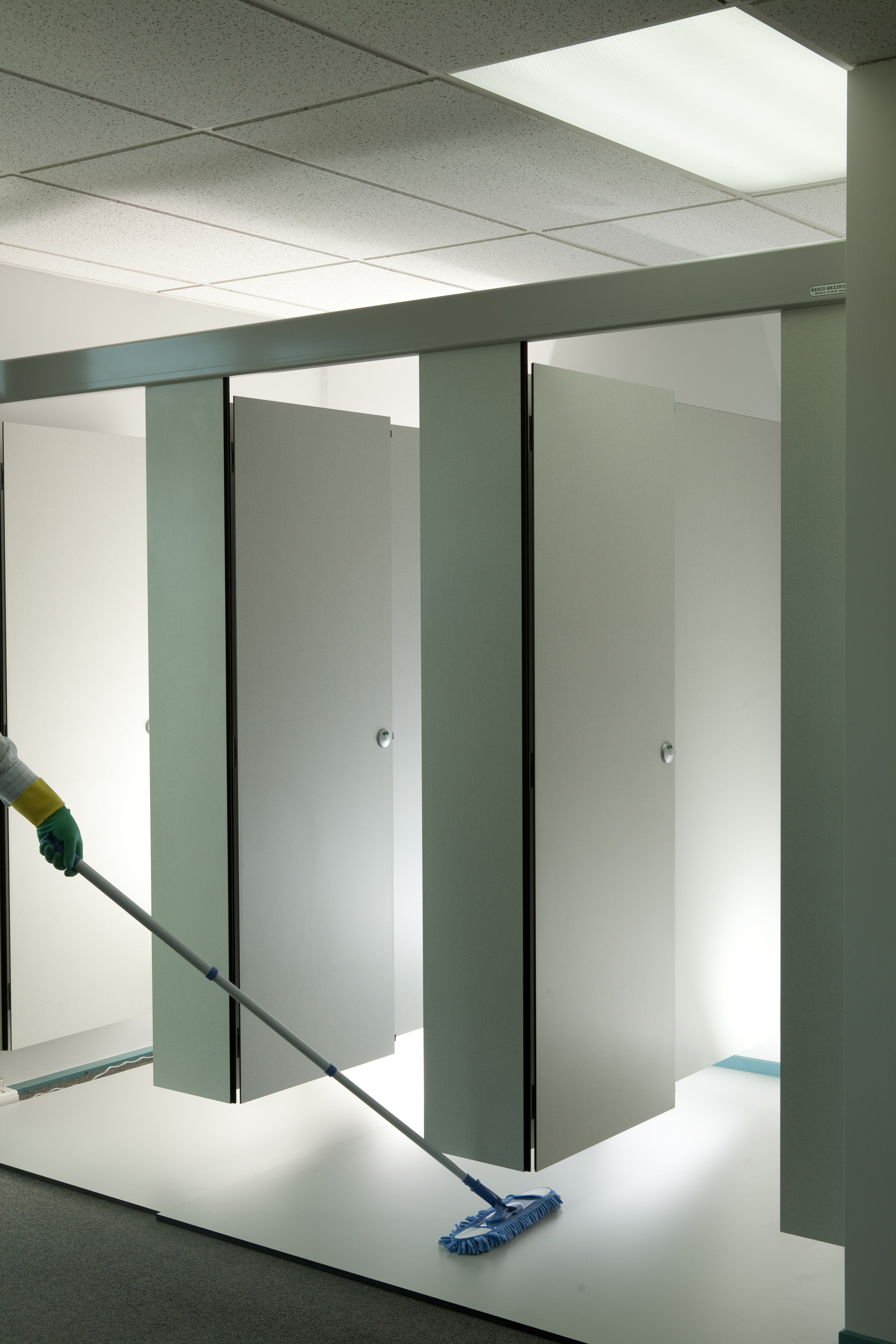

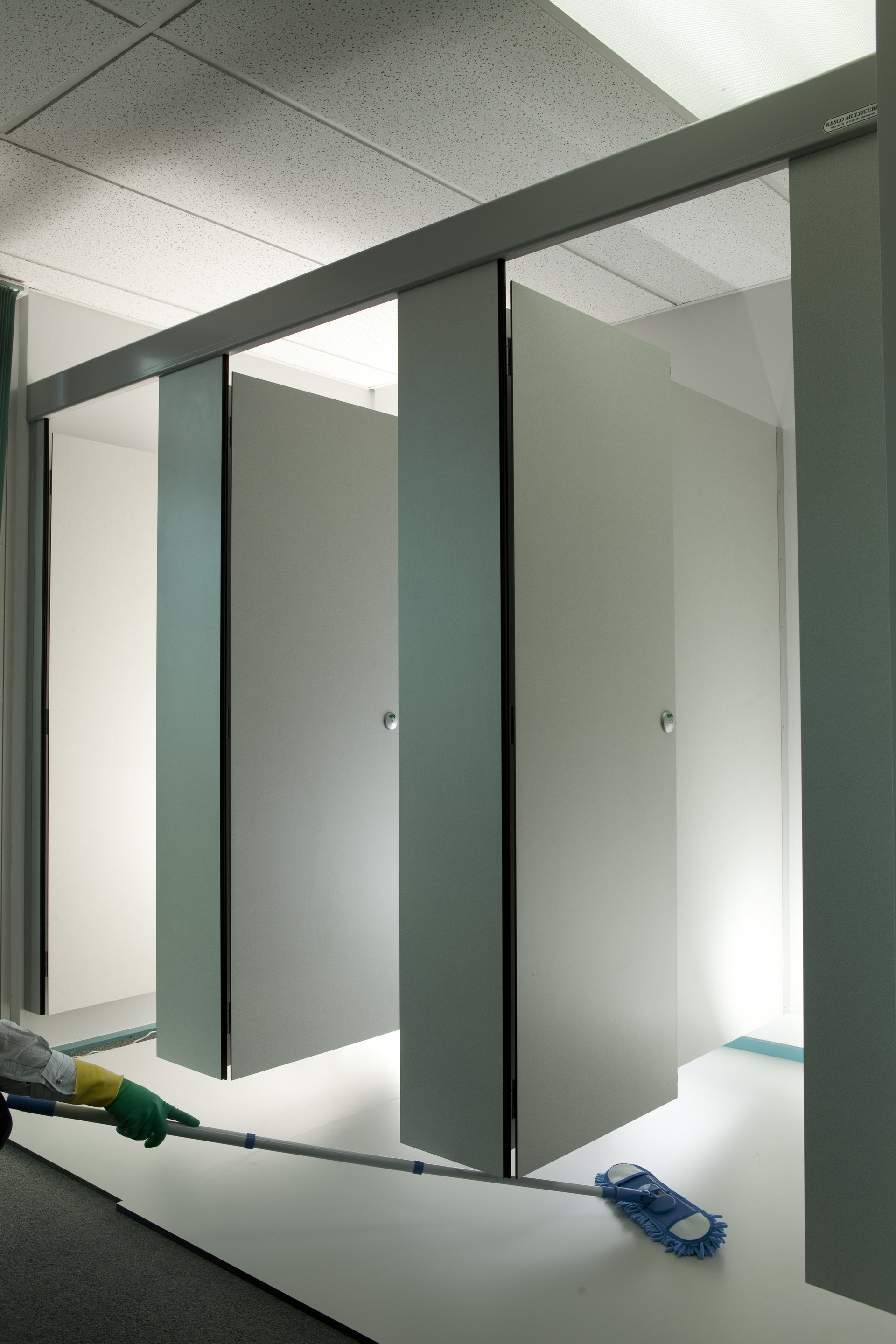

  • Easy clean system
  • Resco installers can install or partitions can come in a kitset form with full instructions
  • Available nationwide

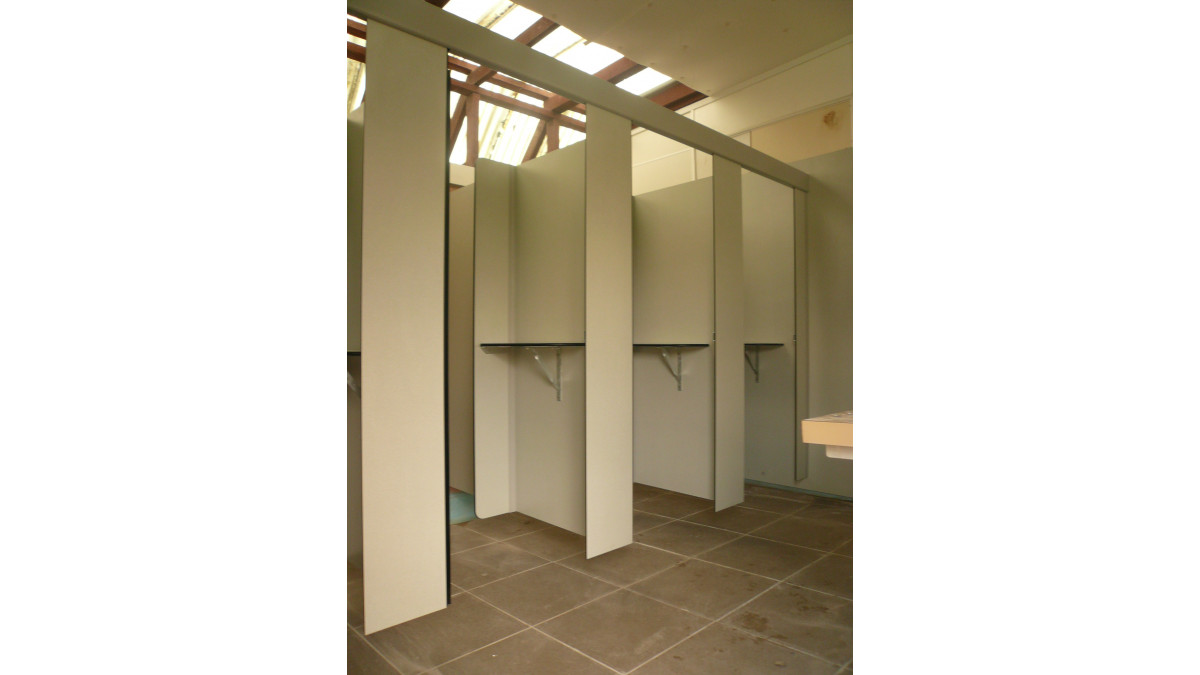

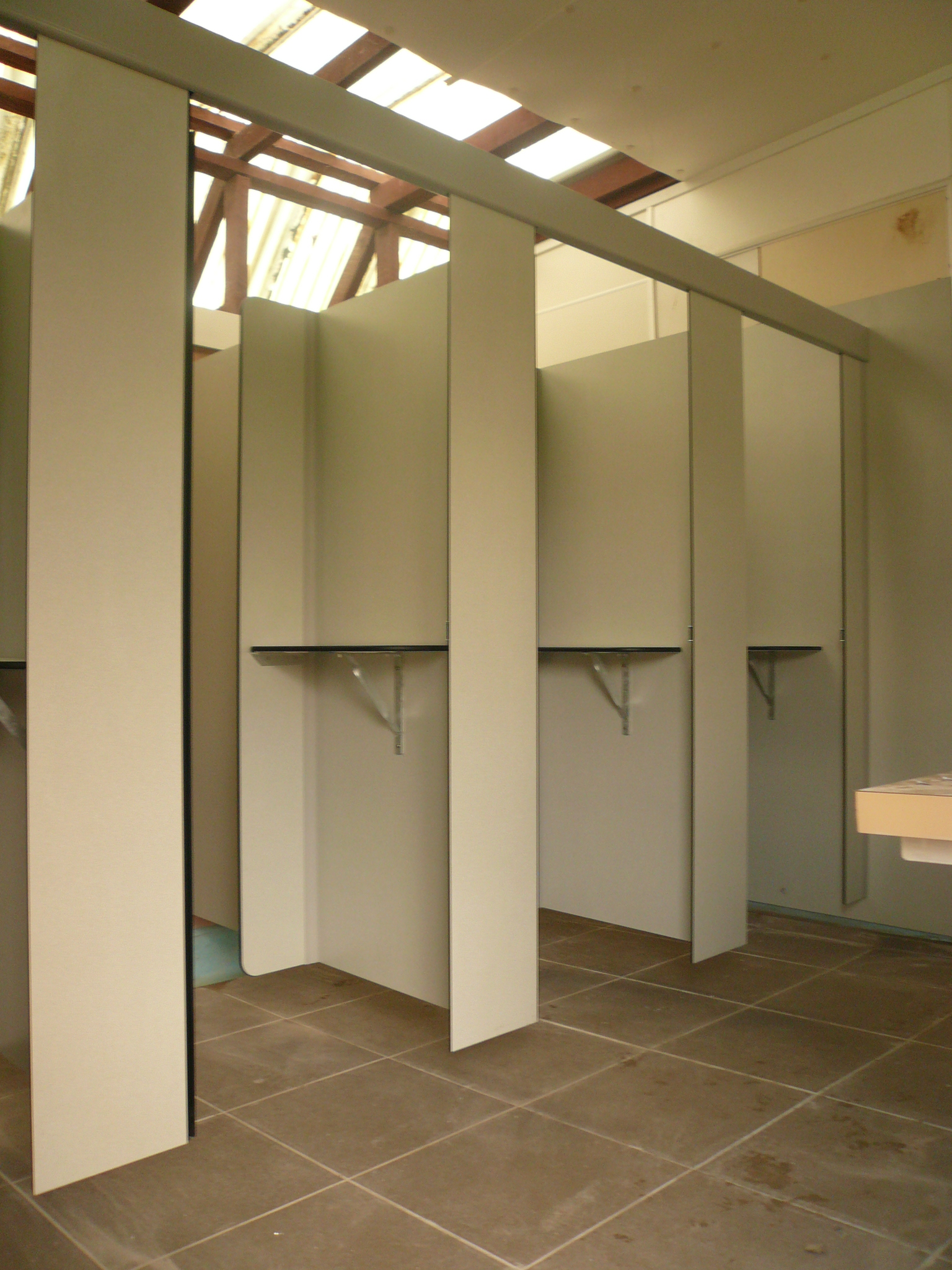

  • Compact laminate panels provide solutions for both toilet and shower situations
  • Available in Resco Antibac panels that kill bacteria for the lifetime of the panel
  • Resco offers NZ's largest range of compact laminate colours and finishes (28 stocked colours, 20 in the designer range with a 12-week lead time)
  • Easy to clean and low maintenance
  • Anti-grafitti — most graffiti can be removed
  • 10 year guarantee on panel integrity and 2 year guarantee on hardware
Scope of Use

Resco's partitions are used to offer privacy in communal toilet, shower or change room facilities. The compact laminate panels are extremely versatile, allowing the systems to be installed in wet and high-abuse environments.

In case of unisex facilities, Resco recommends building solid walls running floor to ceiling. Resco's partitioning systems are a standard height of 1976mm with a 160mm gap on the bottom.

Limitations on Use

If front fascia is over 940mm, a pedestal will be required. Multicube needs to be between walls at a maximum of 6 cubicles. Resco products are meant for internal use — compact laminate panels are not colourfast in New Zealand’s UV conditions.



Statement of Building Code Compliance

Resco's Multicube partitioning system meets the following provisions of the NZBC:

  • Clause B2 Durability: The code requires 5 years; Resco compact laminate has a 10 year guarantee on the panel.
  • Clause C Fire Safety: Resco compact laminate has a group rating of 3 which meets the surface finish requirements for C/AS1 — C/AS7.
  • Clause E3 Internal Moisture: Surfaces of building elements likely to be splashed must be impervious and easily cleaned; Resco compact laminate meets these requirements.
  • Clause G1 Personal Hygiene: Sanitary fixtures shall provide appropriate privacy, allow effective cleaning, avoid dirt or germs and facilitate sanitation; Resco cubicles are designed to meet these requirements.
  • Clause G1 AS1 Accessibility: Personal hygiene facilities provided for people with disabilities shall be accessible; Resco cubicles are designed to meet these requirements.
In-Service History

Resco products have been installed over the last 20 years. All systems use compact laminate — this is the right product for use in wet, high use and abuse areas. Originating in Europe in 1959, compact laminate has proved popular throughout the world and is the main choice for cubicles in Europe, America, Asia and Australasia.

Other Performance Attributes

Resco systems are a sound choice for use to meet the Greenstar rating system. They meet the requirements of IEQ-3 Indoor Air Quality due to the low formaldehyde and VOC emissions.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
G1 Personal Hygiene compliant
Personal Hygiene
