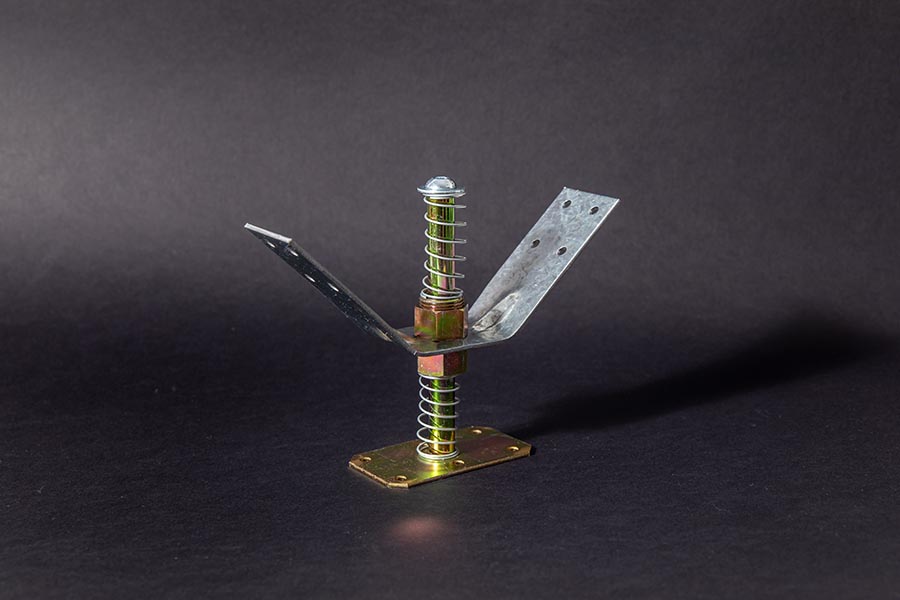

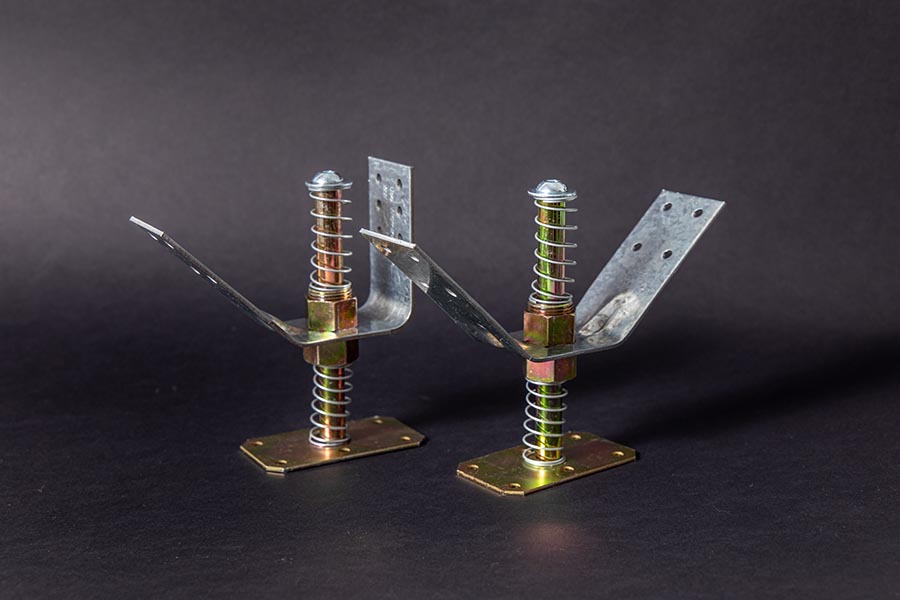

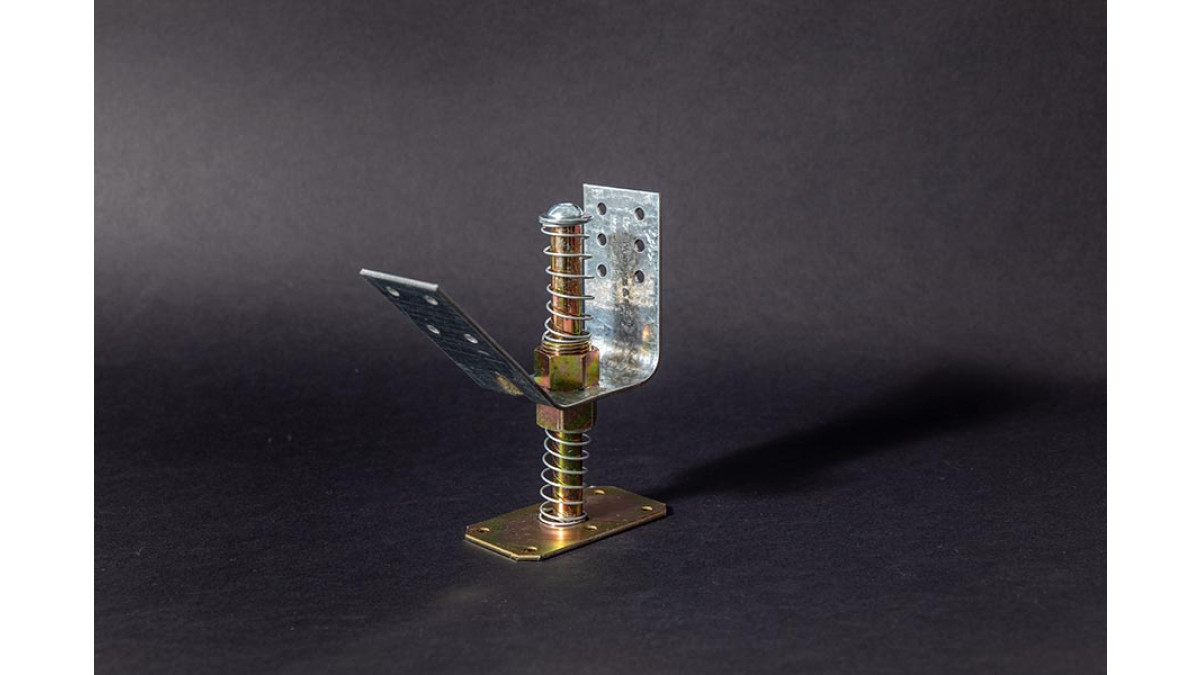

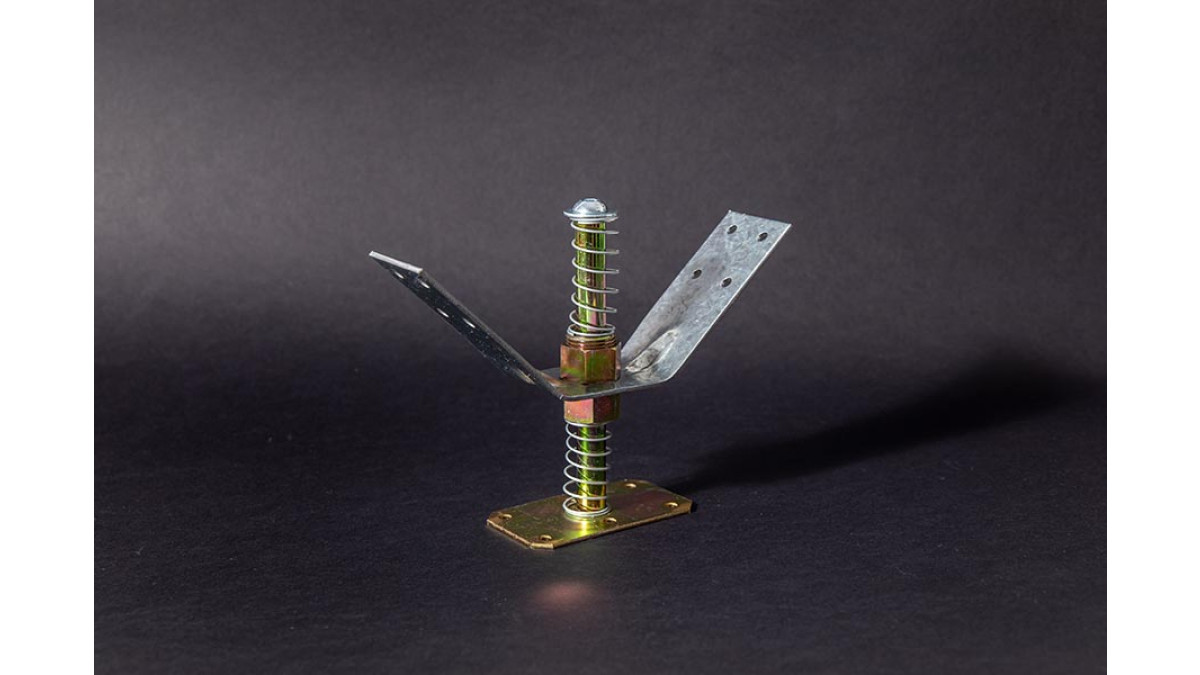

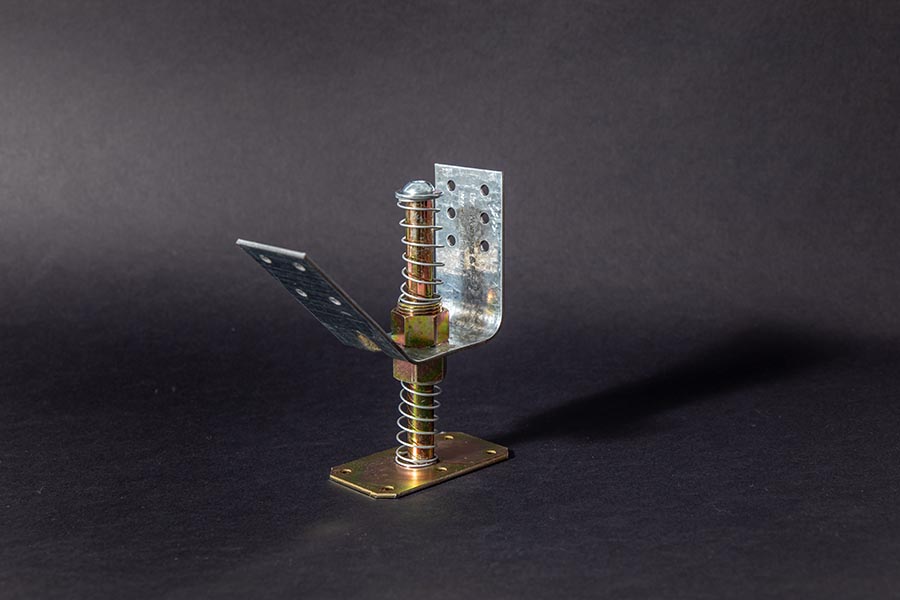

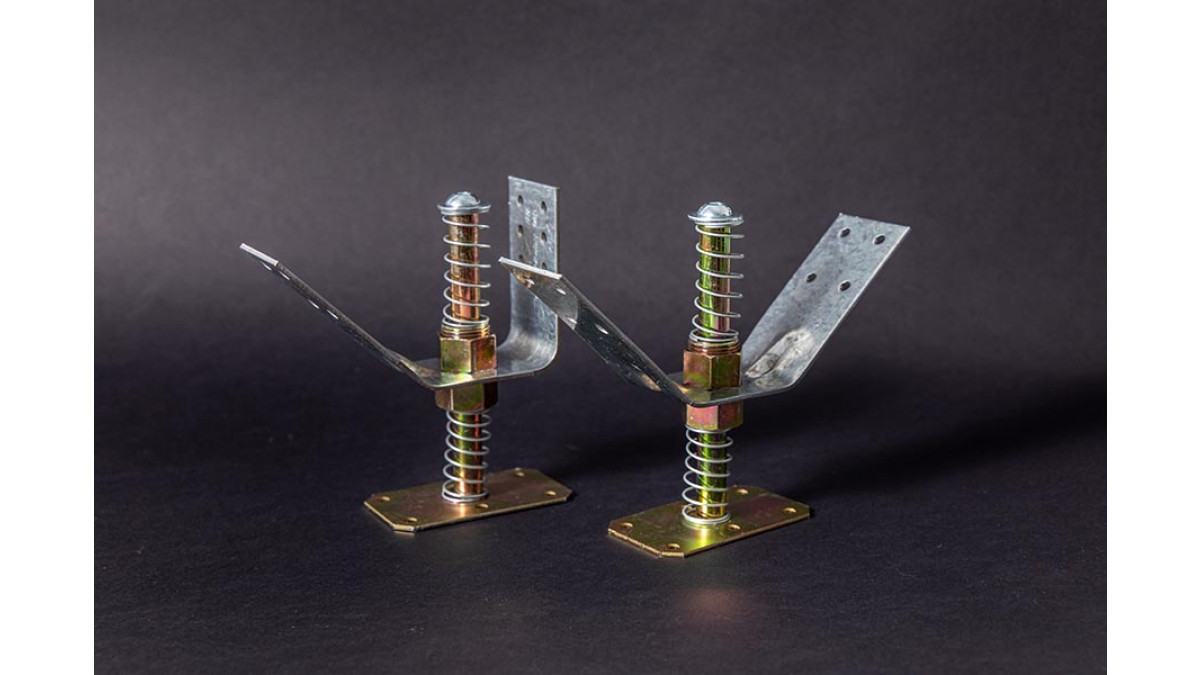

Designed and tested to provide a consistent maximum 280kg/f of bracing capacity to two-way grid ceiling systems and drywall grid systems. A simple click fit and screw off process dramatically reduces time required to complete back bracing.
Plenum height chart provides guidance on steel stud BMT required for bracing arms. Features the ability to rotate the unit though 360° minimising service clashes.
Provides maximum 280kg/f of capacity for every brace, every time
Dramatically reduces install time from up to 1.5 hours to 25 minutes per brace
Provides consistency of installation and eliminates installer error
Ensures validity of seismic ceiling design and ceiling installers PS3
Tested under ULS and SLS loads to ensure longevity of performance
Patented connection saddle applicable to all ceiling main runners
Allows for 64mm and 92mm steel stud to be used as bracing material
Minimises plenum footprint to reduce service clashes
Allows rotation of bracing footprint to minimise service clashes
Employs .64 BMT, .75 BMT or 1.15 BMT steel stud to minimise waste on site
