Semi Frameless Posts

MFG Semi Frameless Posts are aluminium profile 65mm x 45mm in Mill or Powder Coat Finish. Metro's standard powder coat finish is silver frost.

Key Features
  • The system is made to use 10mm toughened glass infill panels
  • Can span up to 1400mm between posts at 1000mm high depending on wind loads
  • Available in both base and face fixed versions in full or ¾ height posts
  • PS1 available on request.
Scope of Use

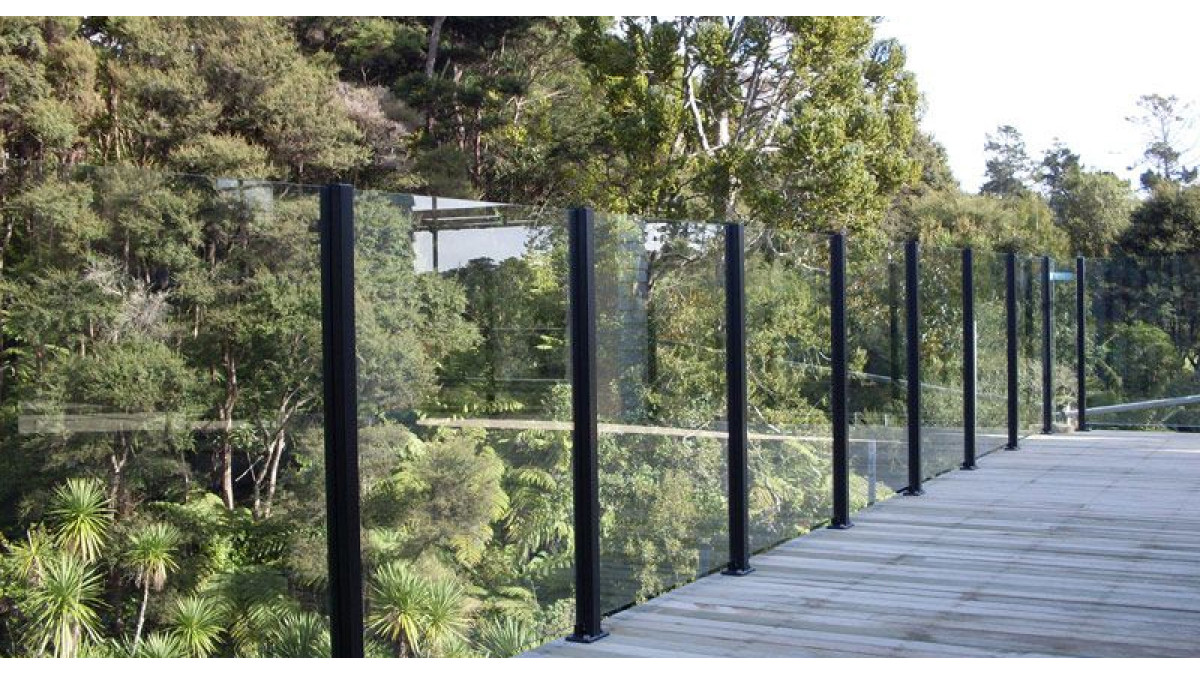

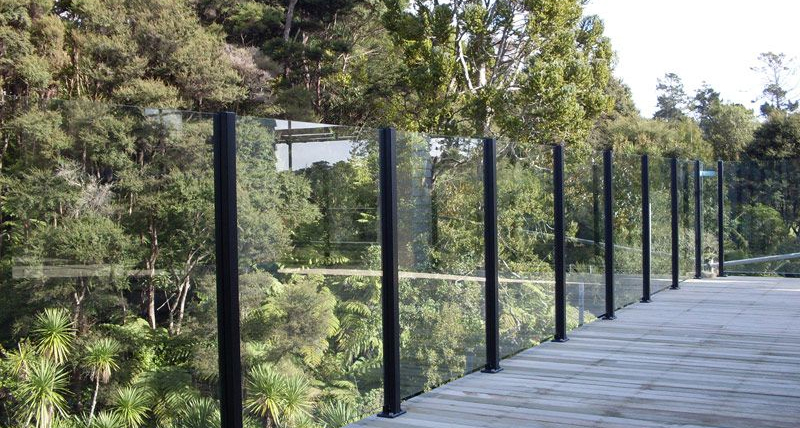

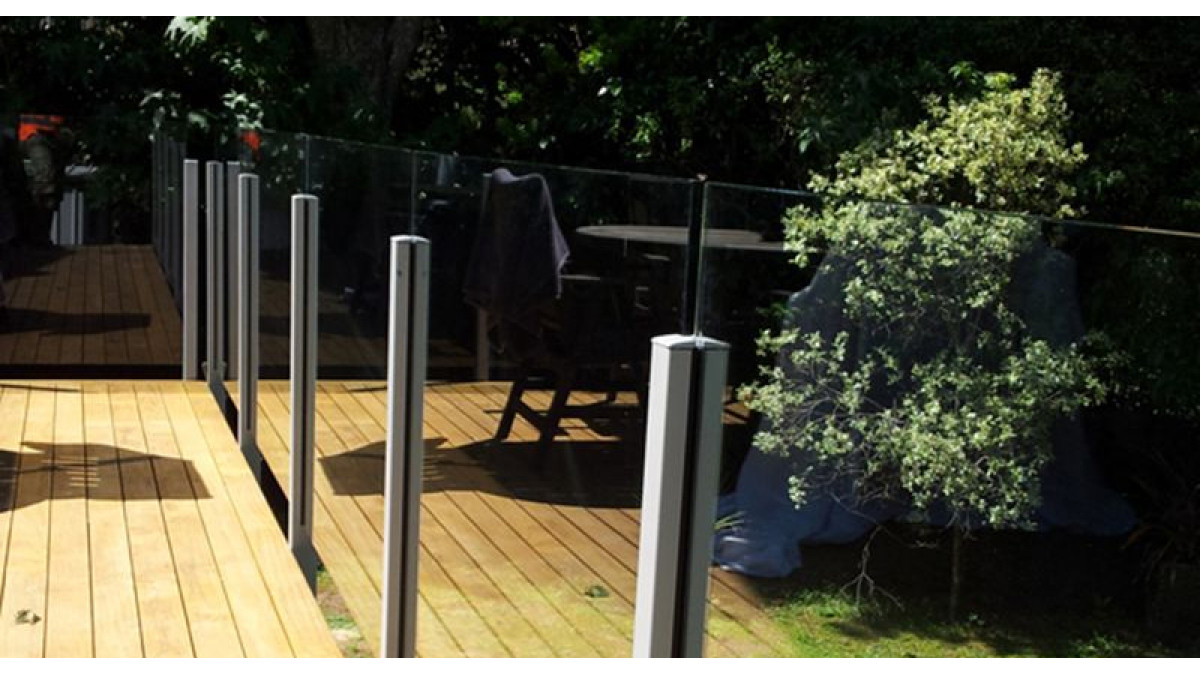

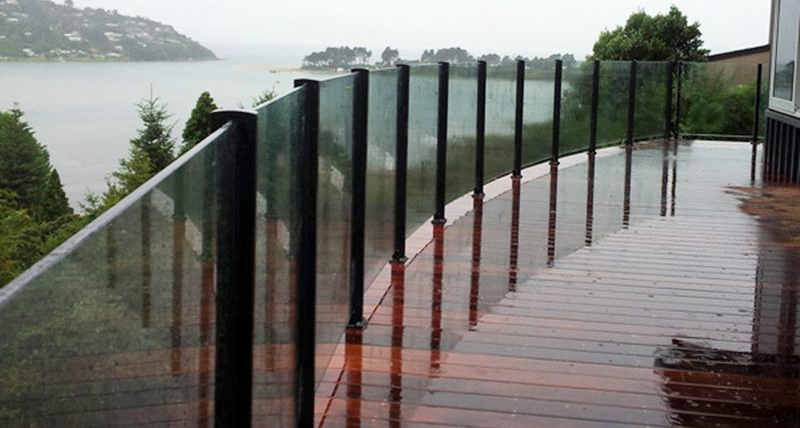

Suitable for balustrades, pool fences and wind breaks. It is a cost effective way to enhance a deck, pool or stairway.

6.1 Metro Post System to Suit 10mm Toughened Glass
6.2 - Base Fix Full Height Posts
6.3 - Corner Post Base Fix Full Height
6.4 - Base Fix Low Height
6.5 - Corner Post Base Fix Low Height
6.6 - Face Fix Full Height
6.7 - Face Fix Low Height
6.9 - Fixings for Metro Posts
CAD/PDF Details

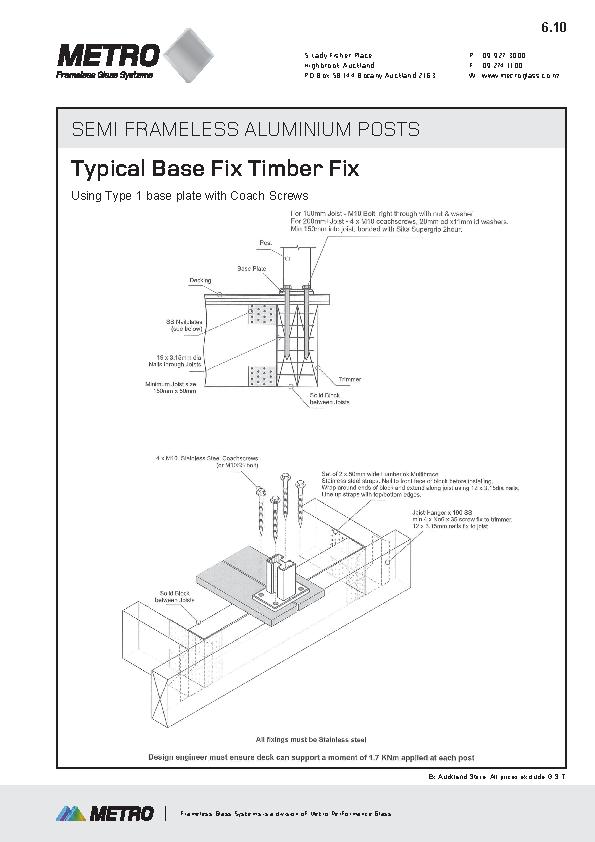

6.10 Typical Base Fix Timber Fix

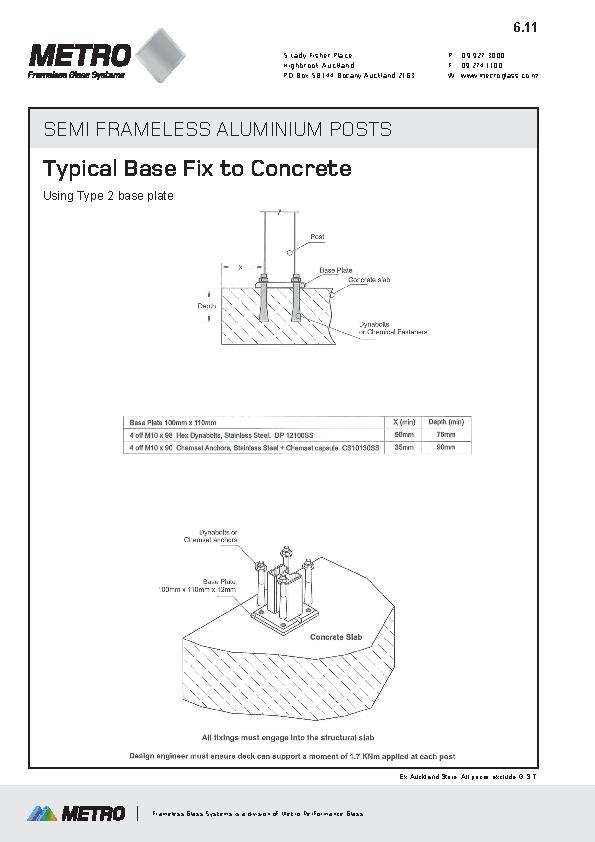

6.11 Typical Base Fix to Concrete - Type 2 Base Plate
6.12 Typical Base Fix to Concrete - Type 3 Base Plate

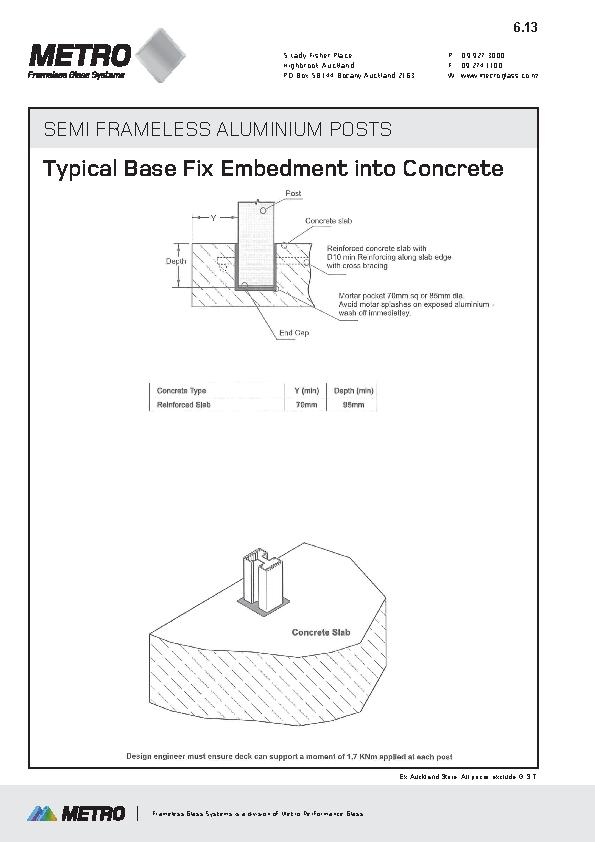

6.13 Typical Base Fix Embedment into Concrete

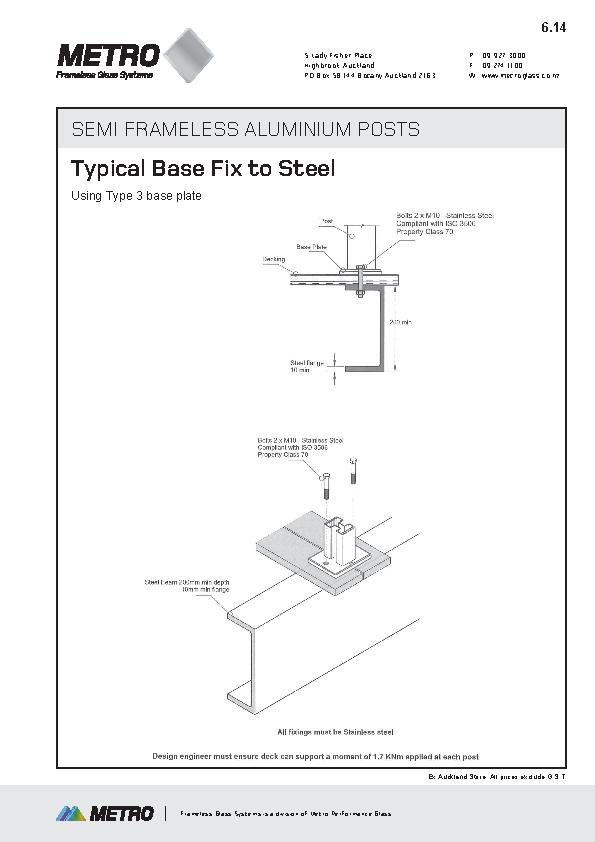

6.14 Typical Base Fix to Steel - Type 3 Base Plate

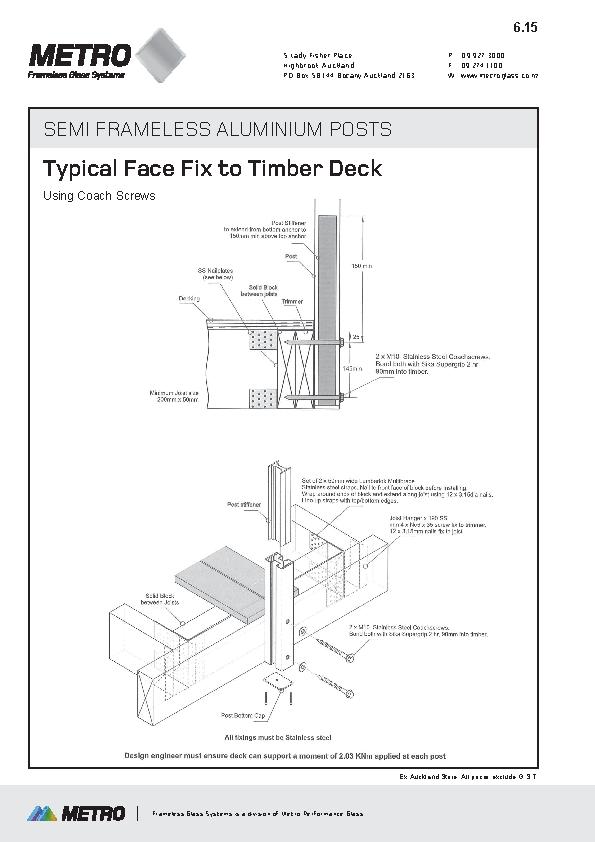

6.15 Typical Face Fix to Timber Deck - Coach Screws

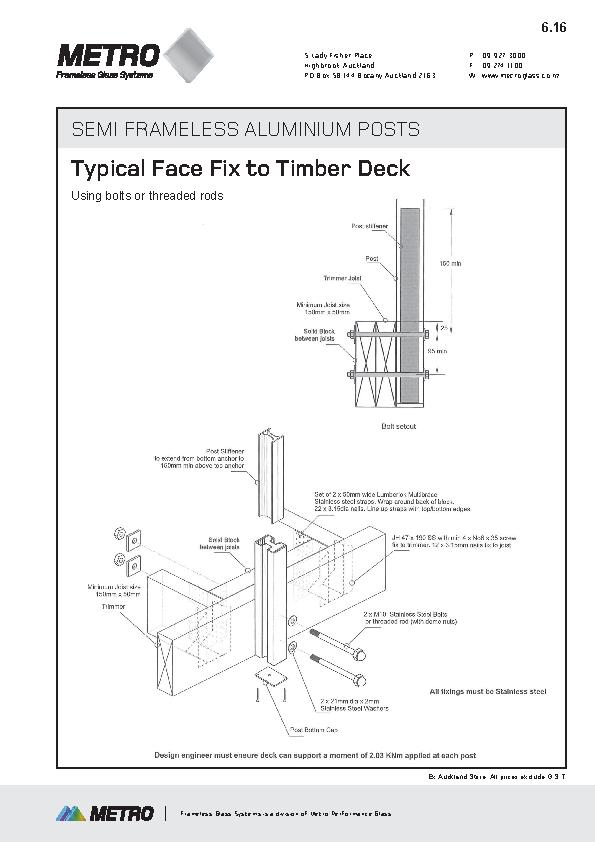

6.16 Typical Face Fix to Timber Deck - Bolts-Threaded Rods

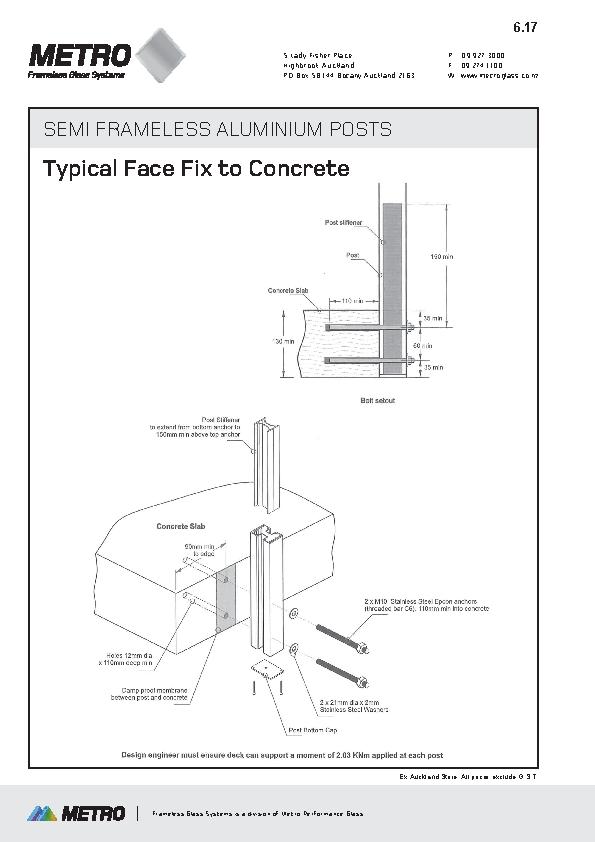

6.17 Typical Face Fix to Concrete

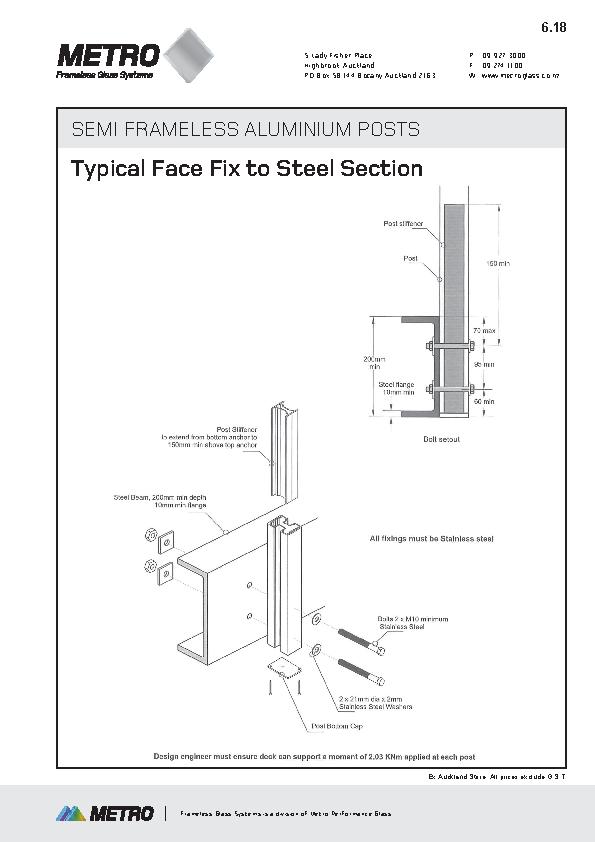

6.18 Typical Face Fix to Steel Section

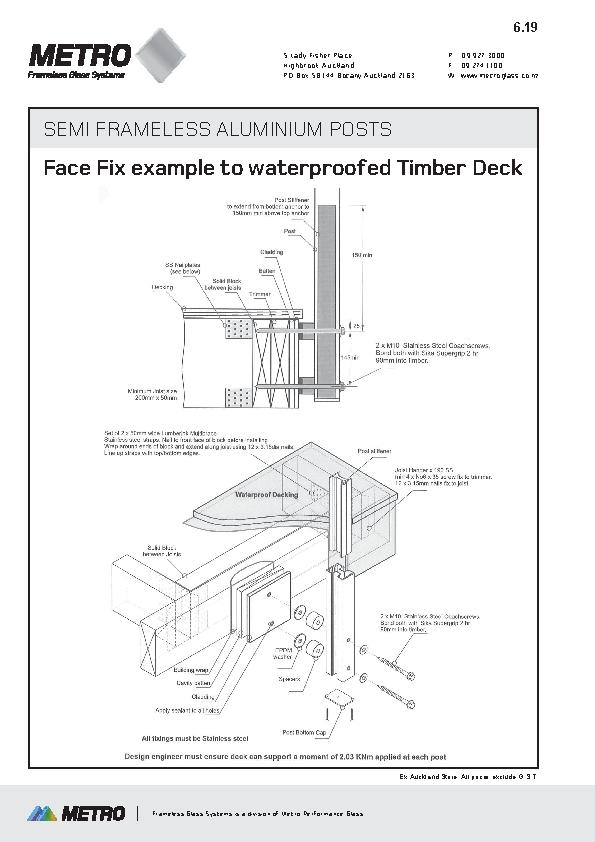

6.19 Face Fix Example to Waterproofed Timber Deck

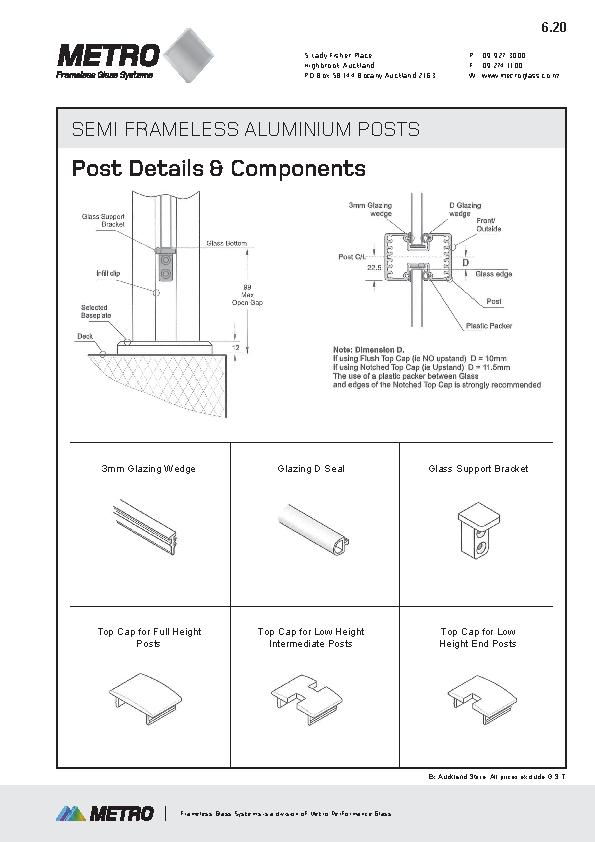

6.20 Post Details & Components

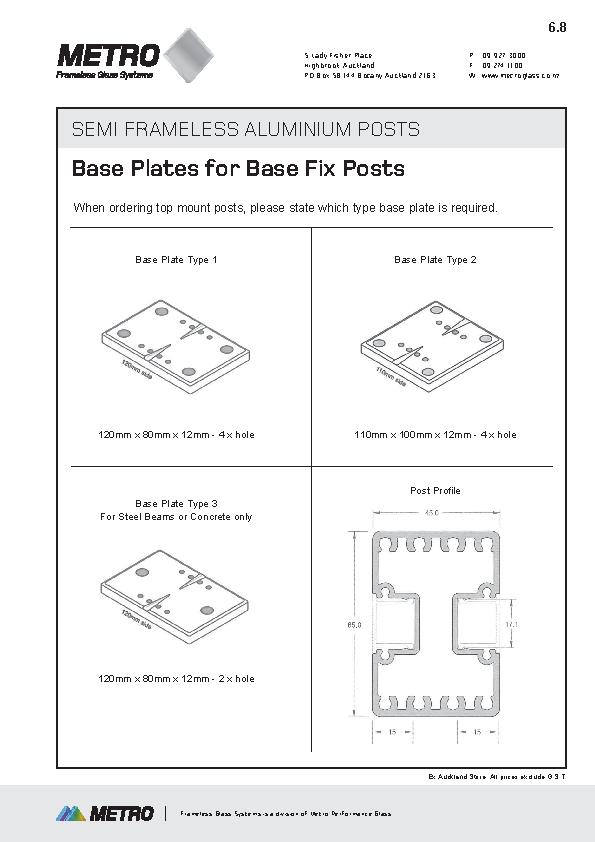

6.8 Base Plates for Base Fix Posts
