Linear - Bottom Roller Sliding Door

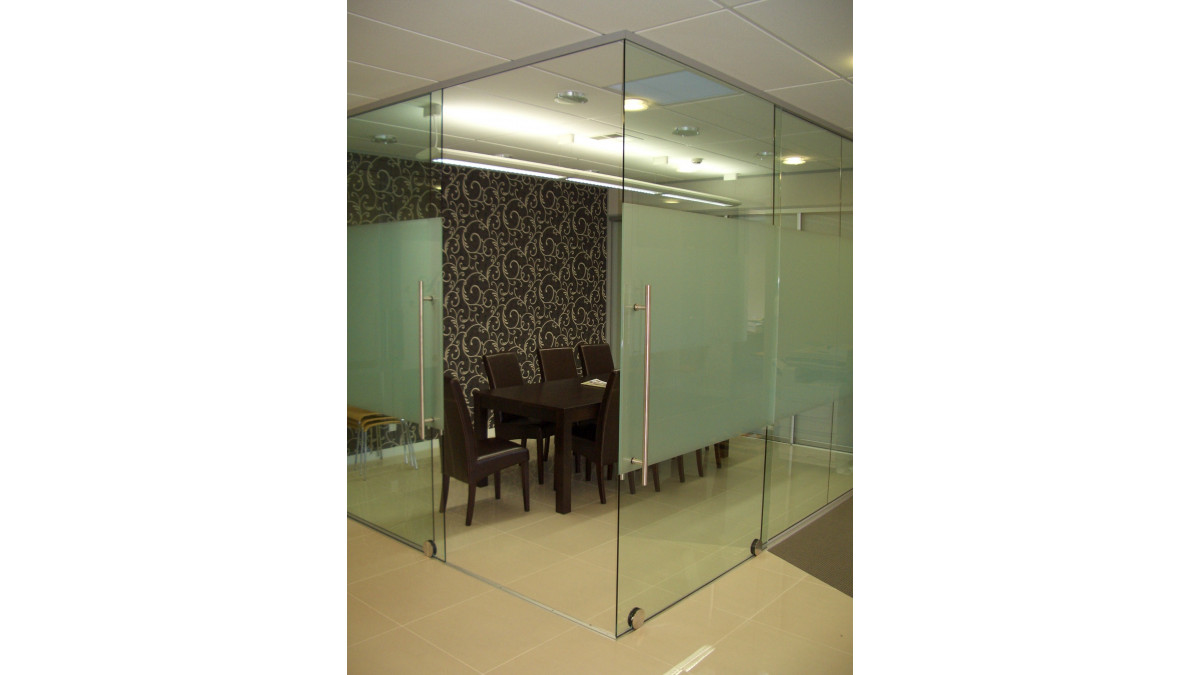

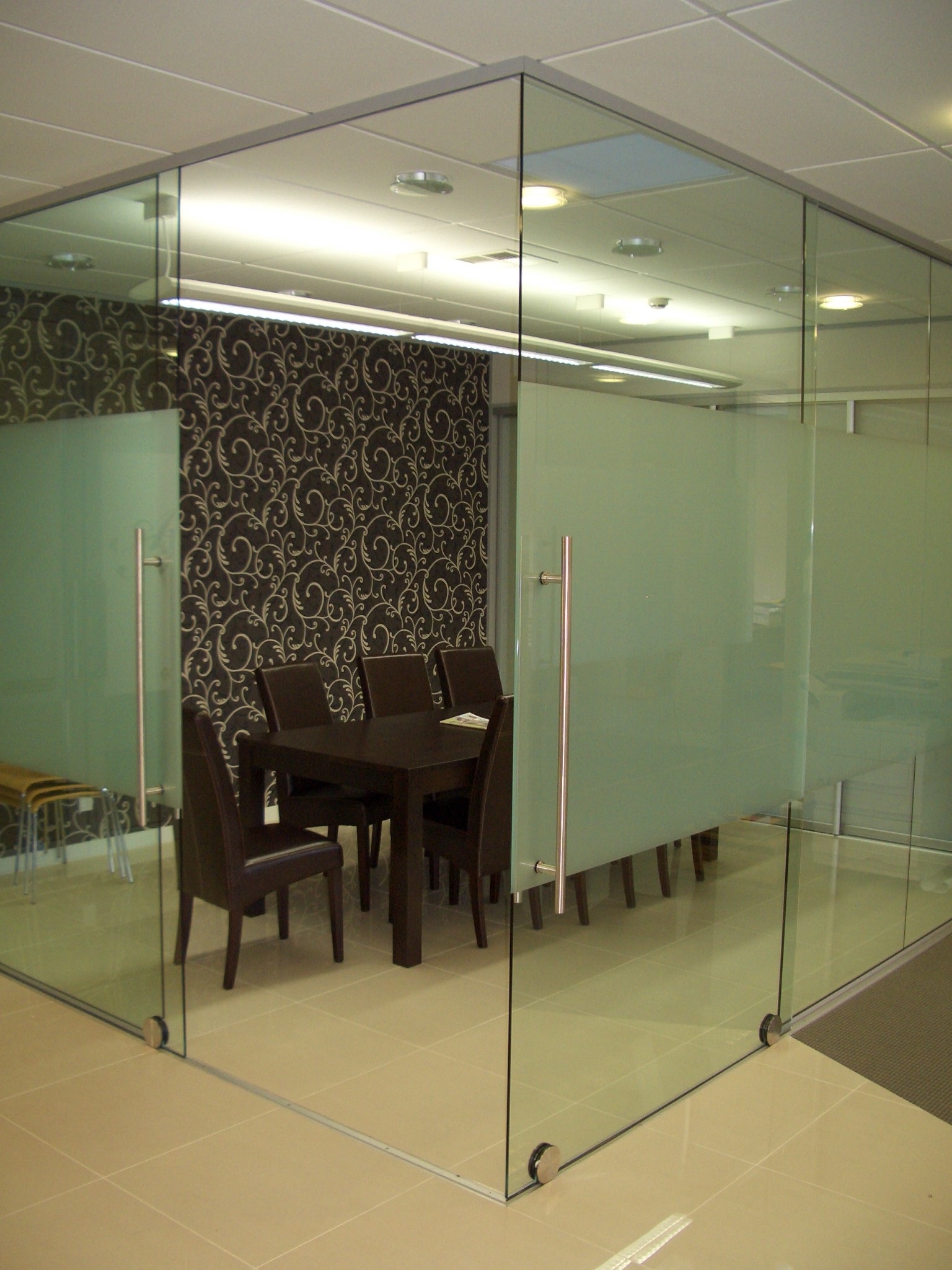

This frameless sliding door hardware features Linear wheels fitted directly to the 10 and 12mm toughened safety glass that are run on special tracks to allow a very modern frameless glass effect.

The floor is load-bearing and the head structure does not need to carry the weight of large doors. Most applications are internal for residential or commercial buildings, but external non-waterproof and wet area applications such as balcony screens or doors are possible.

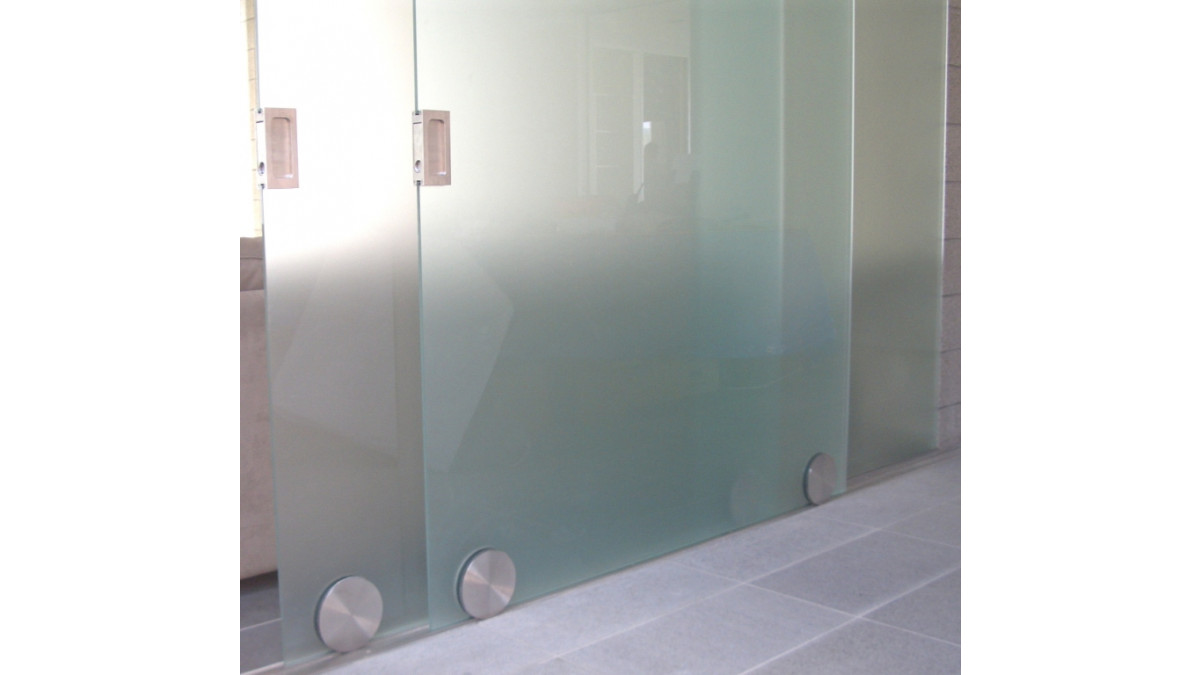

The Linear rollers are 304 grade stainless steel with black Acetal tyres, so the operation is smooth and silent. The bottom track and head guide are natural anodised aluminium and the head guide has brush felt fitted inside, while the finger pull or door handles are typically stainless steel but can be designed to suit the decor.

There are two Linear Systems:

  • Linear 100 – 100mm diameter roller for doors up to 170 kg
  • Linear 153 – 153mm diameter roller for doors up to 250 kg.

The doors can also be fitted with custom pick up guides if required for more than one door. Door side panels can be fitted and special sliding doors seals if required.

4.8 - Linear 100 Sliding Door System
4.9 - Linear 153 Sliding Door System
