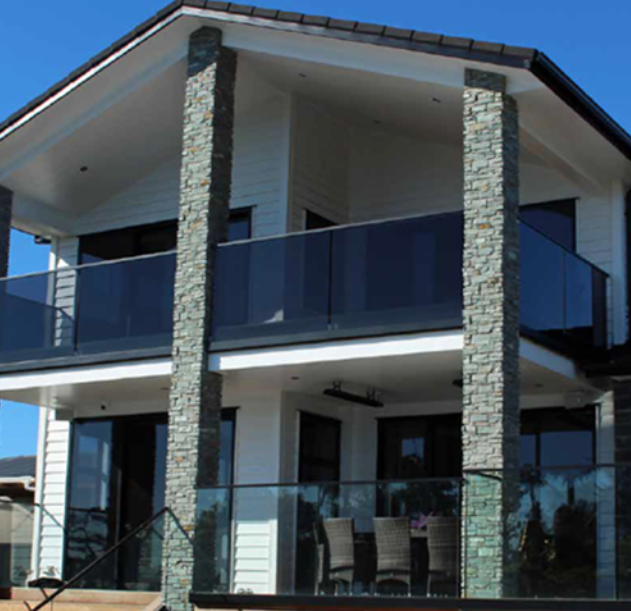

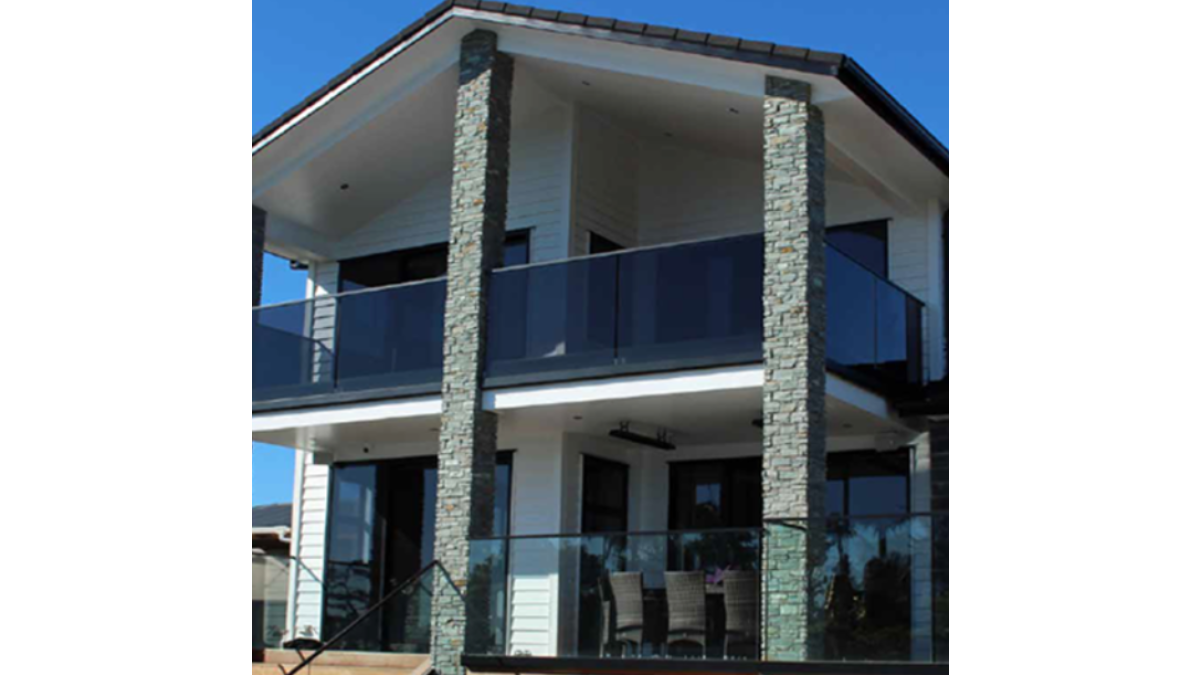

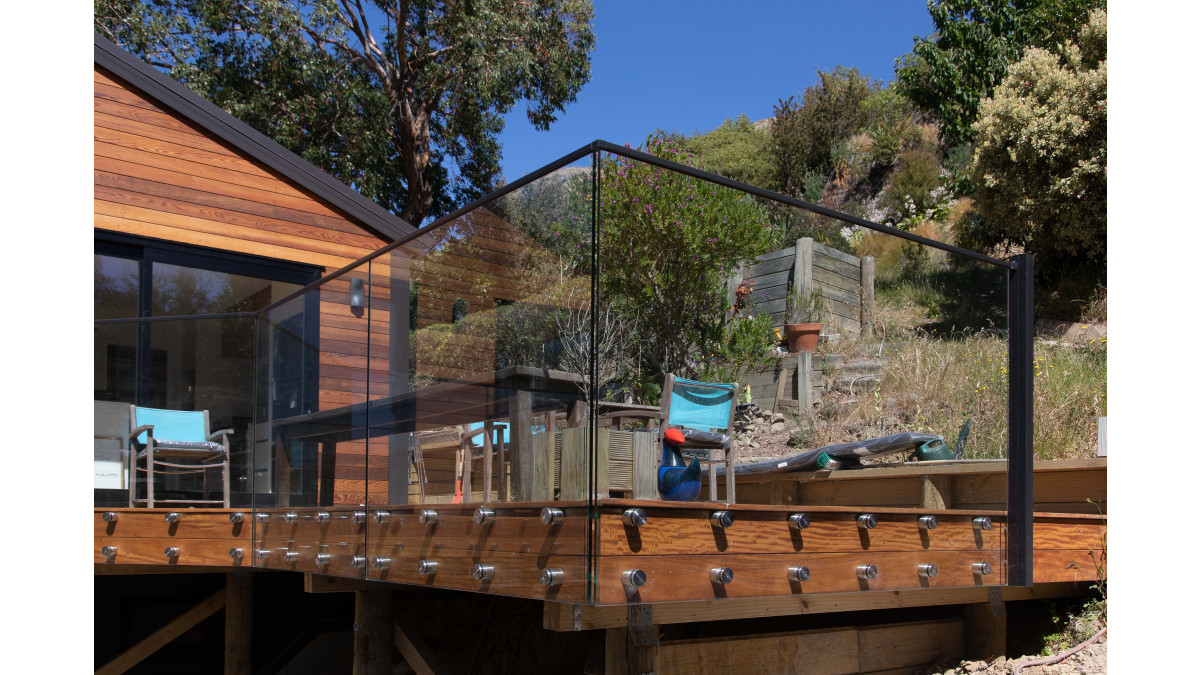

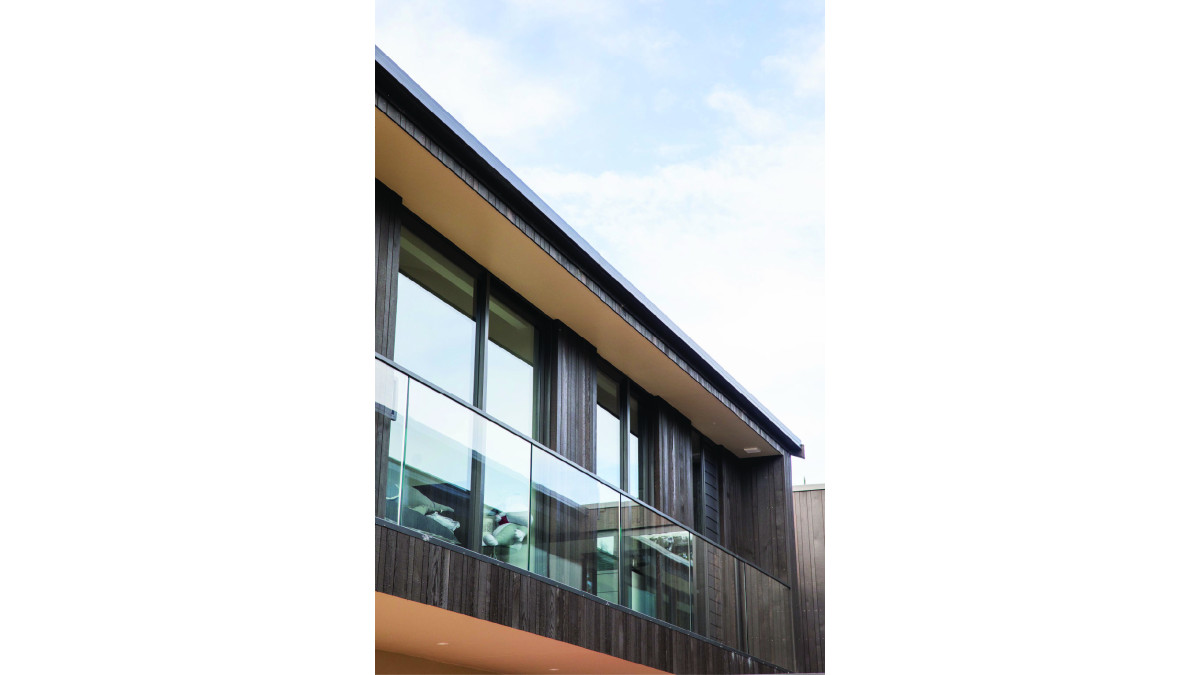

220 Edgetec Linkrail System
Description

A slimline edgerail for a clean look combining funtionality and architectural aesthetics.

Key Features
  • 38 x 30mm Aluminium Link Rail
  • Suitable 12mm to 15mm glass thicknesses

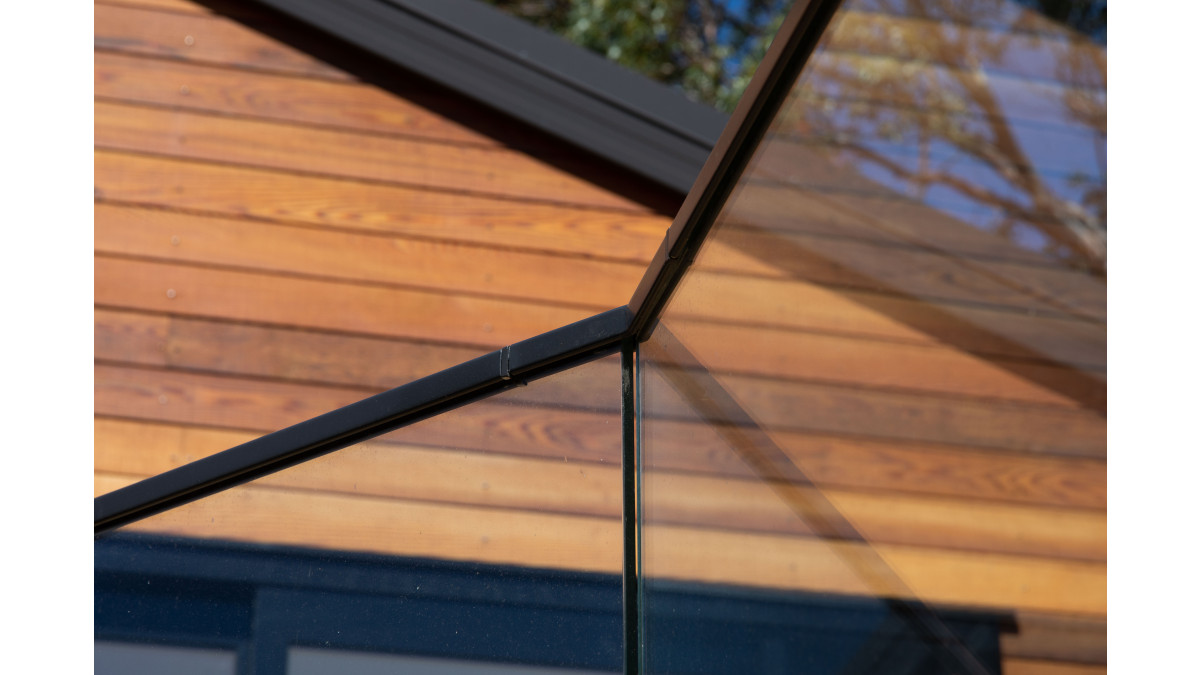

  • Rail Components available for 90-degree corners, adjustable corners (180 degrees to 90 degrees), stairway link connectors (Maximum 35 degrees), inline joiner
  • Wall mount brackets available including end caps
Scope of Use
  • Maximum width of glass panel is 1900mm when Edgetec® 220 used as a glass mounted interlinking rail.
  • Maximum width of glass panel is 1700mm when Edgetec® 220 used as a bracket mounted rail (max 1000mm between brackets).
Statement of Building Code Compliance
  • Complies with NZS 4223.3.2016 and the latest amendment of New Zealand Building Code B1.
Other Performance Attributes
  • Available in Natural Anodised Finish 20 microns as standard or Silver Frost powder coat. Special colours on request (Powdercoating or Anodising).
