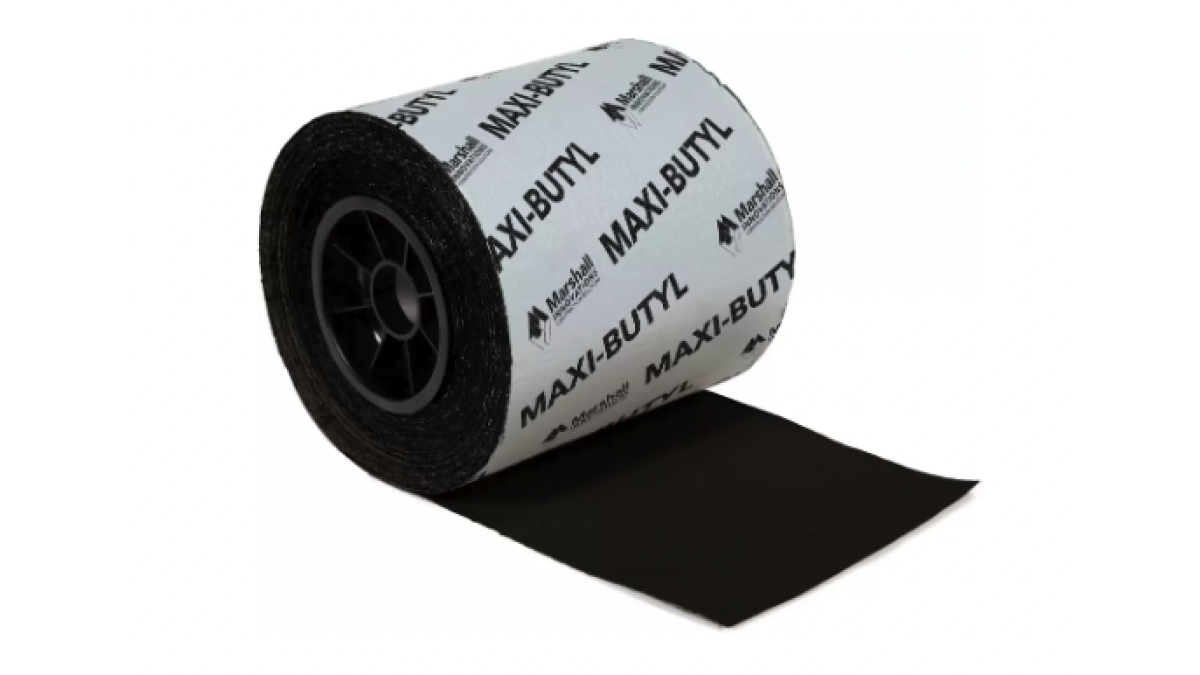

MAXI Butyl Flashing Tape
Description

MAXI Butyl is a flexible flashing tape used around framed joinery openings as a secondary weather resistant barrier.

MAXI Butyl is installed into and around the framed joinery opening over underlays and exposed frame to cover both the face and edge of the opening framing. MAXI Butyl is also used at joinery heads to seal flashing up-stands to the building wrap.

Key Features
  • Easy to install peel and stick application
  • Only one layer required to the sill
  • UV resistant rating for 180 days
  • Compatible with most sealants, check suitability with sealant manufacturers
  • Can be used with RAB Systems — plywood, fibre cement sheet. Always check for compatibility
  • Split liner for easy install
  • Can be installed in very hot conditions
  • Extremely high puncture resistance and tensile strength
  • Residential and commercial applications
Scope of Use

MAXI Butyl is a flexible flashing system for use around window and door joinery openings for buildings within the following scope:

  • the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
  • with wall cladding systems complying with NZBC Acceptable Solution E2/AS1 or a valid BRANZ Appraisal that specifies a flexible flashing tape system; and,
  • with wall underlays compatible with the flexible flashing tape; and, situated in NZS 3604 Wind Zones up to, and including, 'Extra High'.
  • MAXI Butyl is suitable as a flexible flashing system for use around window and door joinery openings for steel framed buildings
Limitations on Use

Always check for compatibility when applying MAXI Butyl over substrates outside BRANZ Appraised wall underlays and Rigid Air Barrier Systems. Particular attention to decking membranes.

Statement of Building Code Compliance

B2 Durability — B2.3.1 (a), B2.3.2 (a)

E2 External moisture — E2.3.2, E2.3.5, E2.3.6, E2.3.7

F2 Hazardous building materials — F2.3.1

In-Service History

MAXI Butyl has been in the market for over 15 years

PASS
PASS
Documents
BPIR/PTS
MAXI Butyl Warranty

Vn. 1

PASS Product Assurance Supplier Statement

VN 1.1

Installation Guide

Vn. 1

Brochure

Vn. 1

Marshall Innovations provide weathertight solutions from below ground to pre-cladding, also offering deck jack systems and mass timber fixings and connectors.
