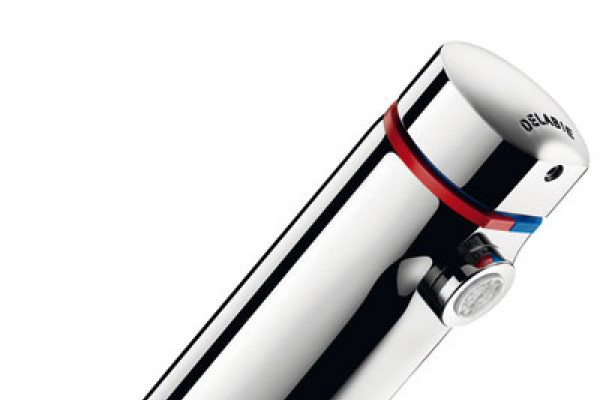

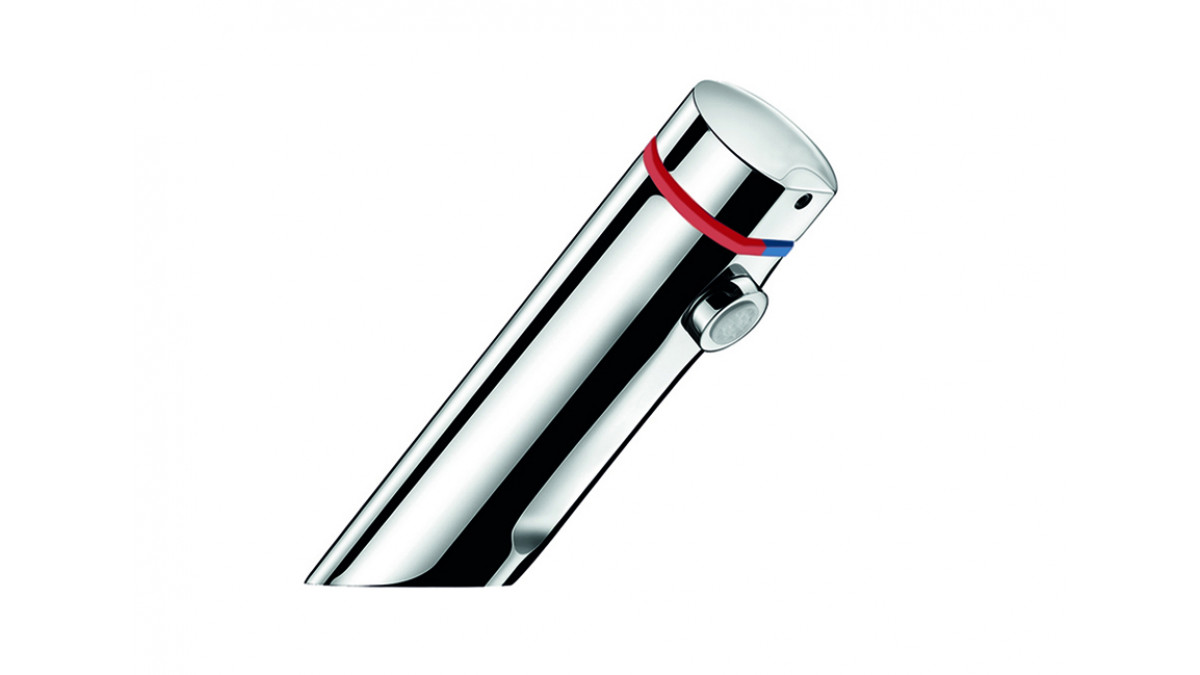

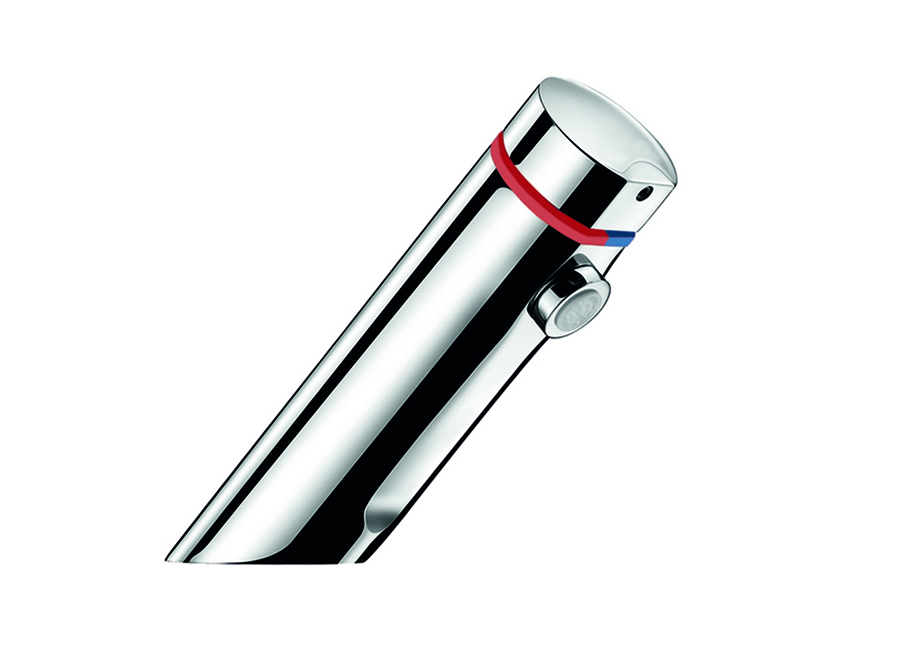

Delabie Tempomix 3 Time Flow Basin Mixer
Description

Delabie DE794000 is a deck mounted single control time flow basin mixer with a soft touch operation.

Key Features
  • Soft-touch operation for ease of use for all ages.
  • Pre-set time flow set at ~7 seconds, adjustable 3 – 10 seconds
  • Temperature control and operation on the one push button.
  • Available as either a standard product (3L/min @ 3Bar) with aerated flow or as an ultra low flow (1.9L/min) model with spray head which gives a 6 star WELS rating.
  • PEX flexible connectors with filters and non-return valves.
  • Chrome plated solid brass body
WELS 6 Star Rating
WELS 6 Star Rating
Scope of Use
  • Suitable for use in any commercial building where water saving and ease of use are required.
  • Suitable for use with basins, troughs or benches with a 35mm mounting hole.
  • For security of hot water supply, recommend tempered supply of ~45oC via a quality thermostatic mixer such as Delabie Premix DE733015.
  • Premix will deliver sufficient water for up to 4 taps.
  • 100 - 500kPa dynamic pressure - ideally 300kPa.
  • Pressure differential 15%.
Other Performance Attributes
  • 6 Star WELS rating
Documents
Data Sheet
Installation and Operation
Hardware
CAD/PDF Details
