Delabie Thermostatic Basin Mixer
Description

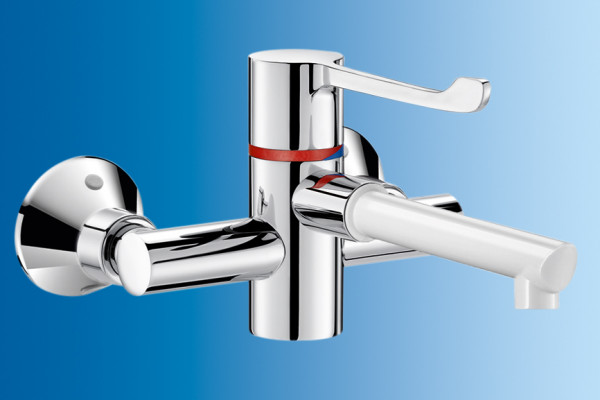

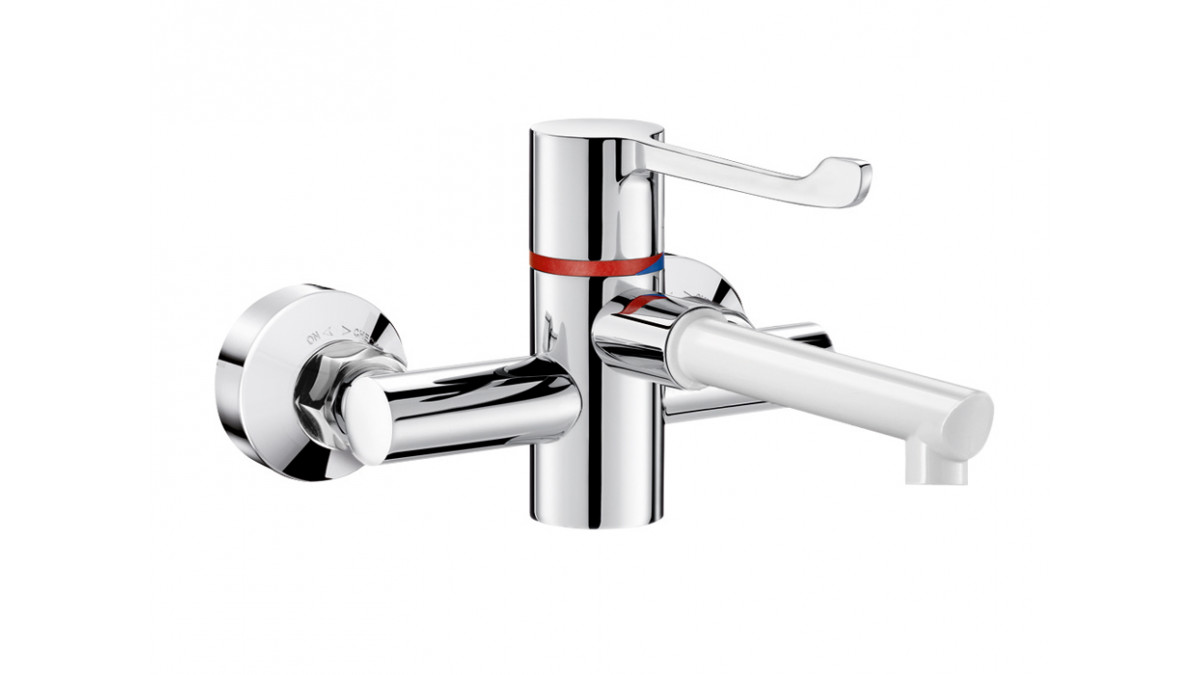

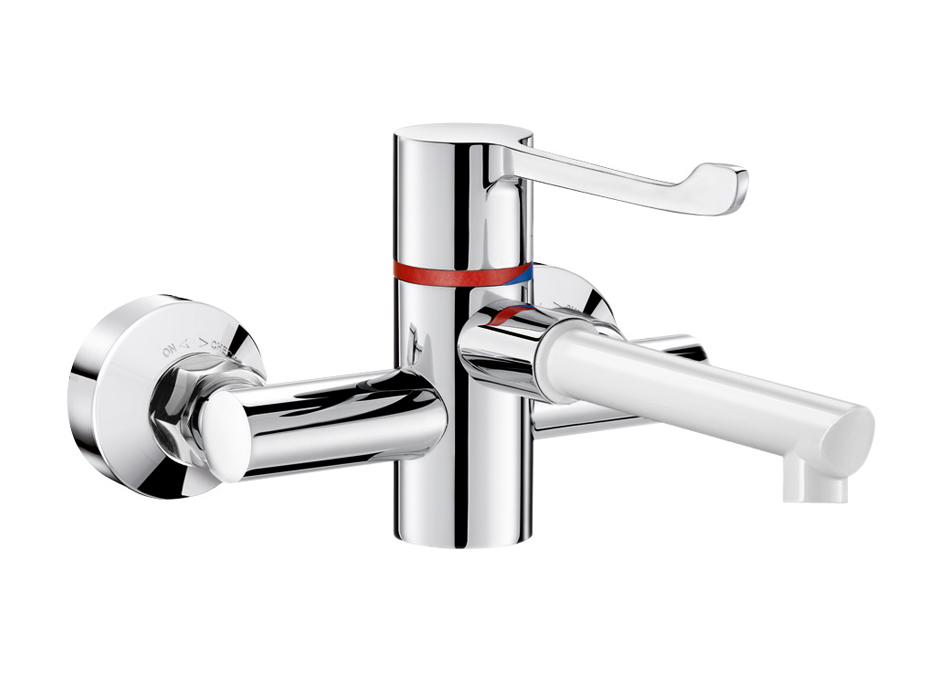

The Delabie DEH9610 Thermostatic Basin Mixer is a wall mounted sequential thermostatic basin mixer with a BIOCLIP spout. It comes in two versions: the DEH9610 is a mixer with stop/drain eccentric fittings and DEH9610S is a mixer with standard eccentric fittings.

Key Features
  • Standard disposable BIOCLIP spout

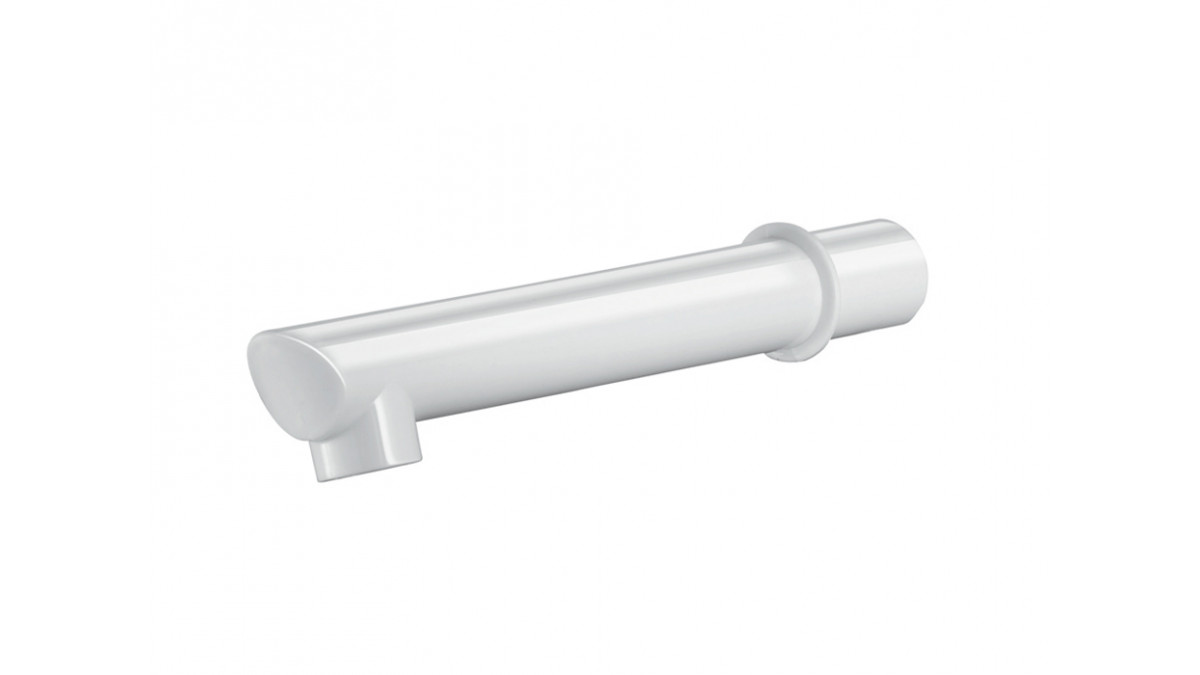

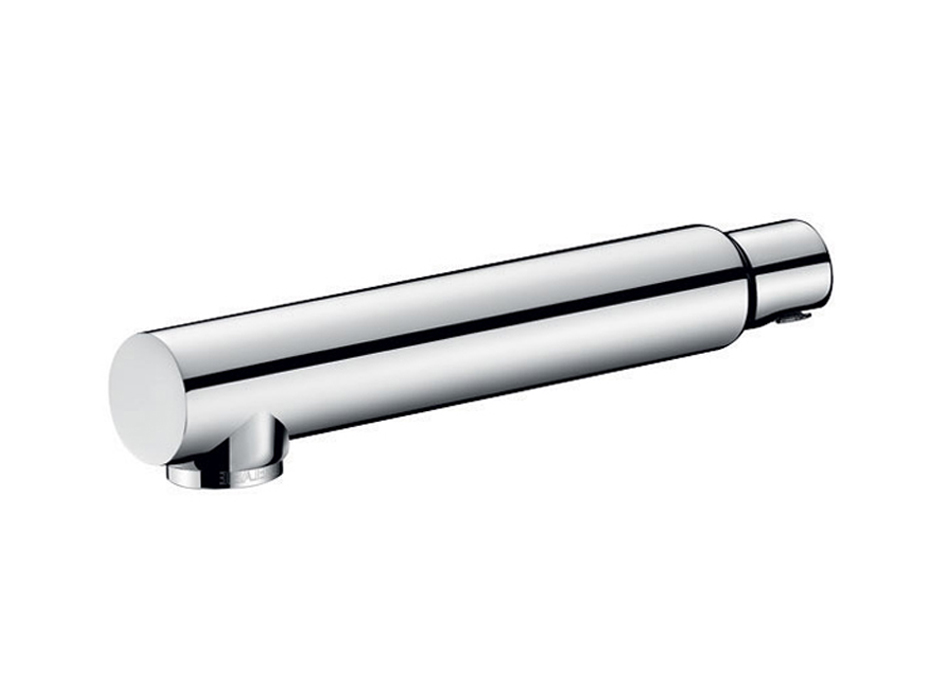

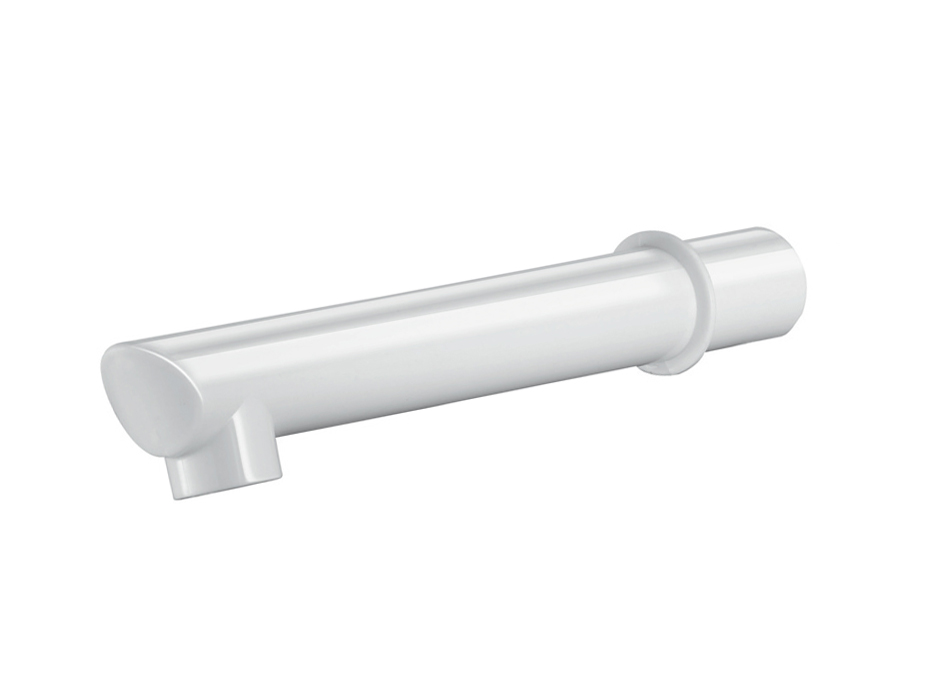

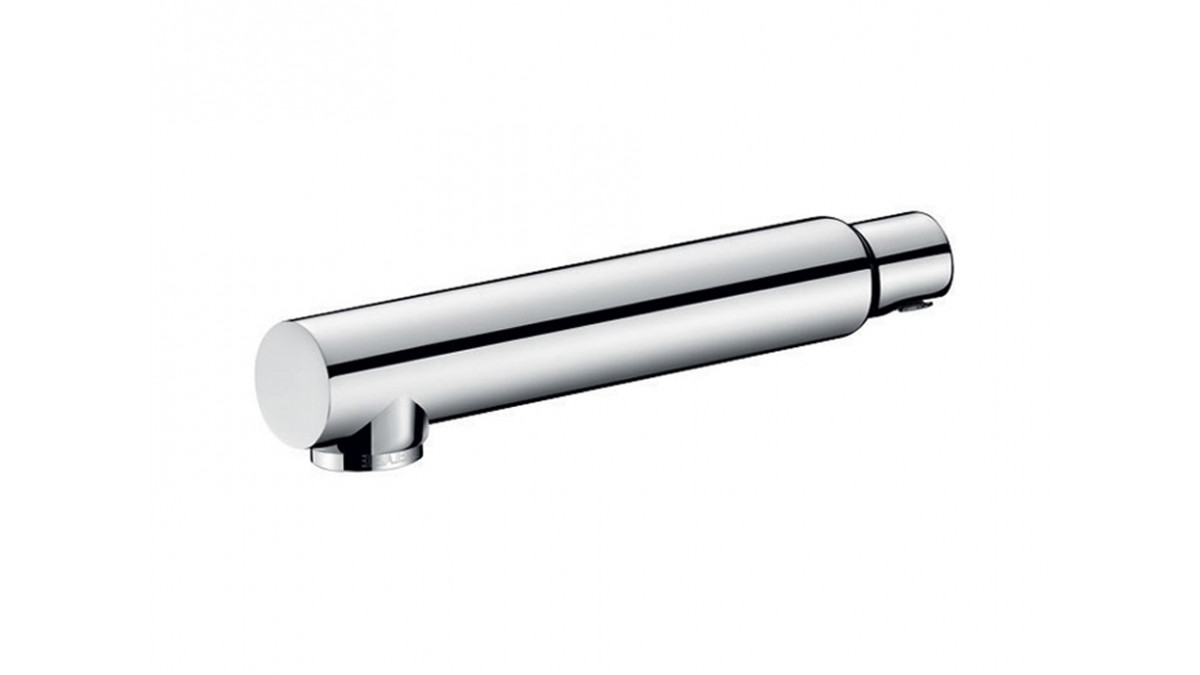

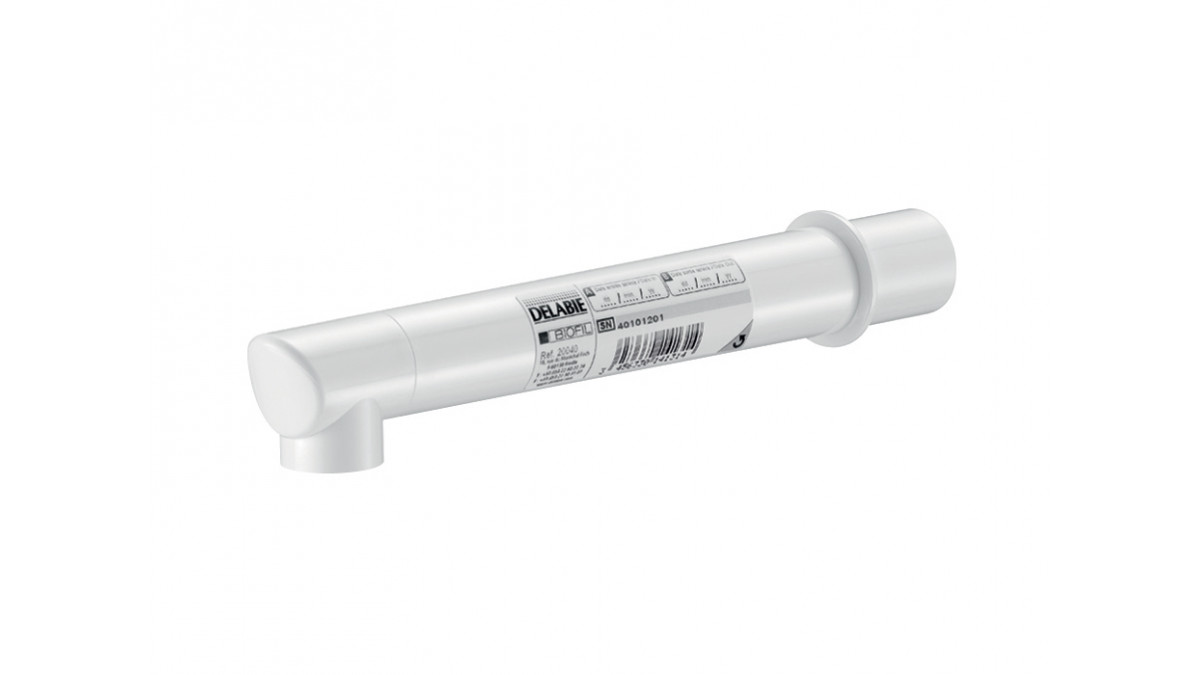

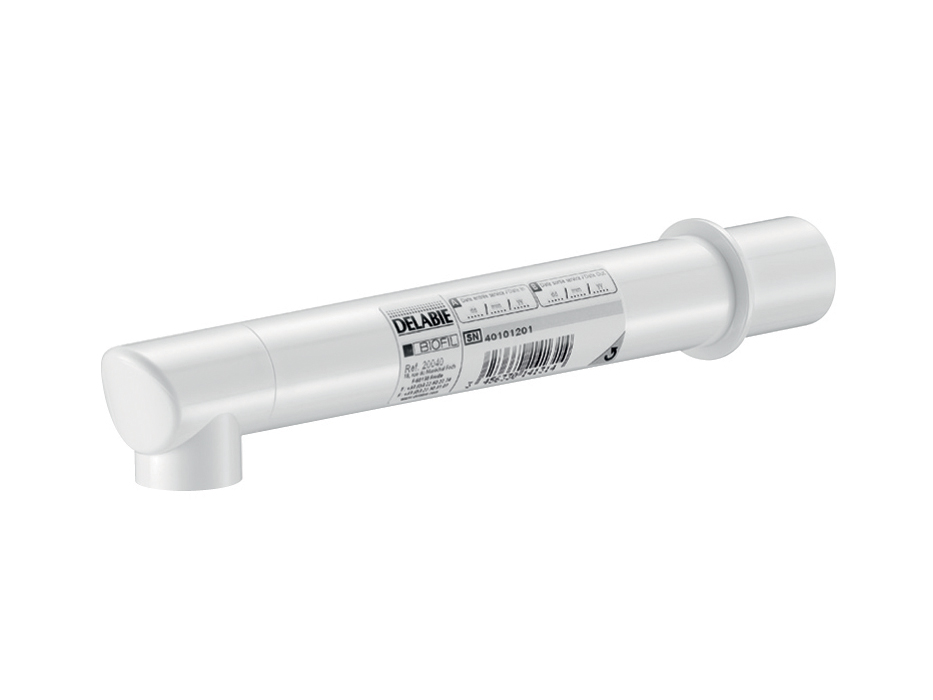

  • Optional four spout types – DE20002 chrome plated brass spout L.127mm (two pieces); DE20003 chrome plated brass spout L.75mm (two pieces); DE20012 disposable spout (15 pieces); DE20040 disposable sterile filter spout (10 pieces)
  • Entirely smooth internal surface (inlets, body and spout): 14 times less bacteria than a normal rough cast tap
  • Progressive temperature control from cold water to 40ºC with a stop locked, reducing the risk of scalding
  • Wall mounted for increased drop height
  • Easy to remove for cleaning and servicing
  • Flow straightener (100-1000 times less bacteria than aerator)
  • Low water retention (less biofilm surface and faster flow is greater than thinner biofilm)
  • Thermal shock up to 85ºC is possible by removing the handle
  • Thermal and chemical shock is possible through both the hot and cold water inlets (with DE855027 kit)

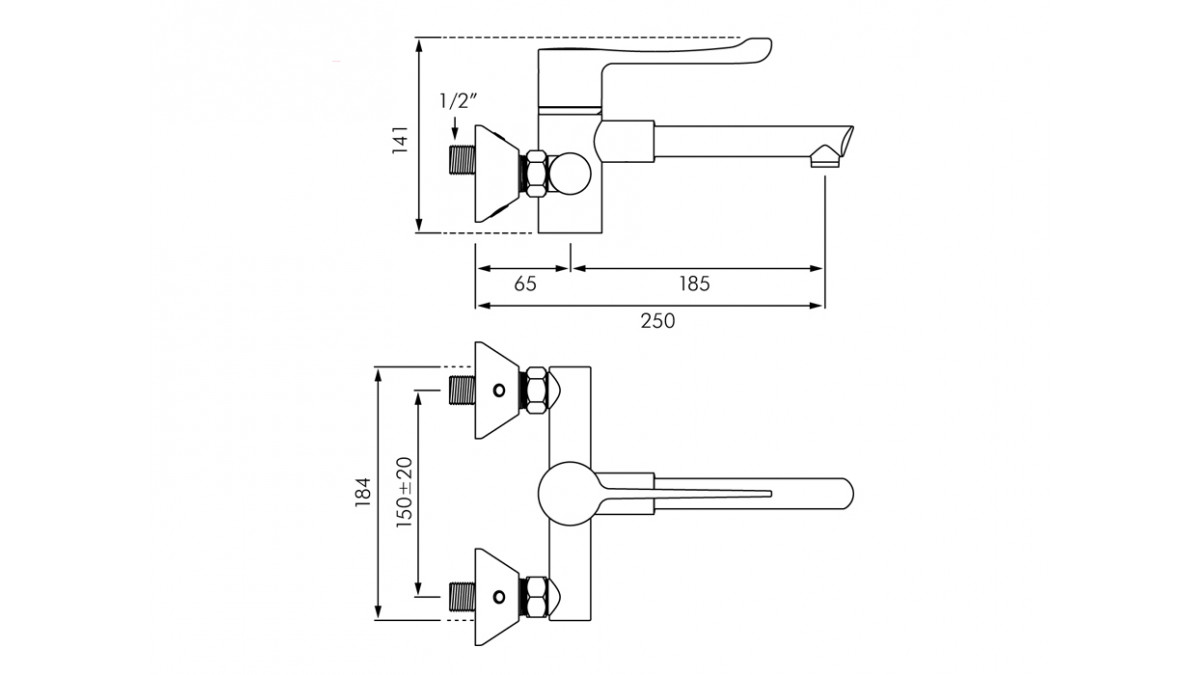

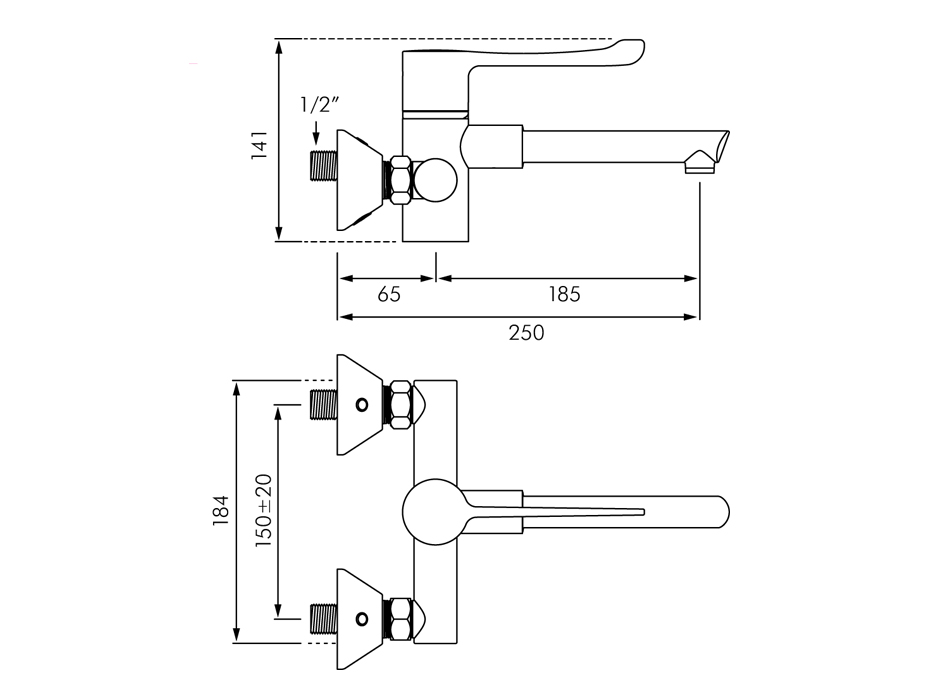

  • Tap comes in two body widths – 150mm and 200mm
  • Seruritherm thermostatic technology ensures an immediate halt to the hot water supply if cold water supply is interrupted/shut off (TMV3 certified thermostatic mixing valve)
  • Hygienic aerators limit water retention and impurities
Scope of Use
  • Ideal for hospitals and healthcare facilities
  • Wall mounted
Other Performance Attributes
  • Entirely smooth internal surface (inlets, body and spout): 14 times less bacteria than a normal rough cast tap
Documents
Data Sheet

MacDonald Industries Limited are commercial bathroom specialists.

Product Enquiries

News from MacDonald Industries

Impressive New Bathrooms for Diocesan Performing Arts Centre

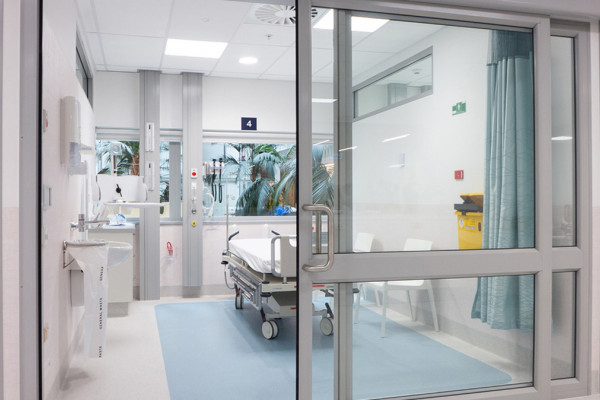

MacDonald Industries Bathroom Products Specified for Middlemore Hospital
