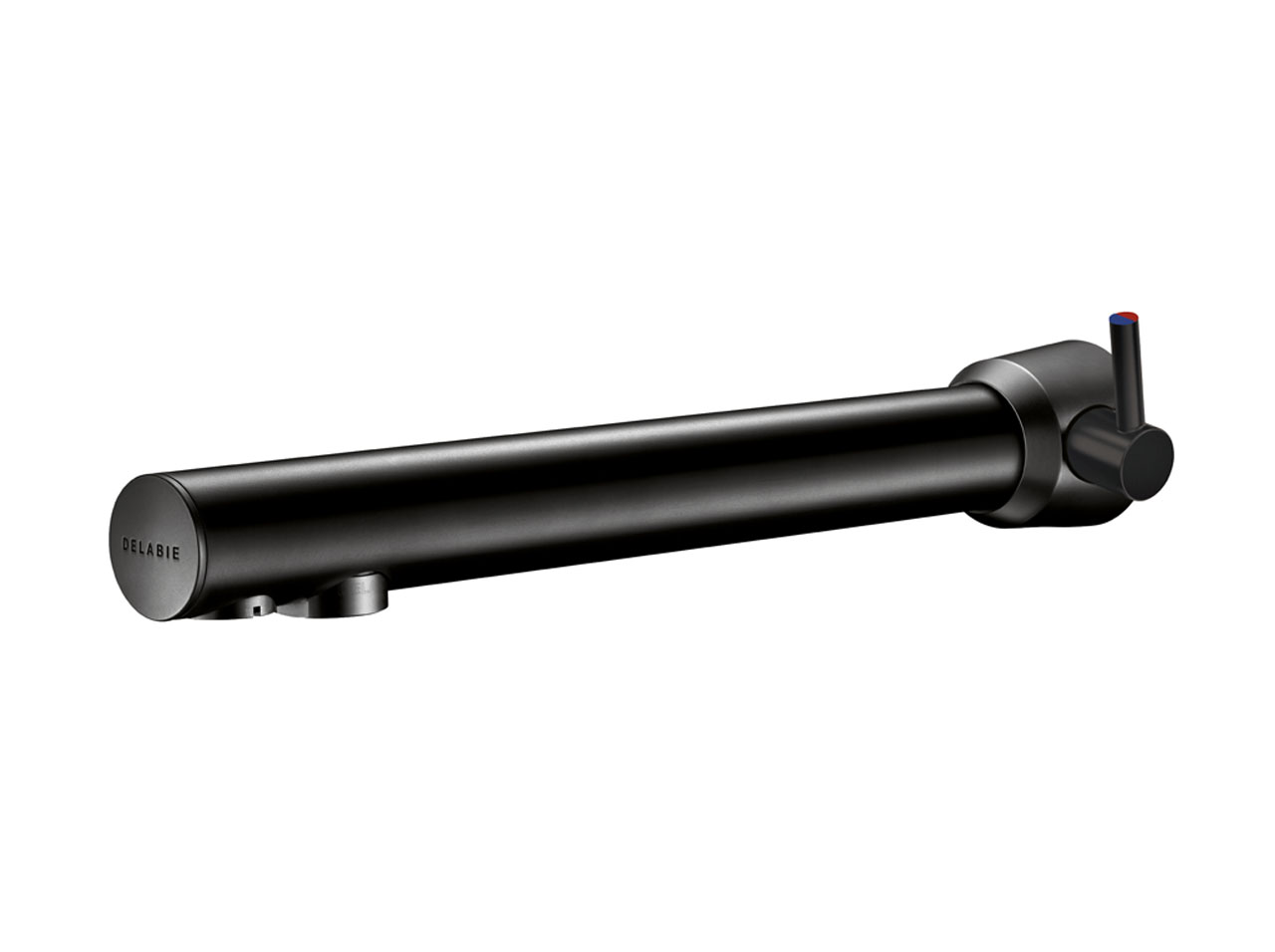

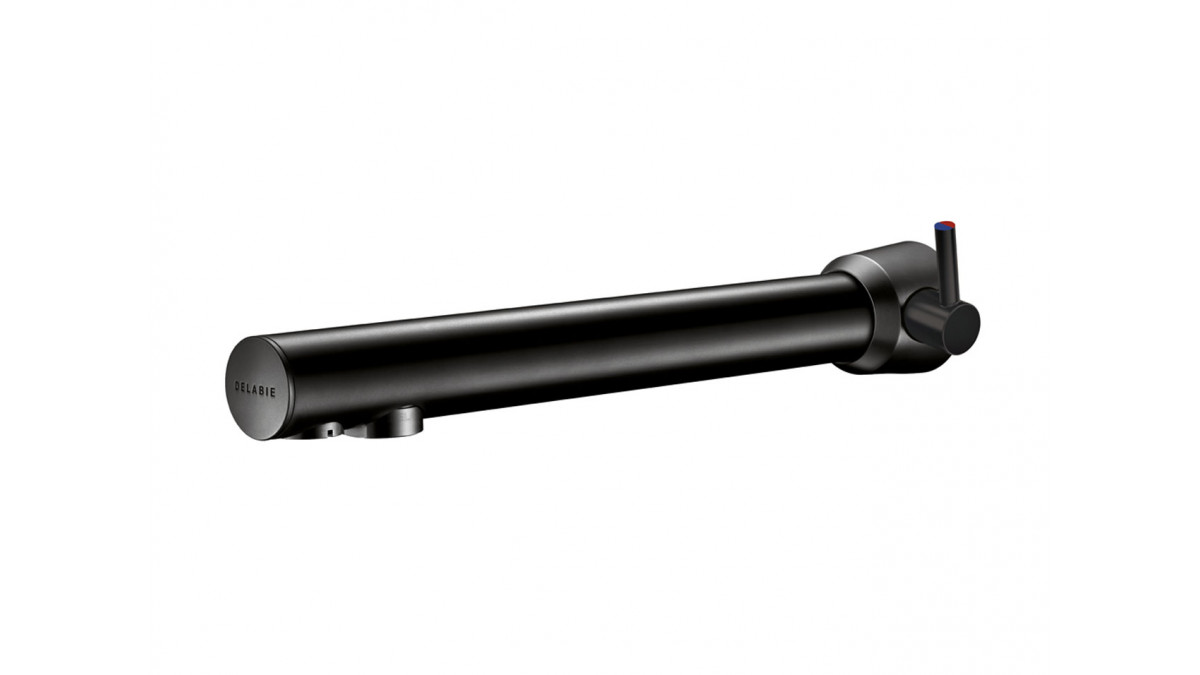

Delabie Black Binoptic Mix Electronic Mixer — DE379MCHB
Description

Delabie DE379MCHB is a through-wall mounted matte black electronic basin mixer with independent IP65 electronic control unit and shock-proof infrared presence detection sensor at the end of the spout.





Key Features
  • Available as 230/12V mains supply with transformer.
  • Adjustable anti-bacterial duty flush operates for ~60 seconds every 24 hours after last use.
  • Side temperature control with adjustable maximum temperature limiter.
  • Flow rate is pre-set at 3L/min at 300kPa, can be adjusted from 1.4 to 6L/min.
  • Operating pressure is 100-500kPa, 300kPa is recommended.
  • Only for through-wall installation <110mm, with hygienic scale-resistant flow straightener.
  • Spout has a smooth interior and low volume of water (limits bacterial niches).
  • Supplied with flexible connectors, solenoid valves and filters.
  • Chrome-plated brass body with matte black chrome finish.



Scope of Use
  • Suitable for use in commercial office buildings, public and retail amenities
Limitations on Use
  • Operating pressure is 100-500kPa, 300kPa is recommended
  • Available as 230/12V mains supply with transformer
Other Performance Attributes
  • 6 star WELS rating
  • Flow rate is pre-set at 3L/min at 300kPa, can be adjusted from 1.4 to 6L/min
Documents
Data Sheet
