Surround by Laminex

Surround by Laminex™ is a modern range of interior wall panels that add dimension and warmth to residential and commercial projects.

Simply apply the easy-to-install, pre-primed panels onto prepared plasterboard, timber, steel, brick or masonry wall surfaces, lightly sand and finish with the paint colour of your choice.

  • Substrate Type Moisture Resistant E0 MDF
  • Sheet Size (nominal) 2400mm x 1200mm and 3000mm x 1200mm
  • Thickness (nominal) 9mm | 12mm
  • Weight (Kg/m² approx.) 6.9 | 9.2 Finish Primed Front Face (water-based)

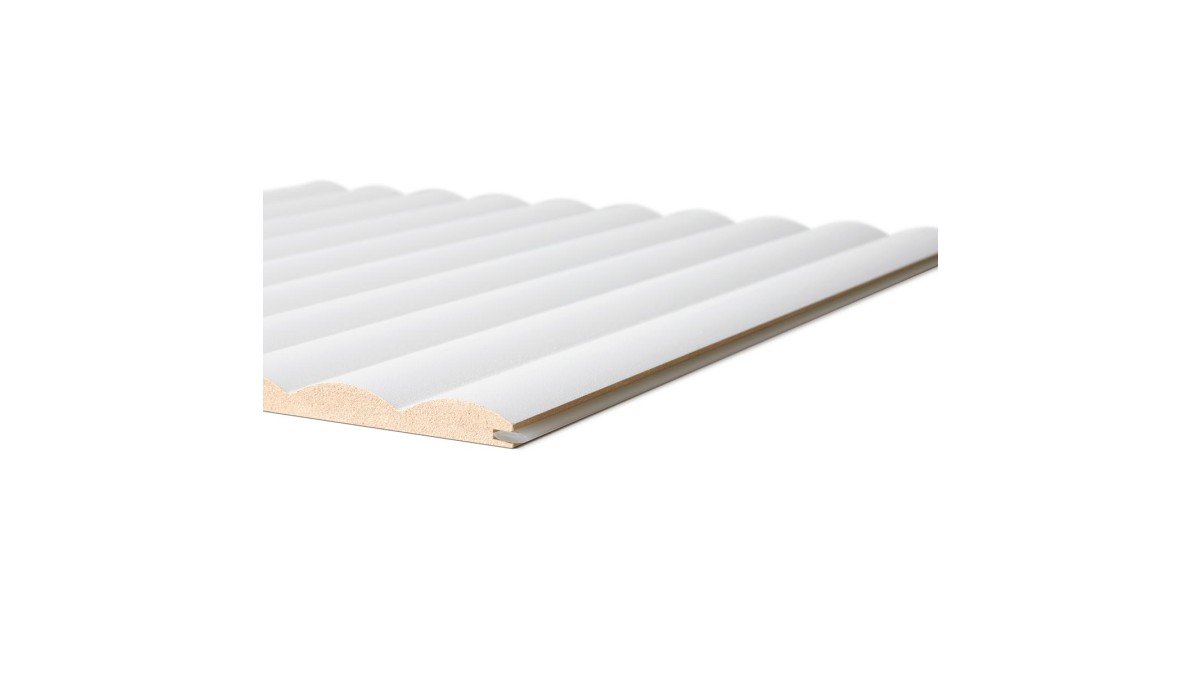

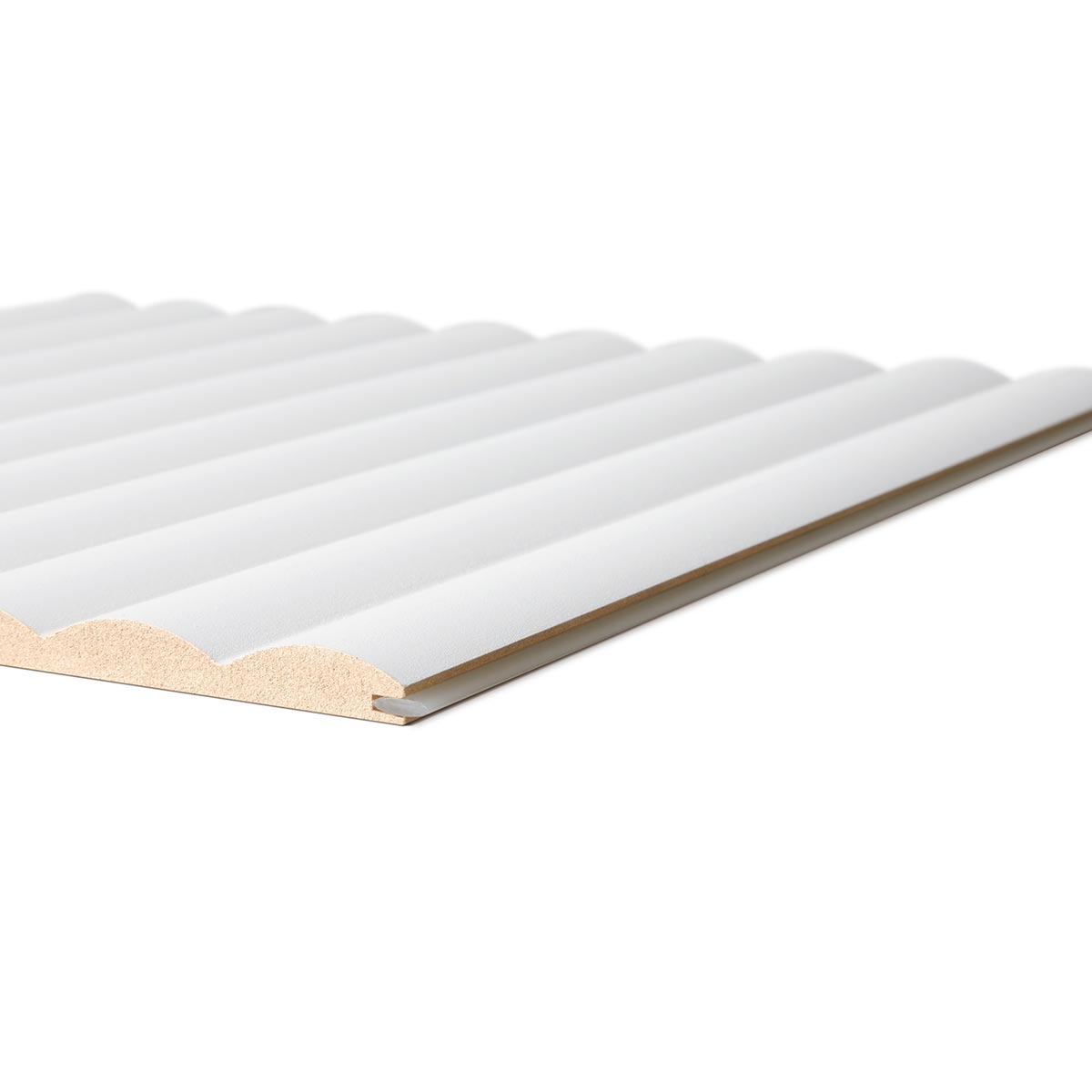

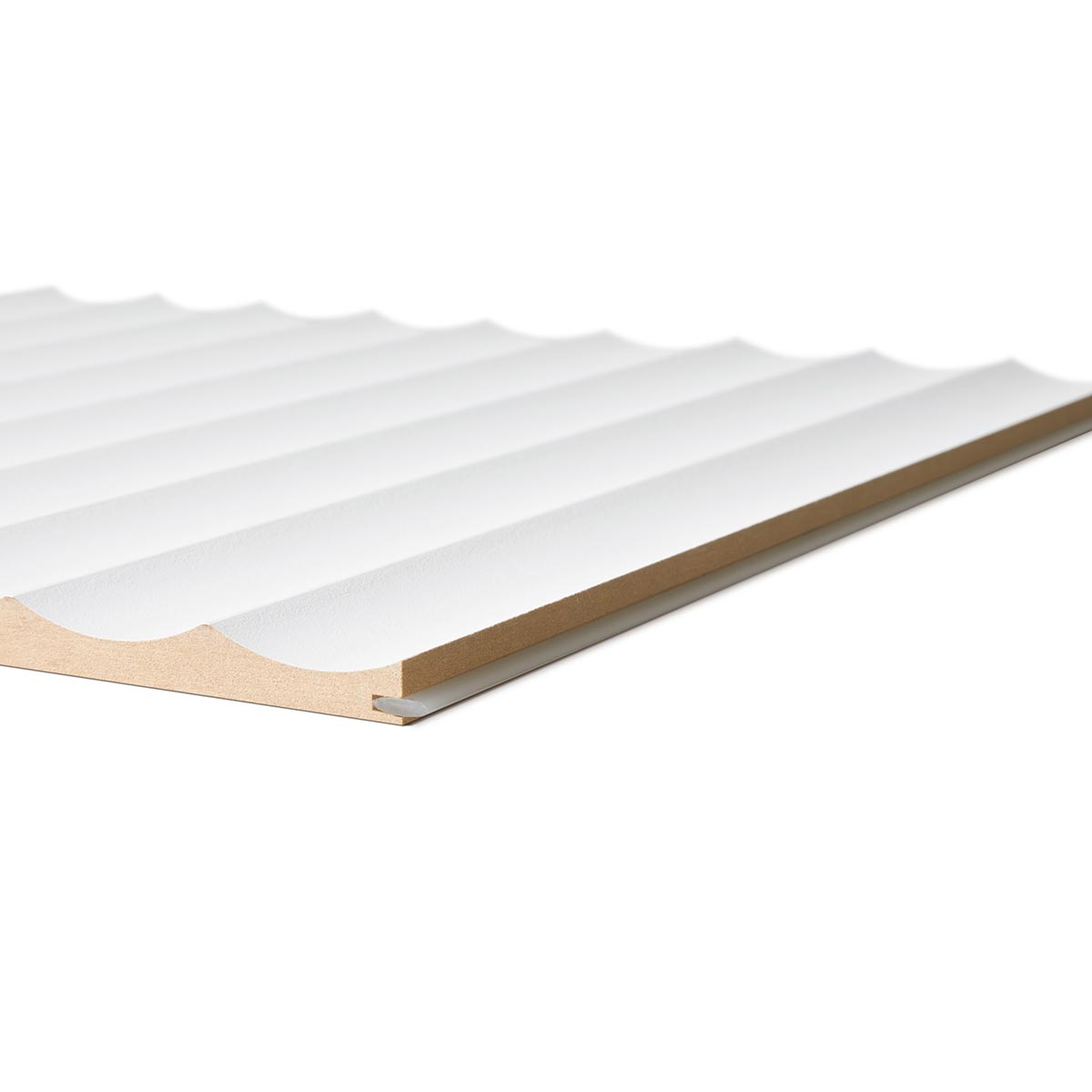

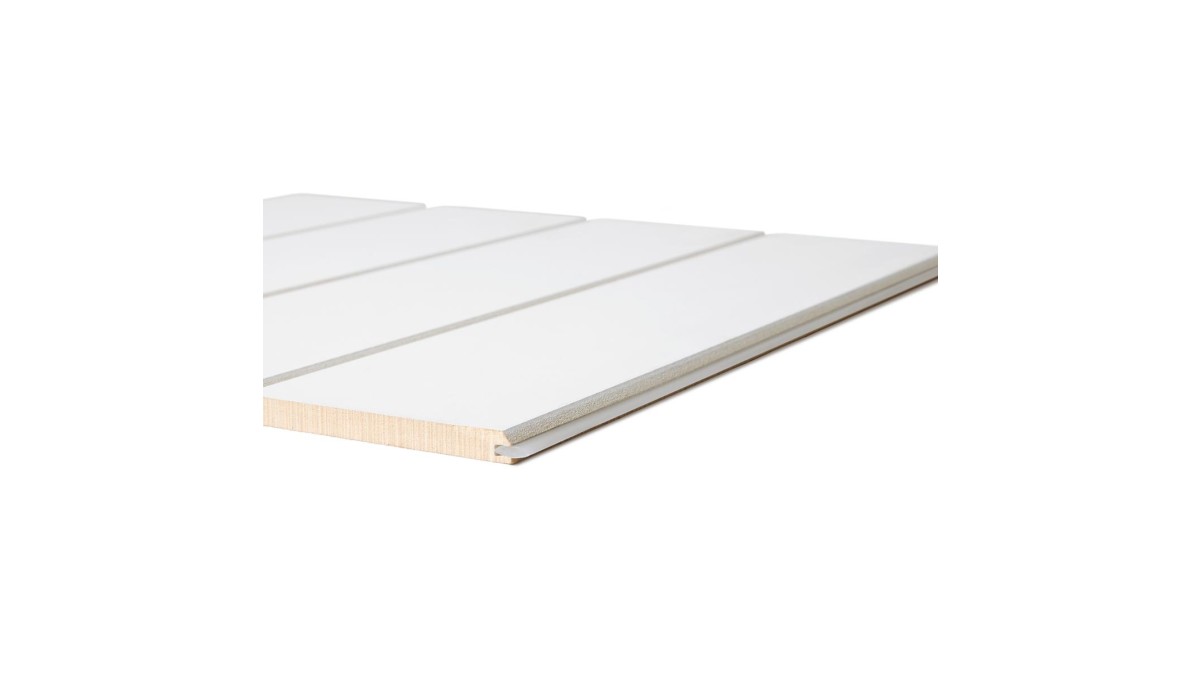

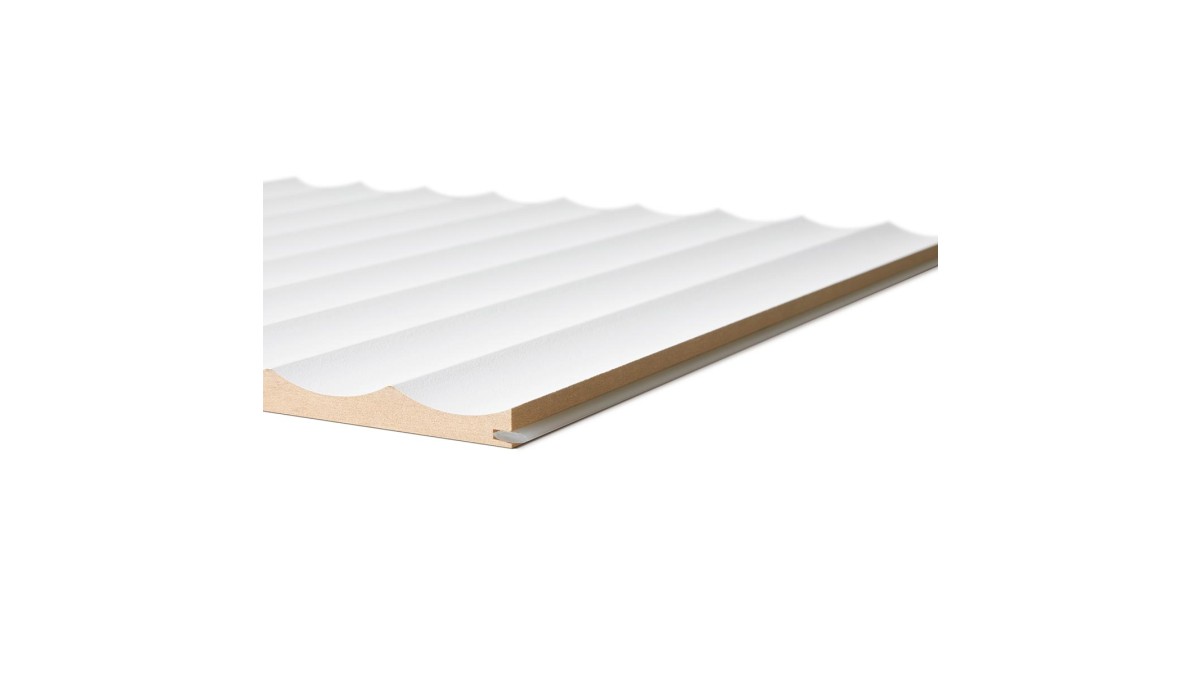

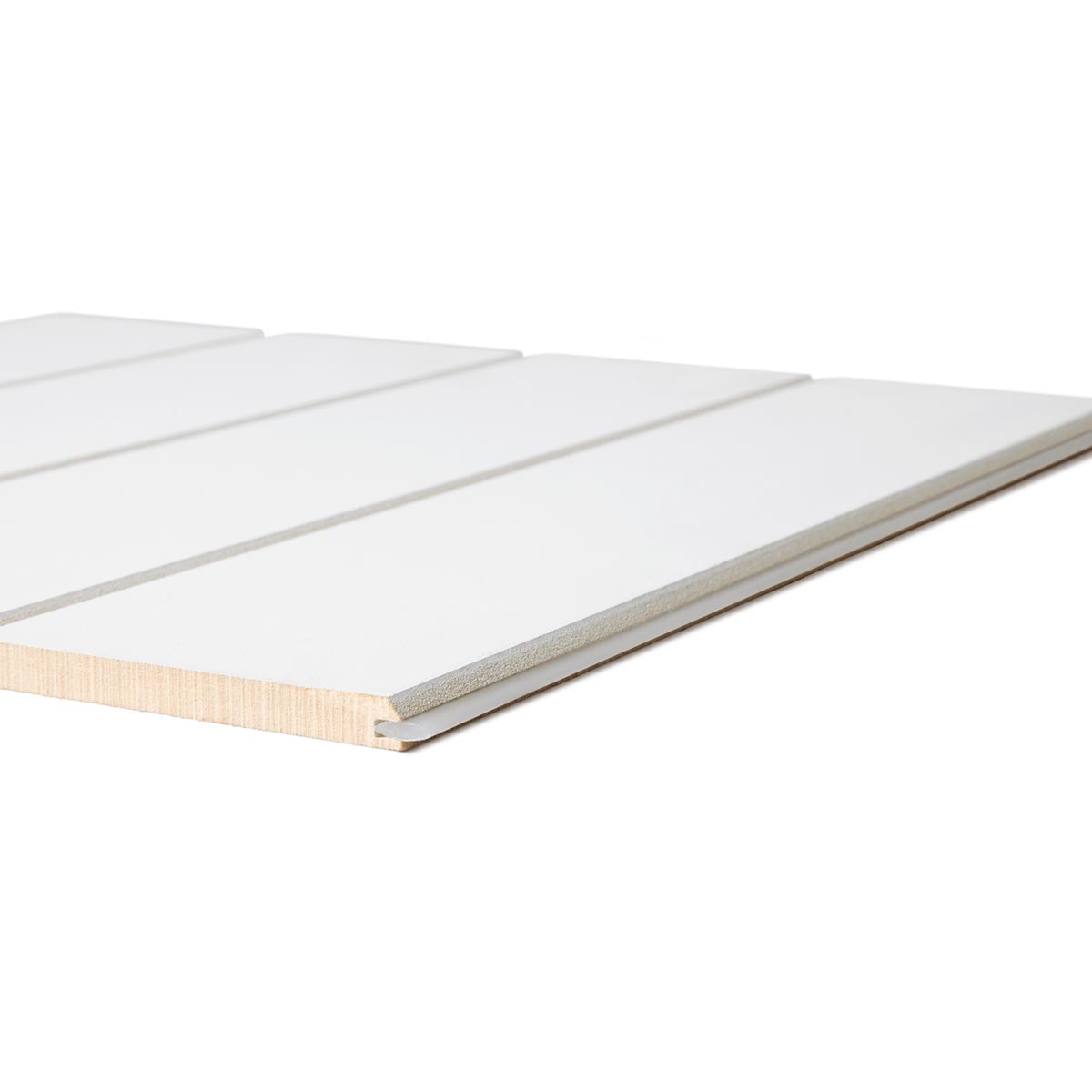

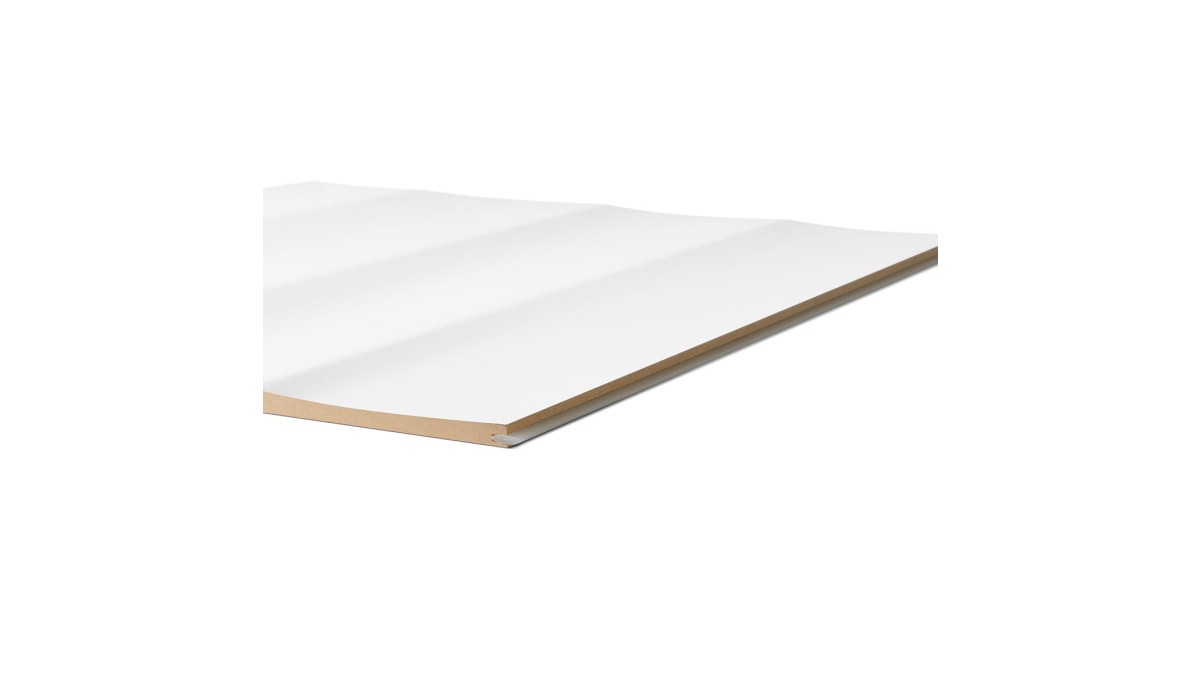

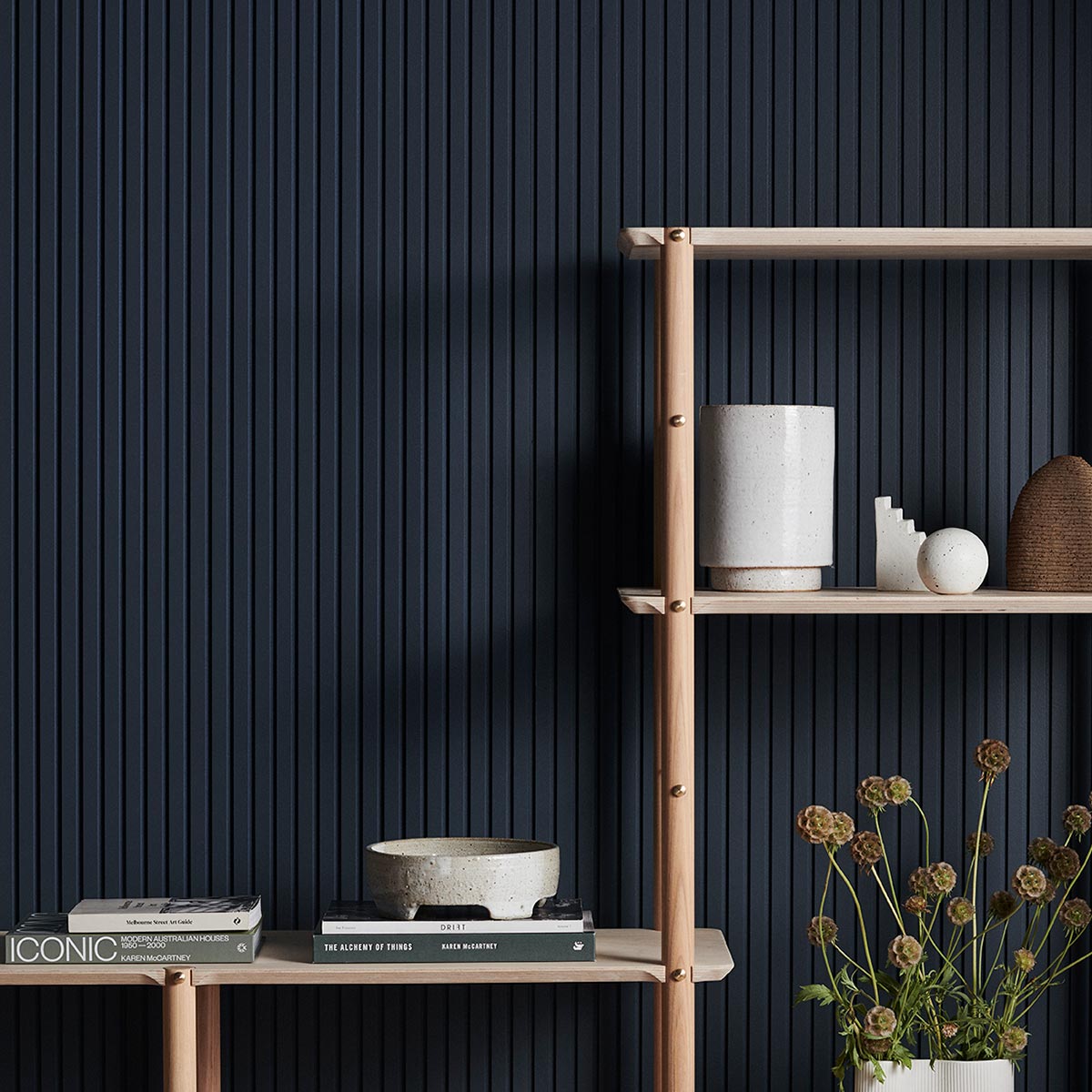

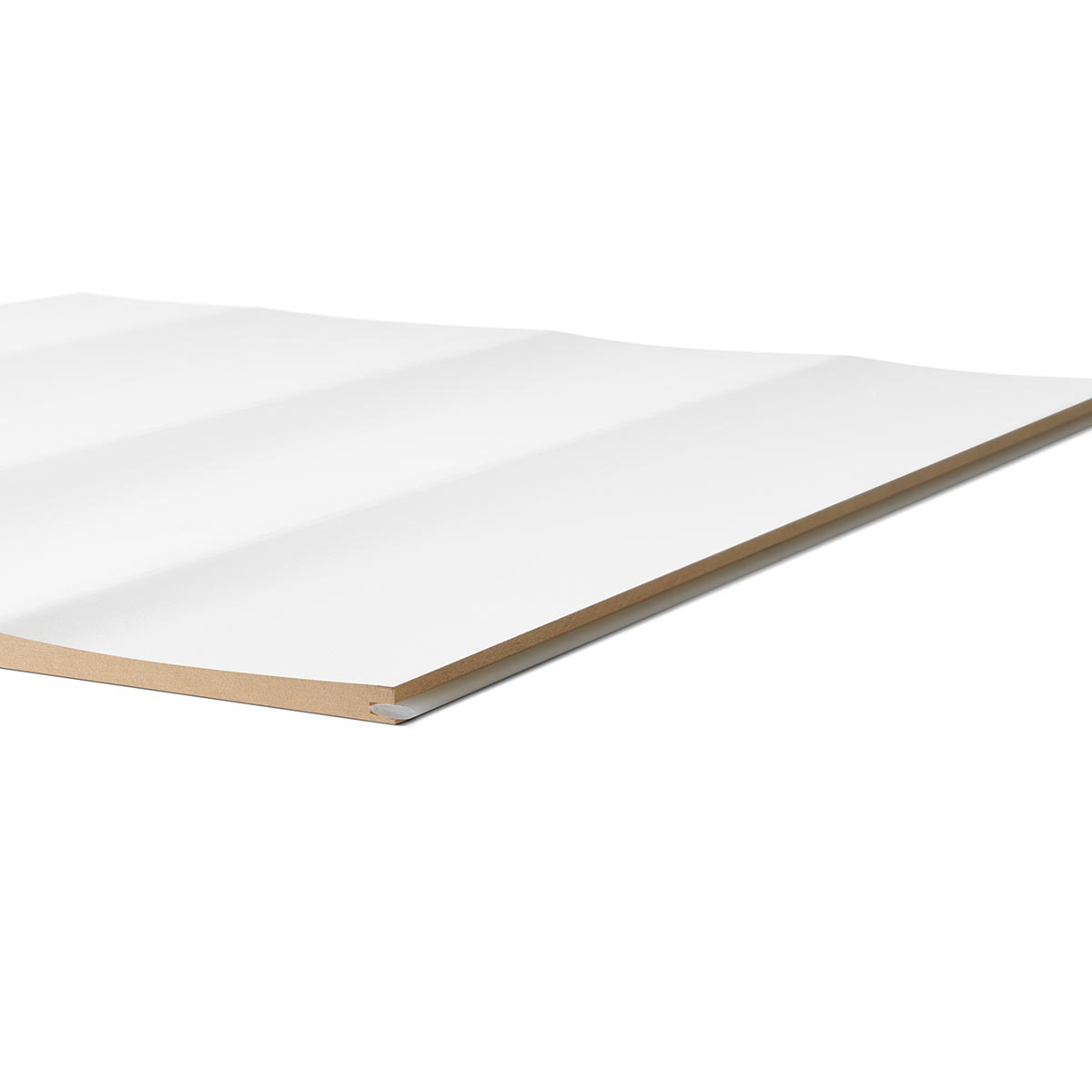

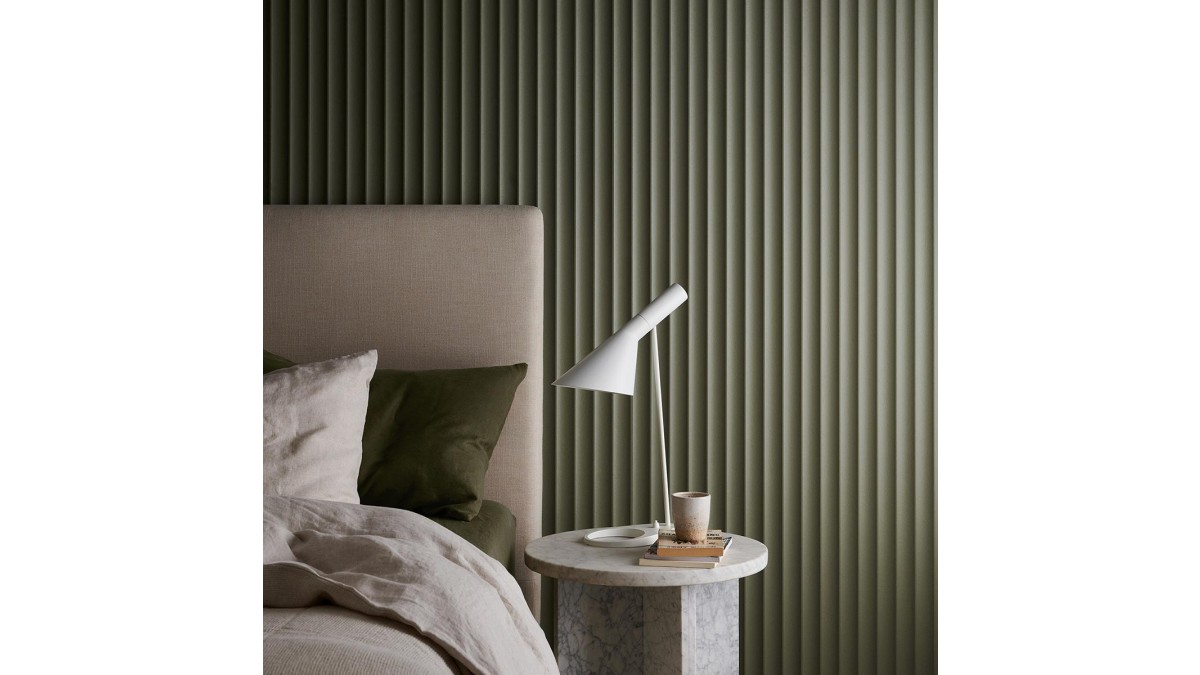

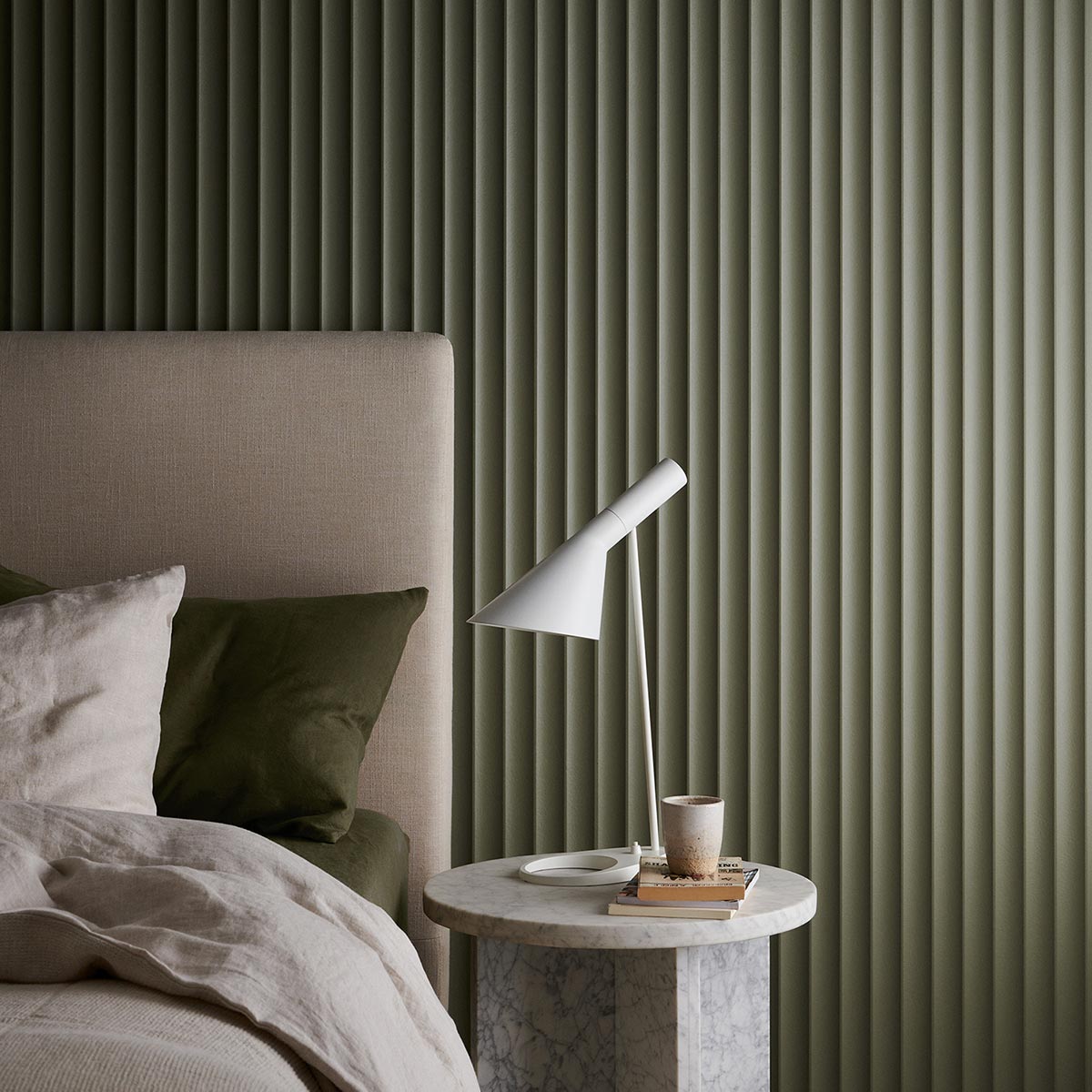

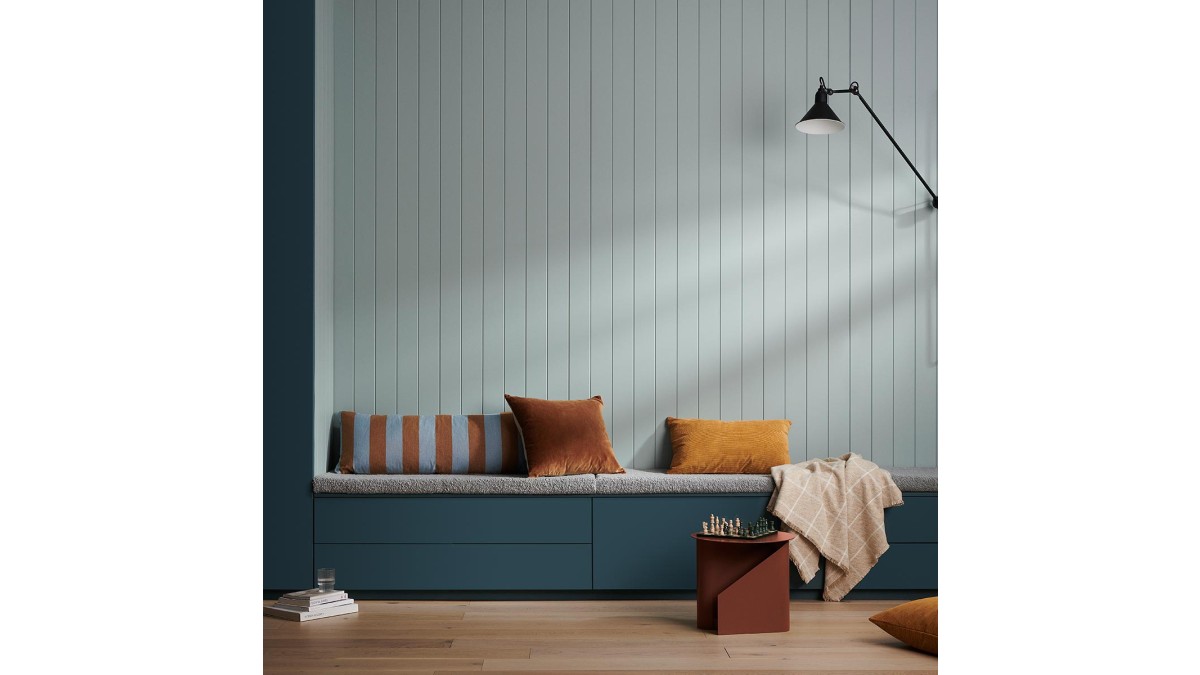

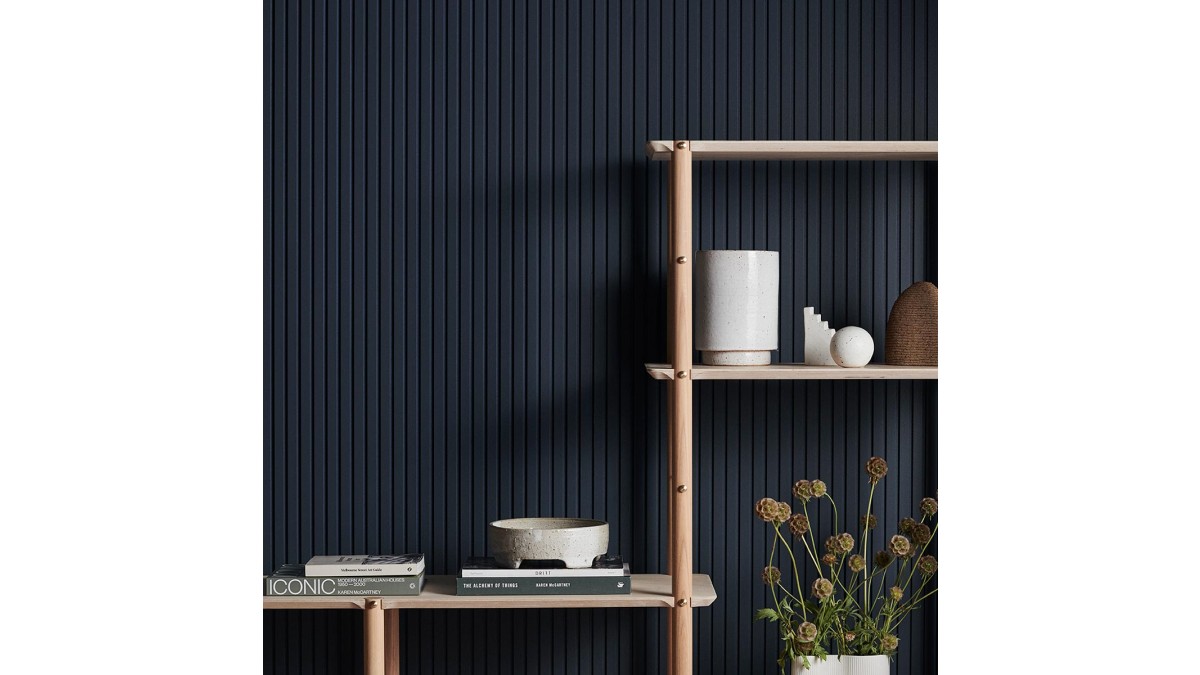

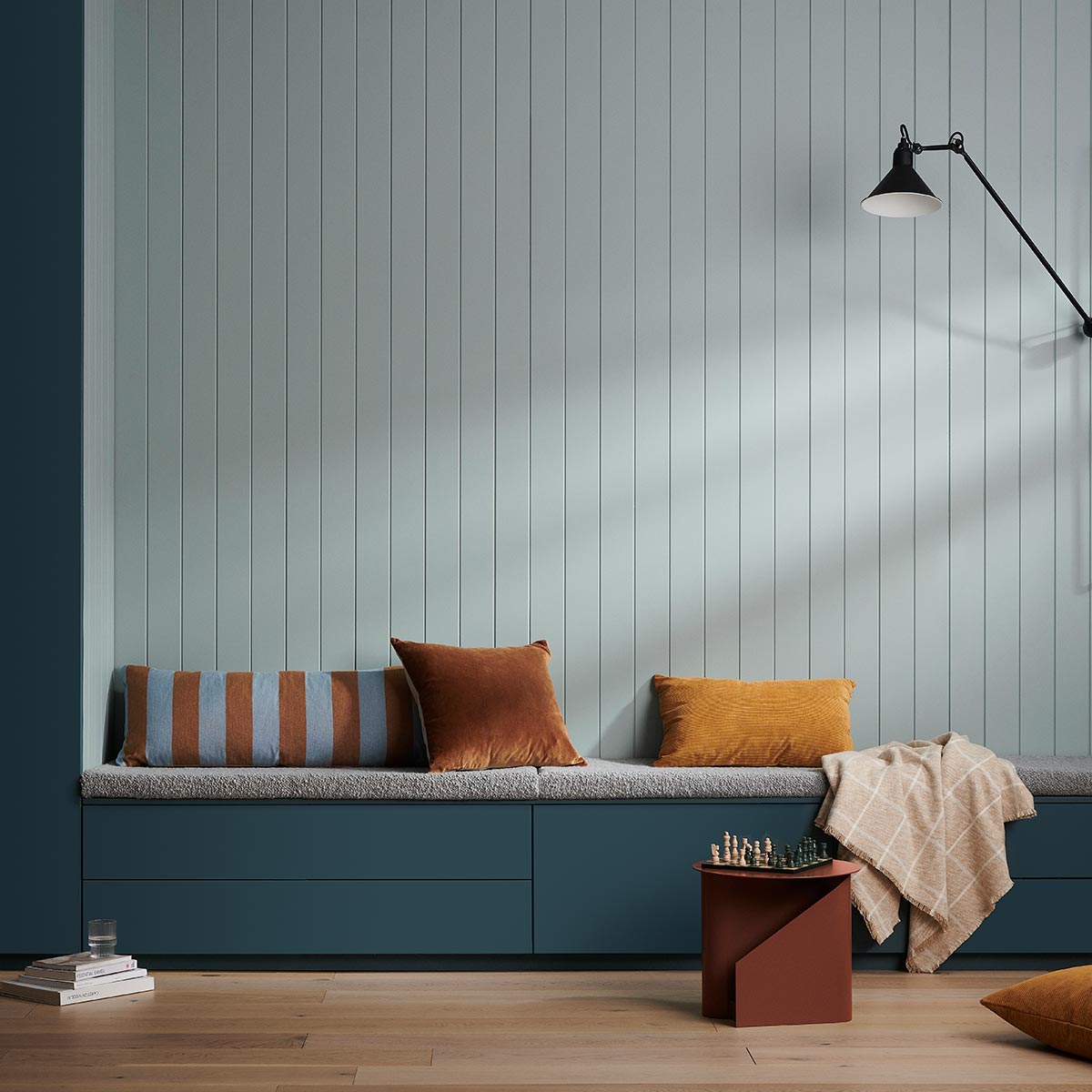

  • Profiles — Batten 25, Demi Round 20, Demi Round 40, Scallop 45 and Classic VJ 100, to view , visit

Surround by Laminex™ can be indent ordered as a Material Group 2 Classification Fire Resistant substrate. Minimum order quantity is 30 sheets (1 pack). This product is made to order and requires a longer lead time. Indent order terms and conditions apply. Speak to your Laminex Sales Representative for more details.

Refer to the Surround by Laminex Technical Data sheet — which can be found at

Key Features
  • Fast and easy Installation

Apply panels quickly and easily onto prepared plasterboard, timber, steel, brick or masonry wall surfaces. The decorative front is conveniently pre-primed with a water-based paint — ready to be lightly sanded and applied with chosen paint colour.

  • Durable craftsmanship

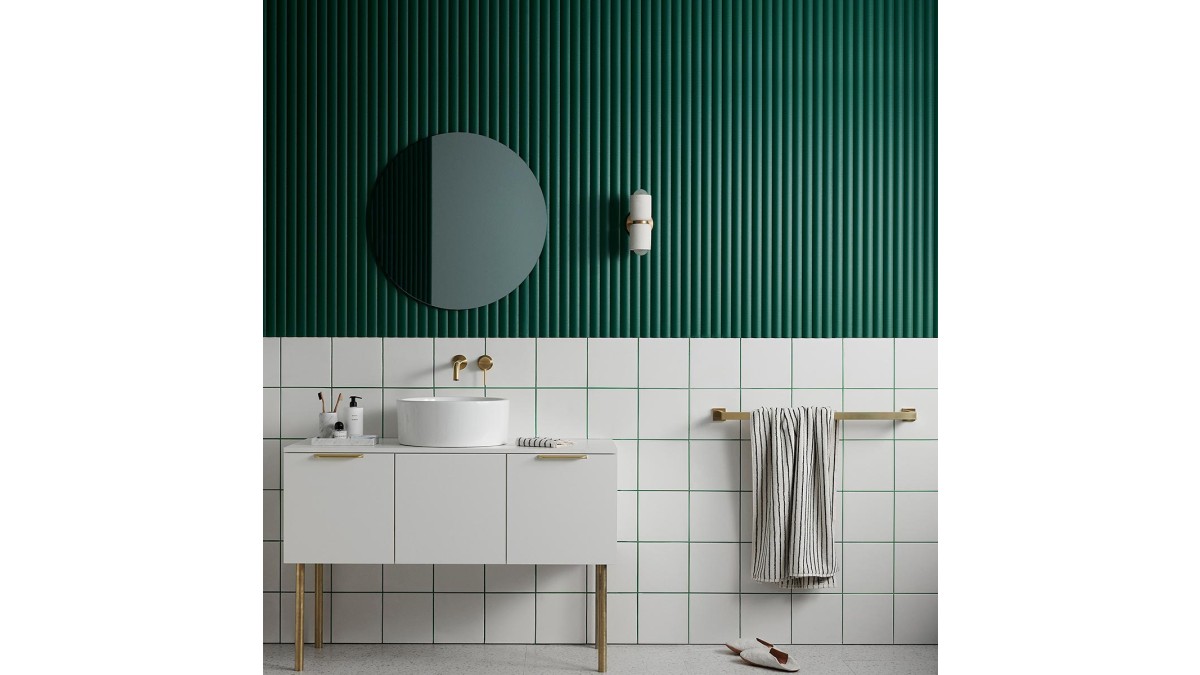

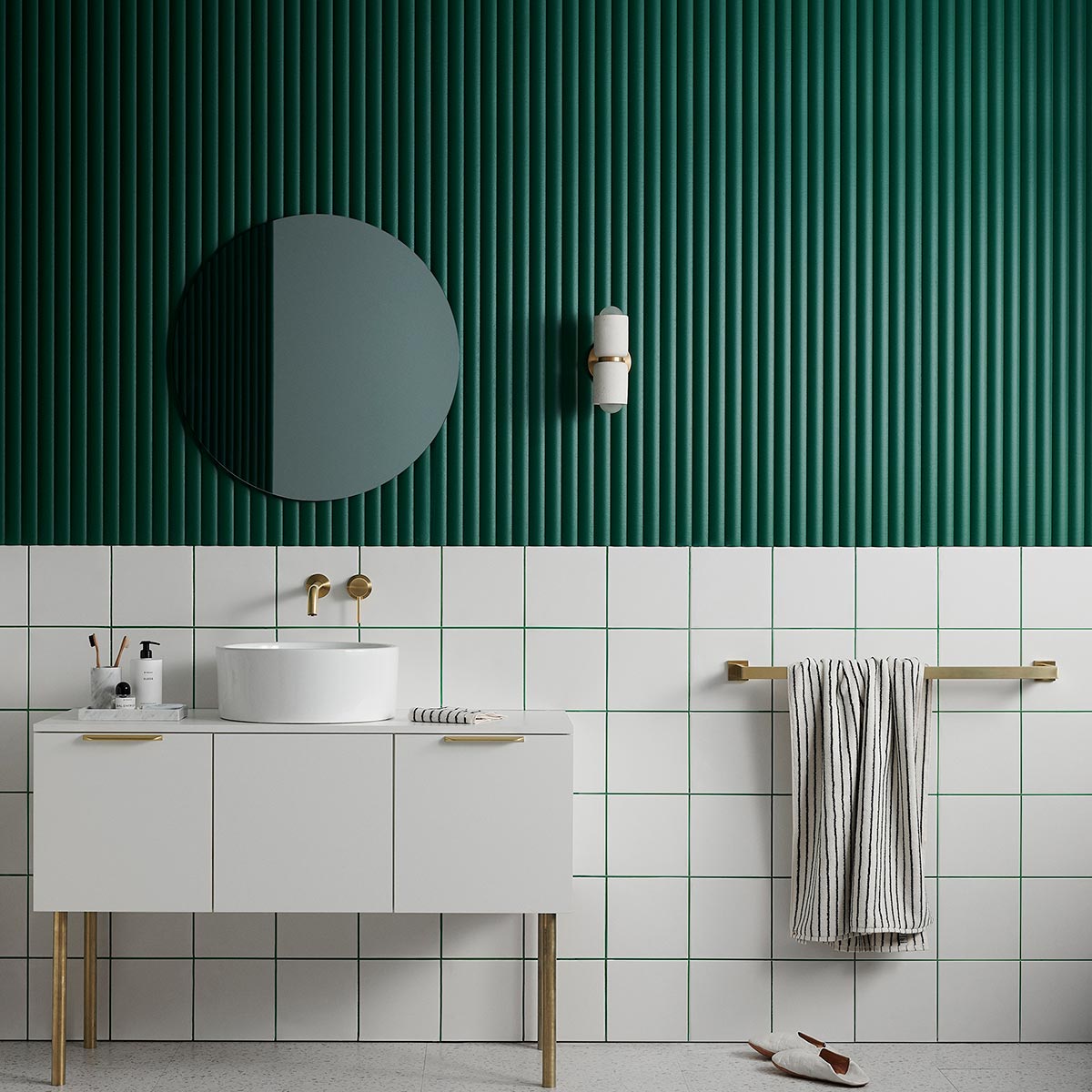

Surround by Laminex panels are an impact-resistant timber product. Application is intended for home areas such as hallways, bedrooms, playrooms, kitchens*, bathrooms*, laundries* and living areas. Panels are also ideal for internal wall applications across a range of commercial spaces.

*Additional preparation, sealing & painting is required. Surround by Laminex is prohibited for use in splash zones. Refer to Fabrication & Installation Manual.

  • MDF — Manufactured in Australia

Surround by Laminex panels are made in Australia using moisture resistant Medium Density Fibreboard (MDF).

  • Fire properties

Surround by Laminex is a MR E0 MDF substrate with a Material Group 3 Classification.


Scope of Use


  • Education facilities
  • Health and aged care
  • Hospitality
  • Shopping centres & retail
  • Workspaces
  • Indoor public spaces
  • Multi & single residential

Where Surround by Laminex can be directly fixed:

  • Timber stud walls and/or steel framed walls
  • Plasterboard
  • Adjacent to fireplaces

Where Surround by Laminex can be indirectly fixed:

  • Brick and block walls or masonry (timber battens or steel furring channels)
Limitations on Use

Surround by Laminex is ONLY suitable for interior wall panel applications. Panels are NOT suitable for the following applications:

  • Any external installation
  • Fixed to sliding doors or internal honeycomb construction doors
  • Areas where the moisture content is likely to be elevated for prolonged periods, such as saunas, indoor swimming pools or industrial wet areas.
  • Ceilings
  • Floors
  • Adhered to tiles, cork, natural stone, textiles, wallpaper, timber panelling or hardboard

Always refer and adhere to Fabrication and Installation Manual when installing Surround by Laminex. Download at

Statement of Building Code Compliance

When stored, handled, installed and maintained in accordance with the Surround by Laminex Technical Information that is current at the time of installation, Surround by Laminex will meet the durability requirements of the New Zealand Building Code (NZBC) B2.3.1 (c) (i) & (ii) and has a serviceable life of at least 5 years in internal applications

Surround by Laminex™ meets the requirements of NZBC F2 — Hazardous Building Materials

Find all technical info and brochures on

As a leading supplier of high quality surfaces, Laminex New Zealand's portfolio features a range of locally-made and global products for benchtops, cupboards, walls and building products.

Product Enquiries

News from Laminex New Zealand

Durability and Colour for Two Modern Learning Environments
A Successful Circular Economy Initiative in PVC Recycling

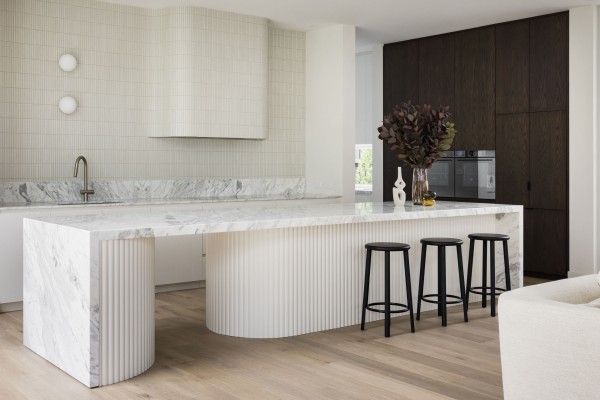

Creating Curves with Surround by Laminex
