Glaslide Frameless Glass Sliding Panel System
Description

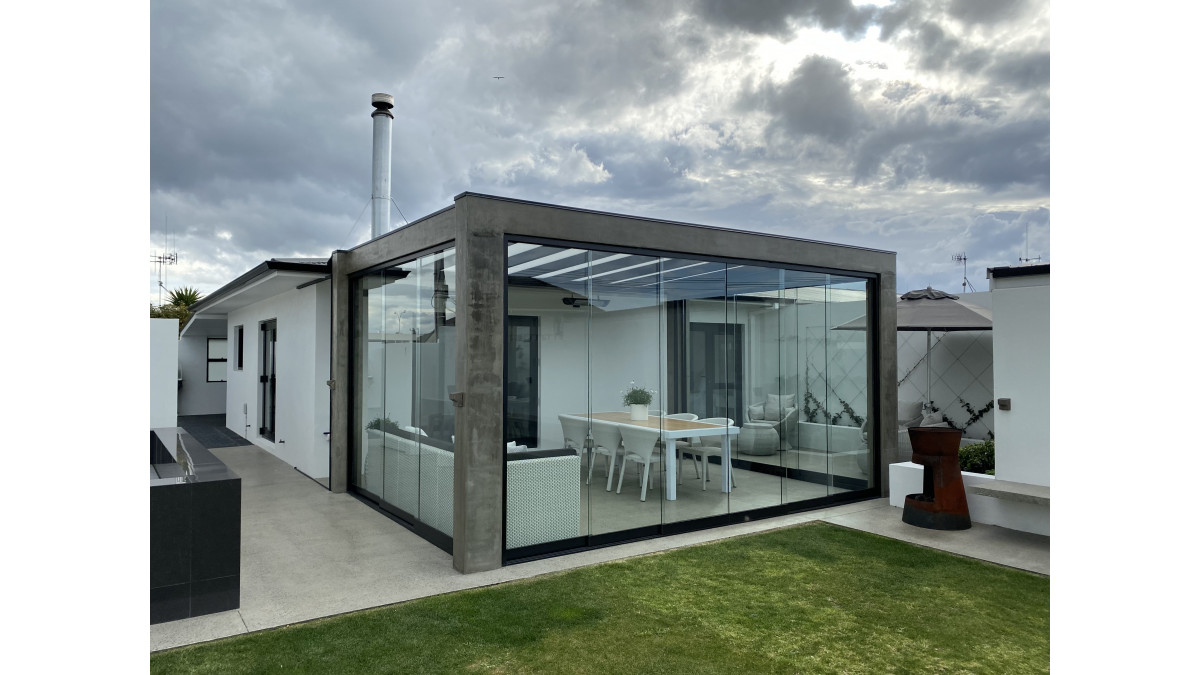

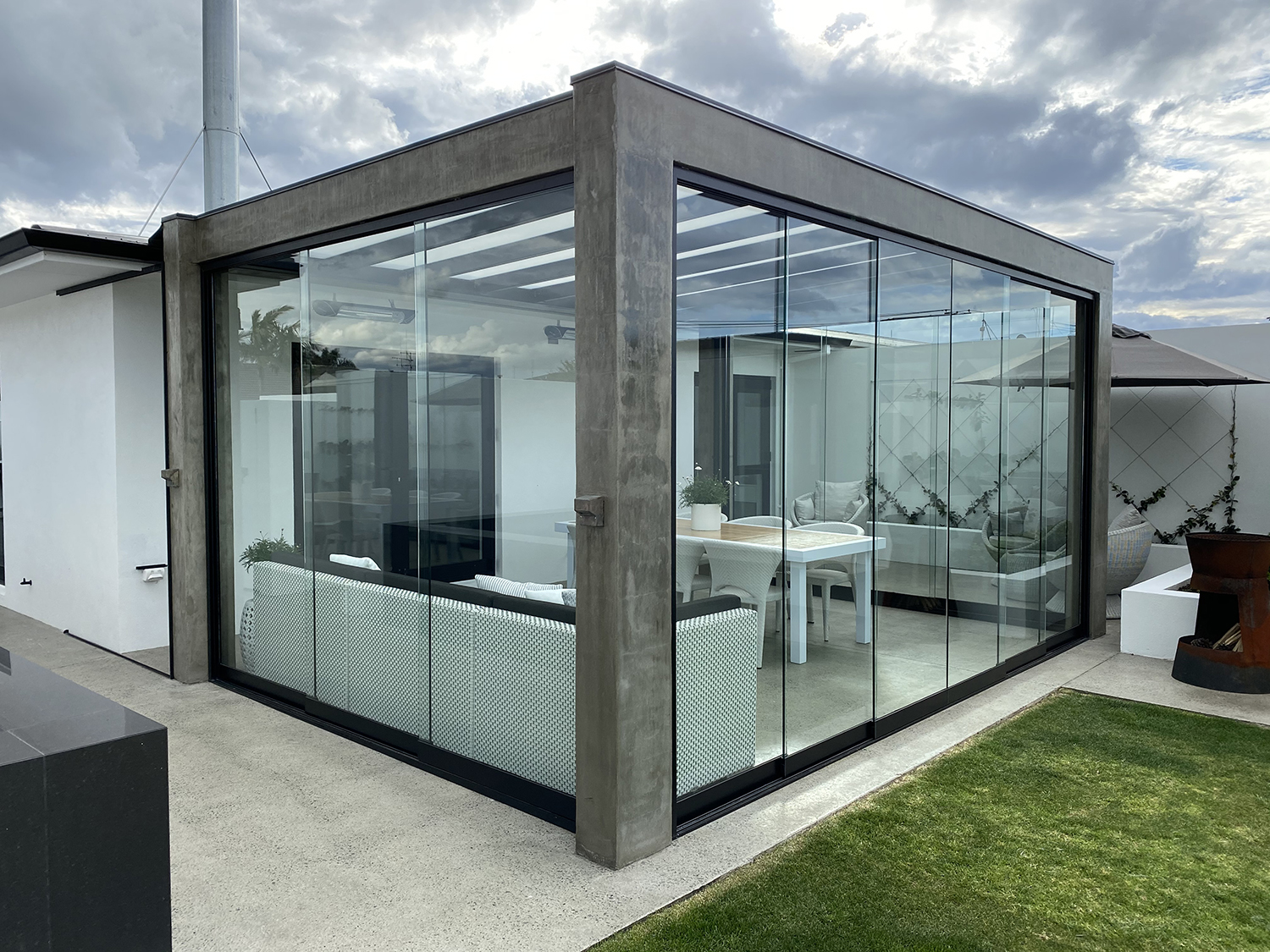

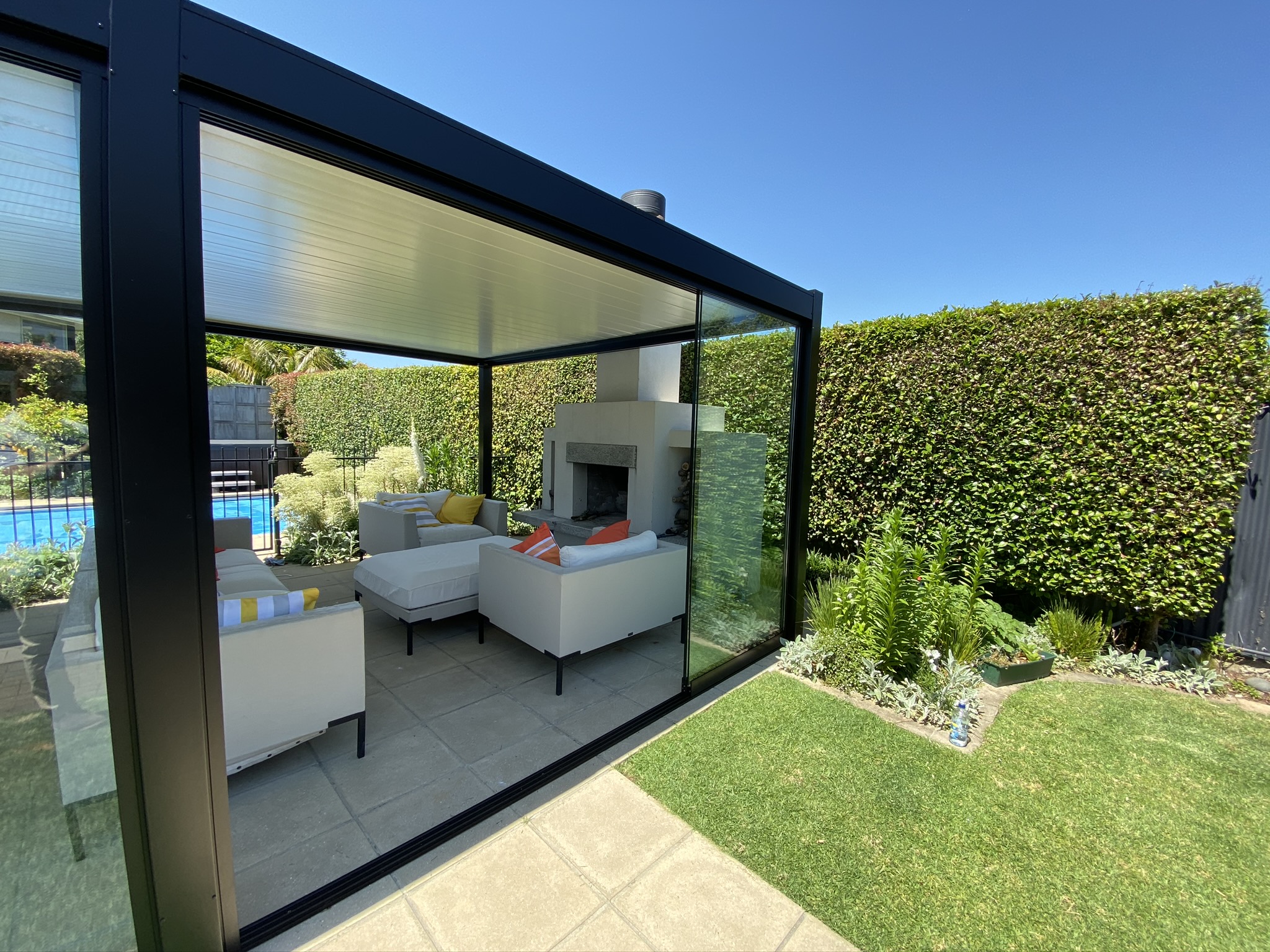

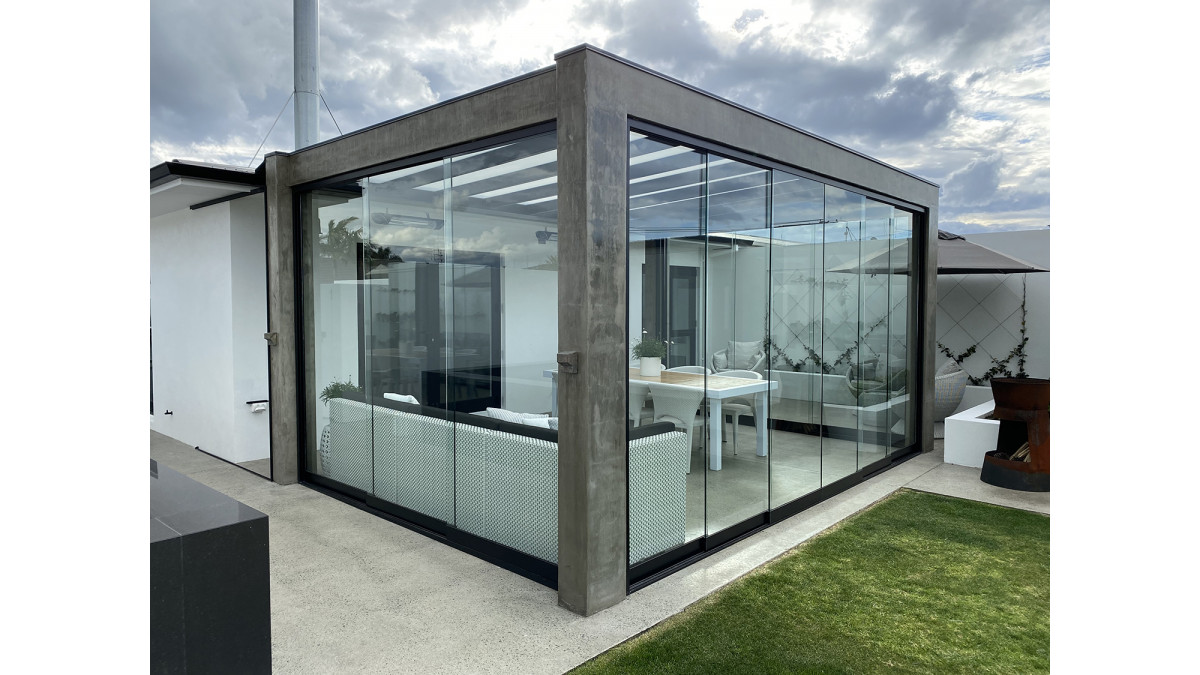

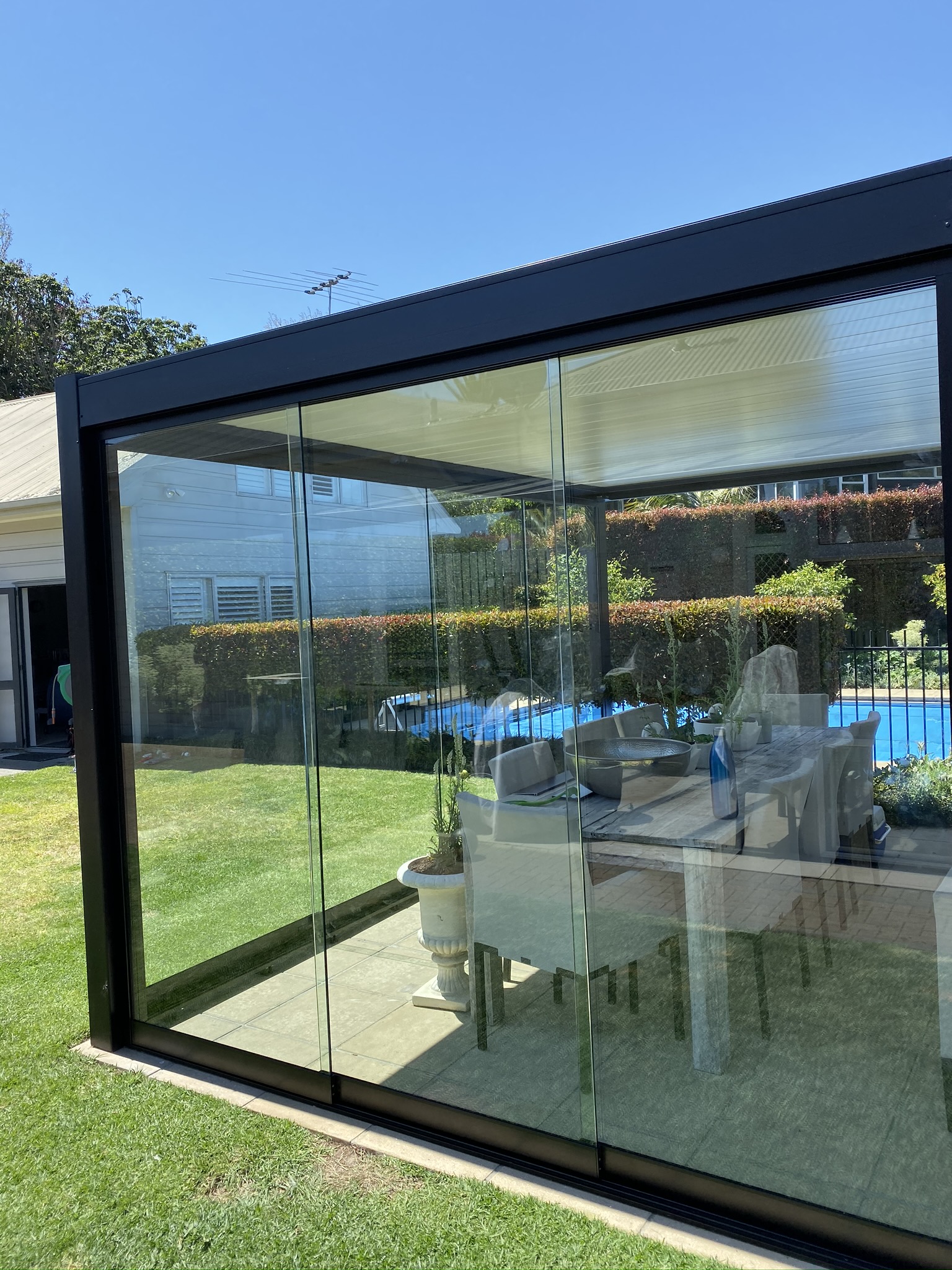

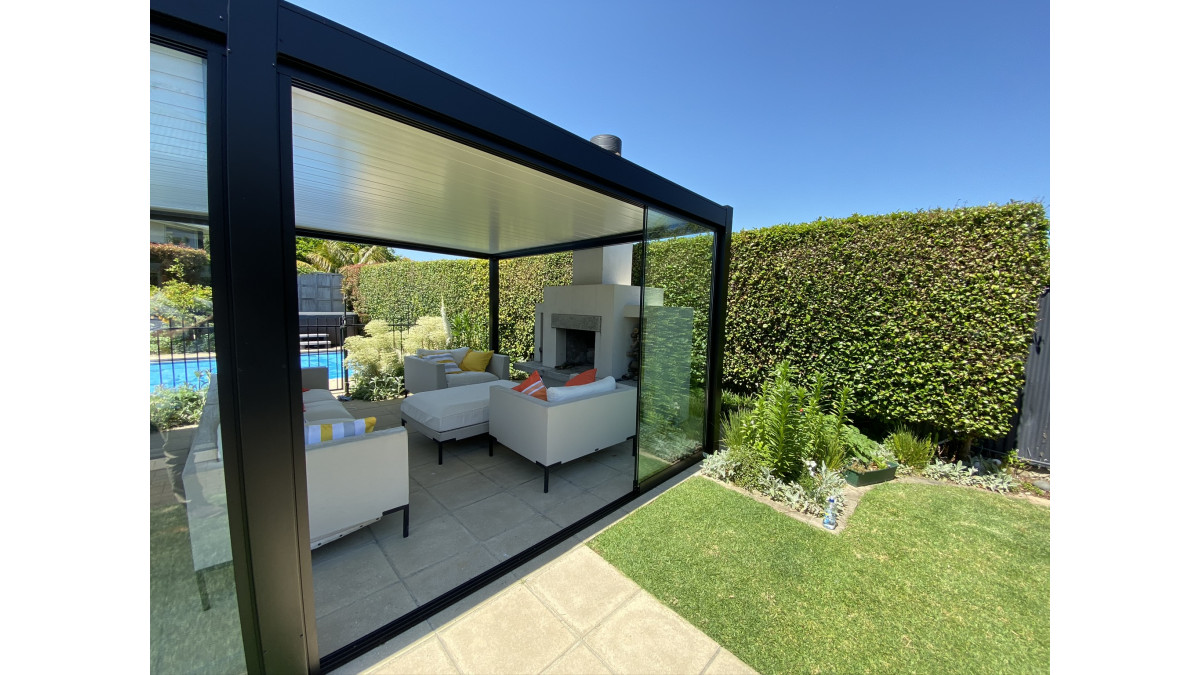

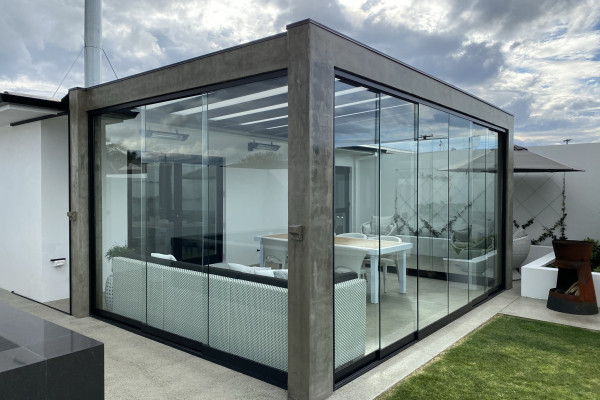

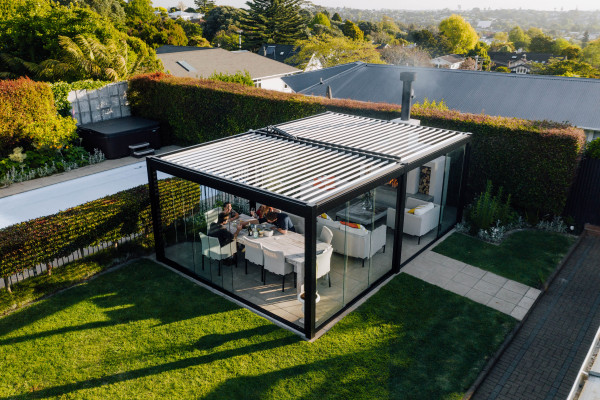

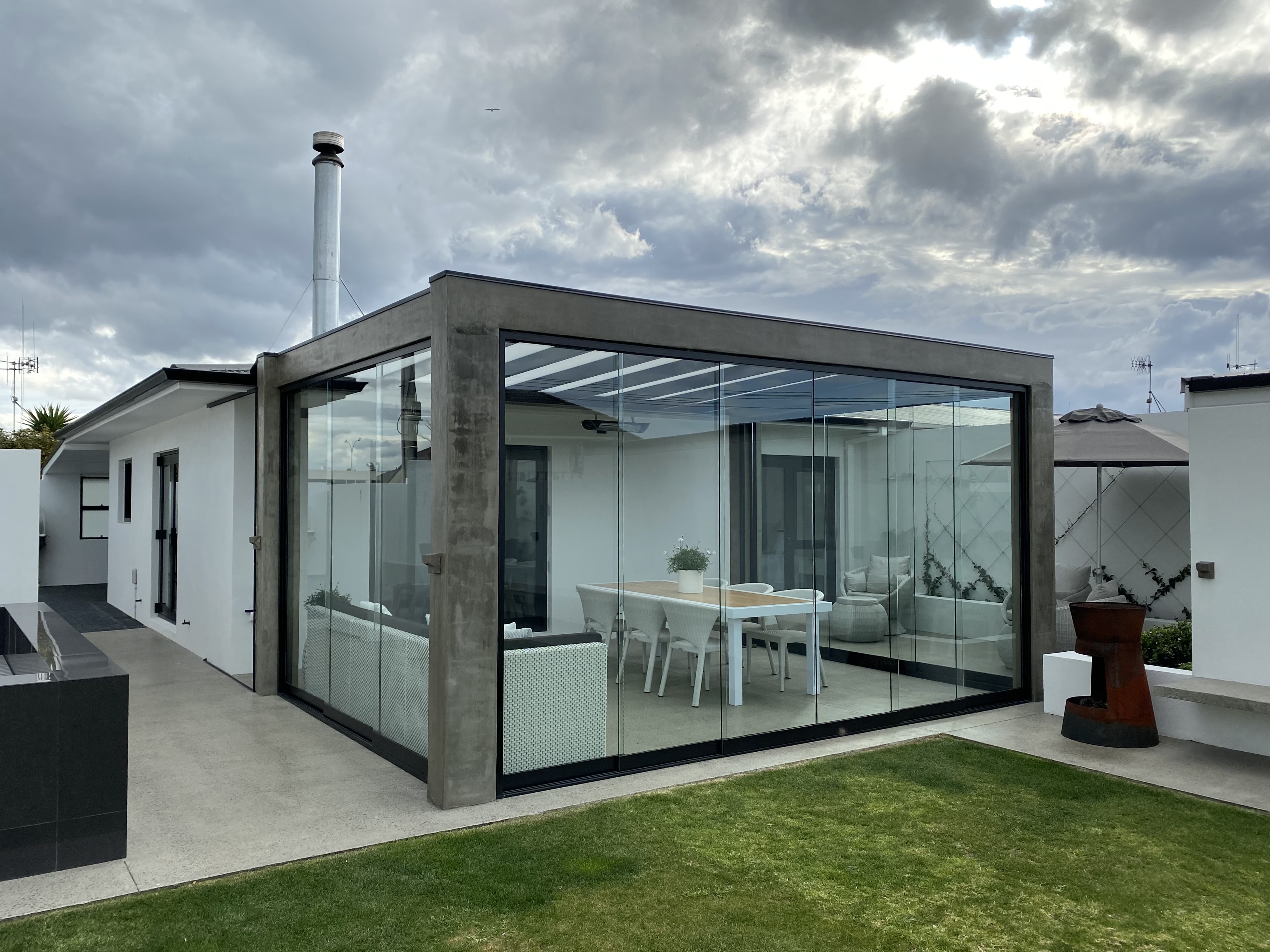

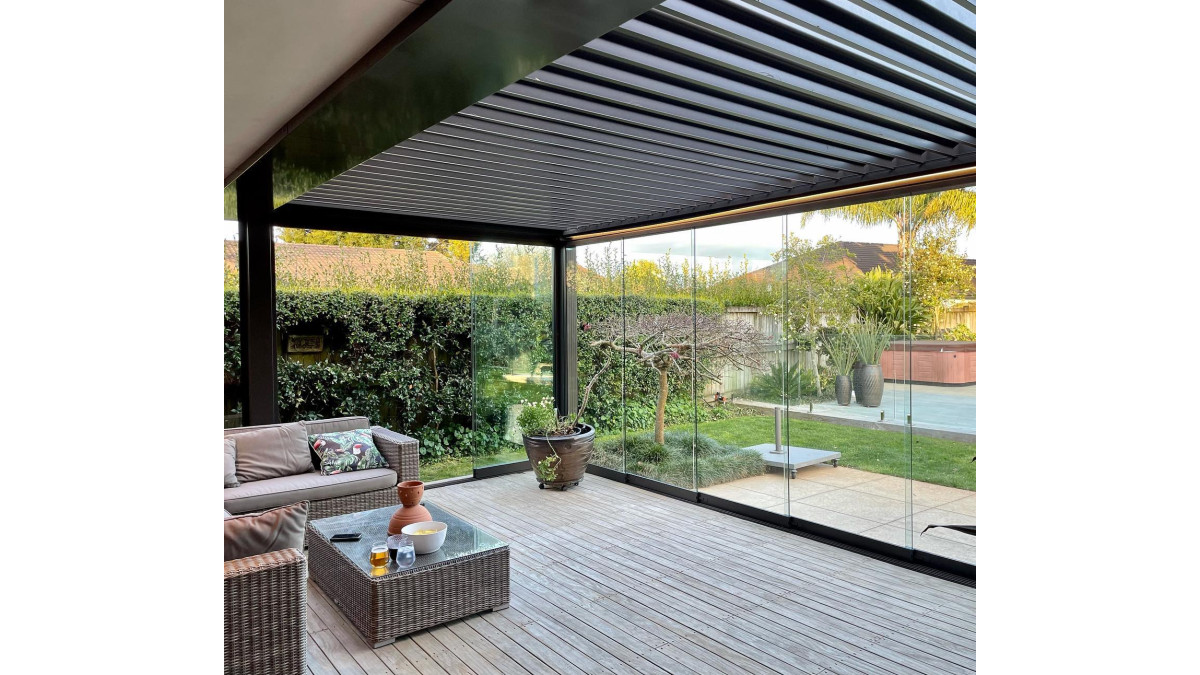

Adding Glaslide sliding glass doors to a Louvre Roof is an ideal way to gain more weather protection, whilst creating an idyllic and stunning looking outdoor room.

Designed with New Zealand's unique weather conditions in mind, Glaslide sliding doors are suitable for a wide range of locations and are designed for a wide range of wind pressures (wind zones) throughout this windy Island nation.

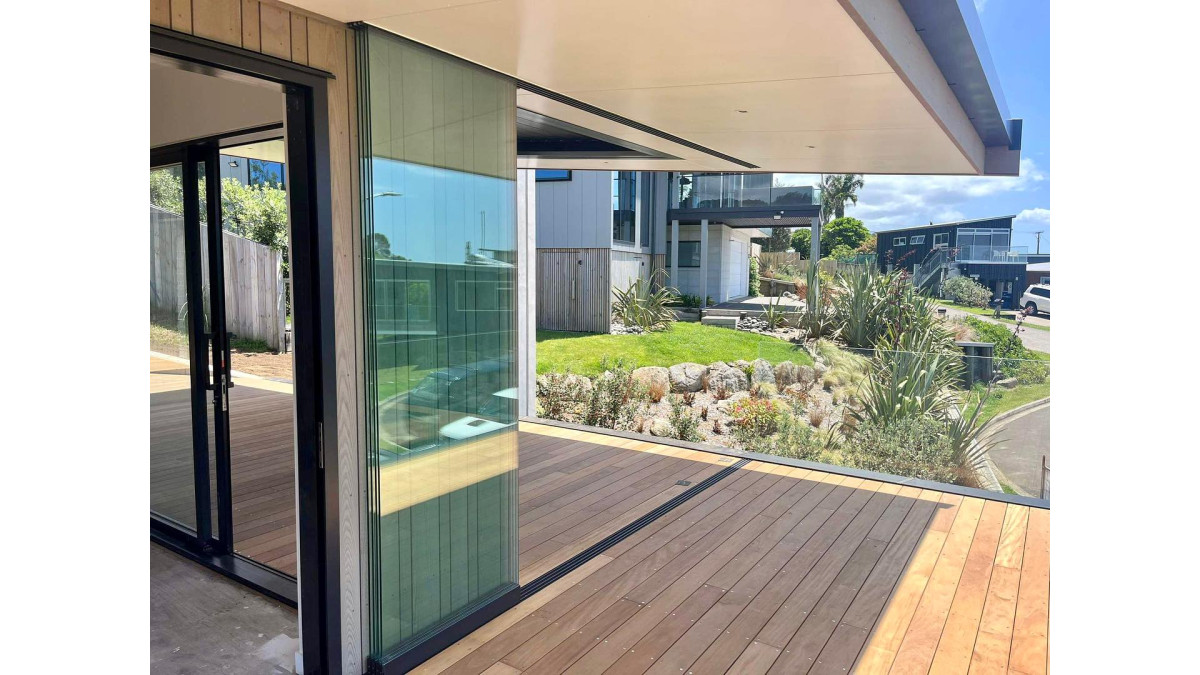

Glaslide's frameless doors effortlessly slide on a low bottom track and lock into place as the glass panels slide past each other. Designed for easy release, the latching system is foot-operated and tucks away automatically when it is no longer needed.

Key Features
  • New Zealand designed and manufactured
  • Extrusions and components are manufactured from high grade 6060 T5 aluminium
  • Finished in a high-quality powder coating with either a 10 or 20 year warranty
  • Glaslide glass doors ideal for windy locations (conform with NZS 4223.3.2016)
  • Glass doors in 10mm, 12mm or 15mm thicknesses — maximum width and height determined by locations wind pressure
  • System structure and footings conform to NZS3604:2011 wind zone calculations
  • Quality assured — installed by qualified installers
  • Custom made to suit individual clients' requirements
  • Automatic latching system fixes each doors in place, as adjoining door panel slides past
  • Latches are unlocked with an easy foot operation
  • Glass doors are a robust, wind-resistant option for additional weather protection
  • Seamless track and roller system, designed for user-friendly operation
  • Tracks and locks are powder coated to match the louvre roof

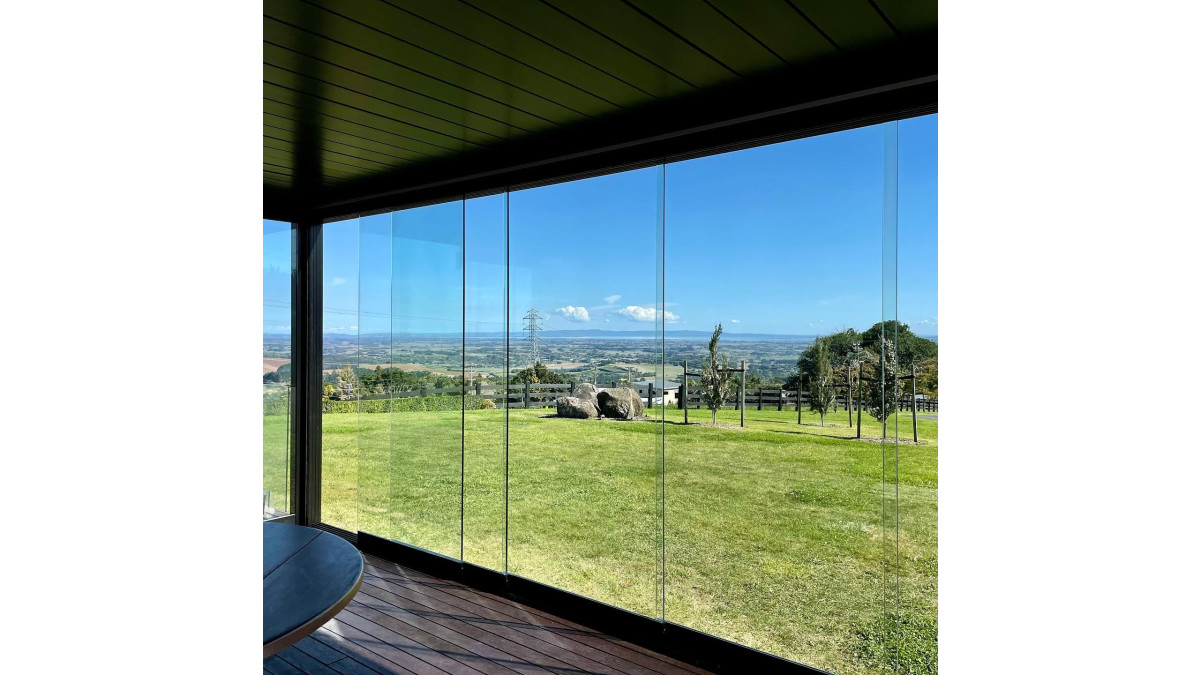

  • Totally see-through, keeping view clear
  • Robust, heavy-duty wheels for longevity and reliability
NZ Made
NZ Made
Scope of Use

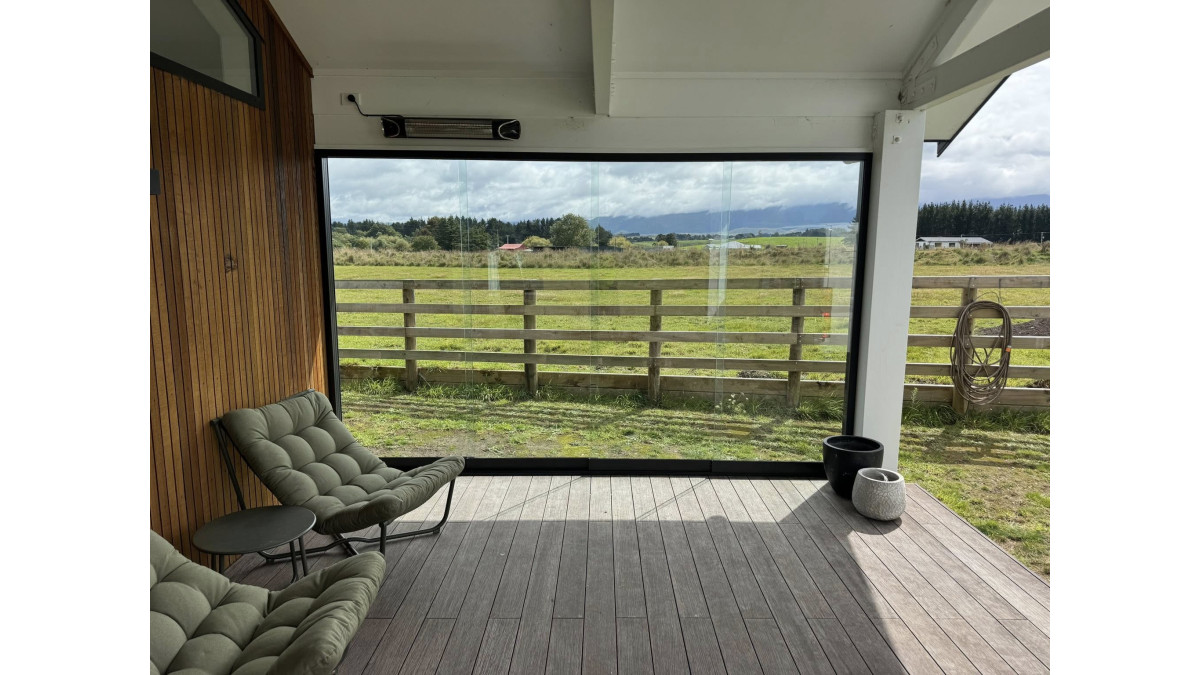

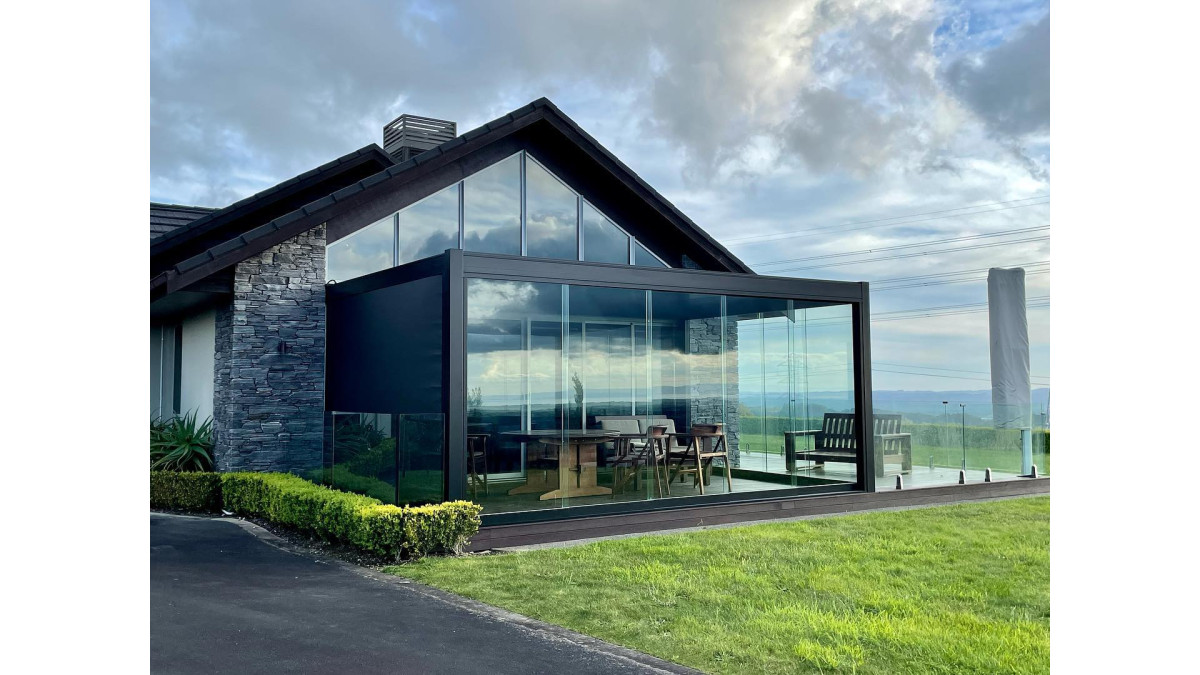

Glaslide Frameless Glass Sliding Panels are a permanent outdoor living system providing weather protection in a range of outdoor areas including patios, decks, extended courtyards, pool areas, cafe and bar courtyards, outdoor shopping areas etc.

  • Glaslide glass doors ideal for windy locations (conform with NZS 4223.3.2016)
  • Glass doors in 10mm, 12mm or 15mm thicknesses — maximum width and height determined by locations wind pressure
Limitations on Use
  • Glaslide Frameless Glass Sliding Panel system configurations and sizes are affected by Wind Zone restrictions.  For clarification refer to Configurations
  • Glaslide Frameless Glass Sliding Panel Systems must be installed in accordance with the product design manual
  • Any deviation from standard fabrication or installation must involve guidance from Juralco Aluminium Building Products Ltd (the manufacturer)
Statement of Building Code Compliance
  • Glaslide doors have been designed with New Zealand wind zone parameters and in accordance with NZS 4223.3.2016
In-Service History

Juralco Aluminium has been designing and manufacturing specialist aluminium products for the New Zealand market for over 25 years.  Glaslide Frameless Glass Sliding Panel systems, have been introduced to the market to expand the offering of quality outdoor living room environmental protection products.

Other Performance Attributes
  • Dulux Duralloy powder coating — 10 year warranty
  • Dulux Duratec powder coating — 20 year warranty
Documents
Technical/Design Manual

11/20

CAD/PDF Details

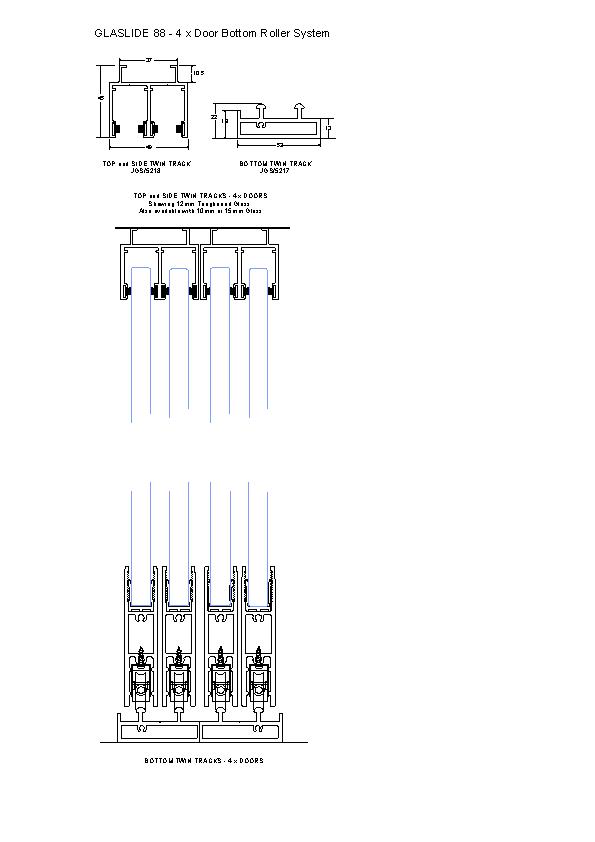

Glaslide Rose Rd 4 x Doors
Glaslide Rose Rd 4 x Doors PDF
