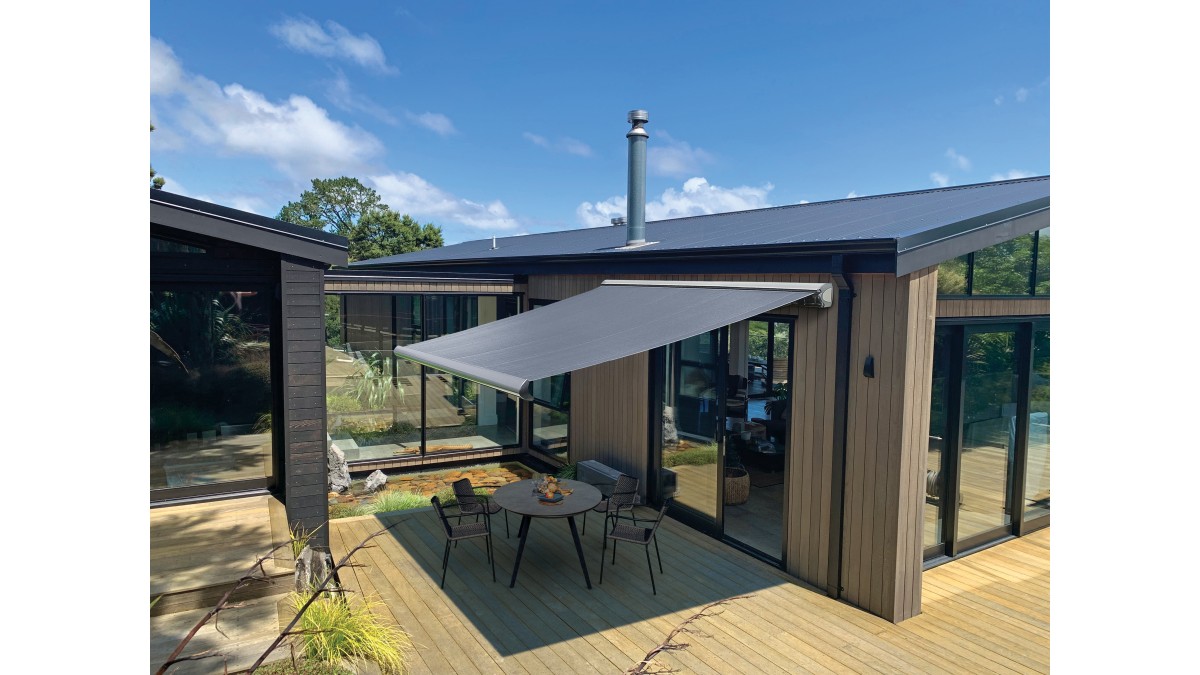

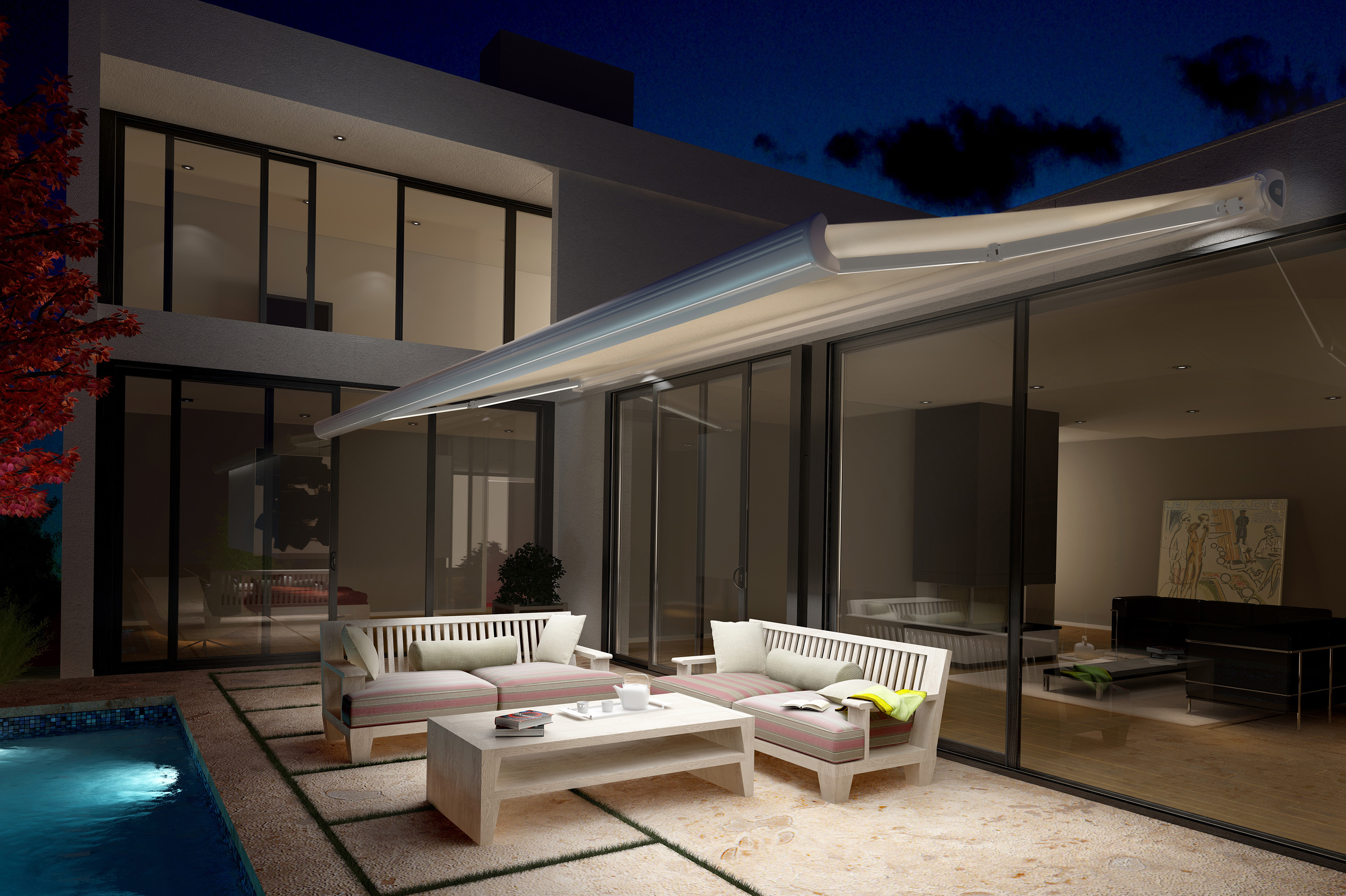

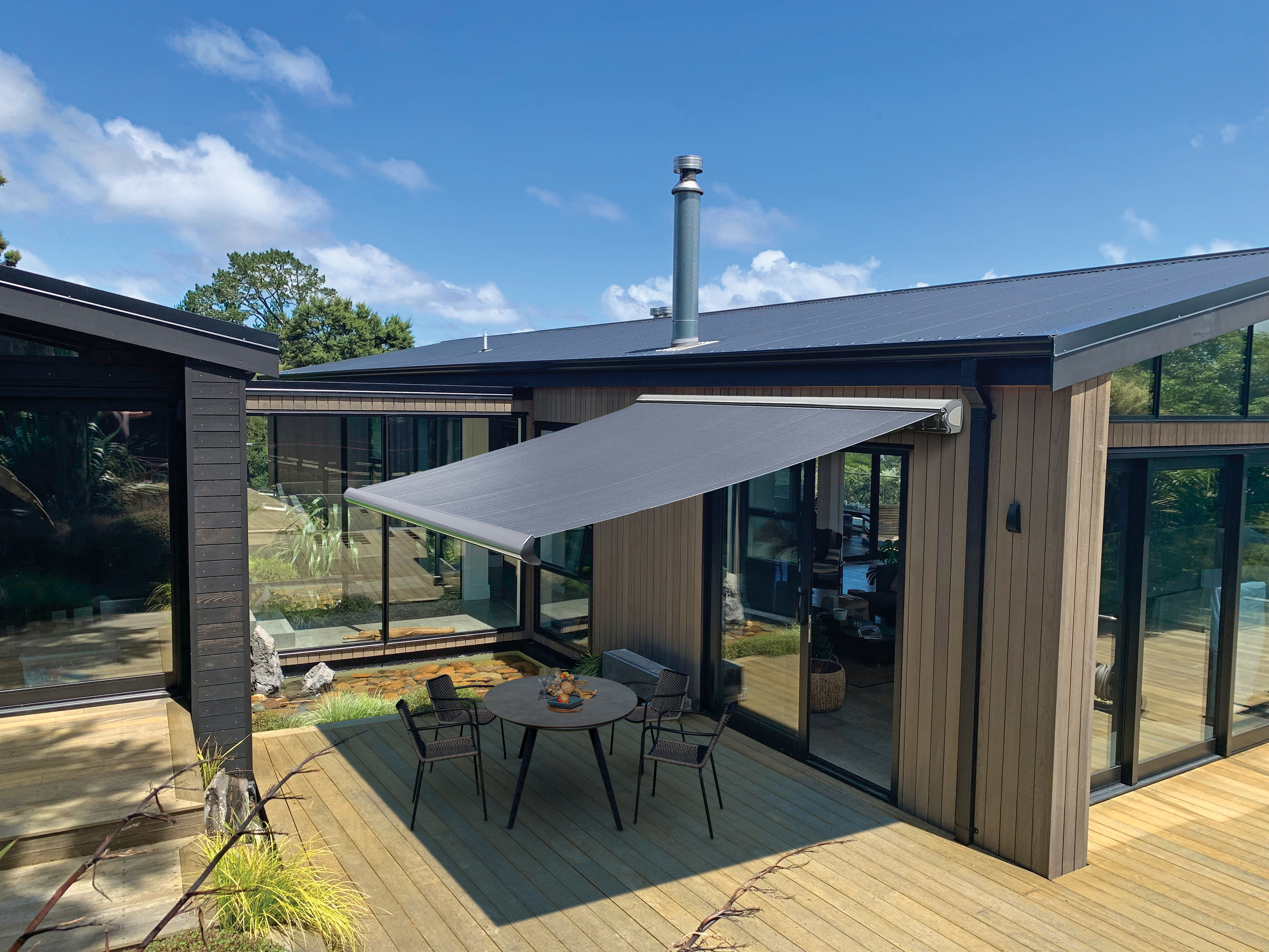

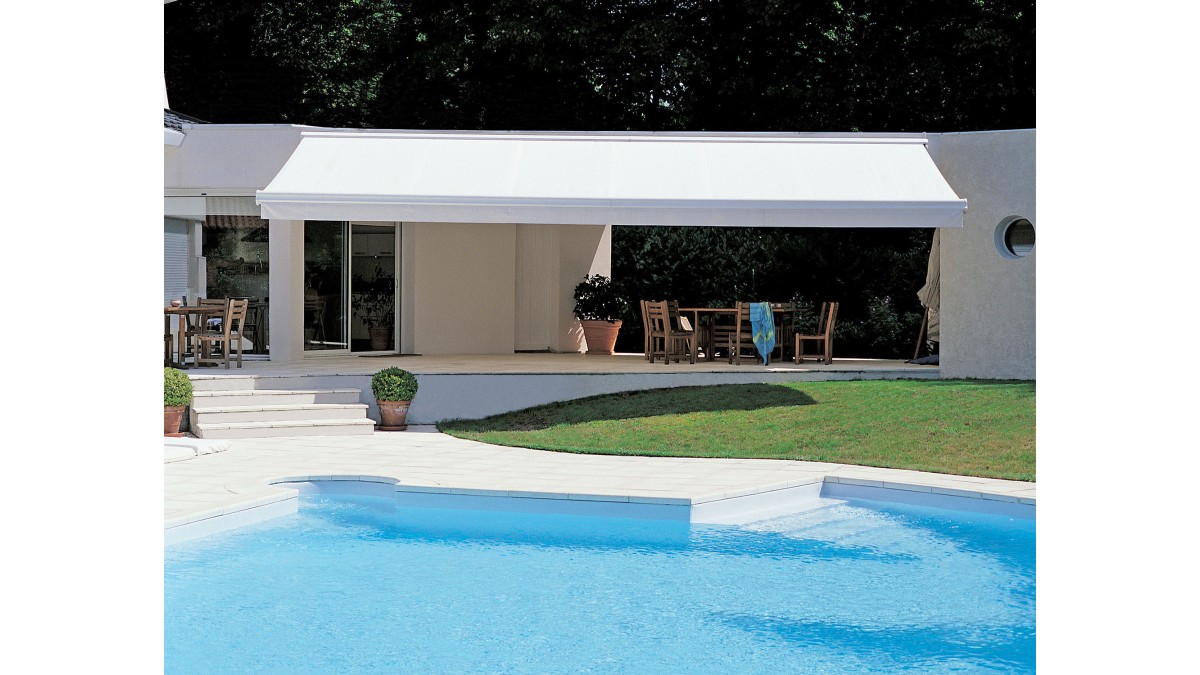

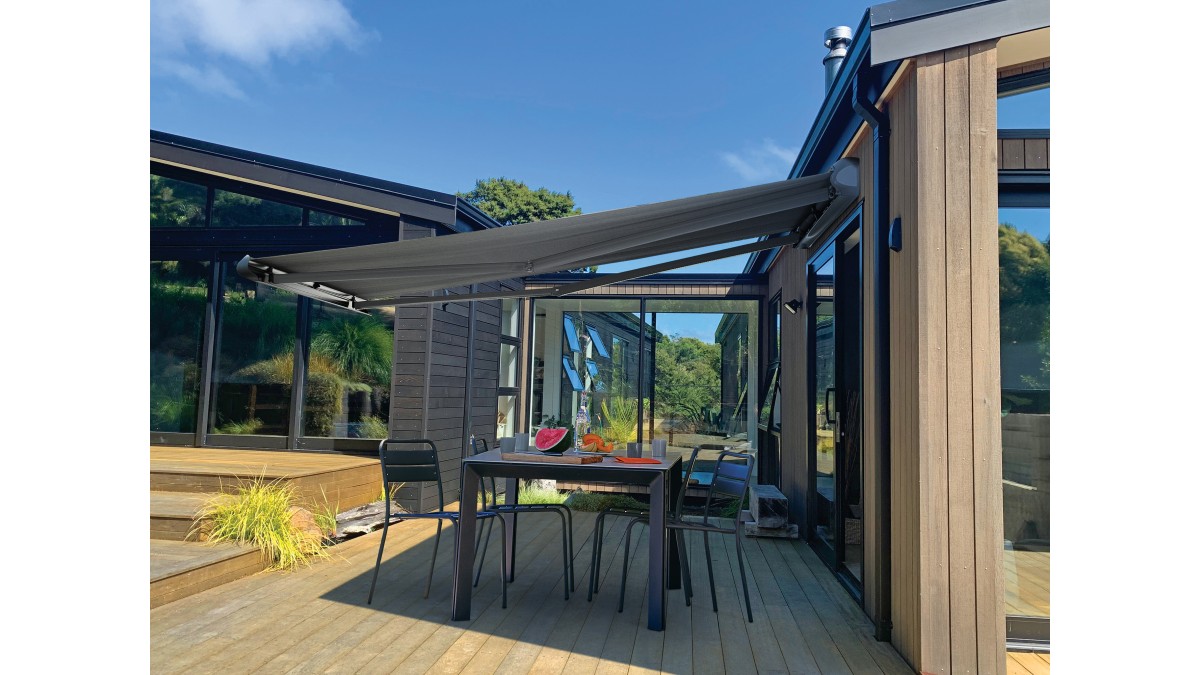

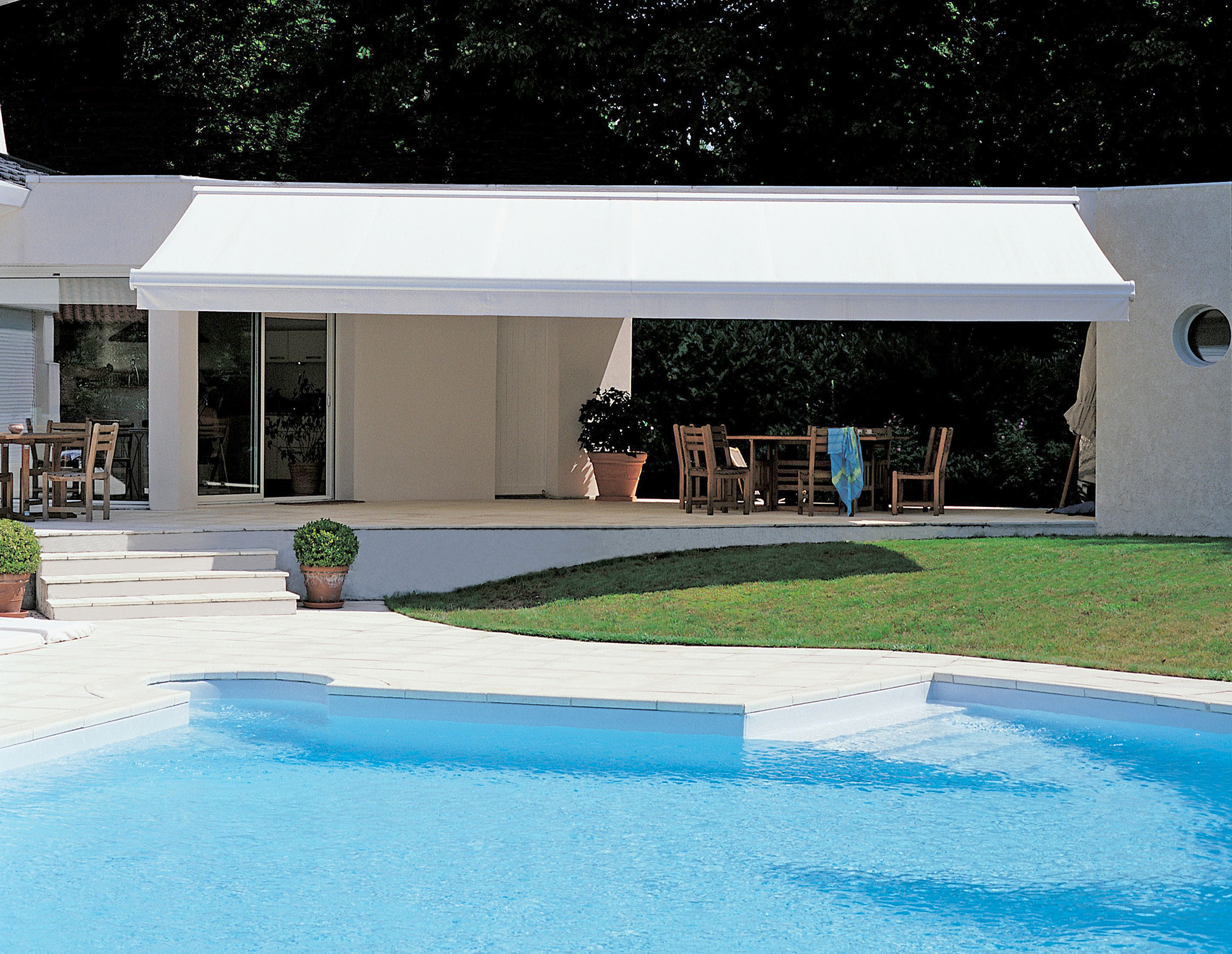

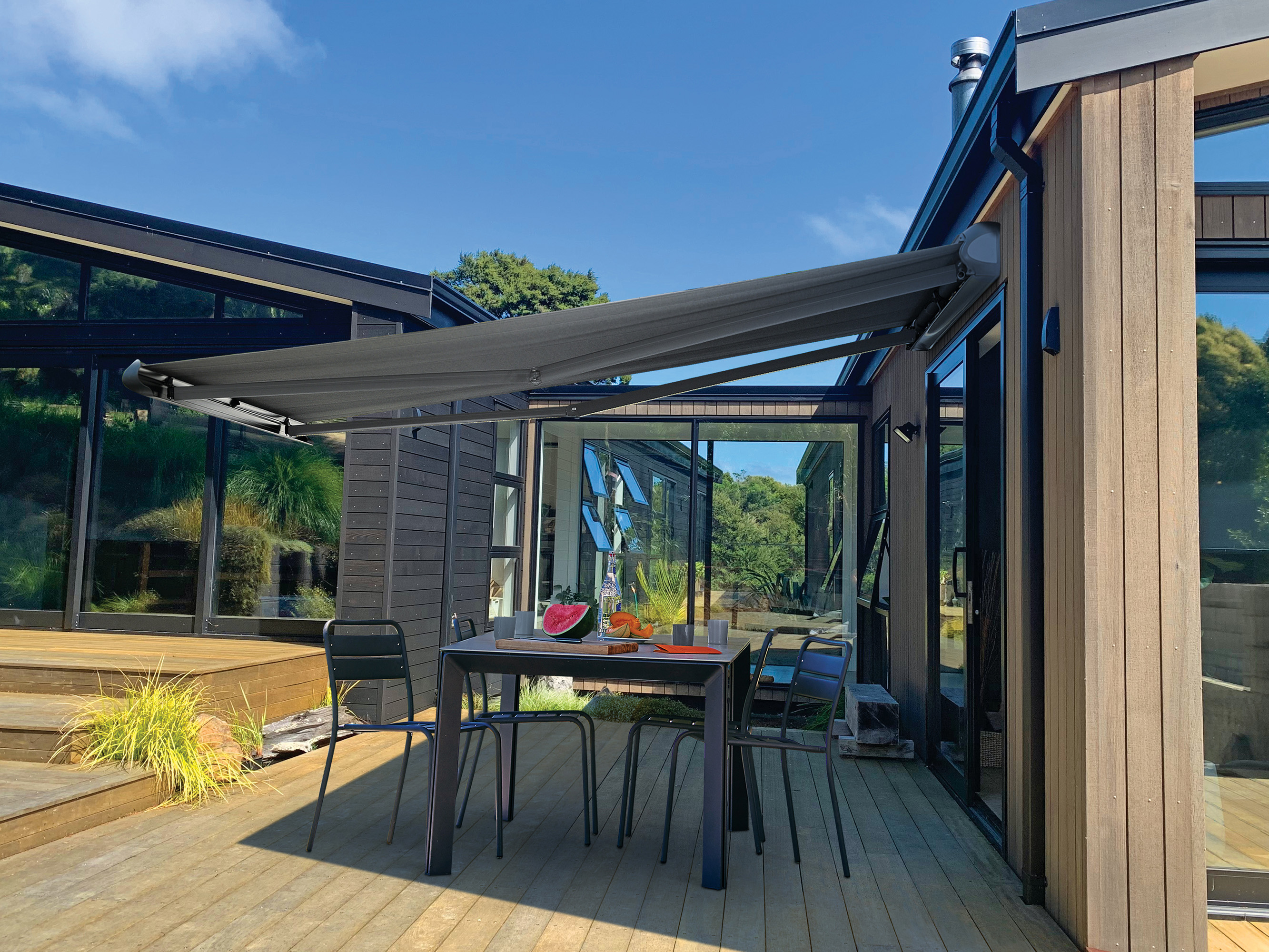

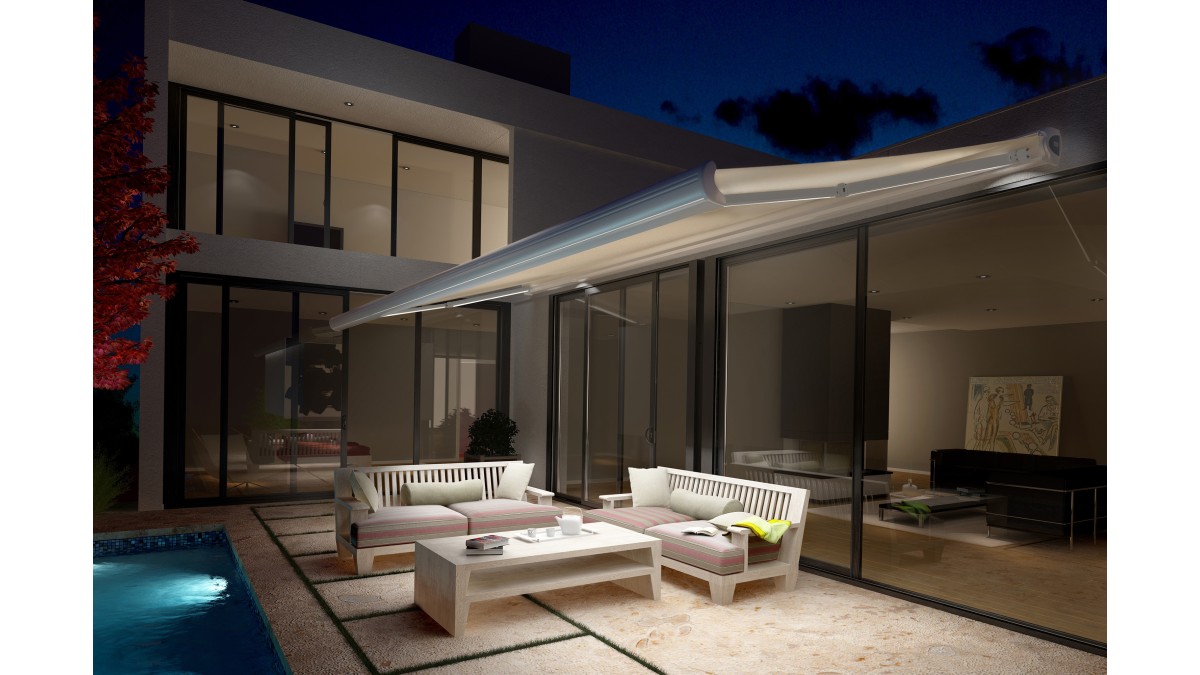

Delfina™ Folding Arm Box Awning
Description

The Delfina™ Awning is a compact, ready-to-install, cantilevered folding twin arm awning system designed for outside use where protection is needed from sun or light rain. All the components are made from aluminium alloy or stainless steel, all powder coated, forming a highly-resistant, lightweight, rust-proof construction.

Delfina Awning operation is either manual or by an inline tubular electric motor, fitted with a remote control. A wide range of attractive mildew and UV resistant 100% acrylic fabrics are available, all with a 5 year guarantee. These are also semi-translucent letting through a small percentage of light.

  • Minimum Width: 2000mm
  • Maximum Width: 5900mm
  • Projection: 1500, 2000, 2500, 3000, 3500mm
  • Aluminium Extruded 78mm Rolling Axle
Key Features
  • Ideal for protecting large outdoor areas
  • Easy to install on all types of facades
  • Suitable for a range of building types
  • Framing French designed, manufactured in New Zealand from durable powder coated Aluminium
  • A range of colours available to match architecture & existing fittings
  • Headbox: when rolled away, awning fabric is protected from elements, plant debris and bird droppings
  • Fixing Options: Wall or Ceiling Mount
  • Arm Hardware: Imported Premium European Arms, Silver Powder Coat Finish
  • Fixing Components: Stainless Steel or Colour Matched
  • Fabric: Planosol® 100% Acrylic — Over 40 colours
  • Automation: Nice® Tubular Motors with optional remote and Wind Sensor
Ranges
Awnings
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • The Delfina™ Awning System must only be installed in accordance with the Juralco Delfina™ Awning System manual
  • The Delfina™ Awning System must only be fabricated/installed by a Juralco approved fabricator
  • Typical applications include Decks, Bars, Shops, Terraces, or anywhere needing protection from the sun
Limitations on Use
  • Maximum projection 3500mm
Other Performance Attributes

A wide range of attractive mildew and UV resistant 100% acrylic fabrics are available, all with a 5 year guarantee.

Test Results
Test Results
Documents
Delfina Awning Fabrication Manual

3- 24 v1

Maintenance Instructions
Warranty

Dec 2022

Brochure
Colour Range

Juralco design and supply exceptional aluminium building products through the nationwide HomePlus network.

Product Enquiries

News from Juralco Aluminium

Edgetec PosiGlaze Balustrade System Brings Versatility and Ease of Install to Projects NEW
Aluminium Louvrelite Window Surrounds Enhance Social and Affordable House Design

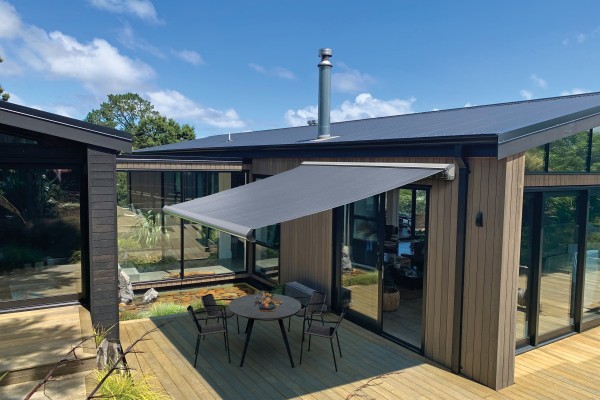

Enhanced Outdoor Living with the Delfina Folding Box Arm Awning NEW
