Villaboard Lining
Description

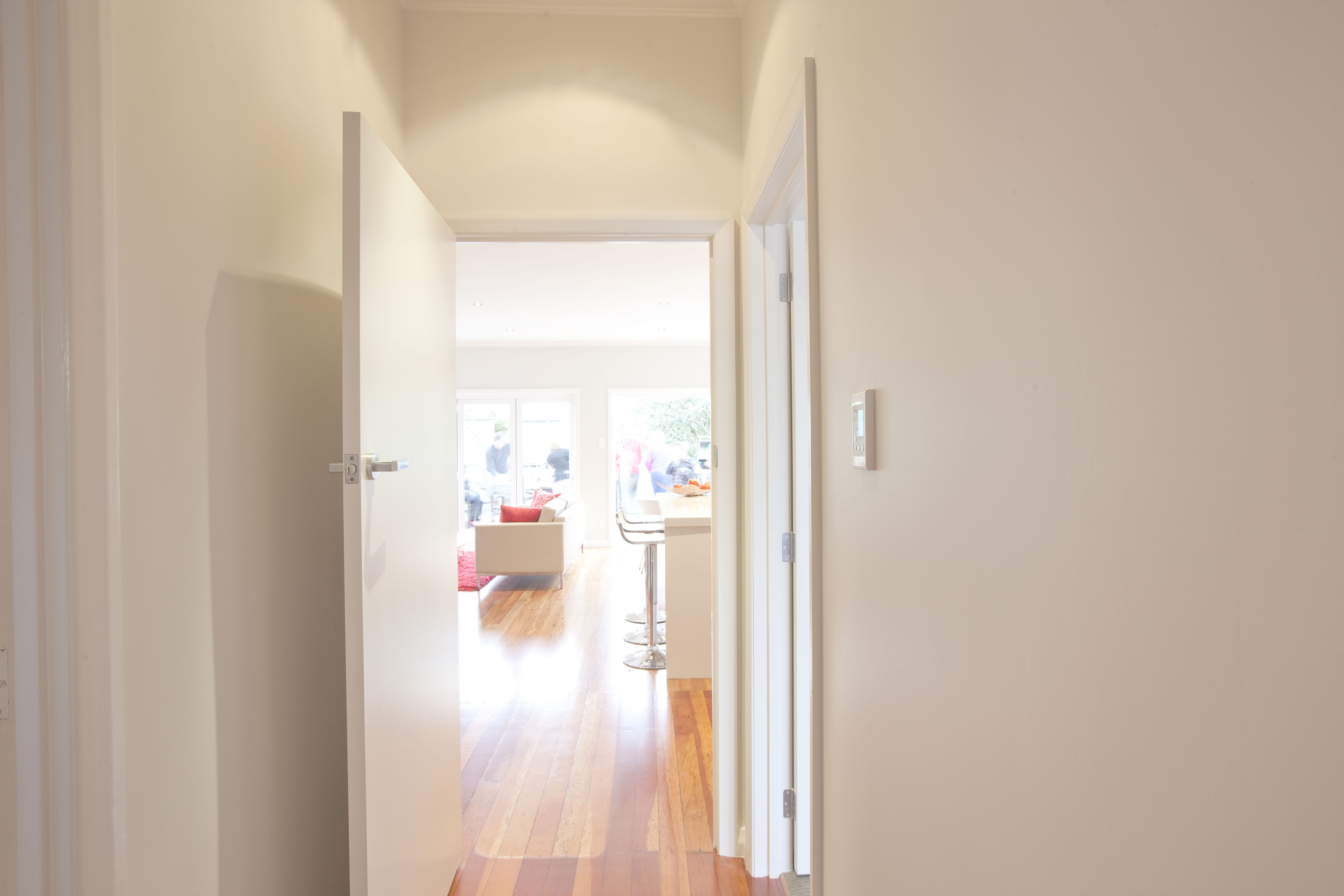

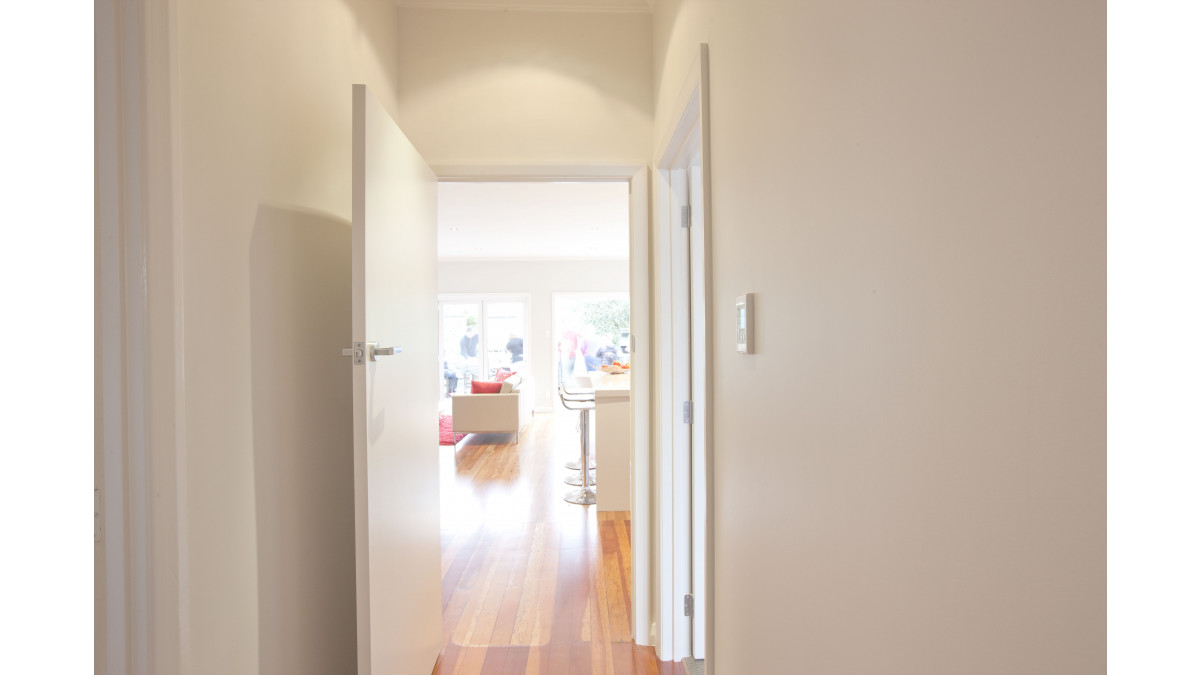

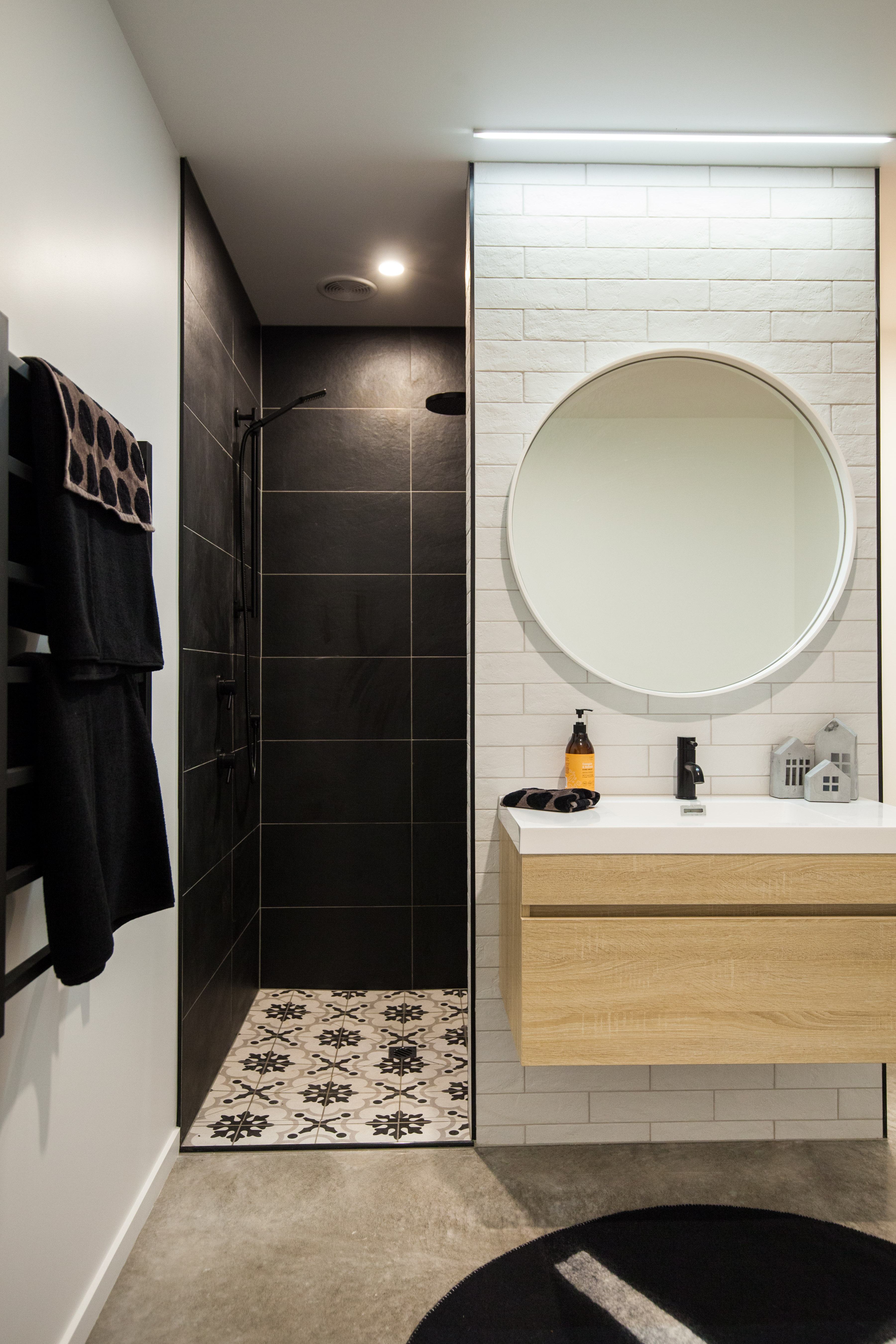

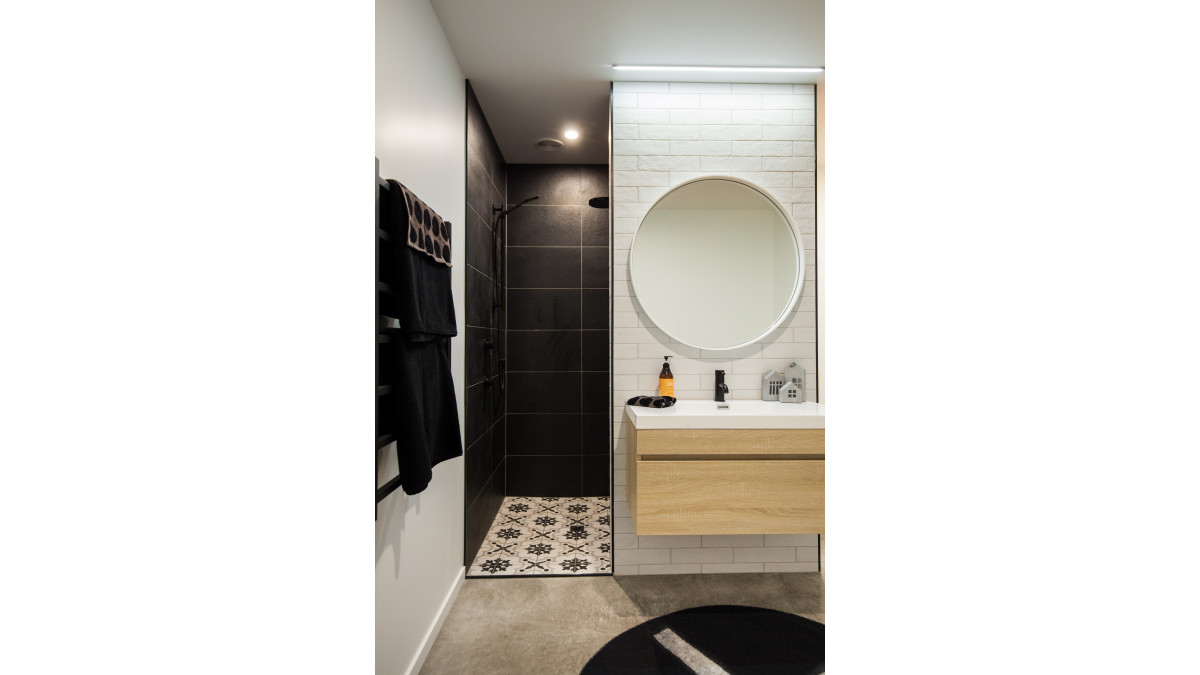

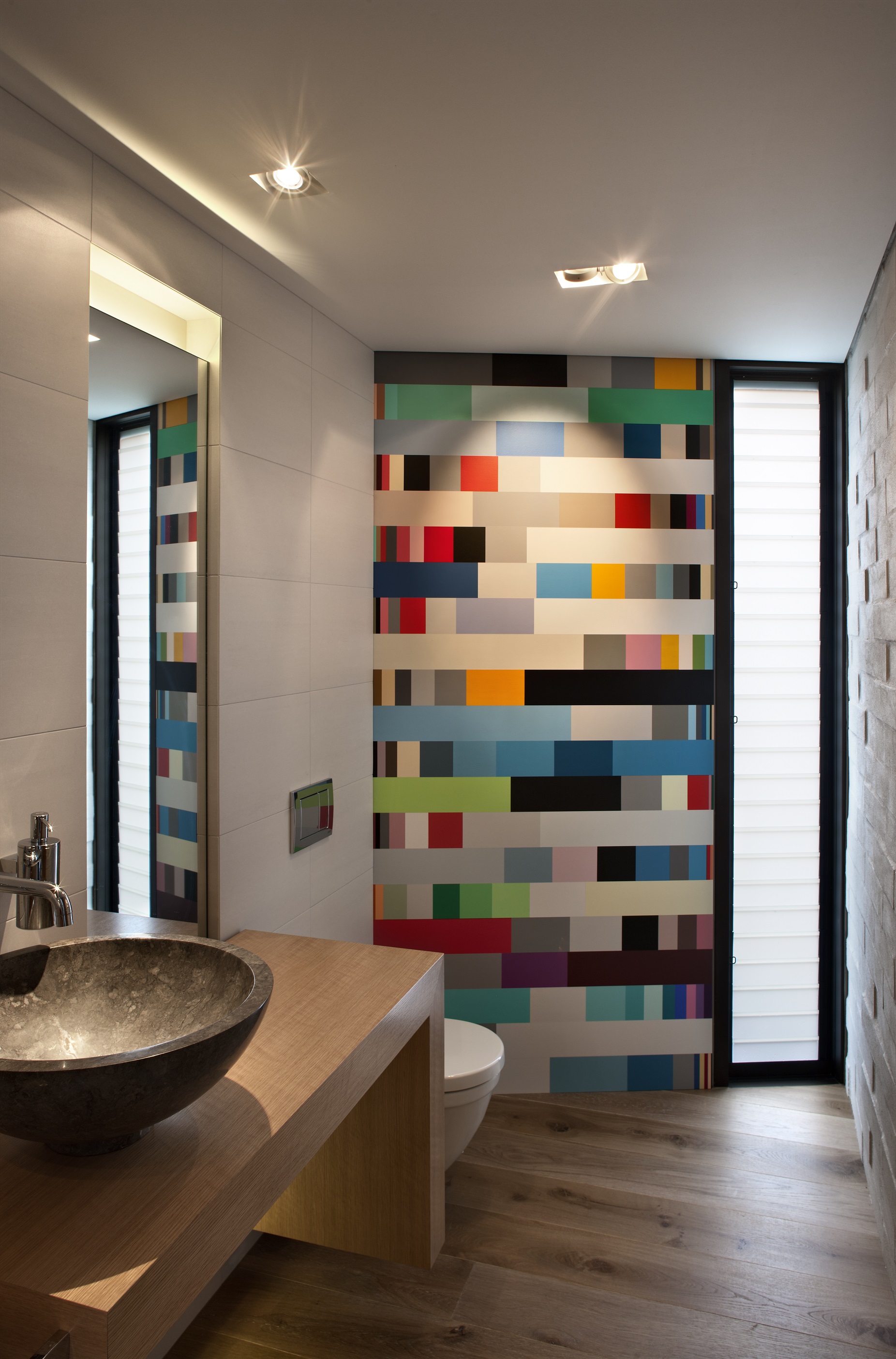

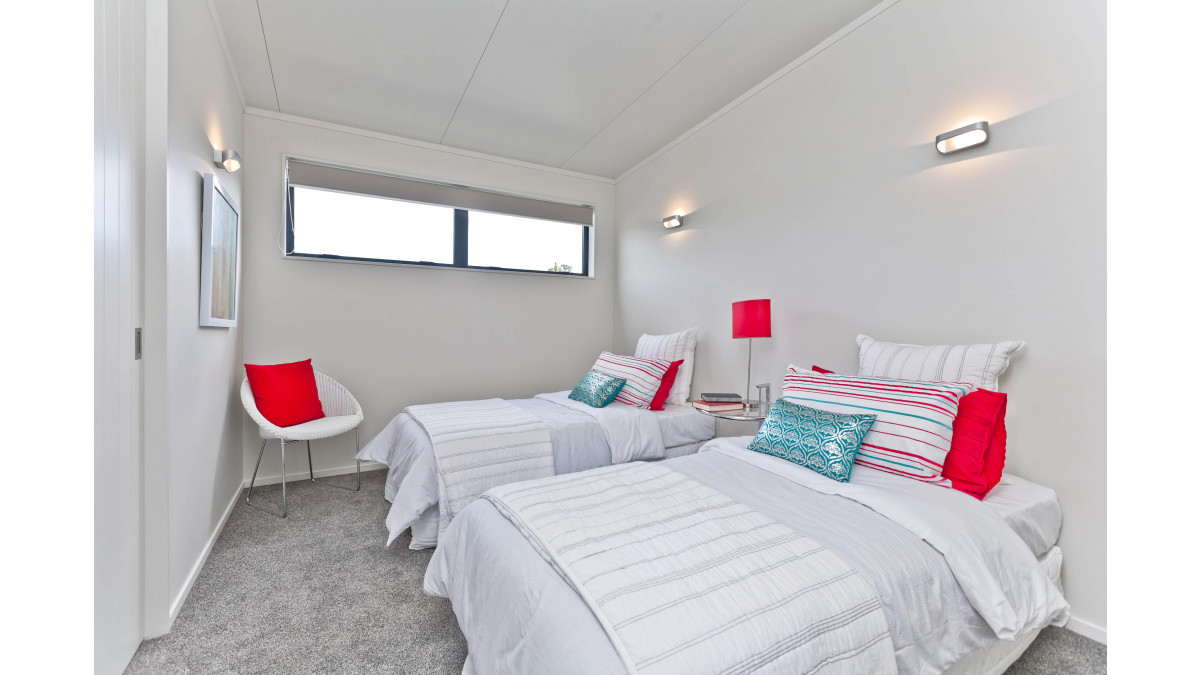

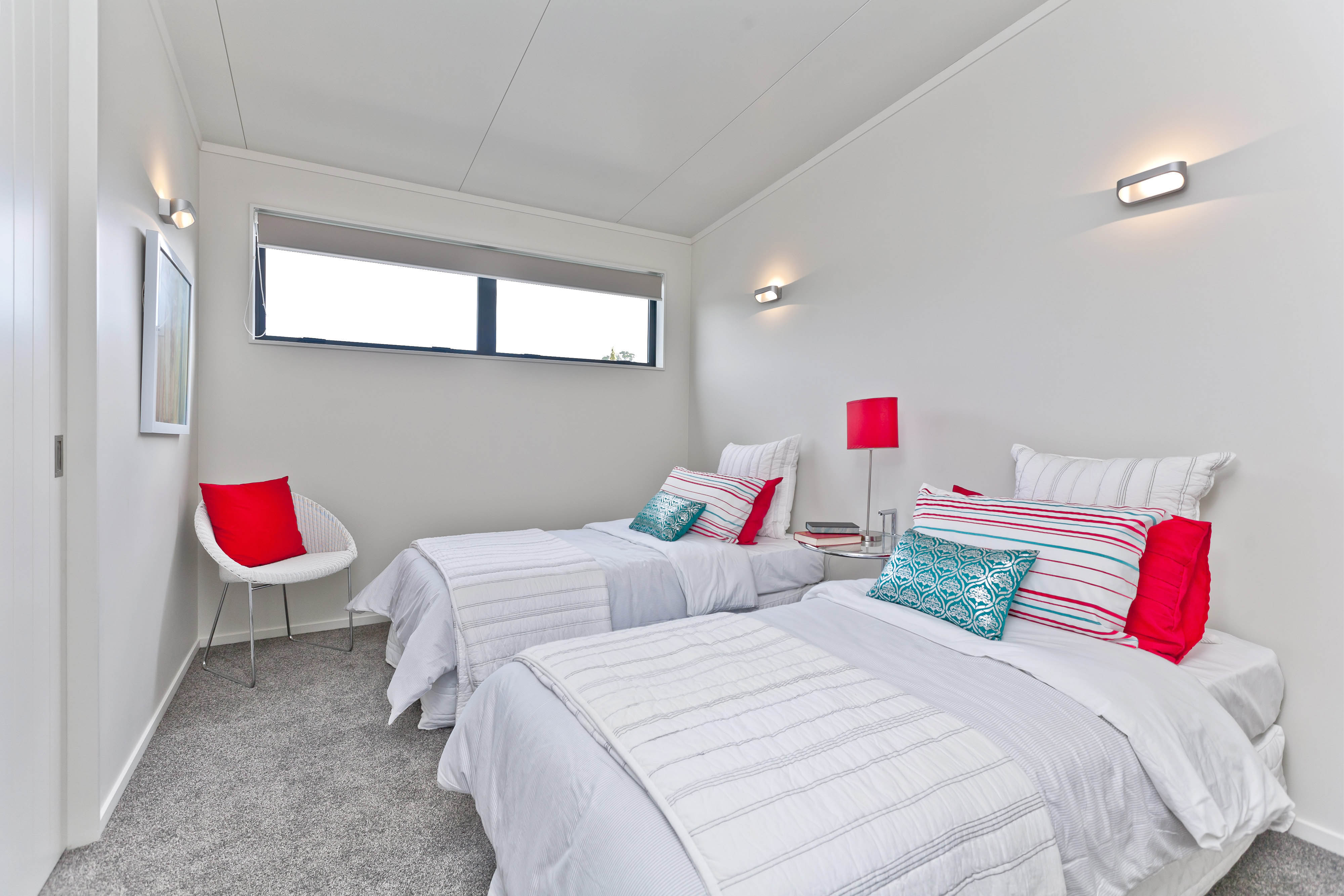

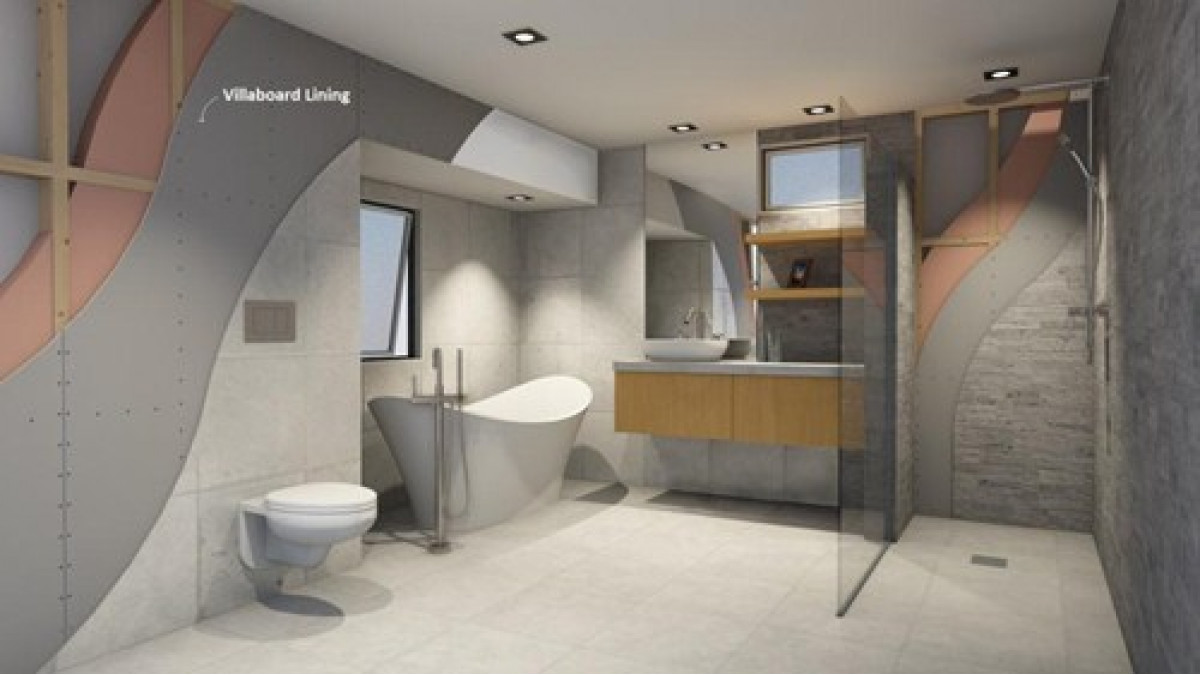

A high performance internal wall lining that has been specially developed for wet and dry areas and wherever high impact resistance is needed, such as hallways and garages. The perfect base for a smooth painted finish or as a strong substrate for tiling in bathrooms, laundries and kitchens. Villaboard Lining can also be used externally on soffits and verandah ceilings.

Product Profile:

2 edge recessed:

  • Thickness: 6mm
  • Length: 2400mm or 3000mm
  • Width: 1200mm

2 edge recessed:

  • Thickness: 9mm
  • Length: 2400mm, 270mm or 3000mm
  • Width: 1200mm

Square edge:

  • Thickness: 6mm
  • Length: 2400mm or 3000mm
  • Width: 1200mm

Square edge:

  • Thickness: 9mm
  • Length: 2400mm or 3000mm
  • Width: 1200mm
Key Features
  • Is resistant to permanent damage from water and will continue to perform when allowed to dry
  • Quick to install with Villadrive collated screws or glue and screw when painted
  • Is resistant to impact and surface abrasion
  • Solid substrate for tiles or level 5 painted finish
  • Board warranty of 15 years
  • 9mm Villaboard Lining can be used as a heat shield. Refer to the technical supplement
Ranges
Interior
NZ Made
NZ Made
Scope of Use
  • Internal wall lining especially developed for wet and dry areas
  • Villaboard Lining can also be used externally on soffits and verandah ceilings
  • Suitable for areas where high impact resistance is needed, such as hallways and garages
  • Ideal base for a smooth painted finish, or as a strong substrate for tiling in bathrooms, laundries and kitchens
  • 9mm Villaboard Lining can be used as a heat shield. Refer to the technical supplement
  • Install with Villadrive collated screws or glue and screw when painted
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
Other Performance Attributes
  • Is resistant to permanent damage from water and will continue to perform when allowed to dry
  • Is resistant to impact and surface abrasion
  • Board warranty of 15 years
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
CAD/PDF
Fire and Acoustic Design Manual

2020

Installation Manual

2020

Brochure
Technical Literature on Supplier Website
