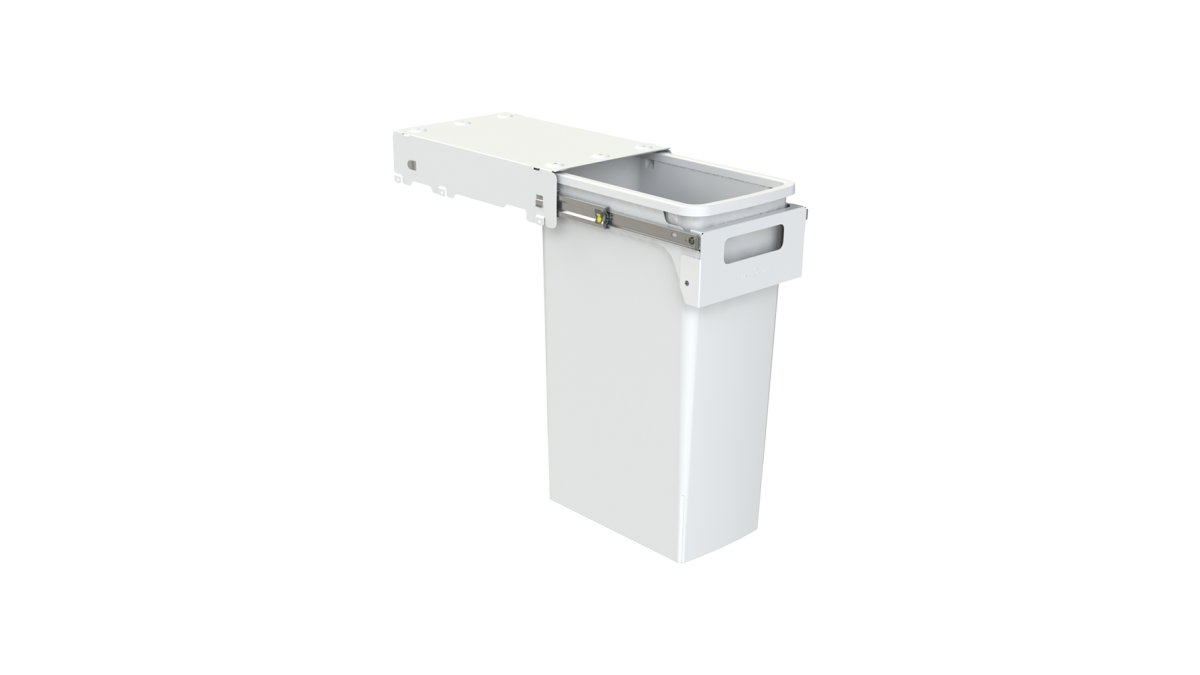

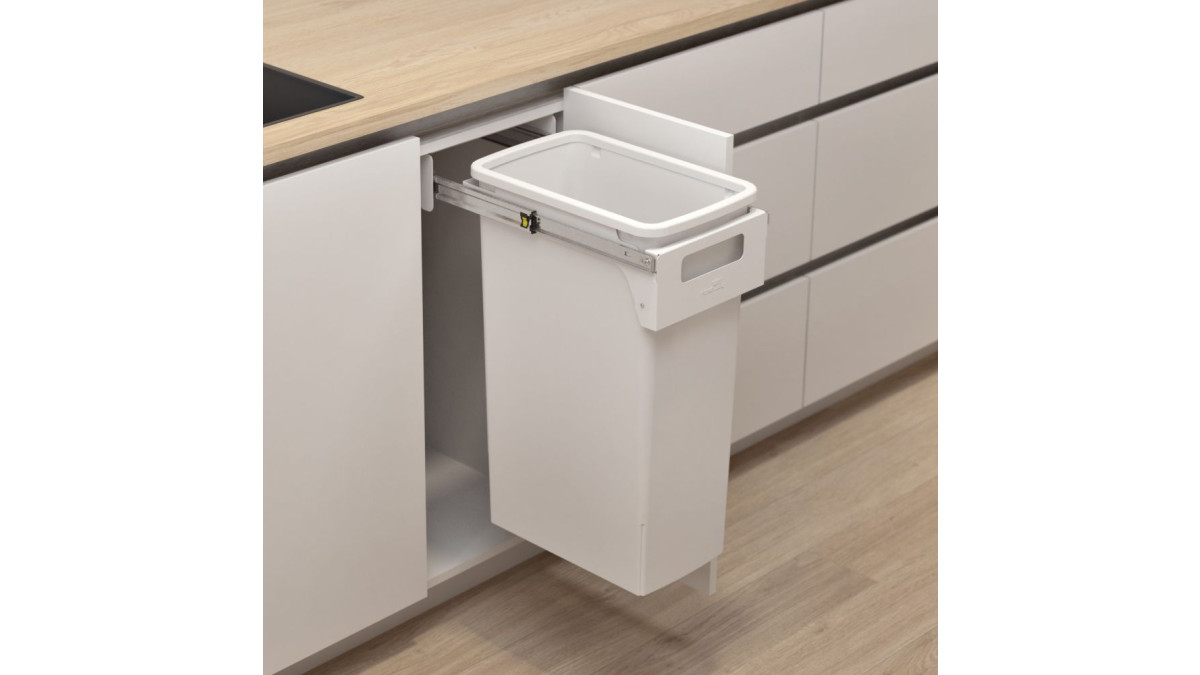

Hideaway Compact 1 x 40L Handle Pull — White
Hideaway Bins
All products
HC140H W
HC140H W
Description

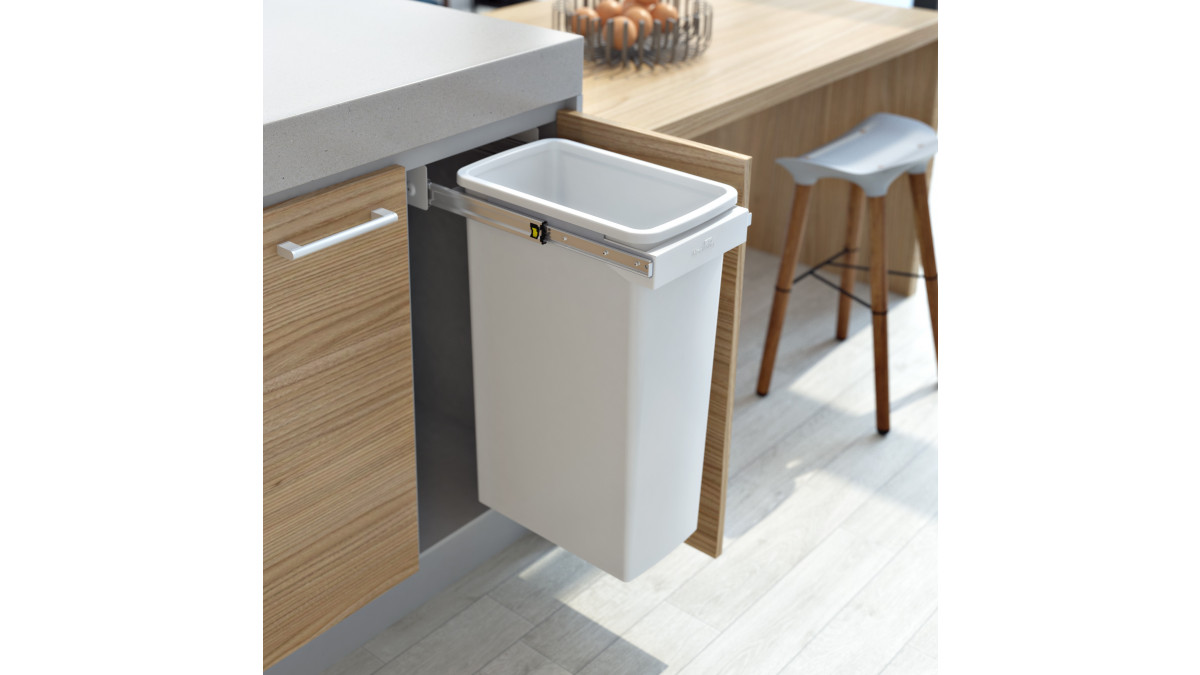

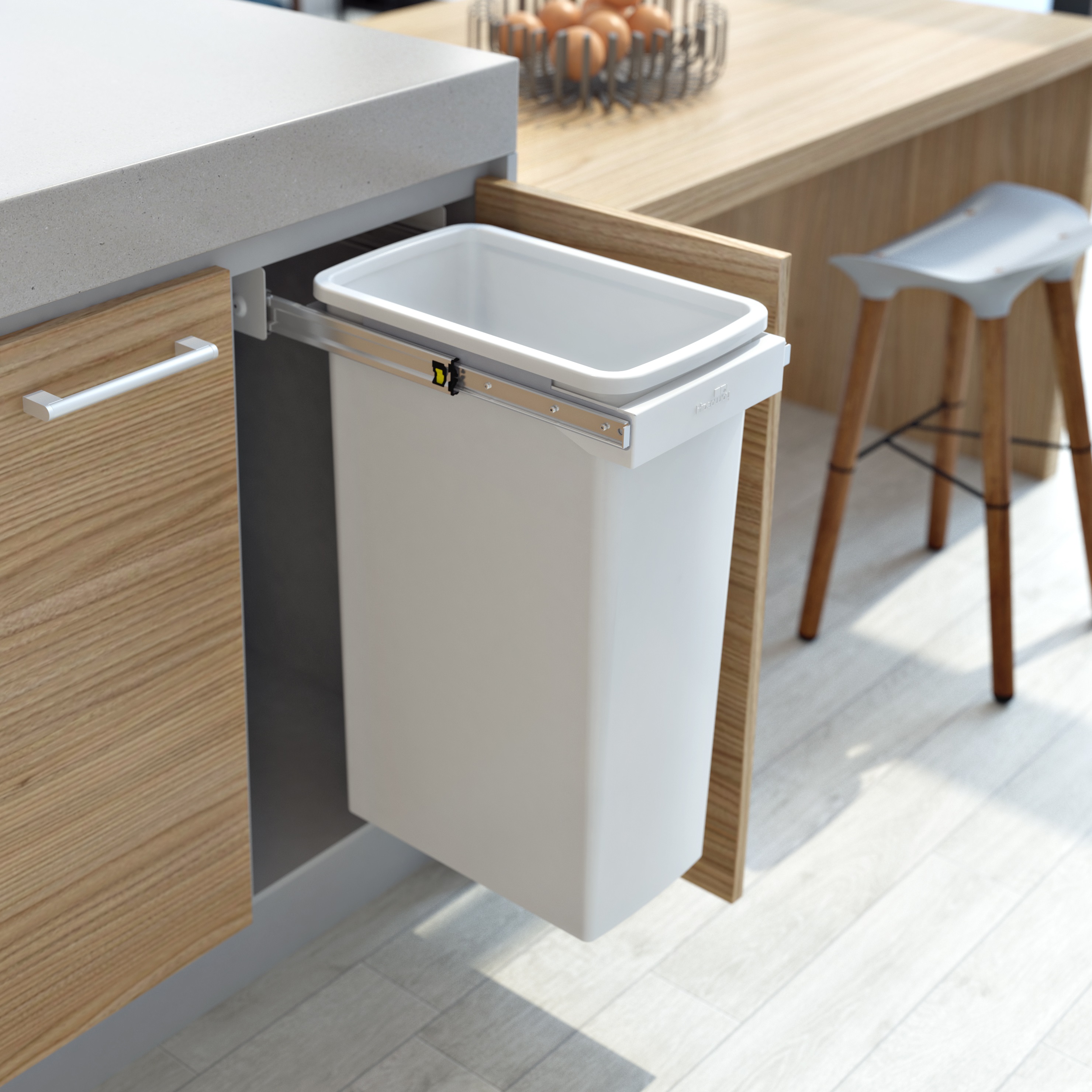

Hideaway Compact 1 x 40L Bins are compact in design making the range ideal for areas with limited space. The units are top and/or side mounted and the mounting panel acts as a cover for the bucket.

Key Features
  • Recommended use — Larger bucket capacity for areas of limited space.
  • Vent design — This unique, patented design will eliminate the frustration of trapped air restricting your liner, maximising bag volume.
  • Liner holder — Holds your bag in place without covering the vents, so trapped air can escape as you begin to fill your bag.
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — High quality soft close, ball bearing runners. Runners over-extend to ensure the bucket will come clear of the bench top and have a dynamic weight loading of 38kgs. Feature a quick release disconnect device, to allow easy installation and cleaning of the bin.
  • Colour — Arctic White
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold bin liner in place
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures
Ranges
Hideaway Compact
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Ideal recycling solution where only a narrow width is available
  • Width: 268mm, Height: 615mm, Depth: 440mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Mounting Options — Top mount and / or side mount
Limitations on Use
  • The Hideaway Compact Range is not recommended for commercial applications.
  • Bench Overhang Clearance — The HC140 has been designed with over extension drawer runners which allow for a bench overhang of up to 40mm. If more bench overhang clearance is required, please mount the bin lower in the cabinet
  • If hinges are used that do not allow the door to clear the opening fully, allow an extra 10mm width
  • Installation also requires that the top door hinge be 150mm from the top of the door to allow clearance for the bin handle
Other Performance Attributes
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold bag in place
  • Air Vents — Patented air vent system to maximise bag volume. 40L models only
  • NZ Patent Number 530285 & 597337
  • 2 year warranty
  • Global GreenTag Certified — GreenRate Level C
Green Tag Certified
Green Tag Certified
  • Case Studies
Documents
Global GreenTag: GreenRate Level C

December 2023

pdf
Compact Range Installation Instructions

June 2025

pdf
Maintenance and warranty
pdf
Brochure: Concelo by Hideaway

April 2026

pdf
Installation Details
View full
INSTALLATION DRAWING HC140H ISSUE 02 pdf
Installation Drawing
pdf

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
