Hideaway Compact 1 x 20L Floor Mounted Handle Pull — White
Hideaway Bins
All products

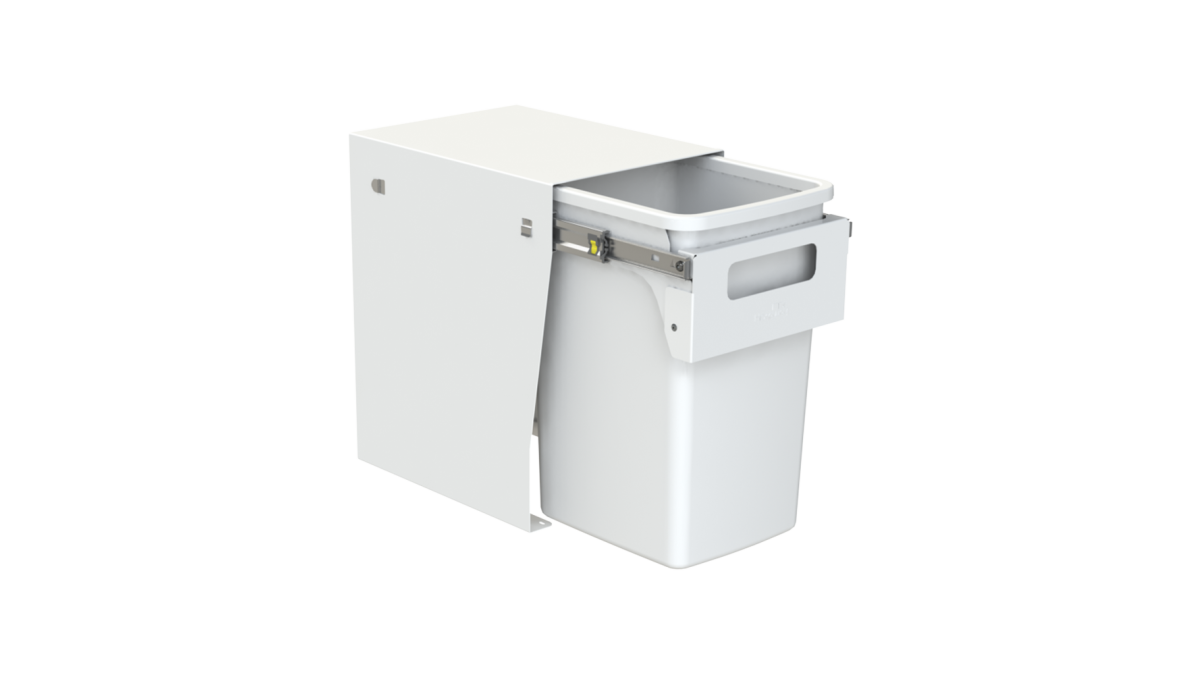

HCF120H W
HCF120H W
Description

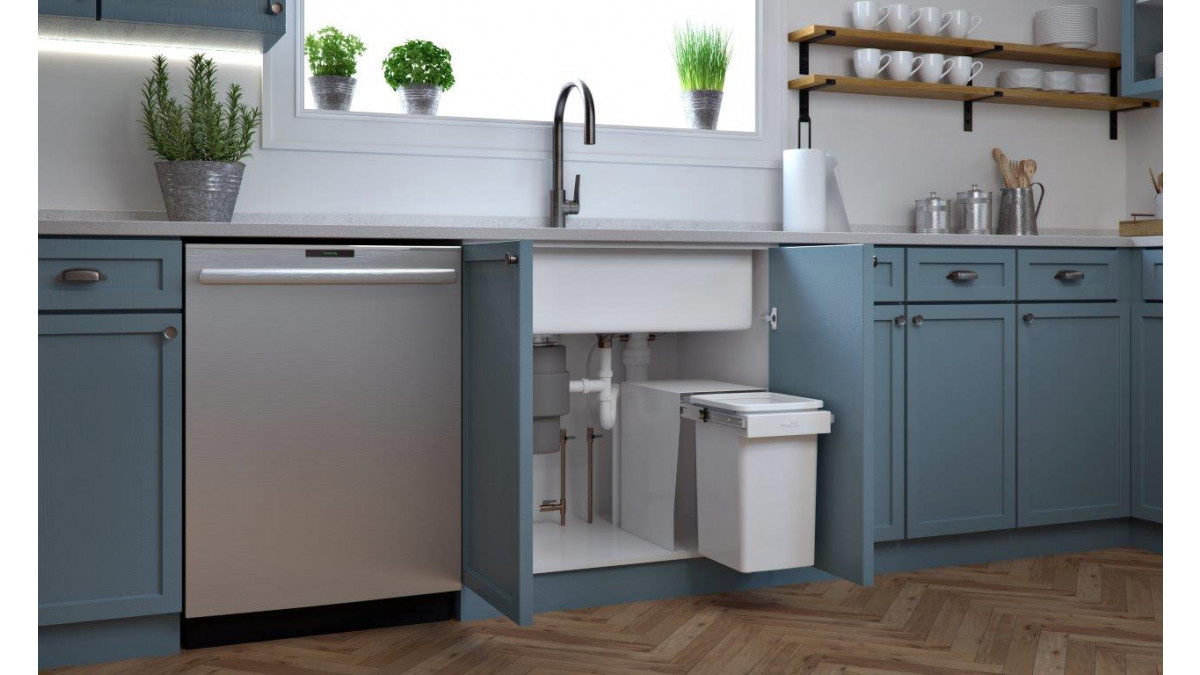

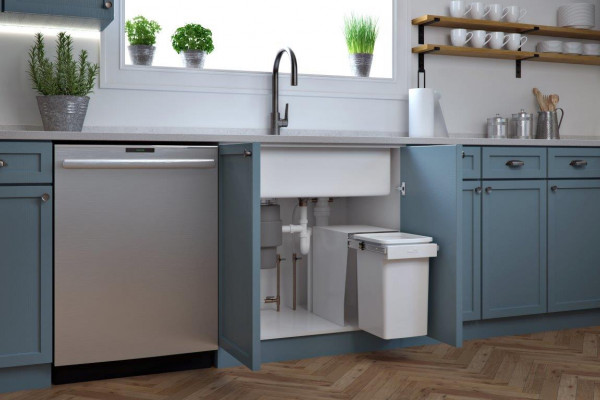

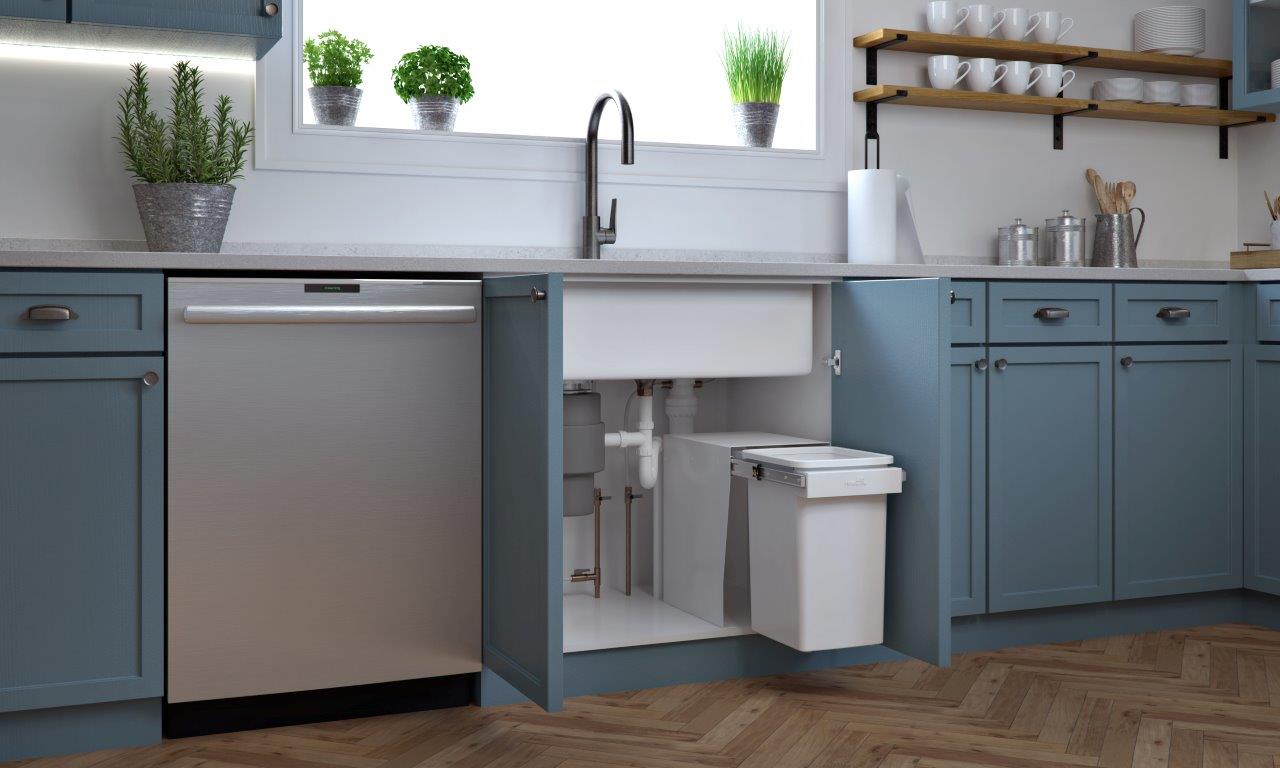

Quality, robust under the sink solution. Especially suited to under sink cabinets that have limited space due to pipework for plumbing, water filters and waste disposal units.

Mounts to the base of the cabinet with 6 screws for easy installation.

Key Features
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 30kgs
  • Colour — Arctic White
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold bag in place

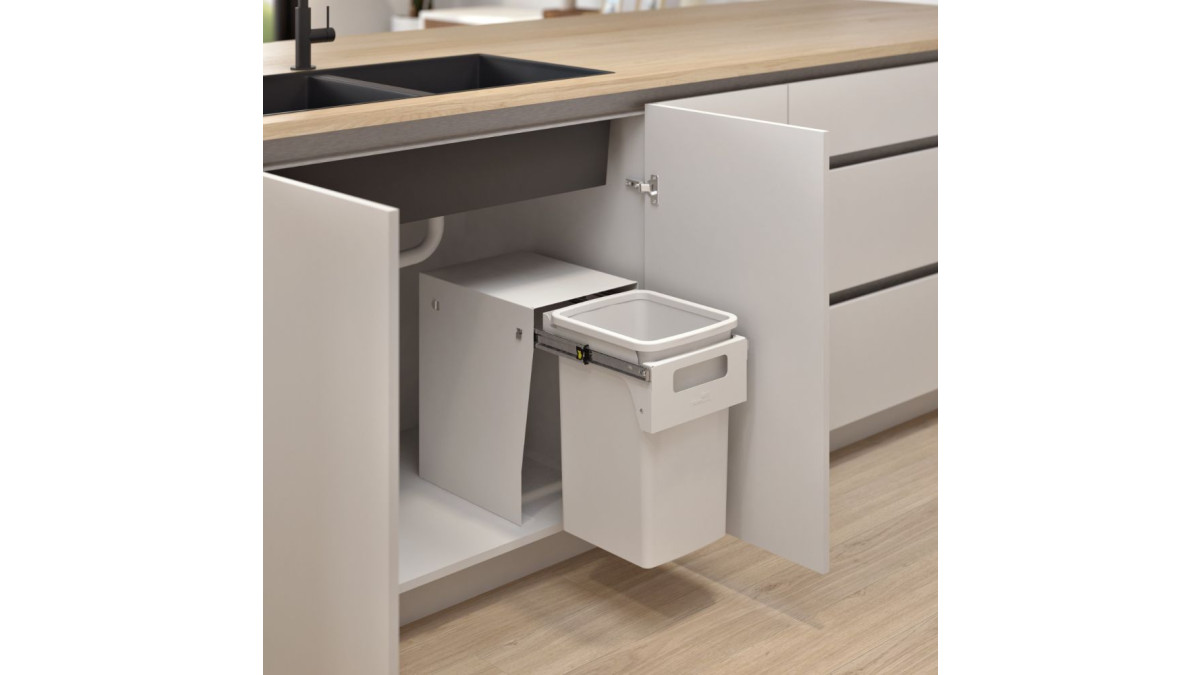

  • Handle Pull — Two step action — The unit is top mounted inside the cupboard, the bin is accessible by opening the cupboard door and pulling out the bin using the handle
  • Floor Mounted — Steel frame enables the unit to be screwed to the base of the cupboard under the sink
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures
Ranges
Hideaway Compact Hideaway Compact Floor Mount
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Quality robust under the sink solution
  • Especially suited to under sink cabinets that have limited space
  • Width: 268mm, Height: 408mm, Depth: 360mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Floor mounted
Limitations on Use
  • The Hideaway Compact Range is not recommended for commercial applications.
  • If hinges are used that do not allow the door to clear the opening fully, allow an extra 10mm width
  • Installation also requires that the top door hinge be 150mm from the top of the door to allow clearance for the bin handle
Other Performance Attributes
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 30kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic
  • 2 year warranty
  • Global GreenTag Certified — GreenRate Level C
Green Tag Certified
Green Tag Certified
  • News
Documents
Global GreenTag: GreenRate Level C

December 2023

pdf
Compact Floor Mount Installation Instructions

June 2025

pdf
Maintenance and warranty
pdf
Brochure: Concelo by Hideaway

April 2026

pdf
Installation Details
View full
INSTALLATION DRAWING HCF120H ISSUE 02 pdf
Installation Drawing
pdf

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
