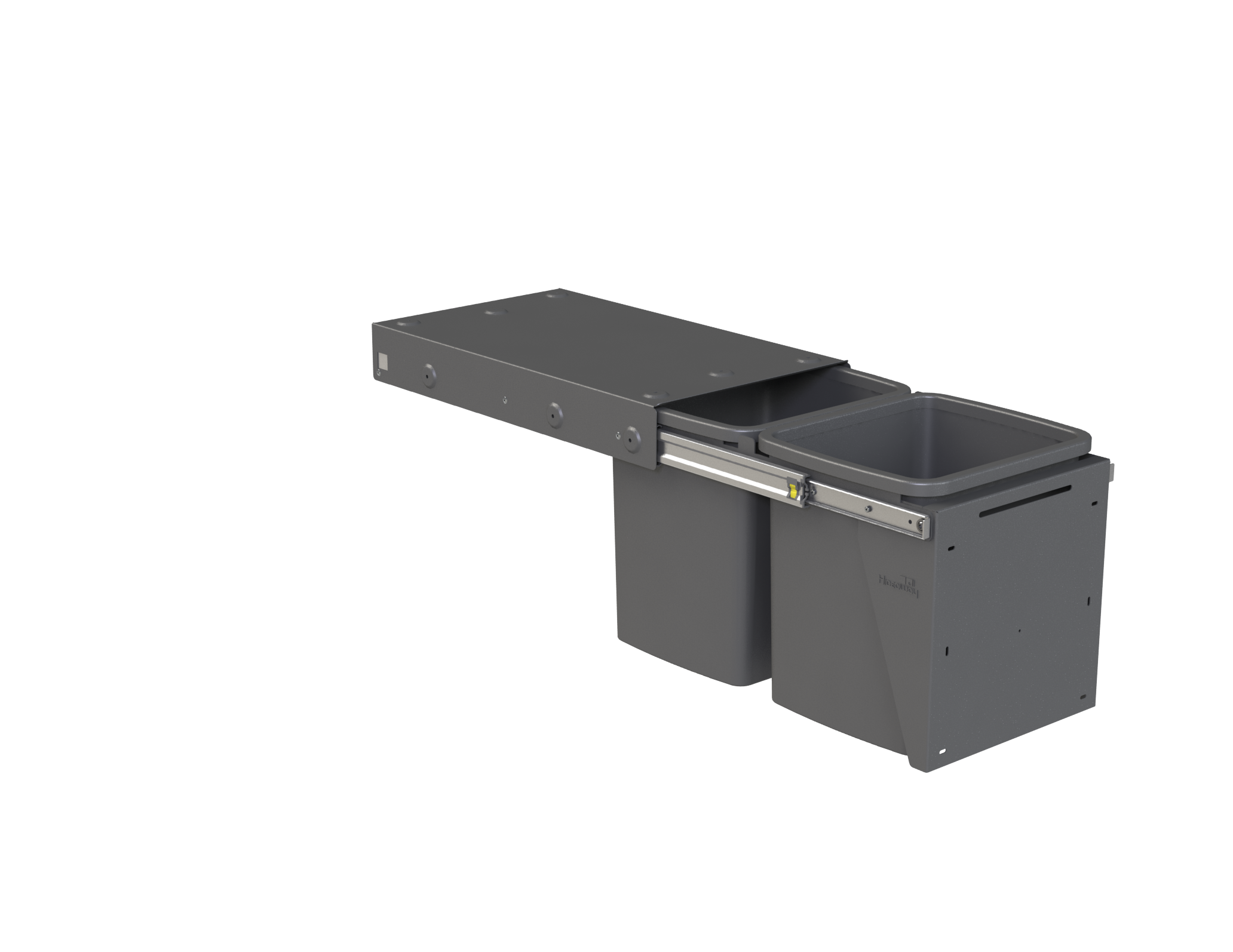

Compact Bin Storage: 2 x 15L Buckets Door Pull — Cinder
Description

Hideaway Compact bins are now available in Cinder — a sleek, modern colour to fit with design trends.

Hideaway Compact 2 x 15L Bins are compact in design making the range ideal for areas with limited space. The units are top and/or side mounted and the mounting panel acts as a cover for the bucket/s.

Key Features
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Colour — Cinder, Arctic White
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold bag in place
  • Mounting Options — Top mount and/or side mount
  • Door Pull — One step action. The front fascia of the cabinet is attached to the door bracket of the Hideaway Bin. The bin is accessible by simply pulling open the cabinet door
  • The Hideaway Compact range is not recommended for commercial applications. Its use in this application will void the warranty.
Scope of Use
  • Recommended use — 2x units can be installed within the standard carcass height of 720mm height internal, providing a four bin recycling solution. (Note — standard carcass height is 720mm internal and allows for a 16mm shelf)
  • Ideal for areas with limited space
  • Width: 300mm, height: 310mm, depth: 510mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Mounting Options — Top mount and/or side mount
Limitations on Use
  • The Hideaway Compact Range is not recommended for commercial applications. Its use in this application will void the warranty
  • Bench Overhang Clearance — The KC30 has been designed with over extension drawer runners which allow for a bench overhang of up to 35mm, allowing the back bucket to come clear independent of the front bucket. If more bench overhang clearance is required, please mount the bin lower in the cabinet
Other Performance Attributes
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic

NZ Patent Number 530285.

Documents
Maintenance and Warranty
Installation and Operation
Brochure

October 2020

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
