InnoTech Atira Drawer System
Description

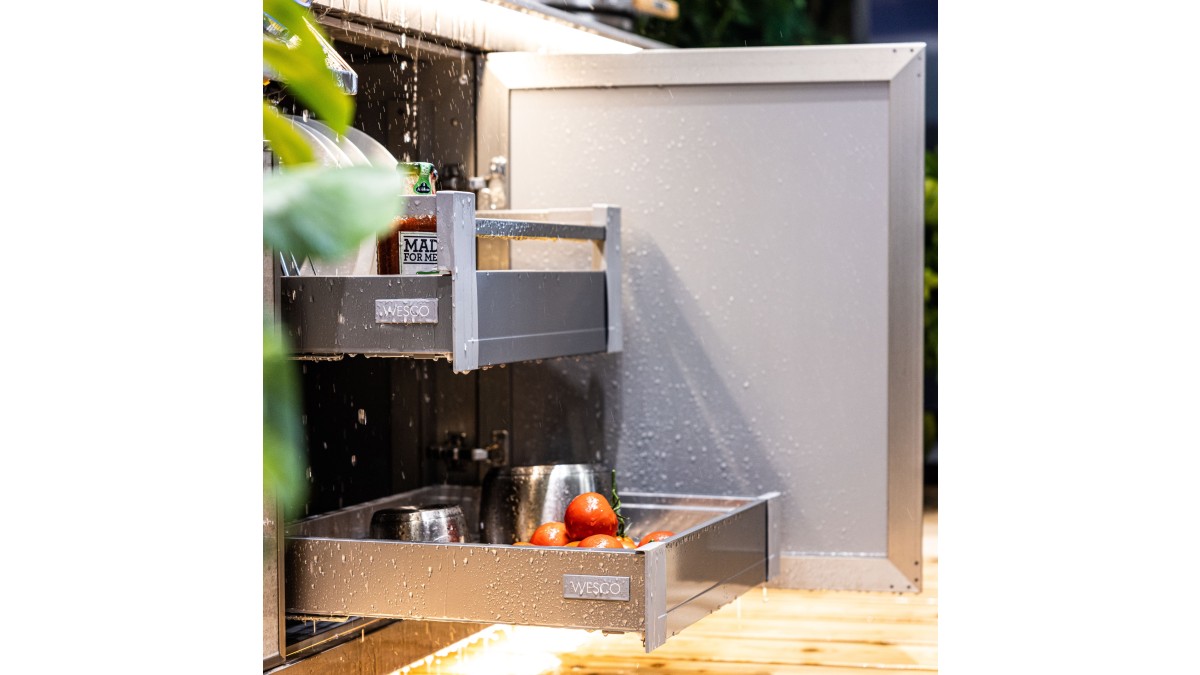

The InnoTech Atira drawer system makes a feature of its edges and corners and in doing so offers individual potential for creativity. Get outdoors with Atira by pairing it with our corrosion resistant runners Quadro Compact.

Key Features
  • Sharp contours, a choice of colours and diverse side elements complemented by a wealth of interior organisation solutions
  • One platform, endless options: With lean production for a broad range of furniture
  • Reliable quality and ease of use
  • Various add-on elements create attractive design features
  • Modular solutions for individually tailored interior organisation
  • Railing holes already provided in the front panel can be used for DesignSide and TopSide.
  • No need to alter drawer dimensions for different carcass side thicknesses
  • Made from powder coated steel for better corrosion resistance
Scope of Use
  • 4 rear panel heights 54mm-176mm
  • 7 panel lengths 260mm-620mm
  • Runners in three load categories: 25kg, 30kg, 50kg
  • 2 drawer side-profile heights
  • Colours: silver, white
  • Two different drawer side profile contours on one runner platform
  • Easy to change from railing to TopSide
  • Individual design with internal front panels and TopSides below the railing
  • Quadro runner systems: full extensions 30kg and 50kg
  • Silent System integrated as standard for 30kg and 50kg
Other Performance Attributes
  • DIN EN 1670, level 3
  • Runners in three load categories: 25kg, 30kg, 50kg
