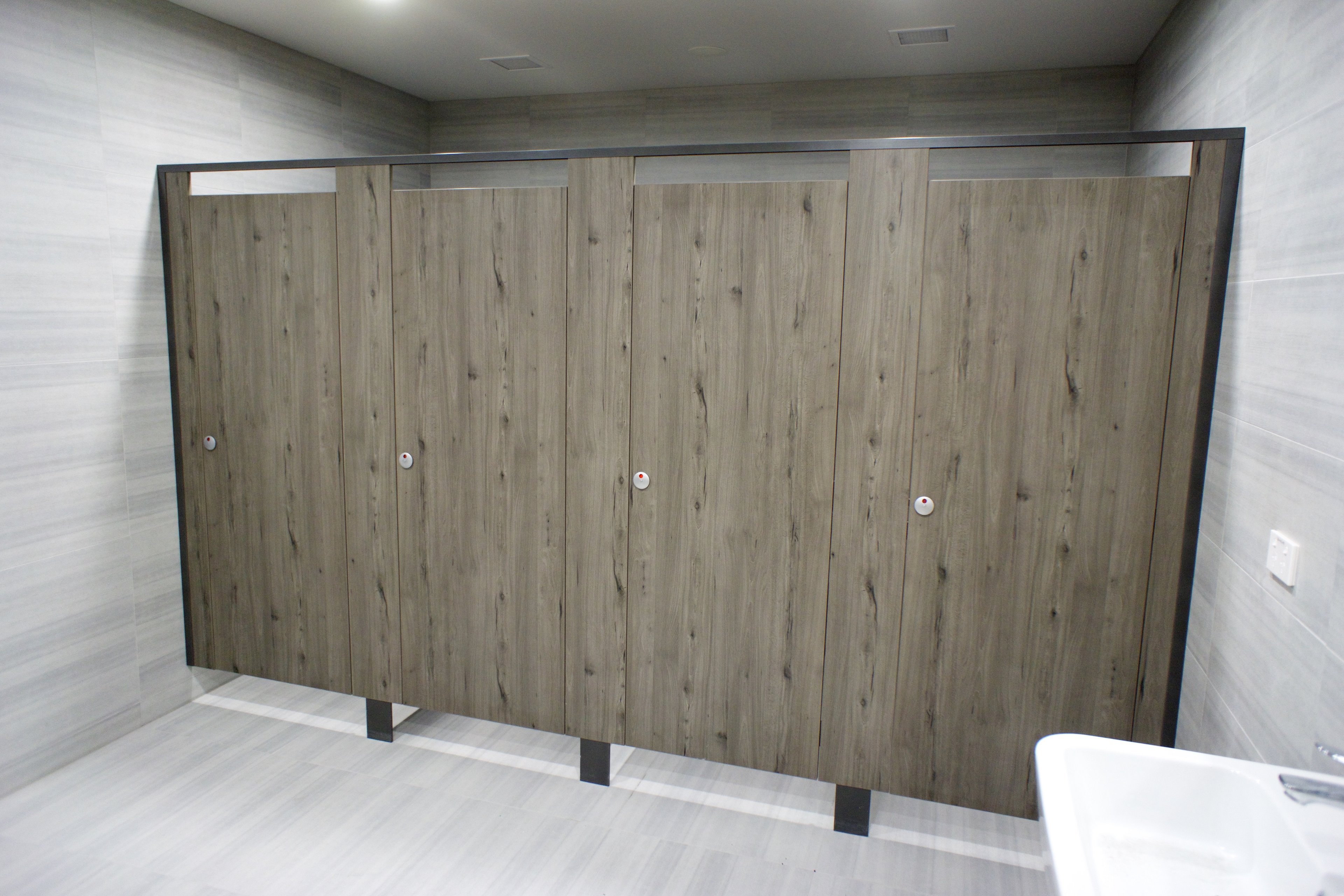

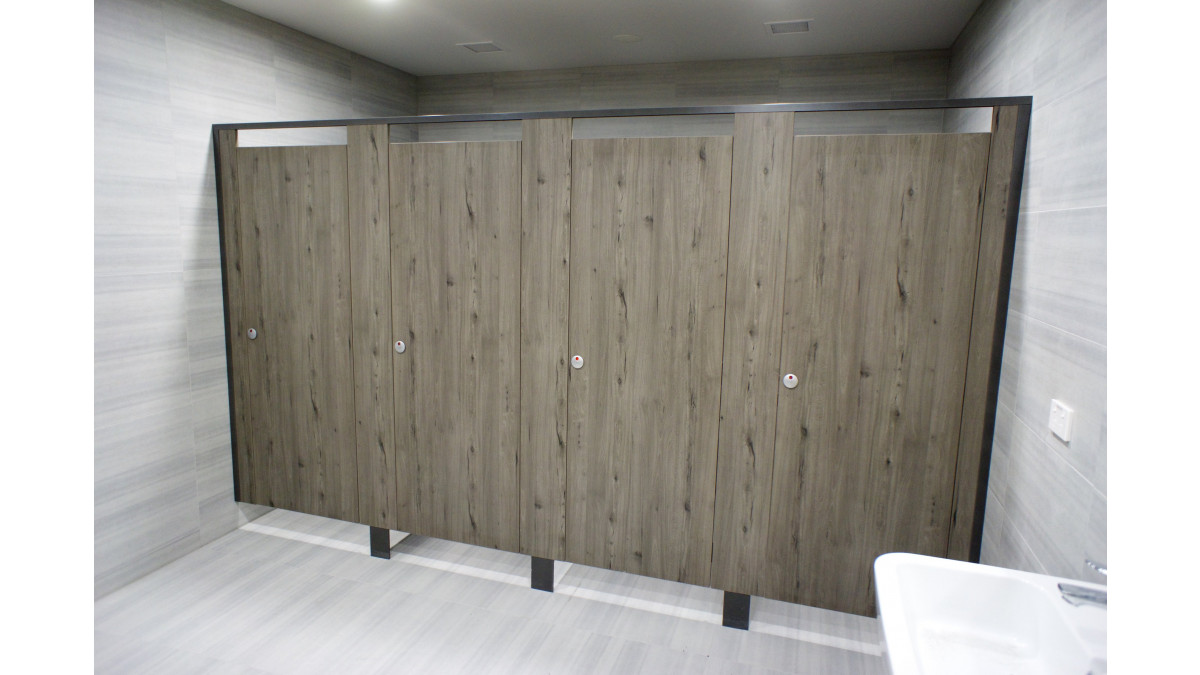

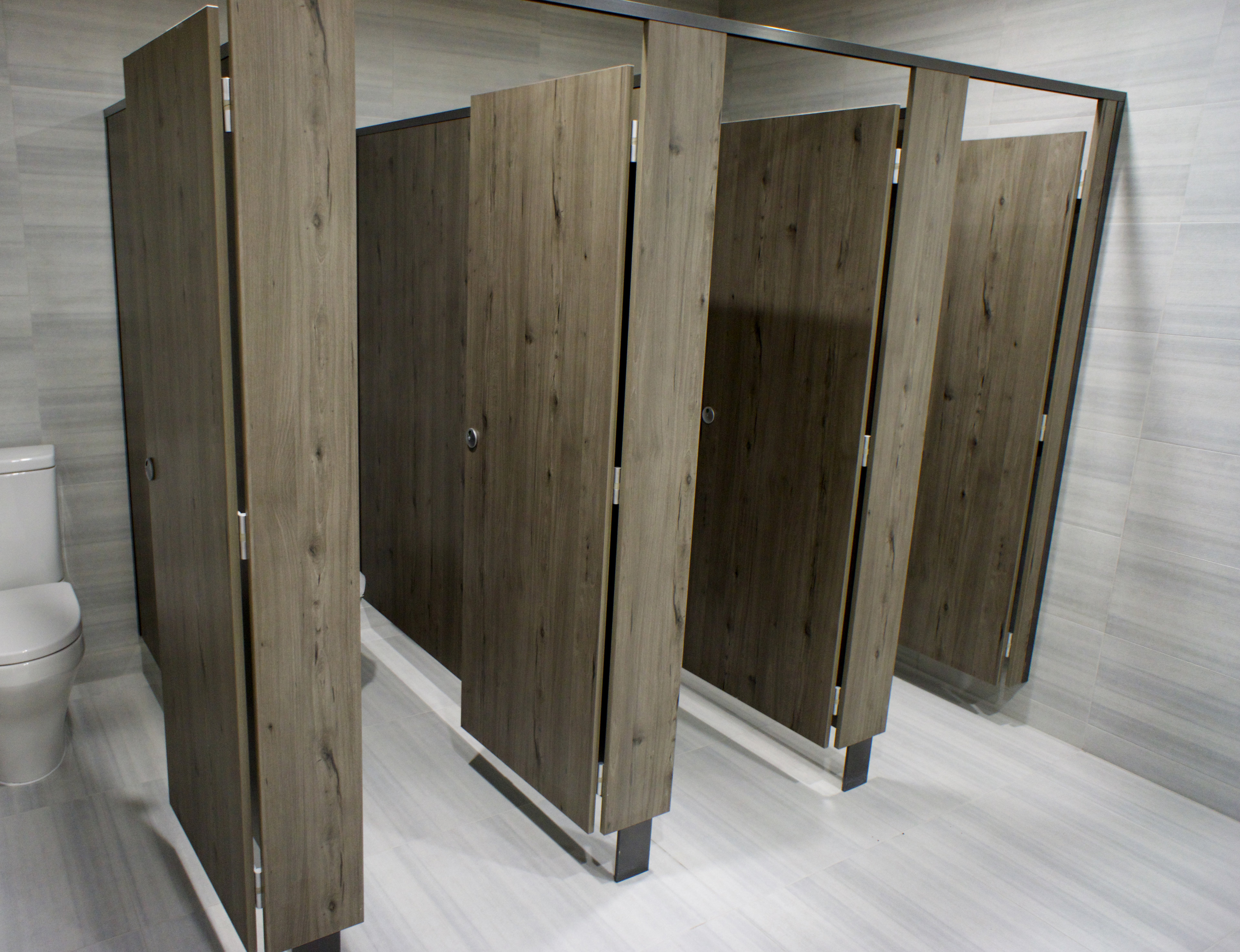

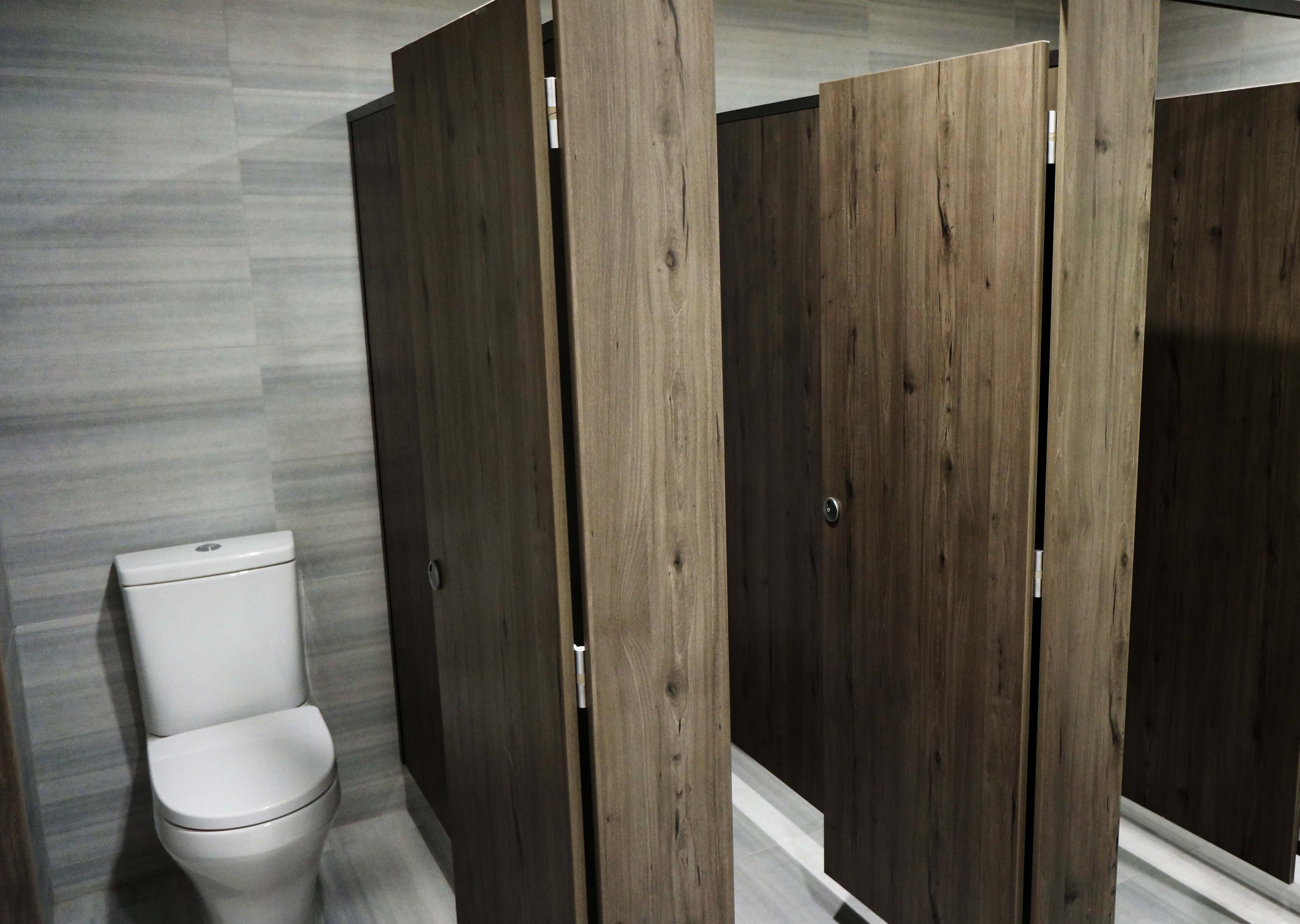

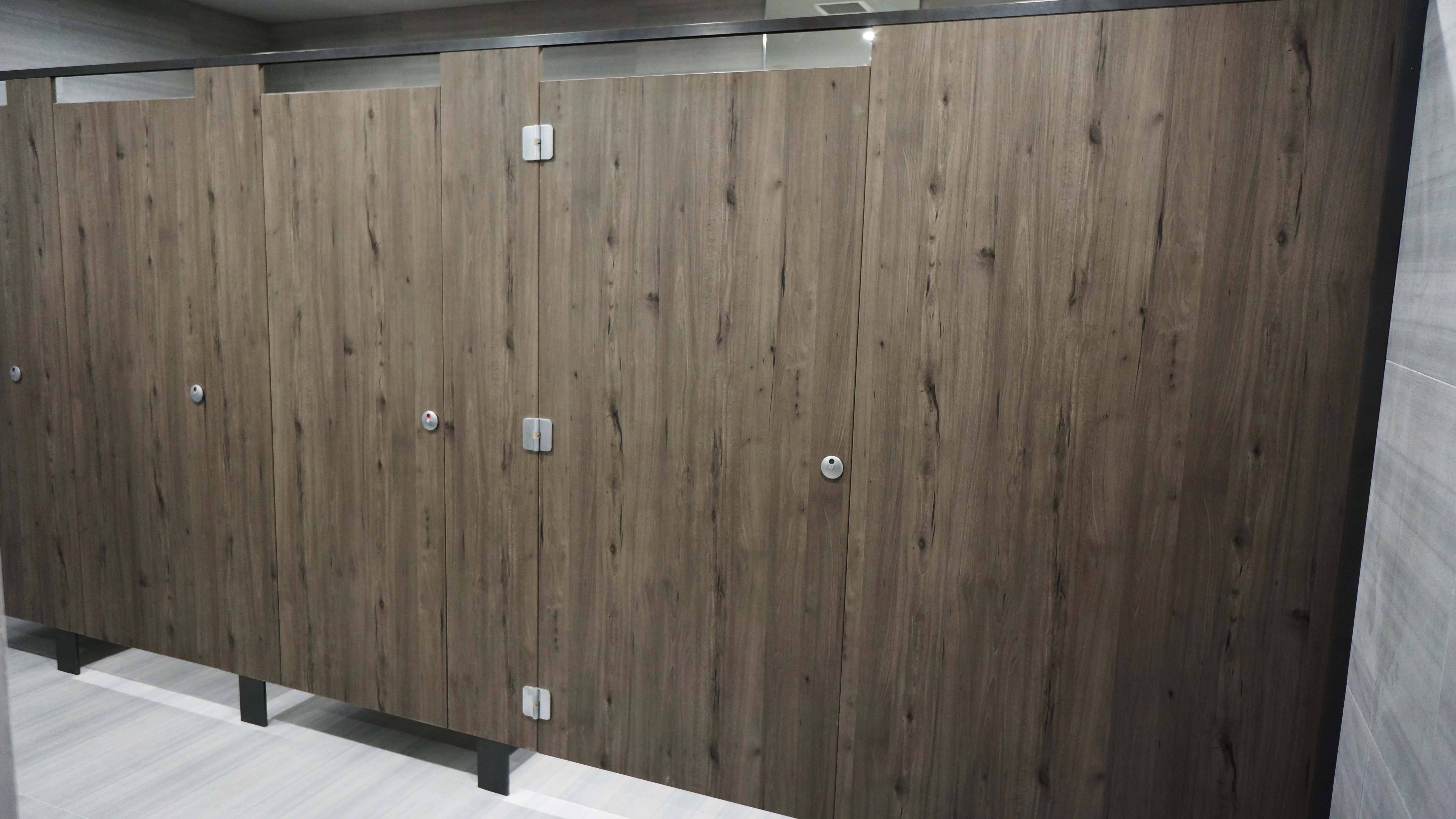

Quintrex 18 Partition System
Description

The Hale Quintrex 18 partition system is a high performing value system, using 18mm Structuralboard (high moisture resistant MDF) core faced with a high impact resistant laminate. This system features mounting on a blade foot and overhead braced by a U-shaped channel headrail and wall channels for a sophisticated, clean look.

Structuralboard is a high pressure laminate, factory applied to moisture resistant particle board provides superior impact resistance.

Structuralboard panels are prefinished with 2mm ABS edging, matching the colour of the panel face.

Key Features
  • Group 3 Fire rating
  • 18mm Laminex Structural MR board panels featuring a high moisture resistant MDF core faced with high impact resistant laminate.
  • 2mm ABS edging, matching colour of panel face
  • Natural silver anodised aluminium blade foot
  • Emergency lift off hinges
  • Panels are 1800mm wide, eliminating the need for joints in most cases
  • Cost effective and durable
  • Concealed fixed Avanti or Wave indicator lock with combined bumper
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • U-shaped square edge aluminium channel headrail
  • Continuous wall channel fixing at all junctions
  • 7 year board warranty
  • Environmentally friendly low emissions board
  • Flexible design, available in ready to install, flat pack complete with shop drawings & installation manual

Optional Extras:

  • Sliding or open out door to comply with accessibility requirements
  • Powder coating to aluminium trim available
  • Privacy strips along hinge and opening side of door for maximum privacy of cubicle
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Quintrex 18 partitions system is suitable for use in low abuse dry areas such as toilets.

Recommended applications:

  • Offices
  • Hotels
  • Restaurants
  • Shopping centres
  • Educational centres
  • Sporting and Gymnasium centres
  • Clubs and Entertainment centres
Limitations on Use

The Hale Quintrex 18 partition system has a Structural MR board (Moisture Resistant MDF) Core, making this system unsuitable to be hosed down for cleaning and for any wet areas such as showers.

Abrasive cleaners or scourer pads are not to be used to clean Structural Board as that may damage the surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
In-Service History

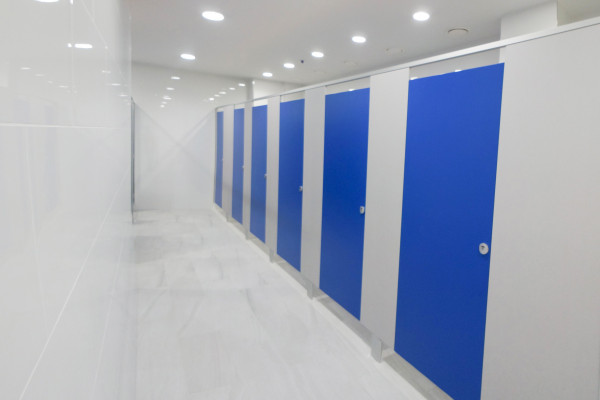

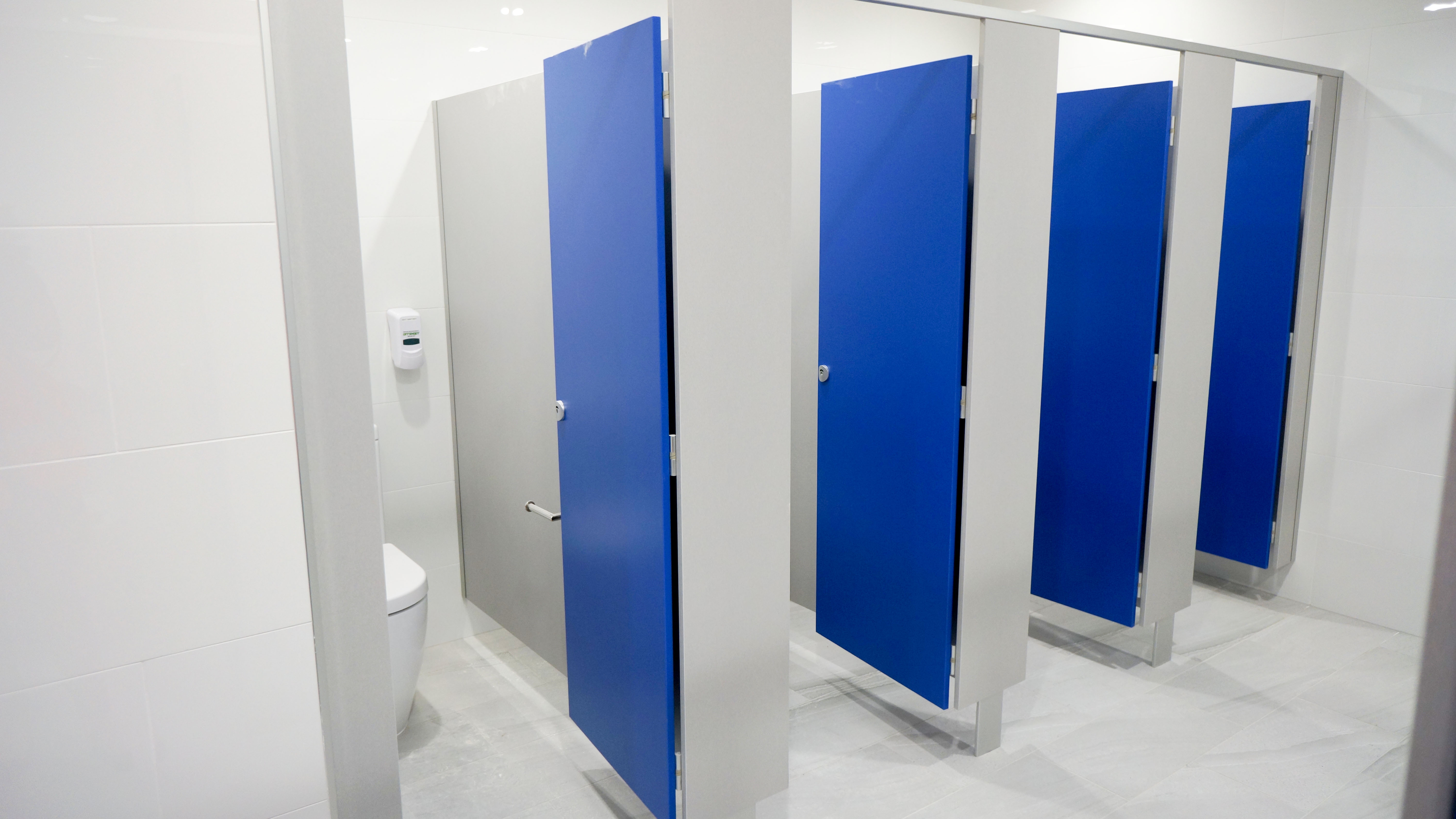

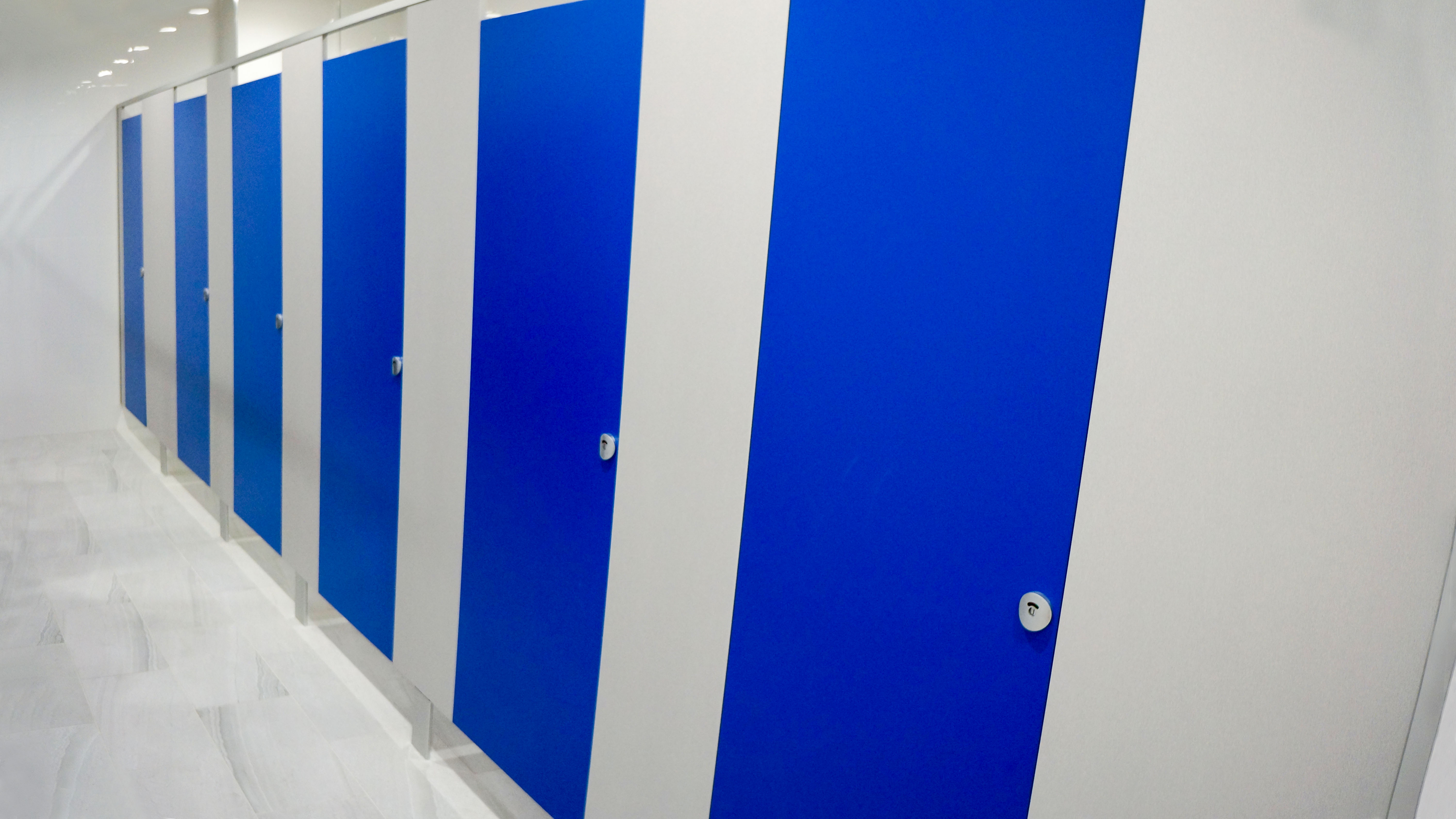

The Hale Manufacturing Delta partition system has been installed in well known buildings in Auckland, the most recent being Sistema and 151 Victoria Street, Auckland.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
Interior Fire Rating 3
3
Documents
CAD/PDF (link to page on supplier website)
Installation Details (link to page on supplier website)
Data Sheet
Specification Clause (Masterspec)
Test Results
Brochure
Colour Range
