ThermalHeart+® Rooflight

FIRST Windows & Doors

All products

Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

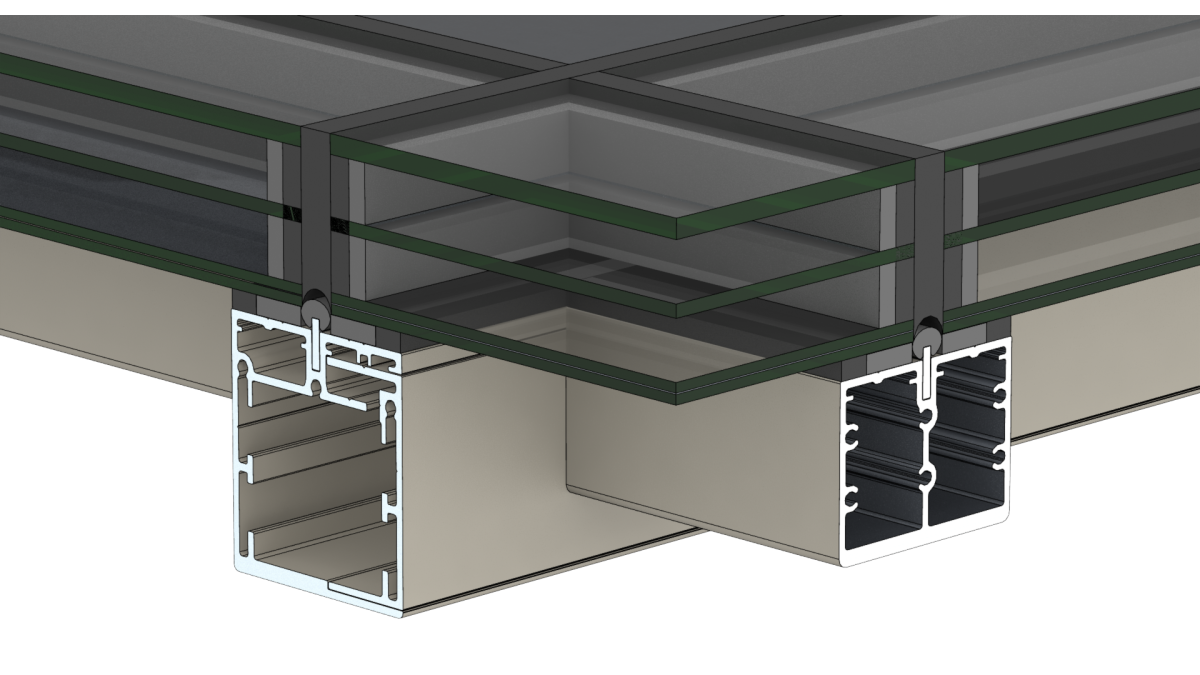

ThermalHeart+® rooflight roof bar and purlin junction

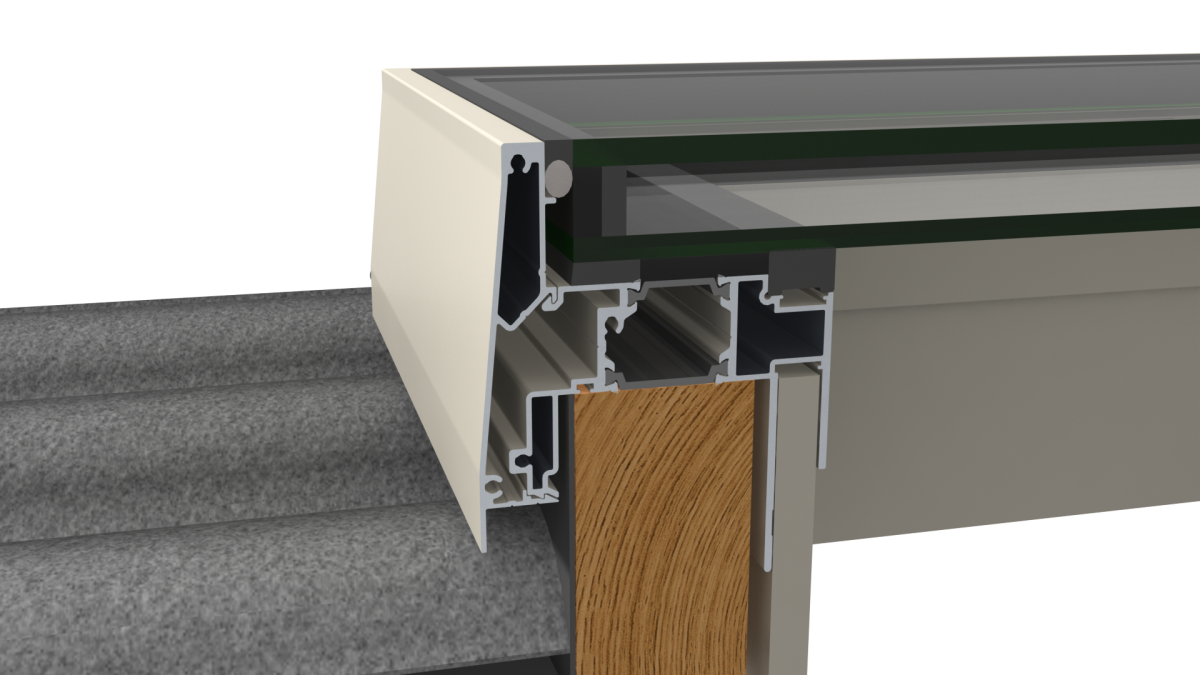

ThermalHeart+® double glazed fixed rooflight

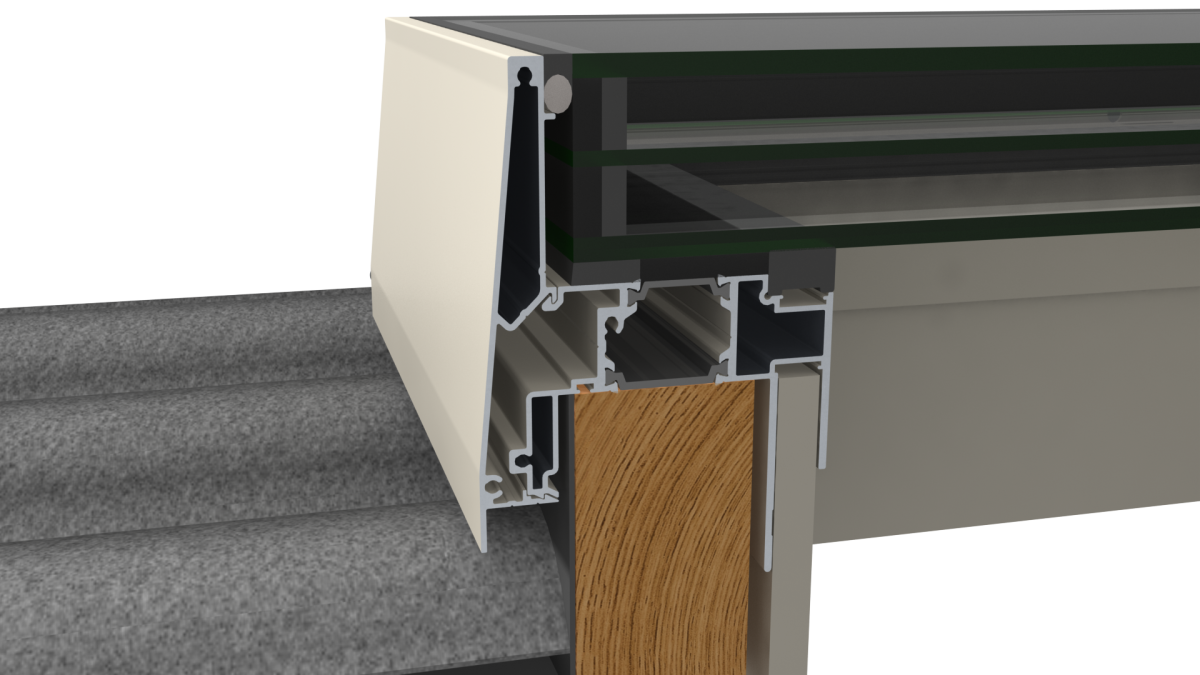

ThermalHeart+® triple glazed fixed rooflight

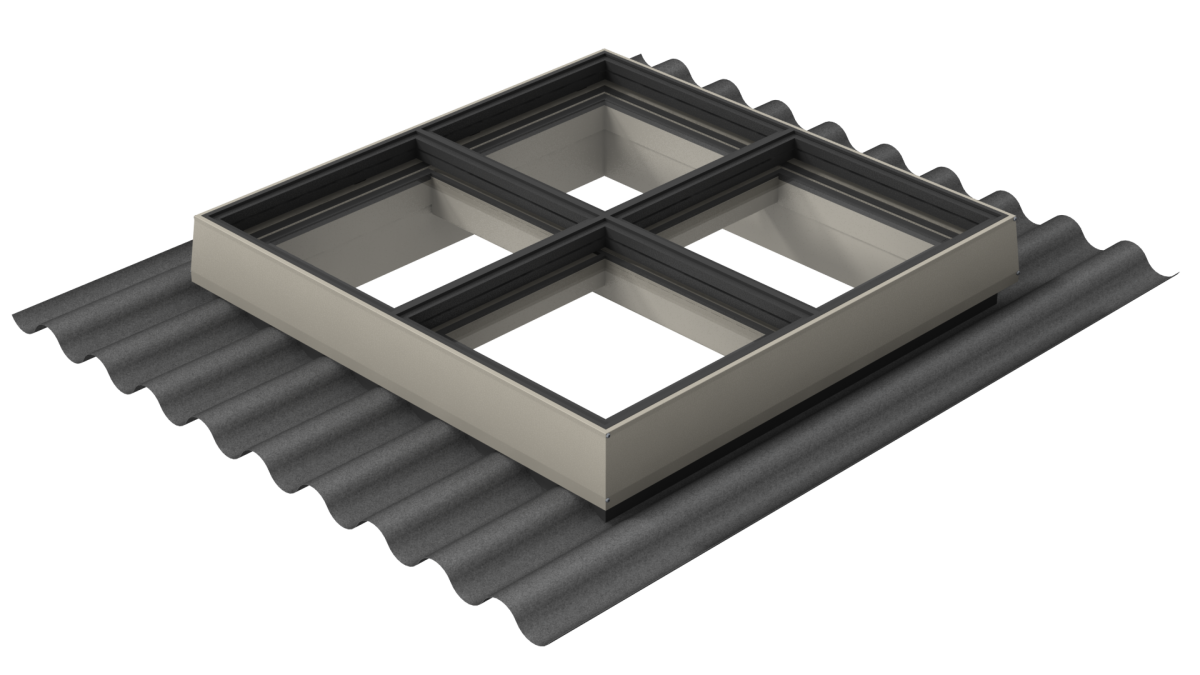

ThermalHeart+® rooflight showing roof bar and purlins

Product Enquiries

Description

Designed for enhanced thermal efficiency, APL ThermalHeart+® rooflight can accommodate single, double, or triple glazing, allowing for a bespoke performance solution based on project needs.

Key Features

Increased structural strength enabling greater glass spans and compatibility with extra high wind zones in extreme environments
Supplied with AGP’s highest performance Low-E, Solux Ultra® as standard
Unique design due to the thermally enhanced frame and a clip-on bead, enabling single, double and triple glazing on the same structural glazing platform
External bead is flush with glass surface, so water flows freely off the rooflight with no pooling

Ranges

Overhead Glazing

Scope of Use

Suitable for residential and commercial environments
Need to be used in defined maximum sizes

Limitations on Use

Available in a fixed option only
Designed to handle snow loads of up to 1.0kPa, and an altitude of 420M above sea level - anything above will require project specific reviews
Sizing will depend on glazing bar choice, wind loadings, span limitations, bar spacing and glass thickness — an engineer’s report may be required
To minimise condensation double glazing is recommended in most applications
Minimum 5° pitch

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Original ThermalHeart® roof window released in 2008, newest release in 2025
Widely used by builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Supplied with AGP’s highest performance Low-E, Solux Ultra® as standard

Documents

Specifier Guide: Rooflight

pdf

FIRST on Masterspec

URL

WGANZ Guide to E2/AS1

1 August 2019

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

AGP State of the Art Glass Brochure

URL

First Brochure

2014

URL

Sustainability Report

URL

APL and Sustainability

2024

URL

EPD: Understanding the global standard

pdf

Manufacturer Contact List

URL

CAD/PDF Details

View full

ThermalHeart+® Roof Glazing

THRFG

dwg

pdf

First Windows & Doors deliver a wide variety of high-performing solutions for residential and commercial projects. Available as a complete window system with AGP glass.
