Residential Series ThermalHeart+® Sliding Doors
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
Description

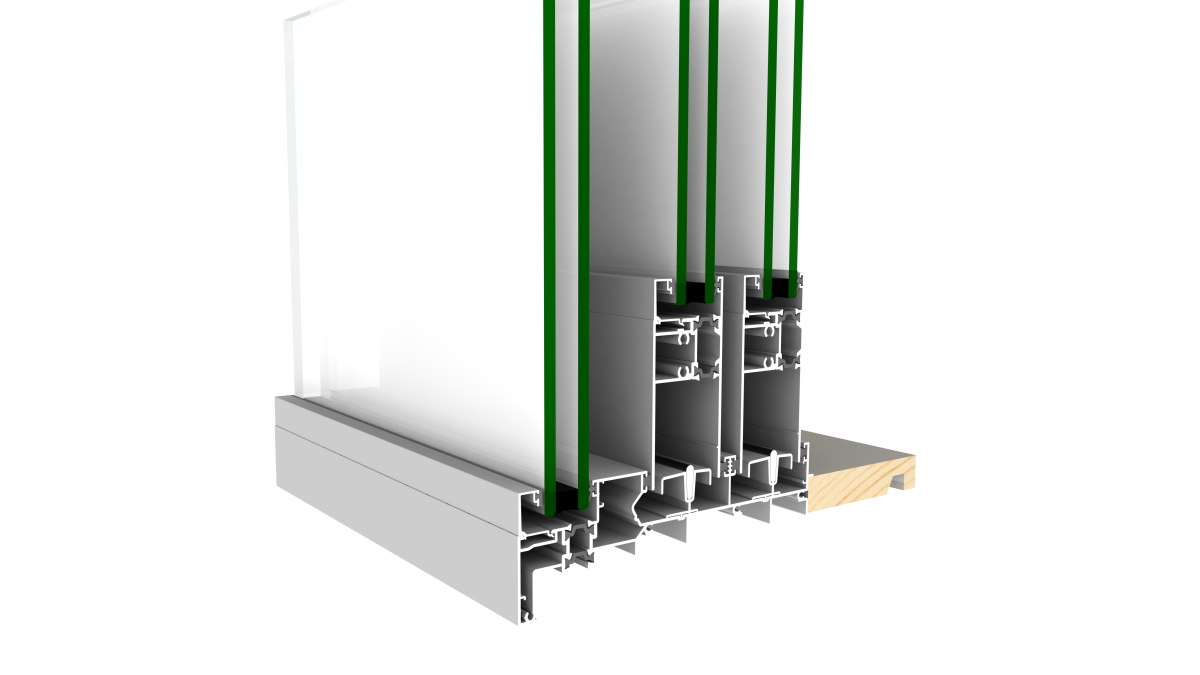

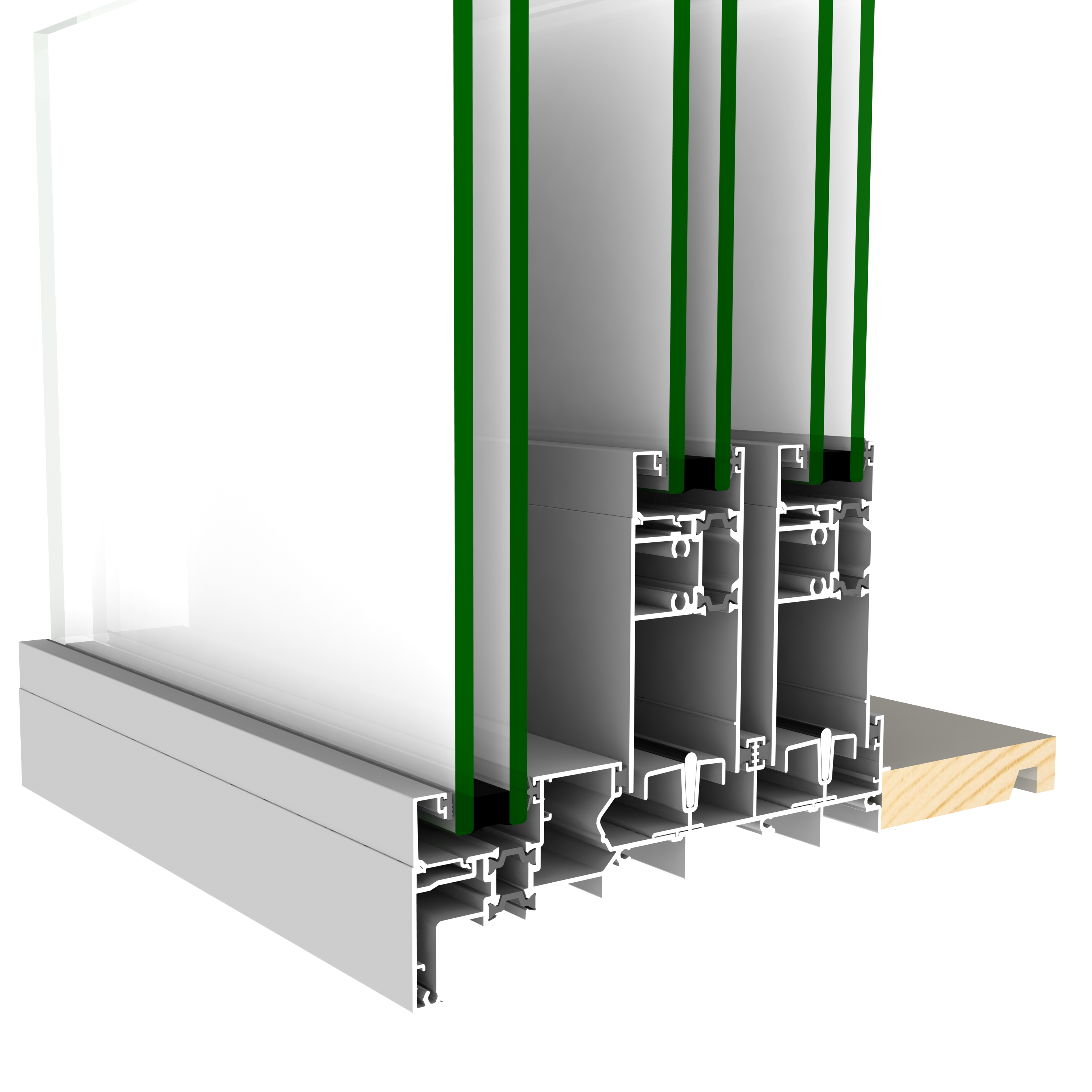

Residential Series ThermalHeart+® sliding doors have a flushline sill track with smooth sliding panels. They slide on an internal track with fixed or sashed sidelight and are rated to 2.2m high. For higher doors consider using Metro Series ThermalHeart+®. Interlocker stiles and mullions are flush in the closed position.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features

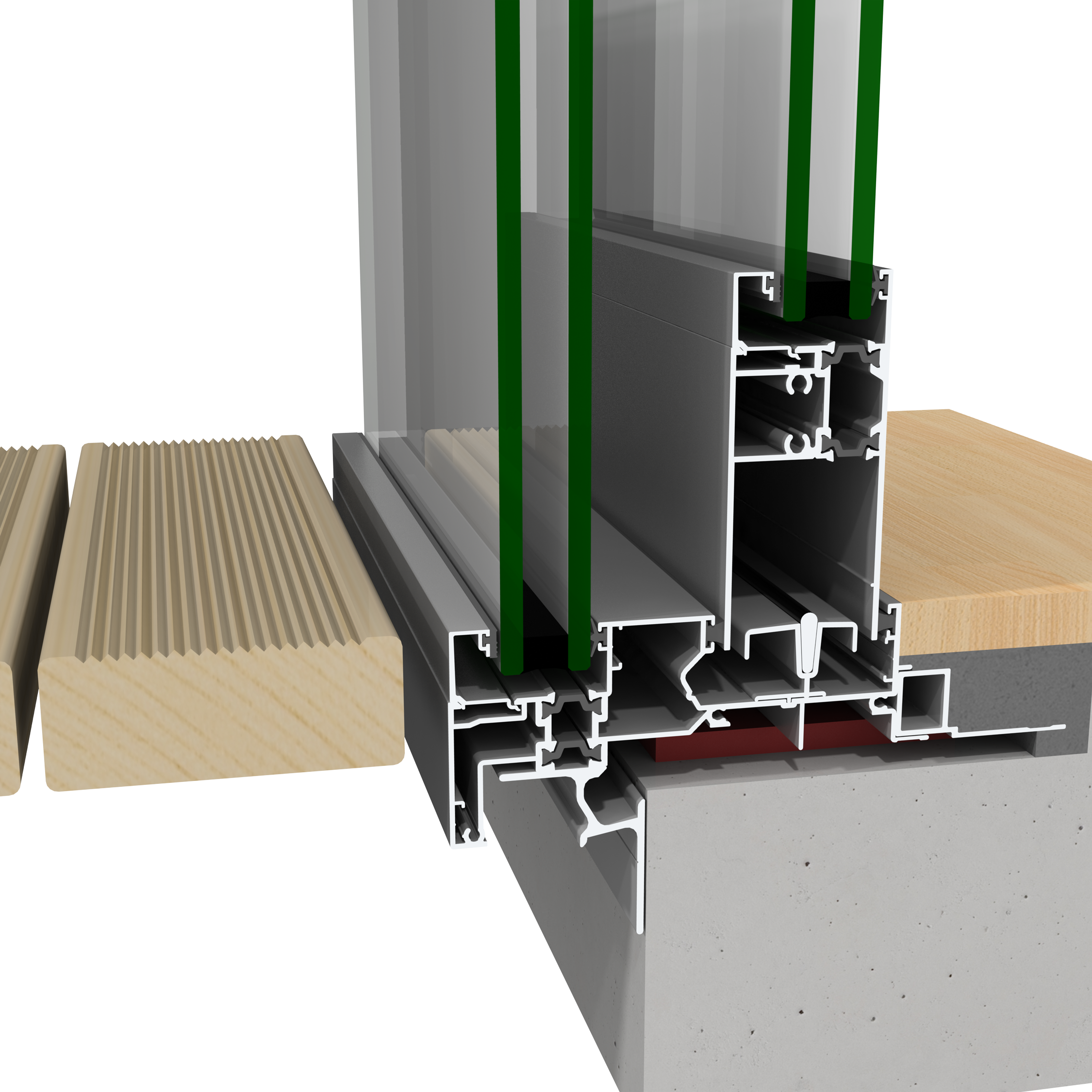

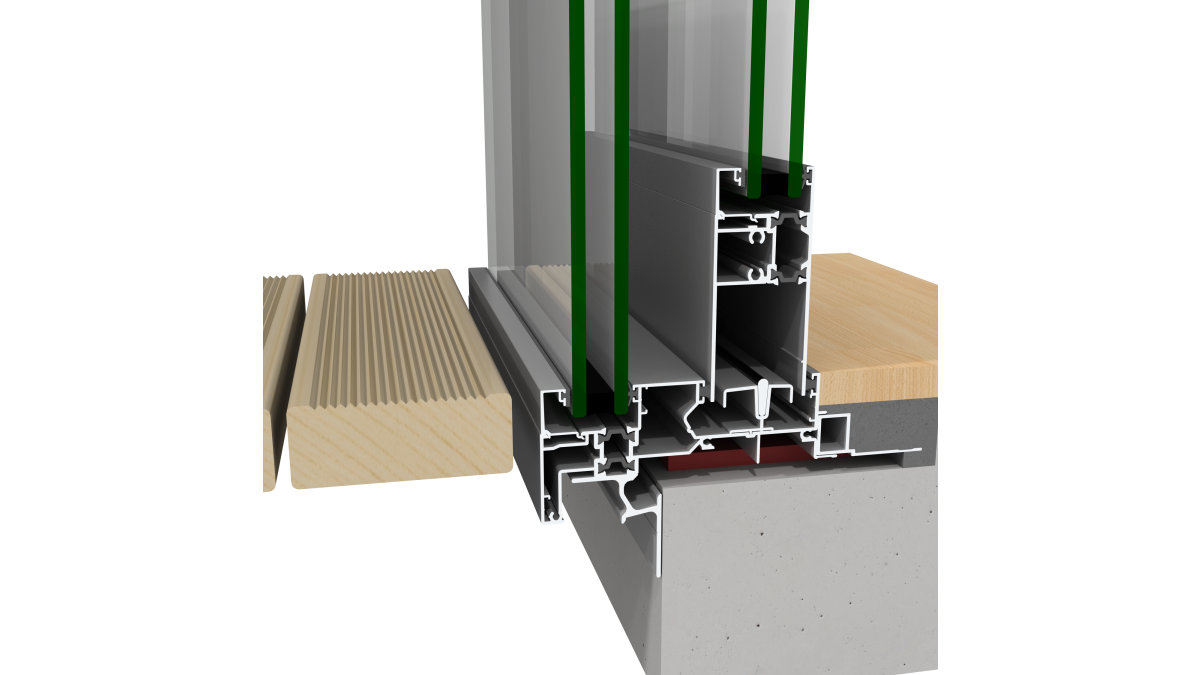

  • Flush sill design
  • Recommended maximum 2200mm high doors in Extra High wind zones — for larger sizes consider using Metro Series ThermalHeart+®
  • Thermal efficiency achieved through a minimum of 16mm thermal breaks in aluminium profiles
  • 24mm IGU as standard but 32m IGU can be used with a wedged bead — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

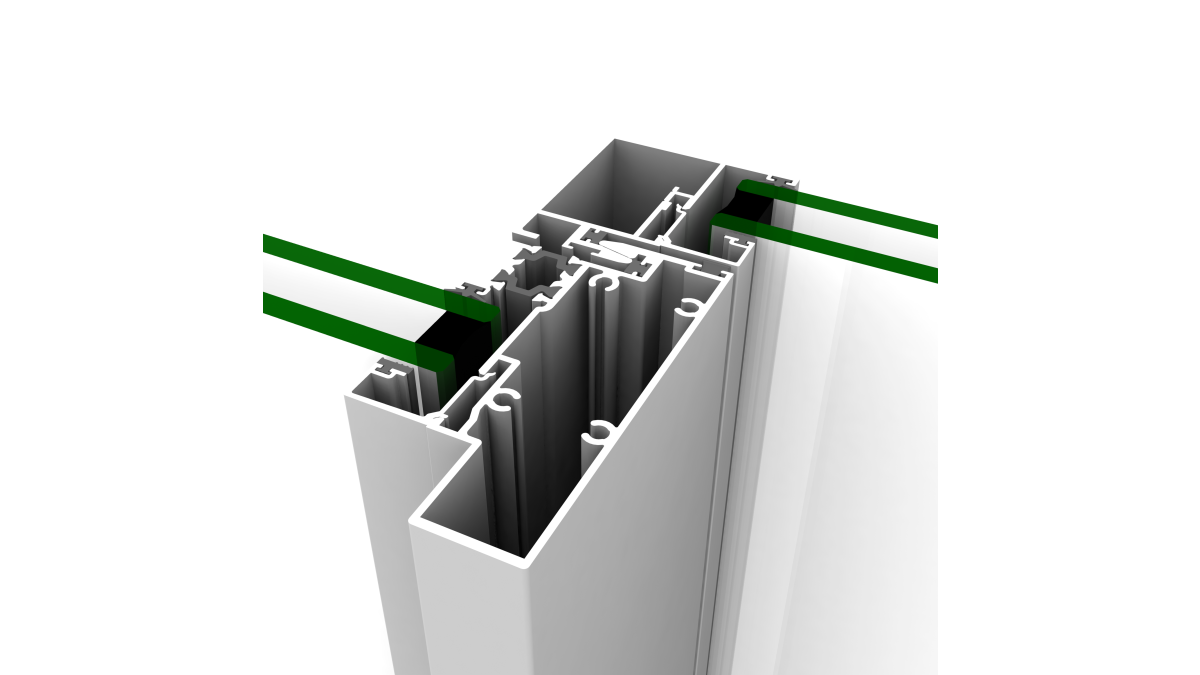

  • Door stiles and rails feature slender sightlines

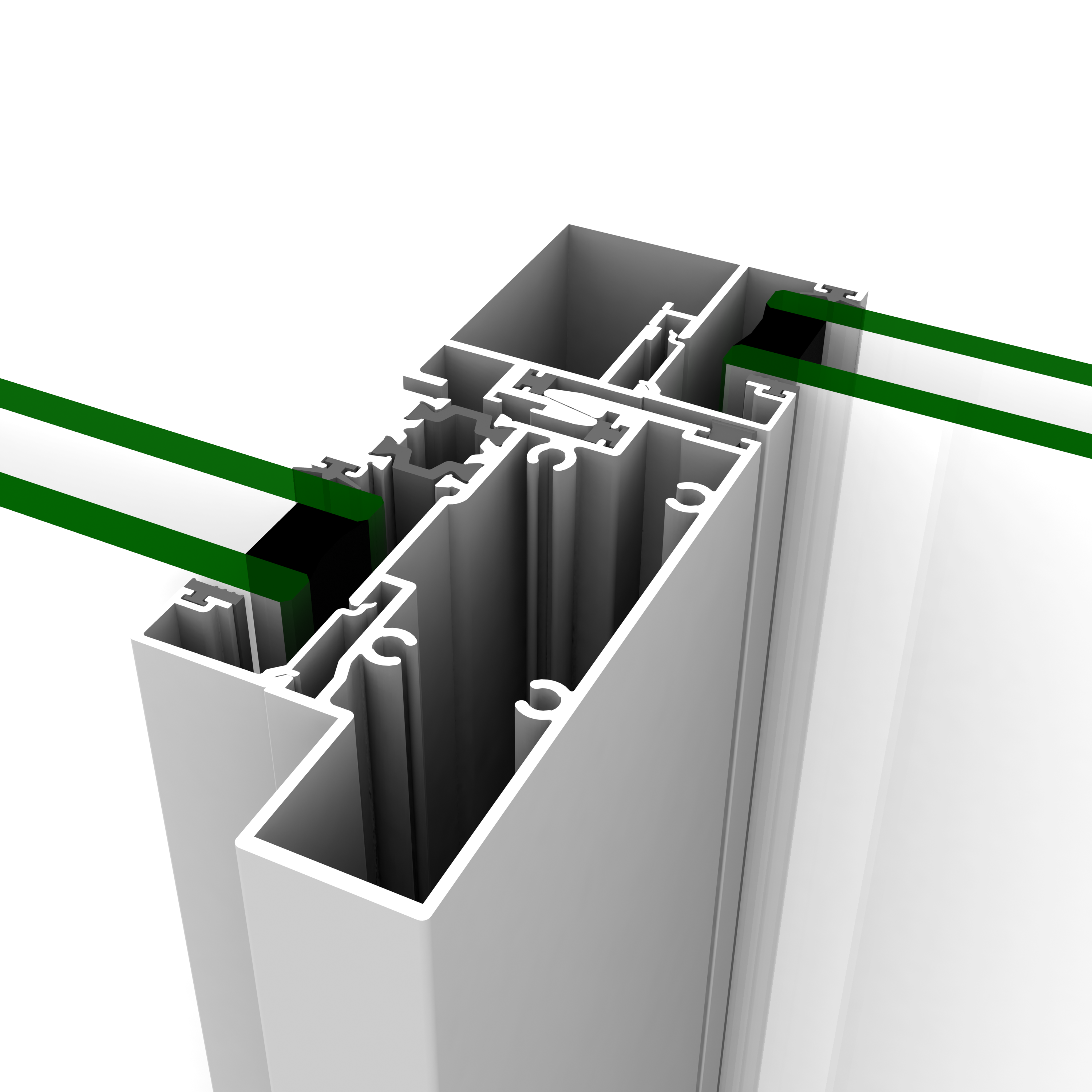

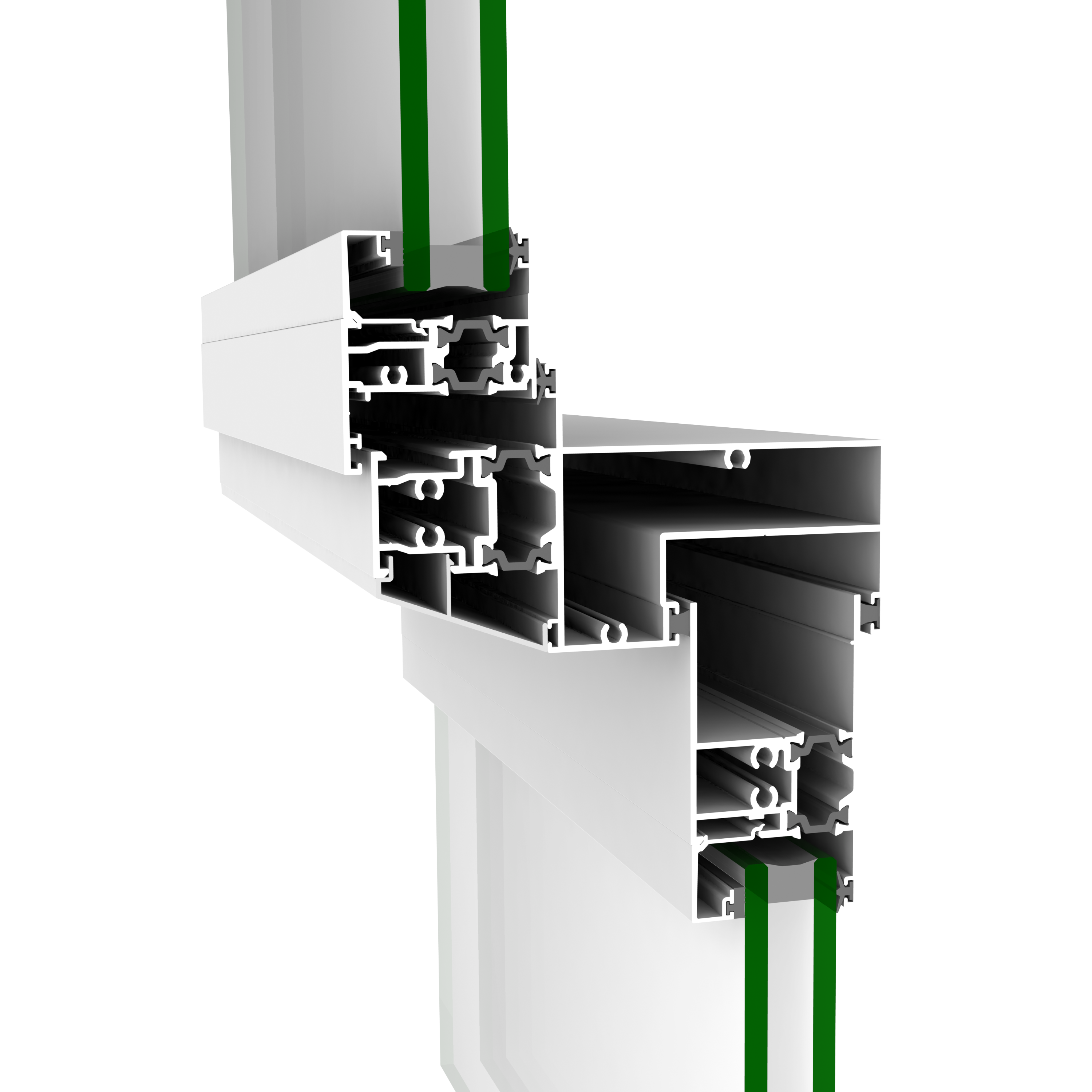

  • Interlocker stiles vary in depth according to height, width and wind pressure requirements
Scope of Use
  • Suitable for broad residential use
  • Available in defined maximum sizes
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Recommended maximum 2200mm high doors in Very High wind zones — For larger sizes consider using Metro Series ThermalHeart+®
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Redesigned and relaunched in 2022 (previous version 2011)
  • New range rolling out nationally; previous version in use in residential projects throughout New Zealand by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet: Residential Series ThermalHeart+® Doors

2023

Span Tables: Residential Series ThermalHeart+® Sliding Doors/Windows

2025

Environmental Product Declaration (EPD) Report

2023

Calculate R-Value and Ug-Value
FIRST on Masterspec
Full Specification Guide: Residential Series ThermalHeart+®

2023

Specification Guide: Residential Series ThermalHeart+® Sliding Doors

2023

Specifier Guide
WGANZ Guide to E2/AS1

1 August 2019

AGP Care & Maintenance
First Care, Maintenance & Warranty Brochure (with AGP)

2020

AGP State of the Art Glass Brochure
First Brochure

2014

AGP Condensation Guide
AGP Visual Quality of Glass
EPD: Understanding the global standard
Manufacturer Contact List
CAD/PDF Details

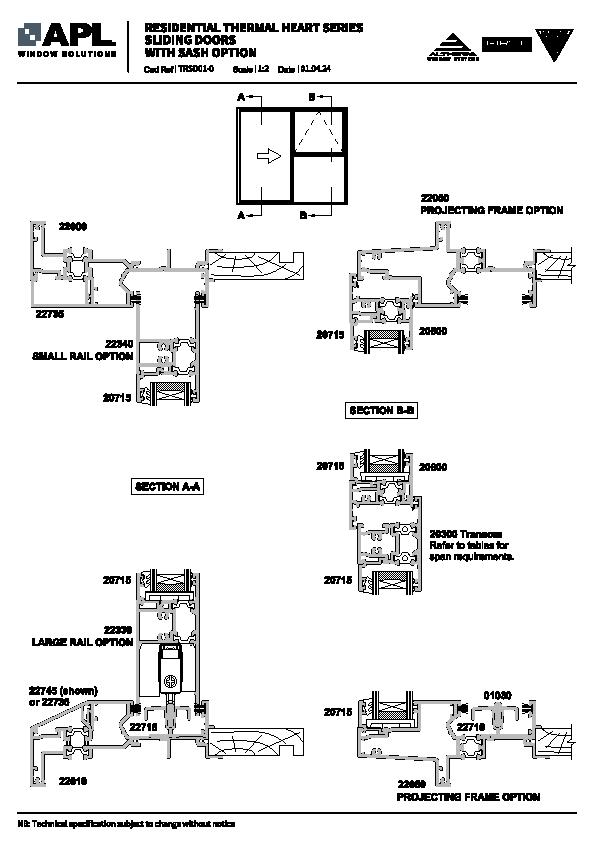

Residential Series ThermalHEART® Sliding Doors

TRSD

Installation Details
Filters
Frame Type SD

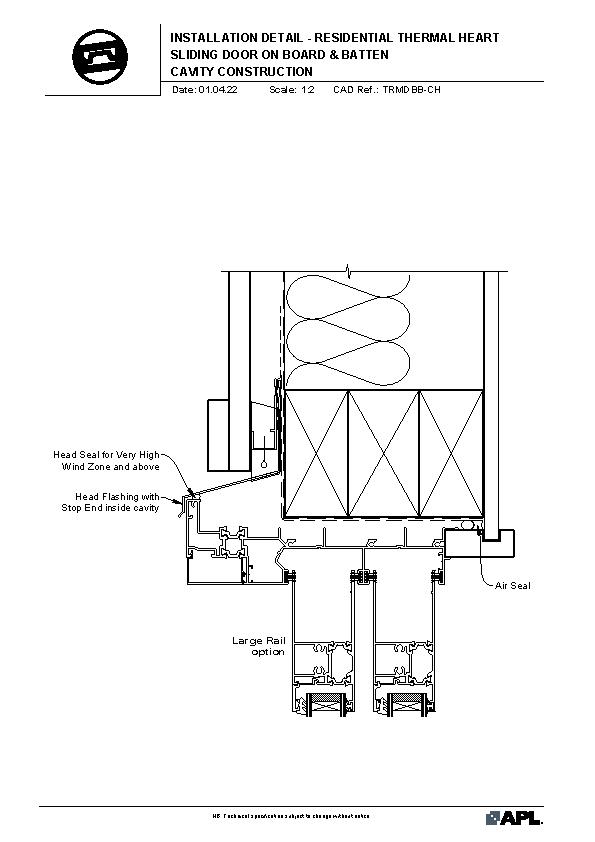

Residential Series ThermalHEART® Sliding Door — On Board & Batten Cavity Construction

TRMDBB

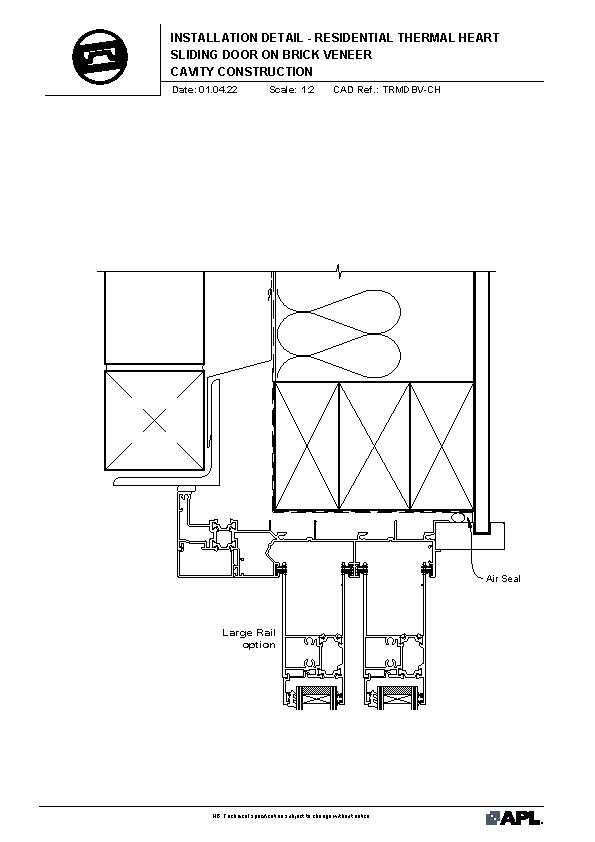

Residential Series ThermalHEART® Sliding Door — On Brick Veneer Cavity Construction

TRMDBV

Residential Series ThermalHEART® Sliding Door — On Bevelback Weatherboard Cavity Construction

TRMDBW

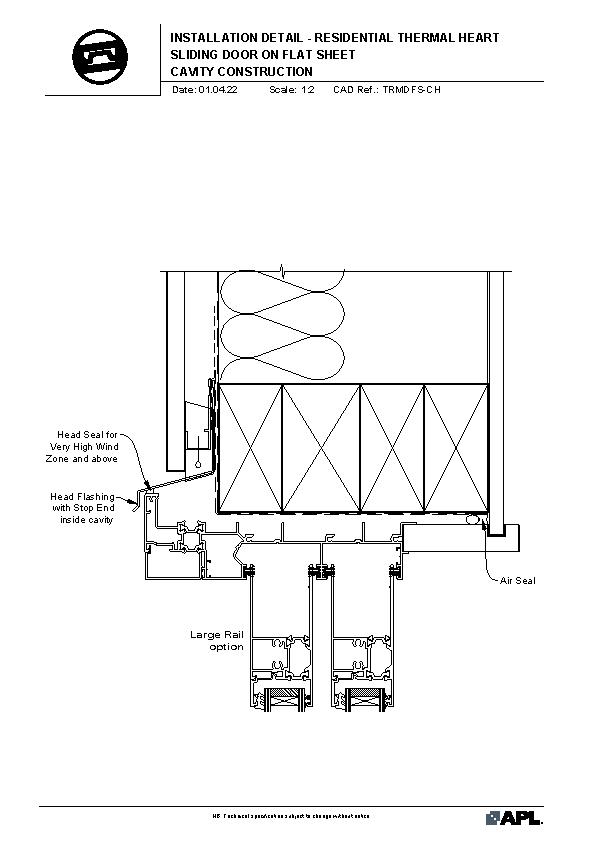

Residential Series ThermalHEART® Sliding Door — On Flat Sheet Cavity Construction

TRMDFS

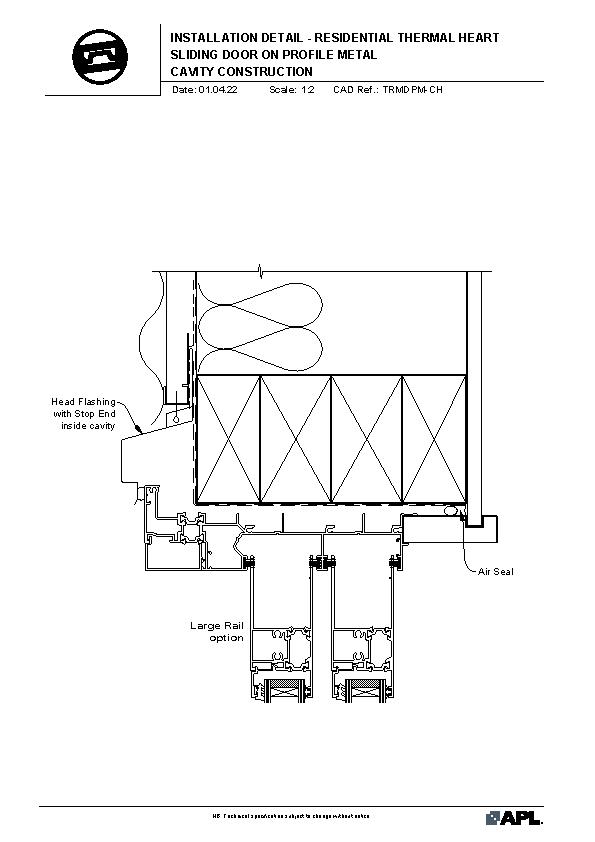

Residential Series ThermalHEART® Sliding Door — On Profile Metal Cavity Construction

TRMDPM

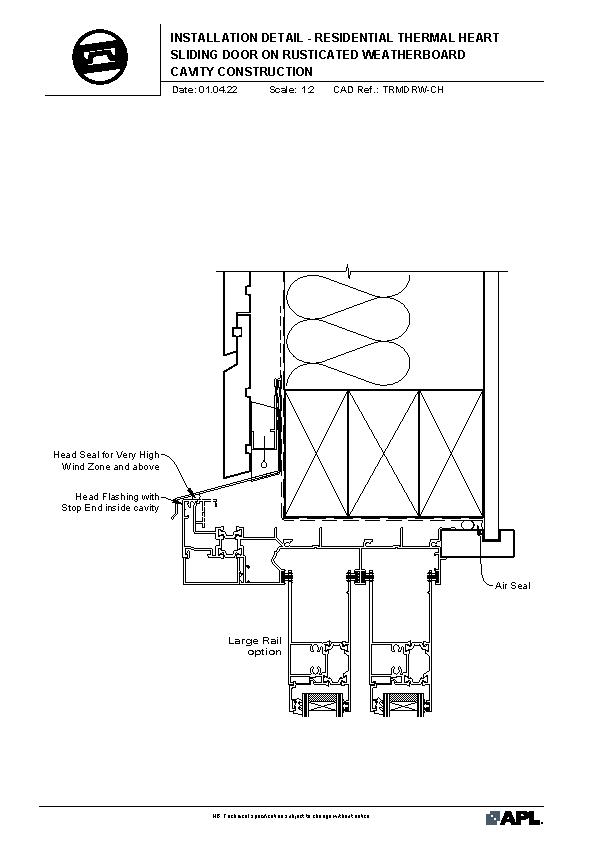

Residential Series ThermalHEART® Sliding Door — On Rusticated Weatherboard Cavity Construction

TRMDRW

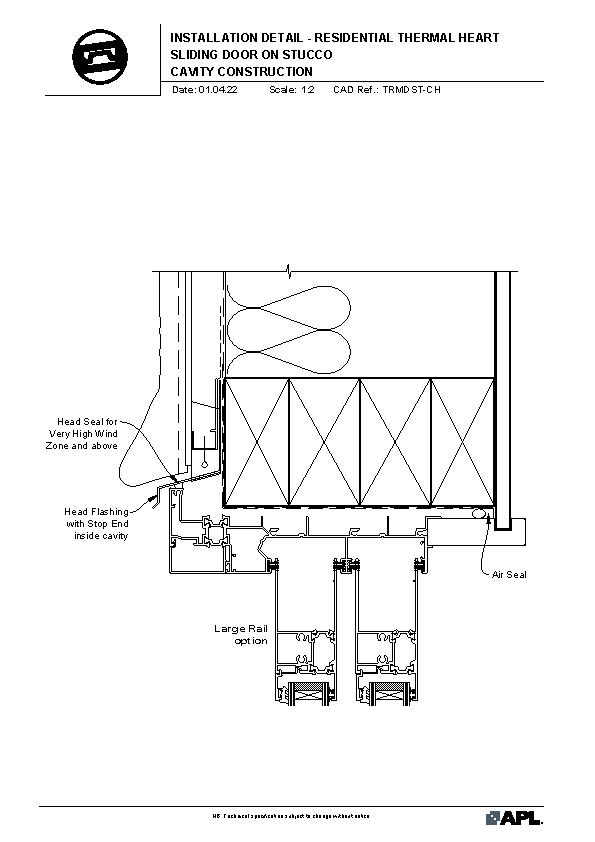

Residential Series ThermalHEART® Sliding Door — On Stucco Cavity Construction

TRMDST

Residential Series ThermalHEART® Projecting Sliding Door — On Board & Batten Cavity Construction

TRPMDBB

Residential Series ThermalHEART® Projecting Sliding Door — On Brick Veneer Cavity Construction

TRPMDBV

Residential Series ThermalHEART® Projecting Sliding Door — On Bevelback Weatherboard Cavity Construction

TRPMDBW

Residential Series ThermalHEART® Projecting Sliding Door — On Flat Sheet Cavity Construction

TRPMDFS

Residential Series ThermalHEART® Projecting Sliding Door — On Profile Metal Cavity Construction

TRPMDPM

Residential Series ThermalHEART® Projecting Sliding Door — On Rusticated Weatherboard Cavity Construction

TRPMDRW

Residential Series ThermalHEART® Projecting Sliding Door — On Stucco Cavity Construction

TRPMDST

Residential Series ThermalHEART® Projecting Sliding Door — On Board & Batten Cavity Construction

TRPSDBB

Residential Series ThermalHEART® Projecting Sliding Door — On Brick Veneer Cavity Construction

TRPSDBV

Residential Series ThermalHEART® Projecting Sliding Door — On Bevelback Weatherboard Cavity Construction

TRPSDBW

Residential Series ThermalHEART® Projecting Sliding Door — On Flat Sheet Cavity Construction

TRPSDFS

Residential Series ThermalHEART® Projecting Sliding Door — On Profile Metal Cavity Construction

TRPSDPM

Residential Series ThermalHEART® Projecting Sliding Door — On Rusticated Weatherboard Cavity Construction

TRPSDRW

Residential Series ThermalHEART® Projecting Sliding Door — On Stucco Cavity Construction

TRPSDST

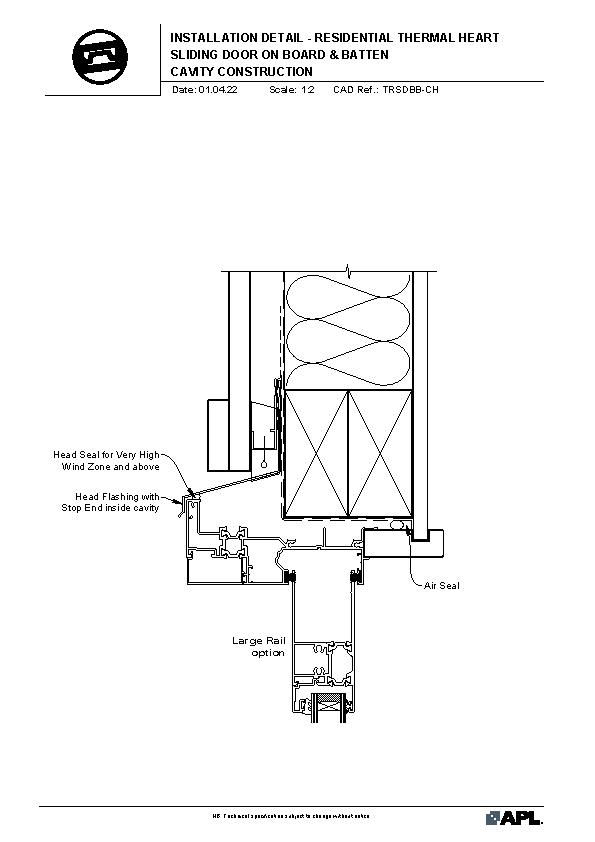

Residential Series ThermalHEART® Sliding Door — On Board & Batten Cavity Construction

TRSDBB

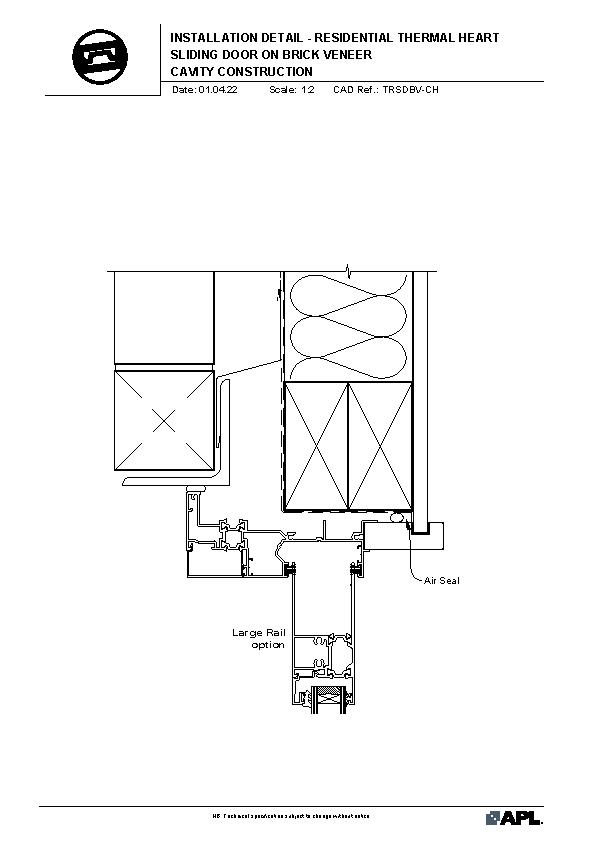

Residential Series ThermalHEART® Sliding Door — On Brick Veneer Cavity Construction

TRSDBV

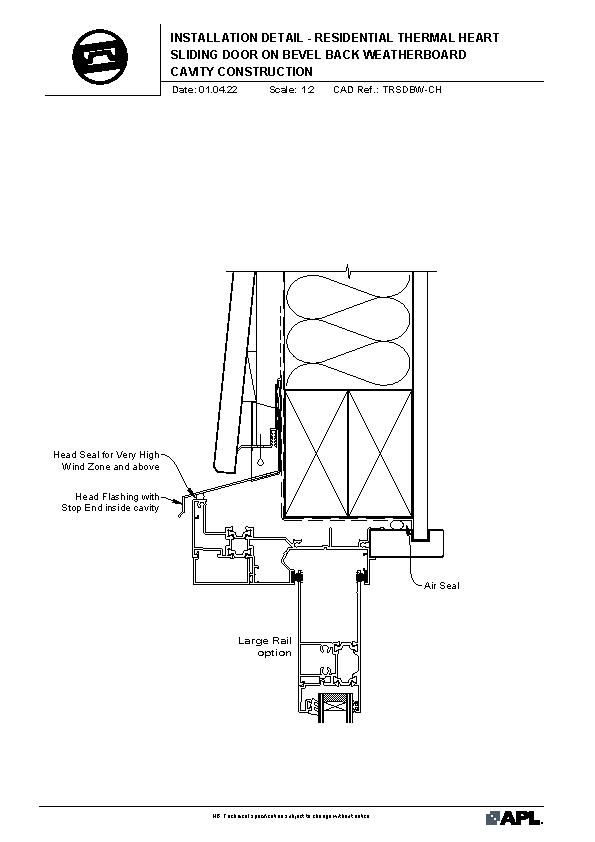

Residential Series ThermalHEART® Sliding Door — On Bevelback Weatherboard Cavity Construction

TRSDBW

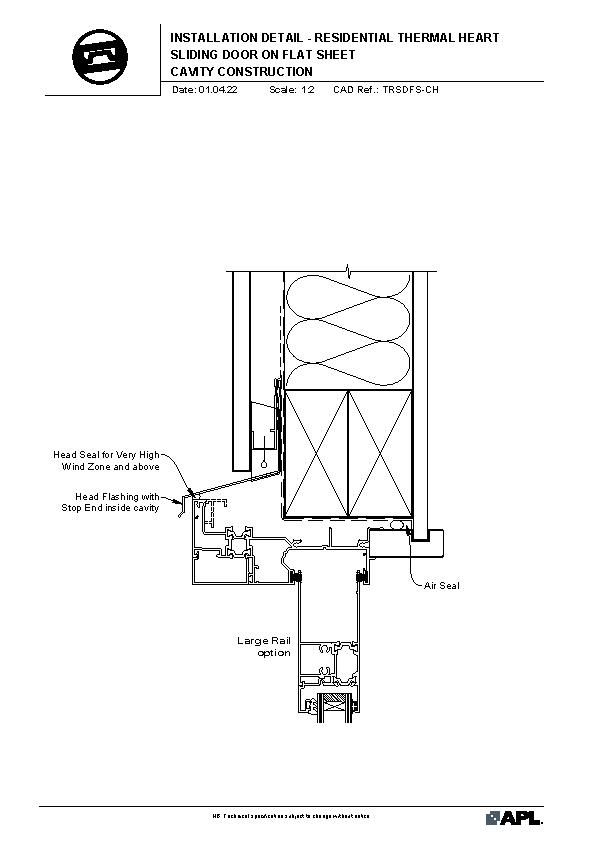

Residential Series ThermalHEART® Sliding Door — On Flat Sheet Cavity Construction

TRSDFS

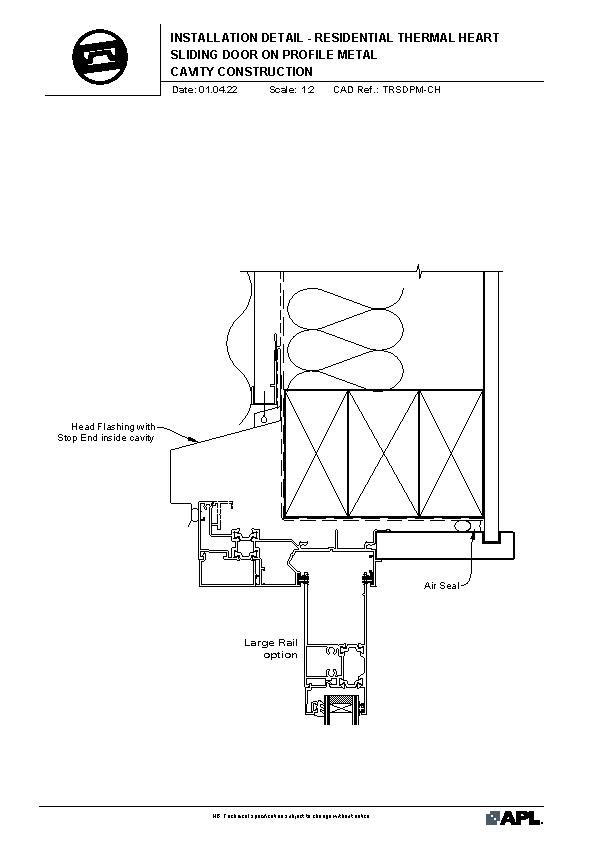

Residential Series ThermalHEART® Sliding Door — On Profile Metal Cavity Construction

TRSDPM

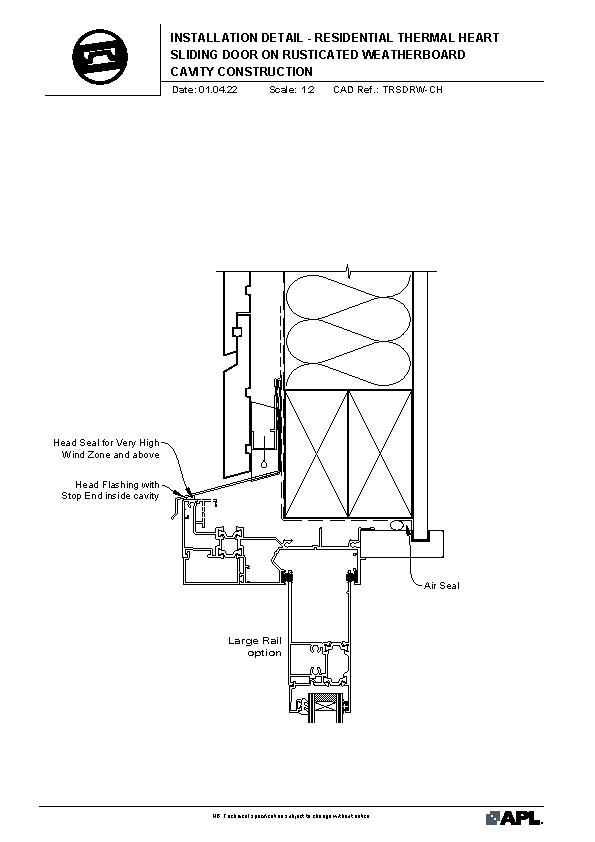

Residential Series ThermalHEART® Sliding Door — On Rusticated Weatherboard Cavity Construction

TRSDRW

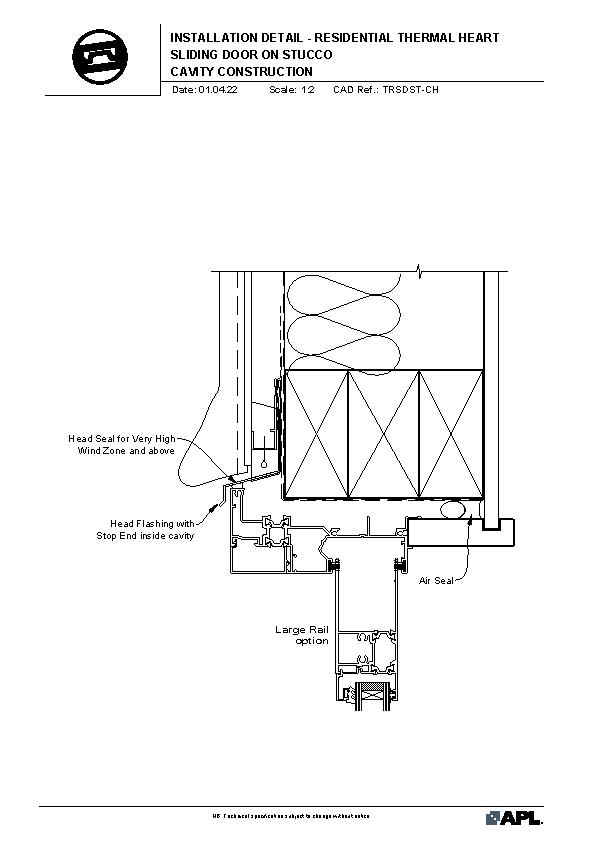

Residential Series ThermalHEART® Sliding Door — On Stucco Cavity Construction

TRSDST
