Miro Hardware
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

The Miro range of die-cast handles is a contemporary classic, characterised by elegant, ergonomic curves.

Key Features
  • All APL hardware comes as a complete package, including locking mechanisms

Options

Sliding Door Handle — Small: This smaller sliding door handle is suited to Residential sliding doors.

  • Small — 166mm high

Sliding Door Handle — Large: This larger sliding door handle is suited to Metro Series and APL Architectural Series sliding doors.

  • Large — 240mm high

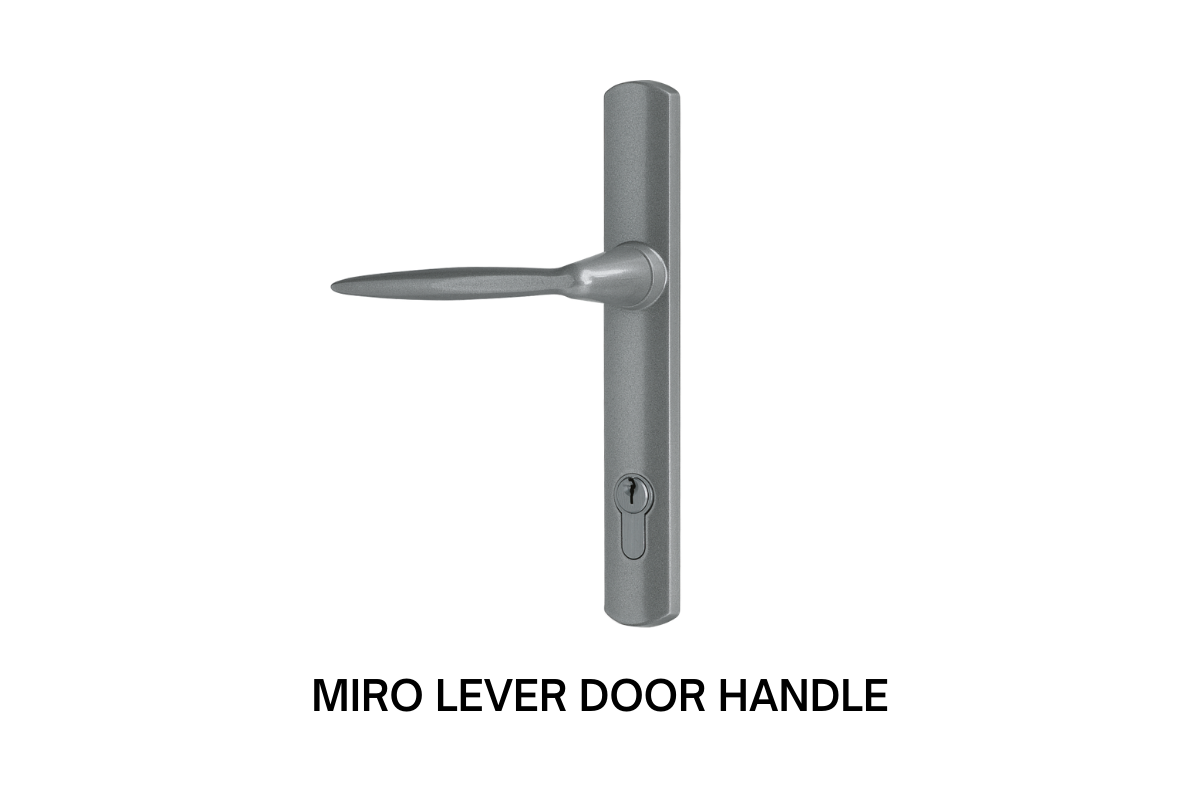

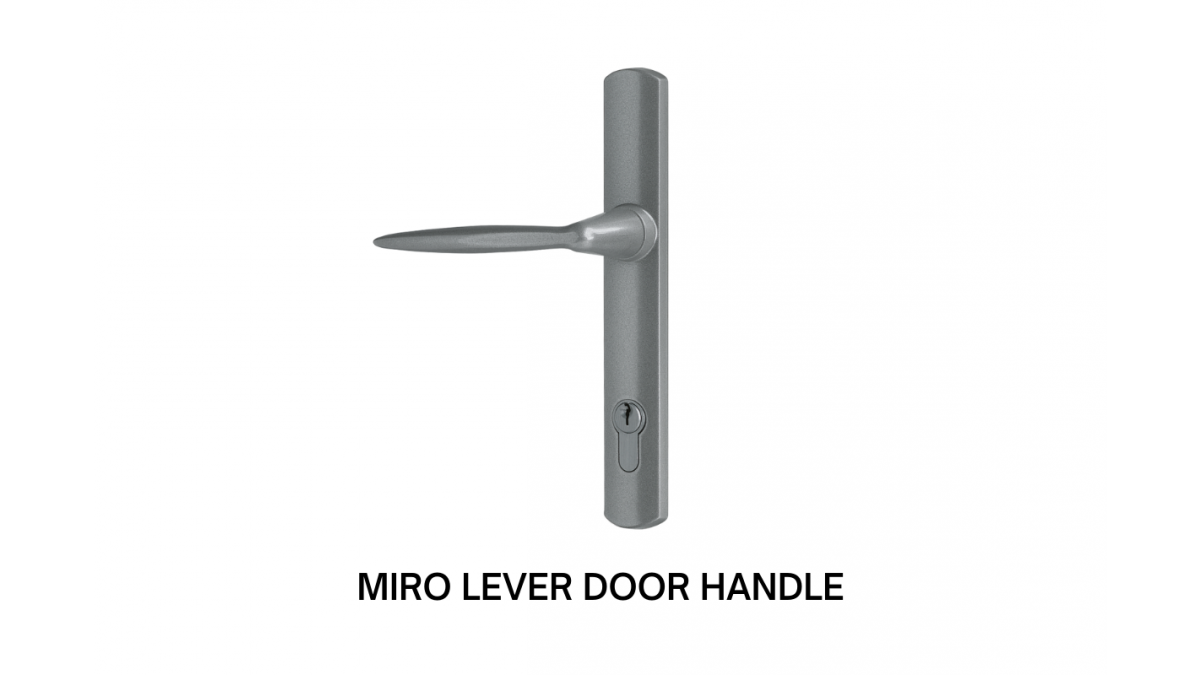

Lever Door Lock: Available in a variety of locking options.  An upward handle movement activates four-point locking.

  • Handle length 117mm, Baseplate 210mm

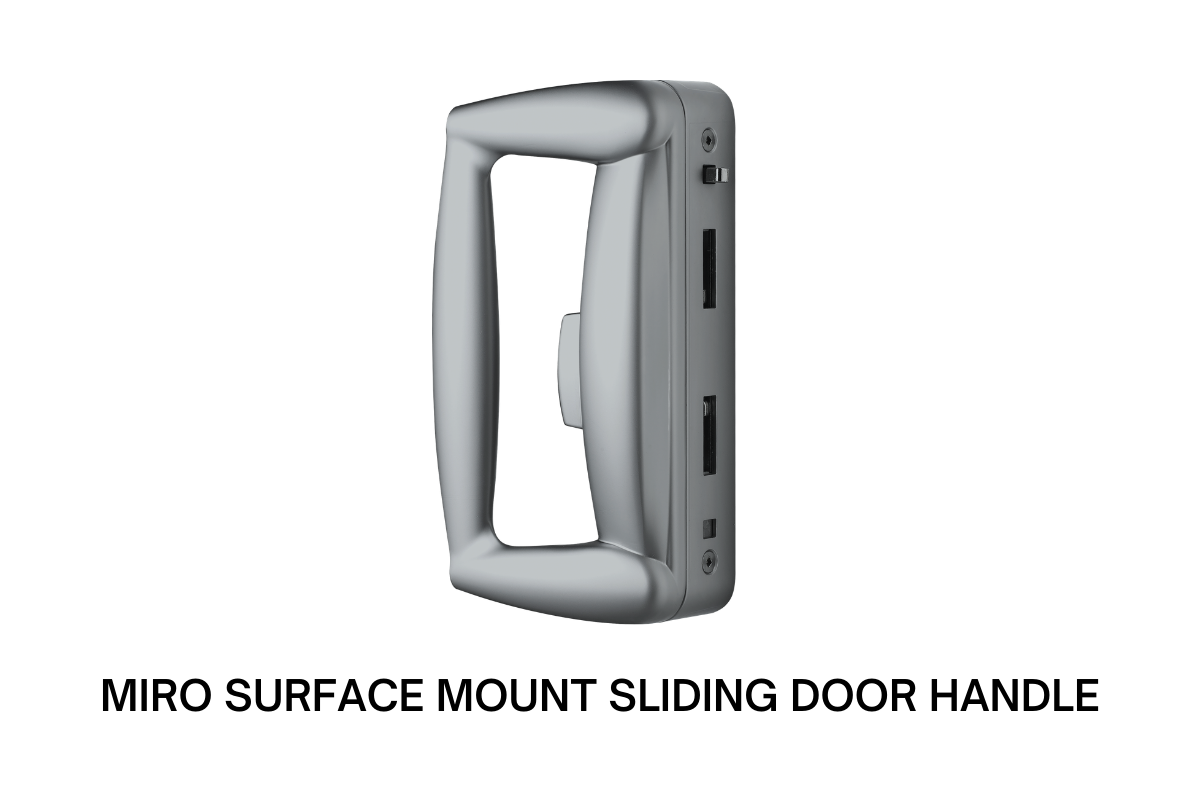

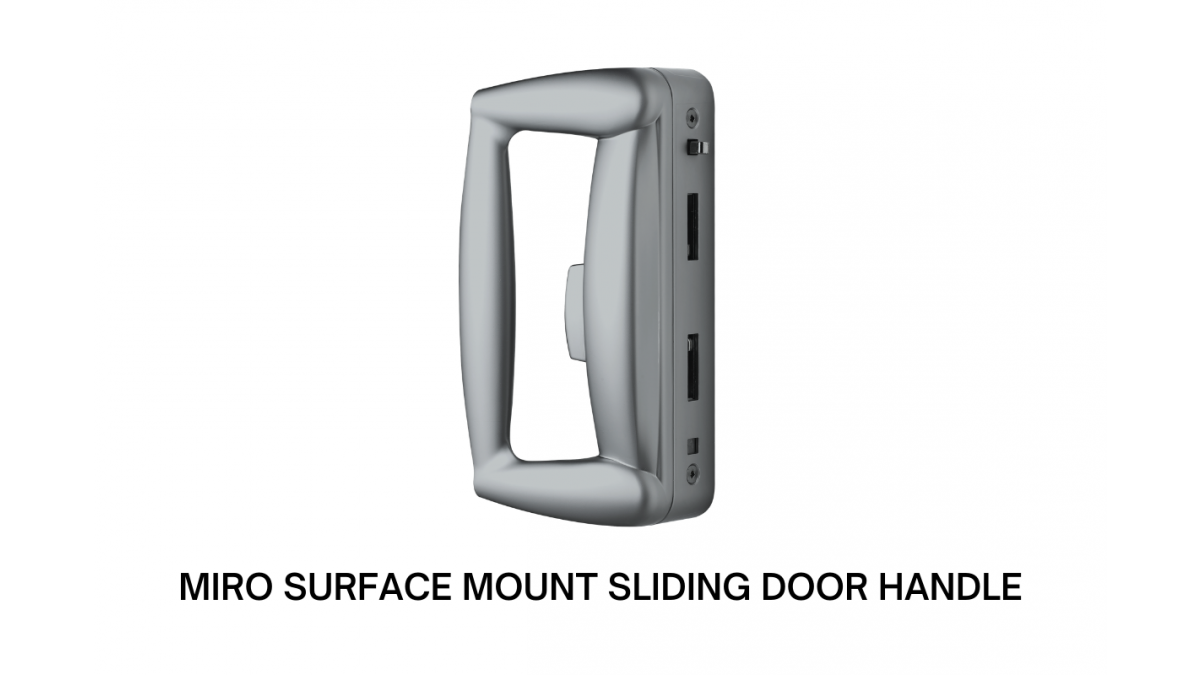

Surface Mount Sliding Door Handle: This all in one handle and lock for sliding doors or windows, has no separately installed snib or keyway.

  • 175mm high x 54mm deep

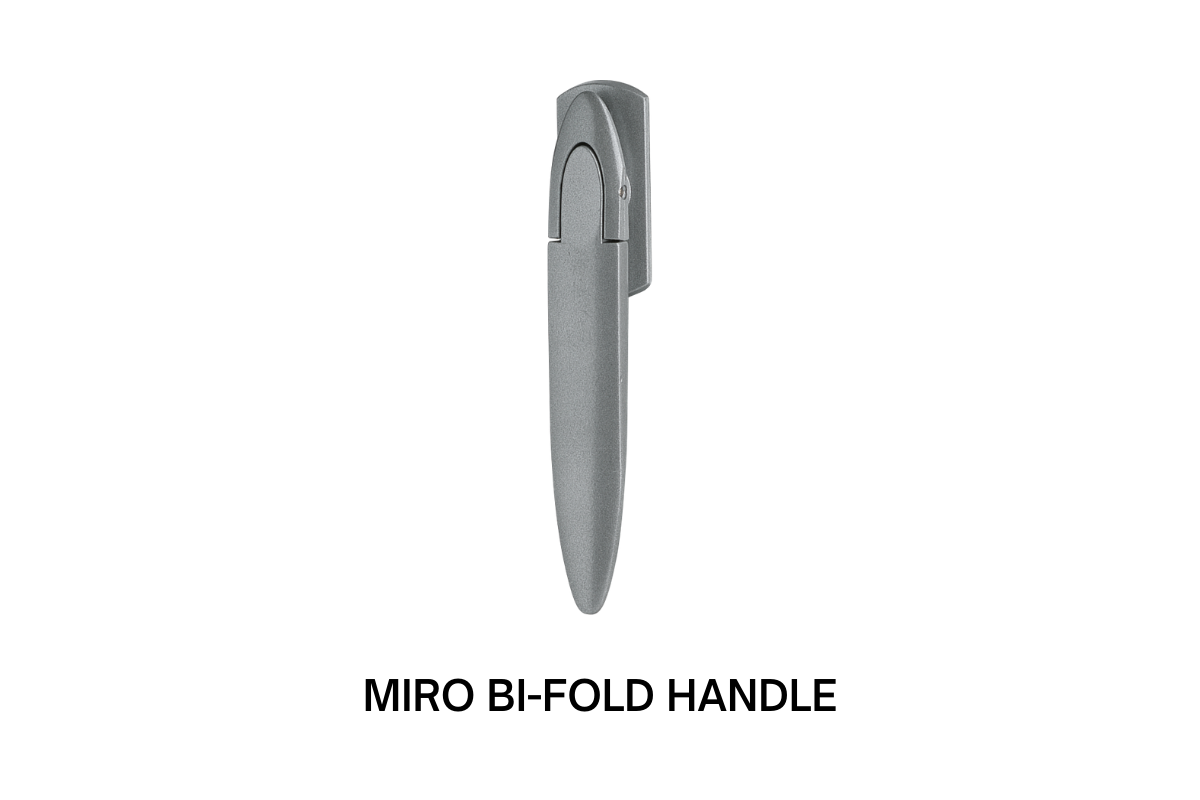

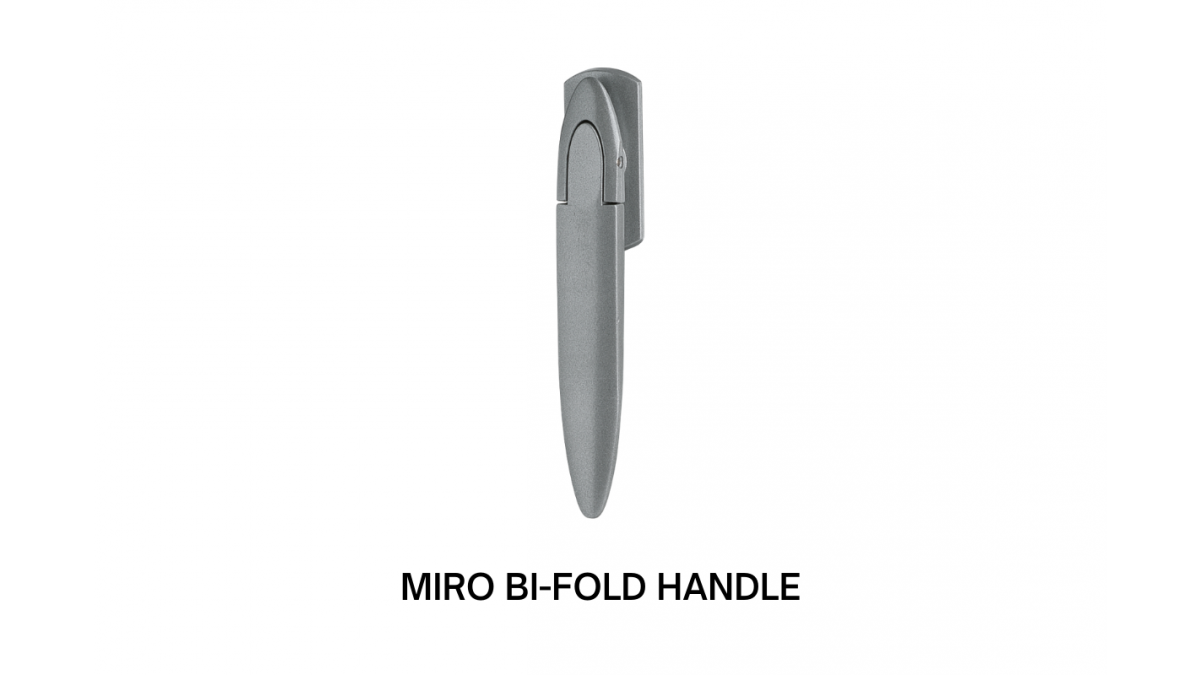

Bi-Fold Handle: This swivel lock activates locking rods in the top and bottom of the door or window panel.

  • 153mm high x 24mm wide

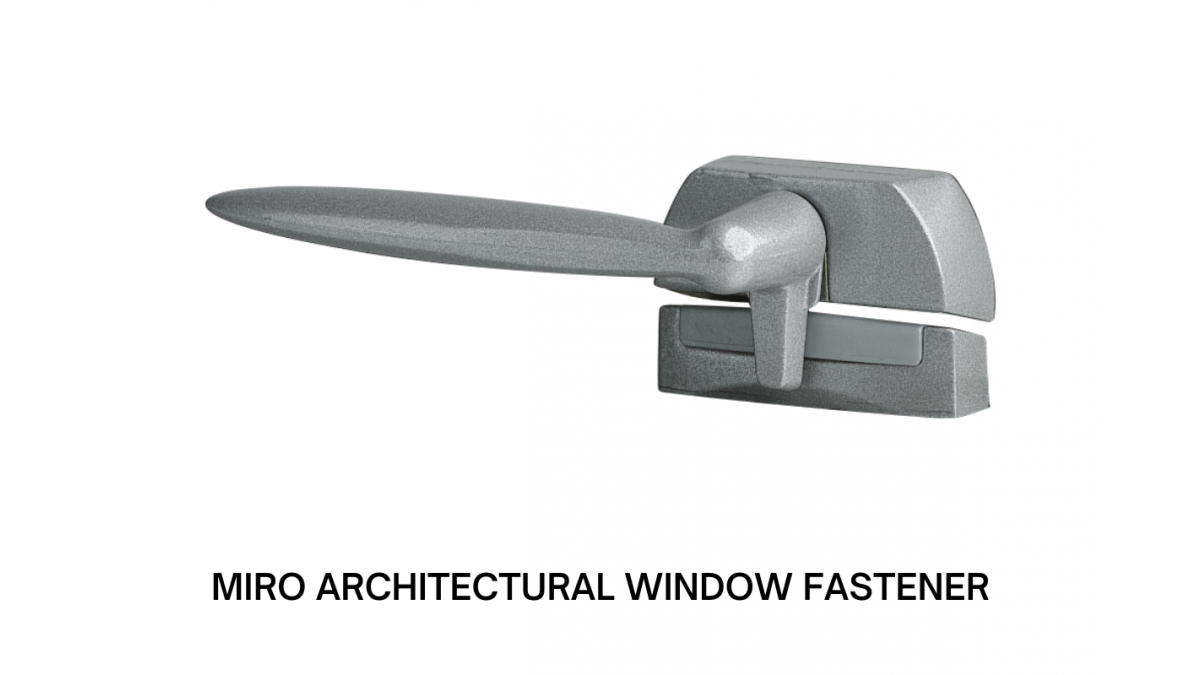

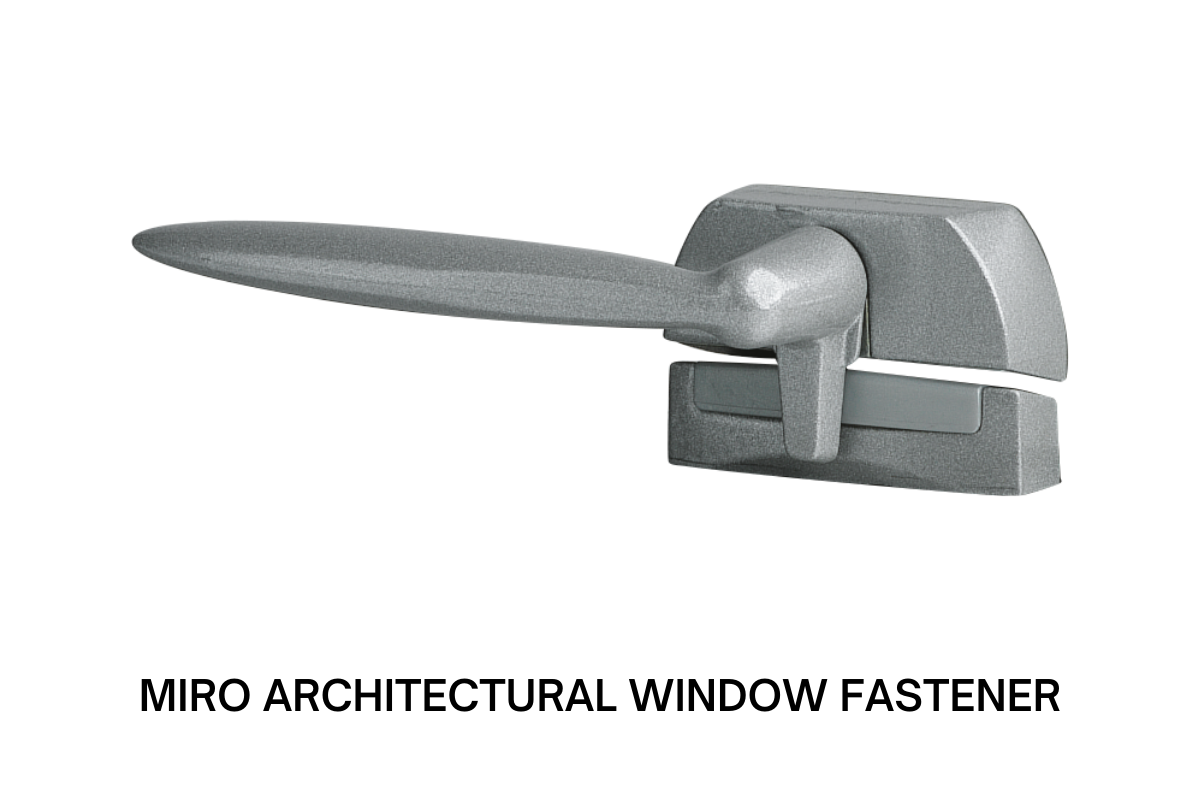

Architectural Window Fastener: Suitable for APL Architectural Series. A separate colour matching wedge is fitted to the frame or transom.

  • 100mm wide x 48mm deep

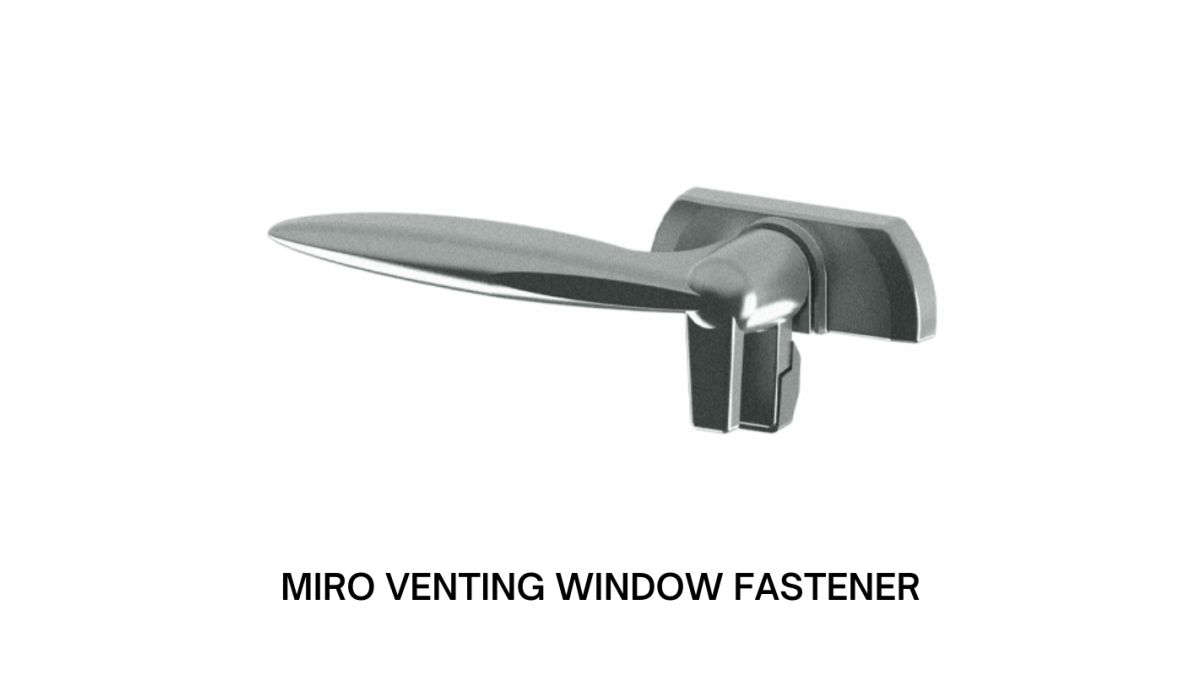

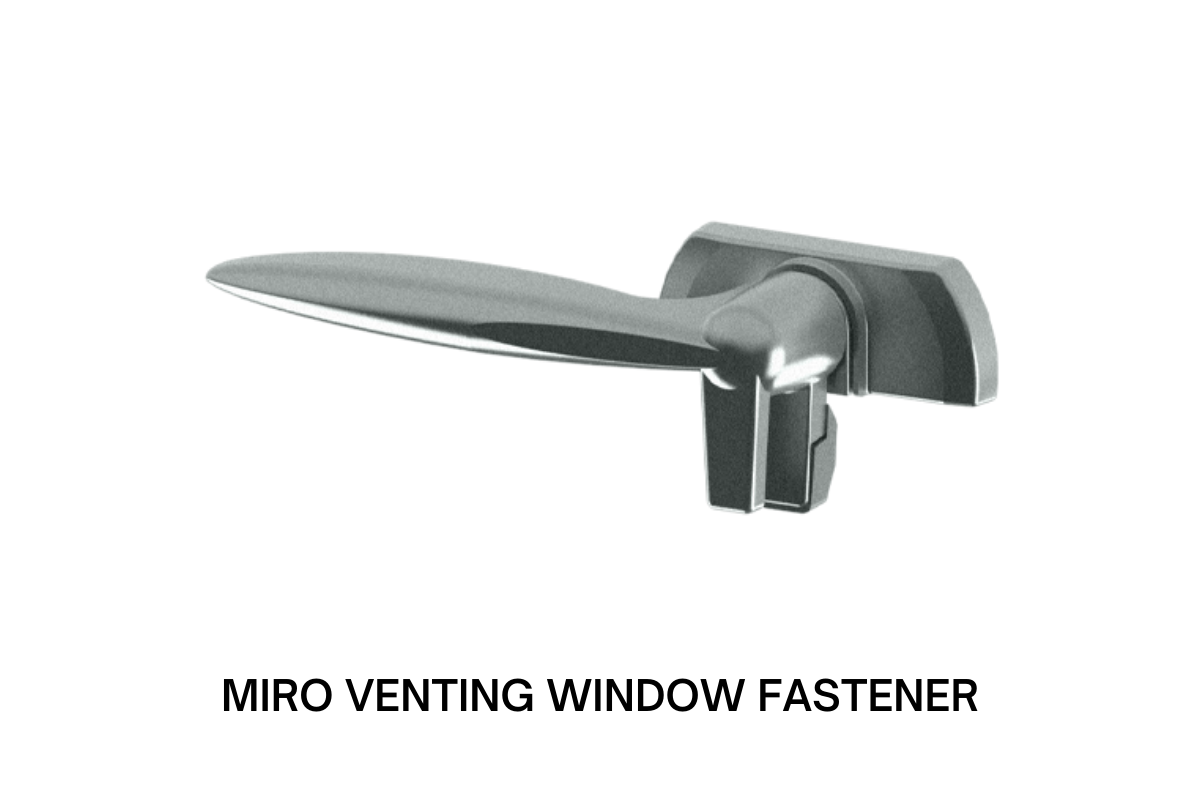

Venting Window Fastener: A venting option of the wedgeless handle is available which allows the window to be fastened in a partially open position for passive ventilation.

  • 100mm wide x 39mm deep

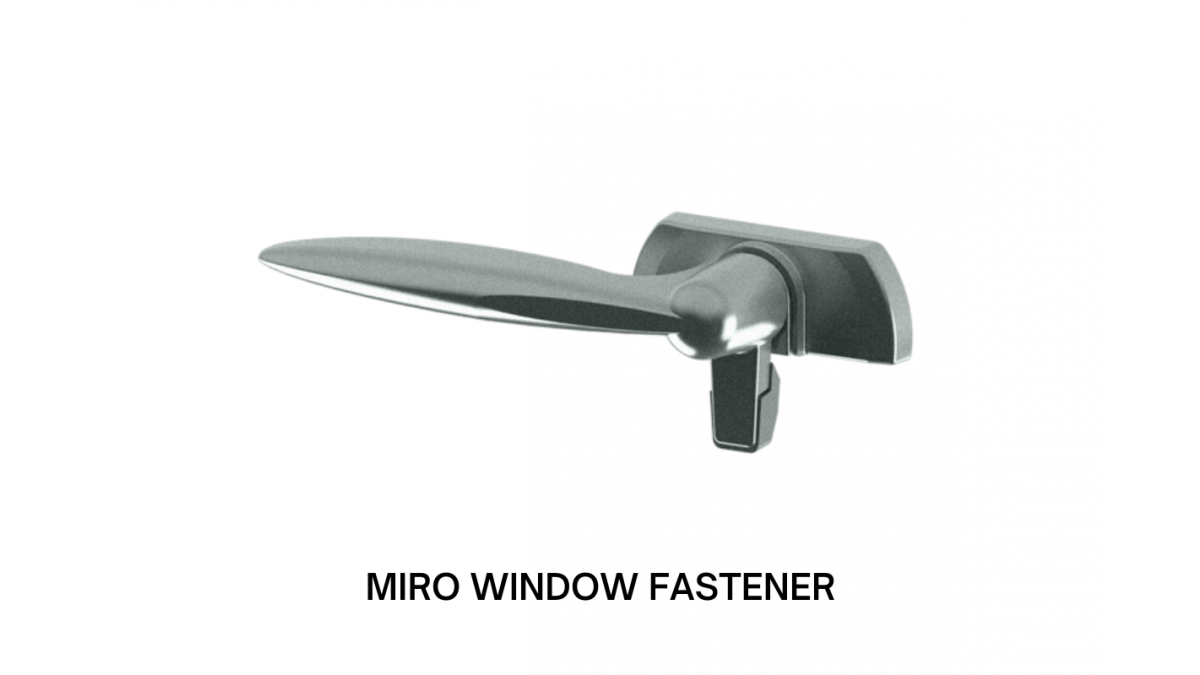

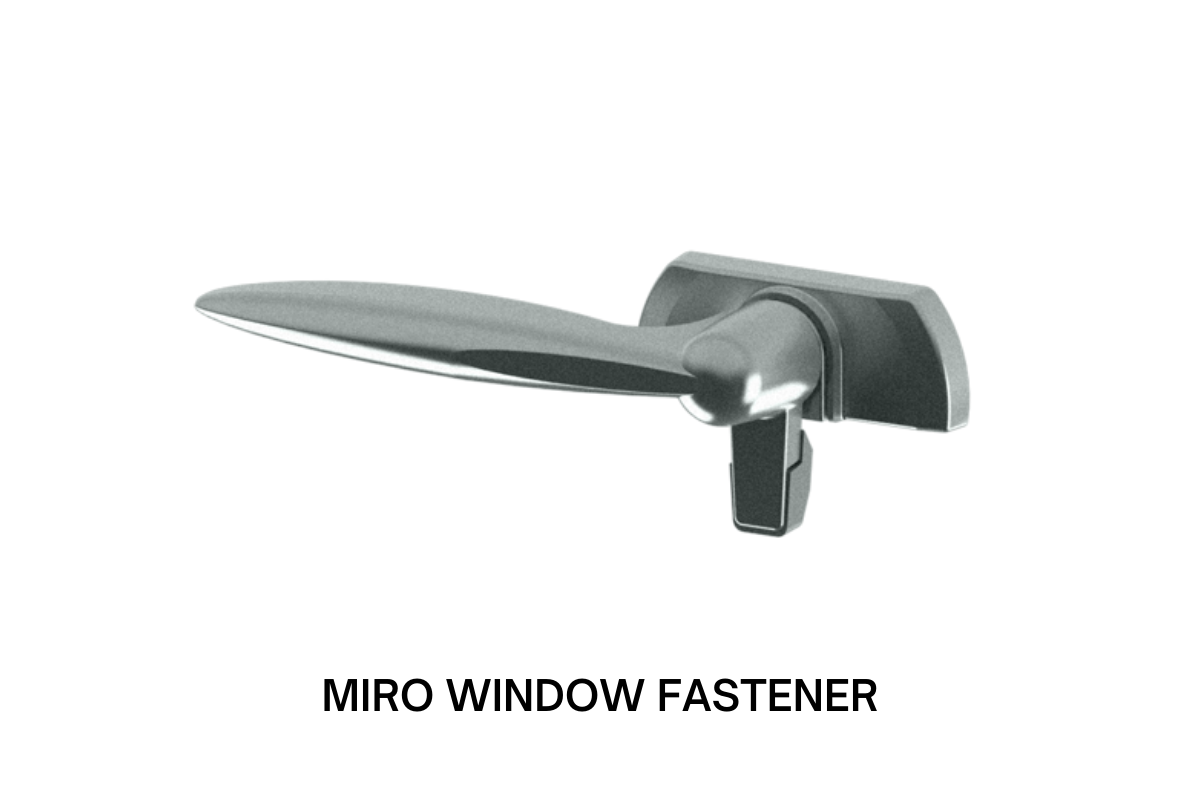

Window Fastener: Combines a sure hand grip with clean lines. The PVC closing wedge is matched to the handle colour. Available in a low profile option.

  • 100mm high x 39mm deep
Scope of Use
  • Suitable for residential and light commercial applications
Statement of Building Code Compliance

All products supplied by FIRST Windows & Doors meet or exceed the requirements of the New Zealand Building Code and New Zealand Standards; NZS4211, Performance of Windows, and NZS4223, Glazing in Buildings — Parts 1-4.

Other Performance Attributes

A warranty for all FIRST Windows & Doors products is provided, under normal conditions of use, against failure of materials and/or workmanship for a period of 5 years.
