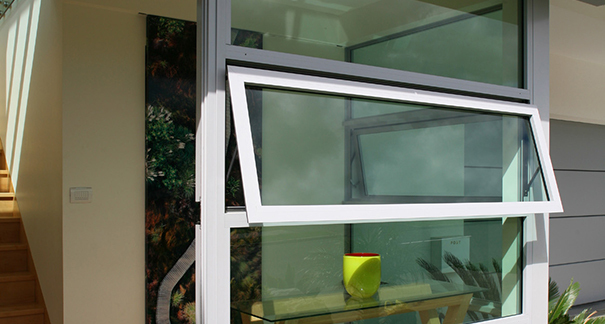

Metro Series Awning & Casement Windows
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

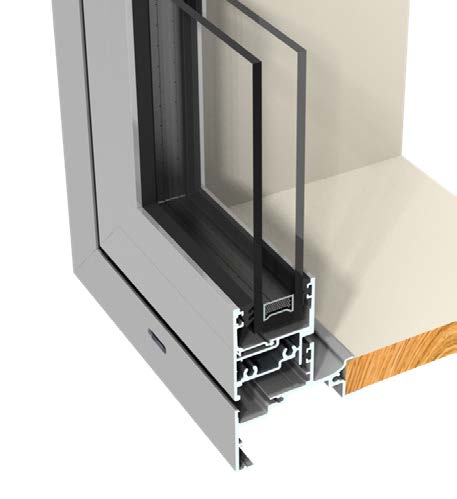

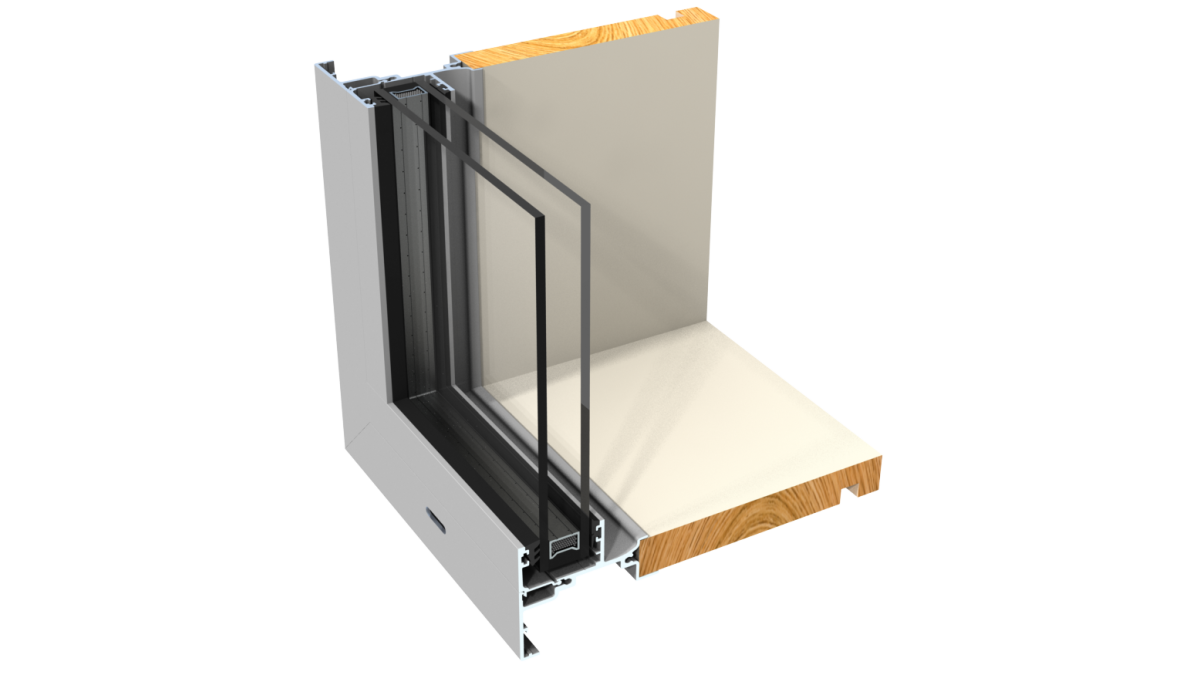

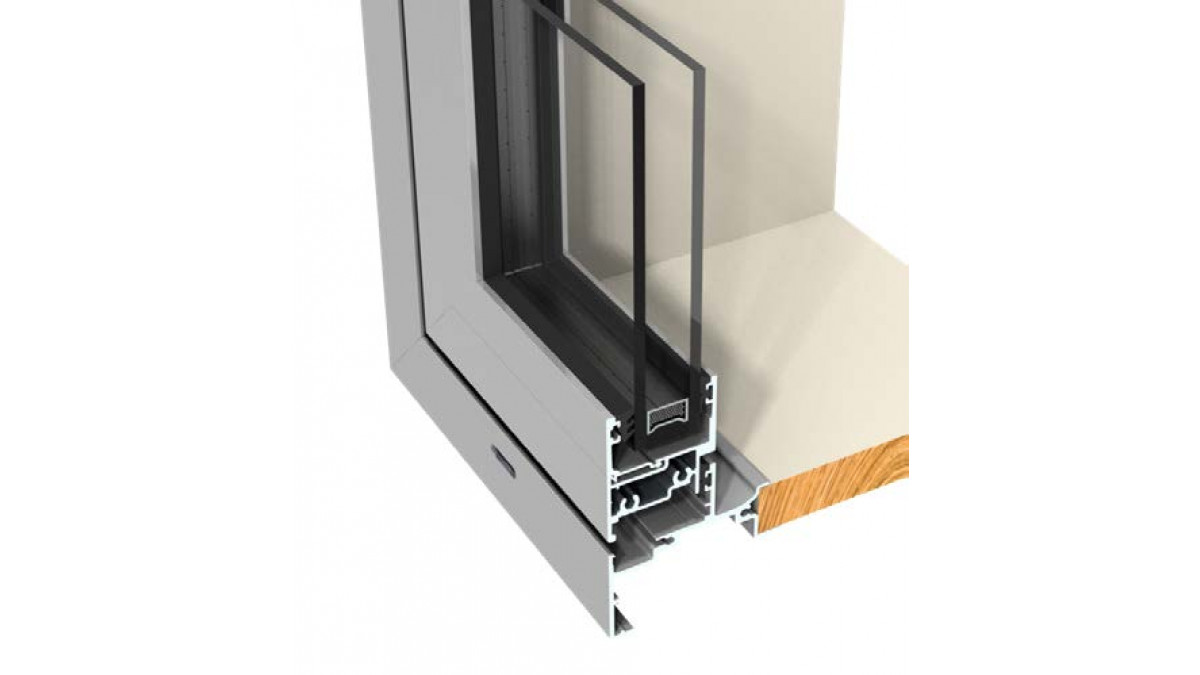

A non-facing sash is used as standard to enhance the range aesthetics emphasising clean, flat surfaces for a modern appearance. Double glazing to a maximum 28mm thickness can be used.

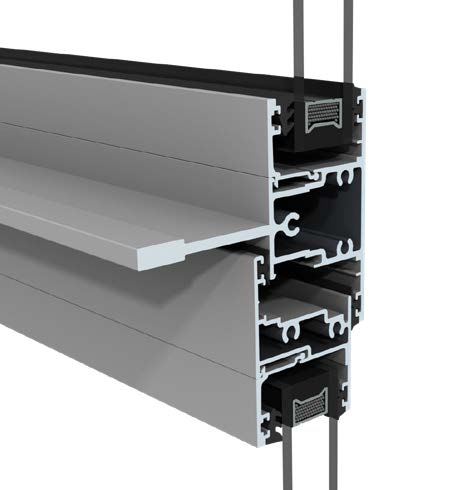

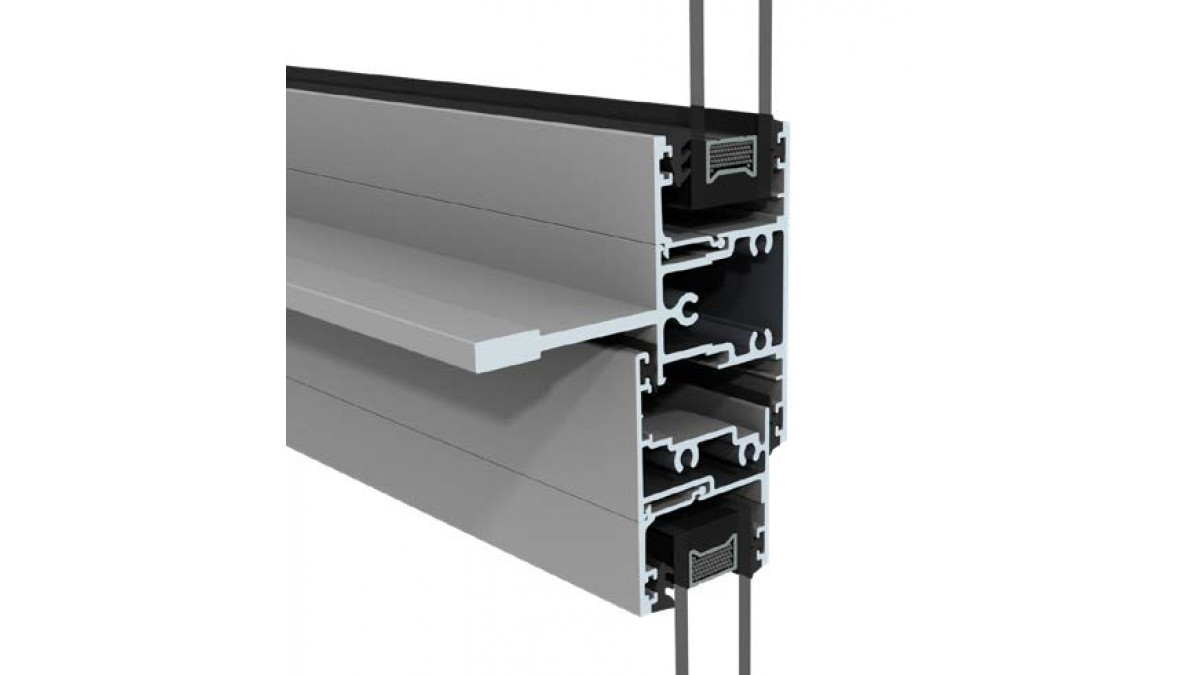

Mullions and transoms offer a choice of stiffening fins projecting internally of externally depending on window span and aesthetic considerations.

Key Features
  • A versatile, high performance product range based on a unified and contemporary design approach
  • Occupies an intermediate position between First Residential and the APL Architectural Series
  • Awning and casement sashes have a facing option and a flush, non-facing option
  • Facing sashes available in three performance grades

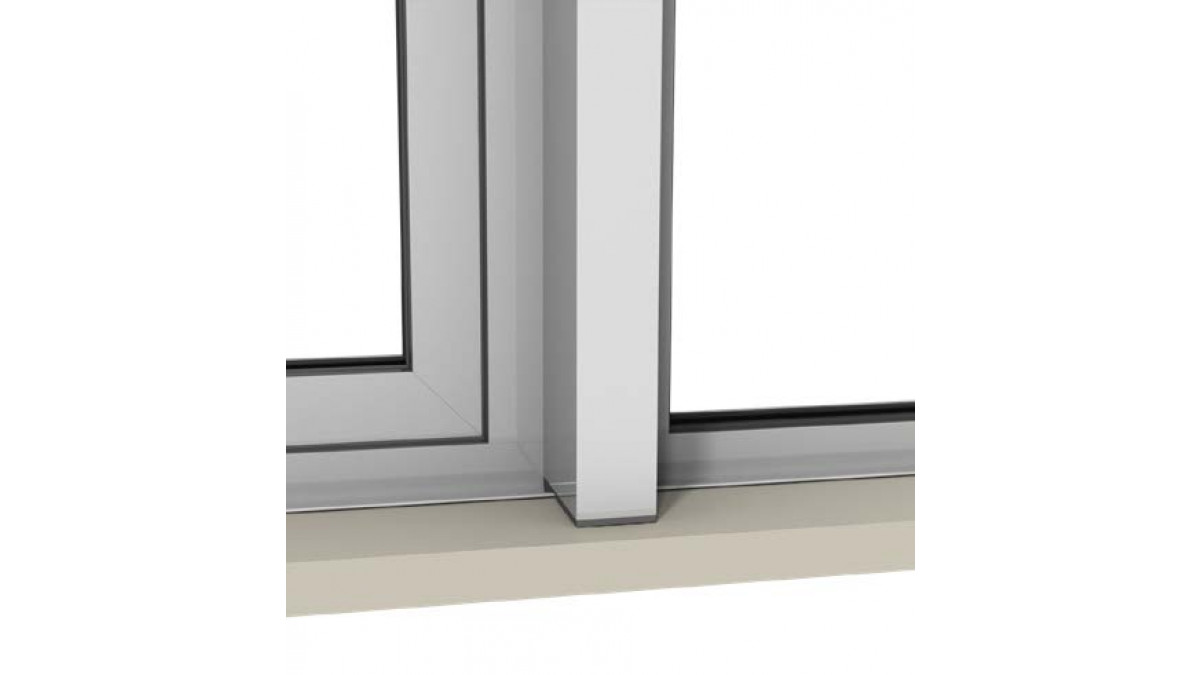

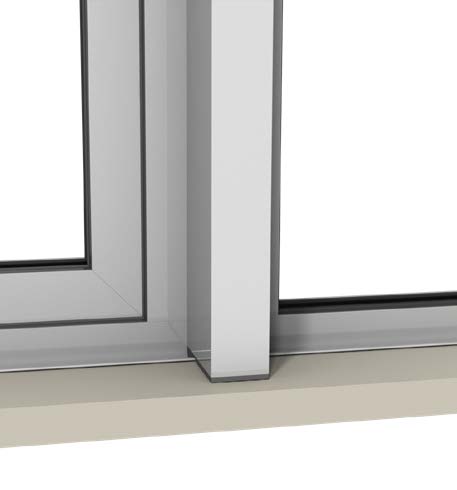

  • Mullions with external fins or internal boxes available
  • Two–point espagnolette locking available
Scope of Use
  • Suitable for most residential environments in larger sizes

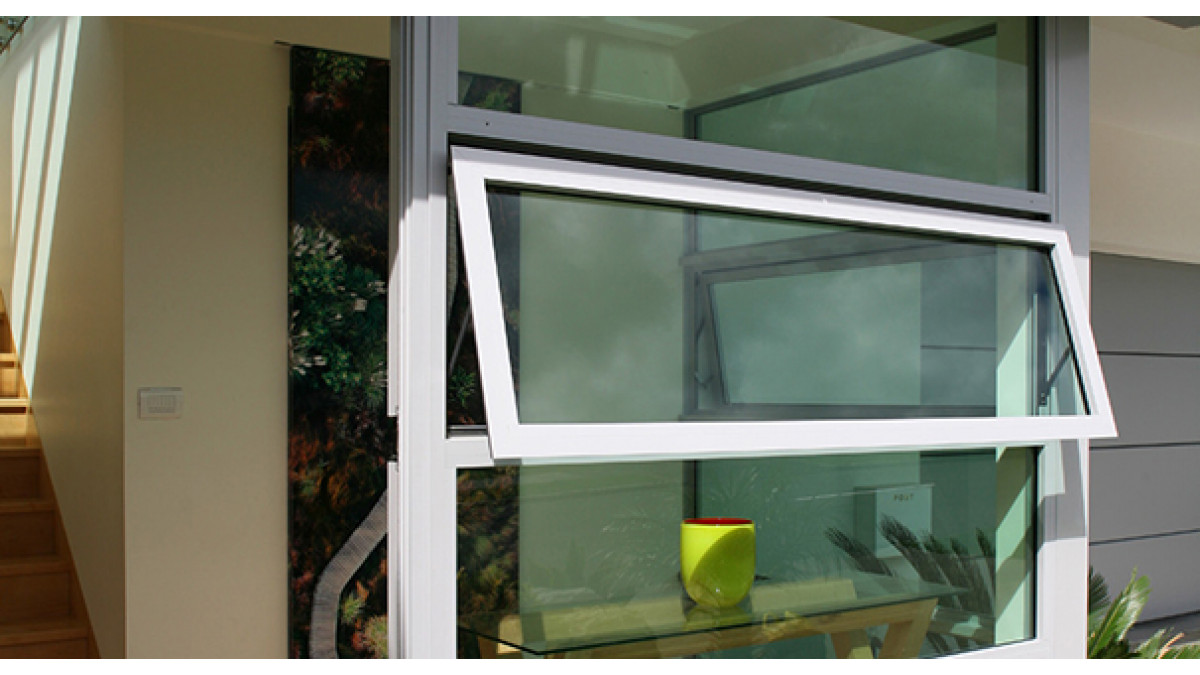

  • Awning windows provide versatile ventilation with a good degree of weather protection
  • Casements can direct breezes inside and have a traditional aesthetic
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
  • Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
  • Consider a horizontal sliding window to protect walkways
  • Caution is required for the use of casements which open directly into prevailing winds
  • Casements beyond benches may have top fasteners that are hard to reach.
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2006
  • Design upgrades regularly released
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed



Documents
Data Sheet
Span Tables
Declare Label

2021

First Care, Maintenance & Warranty Brochure (with AGP)

2020

FIRST on Masterspec
Full Specification
Specification Clause
Specifier Guide
WGANZ Guide to E2/AS1

1 August 2019

First Brochure

2014

Sound Solutions Brochure

2020

AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

FMAW

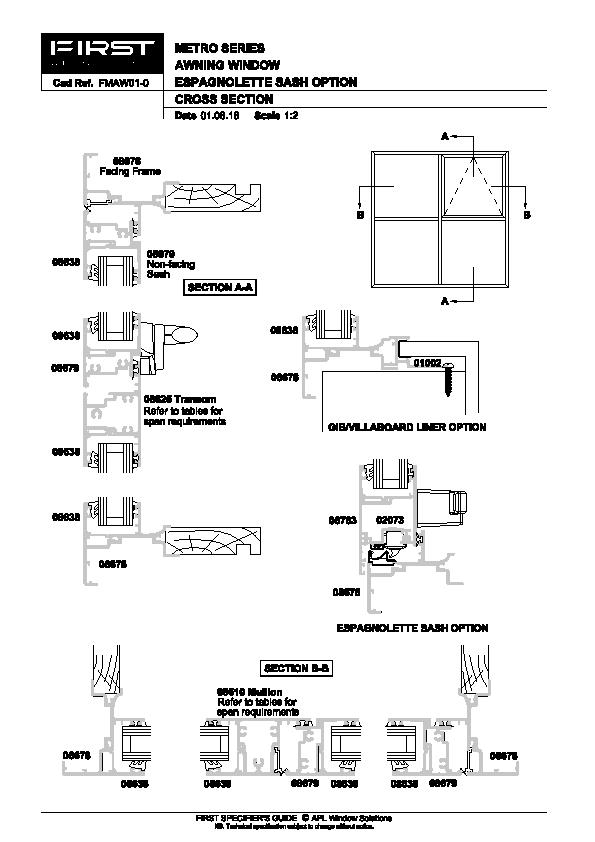

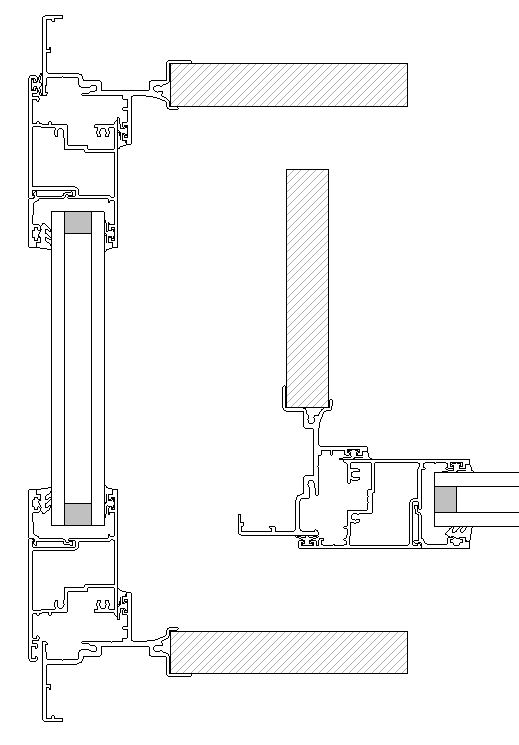

FIRST Metro Series Awning Window Beaded Sash, Flat Facing and Espagnolette Sash

FMAW01-0

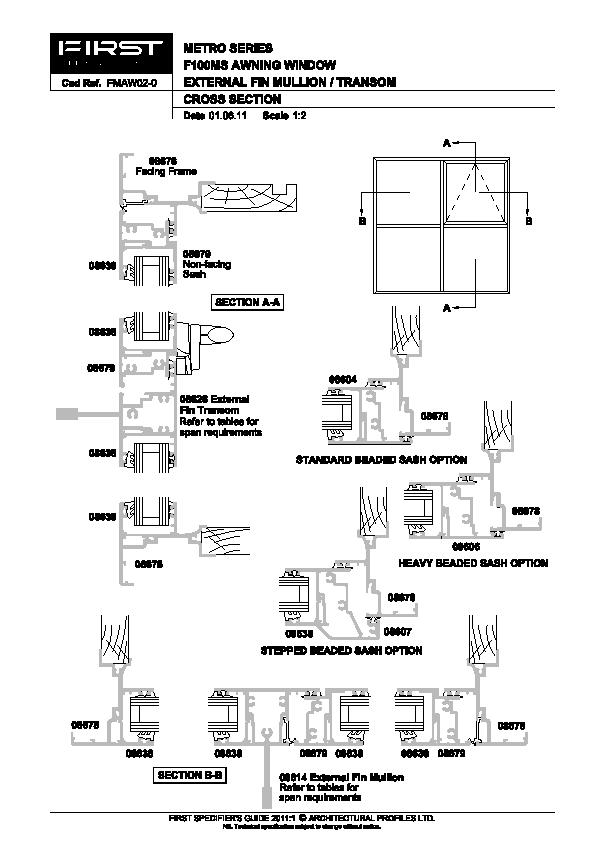

FIRST Metro Series Awning Window External Fin Mullion / Transom

FMAW02-0

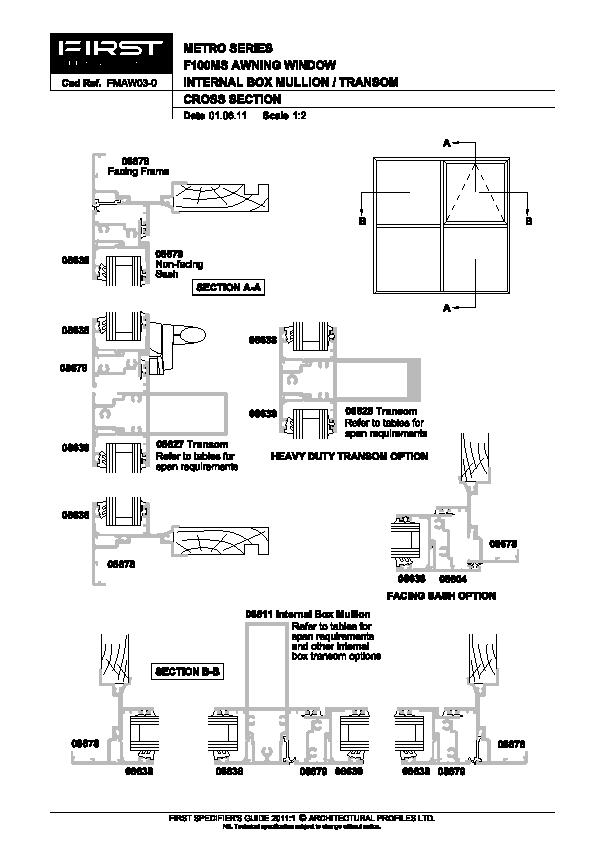

FIRST Metro Series Awning Window Internal Box Mullion / Transom

FMAW03-0

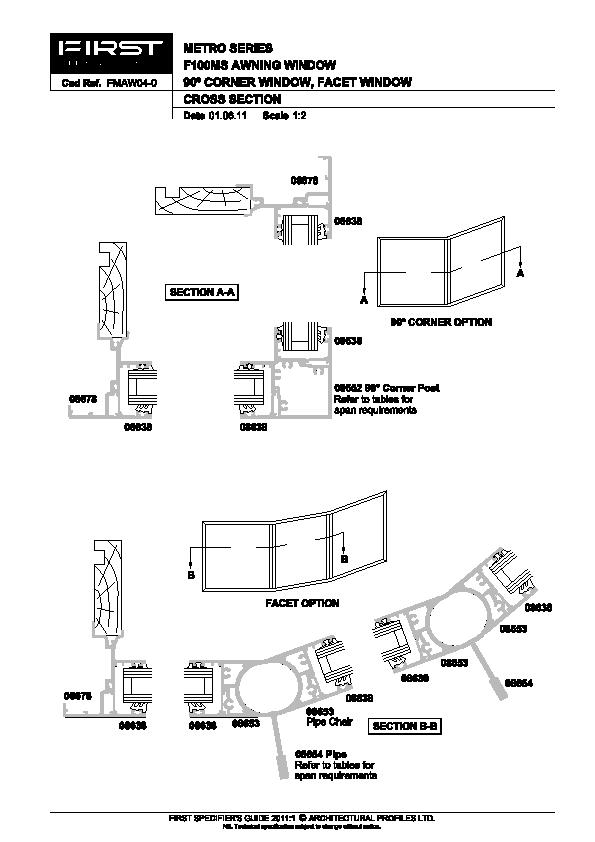

FIRST Metro Series Awning Window, 90° Corner Window, Facet Window

FMAW04-0

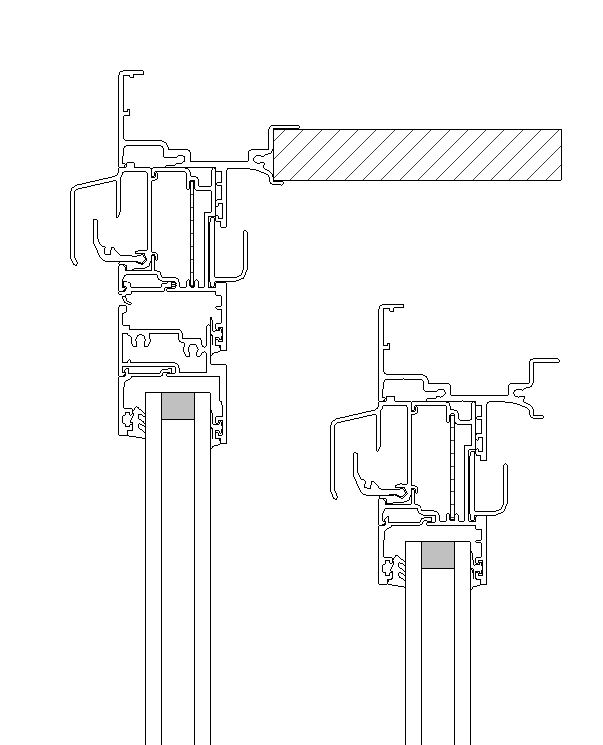

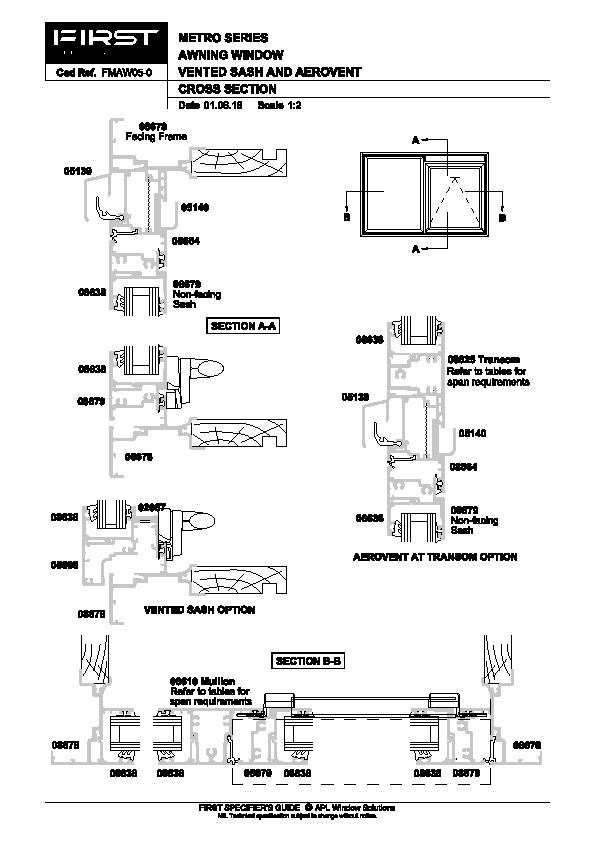

FIRST Metro Series Awning Window Vented Sash and Aerovent

FMAW05-0

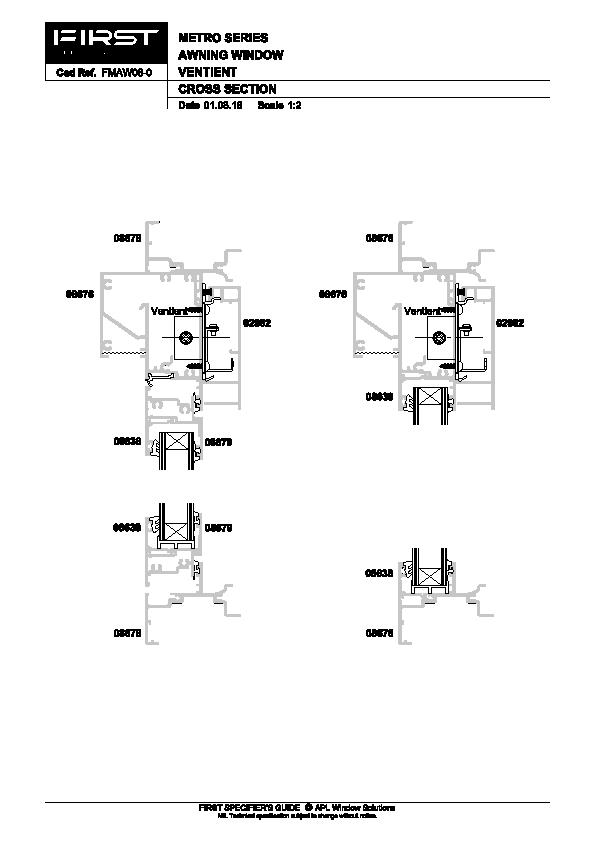

FIRST Metro Awning Window Ventient

FMAW06-0

Installation Details

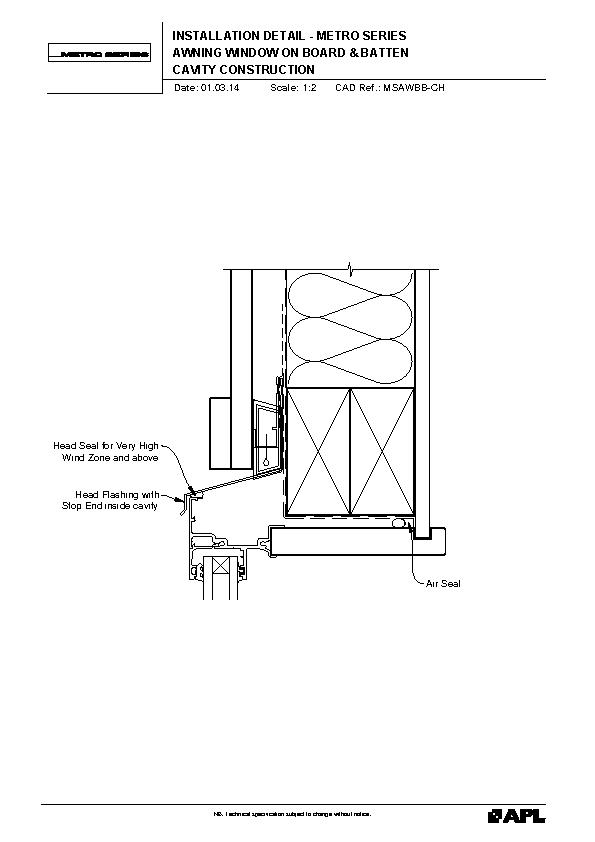

FIRST Metro Series Awning Window on Board and Batten

MSAWBB

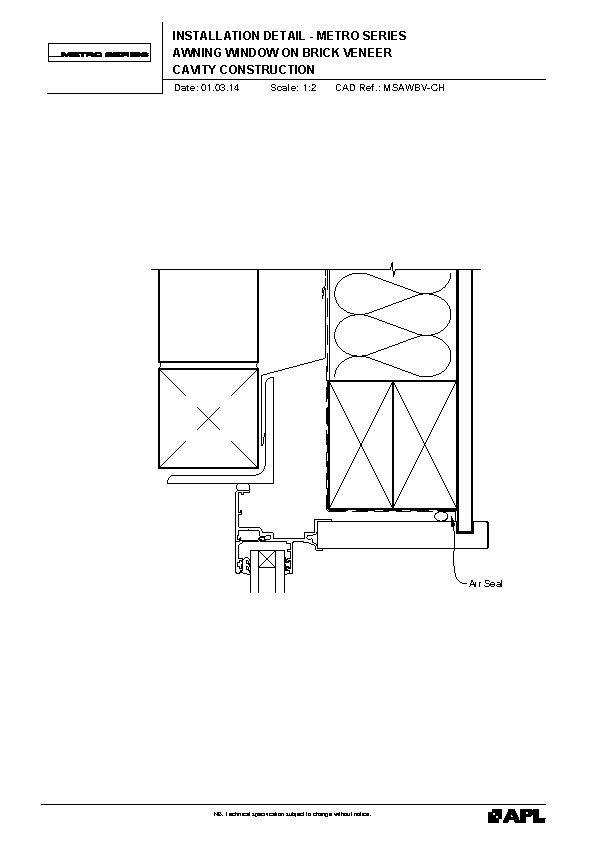

FIRST Metro Series Awning Window on Brick Veneer

MSAWBV

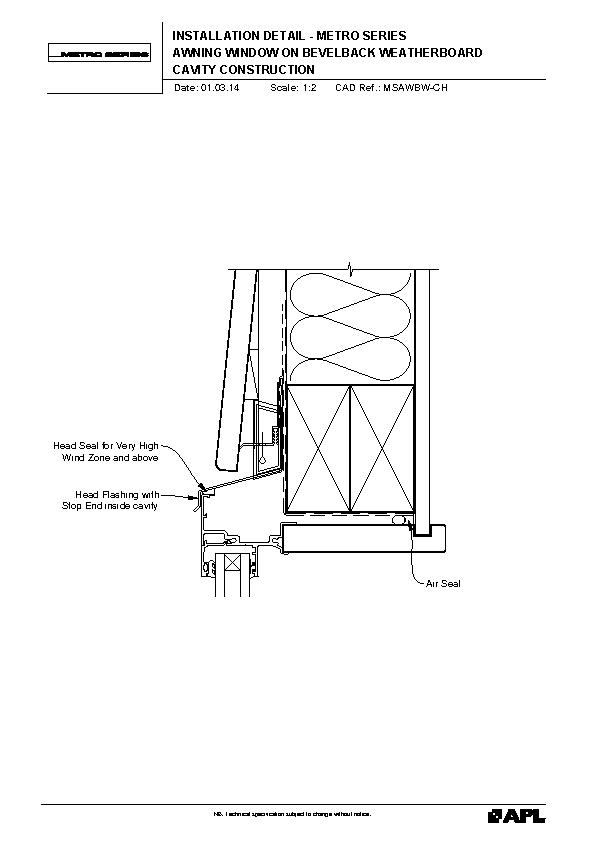

FIRST Metro Series Awning Window on Bevelback Weatherboard

MSAWBW

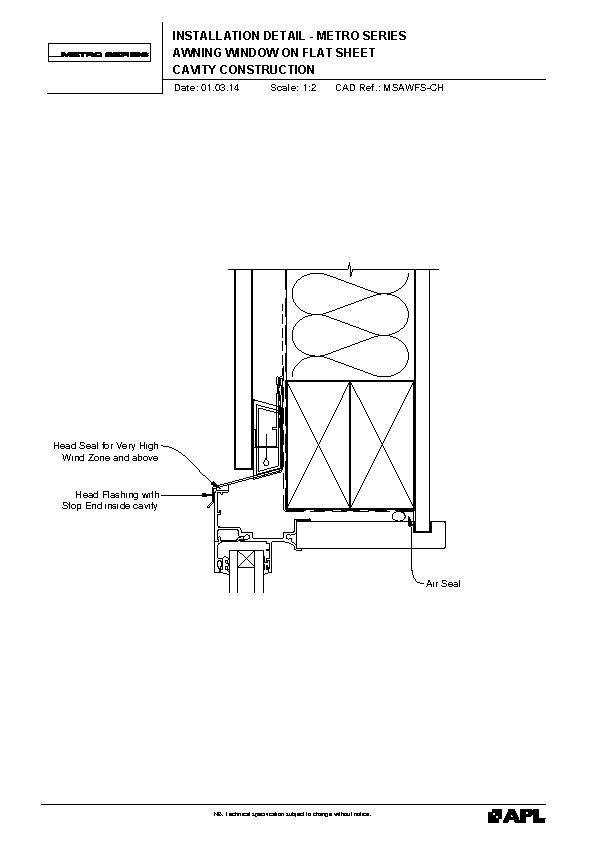

FIRST Metro Series Awning Window on Flat Sheet

MSAWFS

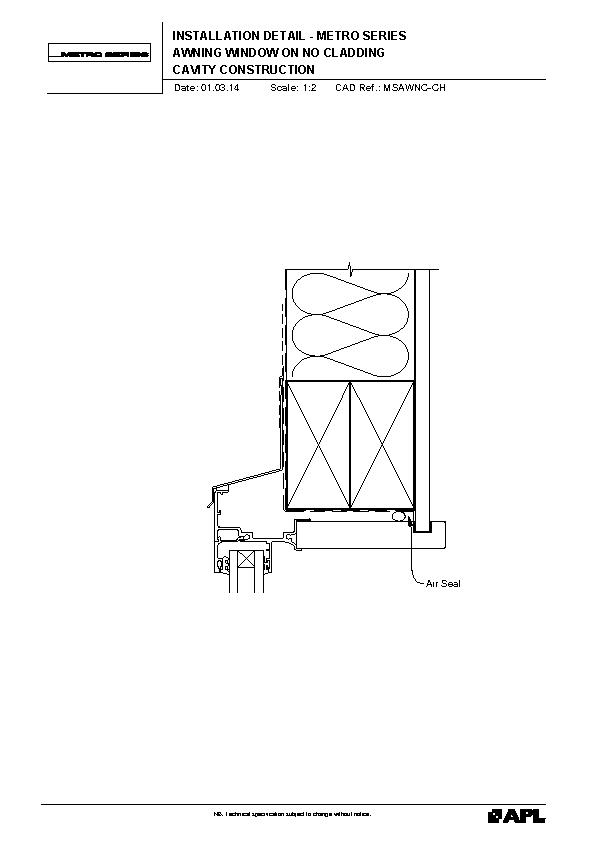

FIRST Metro Series Awning Window on No Cladding

MSAWNC

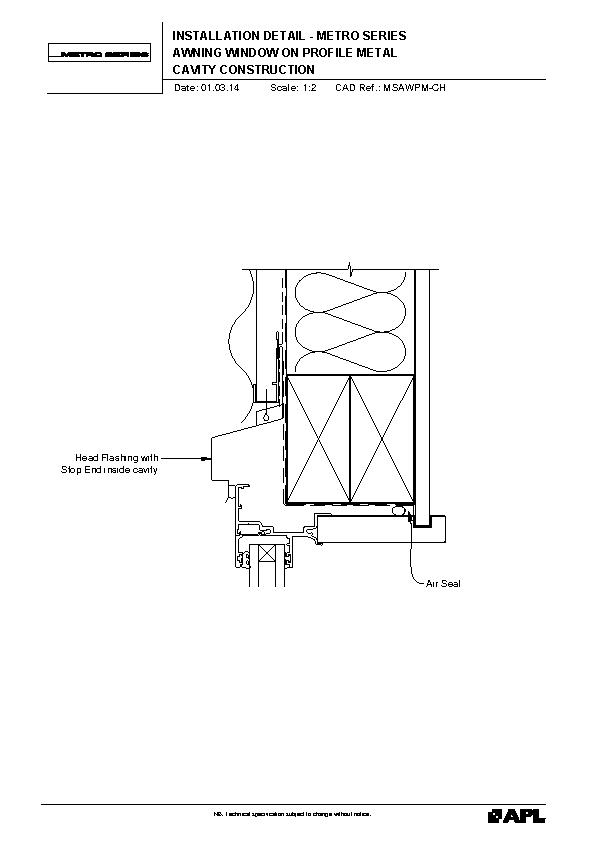

FIRST Metro Series Awning Window on Profile Metal

MSAWPM

FIRST Metro Series Awning Window on Rusticated Weatherboard

MSAWRW

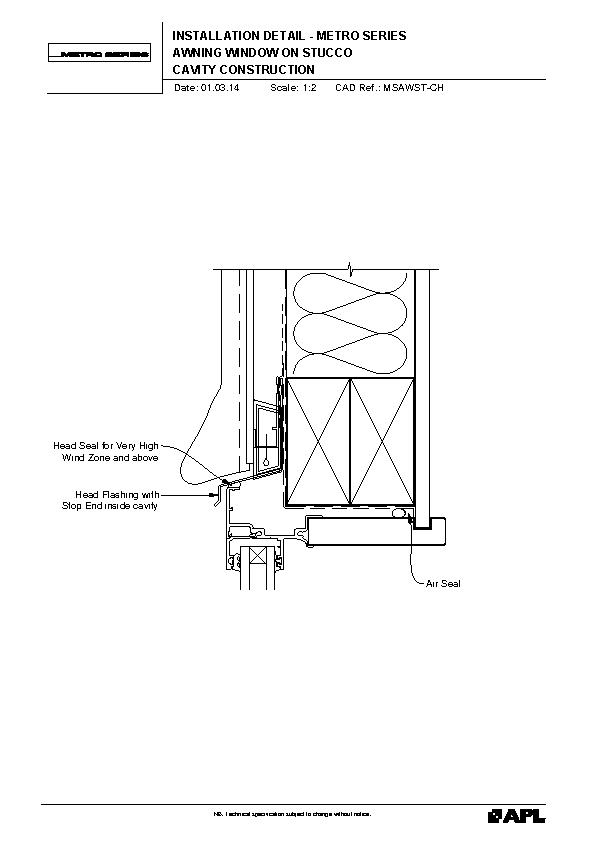

FIRST Metro Series Awning Window on Stucco

MSAWST

BIM
APL Internal Liner Infills and Adaptors

Revit LT 2020

APL Metro Series Awning Window with Mullion and Transom

Revit LT 2020

FIRST Metro Series Awning Sash / Fixed

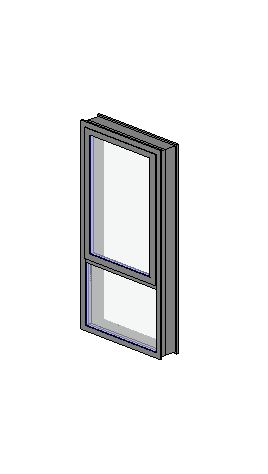

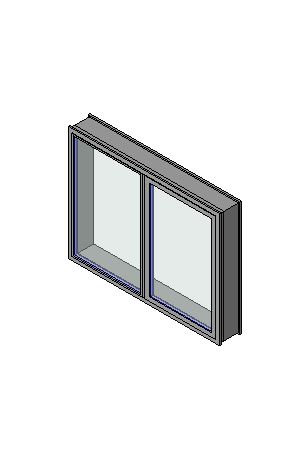

FIRST Metro Series Awning Window
FIRST Metro Series Casement Sash / Fixed
Metro Series Awning Window Espagnolette Sash

Revit LT 2020

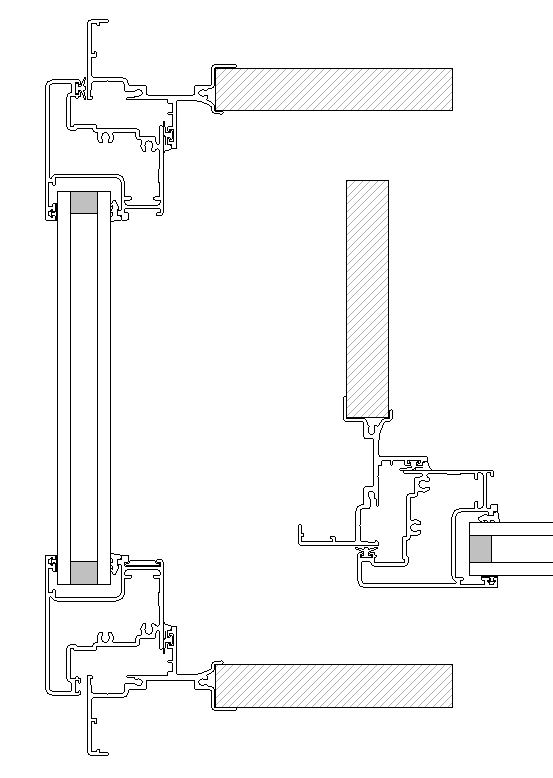

Metro Series Awning Window Vented Sash

Revit LT 2020

Metro Series Awning Window with Aerovent

Revit LT 2020

Metro Series Awning Window with Ventient

Revit LT 2020
