FIRST Commercial 125mm, 150mm and 168mm Structural Glaze Systems
Description

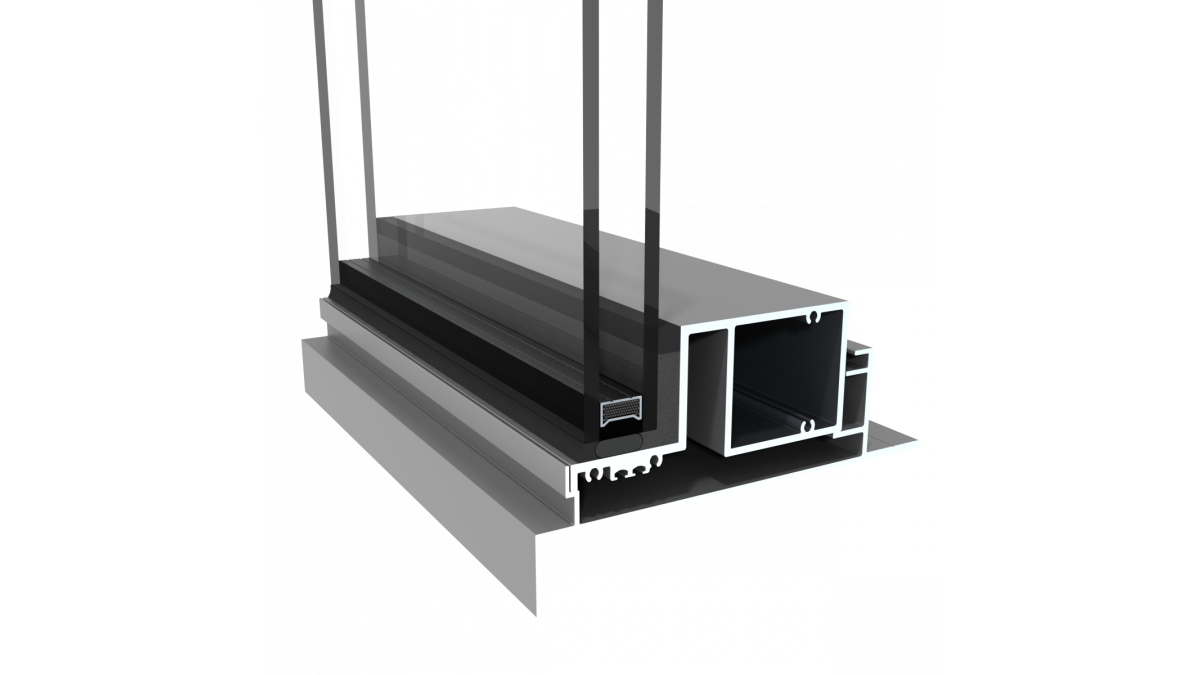

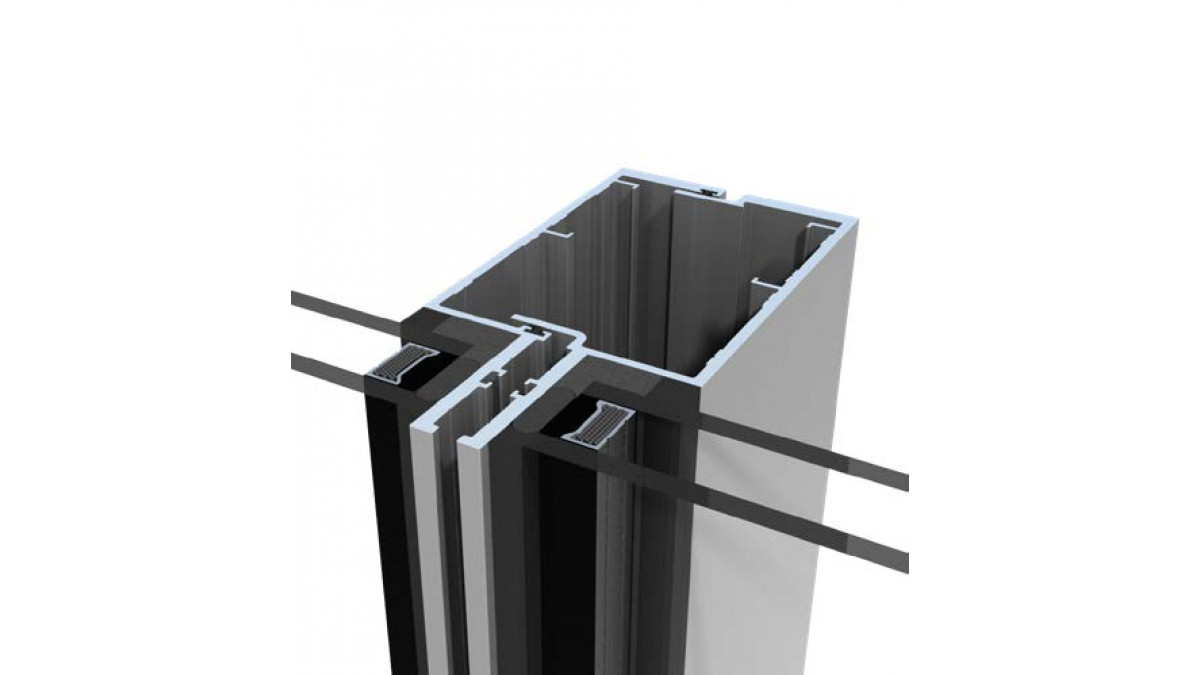

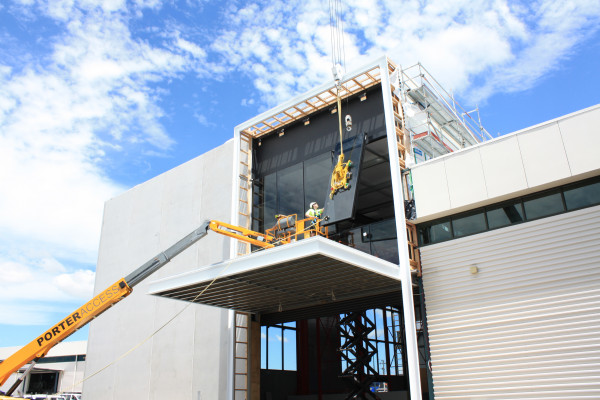

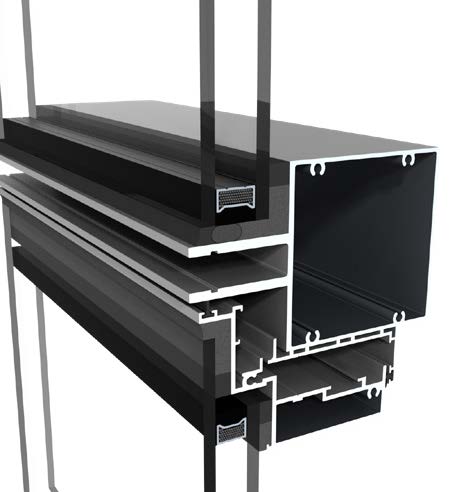

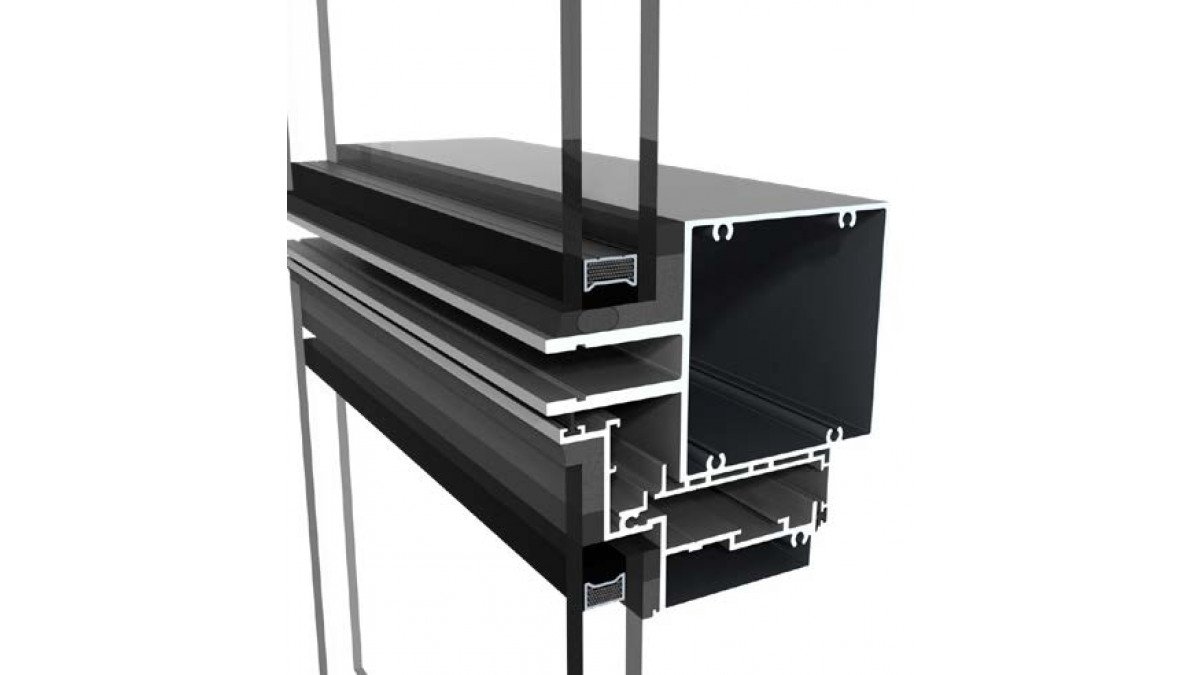

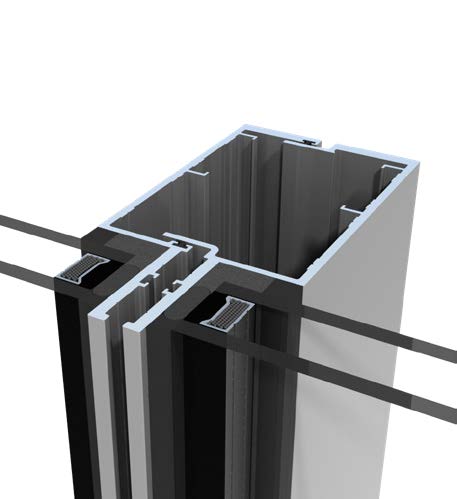

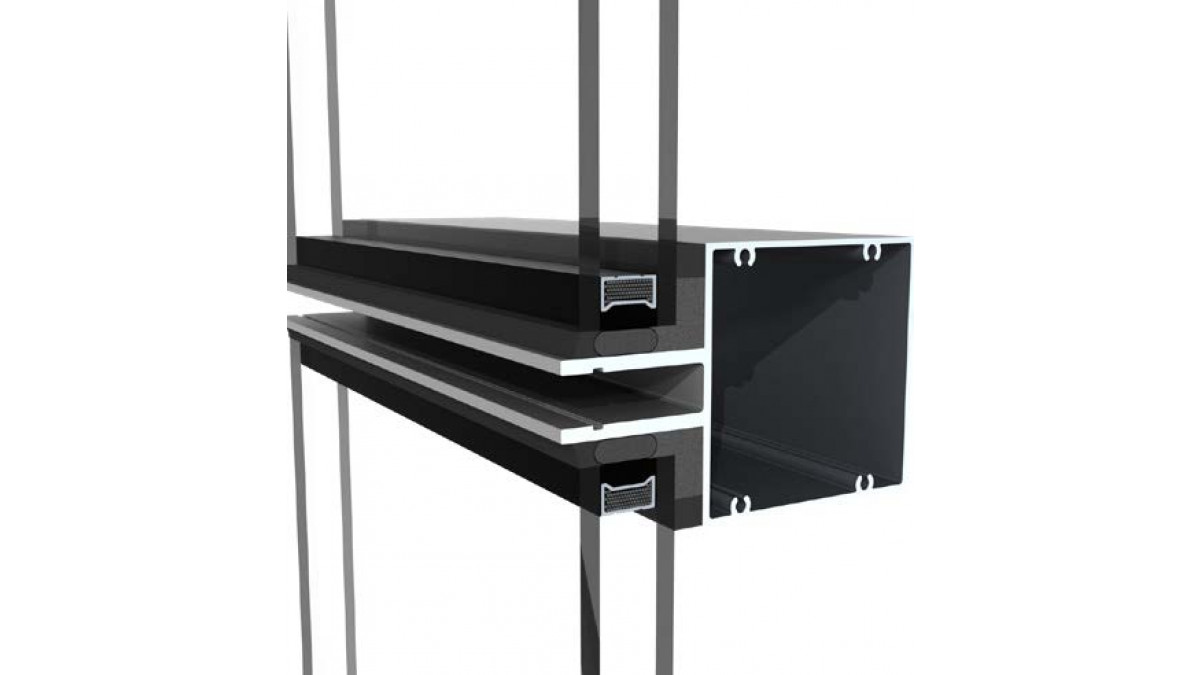

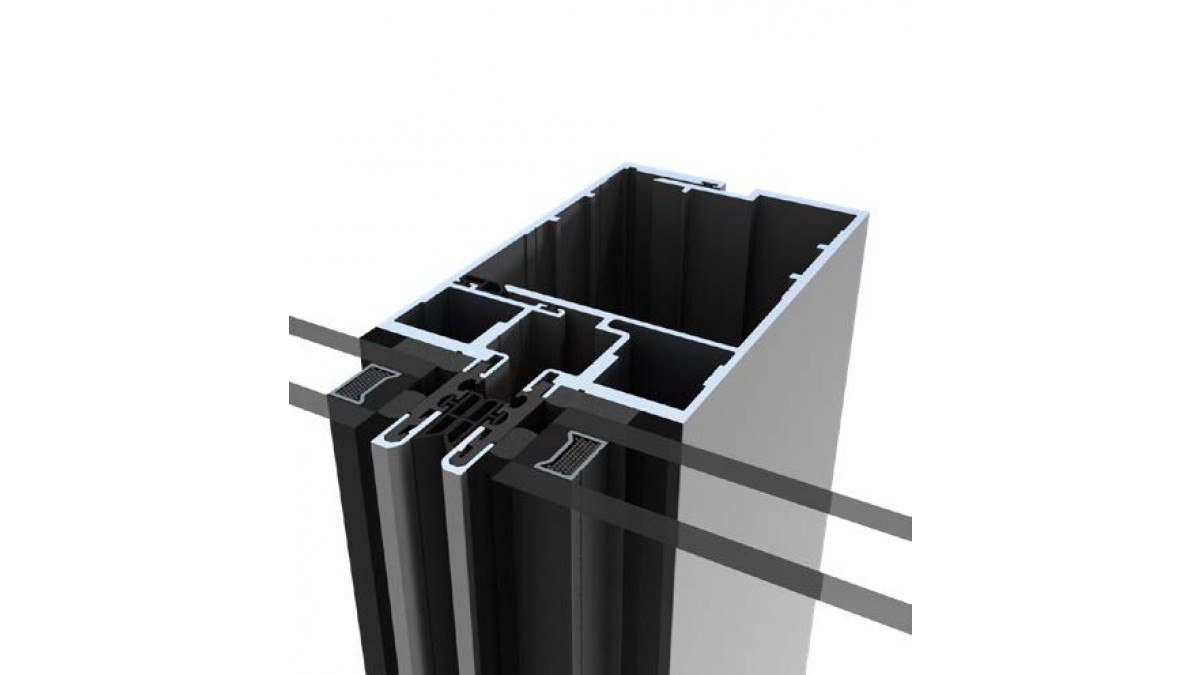

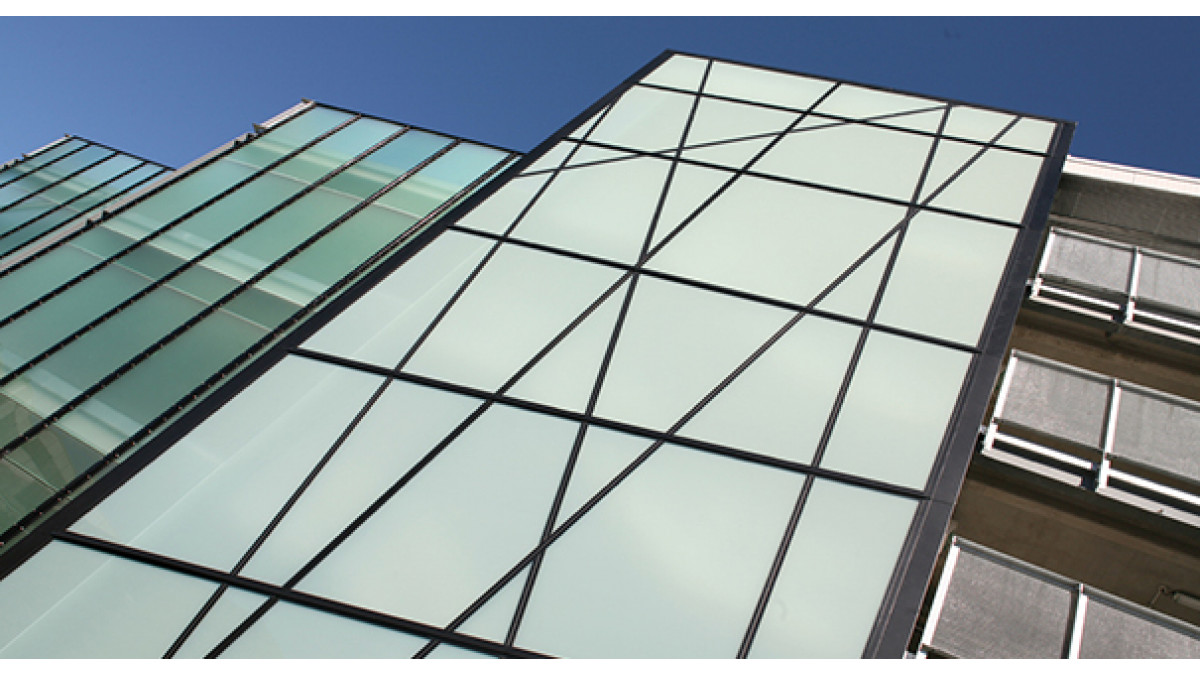

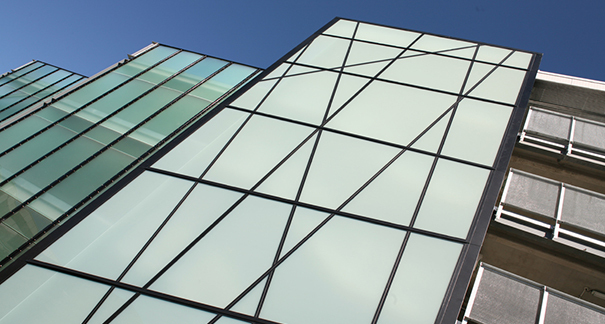

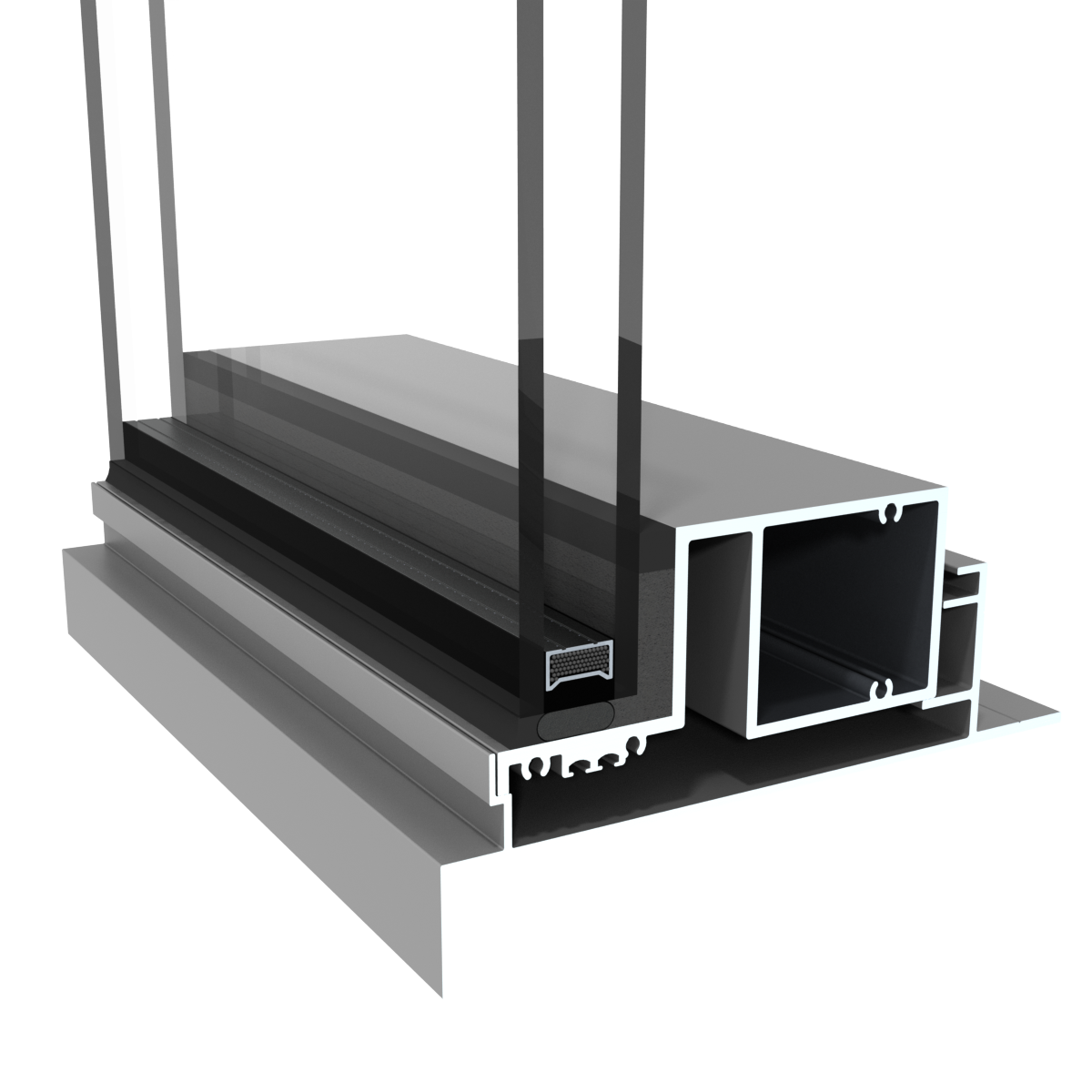

A four-sided structural glazed, fully panelised system for low to high rise applications. Glass is adhered to the outer edge of the extrusions, reducing the visual effect of aluminium as viewed from the outside.

Opening sashes can be incorporated in the façade without interrupting the glass look. Sun control fins can be added to the outside of transoms and provide a strong horizontal decorative element.

Key Features
  • For low to high rise applications
  • Four systems with different levels of performance available
  • A four-sided structural glazed, fully panelised system
  • Glazing is on the outer edge of the extrusions, reducing the visual effect of aluminium as viewed from the outside

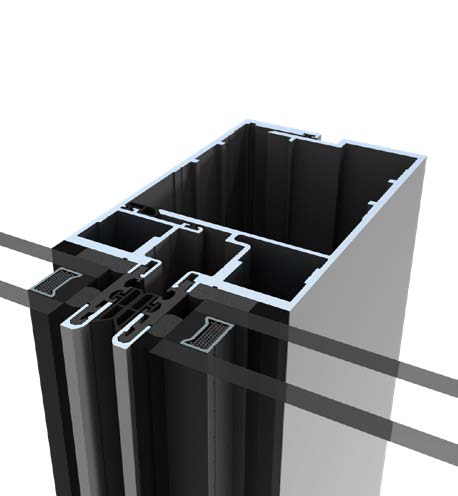

  • The 168mm system has a thermally broken and shielded option available
  • Unobtrusive opening sashes for natural ventilation
  • Single and double glazing options, including within the same façade with retention of the glass plane

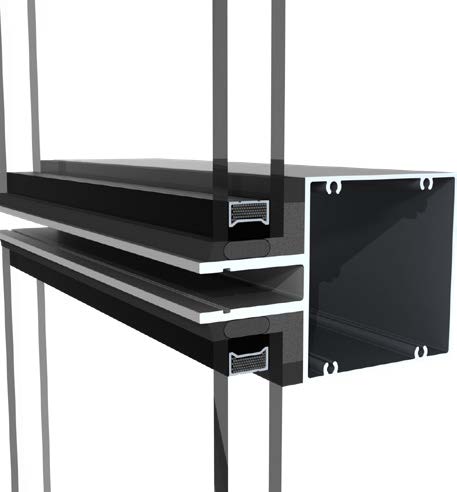

  • Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line
  • Can be used as a strip curtain wall system
Scope of Use
  • For low to high rise applications
  • Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure
  • Where thermal efficiency is a high priority, the 168mm thermally shielded system is recommended
  • Shop drawings can be supplied when specified
  • Compatible with Magnum commercial doors.
Limitations on Use
  • Project-specific flashings and brackets are often required and are supplied by the window manufacturer
  • Tested to Very High wind zones and beyond but projects may require project-specific testing
  • Shop drawings can be supplied when specified
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2001
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed.
Literature
Product Assurance
Data Sheet
Span Tables: 125, 150mm
Span Tables: 168mm
Specifier Guide
Warranty
Other Literature
APL and Sustainability 2017
First Care & Maintenance Brochure 2017
Manufacturer Contact List
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings
Full Set of Drawings

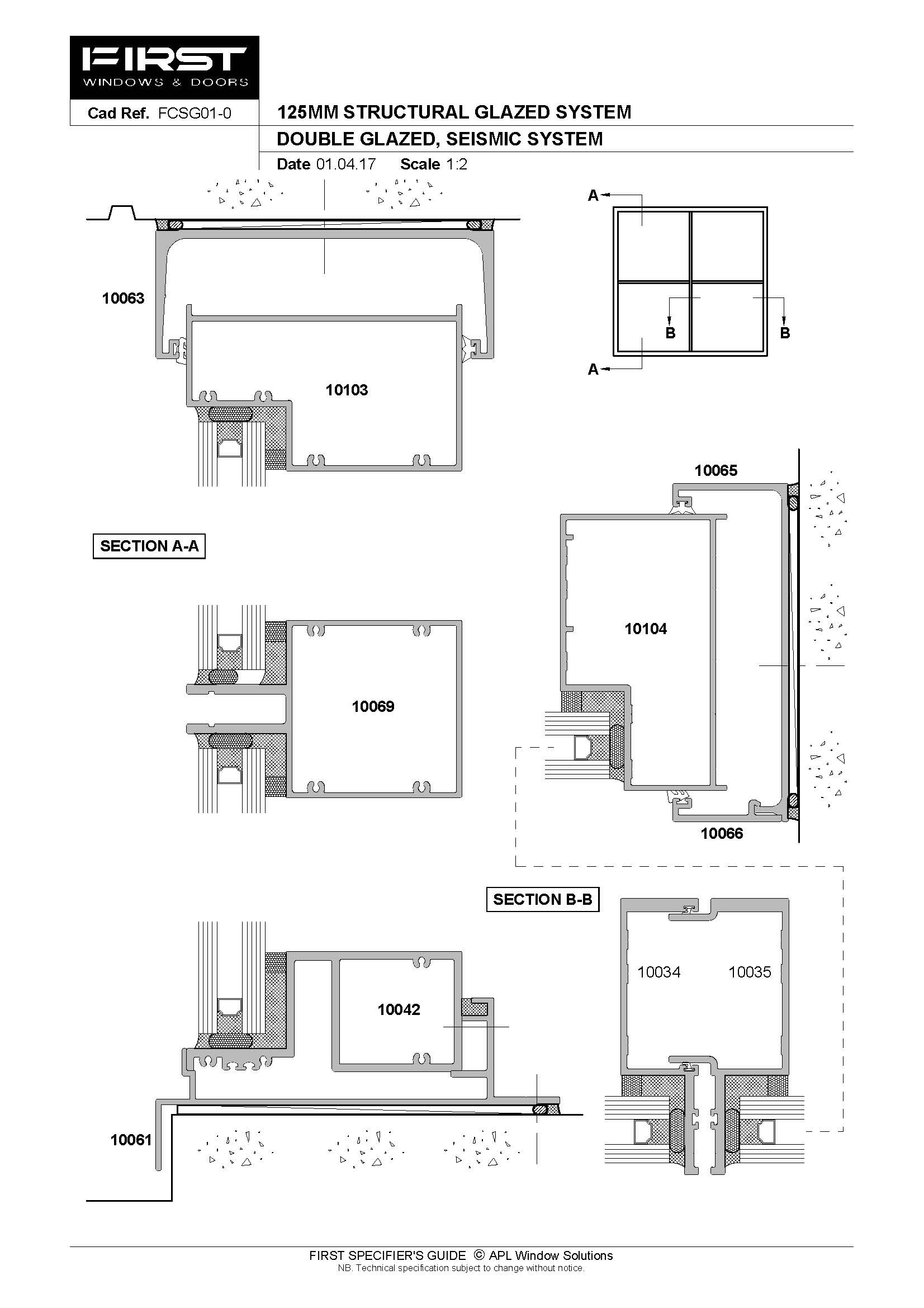

FIRST Commercial 125mm Structural Glazed

FCSG01-0

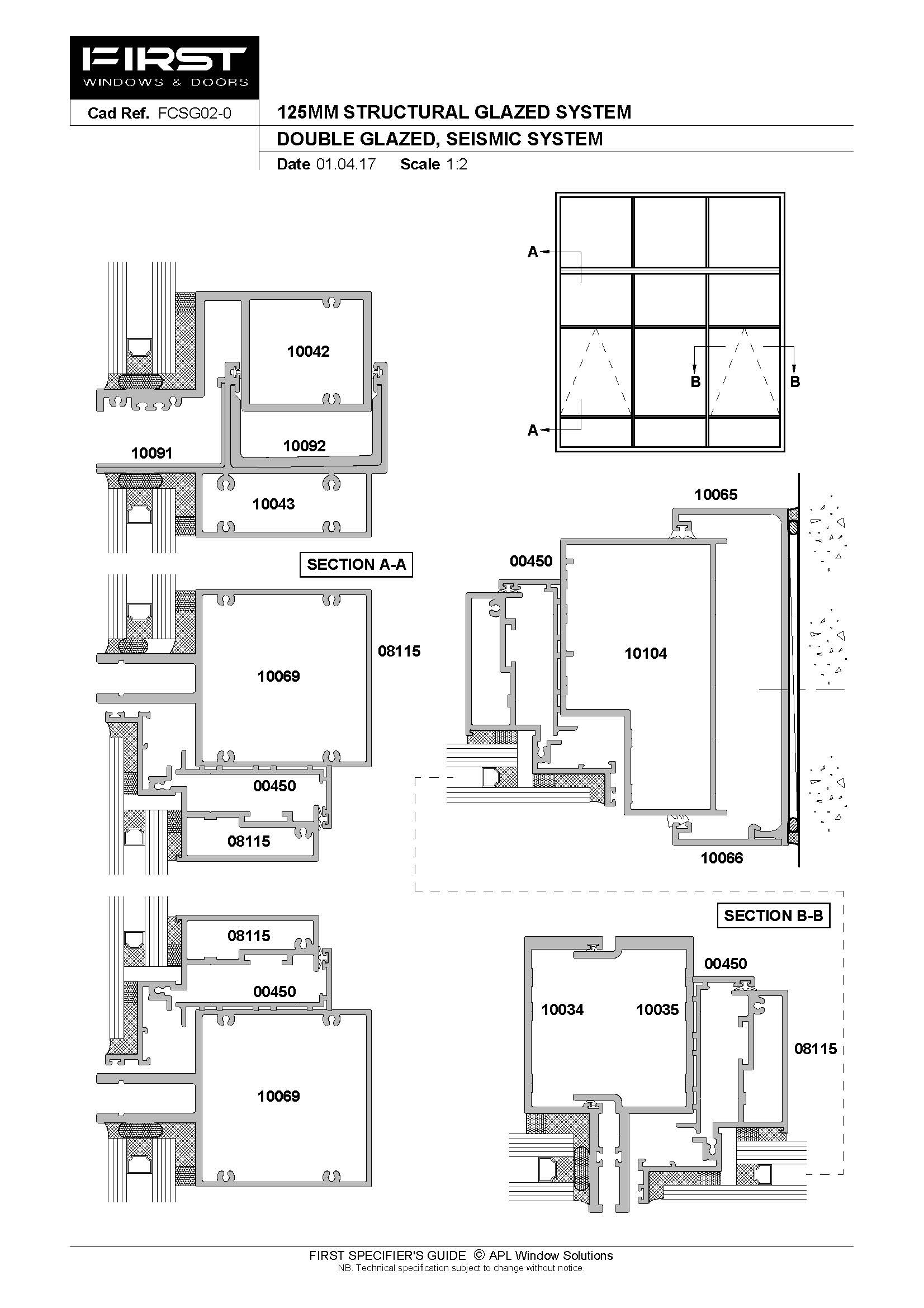

FIRST Commercial 125mm Structural Glazed, Sash

FCSG02-0

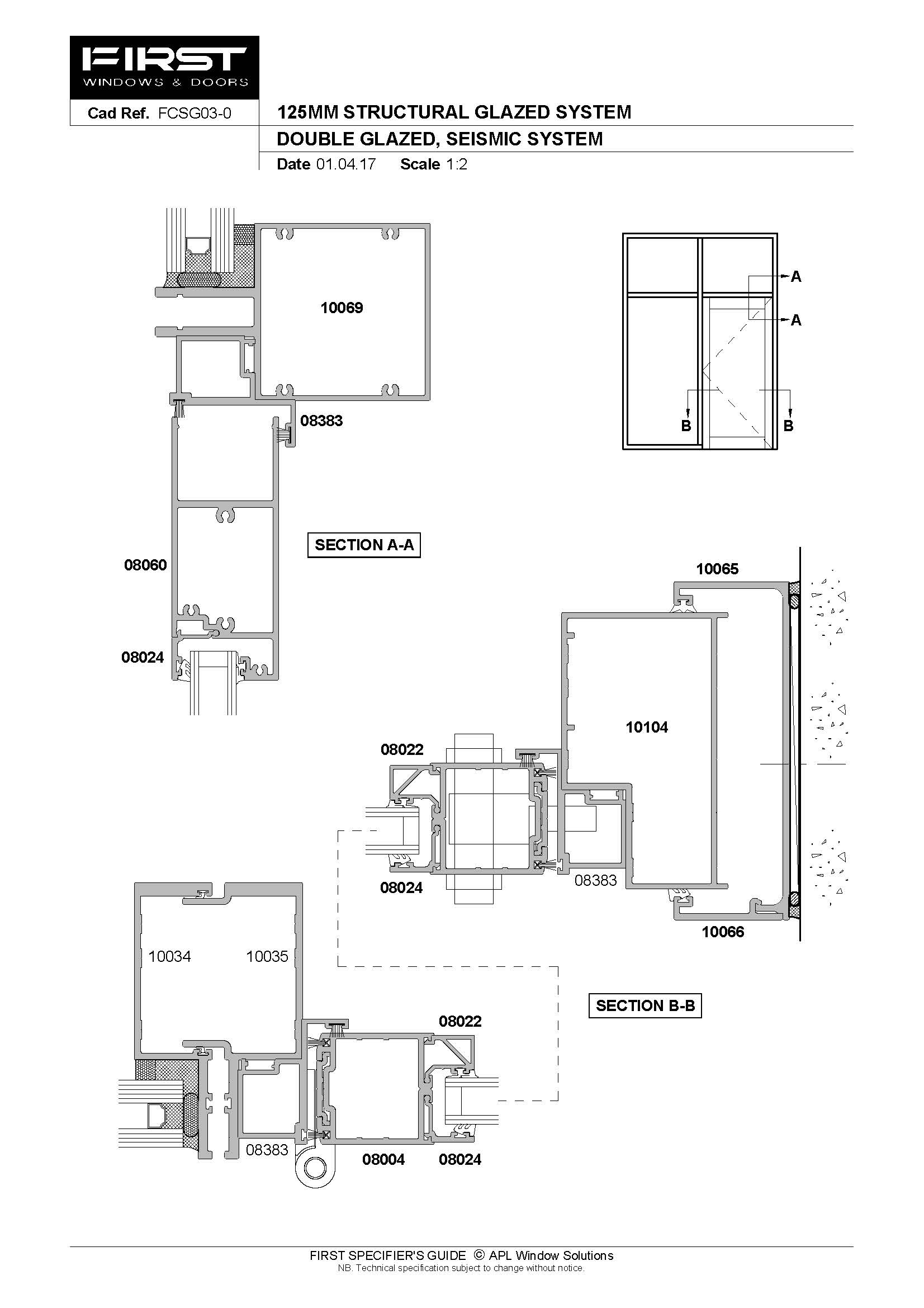

FIRST Commercial 125mm Structural Glazed, Double Glazed Door Adaptor

FCSG03-0

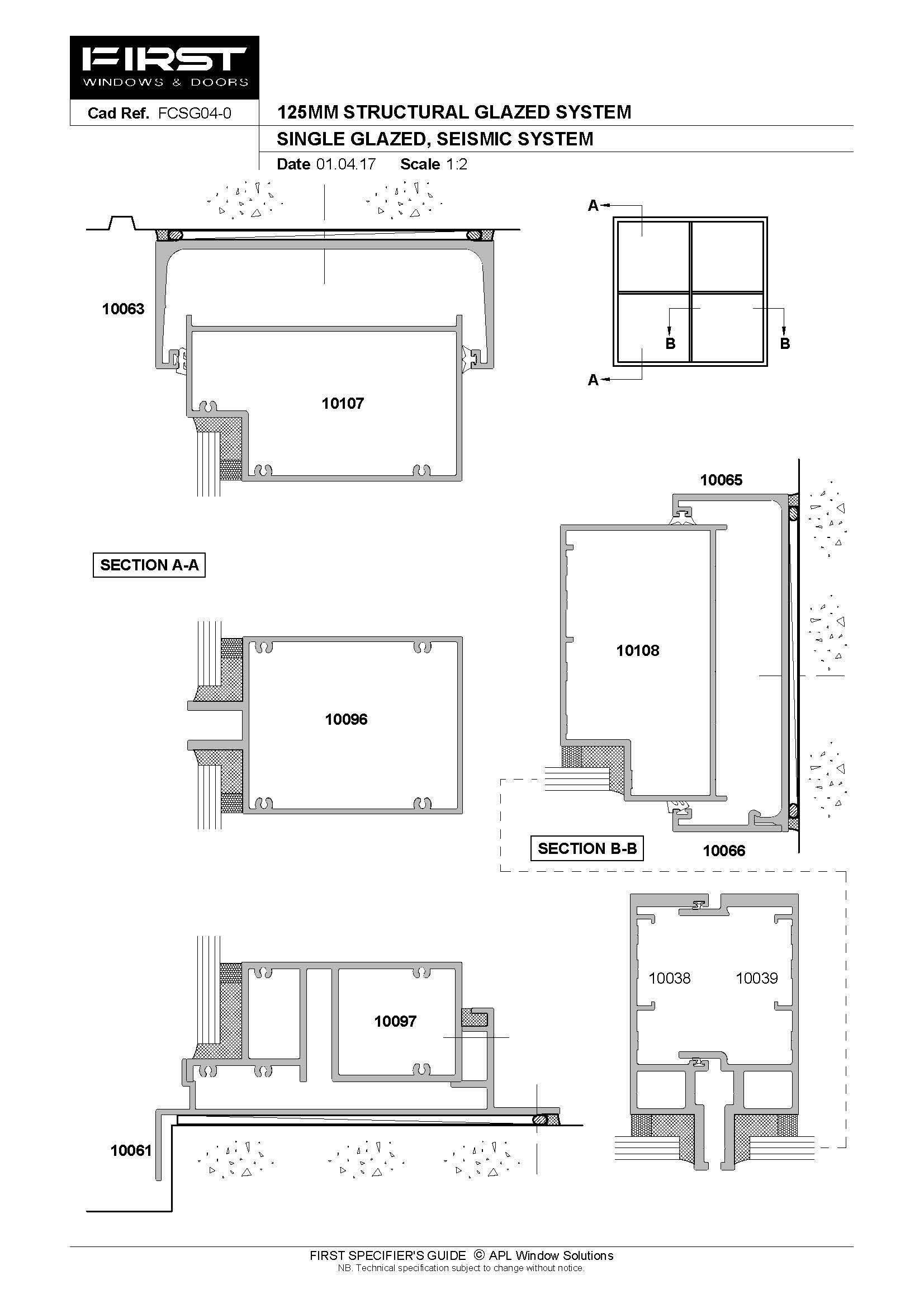

FIRST Commercial 125mm Structural Glazed, Single Glazed

FCSG04-0

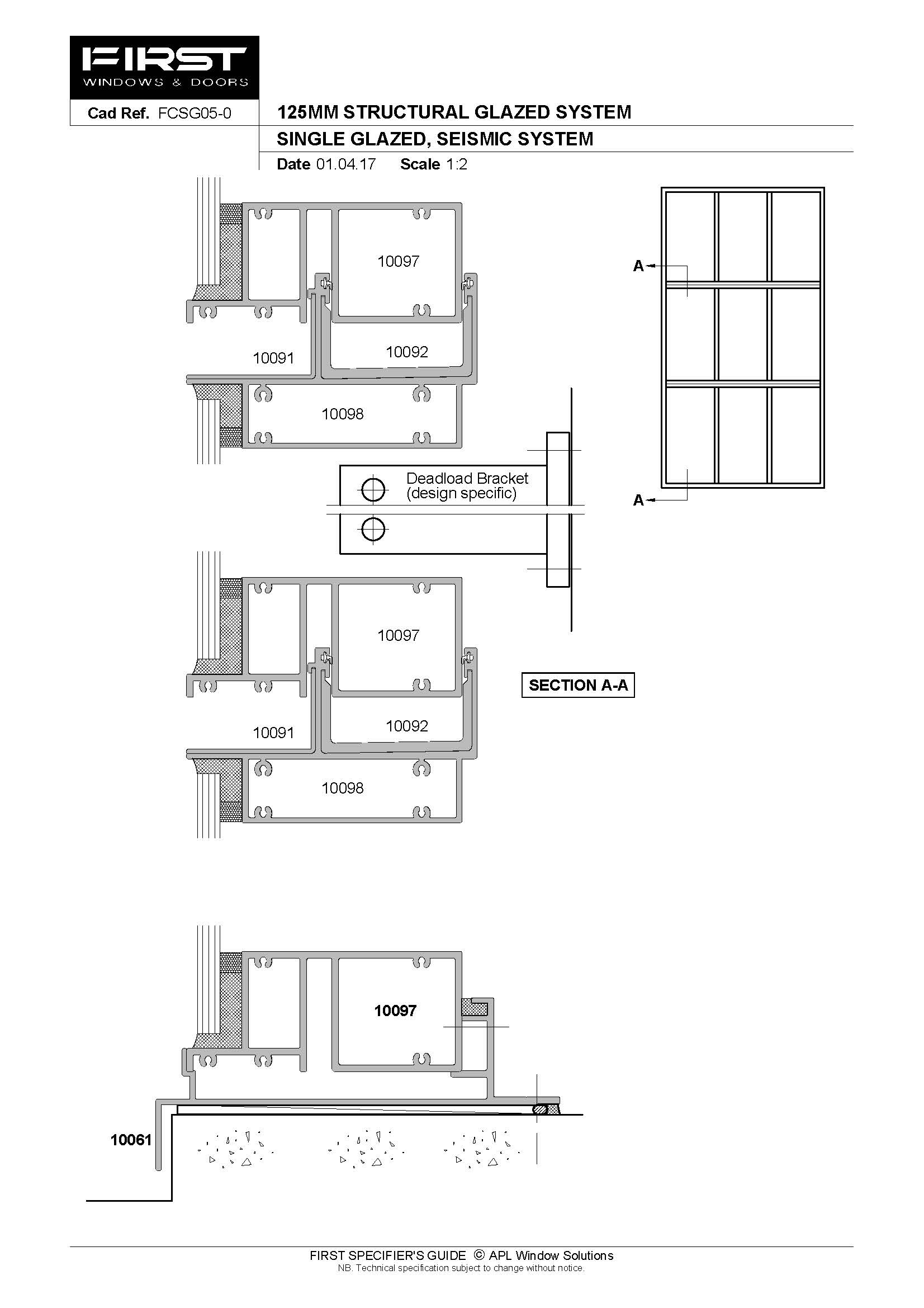

FIRST Commercial 125mm Structural Glazed, Split Transom

FCSG05-0

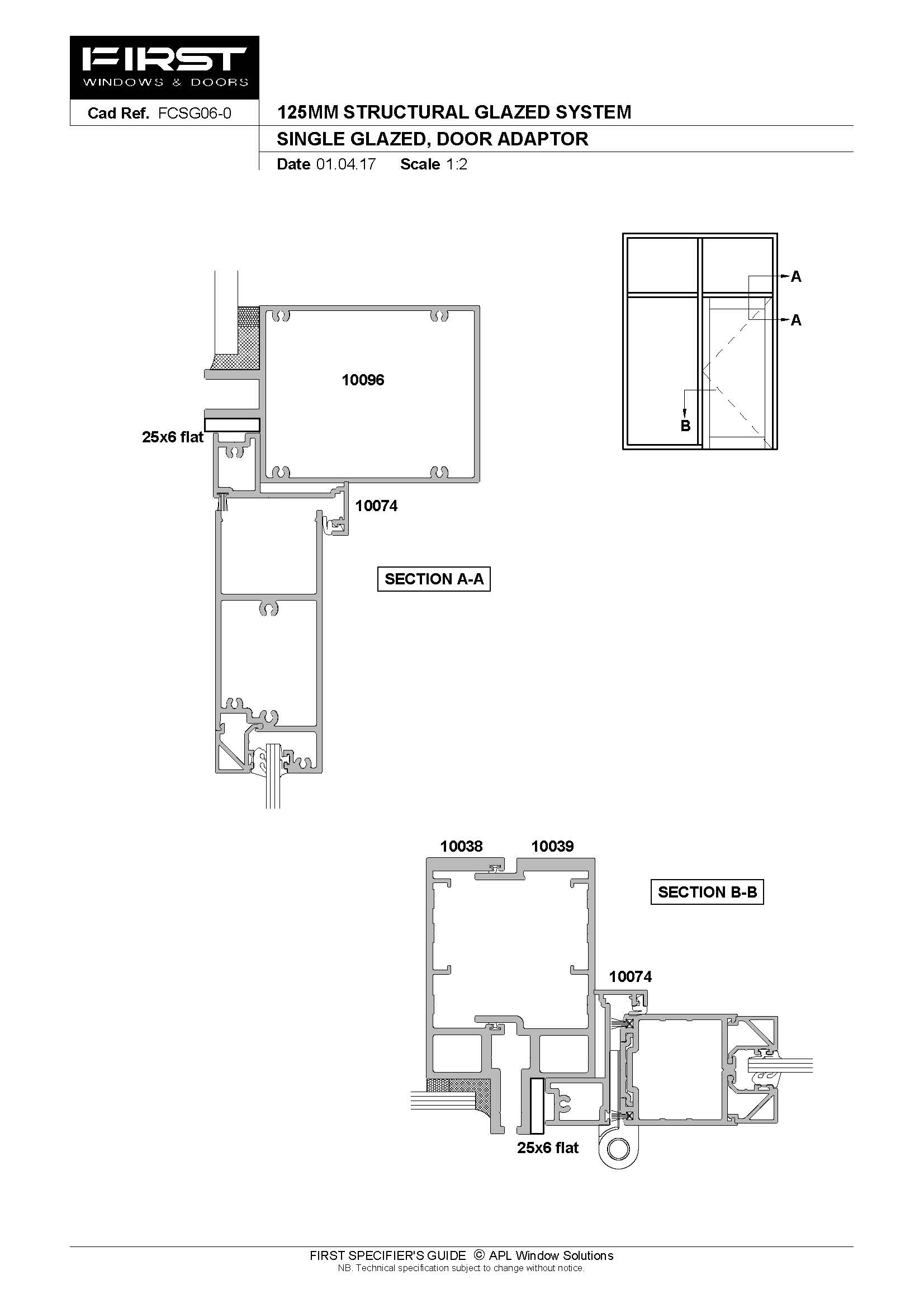

FIRST Commercial 125mm Structural Glazed, Single Glazed Door Adaptor

FCSG06-0

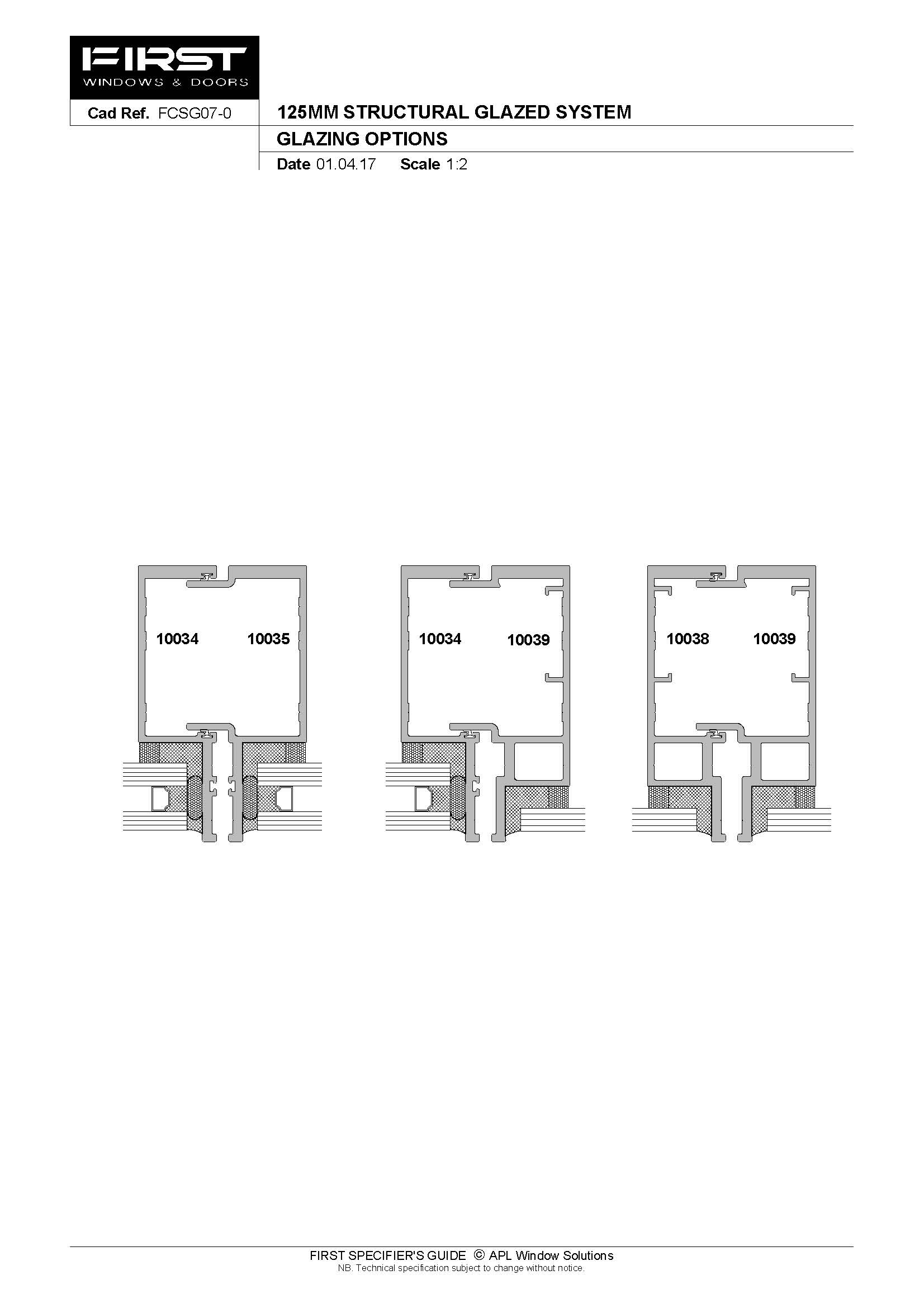

FIRST Commercial 125mm Structural Glazed, Glazing Options

FCSG07-0

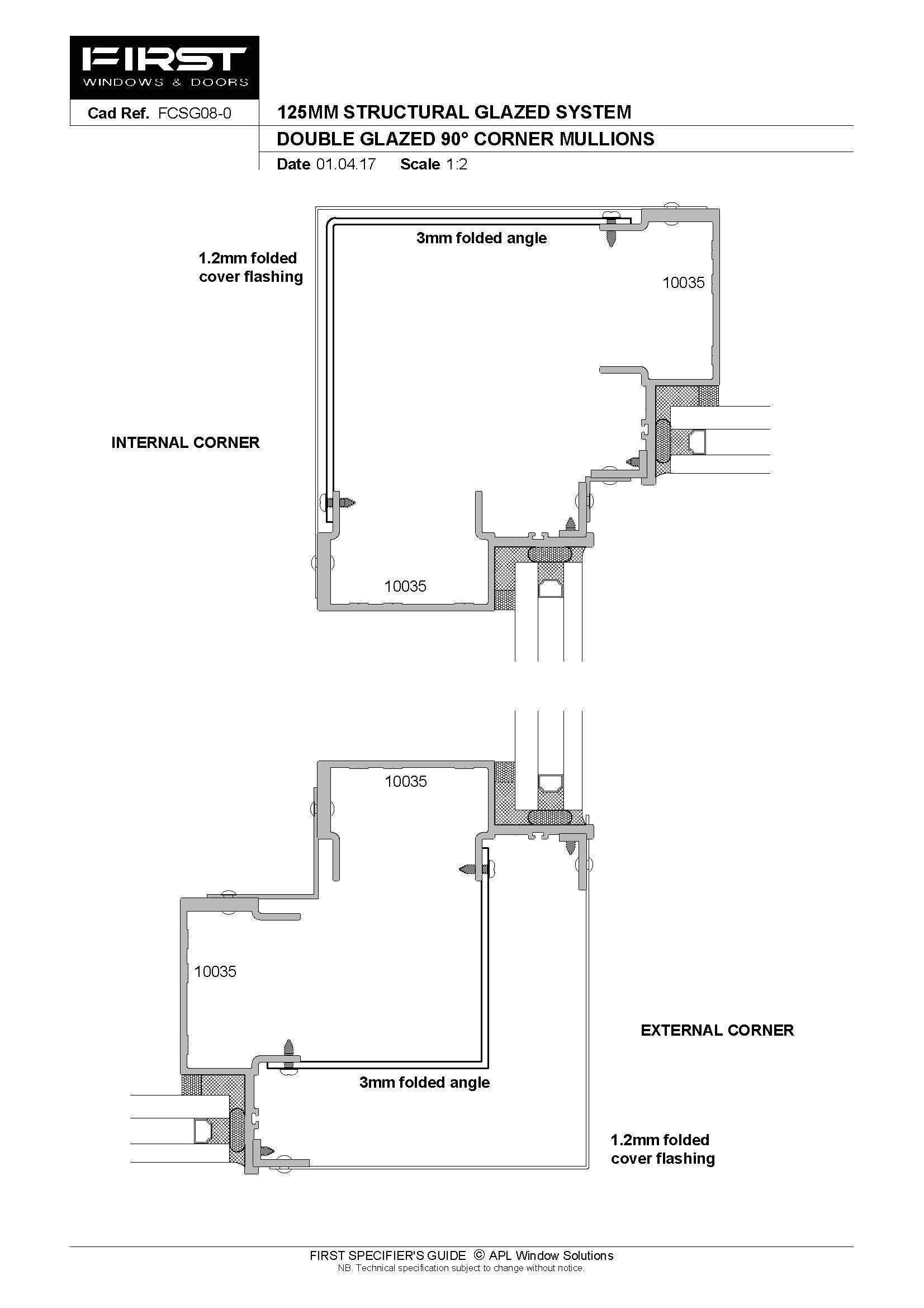

FIRST Commercial 125mm Structural Glazed, Corner Mullions

FCSG08-0

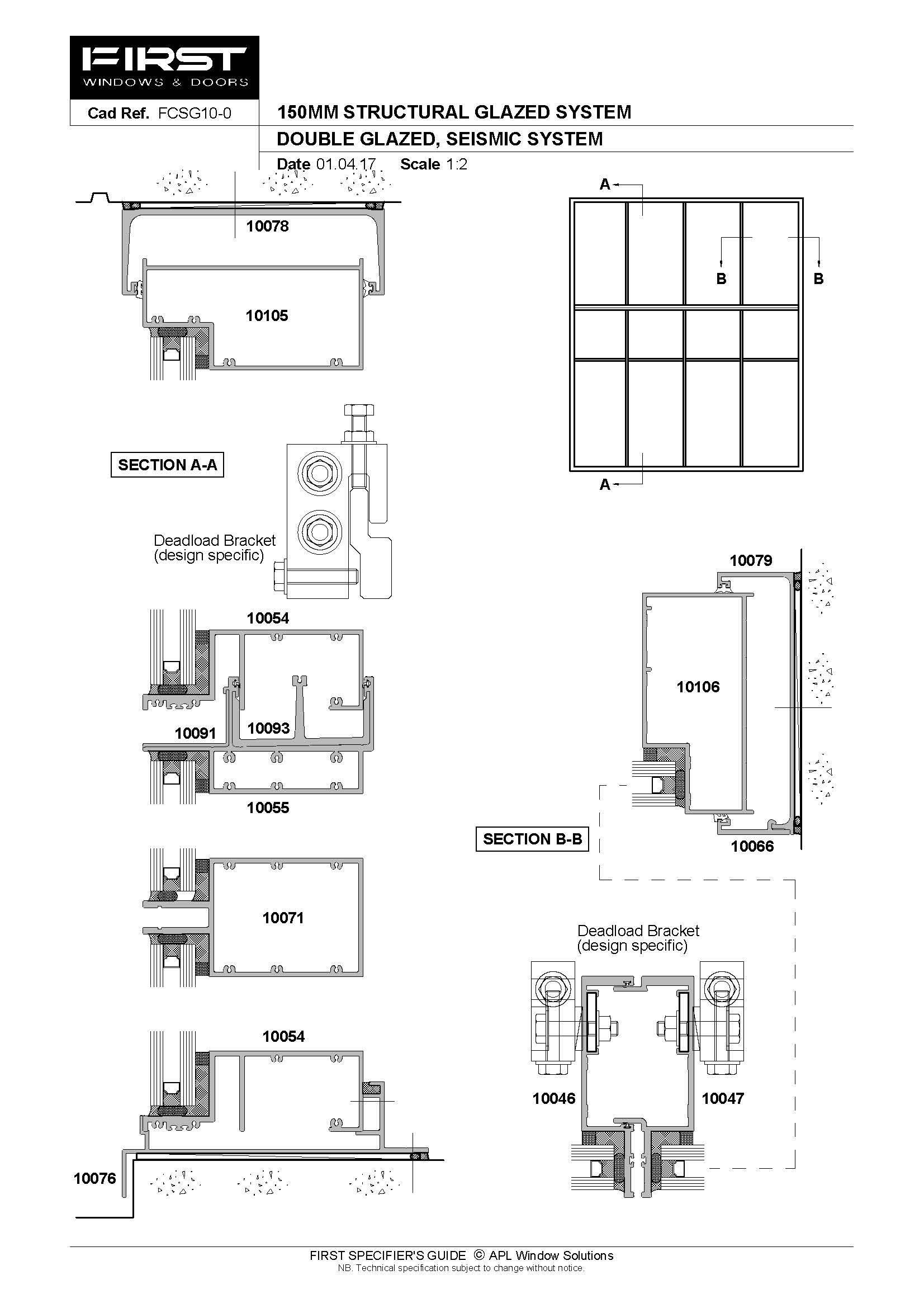

FIRST Commercial 150mm Structural Glazed, Seismic System

FCSG10-0

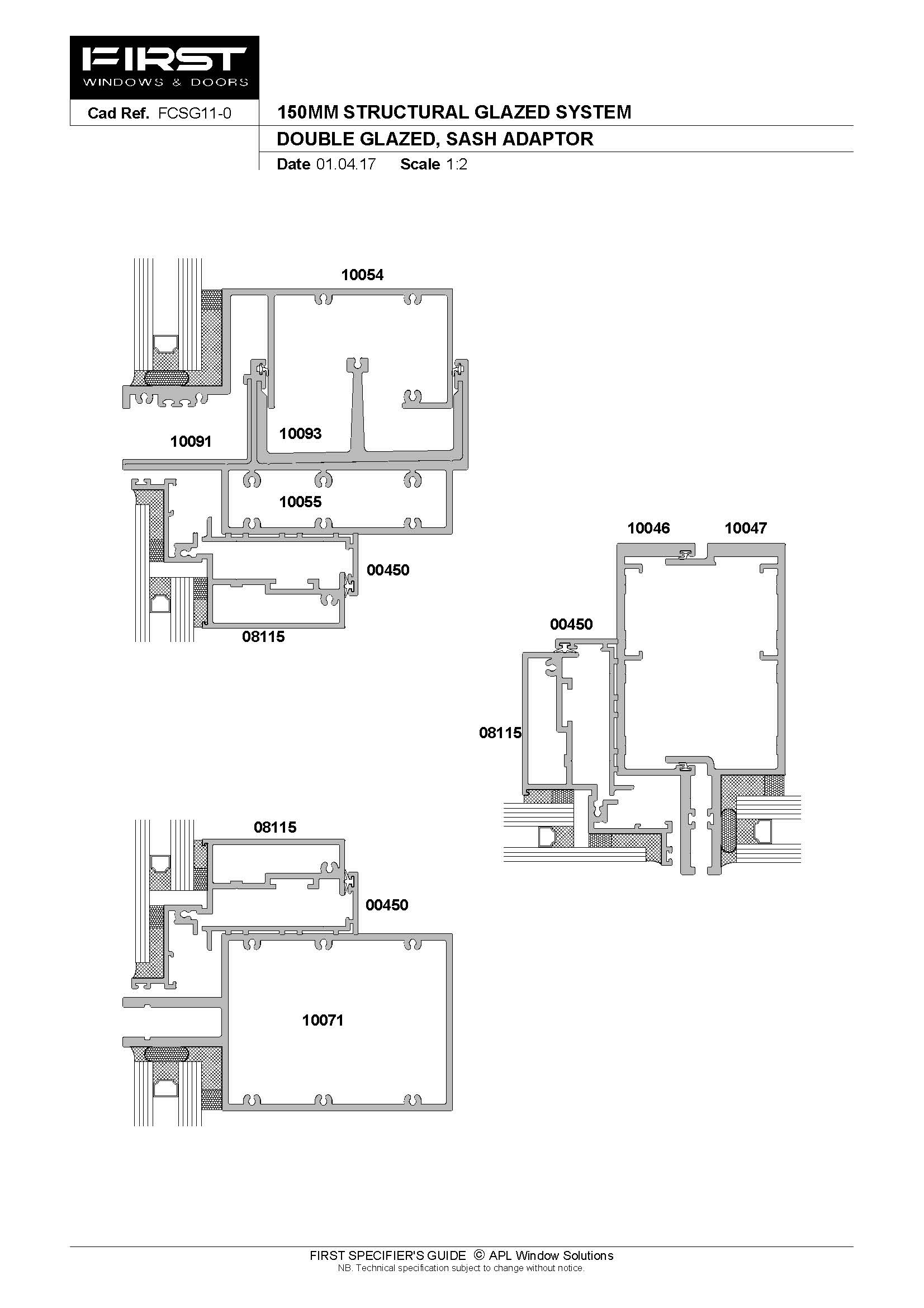

FIRST Commercial 150mm Structural Glazed, Sash

FCSG11-0

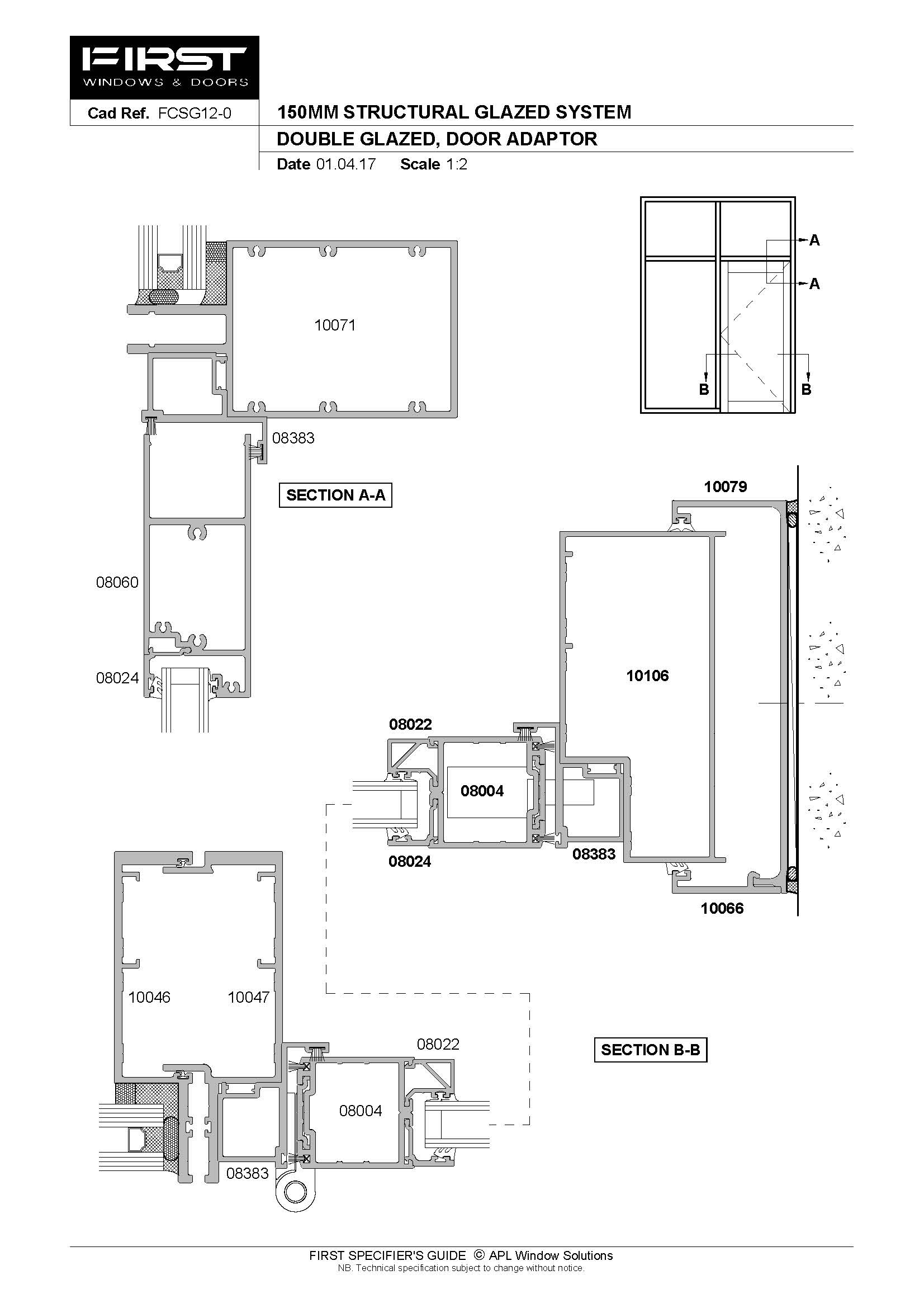

FIRST Commercial 150mm Structural Glazed, Double Glazed Door Adaptor

FCSG12-0

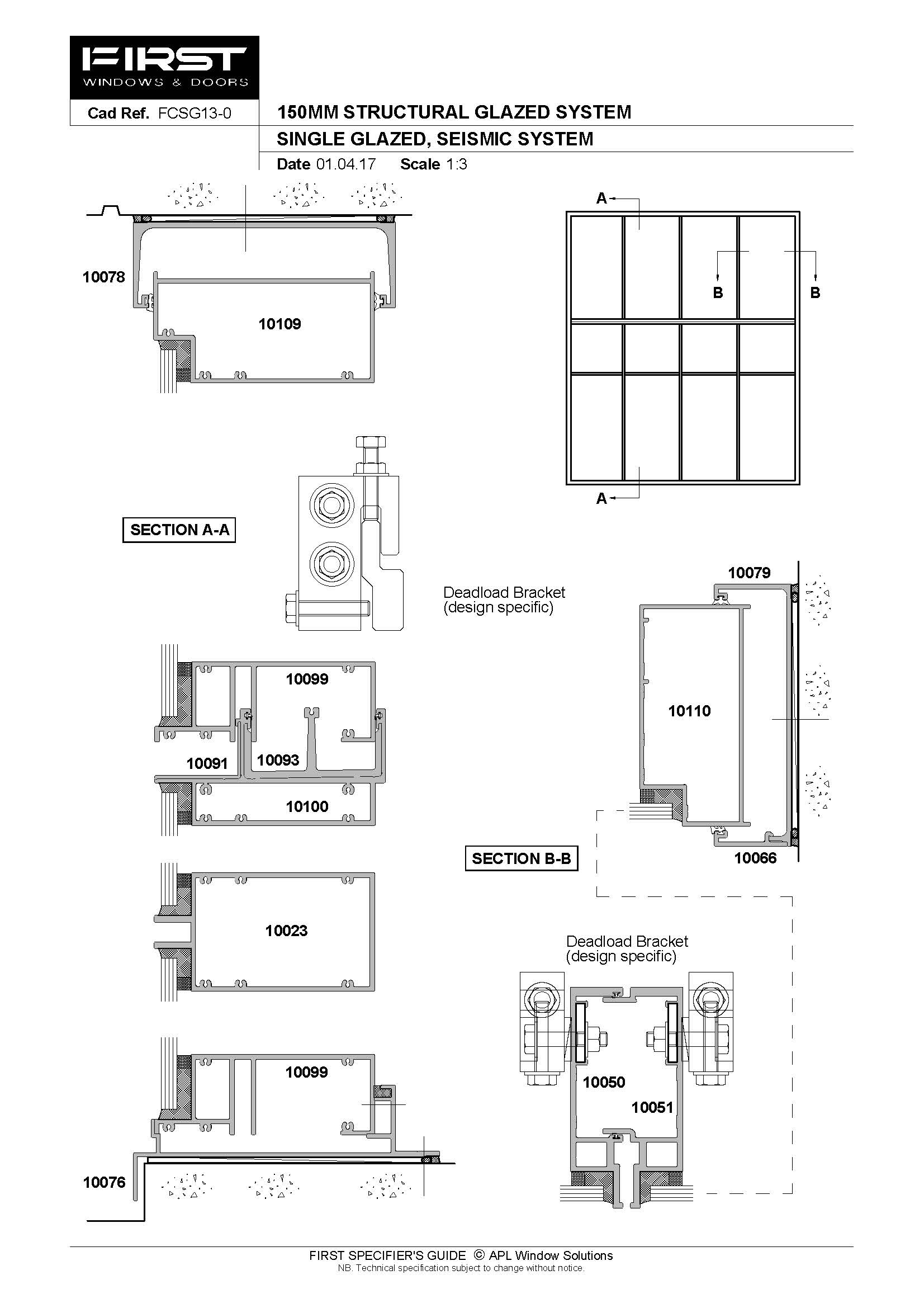

FIRST Commercial 150mm Structural Glazed, Single Glazed Seismic System

FCSG13-0

FIRST Commercial 150mm Structural Glazed, Single Glazed Door Adaptor

FCSG14-0

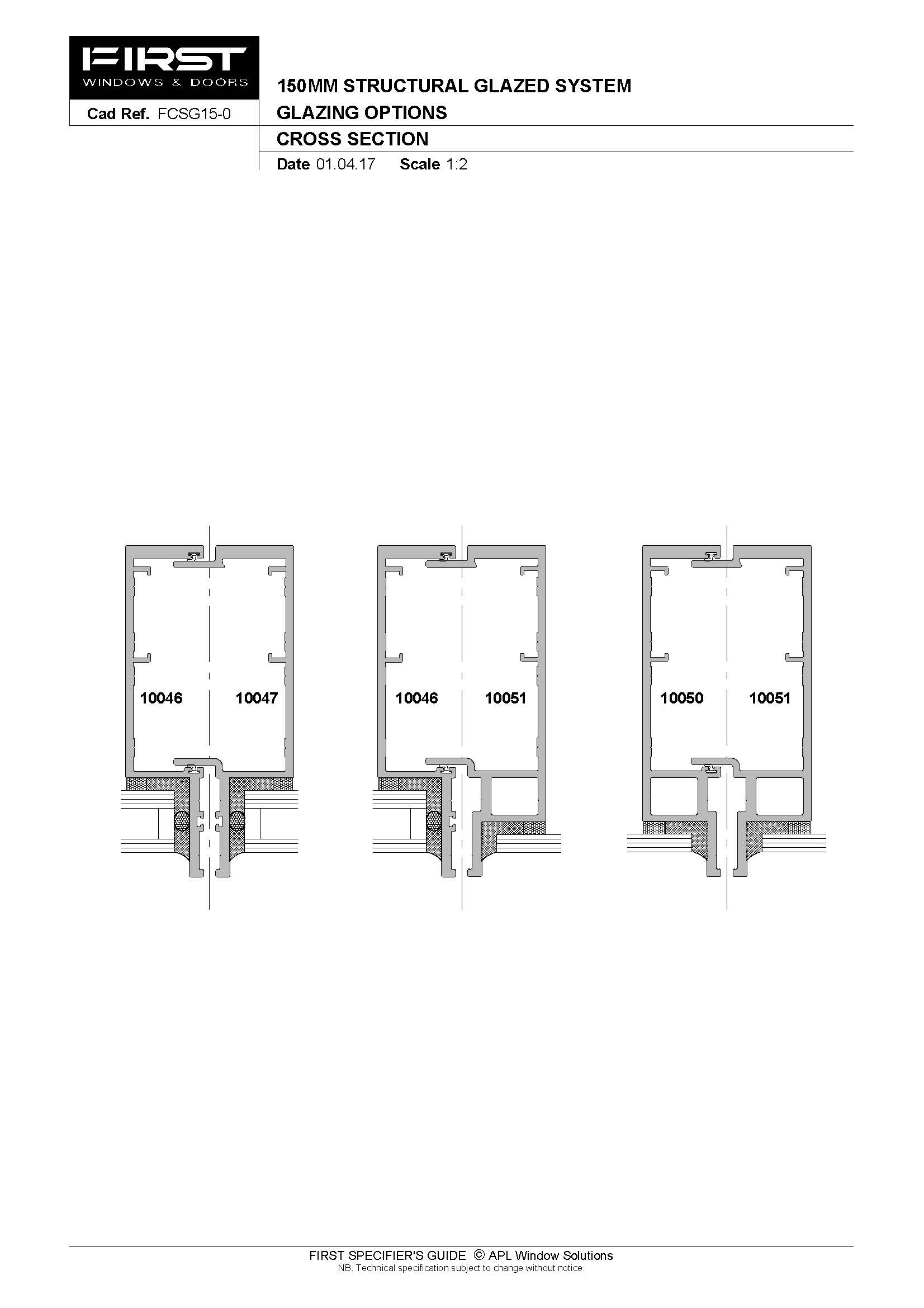

FIRST Commercial 150mm Structural Glazed, Glazing Options

FCSG15-0

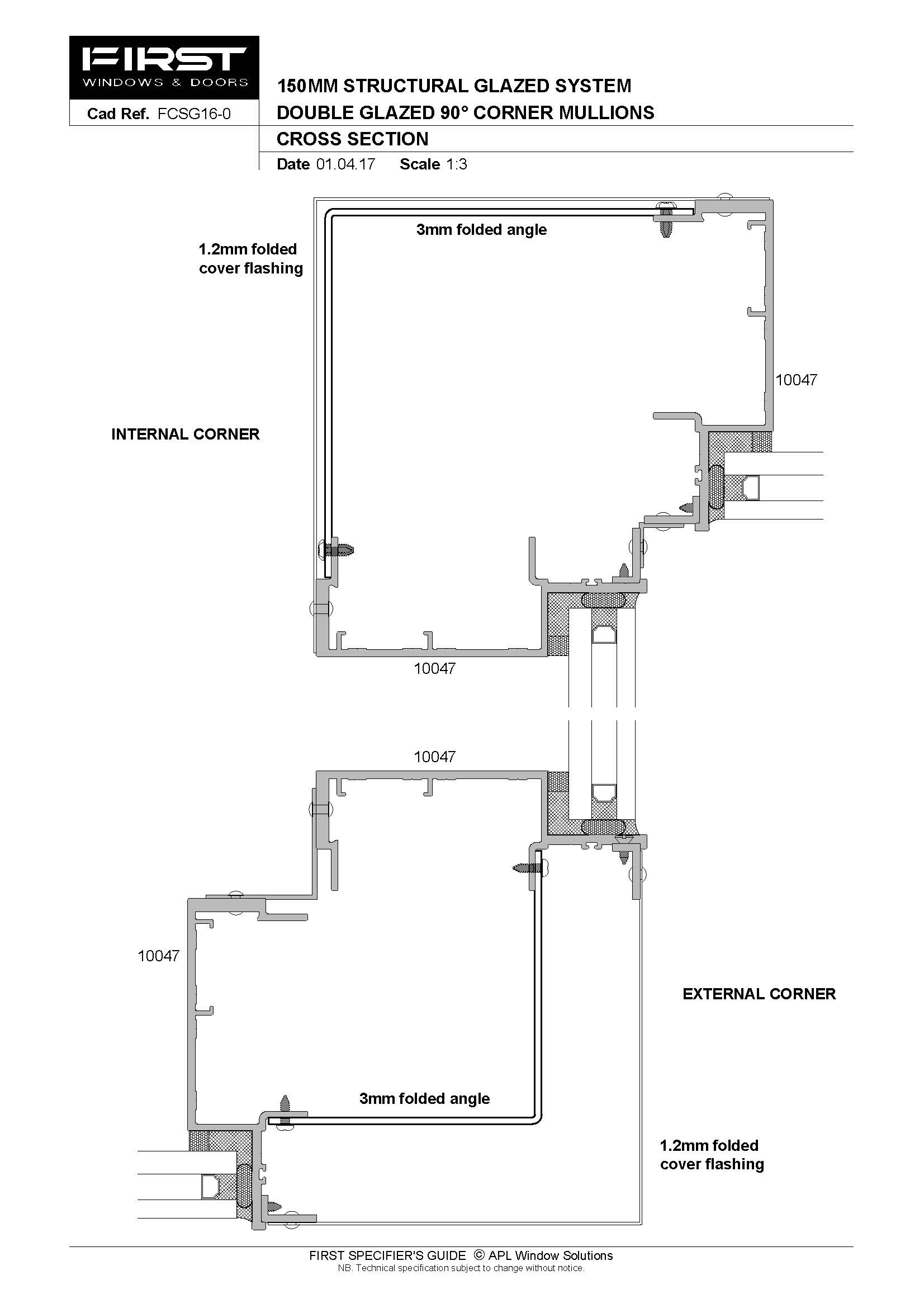

FIRST Commercial 150mm Structural Glazed, Corner Mullions

FCSG16-0

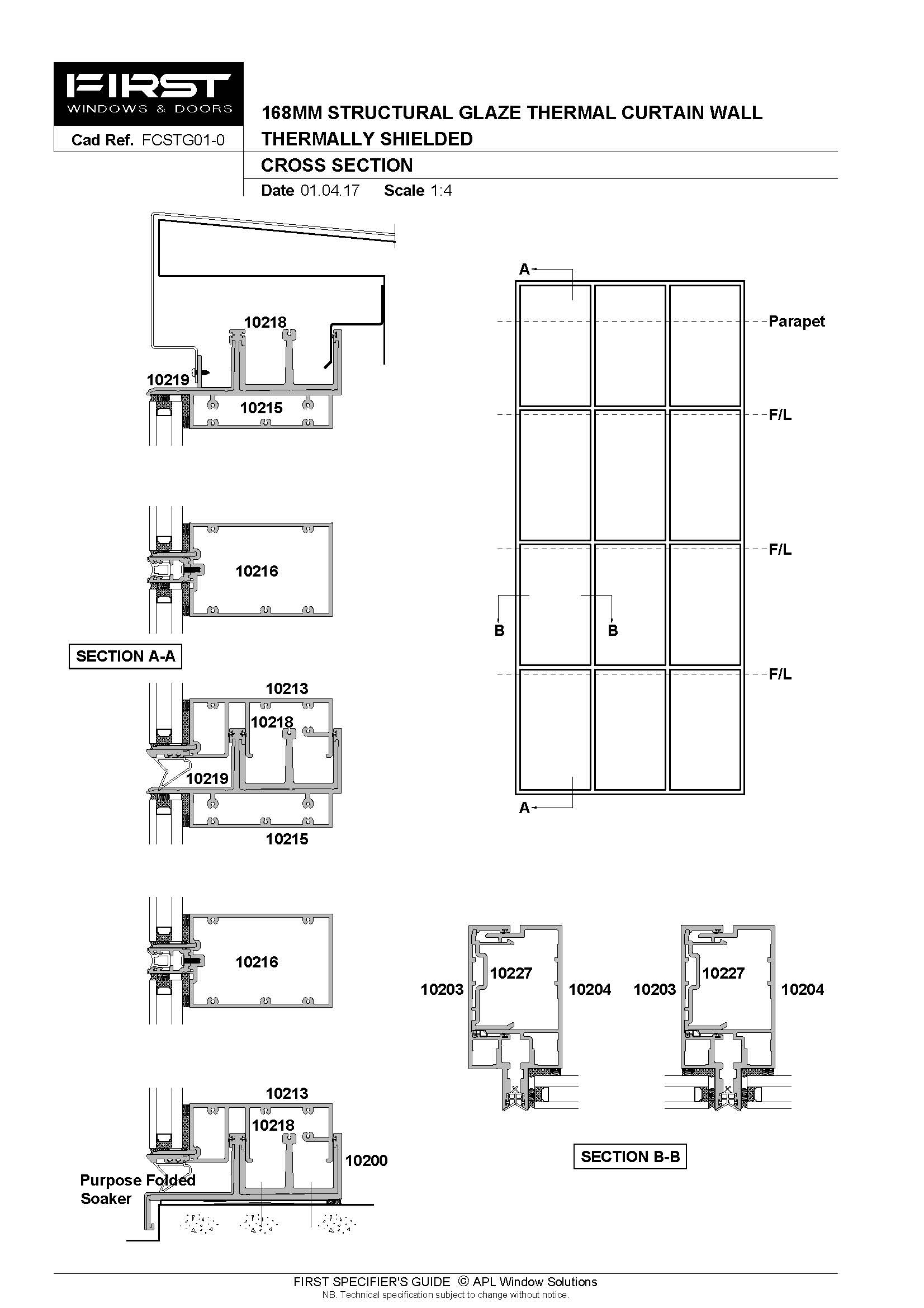

First Commercial 168mm Structural Glaze Thermal Curtain Wall Thermally Shielded

FCSTG01

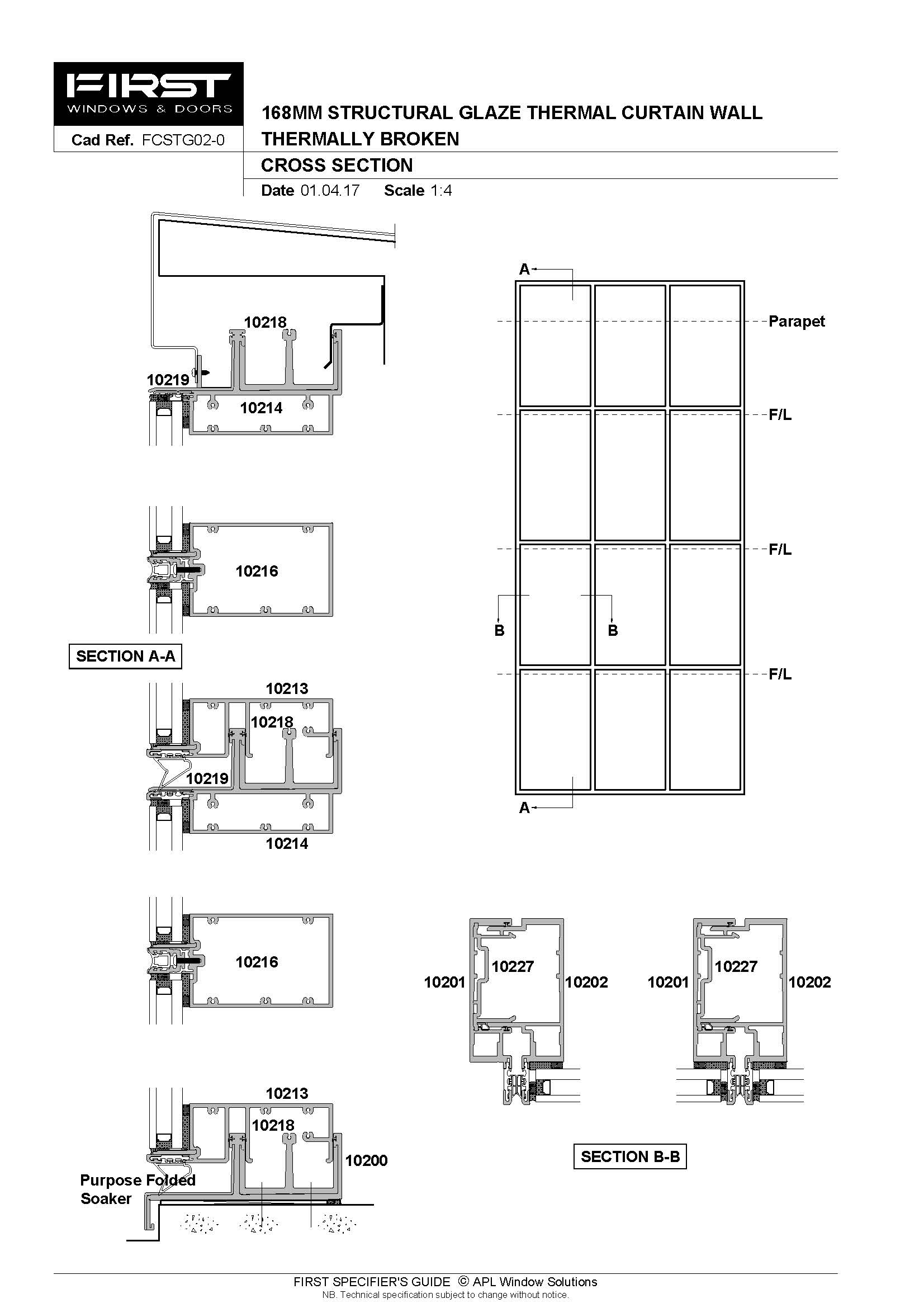

First Commercial 168mm Structural Glaze Thermal Curtain Wall Thermally Broken

FCSTG02

BIM Objects

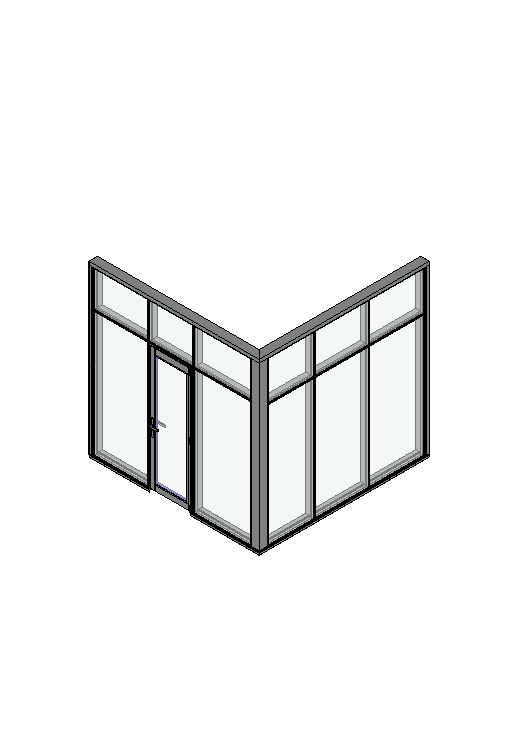

FIRST Commercial 125mm Structural Glaze System, External Corner With Hinged Door (Curtain Wall)

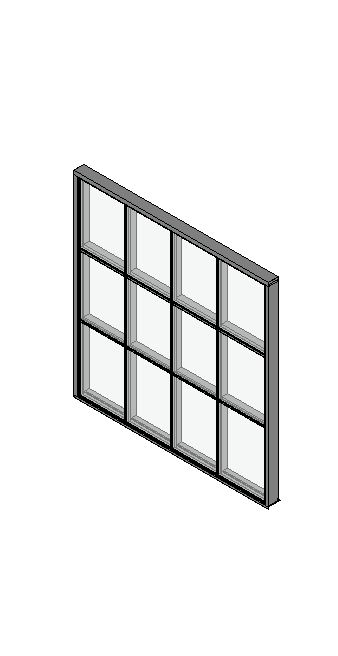

FIRST Commercial 125mm Structural Glaze System (Curtain Wall)

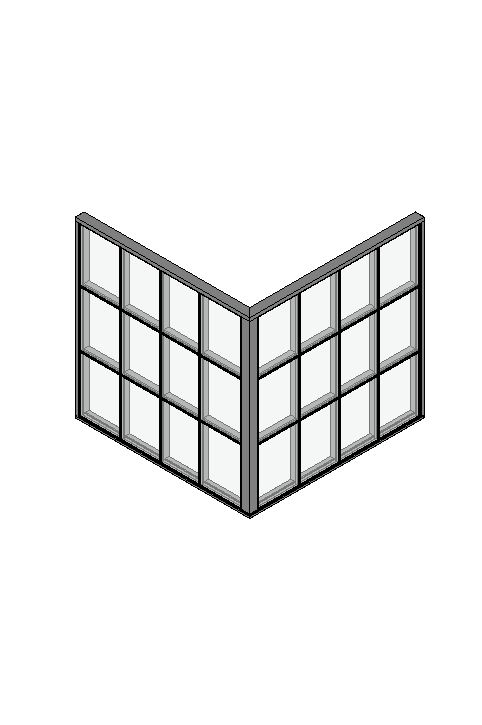

FIRST Commercial 125mm Structural Glaze System, External Corner (Curtain Wall)

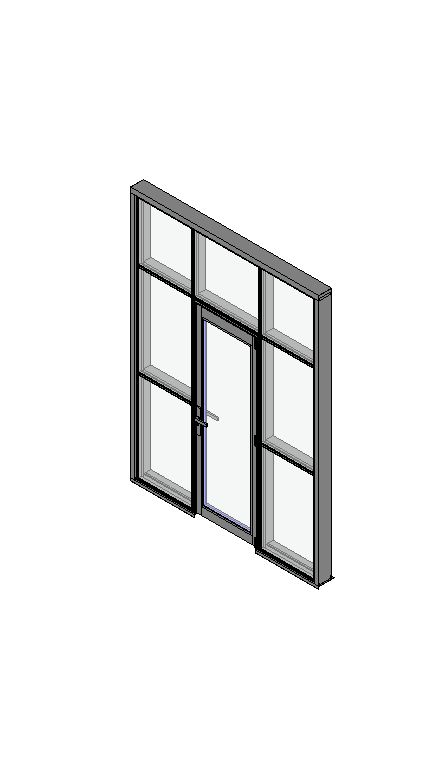

FIRST Commercial 125mm Structural Glaze System, Hinged Door (Curtain Wall)

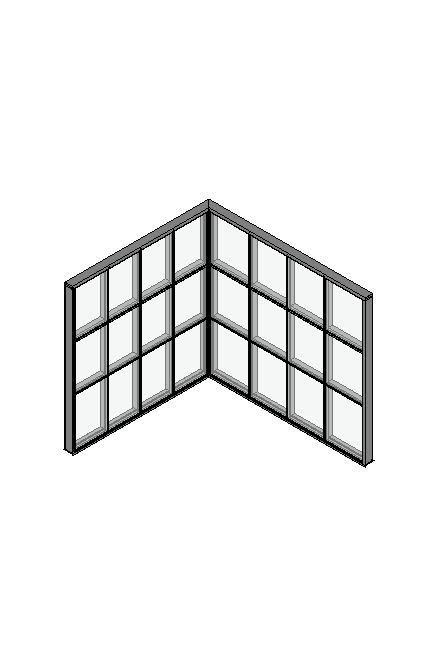

FIRST Commercial 125mm Structural Glaze System, Internal Corner (Curtain Wall)

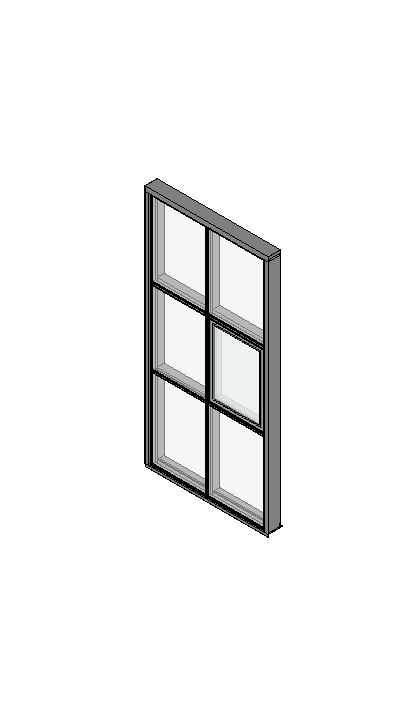

FIRST Commercial 125mm Structural Glazed System, Fixed System With Awning (Curtain Wall)

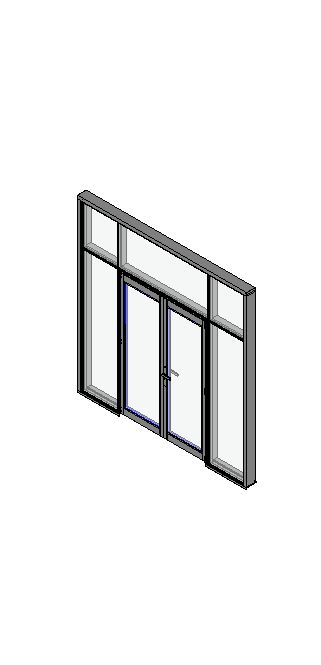

FIRST Commercial 125mm Structural Glazed System, French Door (Curtain Wall)

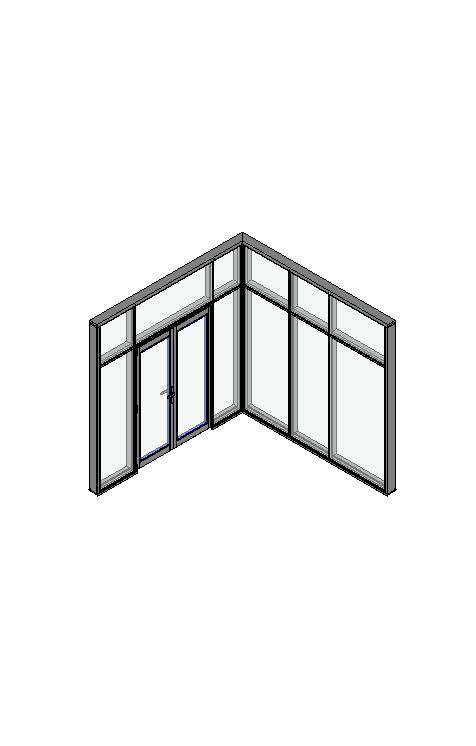

FIRST Commercial 125mm Structural System, Internal Corner With French Door (Curtain Wall)
FIRST Commercial 150mm Structural Glaze System (Curtain Wall)
FIRST Commercial 150mm Structural Glaze System, External Corner (Curtain Wall)
FIRST Commercial 150mm Structural Glaze System, External Corner With Hinged Door (Curtain Wall)
FIRST Commercial 150mm Structural Glaze System, Hinged Door (Curtain Wall)
FIRST Commercial 150mm Structural Glaze System, Internal Corner (Curtain Wall)
FIRST Commercial 150mm Structural Glazed System, Fixed System With Awning (Curtain Wall)
FIRST Commercial 150mm Structural Glazed System, French Door (Curtain Wall)
FIRST Commercial 150mm Structural System, Internal Corner With French Door (Curtain Wall)

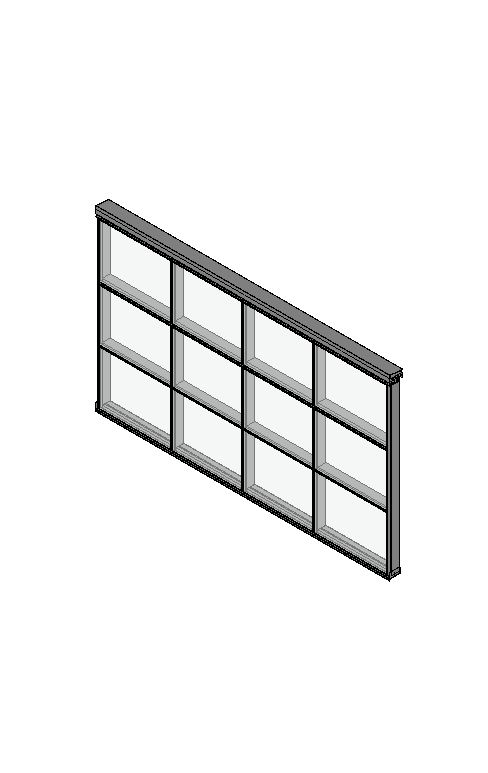

FIRST Commercial 168mm Structural Glaze Thermal, Thermally Broken (Curtain Wall)

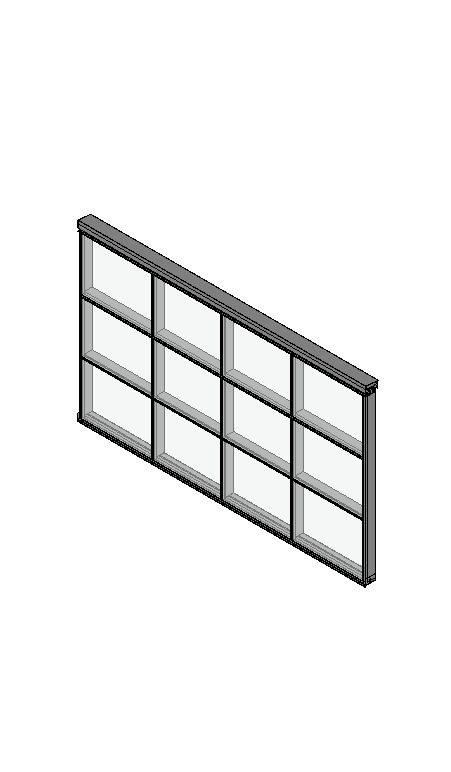

FIRST Commercial 168mm Structural Glaze Thermal, Thermally Shielded (Curtain Wall)
