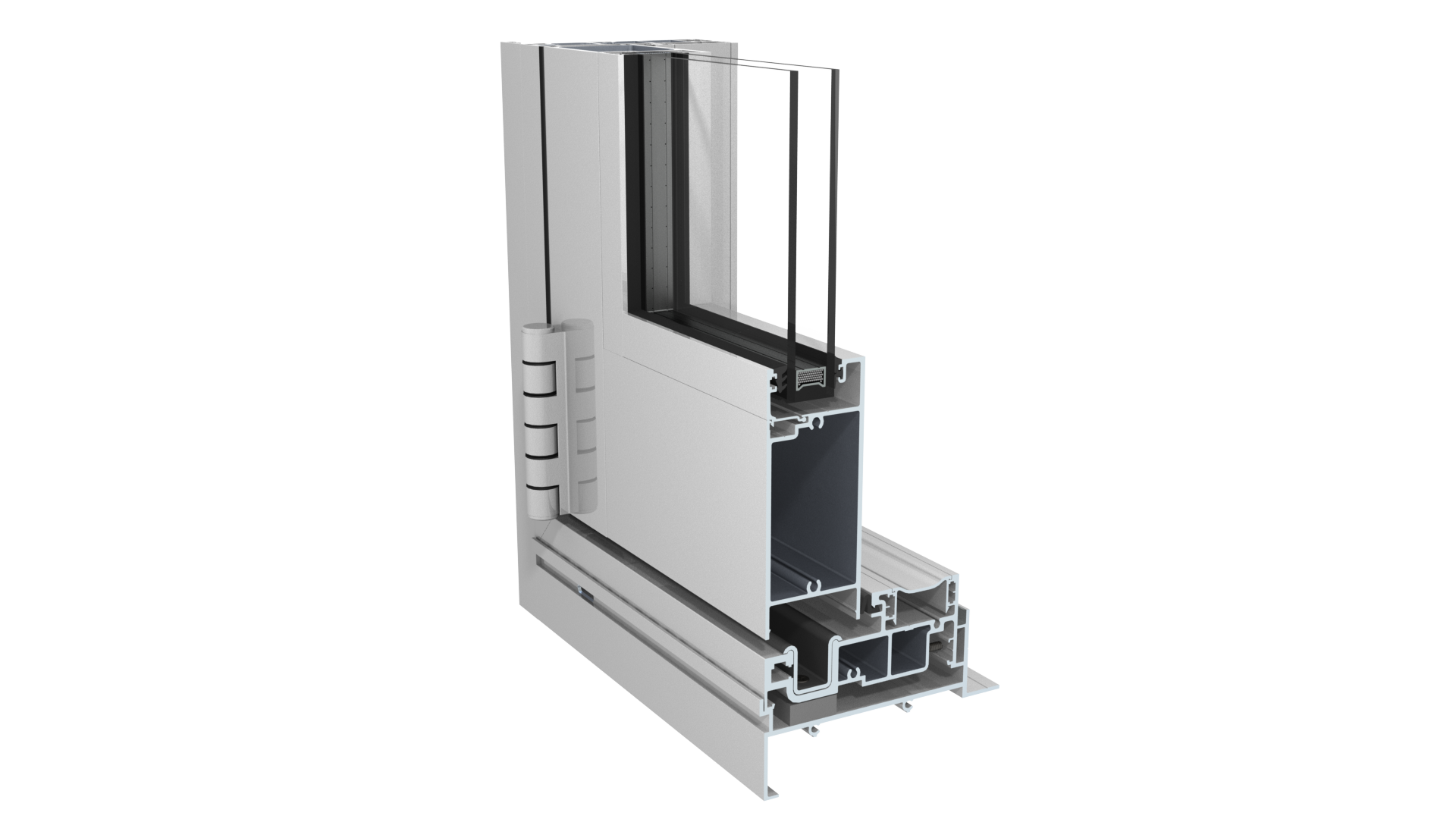

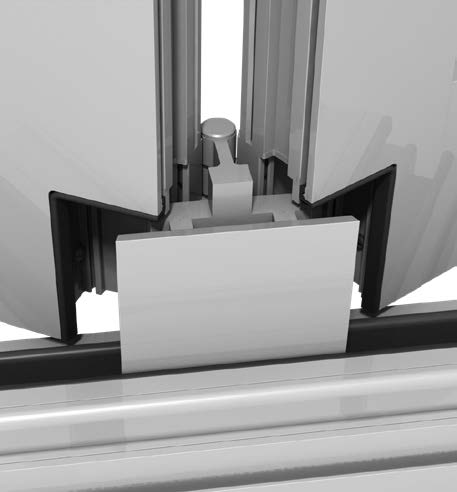

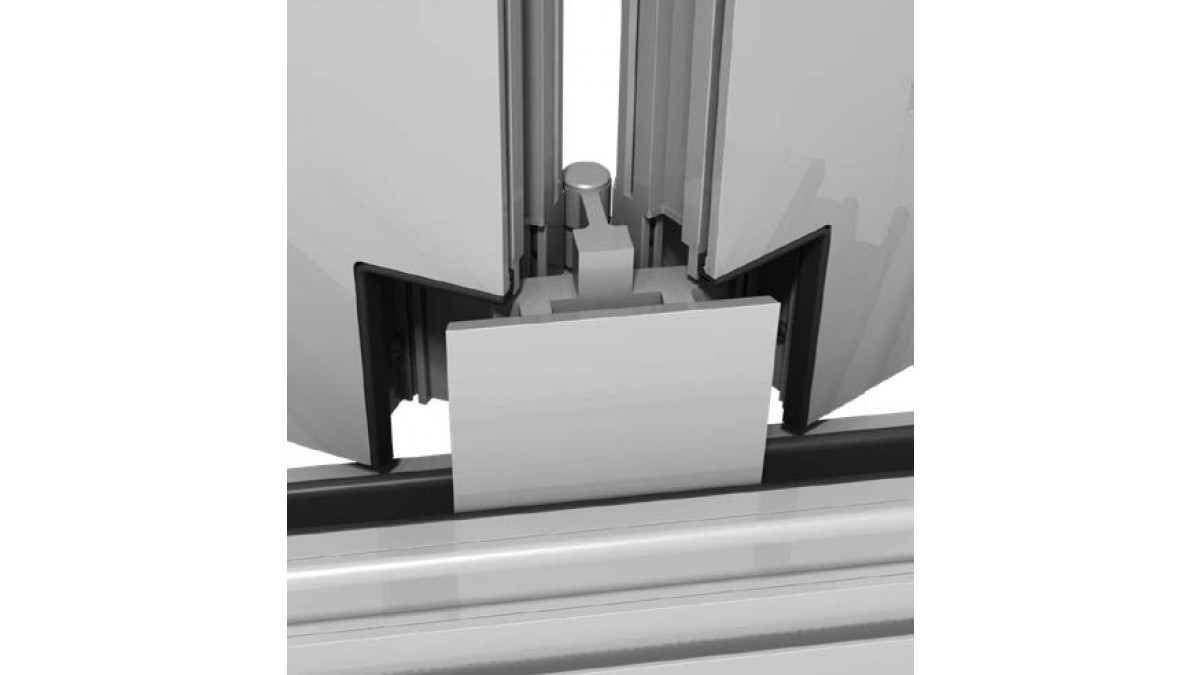

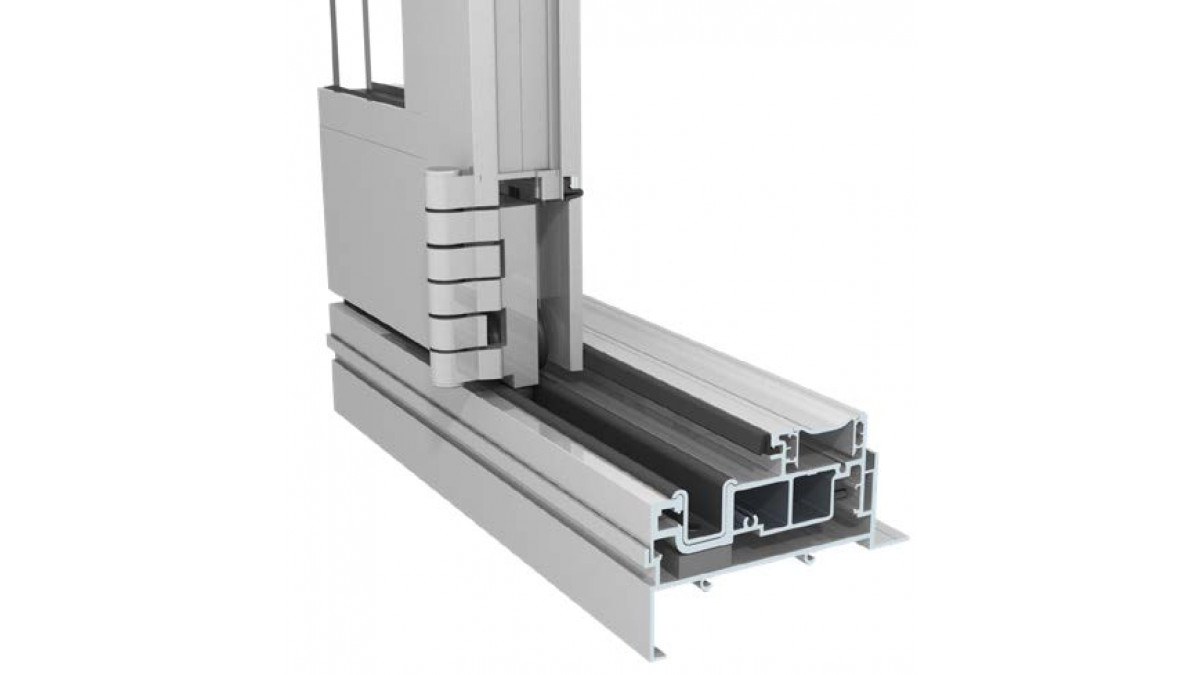

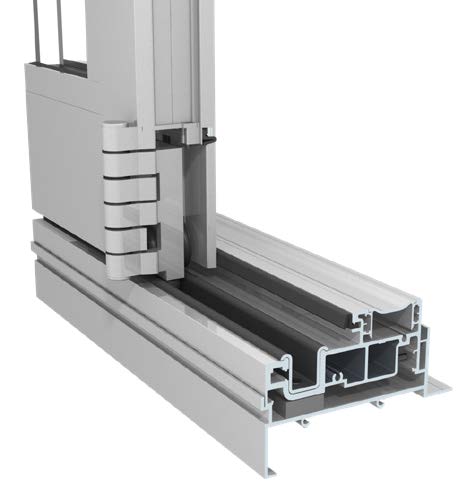

Bi fold hinge roller with free swinging panel

Product Enquiries

Description

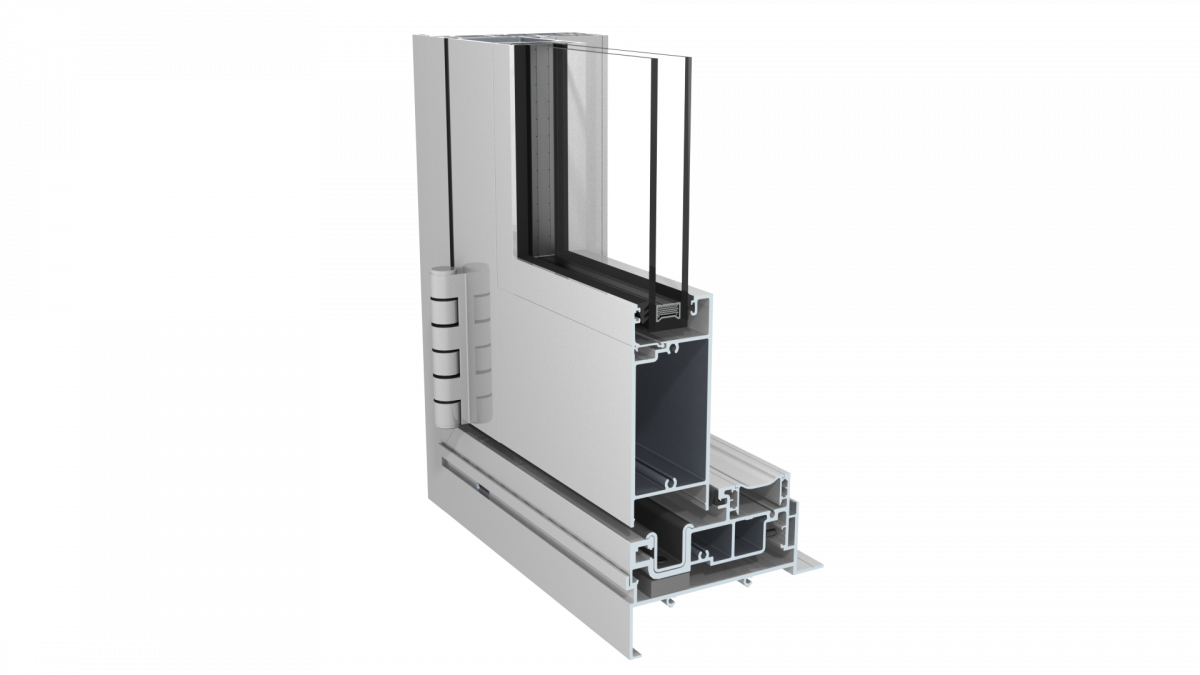

Bi-fold doors and windows share the same profiles and operating system. Panels are bottom rolling with the weight carried on the sill.

The roller and guide are pivoting inserts within the door stiles thus optimising overall ease of operation. Door panels are 50mm deep and are bead glazed externally on all sides for glass thicknesses of 4-28mm.

Key Features

Recommended maximum 2700mm high doors in Extra High wind zones
The system is bottom rolling with an in-frame track for optimum panel support
A high-performance series of windows and doors designed for suitability for Extra High and Specific Design applications
A unique split stile feature ensures panels move smoothly when built in large sizes
The track uses an aluminium insert (black anodised) for roller wear

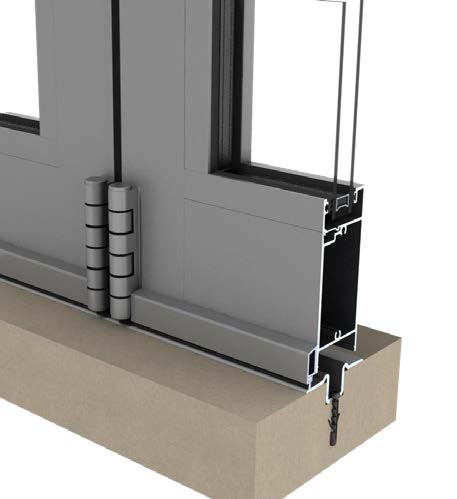

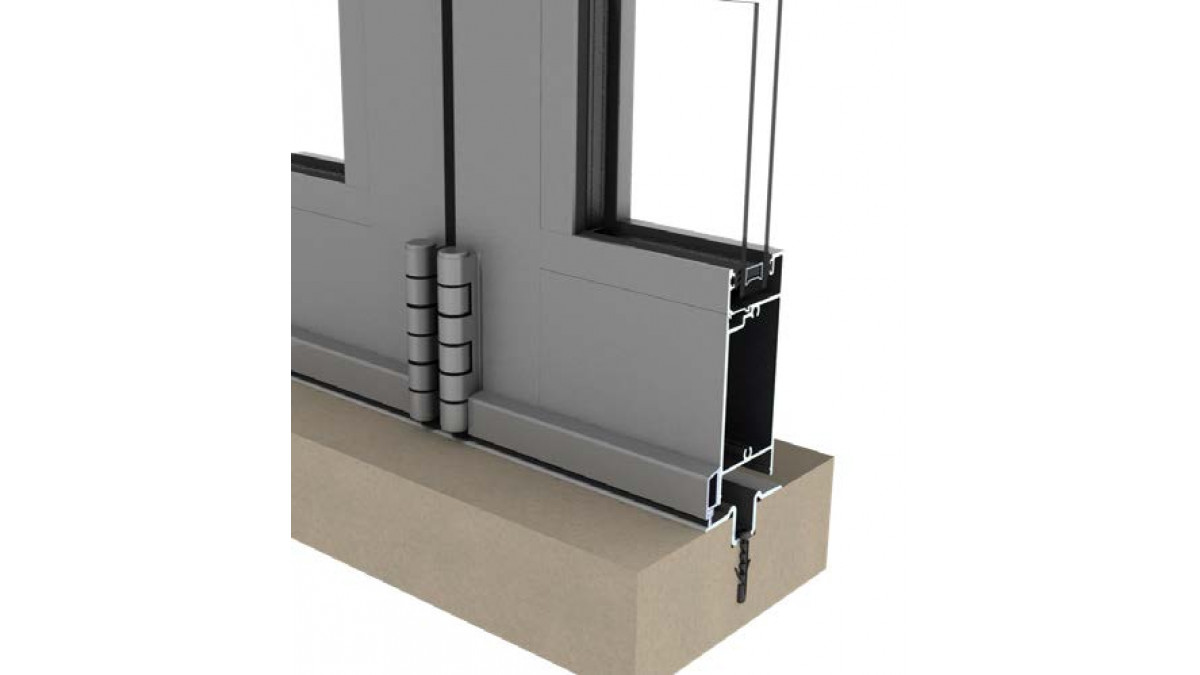

A flush sill track is available for sheltered locations.

Ranges

APL Architectural Series

Scope of Use

Suitable for most residential environments in larger sizes
A good option for maximum opening and ventilation
Need to be used in defined maximum sizes according to the wind exposure
Designed for suitability for Extra High and Specific Design applications

Limitations on Use

Recommended maximum 2700mm high doors in Extra High wind zones
Open bi-folds need to be monitored in windy conditions
In closed position bi-fold door stiles impact views

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2004
Design upgrades regularly released
Widely used by homeowners, builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Data Sheet

pdf

Span Tables

pdf

FIRST on Masterspec

URL

Full Specification

docx

Specification Clause

docx

Specifier Guide

pdf

Declare Label

2022

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

First Brochure

2014

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2019

URL

Manufacturer Contact List

URL

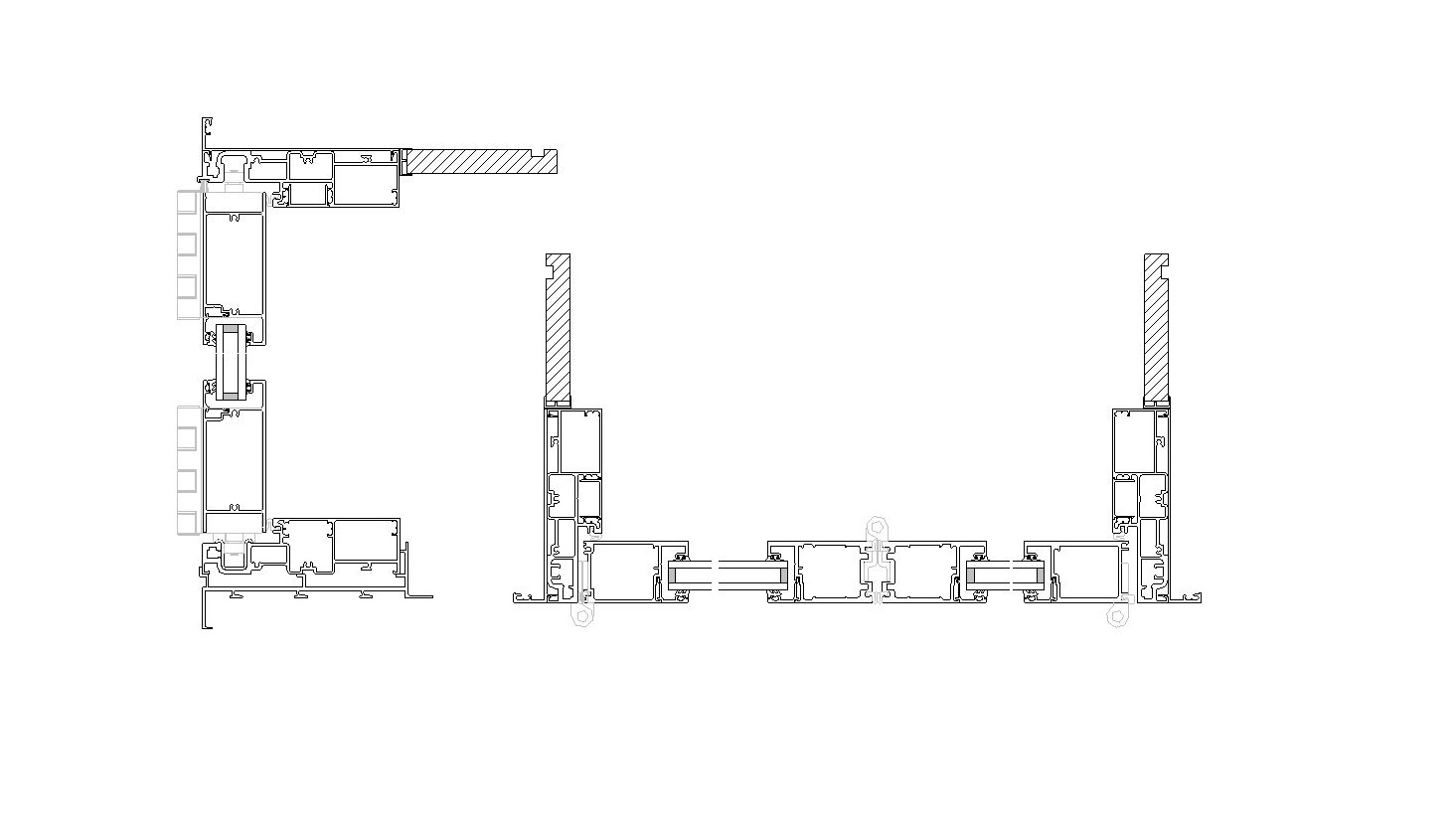

CAD/PDF Details

View full


Full Set of Drawings

pdf

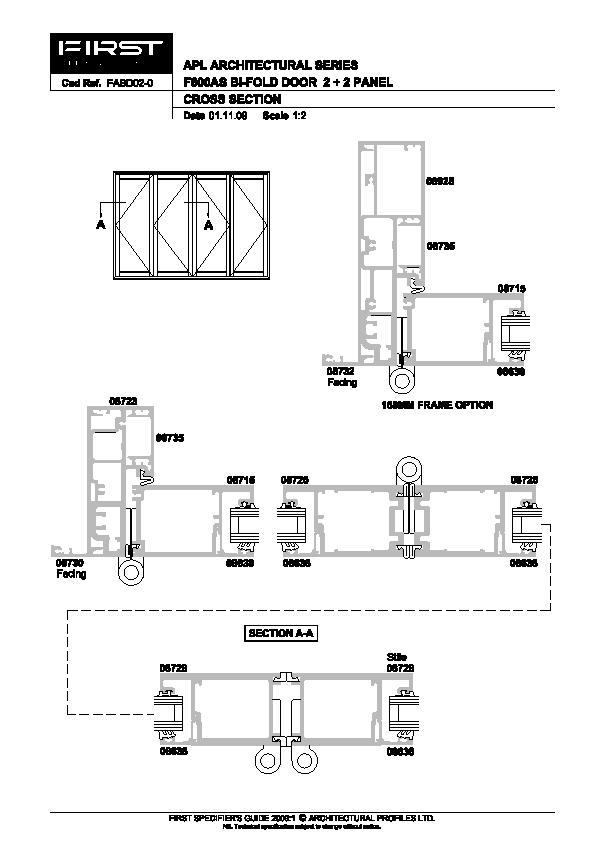

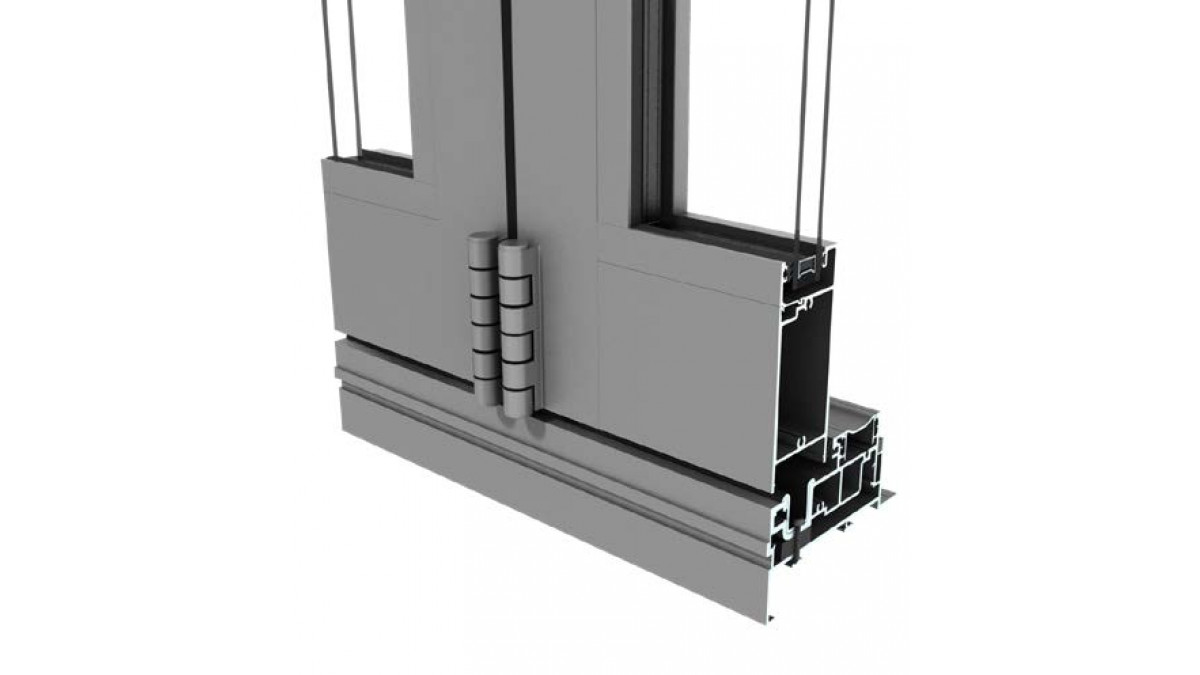

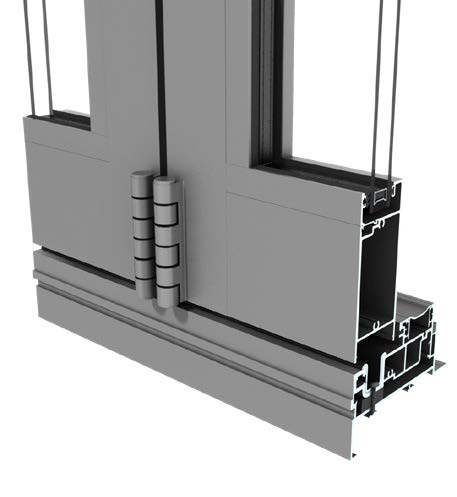

FIRST APL Architectural Series F600AS Bi-Fold Door 2 + 2 Panel

FABD02-0

dwf

dwg

dxf

pdf

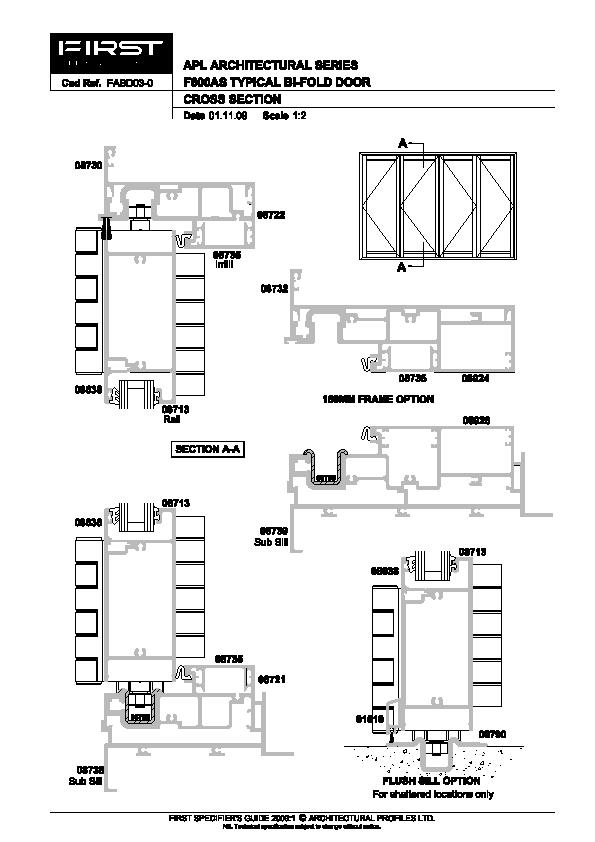

FIRST APL Architectural Series F600AS Typical Bi-Fold Door

FABD03-0

dwf

dwg

dxf

pdf

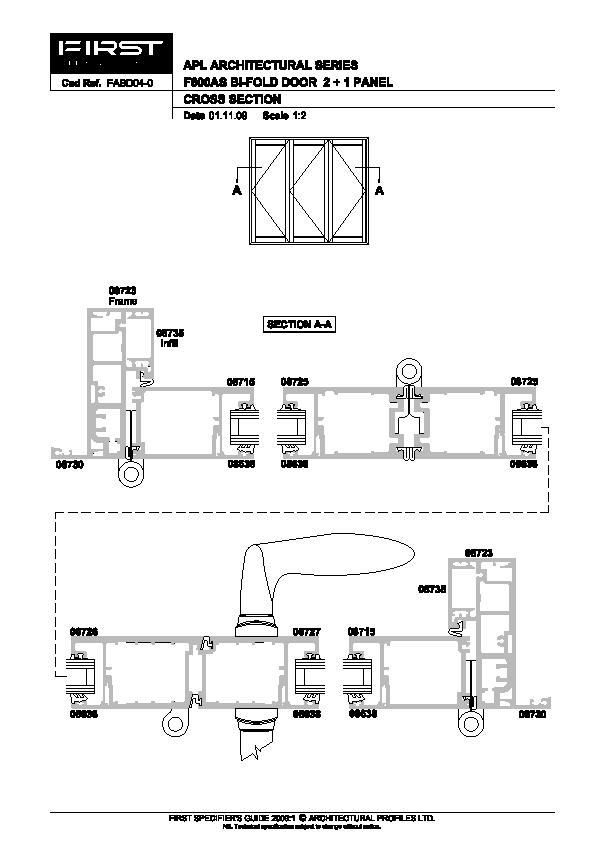

FIRST APL Architectural Series F600AS Bi-Fold Door 2 + 1 Panel

FABD04-0

dwf

dwg

dxf

pdf

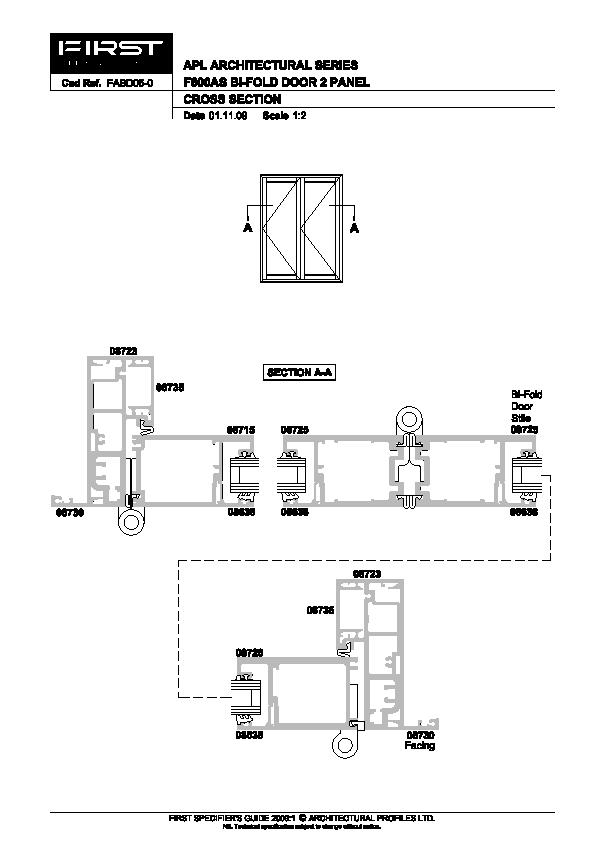

FIRST APL Architectural Series F600AS Bi-Fold Door 2 Panel

FABD05-0

dwf

dwg

dxf

pdf

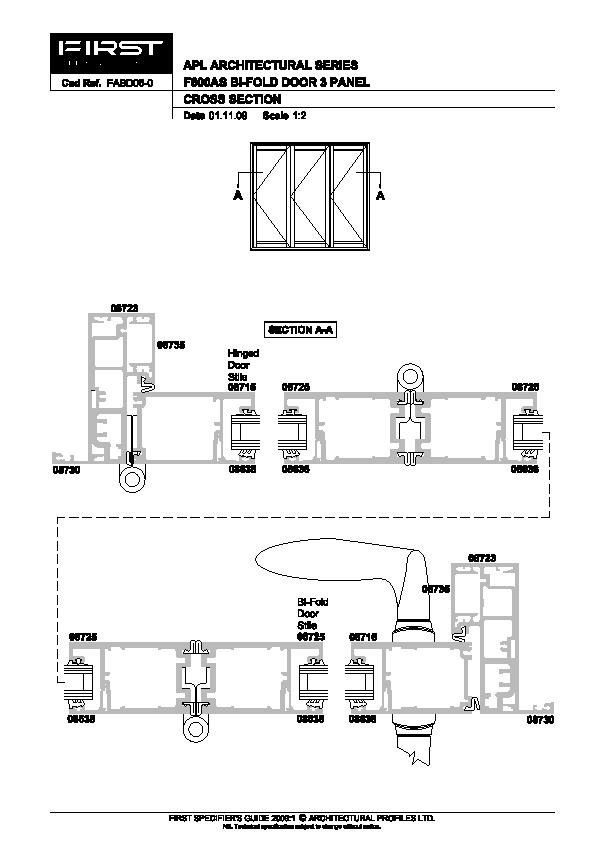

FIRST APL Architectural Series F600AS Bi-Fold Door 3 Panel

FABD06-0

dwf

dwg

dxf

pdf

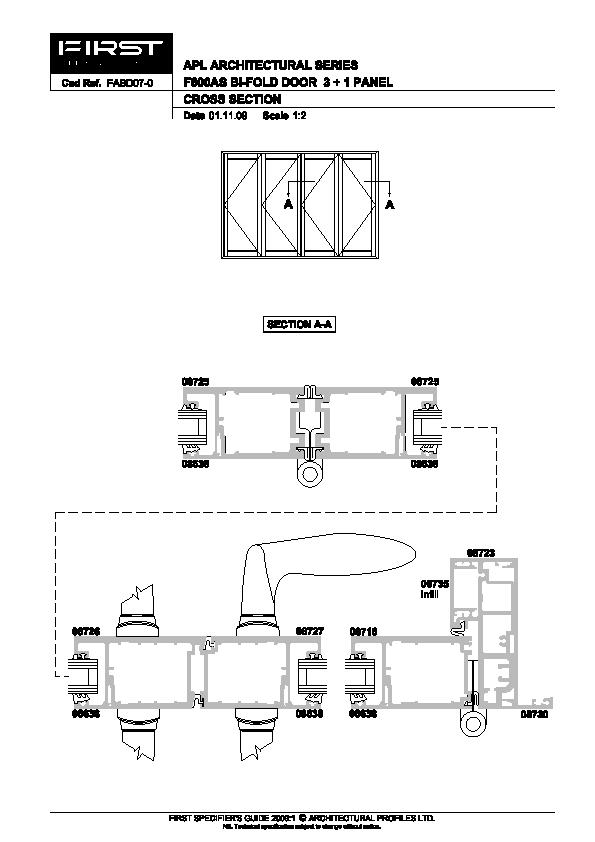

FIRST APL Architectural Series F600AS Bi-Fold Door 3 + 1 Panel

FABD07-0

dwf

dwg

dxf

pdf

Installation Details

View full

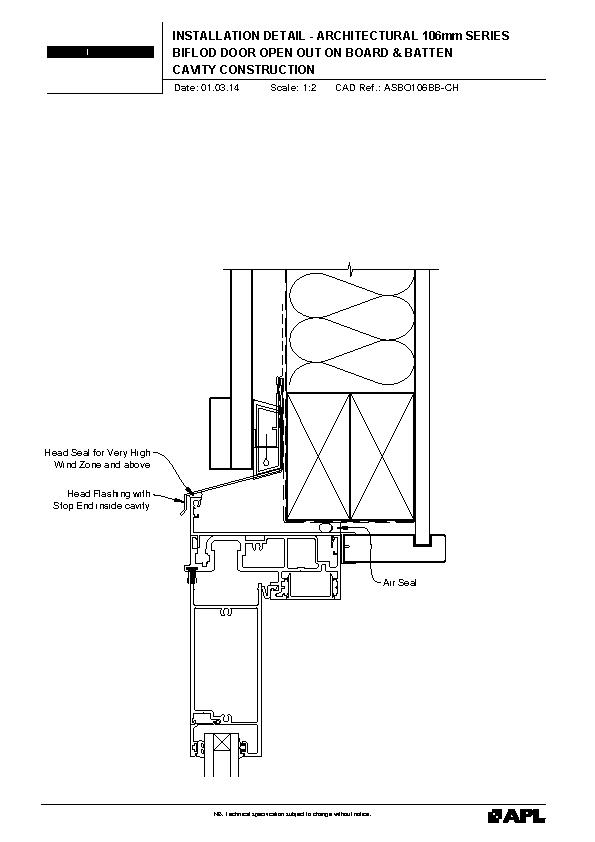

FIRST APL Architectural Series 106mm Bifold Door Open Out on Board and Batten

ASBO106BB

dwg

pdf

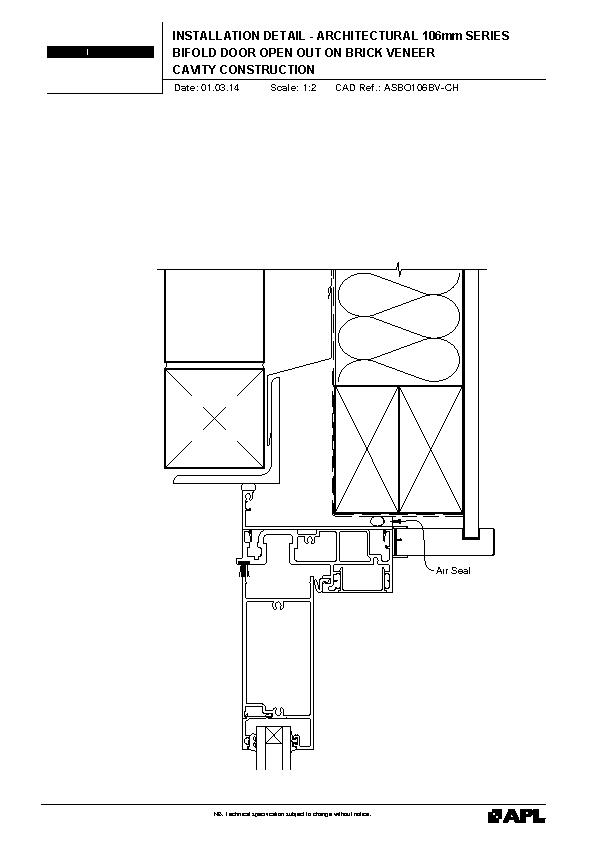

FIRST APL Architectural Series 106mm Bifold Door Open Out on Brick Veneer

ASBO106BV

dwg

pdf

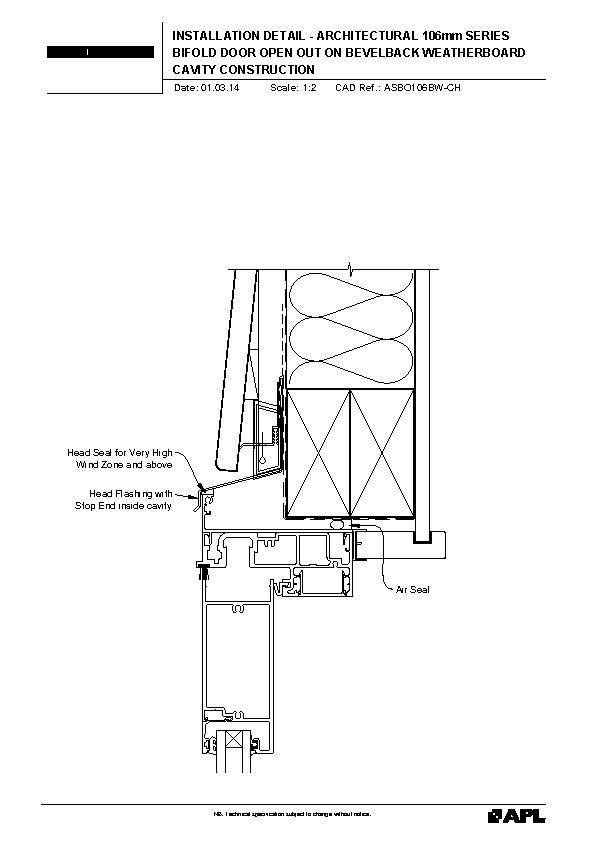

FIRST APL Architectural Series 106mm Bifold Door Open Out on Bevelback Weatherboard

ASBO106BW

dwg

pdf

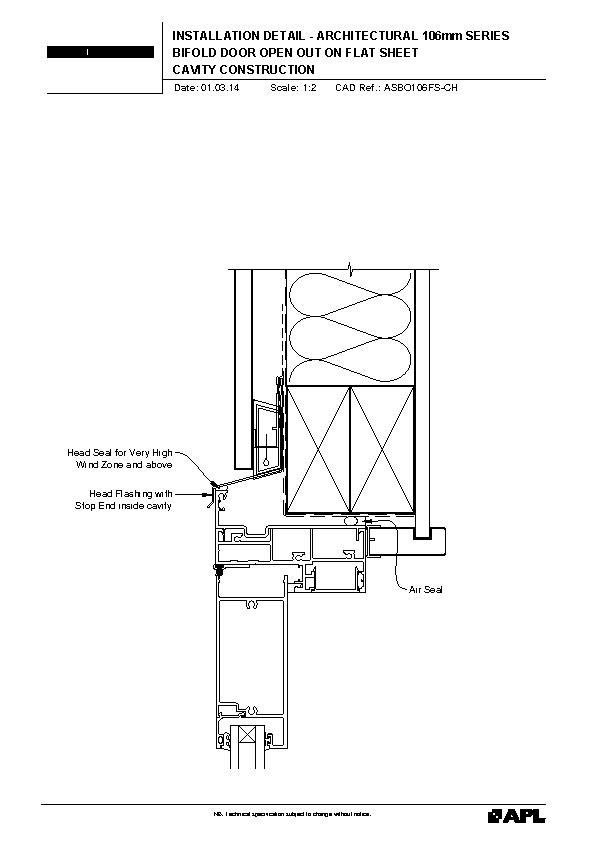

FIRST APL Architectural Series 106mm Bifold Door Open Out on Flat Sheet

ASBO106FS

dwg

pdf

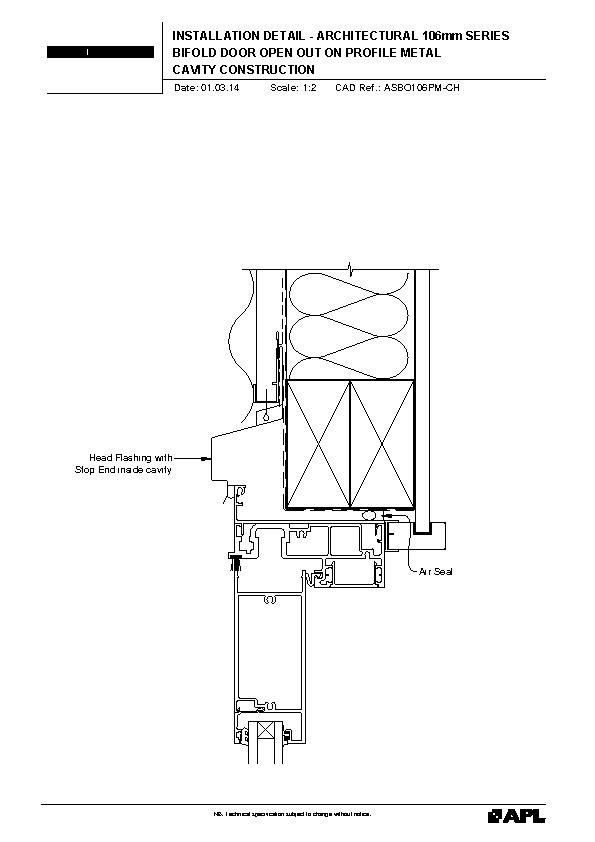

FIRST APL Architectural Series 106mm Bifold Door Open Out on Profile Metal

ASBO106PM

dwg

pdf

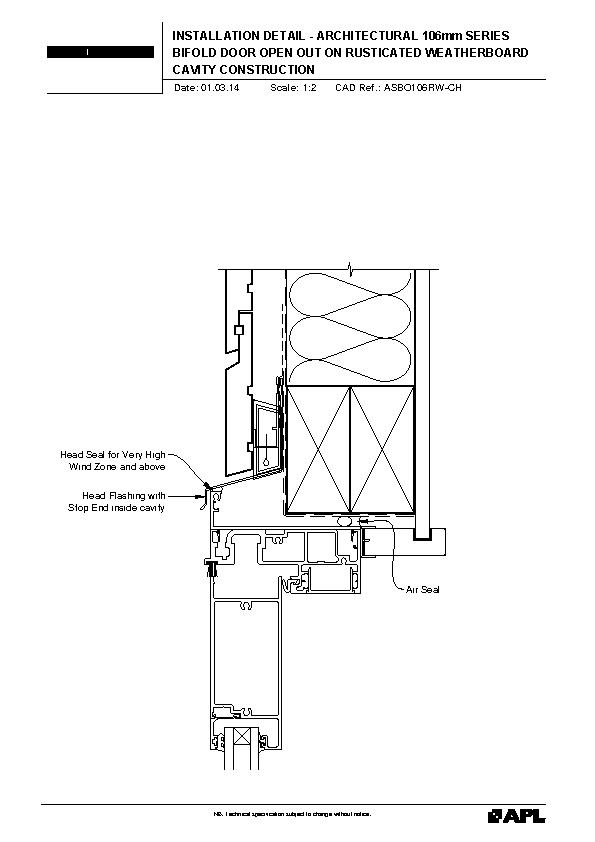

FIRST APL Architectural Series 106mm Bifold Door Open Out on Rusticated Weatherboard

ASBO106RW

dwg

pdf

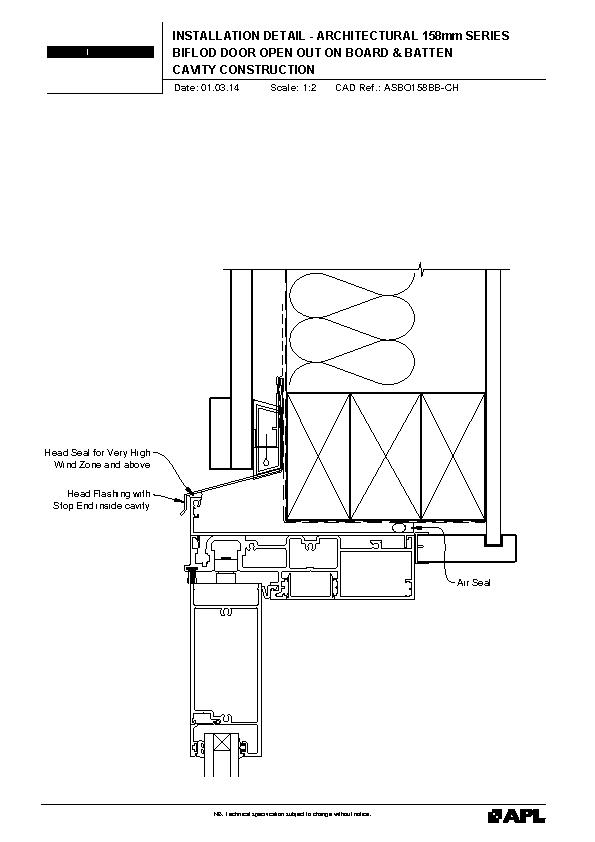

FIRST APL Architectural Series 158mm Bifold Door Open Out on Board and Batten

ASBO158BB

dwg

pdf

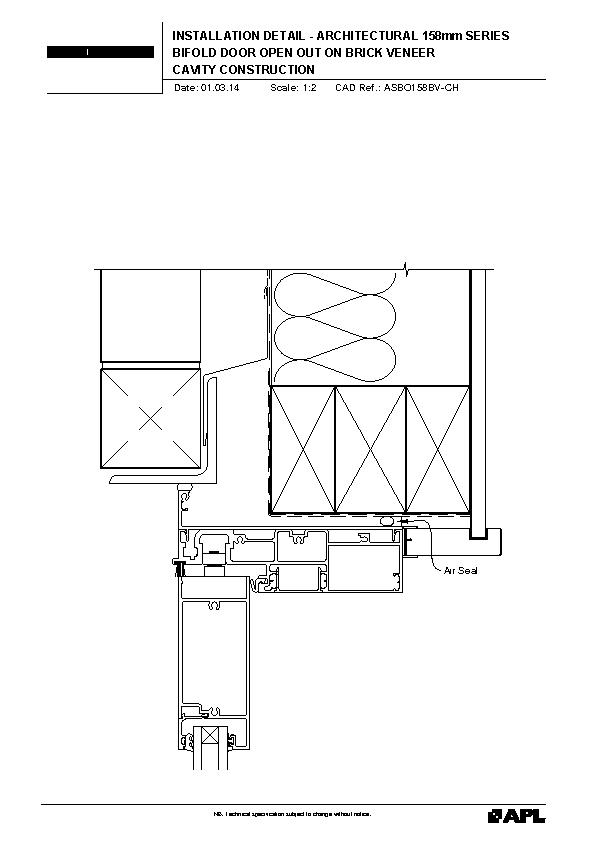

FIRST APL Architectural Series 158mm Bifold Door Open Out on Brick Veneer

ASBO158BV

dwg

pdf

FIRST APL Architectural Series 158mm Bifold Door Open Out on Bevelback Weatherboard

ASBO158BW

dwg

pdf

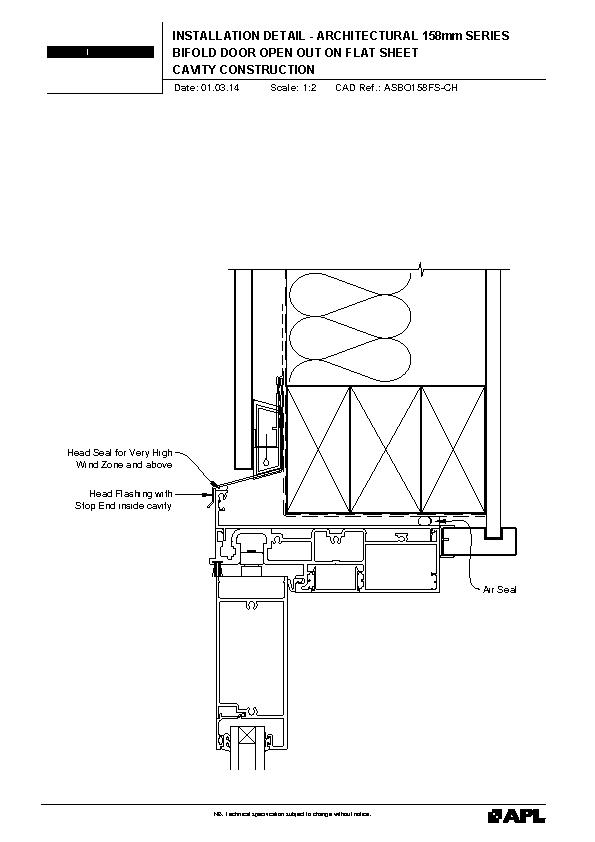

FIRST APL Architectural Series 158mm Bifold Door Open Out on Flat Sheet

ASBO158FS

dwg

pdf

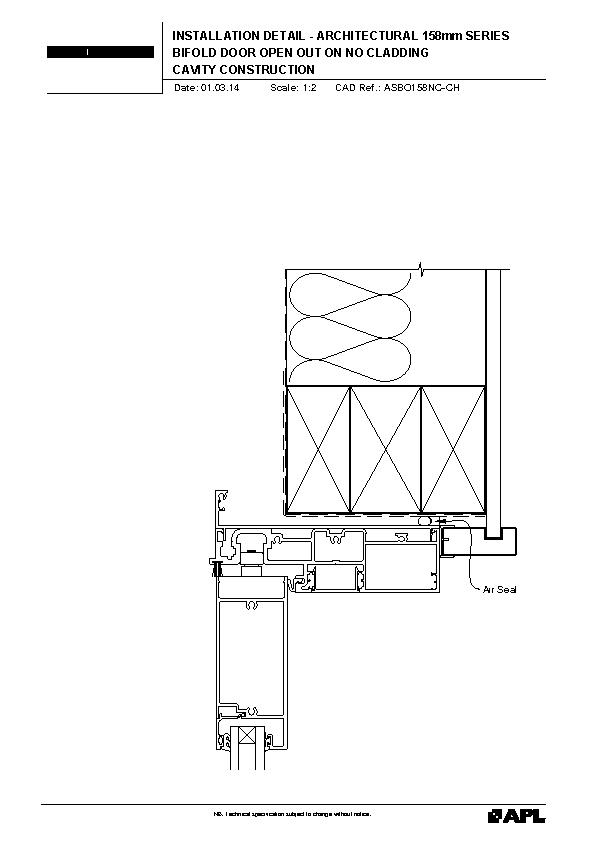

FIRST APL Architectural Series 158mm Bifold Door Open Out on No Cladding

ASBO158NC

dwg

pdf

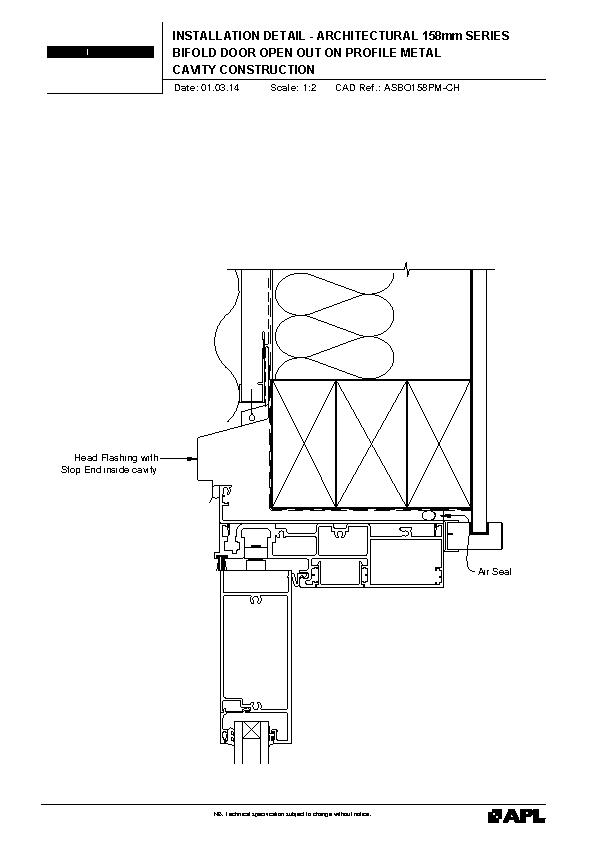

FIRST APL Architectural Series 158mm Bifold Door Open Out on Profile Metal

ASBO158PM

dwg

pdf

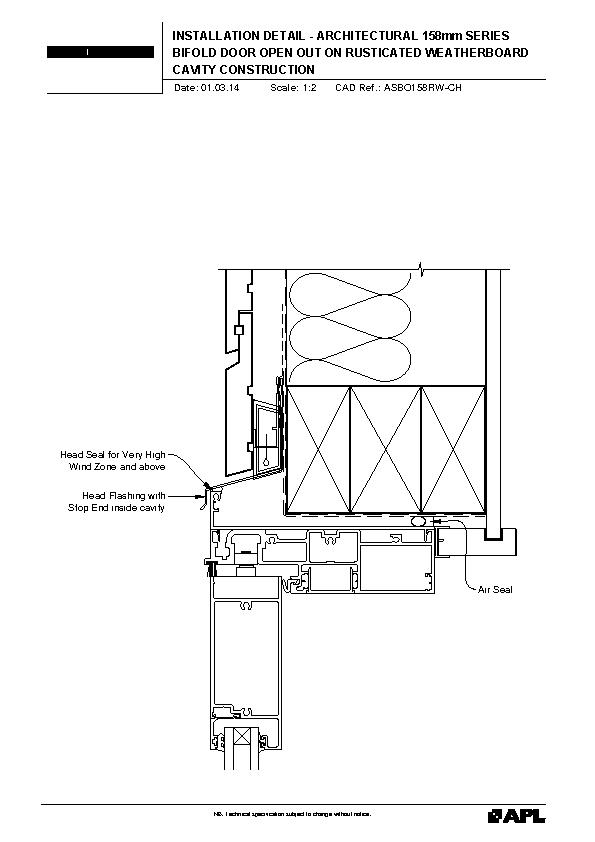

FIRST APL Architectural Series 158mm Bifold Door Open Out on Rusticated Weatherboard

ASBO158RW

dwg

pdf

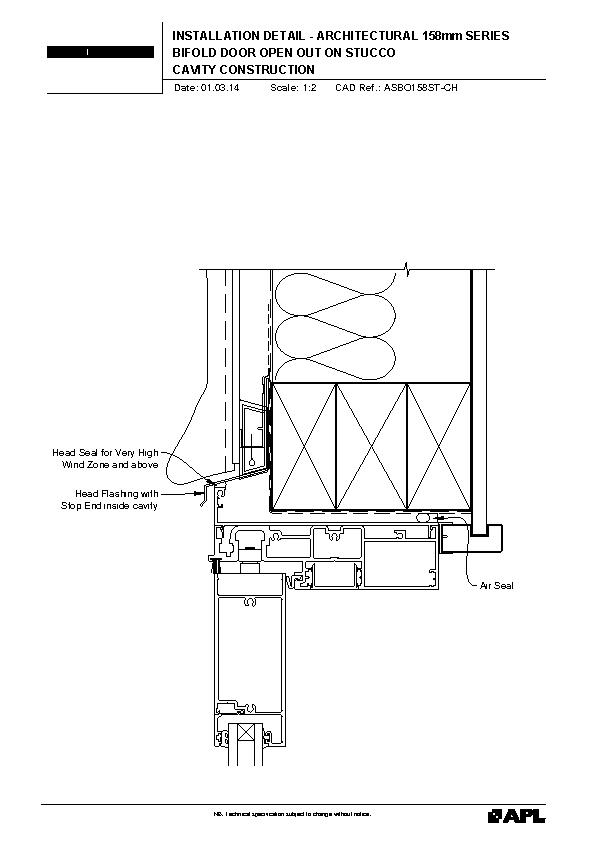

FIRST APL Architectural Series 158mm Bifold Door Open Out on Stucco

ASBO158ST

dwg

pdf

BIM

View full

First Windows & Doors have a high-performing range of solutions for all homes and commercial projects, from entrance doors to windows, sliders, bi-folds and thermally efficient options.

Product Enquiries

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Innovative Flood Prevention with the Jesani Door Channel

Edgetec PosiGlaze Balustrade System Brings Versatility and Ease of Install to Projects

Parkwood Estate: A Cutting-Edge 64-Unit Terraced House Project Featuring Triboard

SECTIONS

Collecting Drinking Water from Roofs in Five Steps

Passive Fire Protection in CLT Construction

The Take-Up of AAC Intertenancy Walls in Aotearoa

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Full Set of Drawings

FIRST APL Architectural Series F600AS Bi-Fold Door 2 + 2 Panel

FIRST APL Architectural Series F600AS Typical Bi-Fold Door

FIRST APL Architectural Series F600AS Bi-Fold Door 2 + 1 Panel

FIRST APL Architectural Series F600AS Bi-Fold Door 2 Panel

FIRST APL Architectural Series F600AS Bi-Fold Door 3 Panel

FIRST APL Architectural Series F600AS Bi-Fold Door 3 + 1 Panel

FIRST APL Architectural Series 106mm Bifold Door Open Out on Board and Batten

FIRST APL Architectural Series 106mm Bifold Door Open Out on Brick Veneer

FIRST APL Architectural Series 106mm Bifold Door Open Out on Bevelback Weatherboard

FIRST APL Architectural Series 106mm Bifold Door Open Out on Flat Sheet

FIRST APL Architectural Series 106mm Bifold Door Open Out on Profile Metal

FIRST APL Architectural Series 106mm Bifold Door Open Out on Rusticated Weatherboard

FIRST APL Architectural Series 158mm Bifold Door Open Out on Board and Batten

FIRST APL Architectural Series 158mm Bifold Door Open Out on Brick Veneer

FIRST APL Architectural Series 158mm Bifold Door Open Out on Bevelback Weatherboard

FIRST APL Architectural Series 158mm Bifold Door Open Out on Flat Sheet

FIRST APL Architectural Series 158mm Bifold Door Open Out on No Cladding

FIRST APL Architectural Series 158mm Bifold Door Open Out on Profile Metal

FIRST APL Architectural Series 158mm Bifold Door Open Out on Rusticated Weatherboard

FIRST APL Architectural Series 158mm Bifold Door Open Out on Stucco

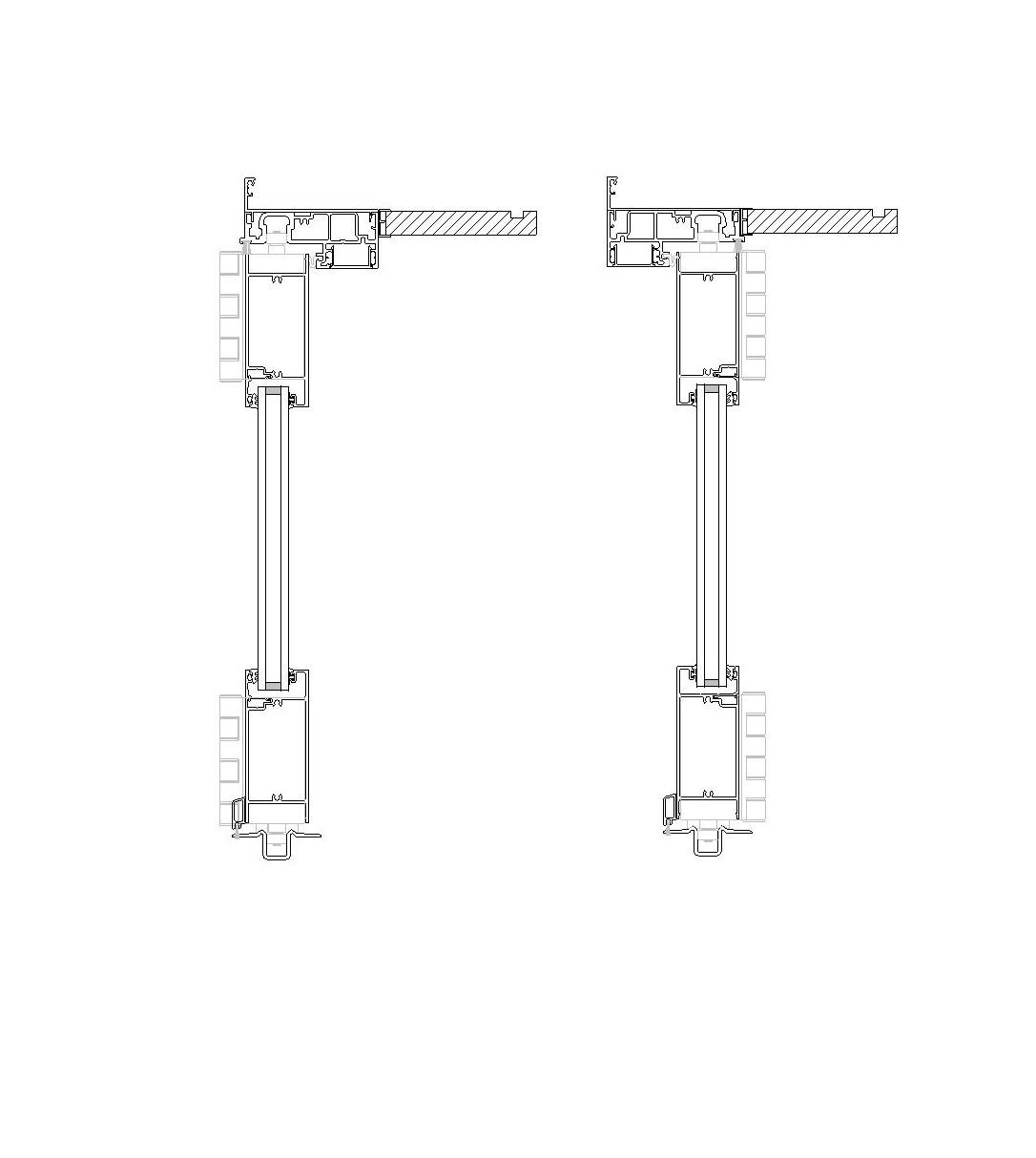

FIRST APL 106mm Architectural Series Bi-Fold Door, Flush Sill

FIRST APL 158mm Architectural Series Bi-Fold Door

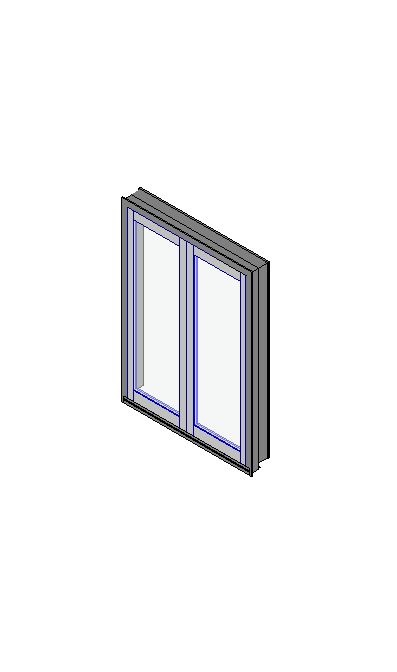

FIRST APL Architectural Series Bi-Fold Door 2 Panel

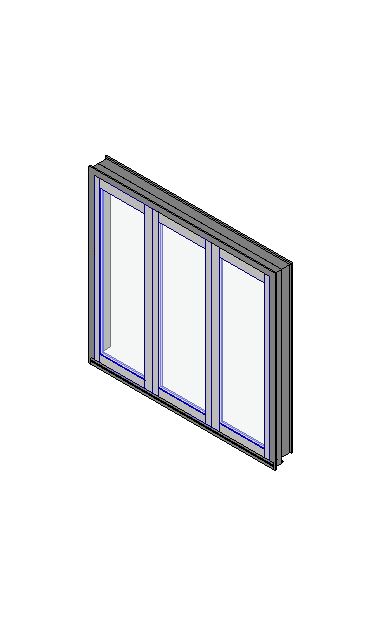

FIRST APL Architectural Series Bi-Fold Door 2+1 Panel

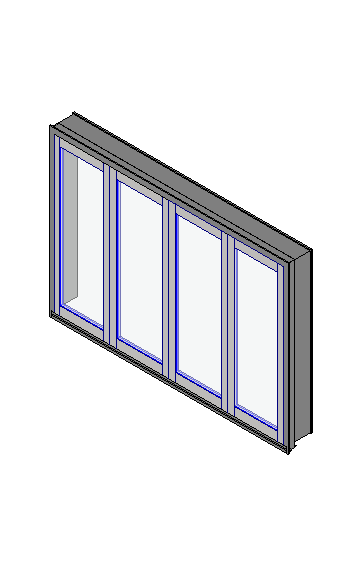

FIRST APL Architectural Series Bi-Fold Door 2+2 Panel

FIRST APL Architectural Series Bi-Fold Door 3 Panel

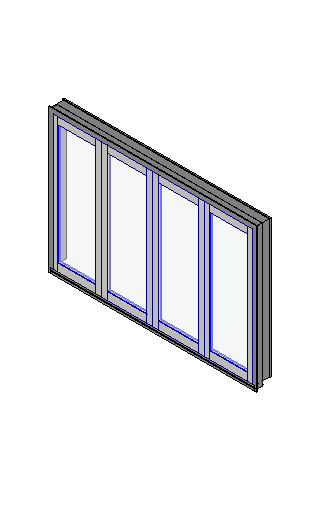

FIRST APL Architectural Series Bi-Fold Door 3+1 Panel

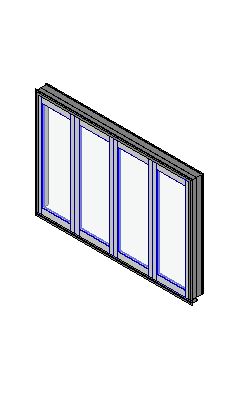

FIRST APL Architectural Series Bi-Fold Door 4 Panel
