Equus Fixplus Pedestal & Tile Support
Equus Industries
All products
example image2
ngaiwi fixplus sml 3
ngaiwi fixplus sml 1

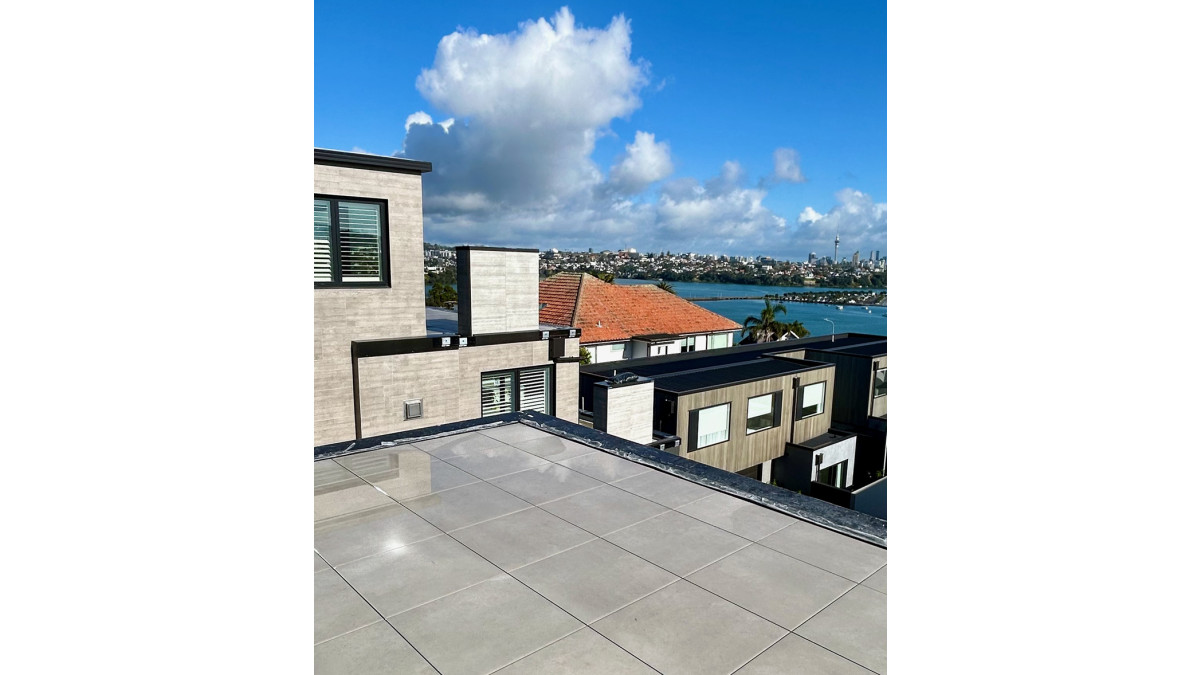

ngaiwi fixplus sml 7
example image3

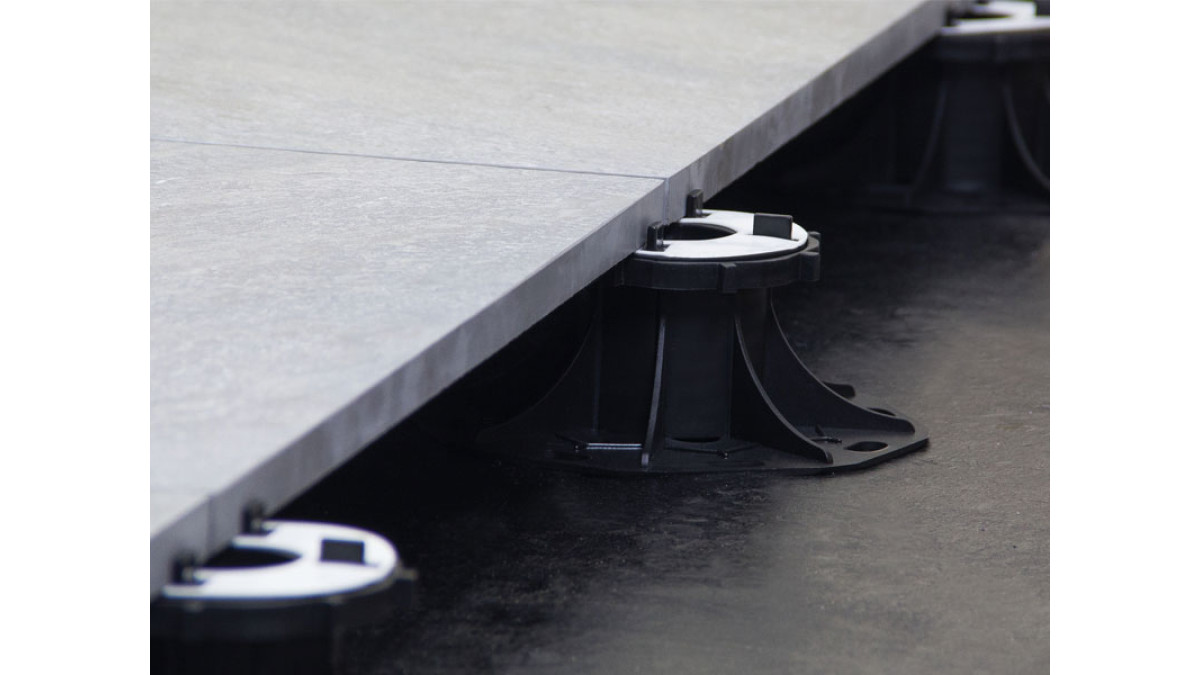

DC9801 HC9801 example
Description

The Equus Fixplus Pedestal and Tile Support range consists of a series of fully customisable pedestals for raised floor applications. Customisable to be compatible with multiple flooring materials, they are suitable for decking systems such as ceramic and natural stone tiles, and aluminium or wooden beams.

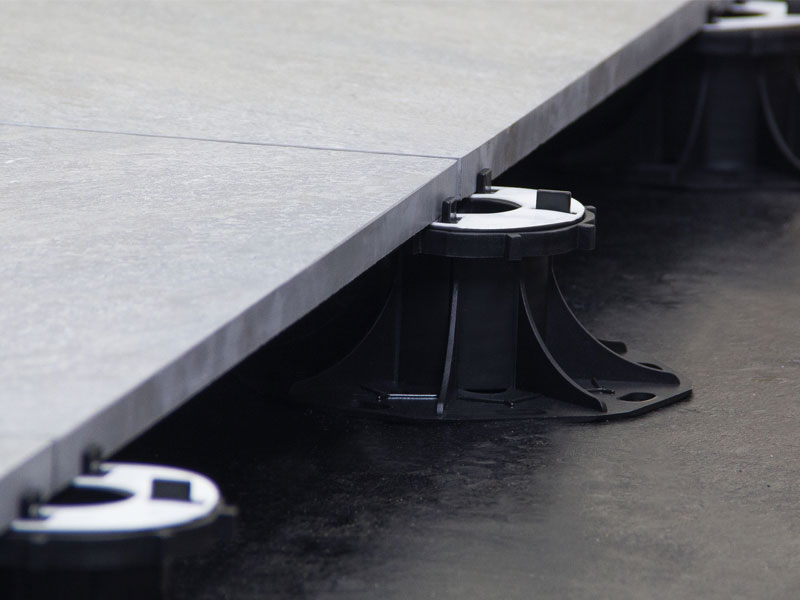

Self-levelling pedestals for raised floor applications with tiles, that allows auto-slop correction on surfaces up to a maximum 5% gradient. Customisable to be used with wooden or aluminium beams. Full range of accessories and customisations available. Height ranges from 85mm-272mm.

Key Features
  • The pedestals come in a range of adjustable heights, basic or self-levelling, and with a range of accessories.
  • A level floor area is created with the self-levelling system.
  • Simple installation, and can be removed and reused with ease.
  • The cavity between the decking material and the waterproofing helps to extend the life of the membrane.
  • Strong and durable pedestals can withstand a weight load of 1,500kgs.
  • Pedestals are made of recyclable material.

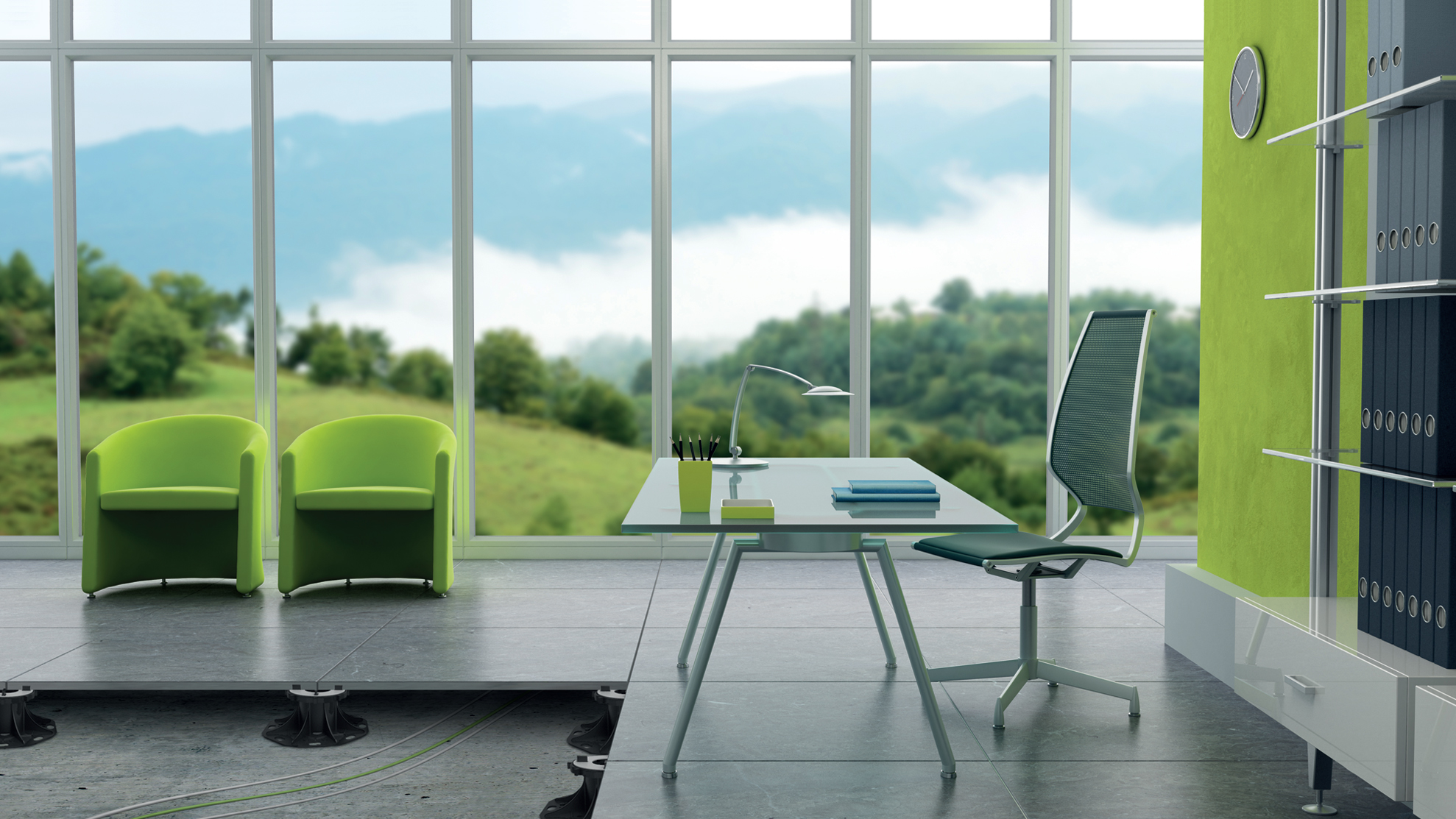

  • Empty space between the flooring material and the substrate provides storage areas for lighting, cables, pipes and more.
Categories
Roofing and Decking Ancillaries Decking Tile Ancillaries
Ranges
Accessories Decking
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Scope of Use
  • Height adjustable pedestal support systems for raised floors, floating decks and paved patios — including:
    • Support systems for self-supporting natural stone/concrete pavers
    • Support systems for self-supporting tiles

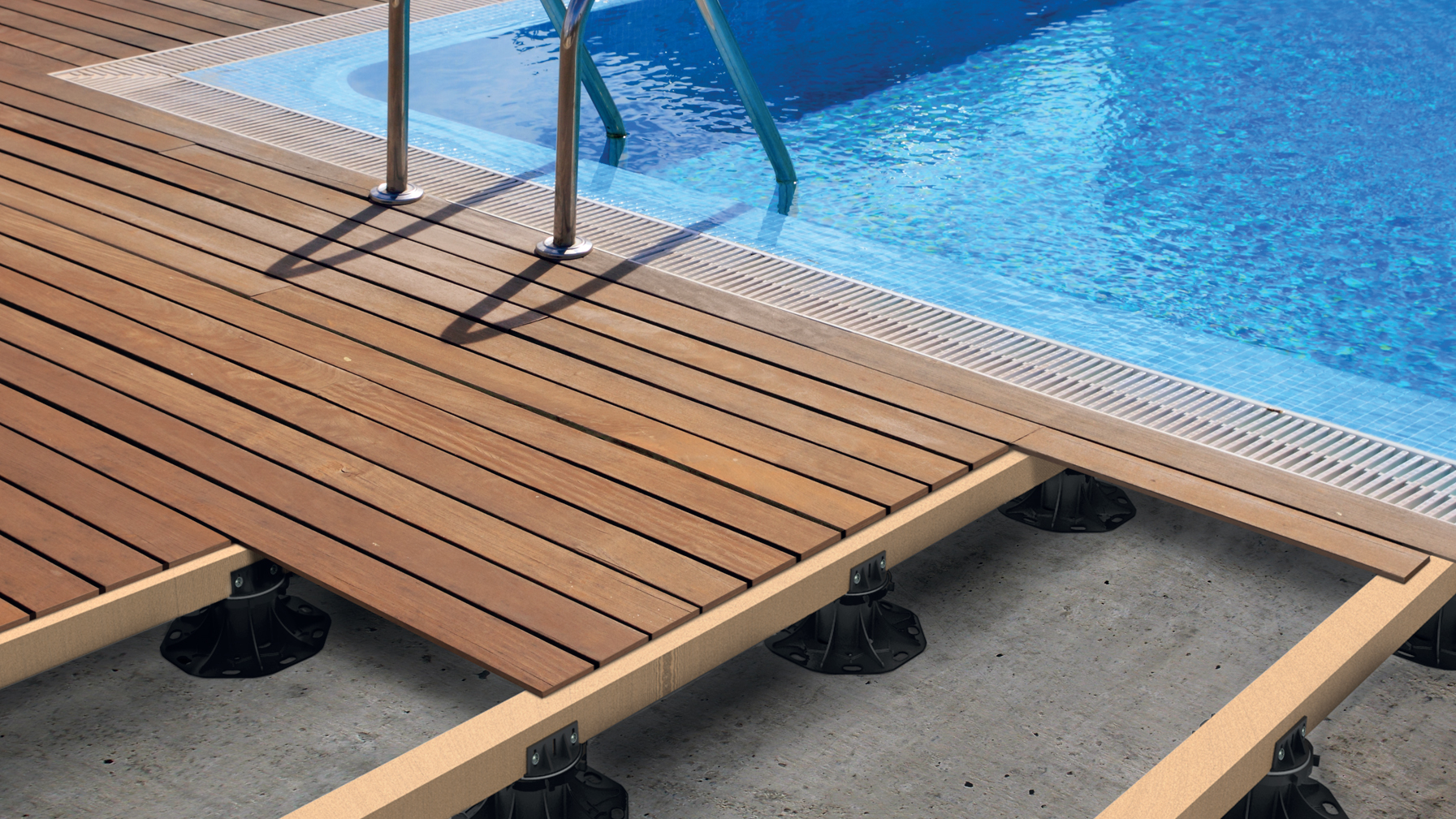

    • Support systems for raised floors/decks with timber or aluminium joists
  • Pedestals can be used on new and existing, residential, or commercial buildings in areas subject to foot traffic.
  • Suitable over a range of substrates including out Equus ranges of Bitumen, TPO, and Liquid applied waterproofing membranes and coatings.
Limitations on Use

Pedestals must be installed without penetrating any waterproofing membranes. The installation must be done by a Certified Equus Applicator to comply with Equus warranty requirements. Verification of Applicator status can be confirmed by a current Applicator Certificate or by contacting Equus Industries Ltd. Any installation must be done in accordance with the latest specifications and technical documentation, or with written approval from Equus Industries Ltd.

Statement of Building Code Compliance
  • B2 Durability - B2.3.1(c) Fixplus Pedestals have a durability of at least 5 years when installed with the correct specification, installation and maintenance.
  • E2 External moisture - E2.3.1, E2.3.2 Fixplus Pedestals comply installation requirements laid out in E2/AS1.
Other Performance Attributes
  • Can withstand a weight load of 1,500kgs.
  • Pedestals are made of recyclable material.
