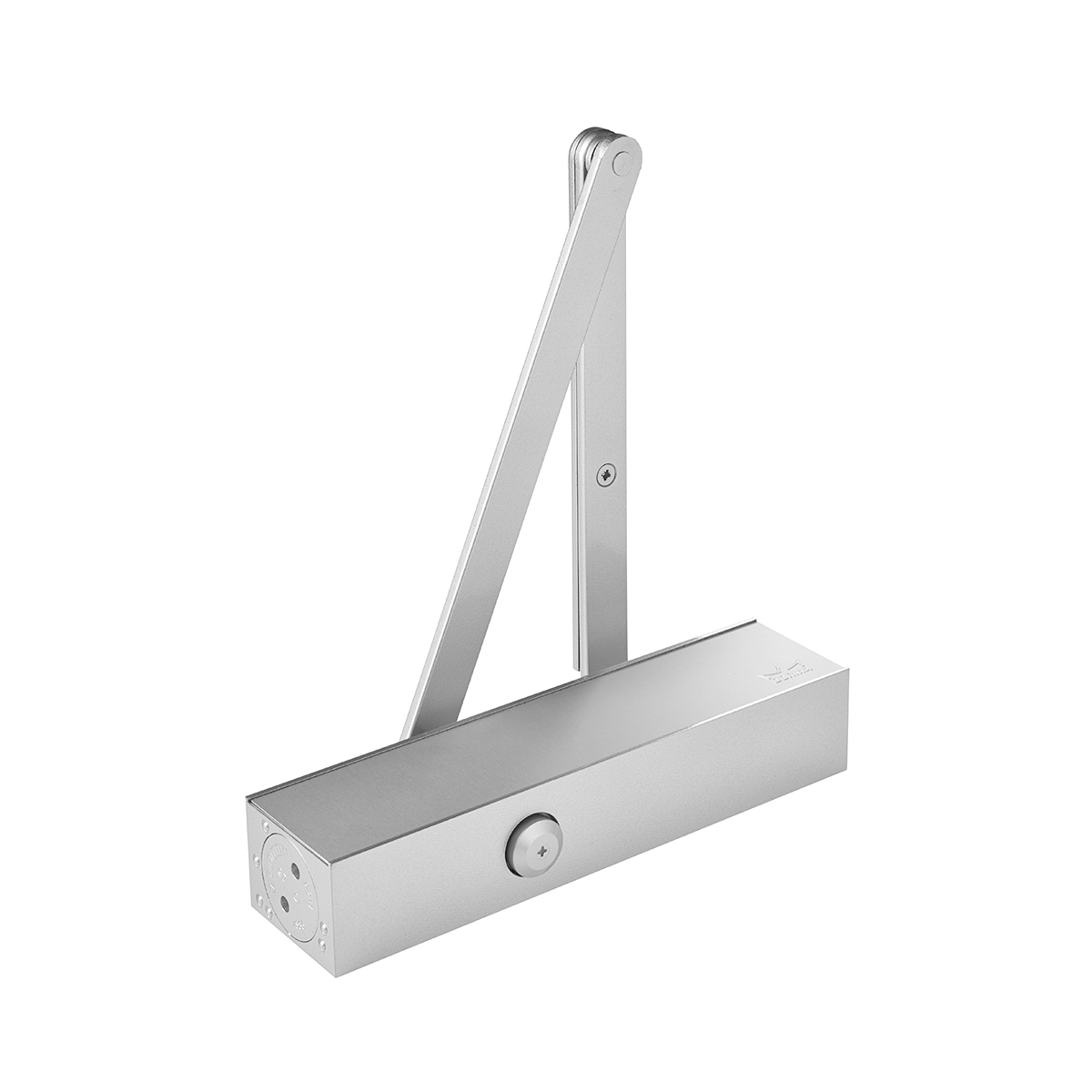

DORMA TS 83 Door Closer
Description

Decades of experience have gone into the development of the DORMA TS 83 door closer. The result is user convenience coupled with outstanding versatility. It can be adjusted to suit almost all types of door.

The DORMA TS 83 can even be supplied with additional anti-corrosion protection for exposed applications or aggressive conditions.

Key Features
  • Perfect solution for almost any application
  • Door widths up to 1400 mm / 1600 mm
  • Timeless design
  • Easy installation
  • Wide range of standard functions supplemented by optional extra accessories
  • Compact closer design and sturdy flat-form arm assembly
  • Suitable for fire doors
Categories / Ranges
Automatic Doors Door Closers
Scope of Use

Easy to fix and even easier to adjust. The door closer for almost every door size and application.

Decades of experience have gone into the development of the DORMA TS 83. The result is user comfort coupled with outstanding versatility. It can be adjusted to suit almost all types of door. It can even be supplied with additional anti-corrosion protection for exposed applications or aggressive conditions.

Add a Hold-Open Arm: Combining the TS 83 with a hold-open arm enables the door to be held open at an appropriate angle (up to approx. 150 degrees). The hold-open function in the standard hold-open arm can be switched on and off by the user by simply pressing a switch.



Statement of Building Code Compliance

Certified ISO 9001

In-Service History

The Bank of Spain - Madrid

The Bank of Spain, as an institution, was created in 1856 following the merger of the Isabel II Bank with the San Fernando Bank in 1847, and its first home was the building of the Five Major Guilds, located on Atocha street in the capital.

The progressive increase of the bank's activity has caused various extensions over the years. In keeping with the bank’s structure, the DORMA door closers have been installed to confer modernity, elegance and consistency of design.

Documents
Technical brochure
Anti-Corrosive Technical Brochure
ISO Certification
EN7 Template
Cover pack
EN3-6 Mounting plate
Additional Information
CAD/PDF Details
Installation Details

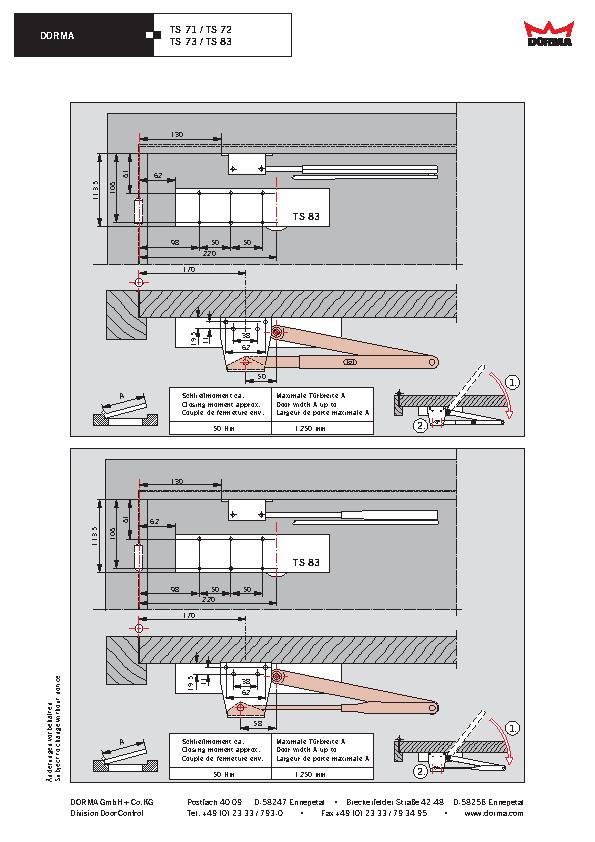

EN3-6 Parallel Arm Installation
EN3-6 Standard Arm Installation

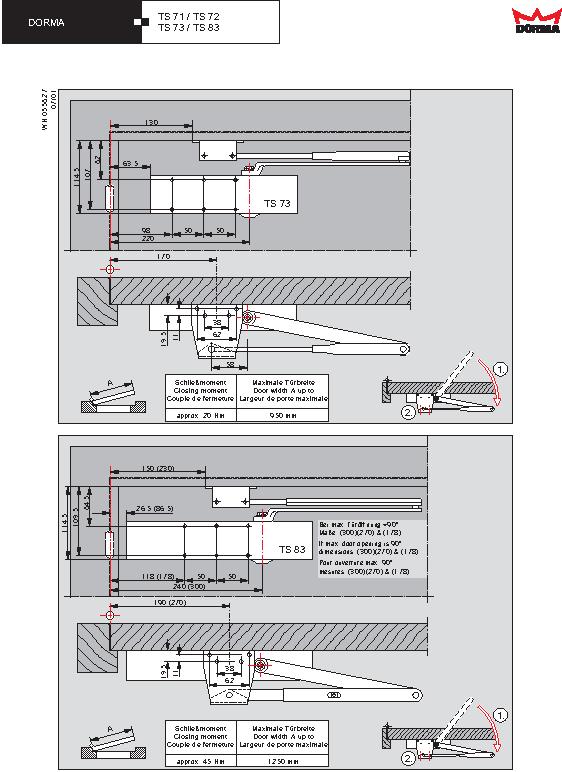

EN7 Parallel arm installation

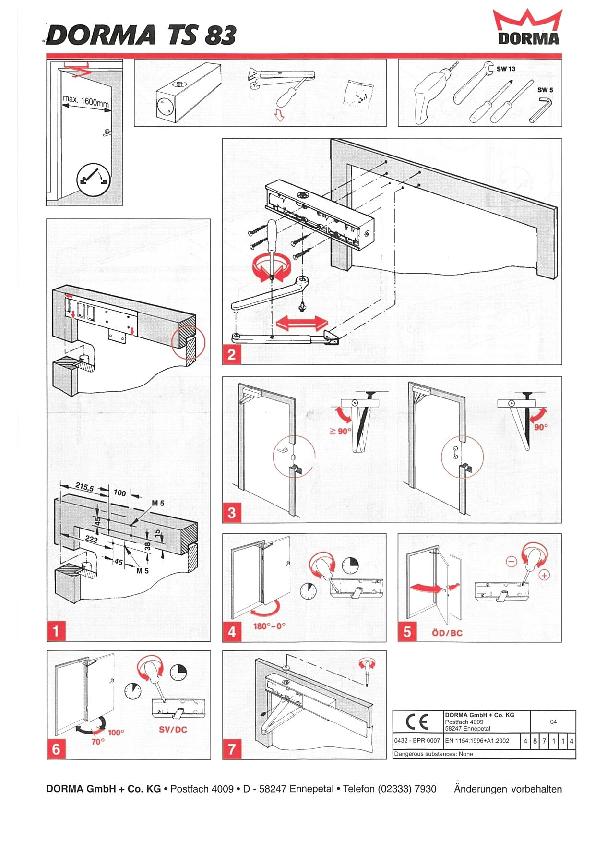

EN7 Standard Arm Installation
Hold Open Arm Installation
