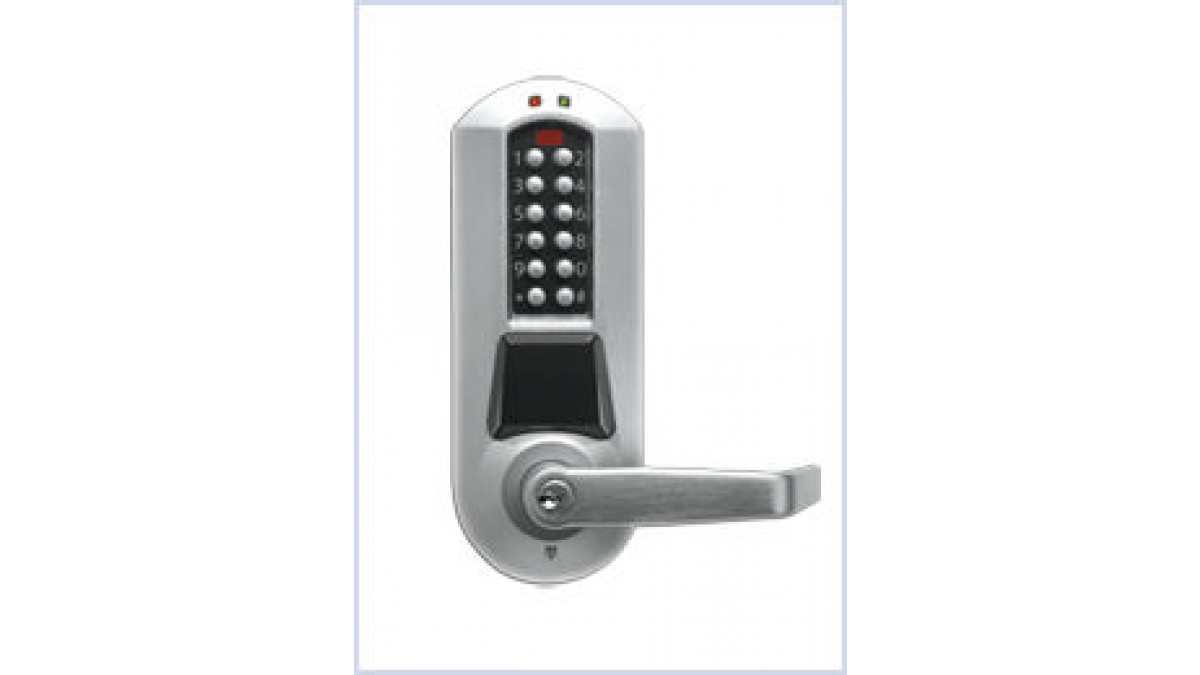

E-Plex 5700

Kaba’s electronic access control provides additional features beyond mechanical access control. E-Plex products range from simple programming at the lock to more advance applications requiring software for managing many users and doors. PIN and/or card access locks allow management to set access schedules and review activity via audit trail.

The innovative E-Plex 5700 adds dual credential locking for heightened security levels. Lock access can be set to require PIN code only, PROX card only or both when additional security is required.

Credential requirements are controlled by access schedules and can vary throughout the day or week. The fully customisable dual credential operation allows for a complete access control network suitable for varied authority, high traffic facilities.

Utilising the same software as the E-Plex 5200, extensive audit trailing and scheduling is available with no cables needed to upload / download user and audit information.

Key Features

· PROX Card Access Control
· 3,000 Code PIN Access Control
· 30,000 Event Audit Trail
· Advanced Access Control Software
· 16 Access Schedules
· 32 Holiday Blocks
· 6 Authority Access Levels
· Heavy Duty - ANSI/BHMA Grade 1
· Cylinder, Mortice and Exit Device
· 2 Hour Fire Door Rating
· -35° to 66°C Indoor/Outdoor Use
· 120,000 Battery Cycles - 4xAA
· 3 Years Built-In Warranty


Function Options

Cylindrical Lock, Cylindrical Privacy, Mortice Lock or Exit Trim.

Handle Options:

Winston Lever or Winston Knob (available with Cylindrical only)

Colour Range:

Standard: = Satin Chrome.
Custom*: = Bright Chrome, Satin Brass, Bright Brass, Black

Data Sheet
Quick guide
Installation and Operation
Maintenance Instructions
Installation Details

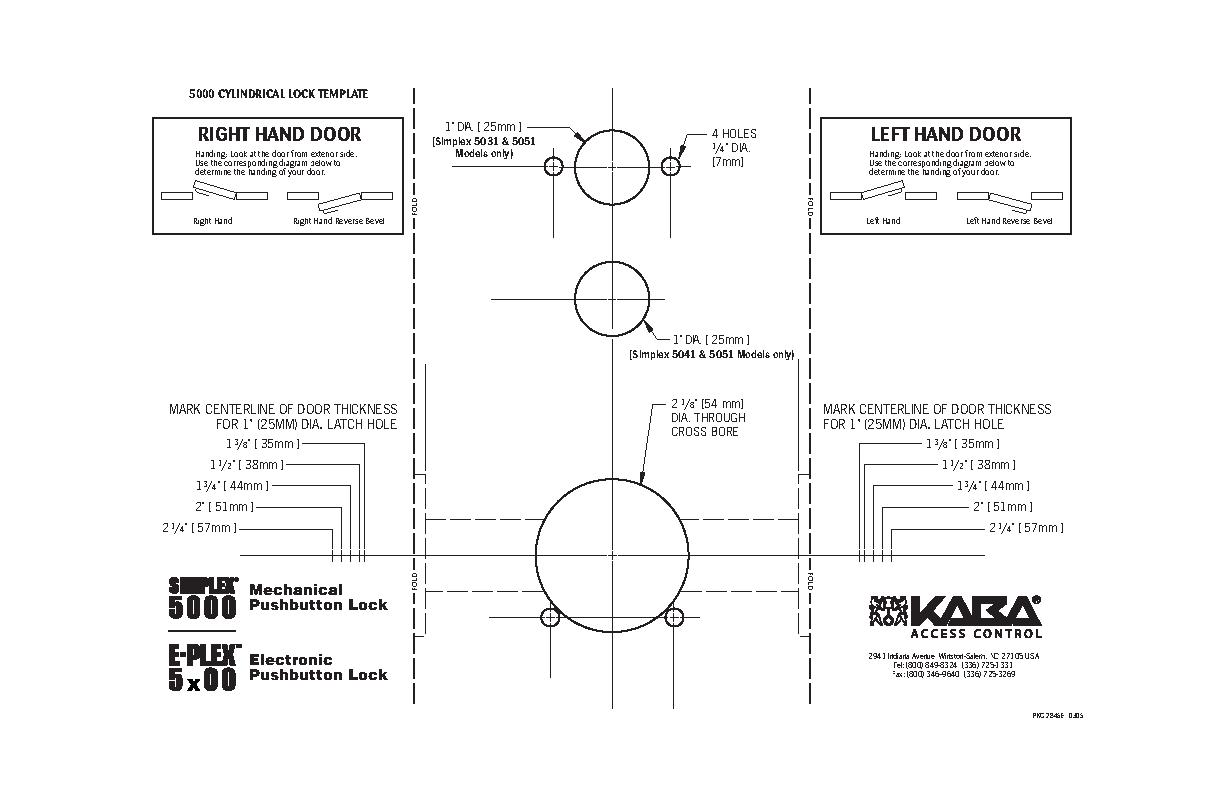

Installation template

Installation template
