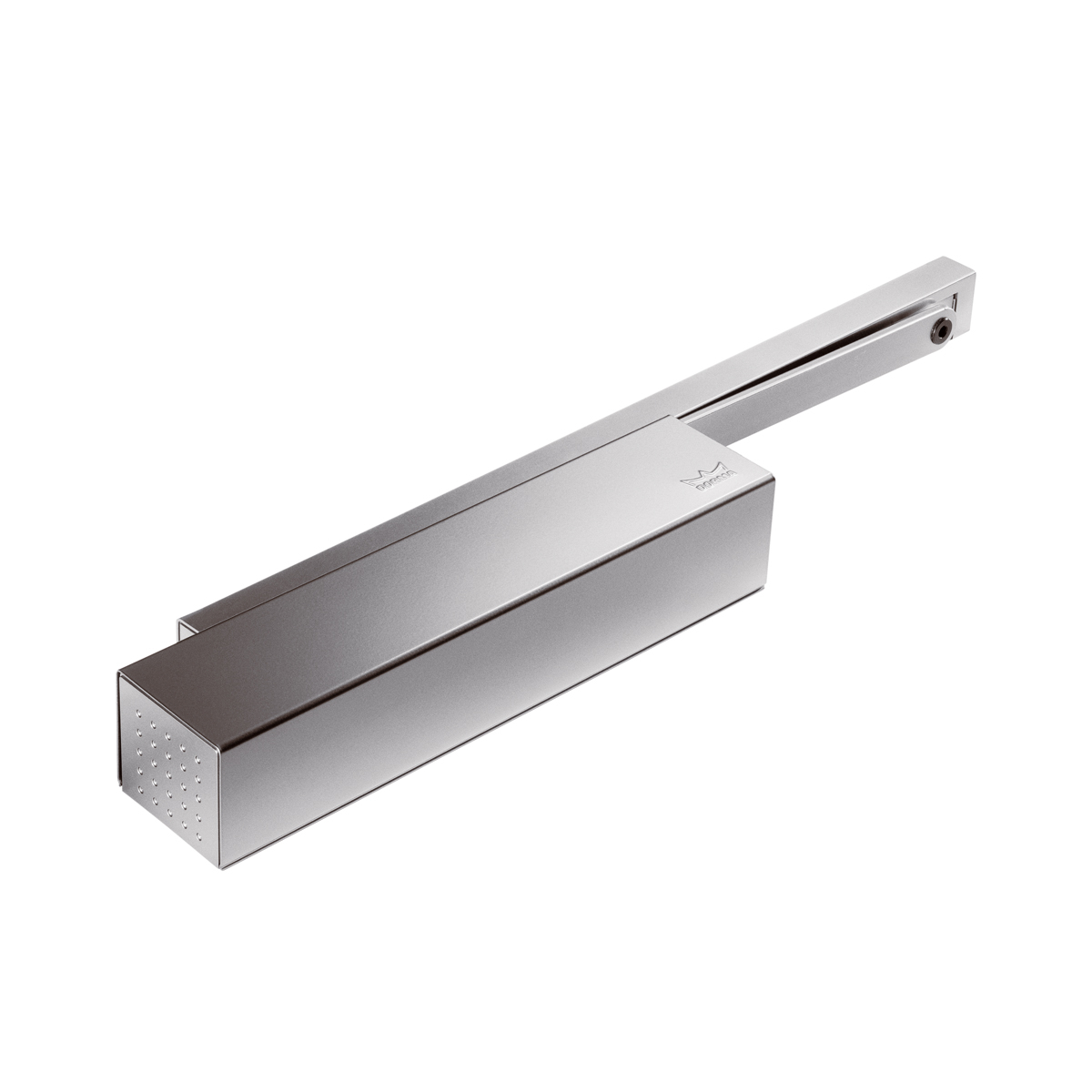

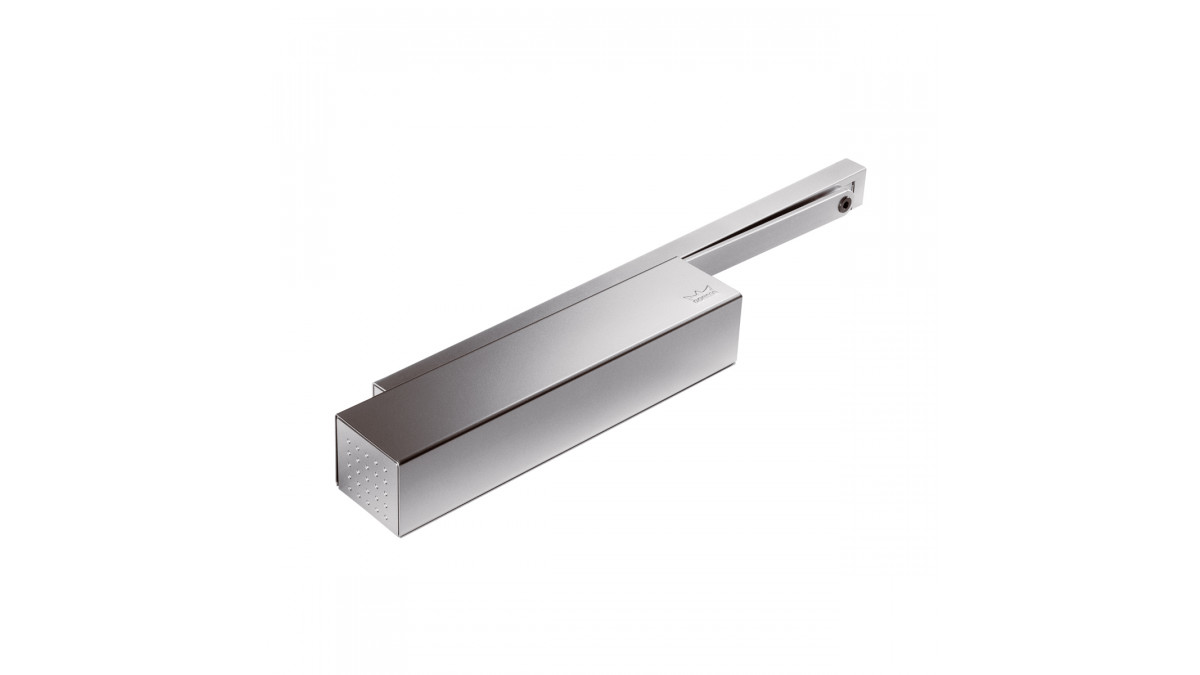

DORMA TS 93 Door Closer System
Description

The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements. The proven DORMA technology featuring the heart-shaped cam ensures exceptional ease of opening.

Key Features
  • Easy Open technology
  • Door widths up to 1250mm / 1600mm
  • For single and double leaf doors
  • Suitable for all fixing positions
  • Delayed closing and Hydraulic Backcheck
  • High-quality design ensures an ideal solution for all project applications
  • Harmonious appearance thanks to integral smoke detector
  • Available in a wide range of colours and finishes
Categories
Automatic Doors
Ranges
Door Closers
Scope of Use

The perfect solution for all application needs; The TS 93 cam action door closer system sets new standards in user convenience in project applications. The proven DORMA technology of the heart-shaped cam ensures exceptional ease of opening.

The TS 93 series comprises a modular system which enables just a few door closer models to be combined with a number of different slide channels to meet virtually every conceivable functional requirement. Doors of varying designs can be equipped for a wide range of different applications.

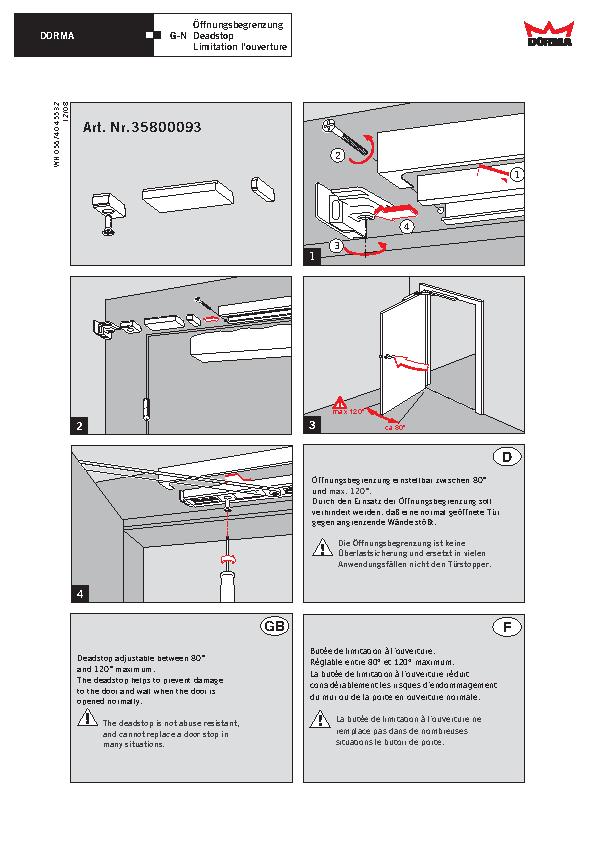

Cushioned Limit Stop; Accessories for the G-N, RF slide channel: Cushioned limit stop for retrofitting to the slide channel. Adjustable between 80 and 120 degrees. The cushioned limit stop prevents the door from hitting the adjacent wall when opened normally.

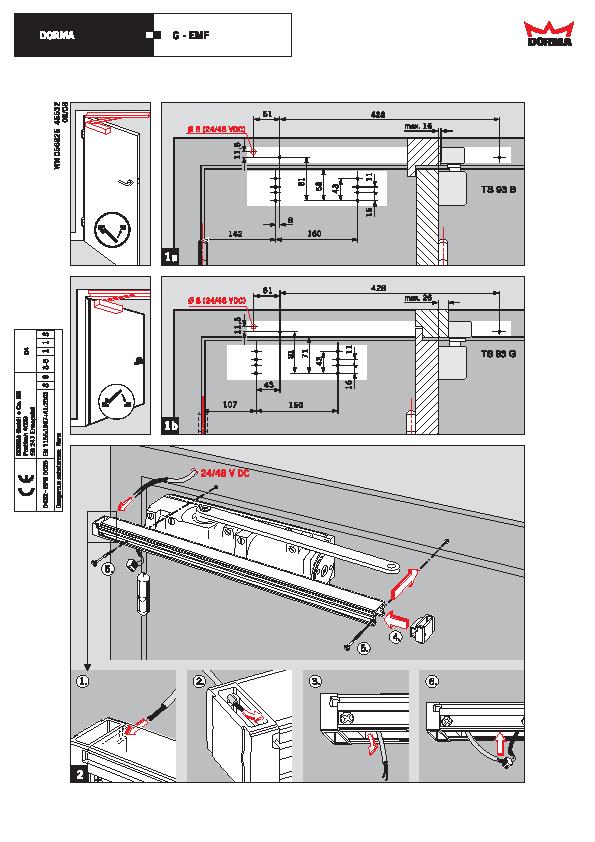

TS 93 EMF with Slide Channel with Electro-Mechanical Hold-Open; The G-EMF slide channel assembly enables the door to be held open securely at a preselected position without fall-back. The hold-open point can be adjusted within an opening angle of approx. 80 and 140 degrees.

In-Service History

Vodafone Campus - Dusseldorf

With its new 86,000 sqm Group headquarters located on the former site of the Gatzweiler brewery between Viersener Strasse and Brusseler Strasse, the telecommunications giant Vodafone has created a huge space for the 5,000 employees destined to occupy the complex. Boasting 19 floors and a height of 75 meters, this future German HQ is one of the new landmarks setting the city of Düsseldorf apart.

The Dorma TS 93 Door Closer System was featured in this project.

Other Performance Attributes

The TS 93 fulfils the requirements of Australian Standard AS1428 and the access to premises standards.

Documents
TS 93 B EN 1-5 Template
TS 93 B EN 5-7 Template
TS 93 G EN 1-5 Template
TS 93 G EN 5-7 Template
Warranty
Brochure
Installation Details
EMF Installation

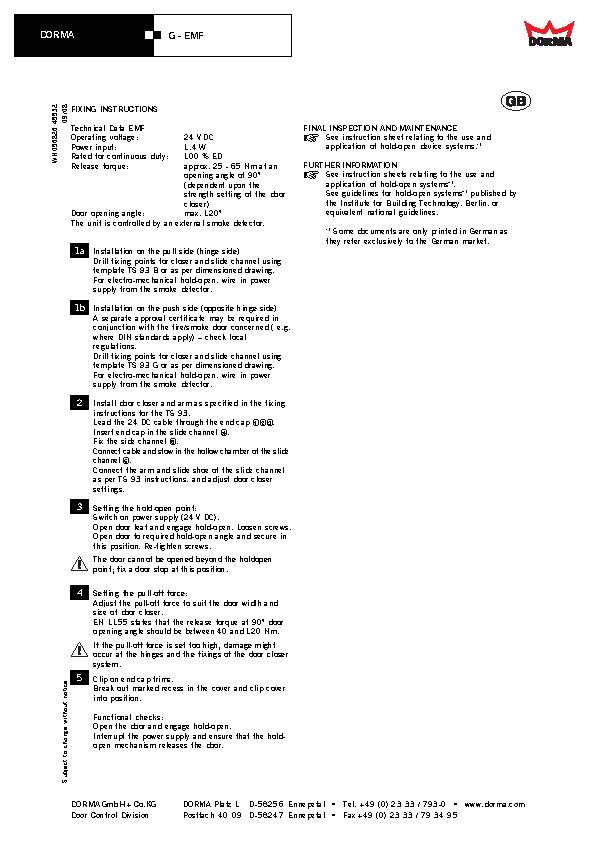

EMF Installation (Text)
GN Angle Bracket Installation
GN Limiting Stop Installation

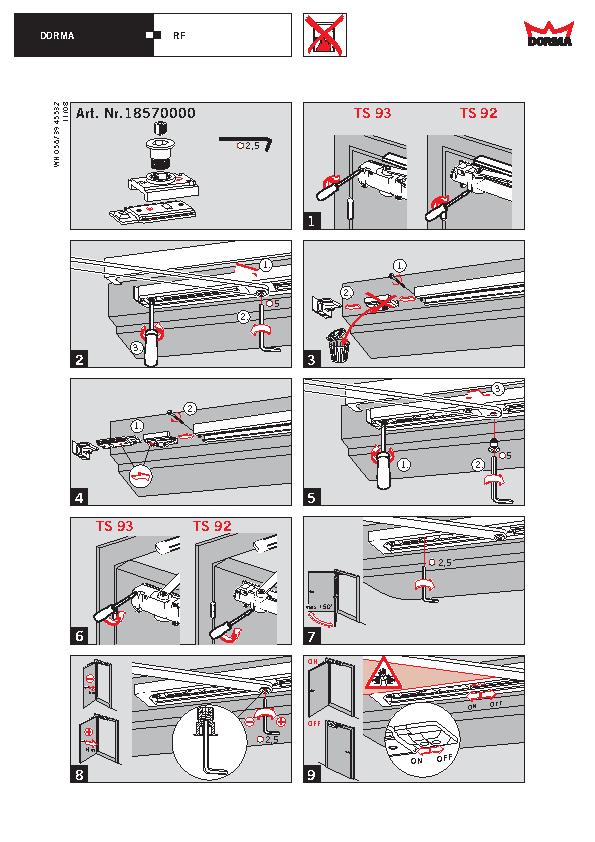

GN RF Hold Open Device Installation

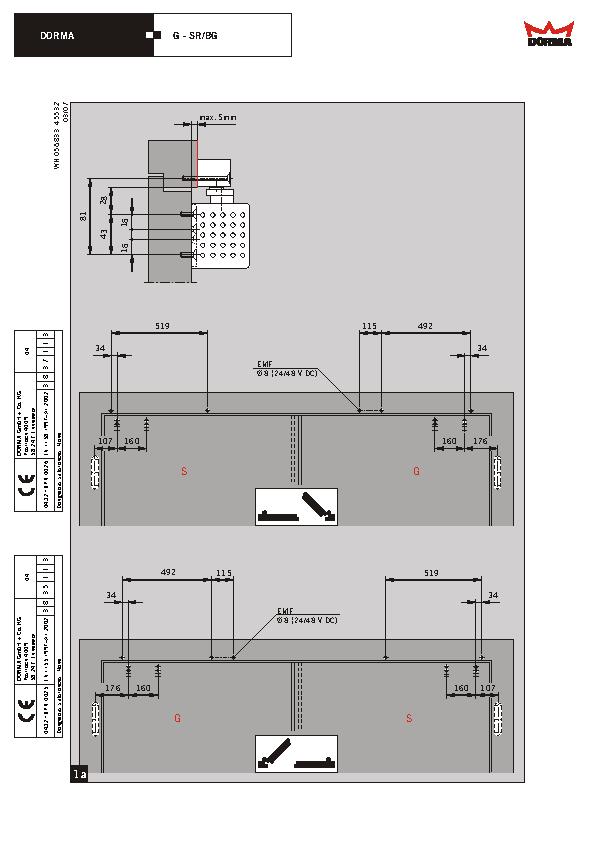

GSR BG Installation

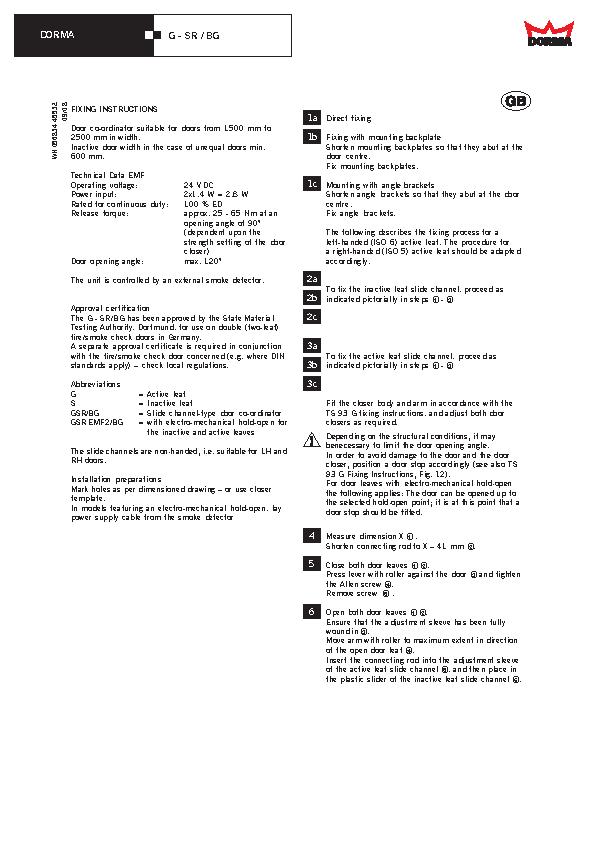

GSR BG Installation (Text)

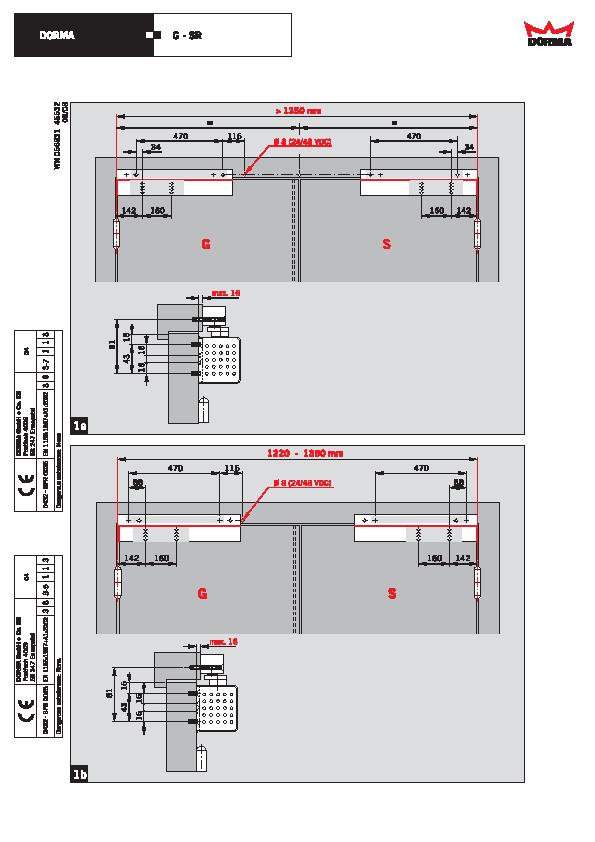

GSR Installation

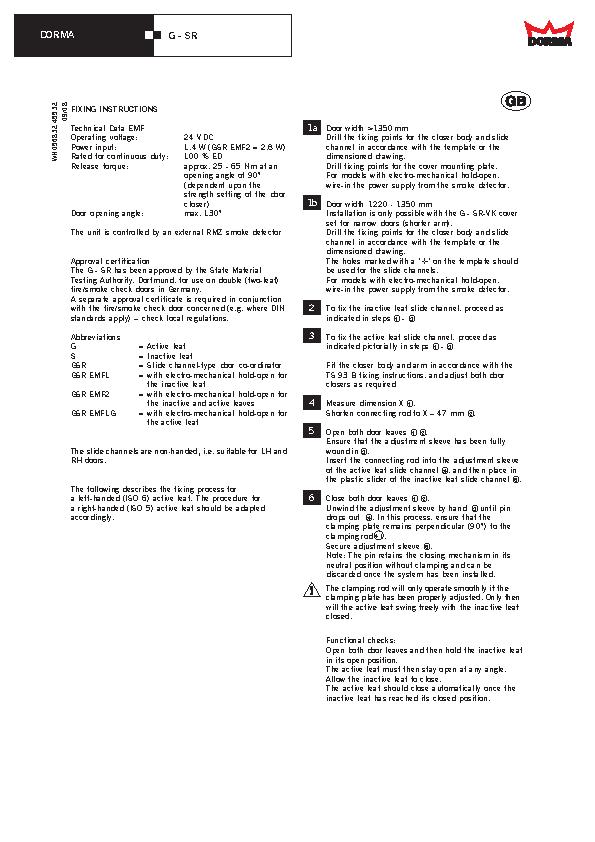

GSR Installation (Text)

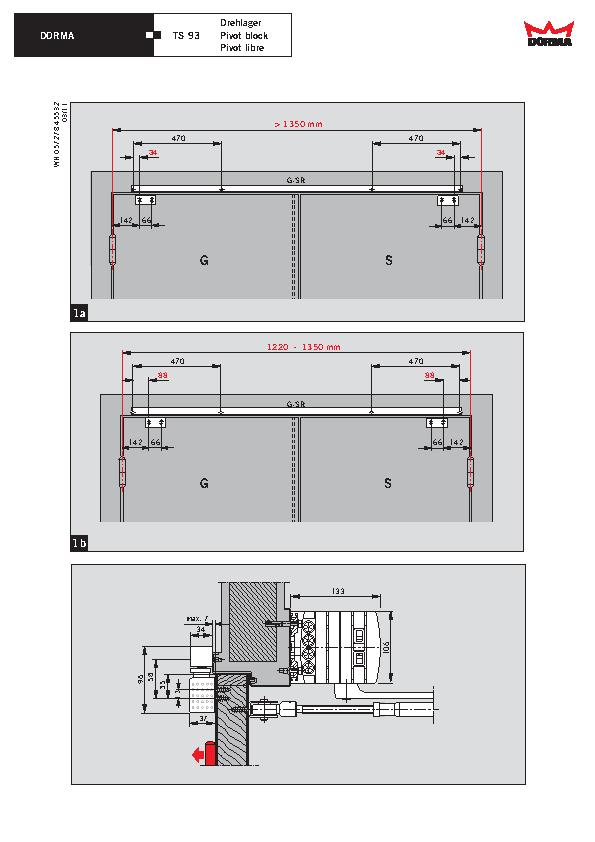

Pivot Block Installation

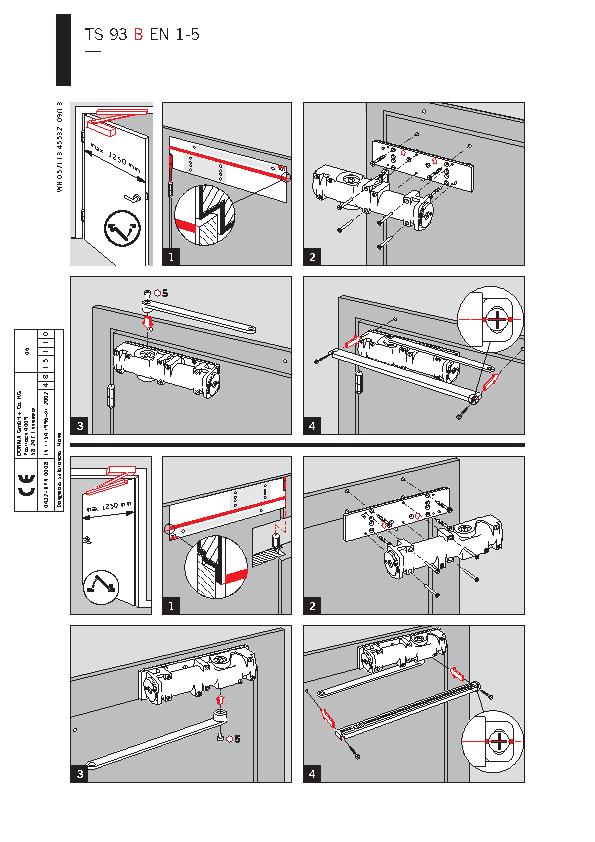

TS 93 B EN 1-5 Installation

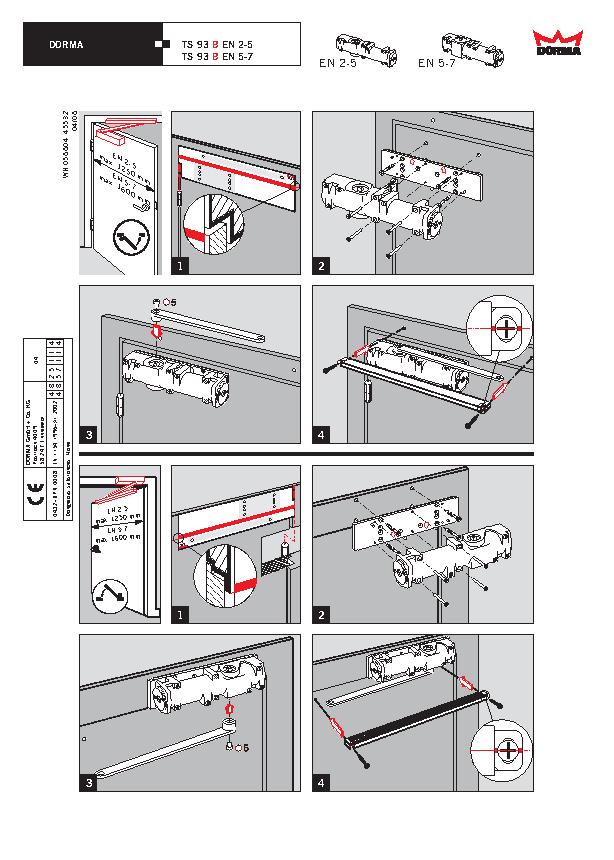

TS 93 B EN 5-7 Installation

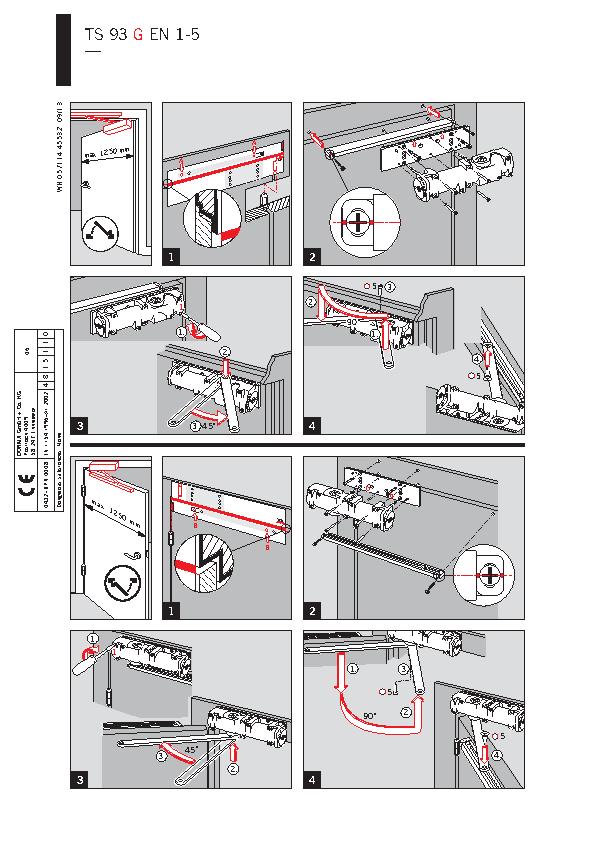

TS 93 G EN 1-5 Installation

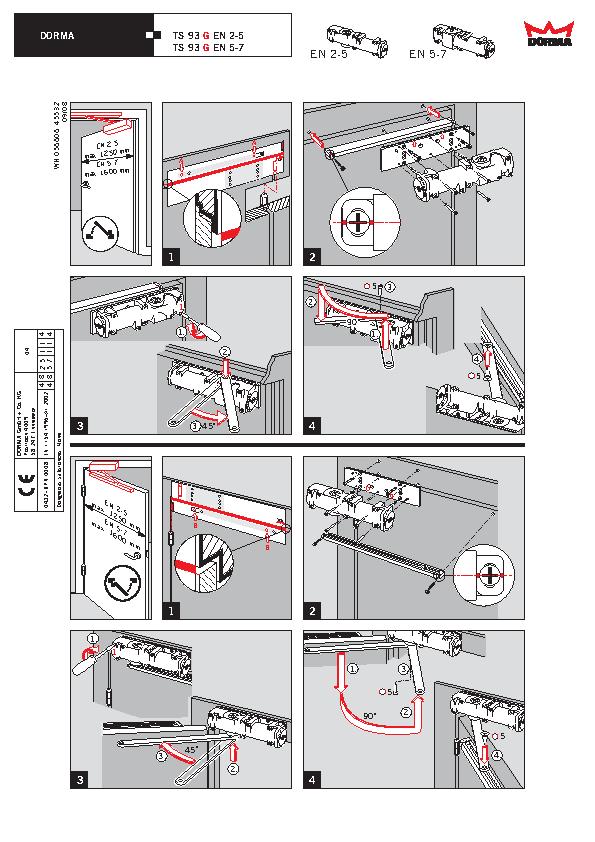

TS 93 G EN 5-7 Installation
