Elegant Entrance and Hardware Solutions for Zealong Tea Estate

Zealong is a premium brand of tea that's grown, processed and packaged from a single source in the pristine air and soils of New Zealand. Nestled among their 48ha domain just outside of Hamilton is what is described as 'the beating heart of the Zealong Tea Estate' — the Vista (Visitors Centre) and Factory. The Vista is a multi-functional building that boasts a luxurious retail shop, two modern function rooms and an exclusive lounge area.

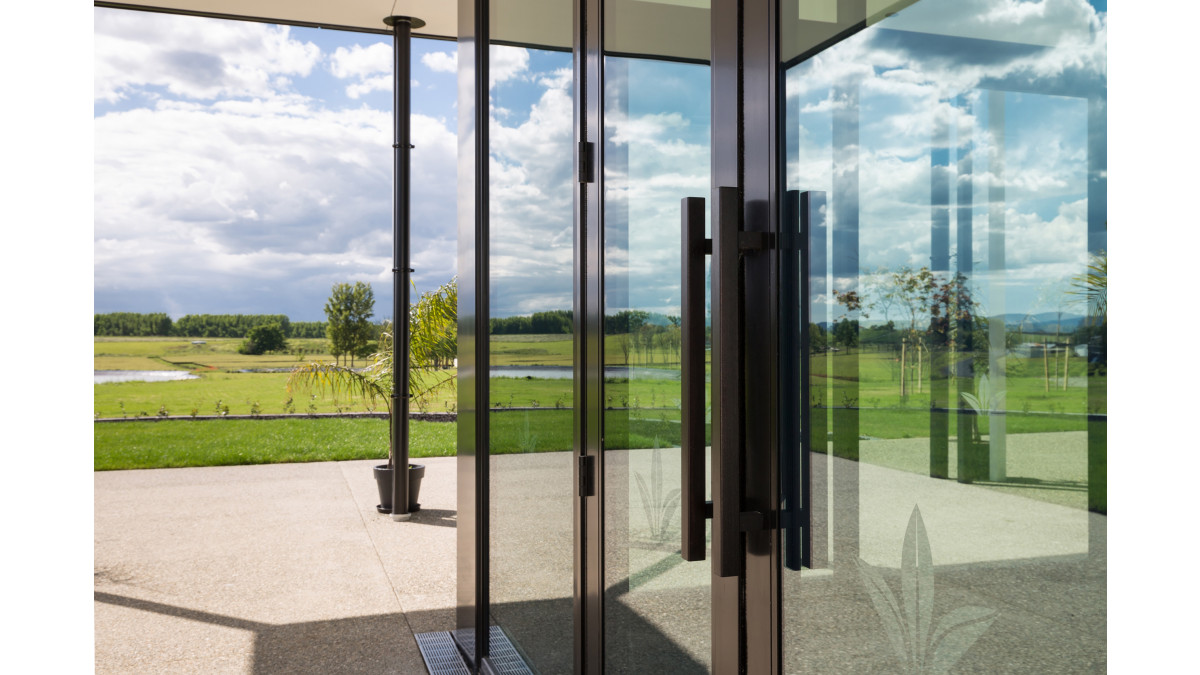

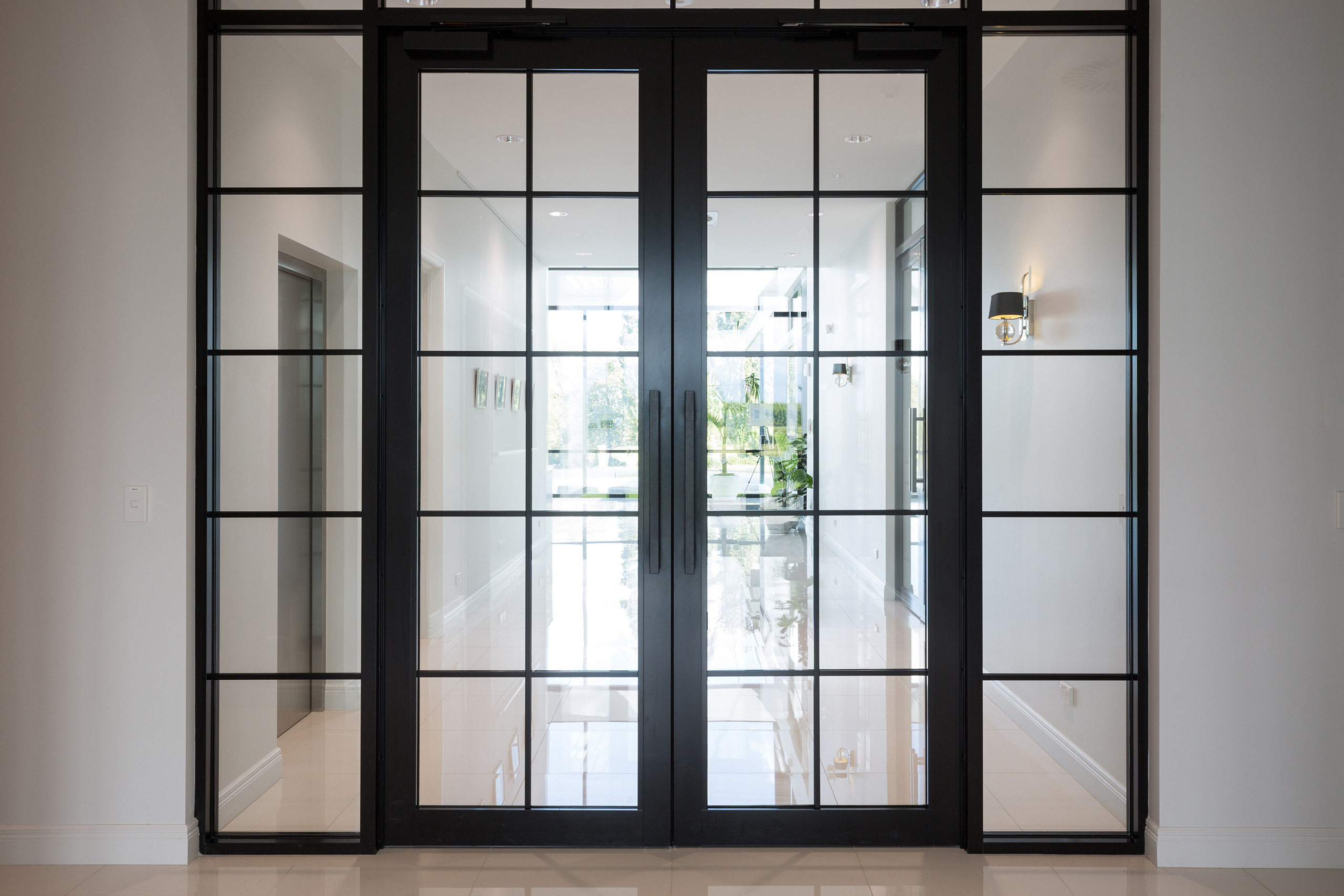

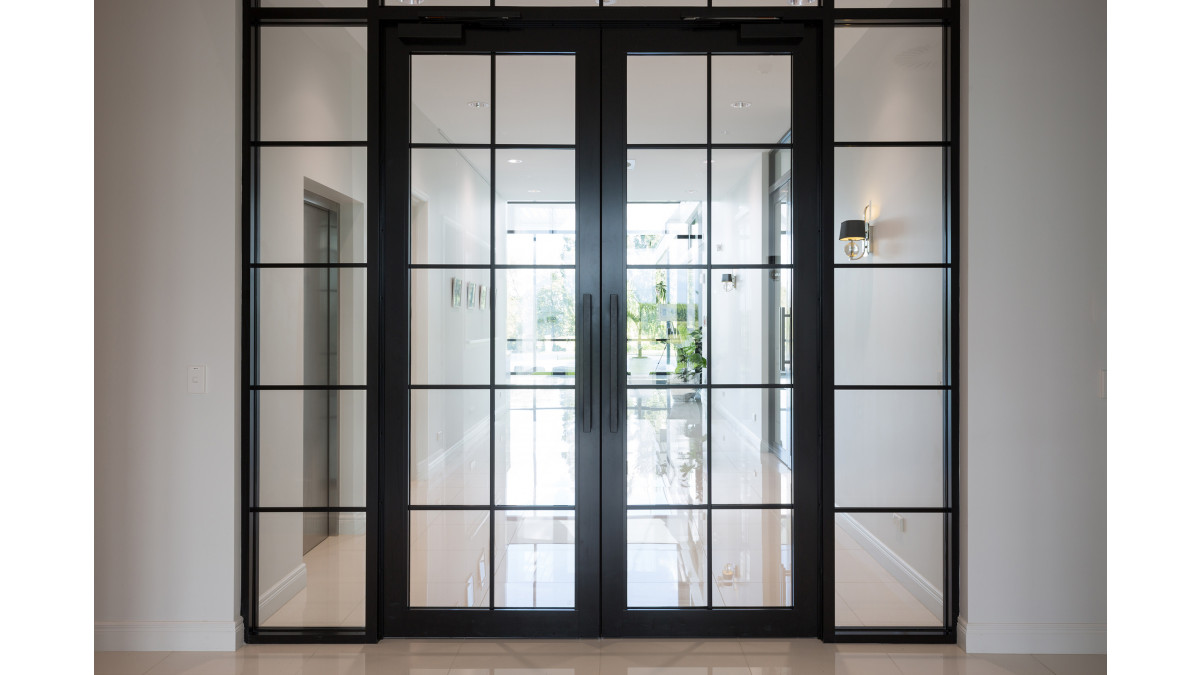

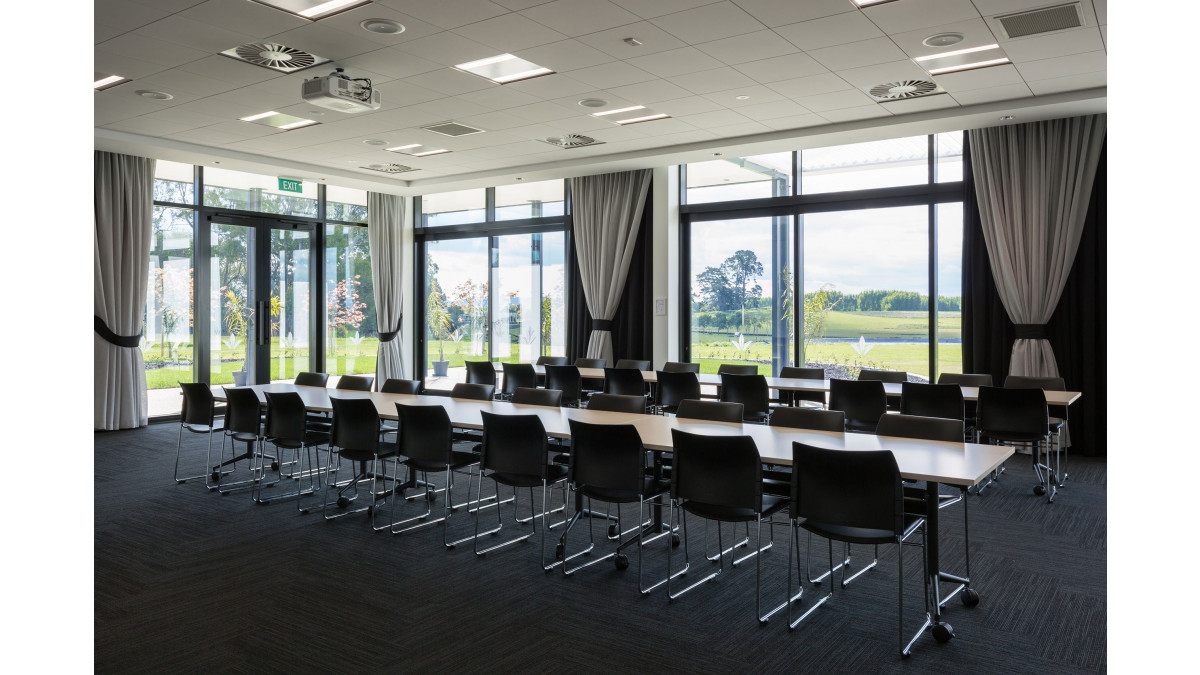

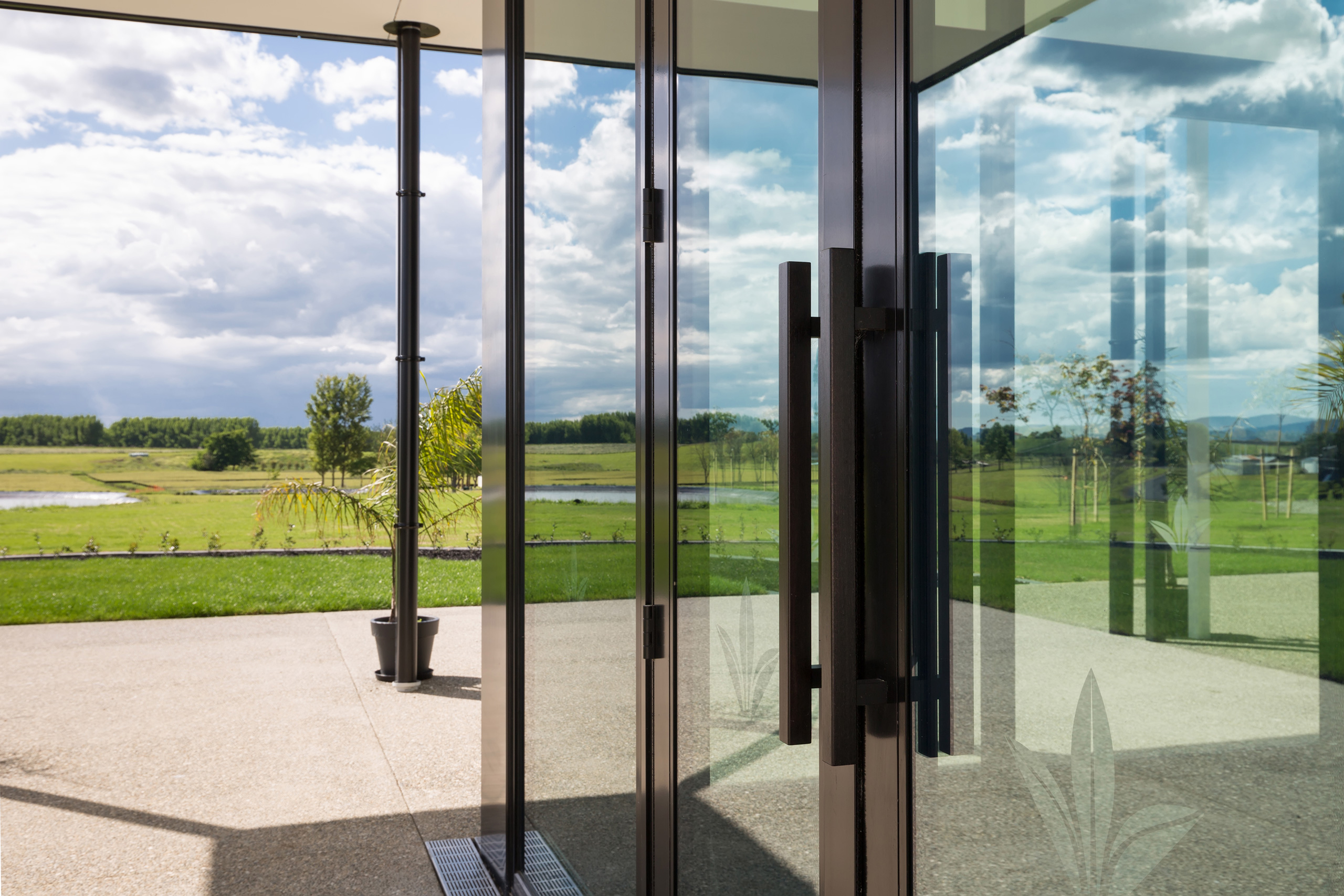

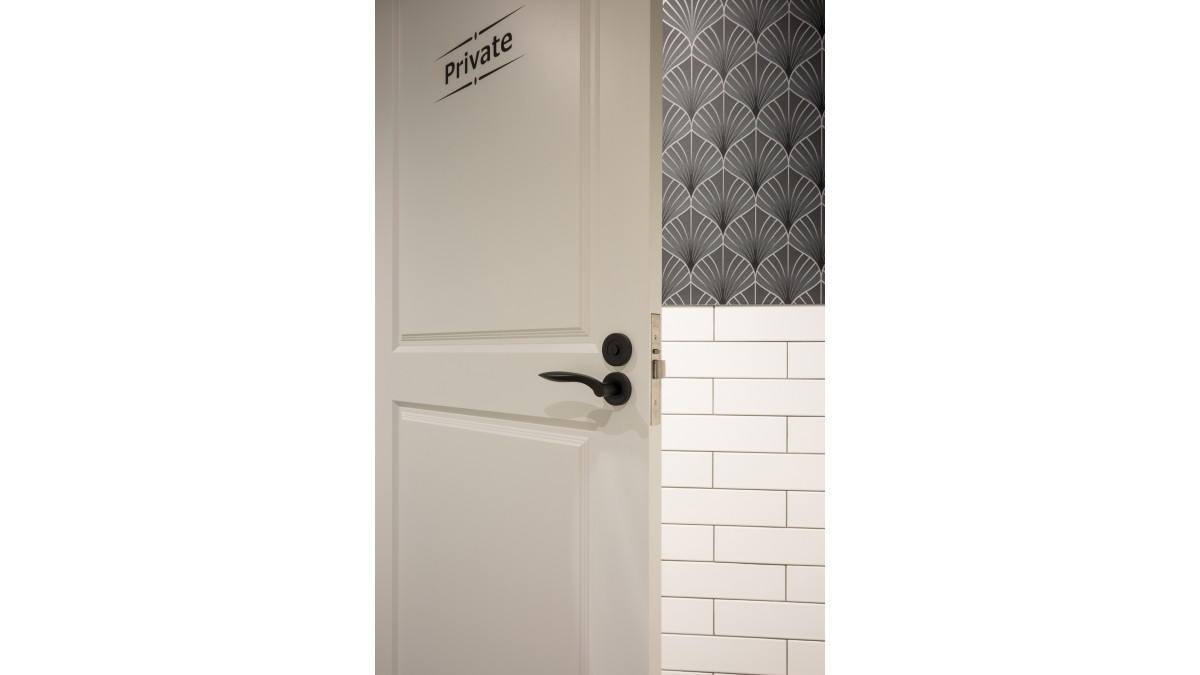

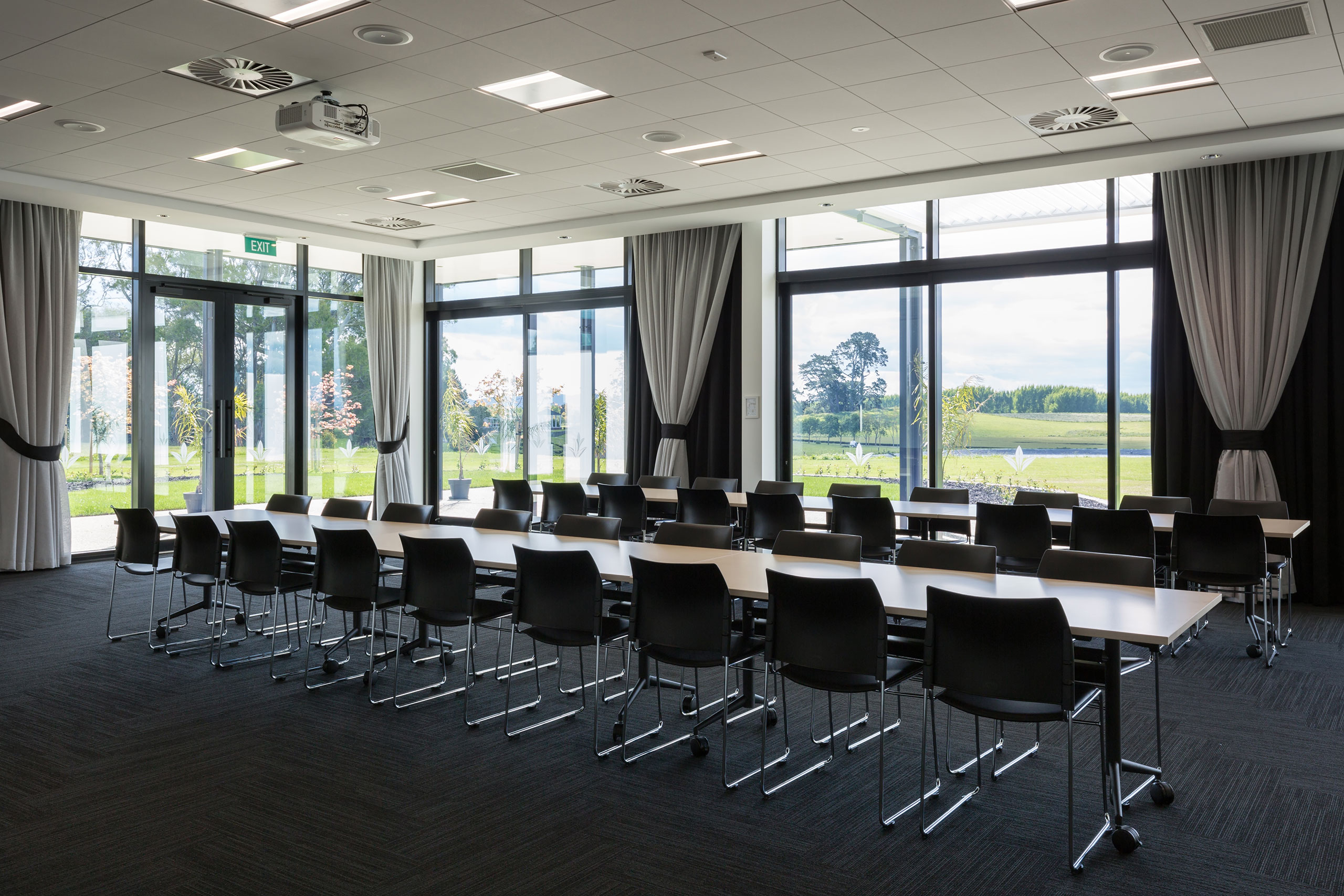

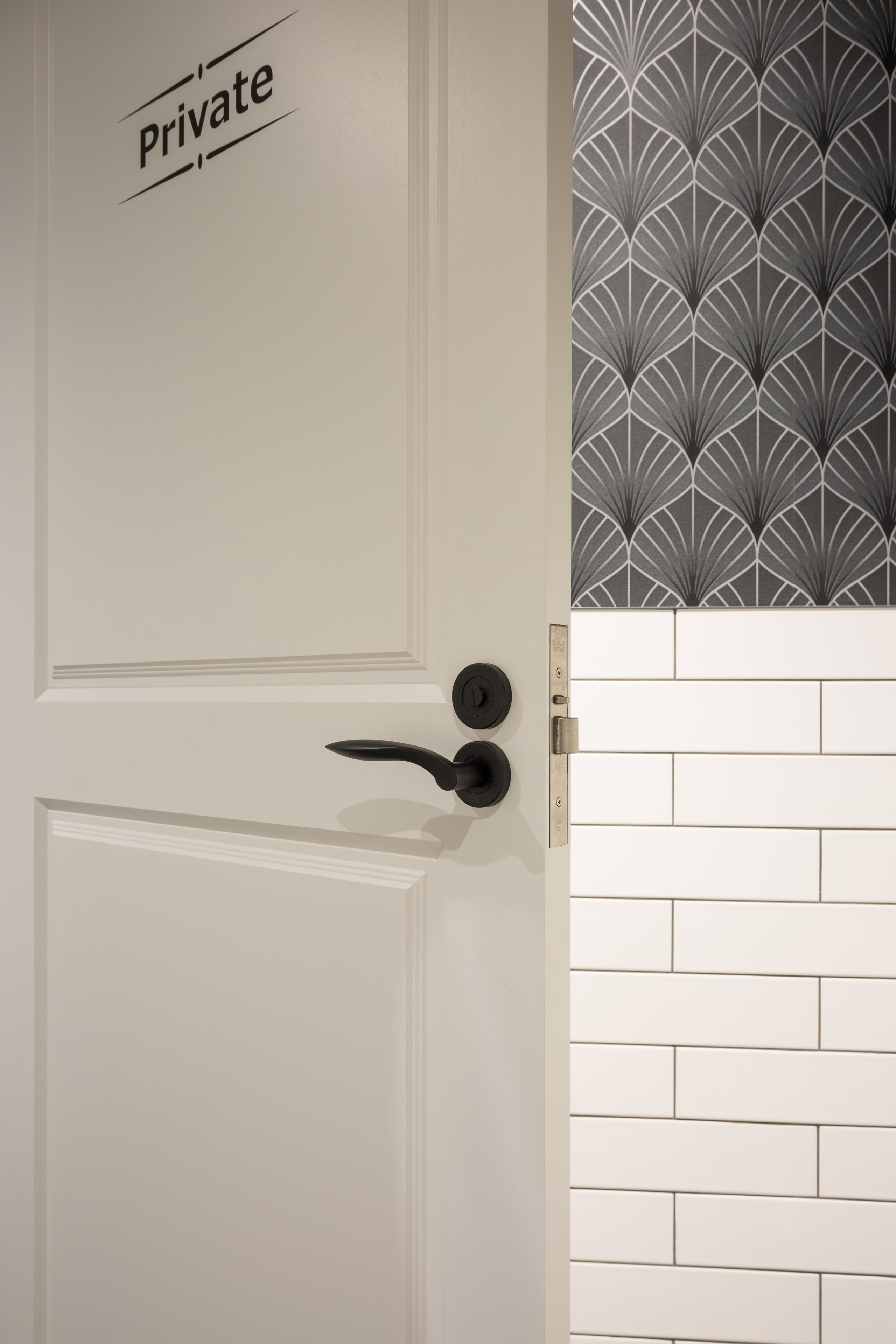

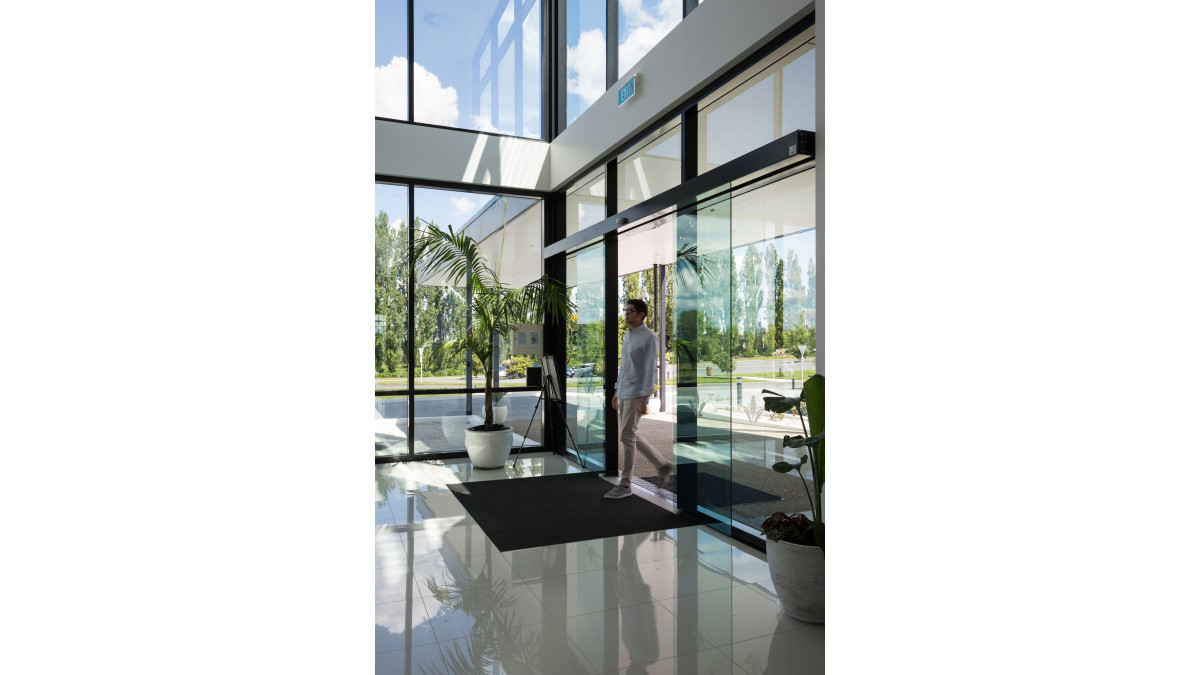

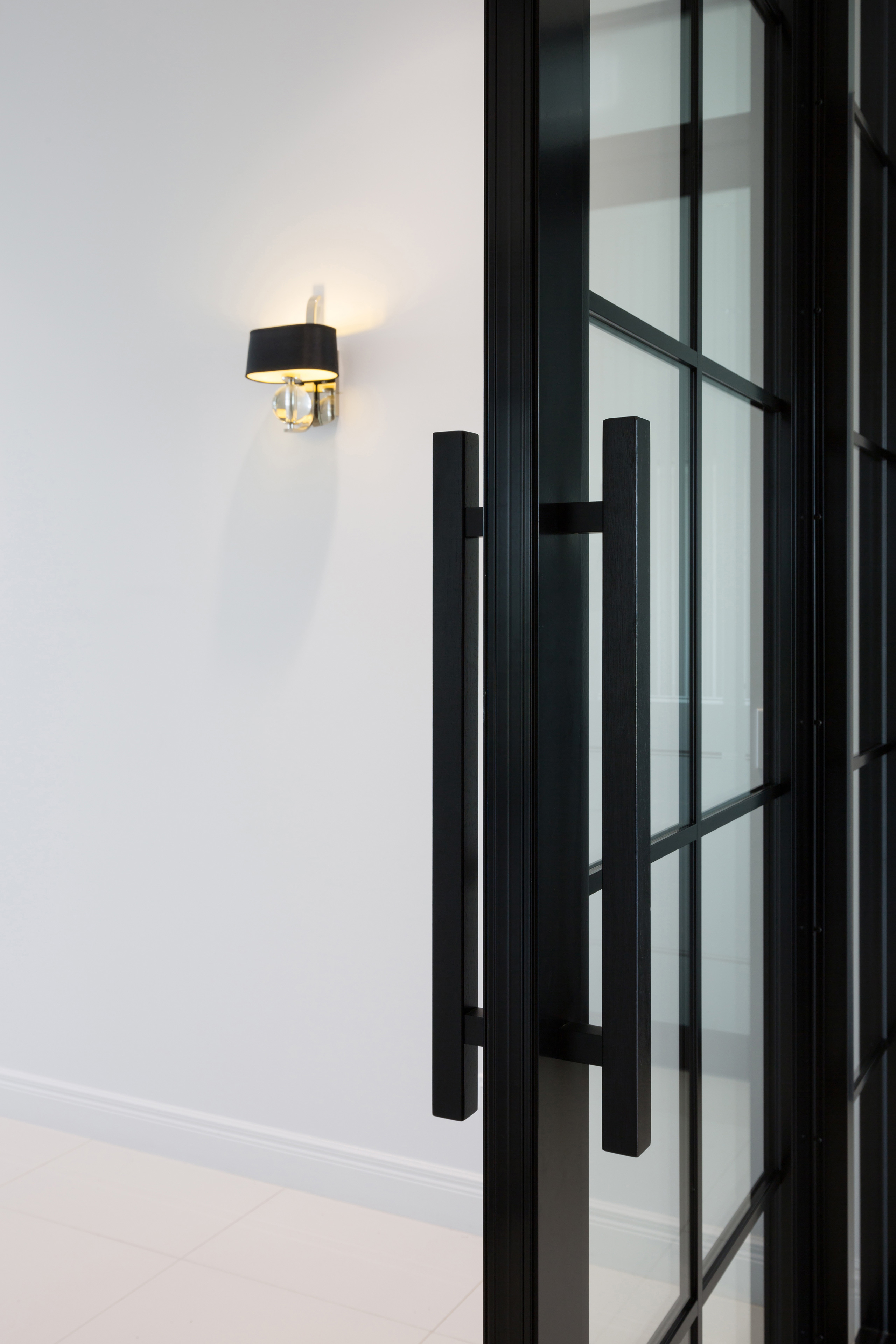

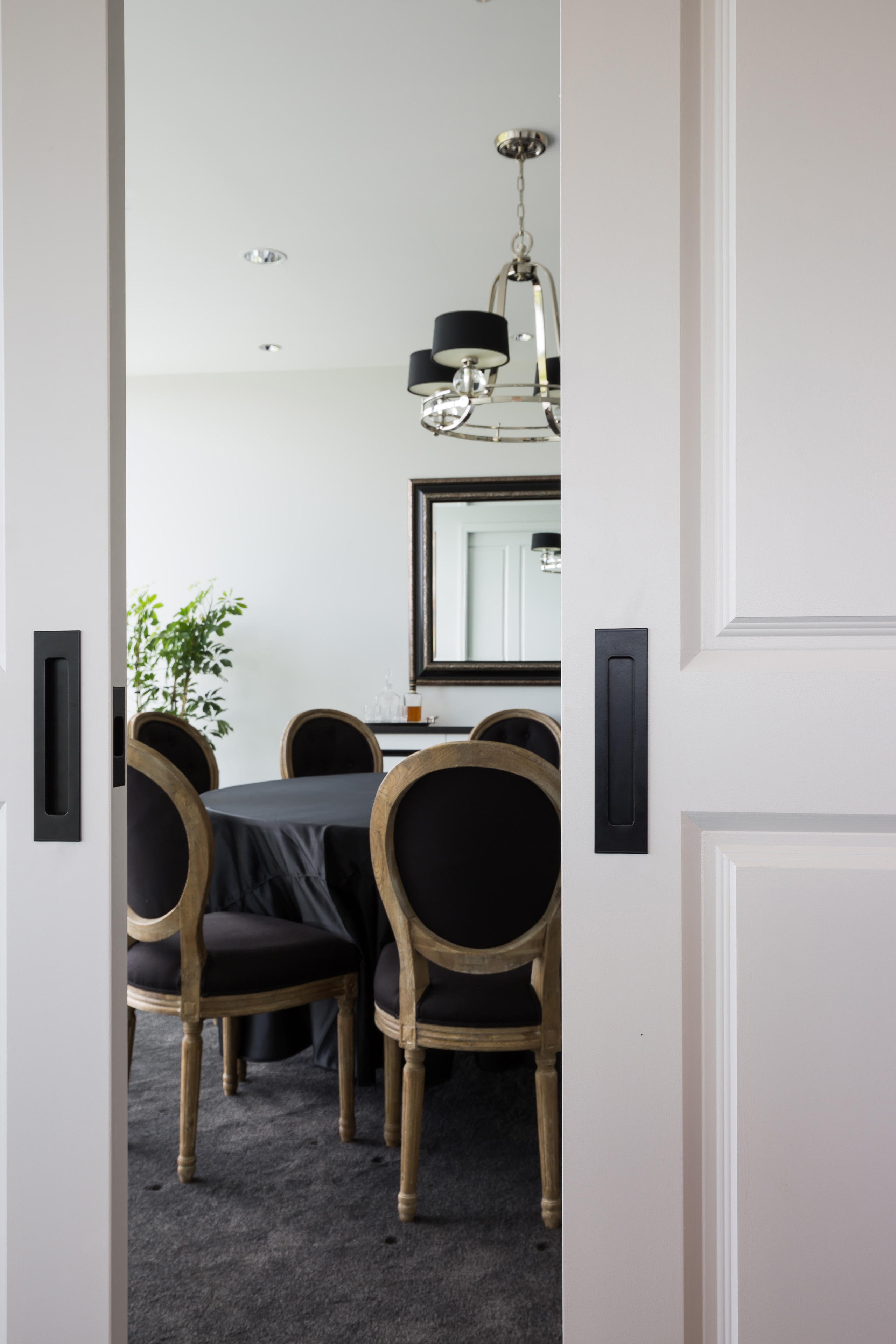

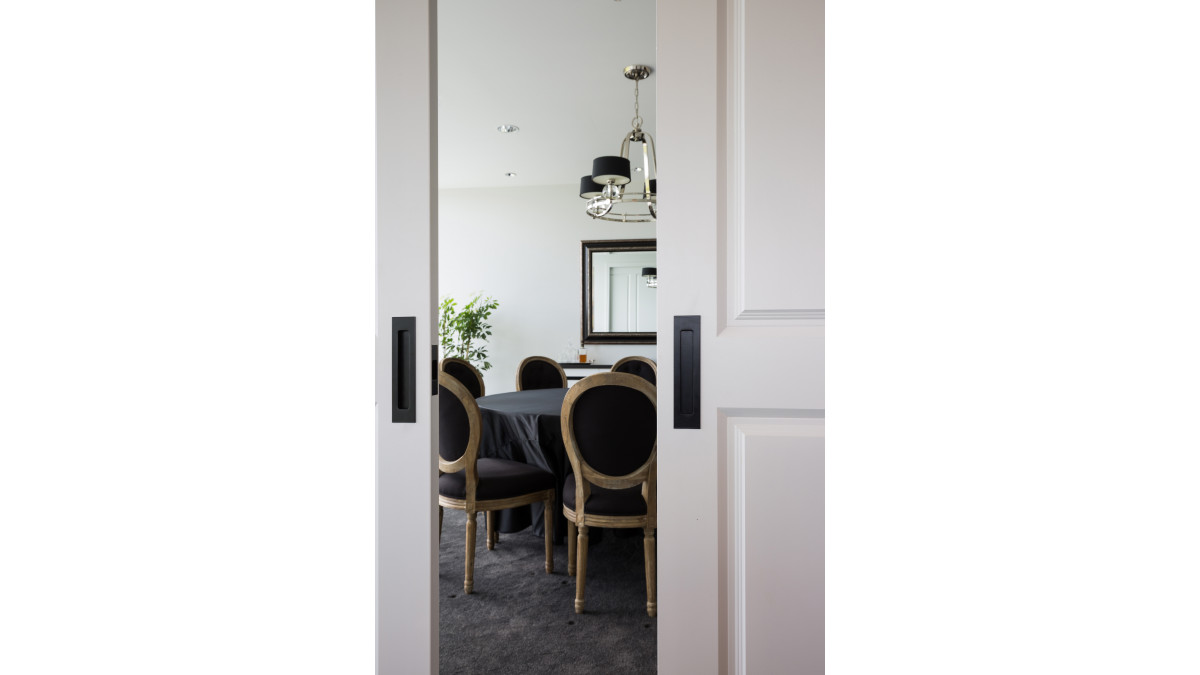

Working with DLA Architects, dormakaba developed a range of hardware and entrance solutions for the Vista. These ranged from the specification and schedule for the moveable walls in the function rooms — spaces that needed plenty of flexibility, through to the detailing of the automatic sliding doors for the main entry and the architectural hardware with a custom black finish.

Dormakaba's approach to the specifications focuses on being a one stop shop — a single solution source covering every aspect of the building's architectural hardware, security and access control needs. This often reduces the need for additional consultants and ensures seamless integration of the hardware, security and access control requirements as well as compliance with relevant building standards and codes. Although most of the components, products and solutions specified are from the dormakaba stable, the dormakaba team can write total specification solutions for partners, no matter the brand or source.

Architect: DLA Architects
Main Contractor: Foster Construction
Distributor: Handles & Brass
Fabricator: Wight Aluminium

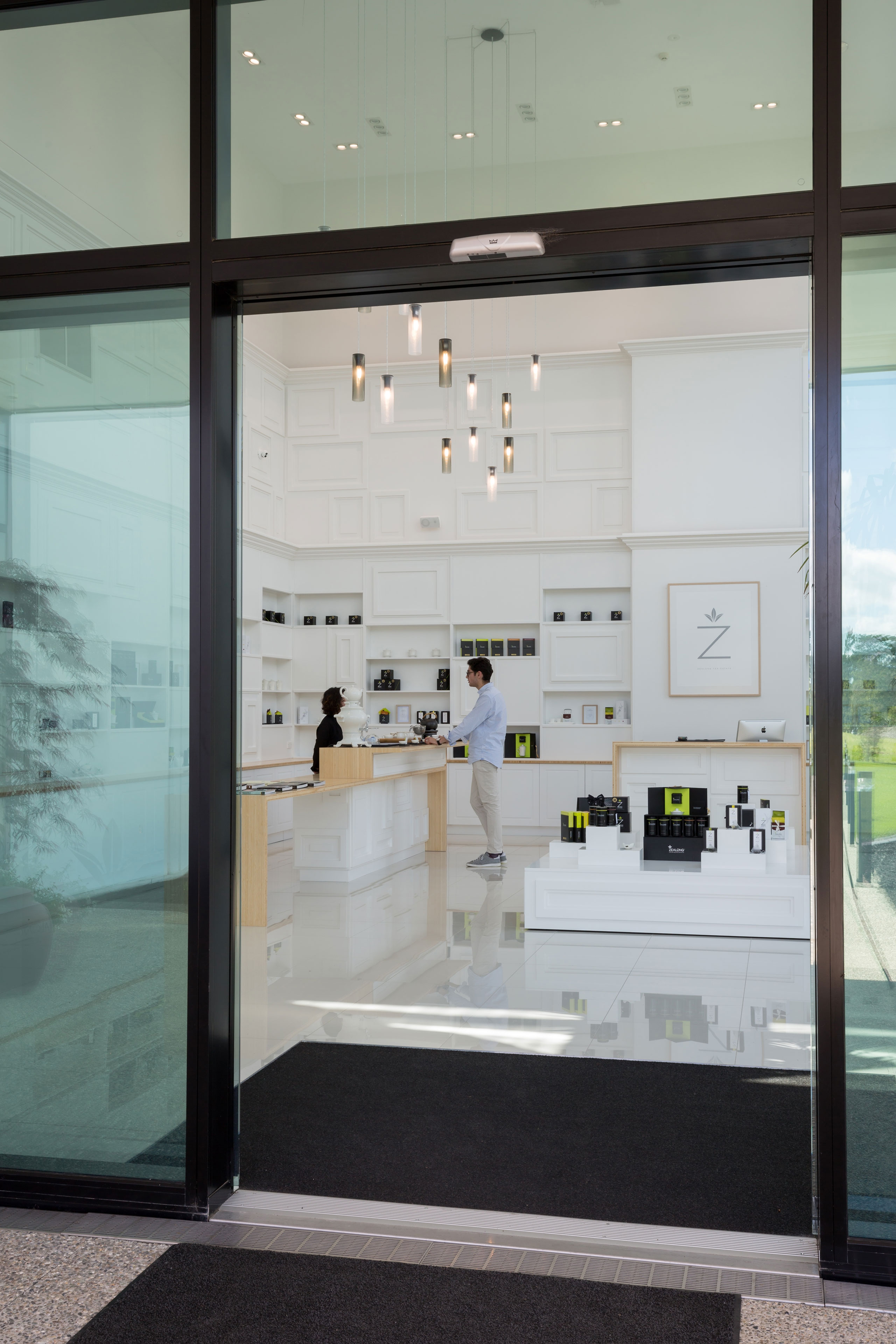

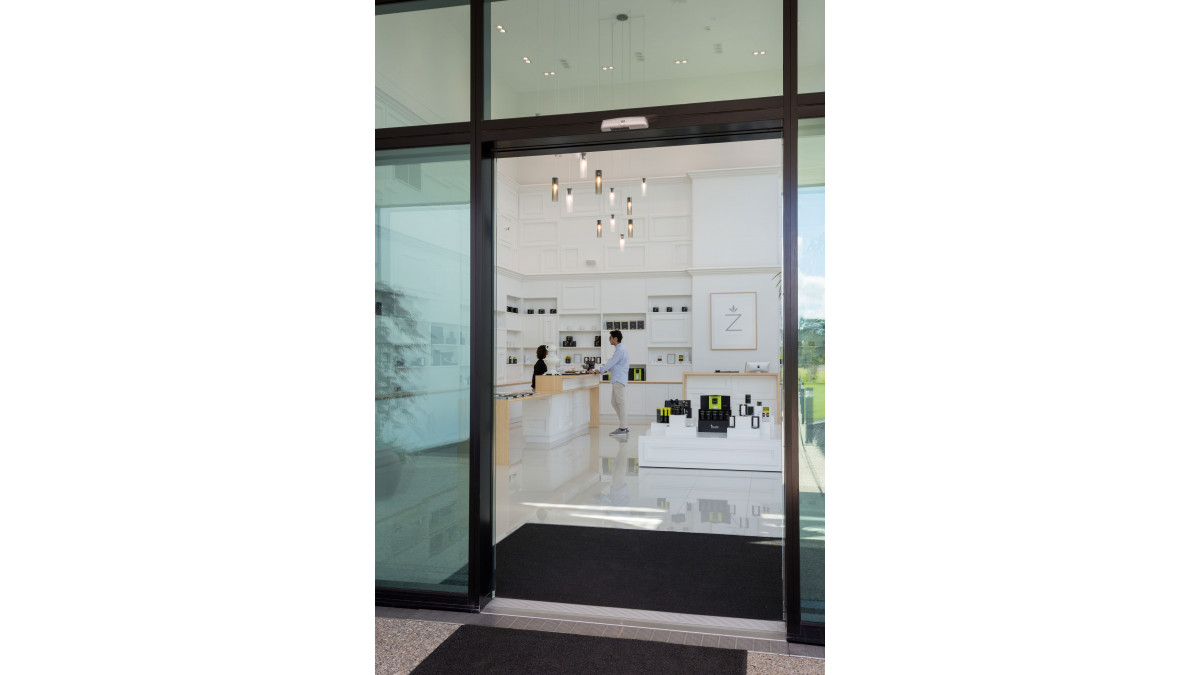

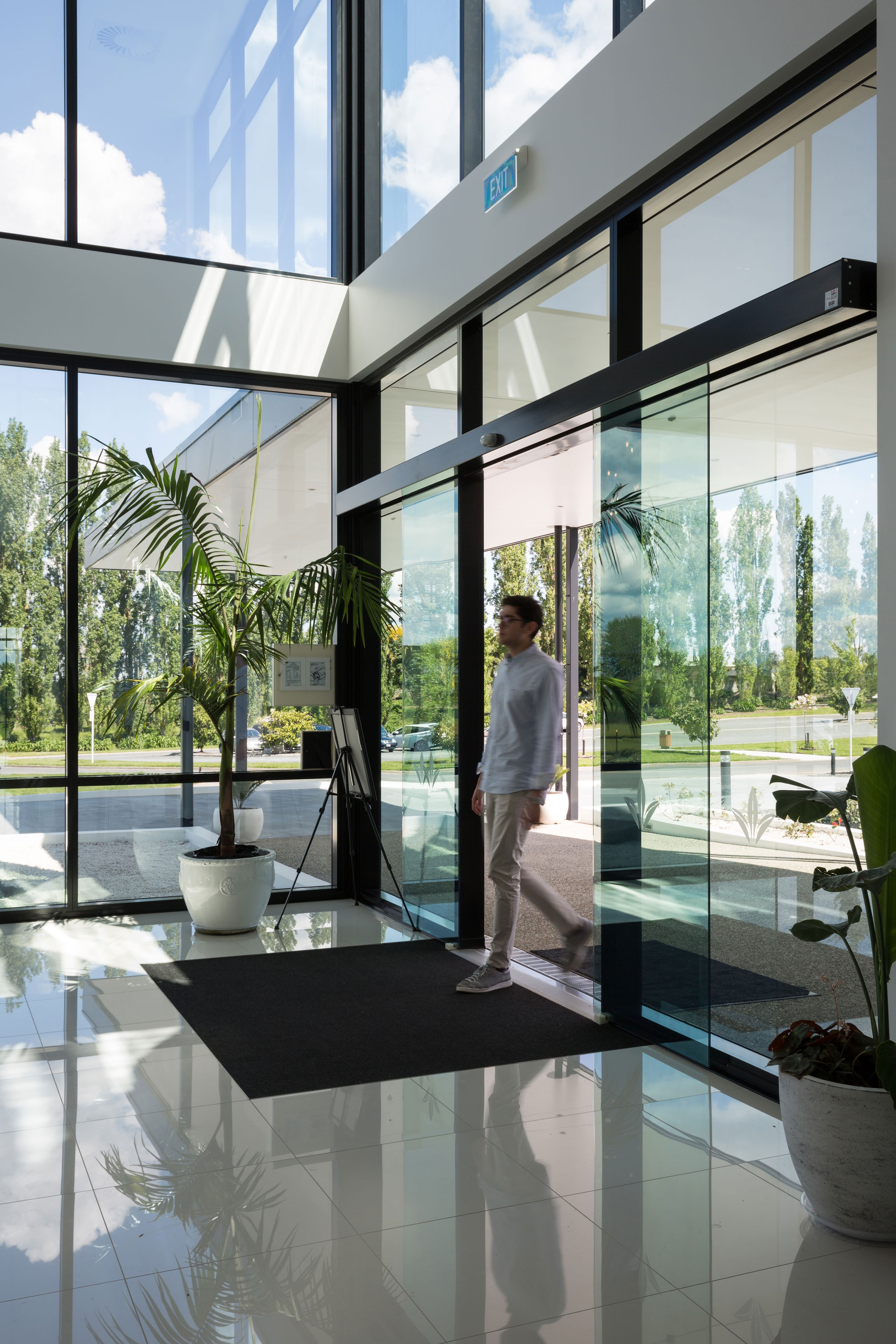

DORMA ES 200 Automatic Sliding Door Operator

dormakaba

View Product

The DORMA ES 200 encompasses a stylish and modern cover design, a motor that ensures a virtually silent operation, a microprocessor that automatically controls the opening and closing speeds of the door, an energy saving power unit and new programming functions allowing for quick and simple installation, set-up and maintenance.

The equipment is designed for mid range commercial automatic sliding doors with maximum door weights of 170kg per single door and 140kg for bi-parting doors.

Suitable for framed doors or frameless glass doors upto 15mm thick.

The equipment may be fully integrated into a Building Management System with all appropriate outputs

Fire
Failsafe
Mains Power

To ensure a high level of safety, the product is tested and complies to N.C.C and is certified by an independent NATA AS5007 accredited lab.

DORMA Moveo Glass Movable Wall System

dormakaba

View Product

Moveo Glass is a movable wall system capable of successfully combining transparency and sound insulated technology.

Flexible and efficient space utilisation is becoming a must for offices, hotels, exhibition centres and studios.
Offered as standard with automated horizontal seals, Moveo is the obvious choice in glazed operable walls solutions.
2-Point Suspension Panel systems provide the ultimate in flexibility. Often used in multipurpose rooms, exhibition halls, and commercial buildings where maximum flexibility is required.

Legal Practice Schaudt - Stuttgart (GER)

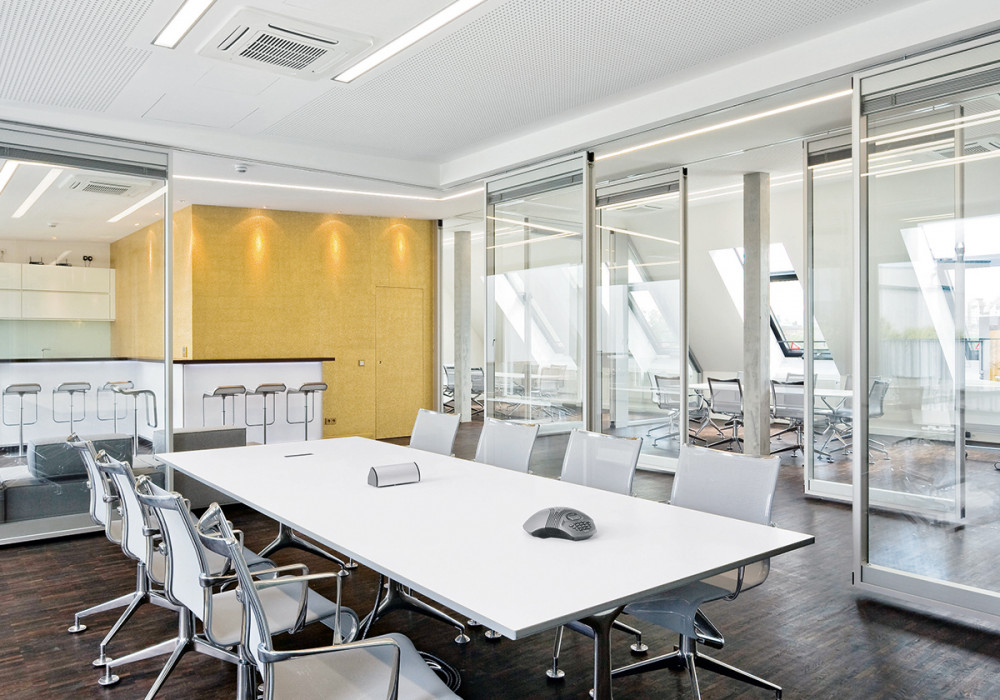

In 2008, architects mori:projects C Wald M Phillips designed an 800 m2, two-storey suite of offices for a legal practice extending above the roofs of Stuttgart.

Flexible space utilisation has been ensured through the incorporation of a MOVEO partition from DORMA Hüppe. It allows room sizes to be adapted quickly and easily to prevailing requirements, keeping the layout ever flexible and efficiently multi-functional. Open and enclosed zones alternate, with even the corridors individually designed as fully-fledged rooms in their own right.

DORMA RTS 85 Door Closer

dormakaba

View Product

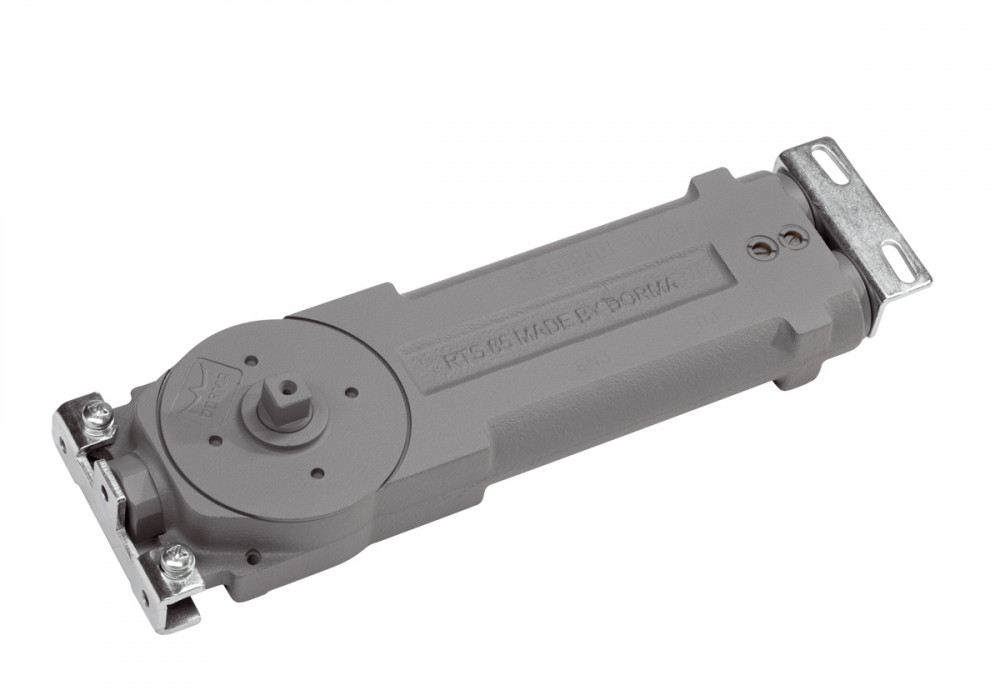

The DORMA RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.

Ideal for shopfitting. For both double and single action doors. Elegant, versatile, practical and quality assured. Also suited for pivot doors in partition fit outs, shop fronts, frame less glass doors and pivoting fire doors.

The RTS 85 offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. The majority of preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work. A complete line of accessories is available to accommodate virtually any door and frame configuration.

Certified ISO 9001

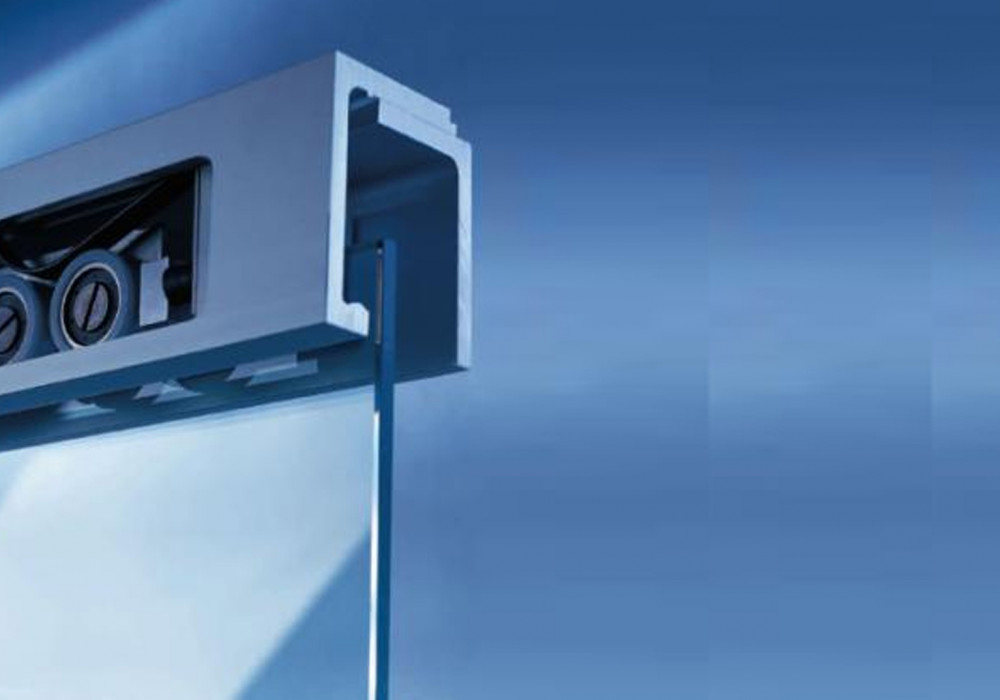

DORMA Sliding Door & Operable Wall Systems

dormakaba

View Product

Sliding Door & Operable Wall Systems are wall systems supplied by DORMA.

DORMA TS 92 Door Closer

dormakaba

View Product

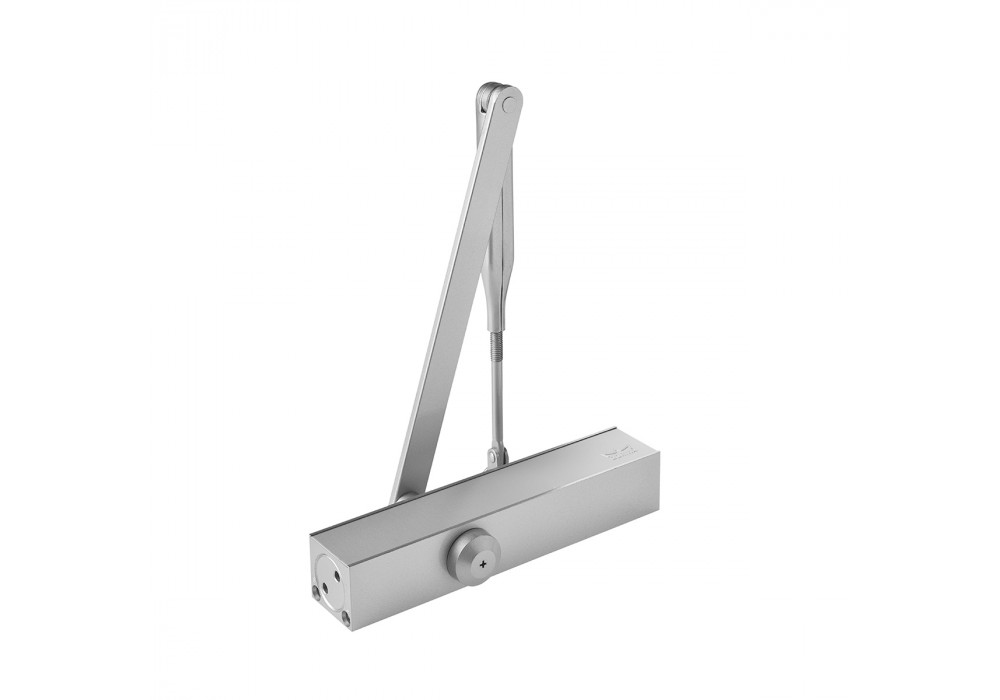

The universal DORMA TS 92 door closer for standard doors in the Contour design.

As units designed especially for interior applications, the TS 92 and TS 91 door closers constitute the perfect complement to the DORMA 93 cam-action door closer system.

The closing speed of the TS 92 is individually adjustable over two independent ranges at two separate valves. The closing force setting (spring strength) for the relevant door width is adjusted with the TS 92 at an infinitely variable lateral adjustment screw.

The heart-shaped cam and the linear drive mechanism which characterise all DORMA cam-action door closers produce a rapidly decreasing opening toque, so greatly reducing the amount of effort required. This means that even children, the elderly and the disabled can open doors with ease.

Olympic Park – London

With over 9 million spectators and a global audience of billions, the London 2012 Olympics was hailed as the most successful ever. As part of this British success story, DORMA, the trusted global partner for premium access solutions and services, supplied 2,500 door closers, 150 items of panic hardware, multiple sets of automatic doors and a variety of glass fittings. Dorma TS 92 Door Closers were specified for this project.

DORMA TS 93 Door Closer System

dormakaba

View Product

The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements.

The perfect solution for all application needs; The TS 93 cam action door closer system sets new standards in user convenience in project applications. The proven DORMA technology of the heart-shaped cam ensures exceptional ease of opening.

The TS 93 series comprises a modular system which enables just a few door closer models to be combined with a number of different slide channels to meet virtually every conceivable functional requirement. Doors of varying designs can be equipped for a wide range of different applications.

Cushioned Limit Stop; Accessories for the G-N, RF slide channel: Cushioned limit stop for retrofitting to the slide channel. Adjustable between 80 and 120 degrees. The cushioned limit stop prevents the door from hitting the adjacent wall when opened normally.

TS 93 EMF with Slide Channel with Electro-Mechanical Hold-Open; The G-EMF slide channel assembly enables the door to be held open securely at a preselected position without fall-back. The hold-open point can be adjusted within an opening angle of approx. 80 and 140 degrees.

Vodafone Campus - Dusseldorf

With its new 86,000 sqm Group headquarters located on the former site of the Gatzweiler brewery between Viersener Strasse and Brusseler Strasse, the telecommunications giant Vodafone has created a huge space for the 5,000 employees destined to occupy the complex. Boasting 19 floors and a height of 75 meters, this future German HQ is one of the new landmarks setting the city of Düsseldorf apart.

The Dorma TS 93 Door Closer System was featured in this project.

DORMA Vision Door Closers

dormakaba

View Product

Door control systems by DORMA are intelligent, integrated access solutions that combine consistency, convenience, design and premium quality.

Suitable for Residential Townhouse & Apartment Applications.

Madinoz Pull Handles

dormakaba

View Product

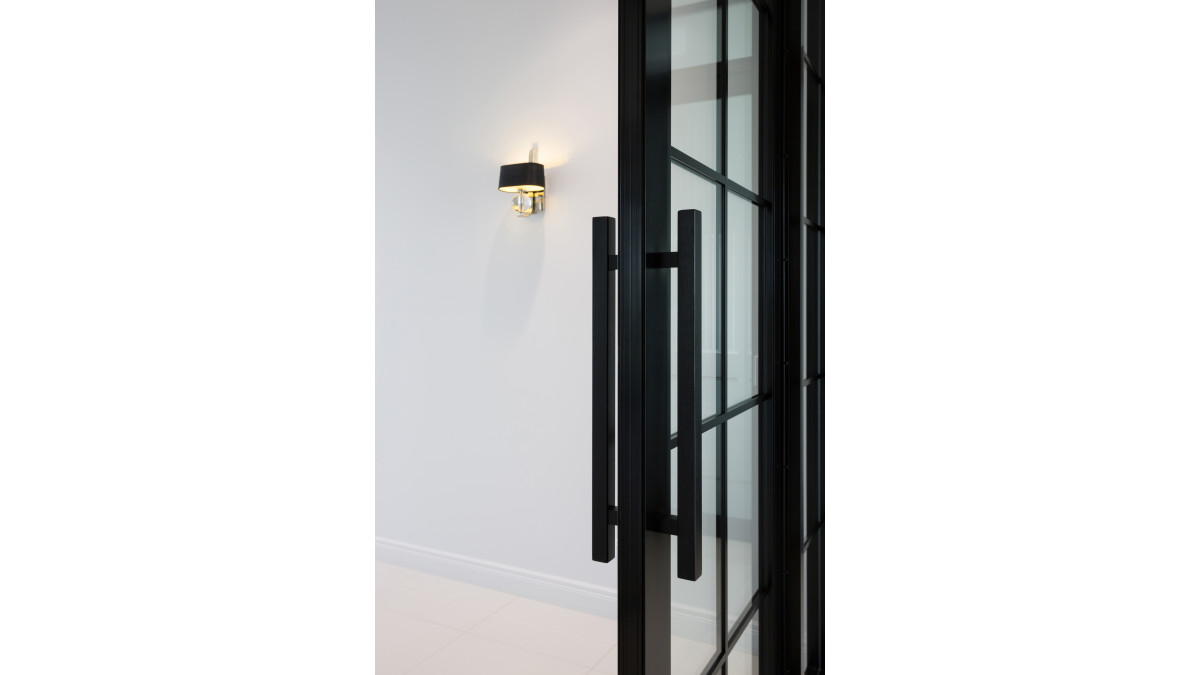

Madinoz offer superior pull handles and custom made for users' distinctive design theme.
