Eurotray Angle Seam
Description

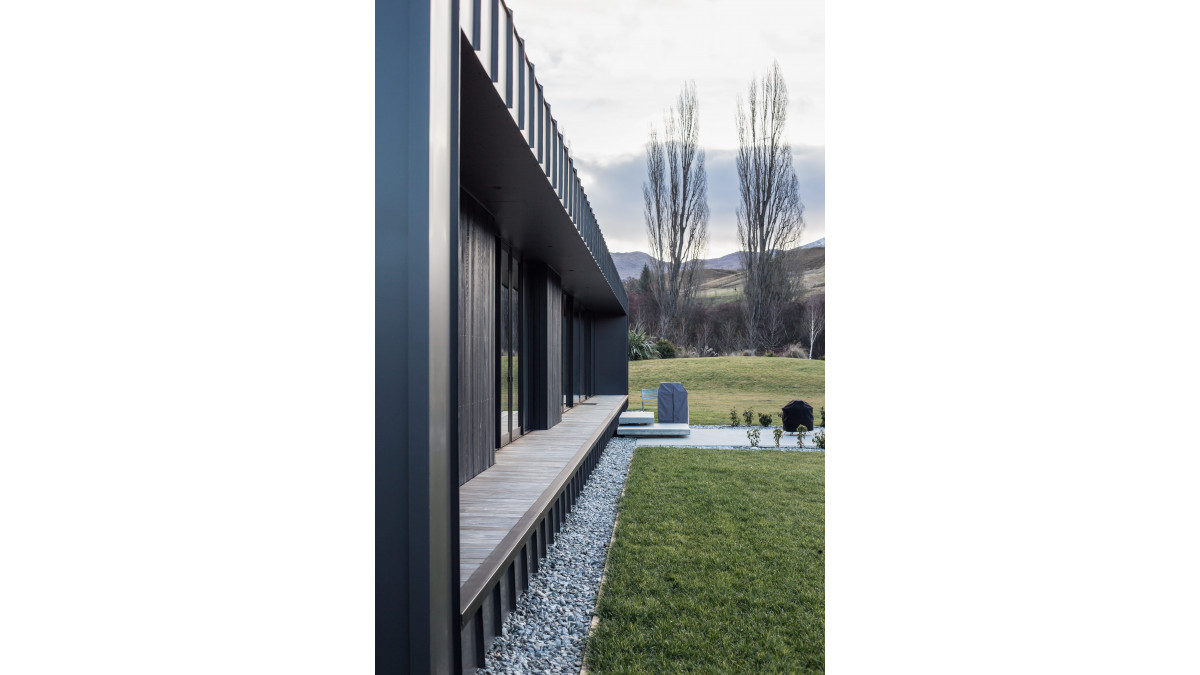

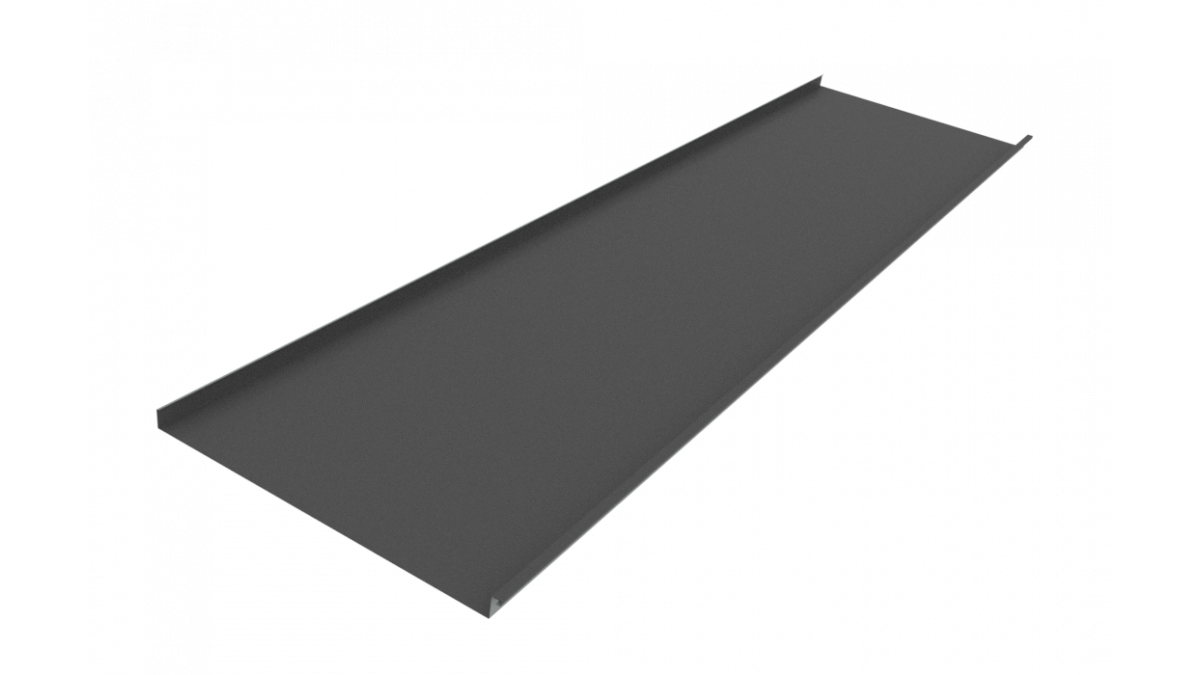

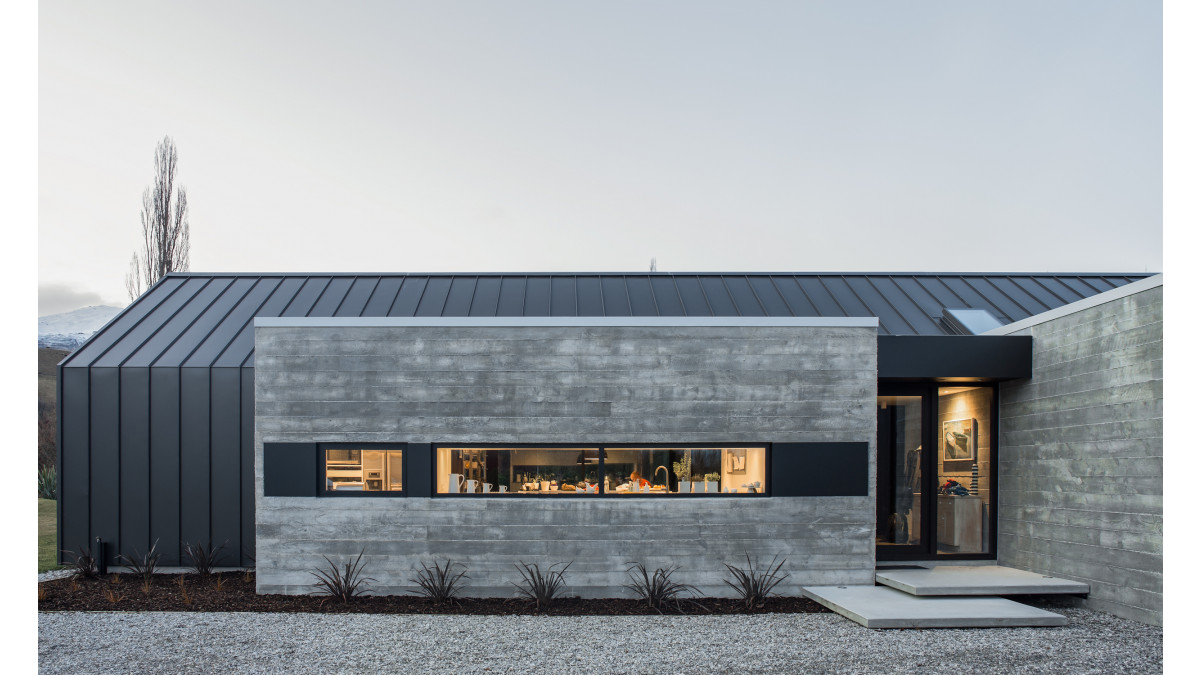

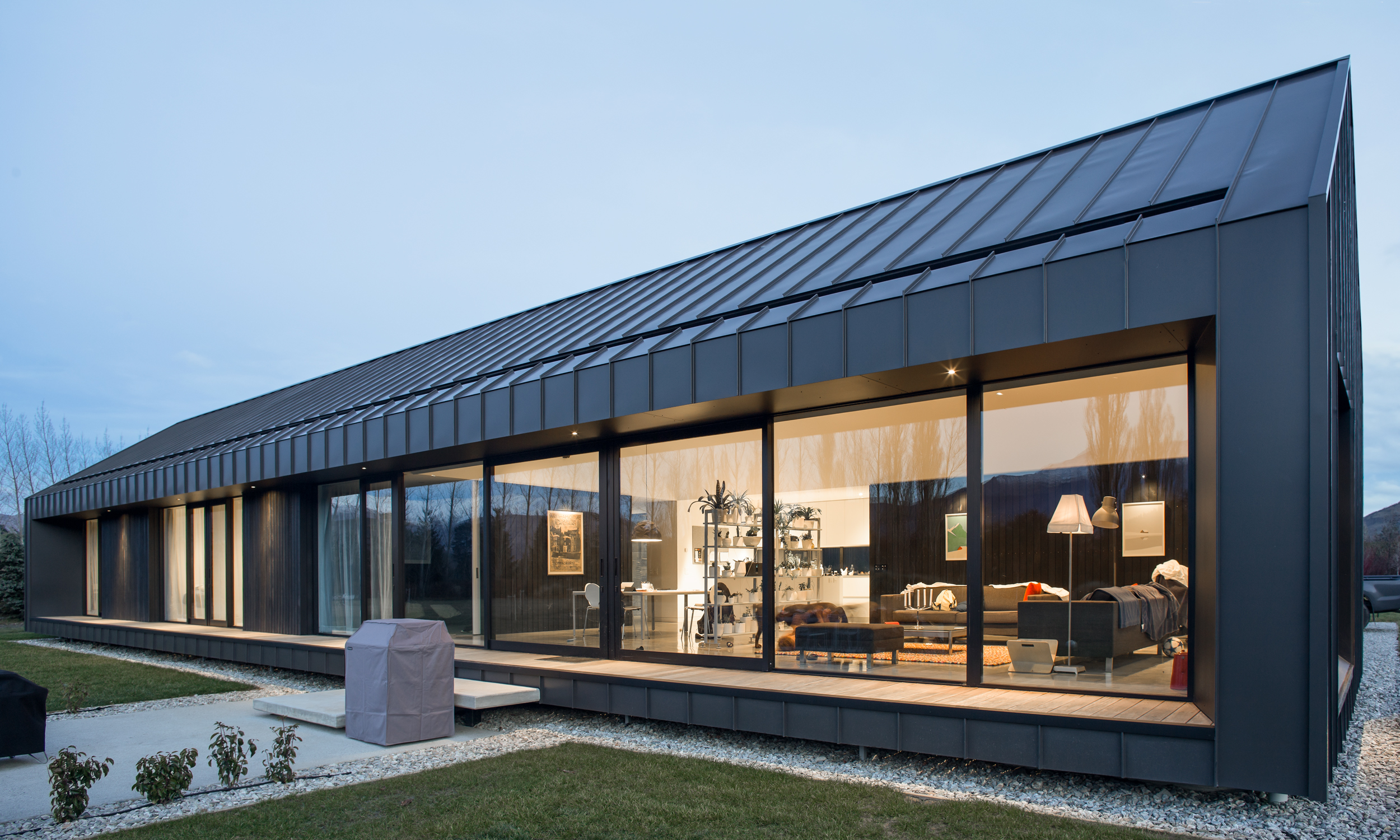

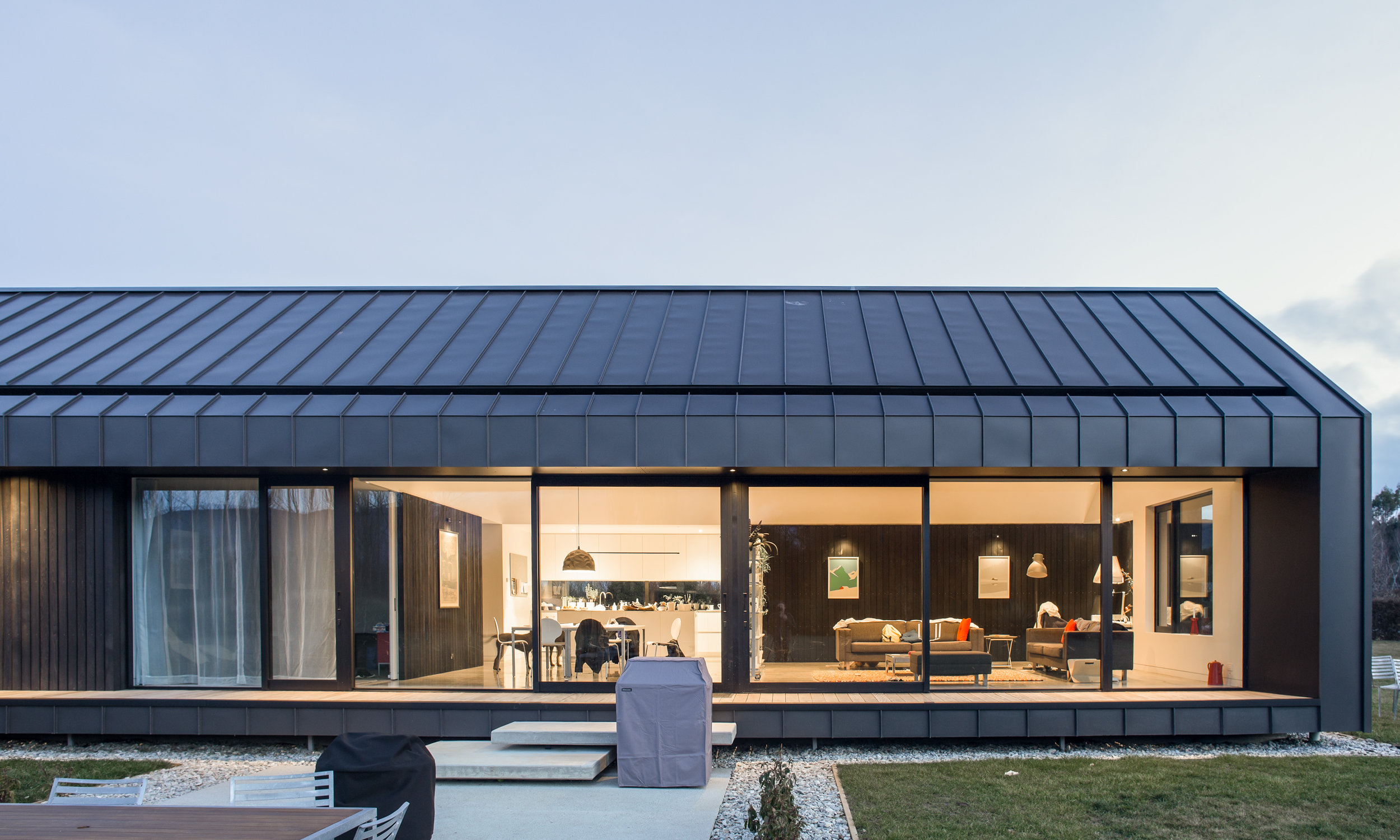

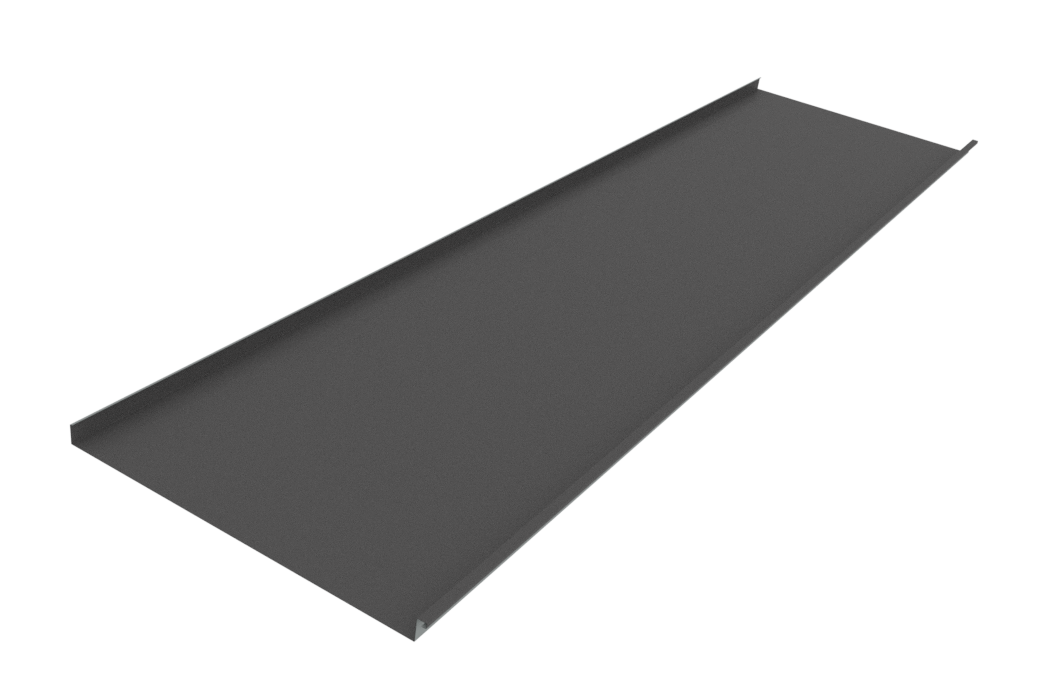

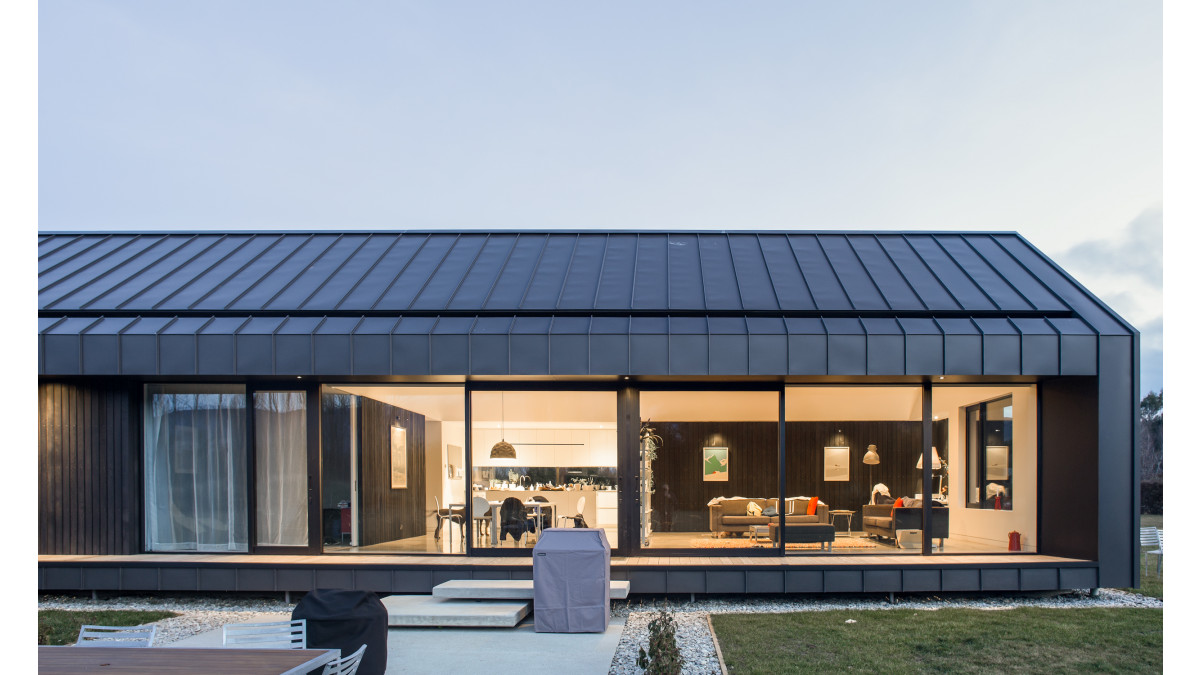

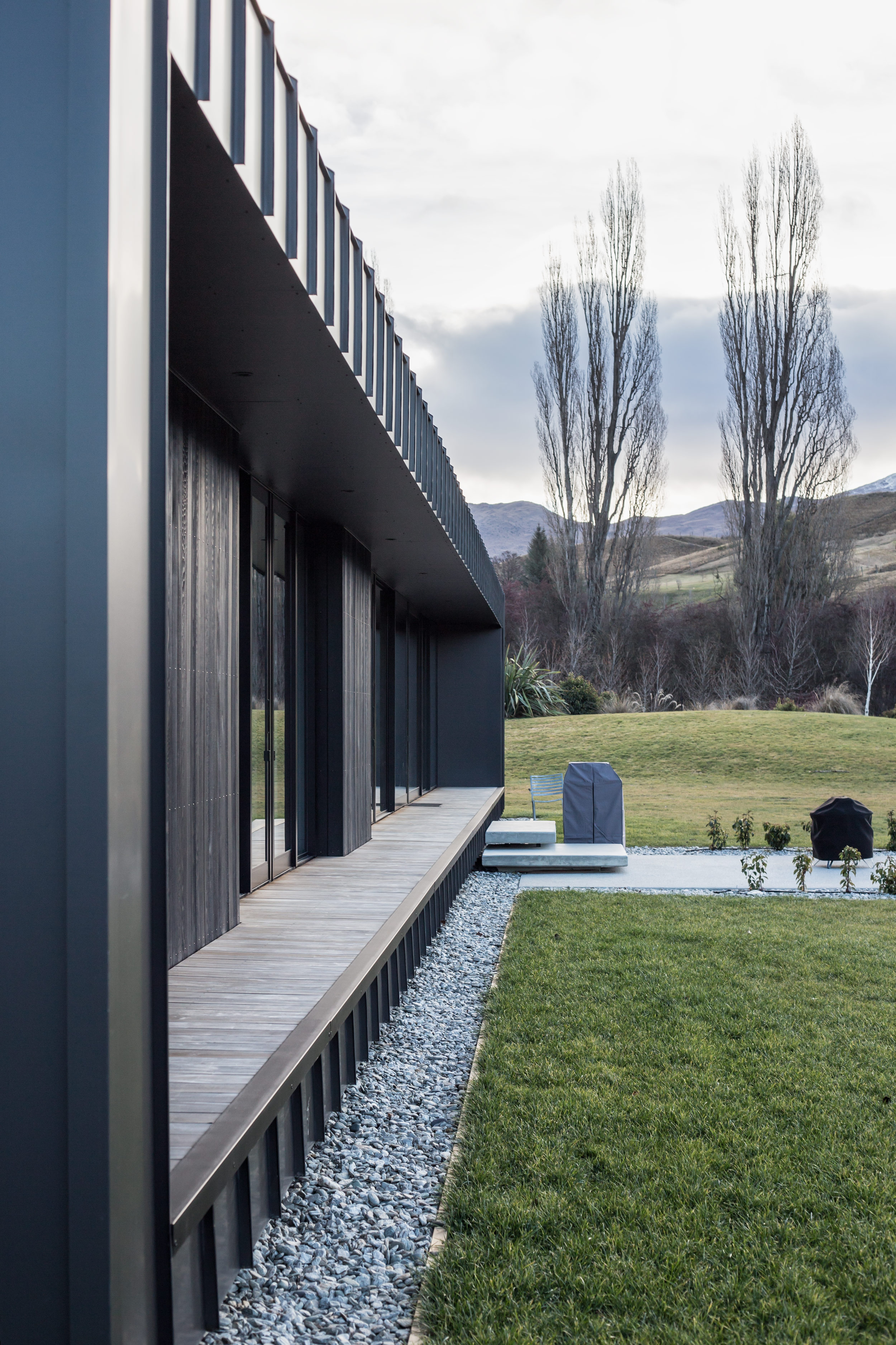

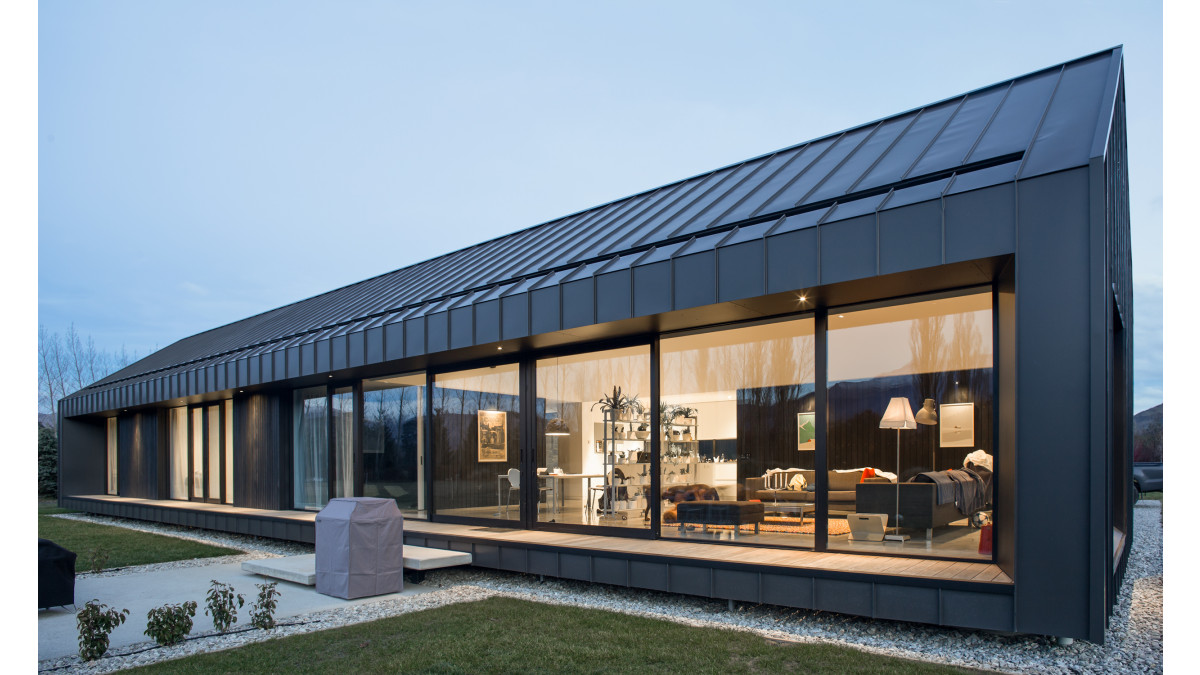

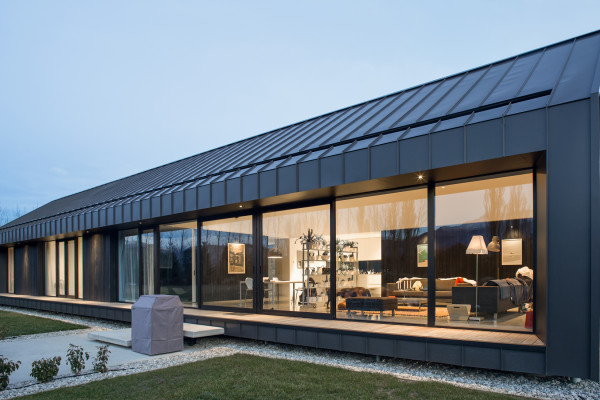

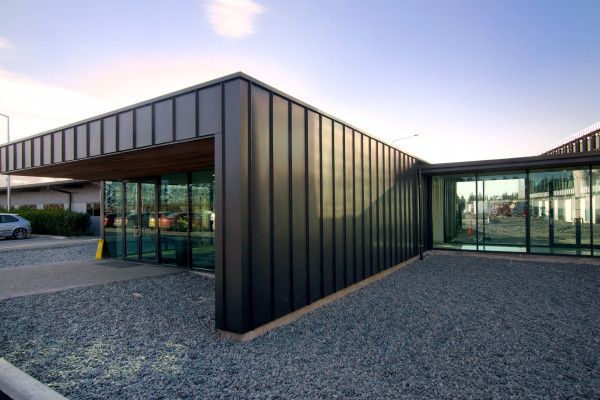

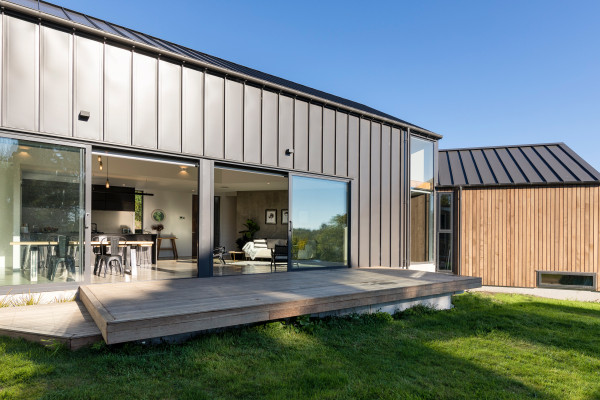

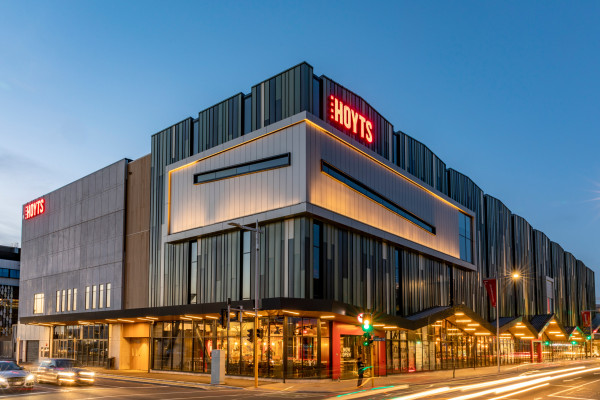

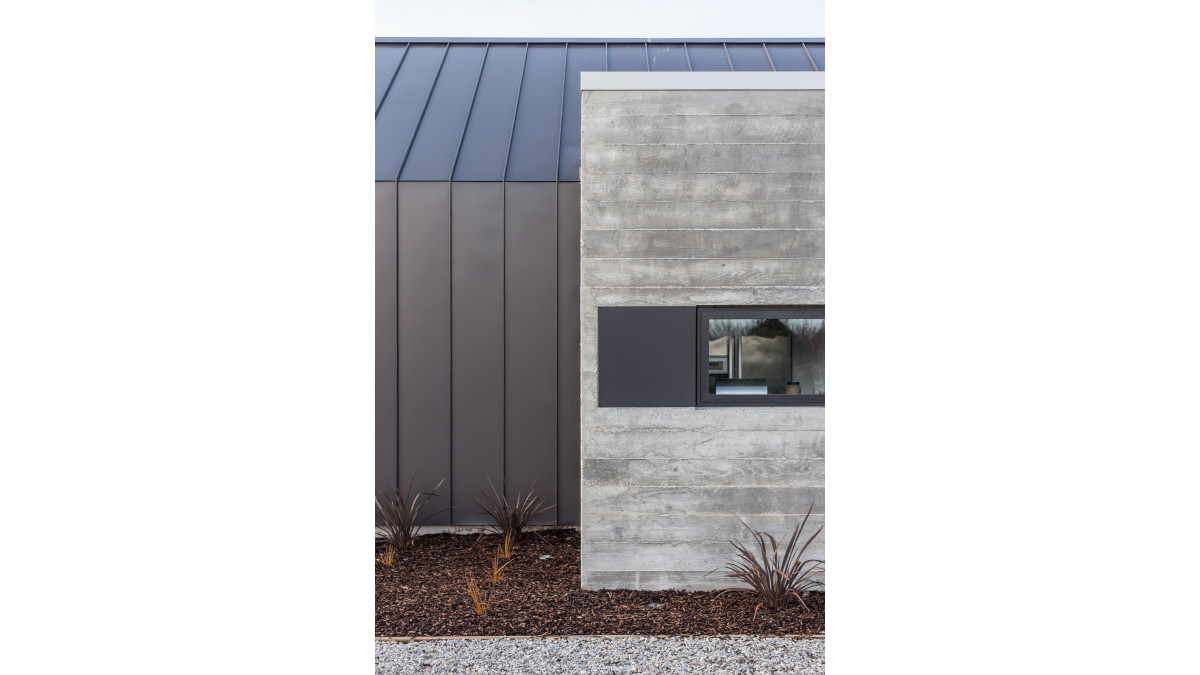

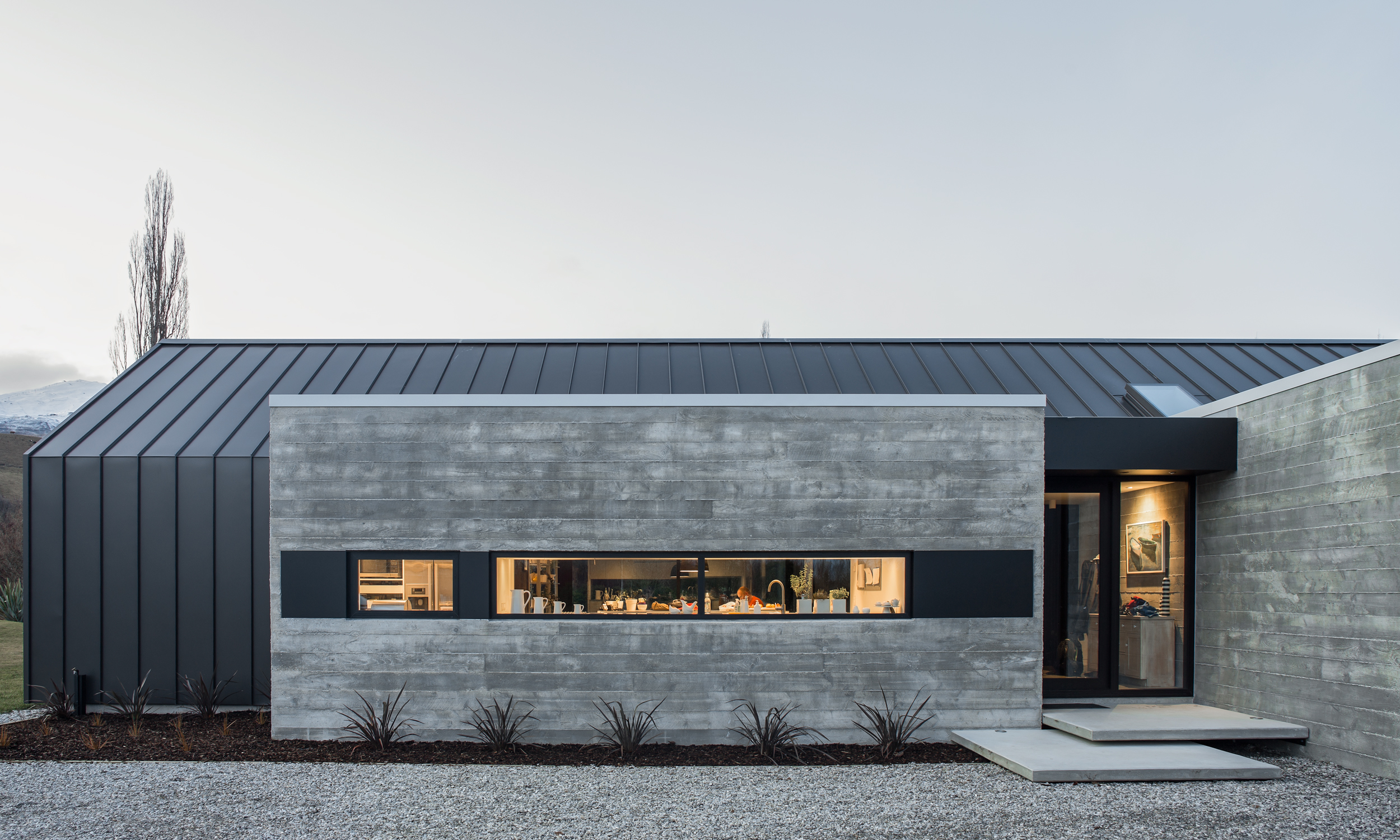

The Eurotray Angle Seam offers a bold look to add interest to projects. This member of the Eurotray family lends itself well not only as a striking roofing profile, but also as an exceptional wall cladding solution. In cladding situations, Angle Seam can be run both vertically or horizontally. Angle Seam can also be concave curved.

Key Features
  • Concealed clip
  • Can be run on site
  • Photovoltaic laminates (PVLs) can be installed on to this profile
  • Can be concave curved
  • Suitable for roof and wall cladding
  • NZMRM air box tested
Green Tag Certified
Green Tag Certified
Scope of Use
  • Cover Width: 525mm AKL, 517mm CHC, 525mm INV
  • Sheet width: 523mm AKL, 515mm CHC, 523mm INV
  • Minimum pitch: 5°
  • Photovoltaic laminates (PVLs) can be installed on to this profile
  • Can be run on site
  • Can be concave curved
  • Suitable for roof and wall cladding
Limitations on Use
  • Eurotray requires a fully supported substrate underneath it
  • Can be machine curved, radius is dependent on the material being used
  • Suitable for most locations and venting of skillion ceiling roof designs is highly important. Dimond Roofing also recommends that a vented type underlay is used with these designs
  • Oil-canning, flatness or waviness is a condition that may occur when using wide pan profiles
  • Installed exclusively by RoofingSmiths installers
5° Minimum Roof Pitch Required
Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced, Dimond long run metal roofing and wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Other Performance Attributes
  • NZMRM air box tested

Green Tag:

  • All Dimond Roofing products roll-formed using ColorCote painted steel coil is Global GreenRate GreenTag certified and is applicable for Green Star and Home Star credits
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
CAD/PDF LInk
Data Sheet
Dimond Roofing & Cladding Technical Manual
Product Technical Statement
Environmental Information
Environmental Information - Global Green Tag
