Tenmat Ventilated Fire Barrier
Description

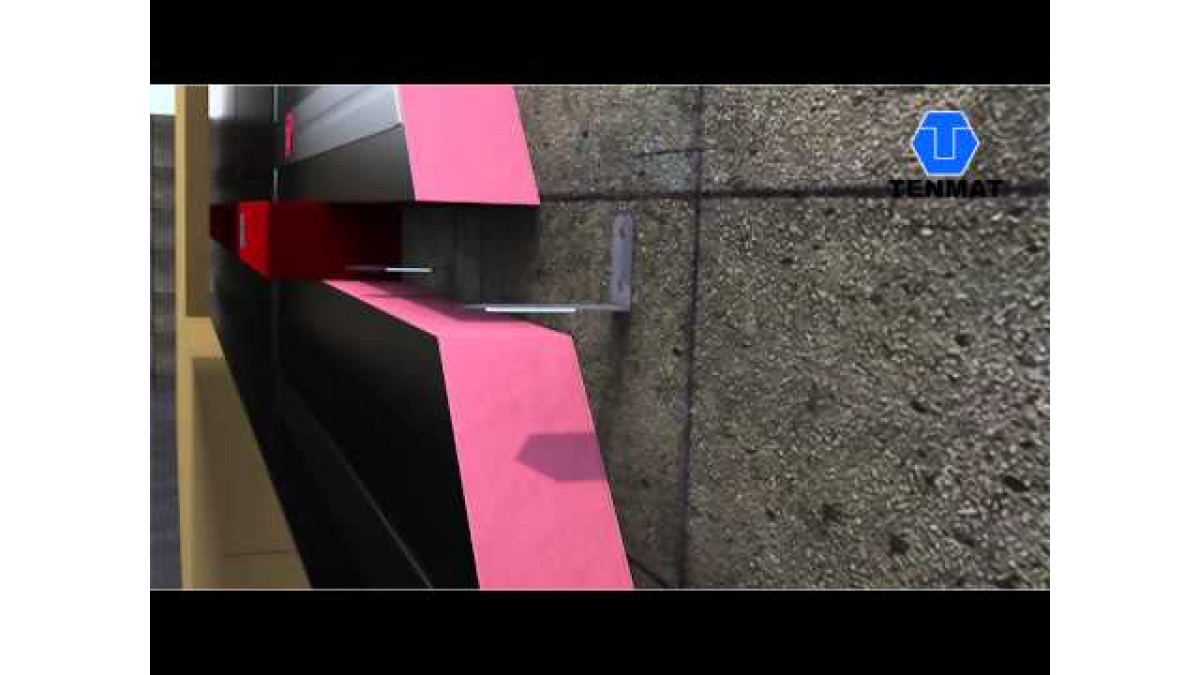

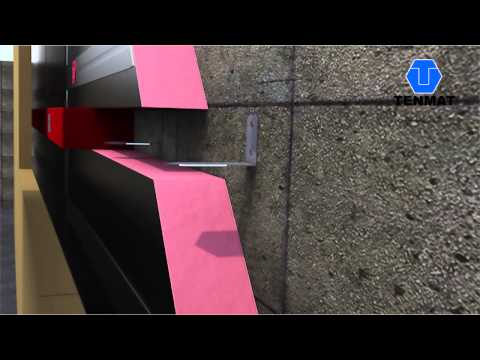

TENMAT offers Ventilated Fire Barriers suitable for a wide range of cavity sizes and constructions. Modern constructions often require external cladding, external facades and rainscreen systems to be held away from the building structure to allow ventilation and improve the building energy efficiency.

This resulting cavity creates a serious fire protection threat to structures and people. The void acts like an open chimney and allows the fire to spread quickly both vertically and horizontally around the building. TENMAT's range of Intumescent Ventilated Fire Barriers or 'Open State' Cavity Fire Barriers are designed to maintain the ventilated cavity in normal conditions but will rapidly expand to seal off the gap in the event of a fire.

Key Features
  • Continuous free air space of 40mm or more
  • Simplifies cladding panel installation
  • Can more easily accept building tolerances
  • Tested to general principles of BS476, Part 20
  • Fire Ratings of 30, 60, 90, 120 Minutes
  • Up to 1 hour insulation rating
  • Supplied in easy to cut metre lengths
  • Only 2-4 fixings per length
Categories
Fire Safety
Ranges
Passive Fire
Scope of Use
  • Ventilated Fire Barriers suitable for a wide range of cavity sizes and constructions
Statement of Building Code Compliance
  • Tested to general principles of BS476, Part 20
  • Fire Ratings of 30, 60, 90, 120 Minutes
  • Up to 1 hour insulation rating
Documents
Data Sheet
Data Sheet
Data Sheet
Data Sheet
