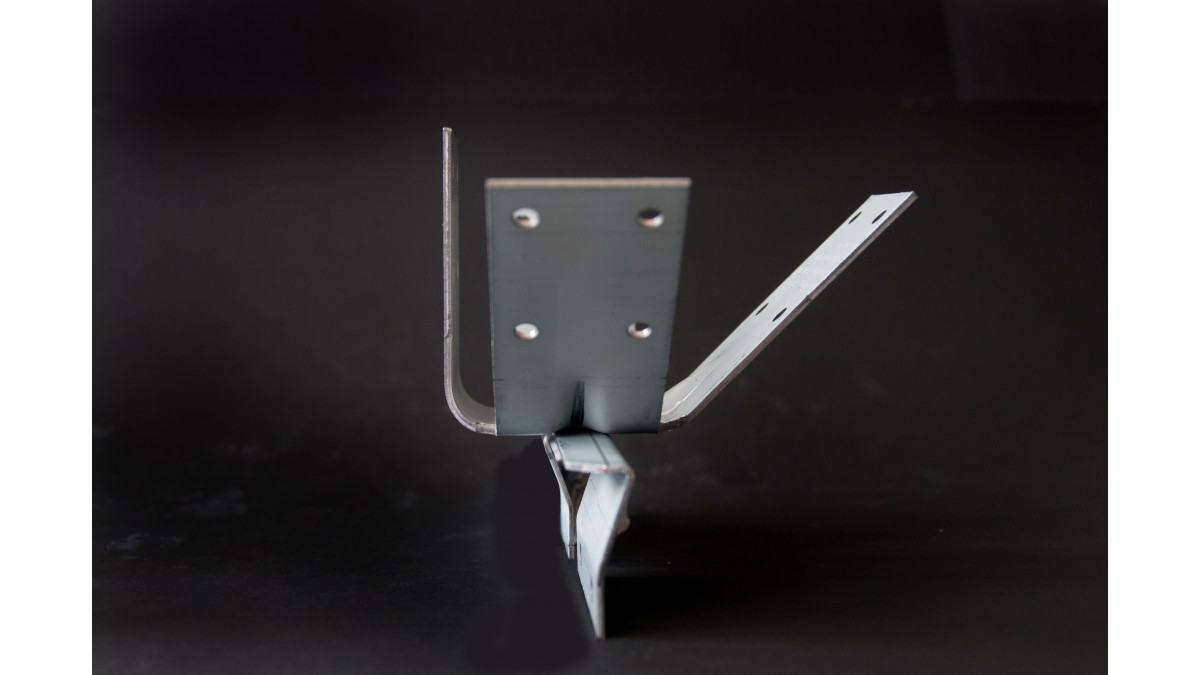

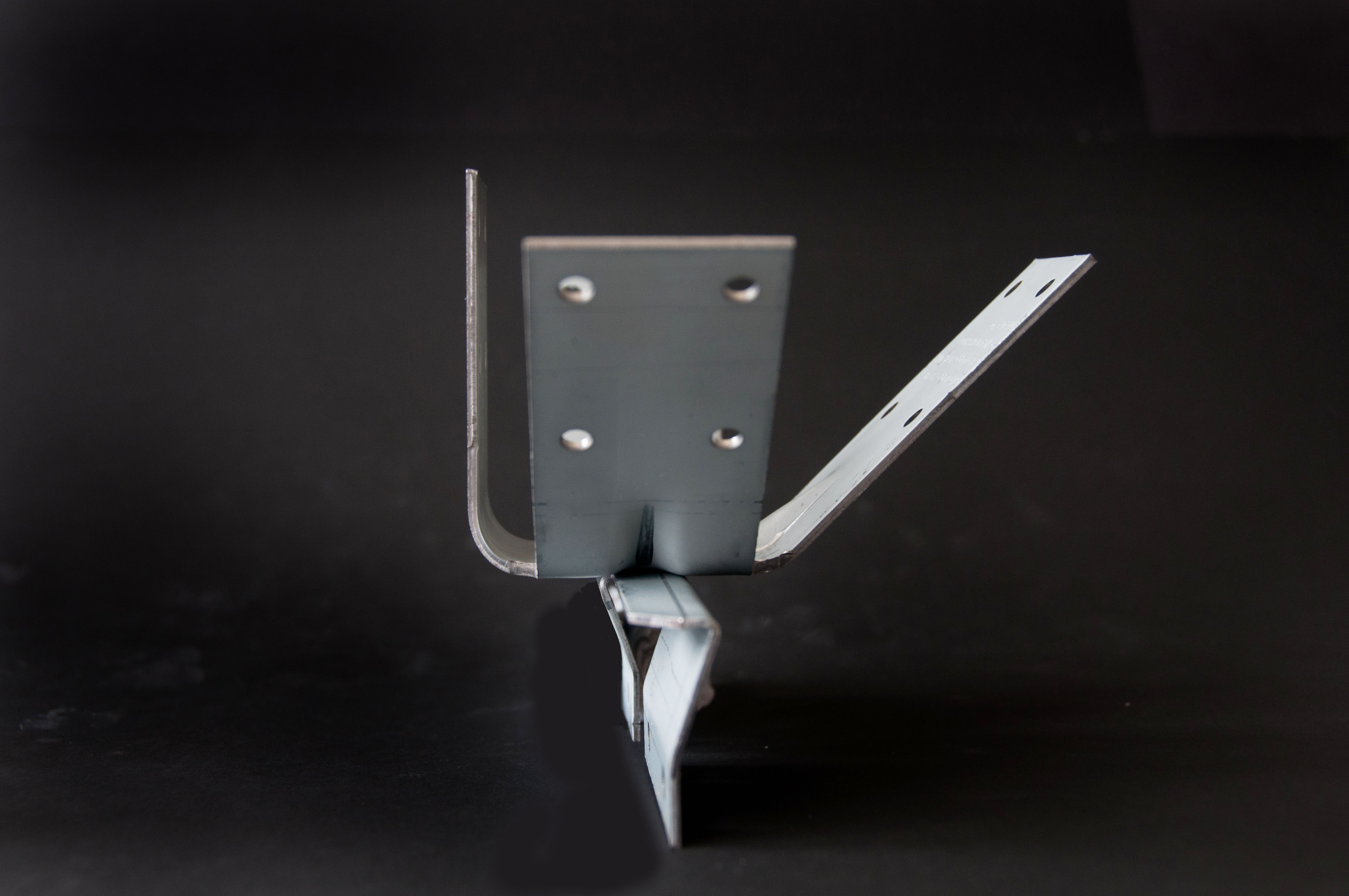

Gridlok PeakForm
Description

Gridlok PeakForm is designed and tested to provide consistent bracing to Armstrong Peak Form, Blue Tongue two-way grid ceiling systems and Rondo Rapid Dry Wall Grid System.

Key Features
  • Simple click fit and screw-off process dramatically reduces time required to complete back bracing
  • Features the ability to rotate the unit though 360 degrees — minimising service clashes
Scope of Use
  • For interior application only
  • Must be installed in accordance with manufacturers specification and within the parameters of AS/NZS1170.5 AS/NZS4219 AS/ NZS2785
  • Construction outside of available information will require consultation and approval
  • Architect and/or Structural engineer plus relevant regulatory bodies must approve variations of installation
Limitations on Use
  • Structural engineer and regulatory body must seismically approve configurations outside of specifications
  • The unit and/or bracing material must not be used as an anchor point or fixing point by associated trades
  • All Gridlok units and bracing must be checked after seismic event for signs of wear
  • Gridlok is not intended to replace ceiling suspension wires, which must be installed as per manufacturers specification
  • The unit must not be deformed or altered in any way. Tenancy changes requiring new ceiling installation requires new Gridlok units to be installed
Statement of Building Code Compliance
  • Complies with AS/NZS 2785
  • Complies with AS/NZS 1170.5
  • Complies with AS/NZS 4219
  • Complies with AS/NZS 4600
  • Complies with NZ Building Code Clause B1 – Structure
  • Contributes to compliance with NZ Building Code Clause F6 – Visibility in Escape Routes, Clause D1 – Access Routes
In-Service History

Gridlok has been on the market since May 2016.
