Armstrong Soundscape Baffles
Description

Armstrong Soundscapes Baffles are manufactured from a core glass fibre substrate wrapped in a durable scrim with factory applied paint. (Soundscapes Baffle offer 80% recycled content).

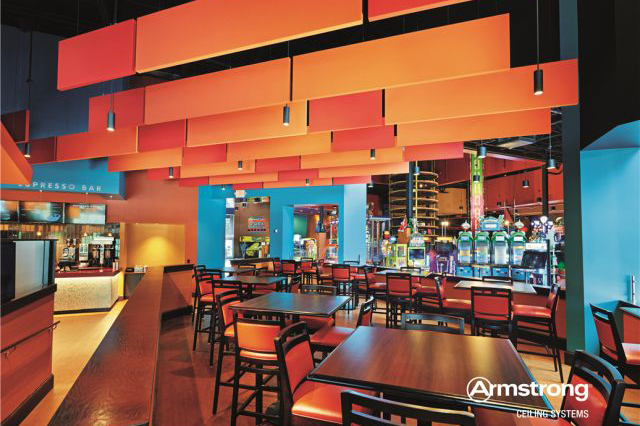

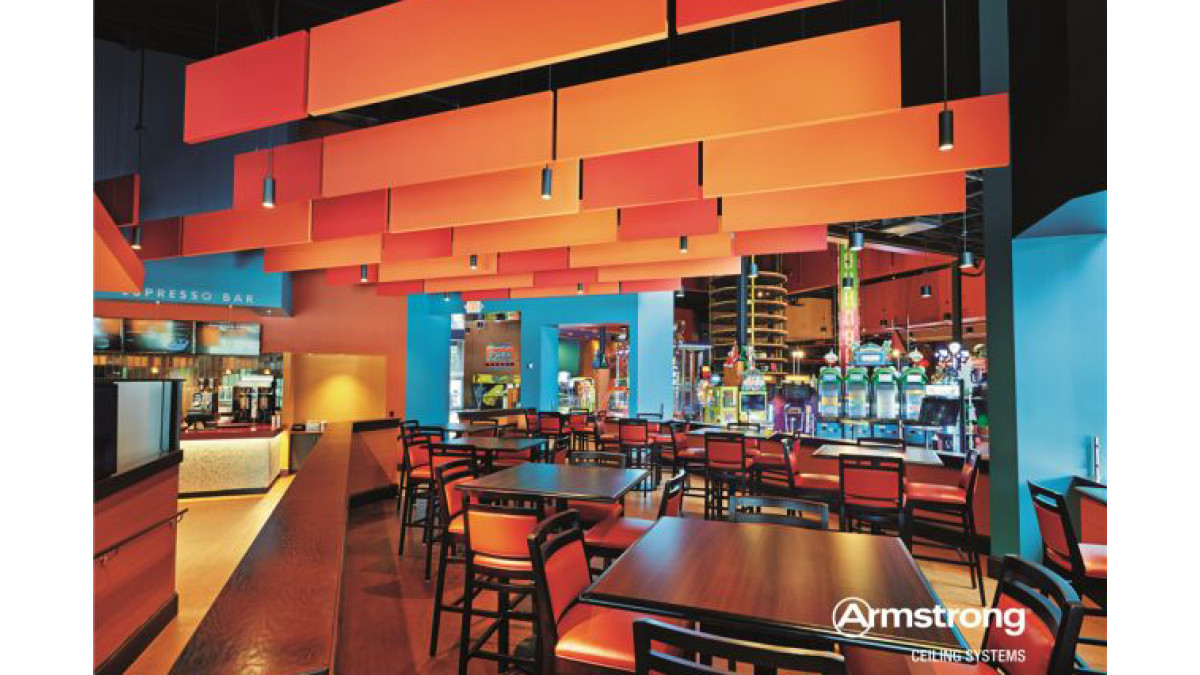

At 400mm deep Soundscapes Baffles offer a visually striking acoustic solution even when high ceilings are specified; Available in 1200mm and 1800mm standard modules (40mm thick), as well as custom sizes up to 2400mm, Soundscapes Baffles can be easily installed using an Armstrong hanging kit (aircraft wire- adjustors – gripper hooks). For cost effective installation, or when ceiling space is at a premium, Armstrong developed a propriety clip to “direct fix” the Soundscapes Baffles to existing (or new) Armstrong PeakForm 24mm grid.

Armstrong Soundscapes Baffle are available in standard white or in any colour of the RAL range, giving architects and design professionals endless possibility to create unique interior spaces.

Key Features
  • Up to 90% light reflectance
  • RH 95%
  • Conforms with BCA Spec. C1.10 and tested to AS/NZS 3837:1998 – Group 1
  • NRC 0.65
Scope of Use
  • Simple installation – individually or in groups from PeakForm 24mm Grid
  • Easy integration with mechanical services
  • Education, offices, leisure, transport
  • Suitable for areas naturally lit with skylights
Statement of Building Code Compliance

Achieves Group 1 fire rating (AS/NZS 3837)

Documents
Data Sheet
