Climateline — Finished Plasterboard Lining System
Description

ClimateLine is a finished plasterboard panel and trim system that reduces the time to complete commercial interiors by eliminating the need for plastering and painting on-site, and an economic alternative to other laminated or painted wood based panels. It minimises disruption from noise, plaster dust and paint fumes to occupants during renovation projects while making clean-up quick and easy. Made using Climate's powder coating technology for plasterboard, it scores and snaps easily like plasterboard, it can be easily repaired, contains no VOCs or formaldehyde and has a Group 1-s reaction to fire.

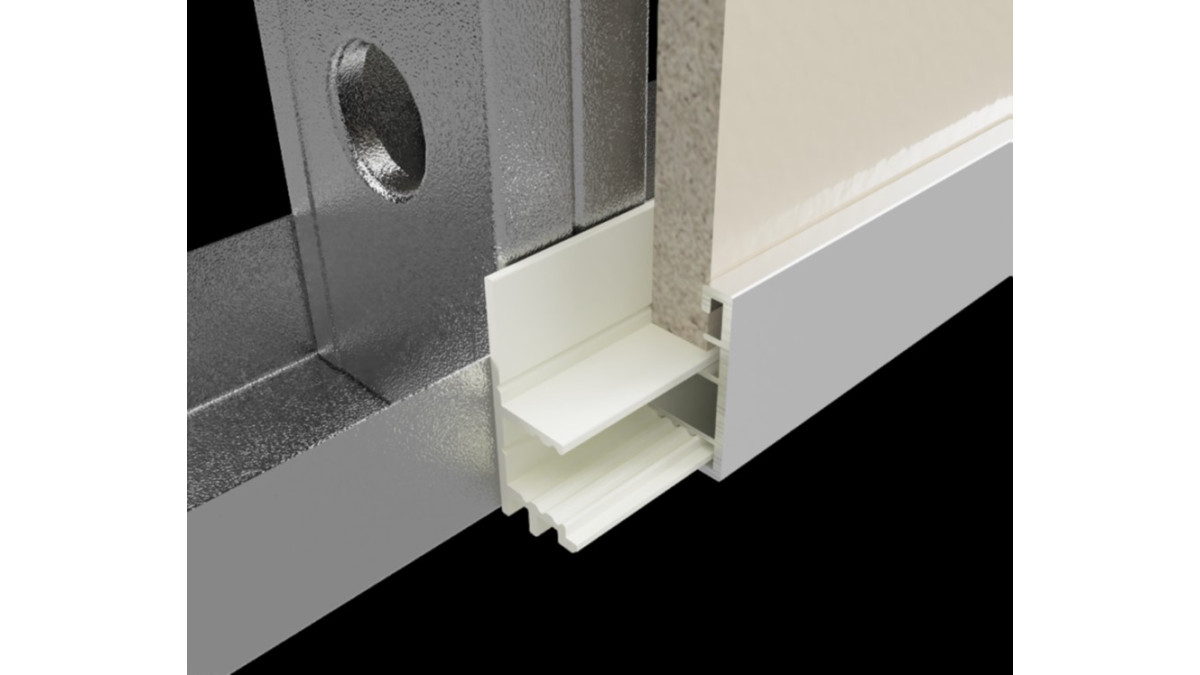

The newly designed two-piece aluminium trim system matches the powder coat finish and makes installation quick and easy, while enabling panels to be removed and replaced over time.  Made in New Zealand from sustainable materials and processes, Climateline can be fully recycled or re-purposed when installed without permanent fixings.

Key Features
  • Group 1-S fire rating
  • 10 year warranty
  • Global GreenTag certified
  • Available in standard, wet area and impact resistant plasterboards
  • Available cut to size and in custom colours

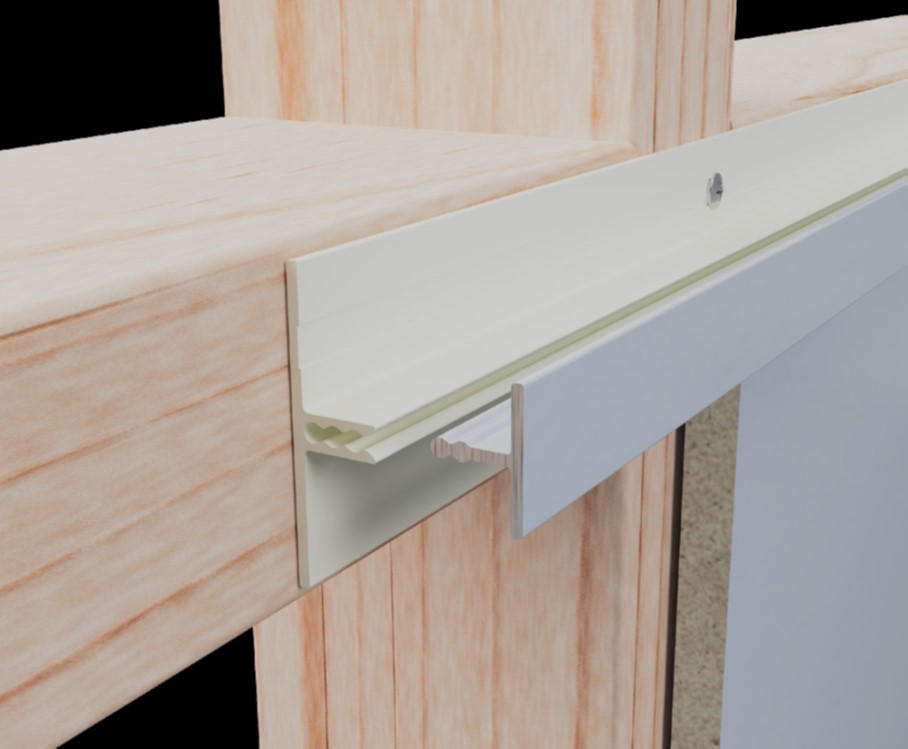

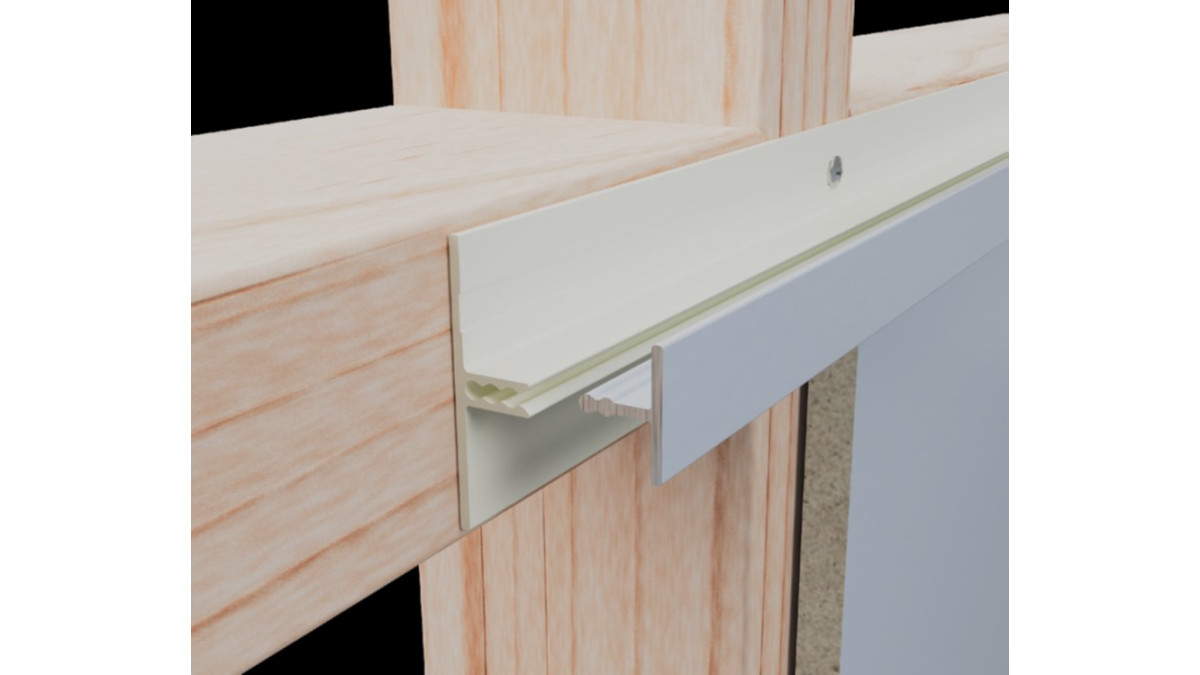

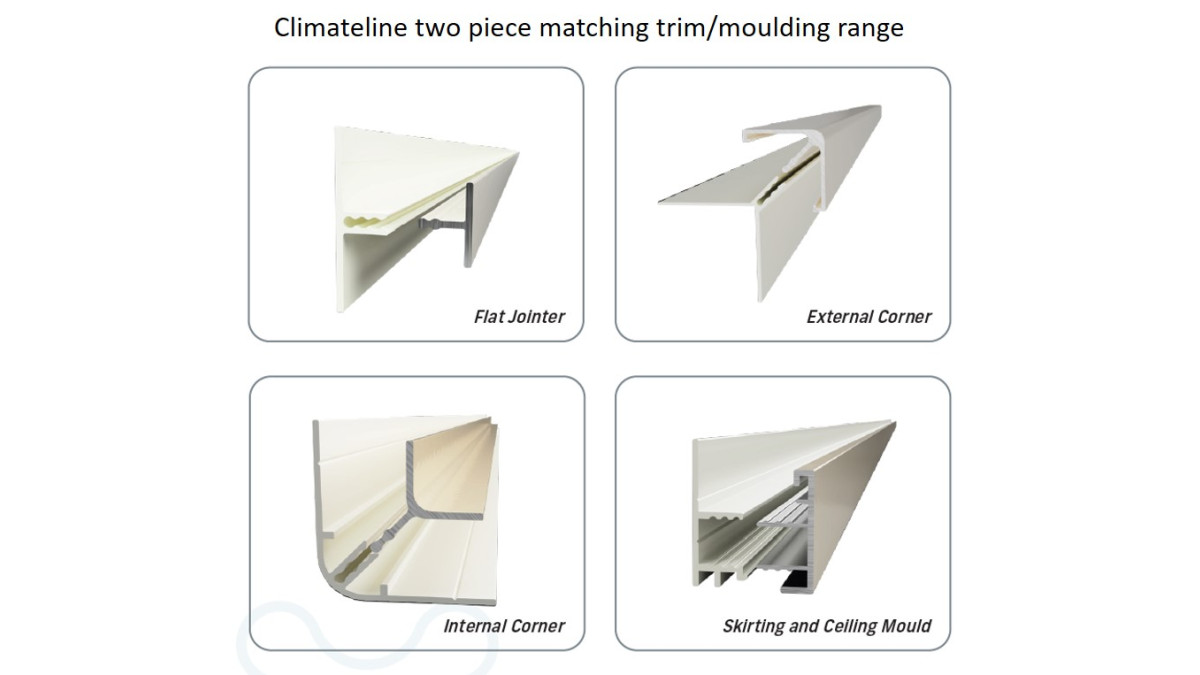

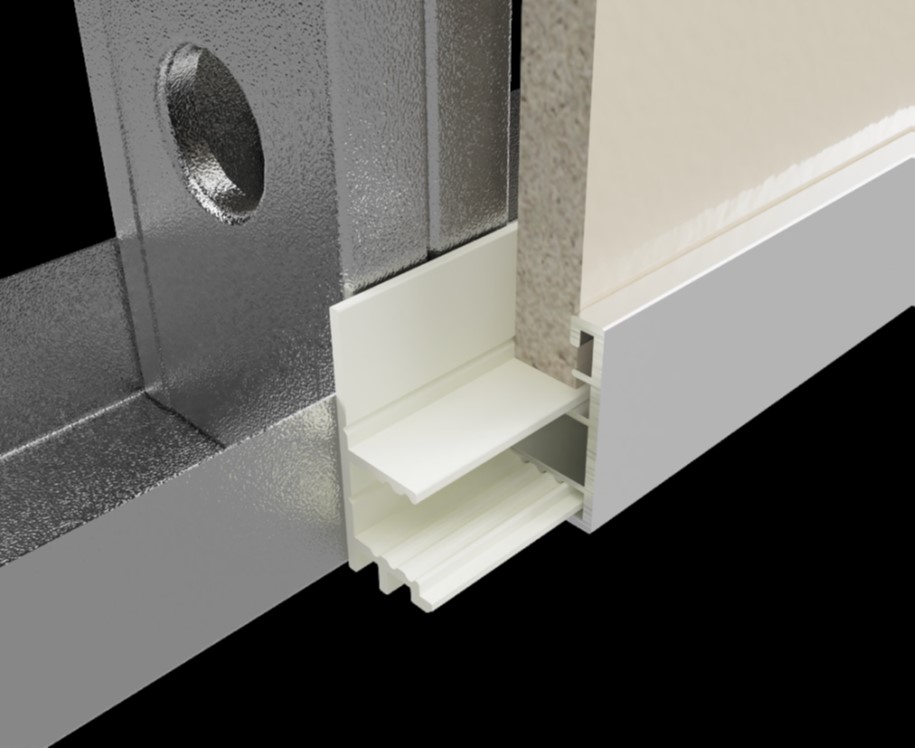

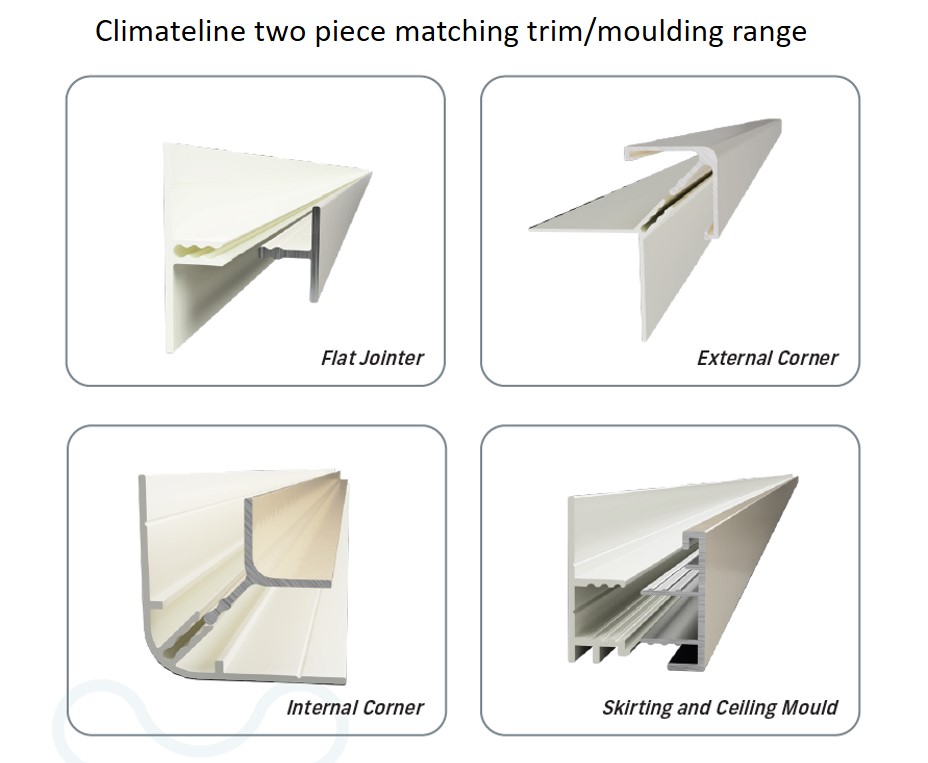

  • Two piece aluminium trim system in matching powder coat finish



Green Tag Certified
Green Tag Certified
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Non load bearing commercial partitions and walls
  • Wet area wall lining for kitchens, bathrooms and laundries
  • Ideal for OSM construction methods
  • Can be used as an overlay for fire rated partitions
  • Where a Group 1-S reaction to fire is required
Limitations on Use
  • Not suitable for wet wall linings such as shower enclosures (suitable for wet area linings)
  • Interior use only
  • Non load bearing walls only
Statement of Building Code Compliance
  • Durability (B2.3.1c) — 5 years
  • Hazardous Building Materials (F2)
  • Reaction to Fire C/UM2 Group 1-S
In-Service History
  • 14+ years of successful use in New Zealand and Australian markets
  • Signficant number of commercial projects completed with substantiated long term performance
  • Prefab/OSM construction projects for both residential and industrial applications
Other Performance Attributes
  • Excellent moisture resistance
  • Excellent colour fastness
  • Coating will not delaminate from heat or moisture
  • Vapour permeable coating to minimise mould and mildew
  • Good chemical and stain resistance
  • Excellent wash/scrub resistance for easy cleaning
  • Surface finish is VOC free, low waste Climate powder coating technology
  • NZ made Gib brand plasterboard that is also Global GreenTag certified
  • Easily repaired to a high standard if damaged or when it comes time to re-furbish
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
G3 Food Preparation and Prevention of Contamination compliant
Food Preparation and Prevention of Contamination
Interior Fire Rating 1S
1S
Test Results
Test Results
Documents
Specification and Installation Guide

2024

Building Product Information Sheet

2024

Fire Assessment Report
Climateline Warranty
Brochure
Additional Information

Climate Surfaces enables the construction of a sustainable world, using deep expertise in powder coating technology alongside a shared commitment to efficient and economical use of resources.

Product Enquiries

News from Climate

ClimateLine’s New Two-Piece Trim System Ensures Faster Installation and Easier Deconstruction NEW

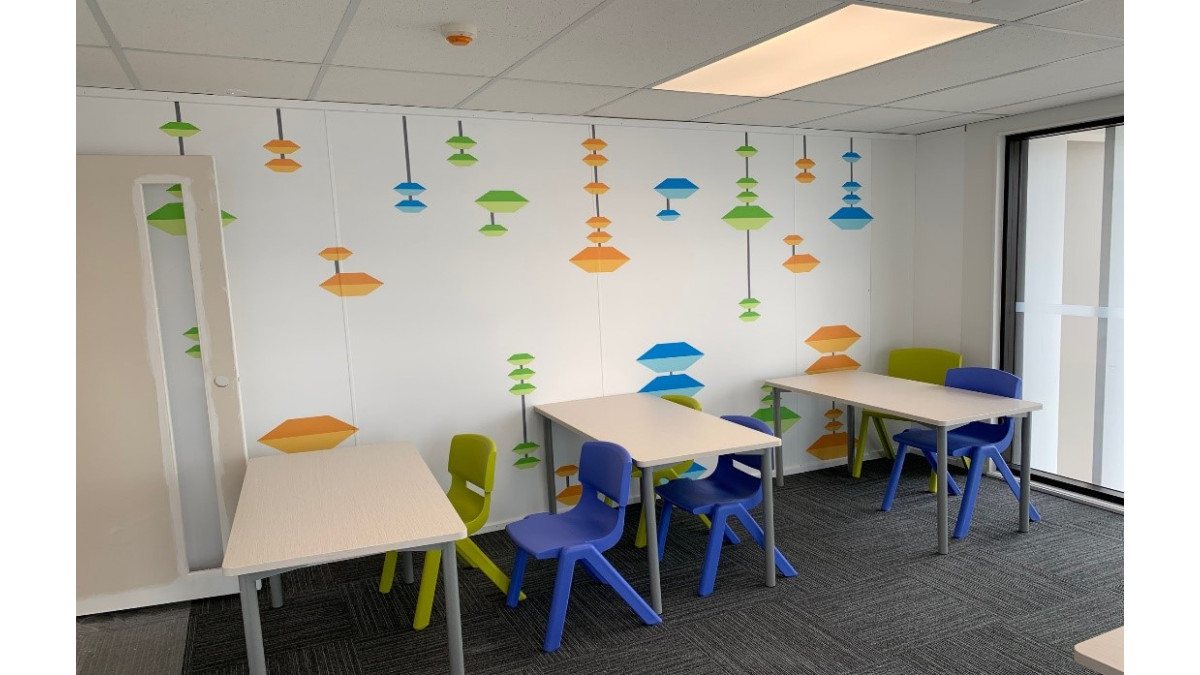

Pre-Finished Plasterboard Saves Valuable Time for New Academy
