Kaynemaile Architectural Mesh Ceiling Features
Description

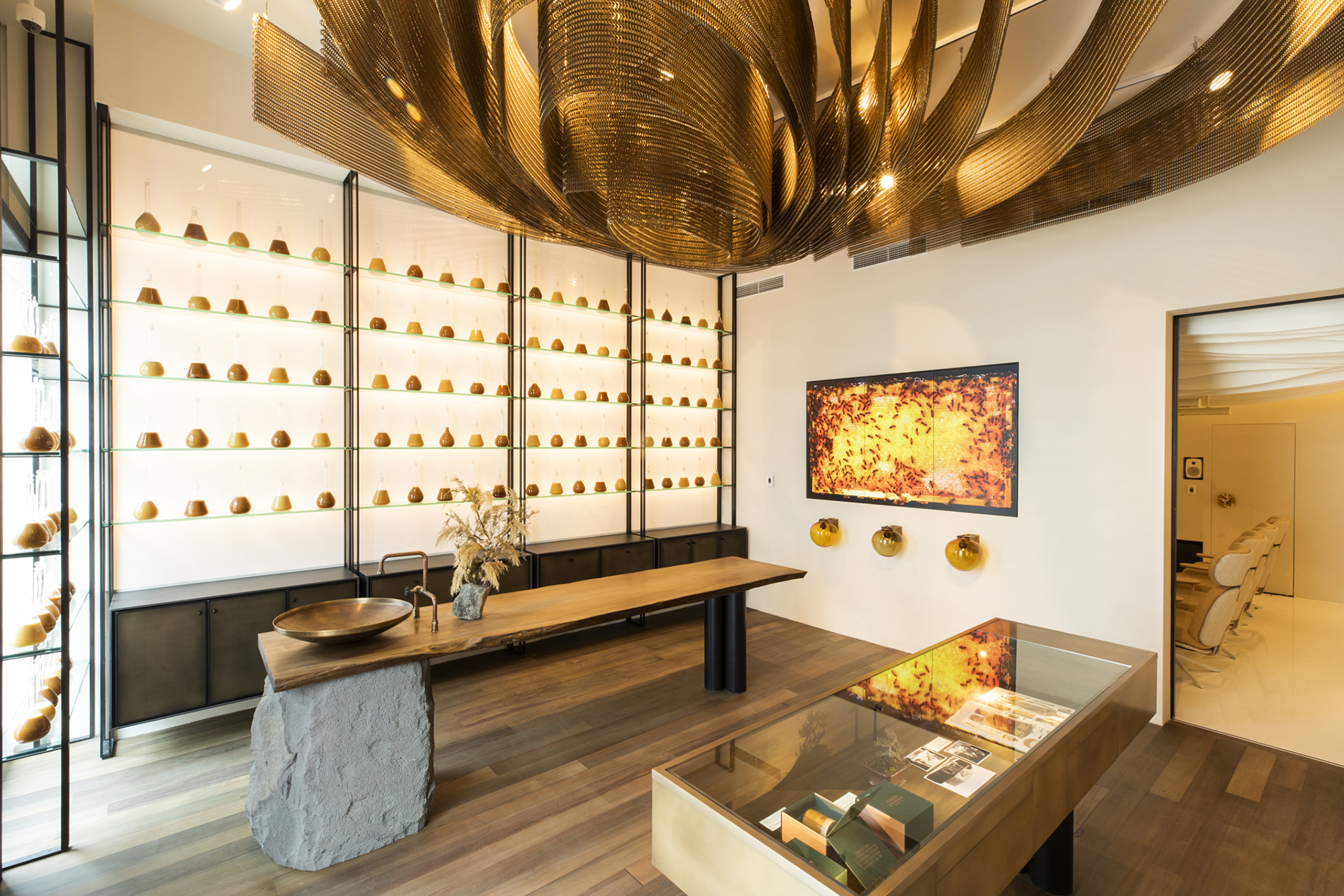

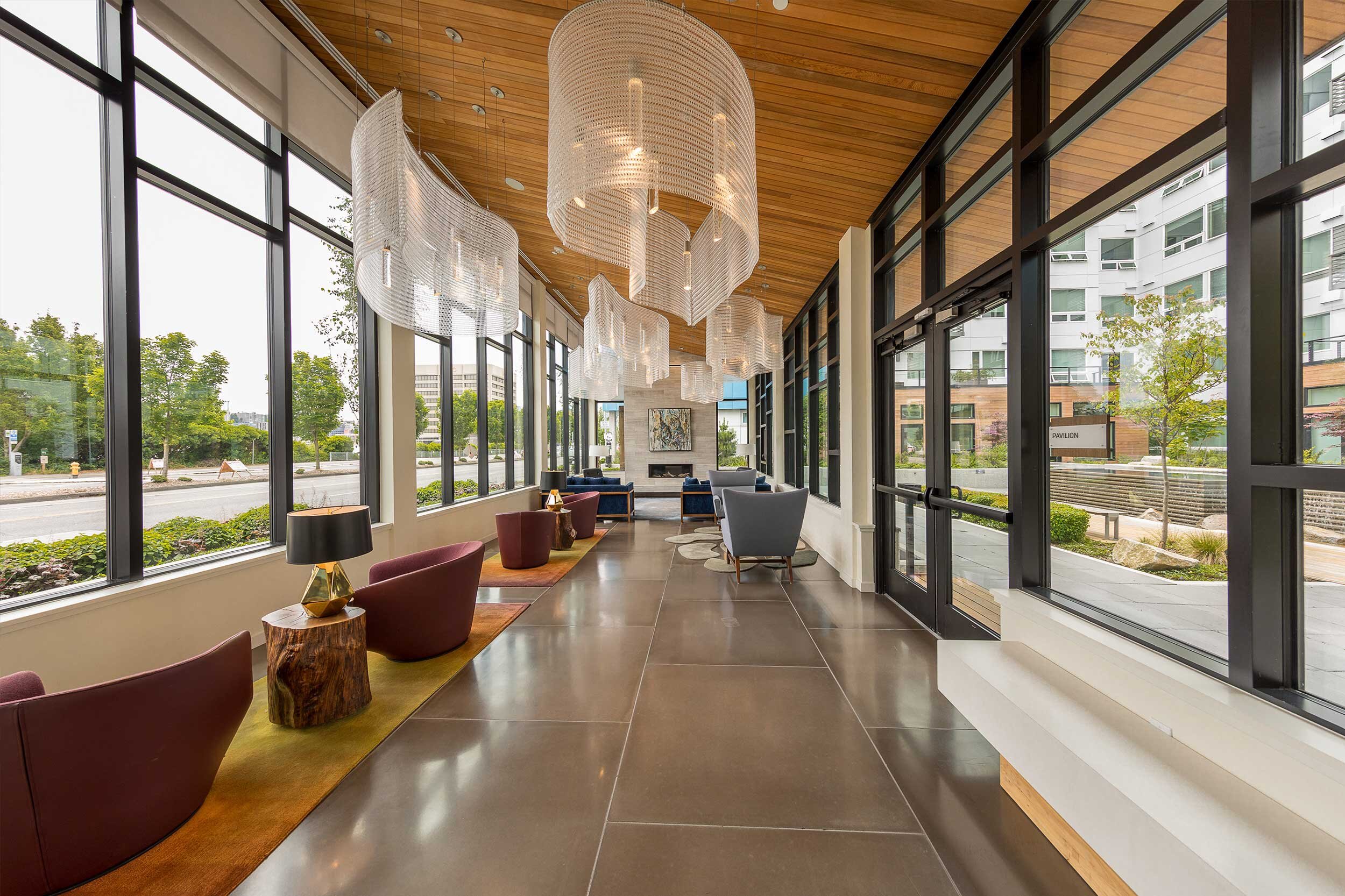

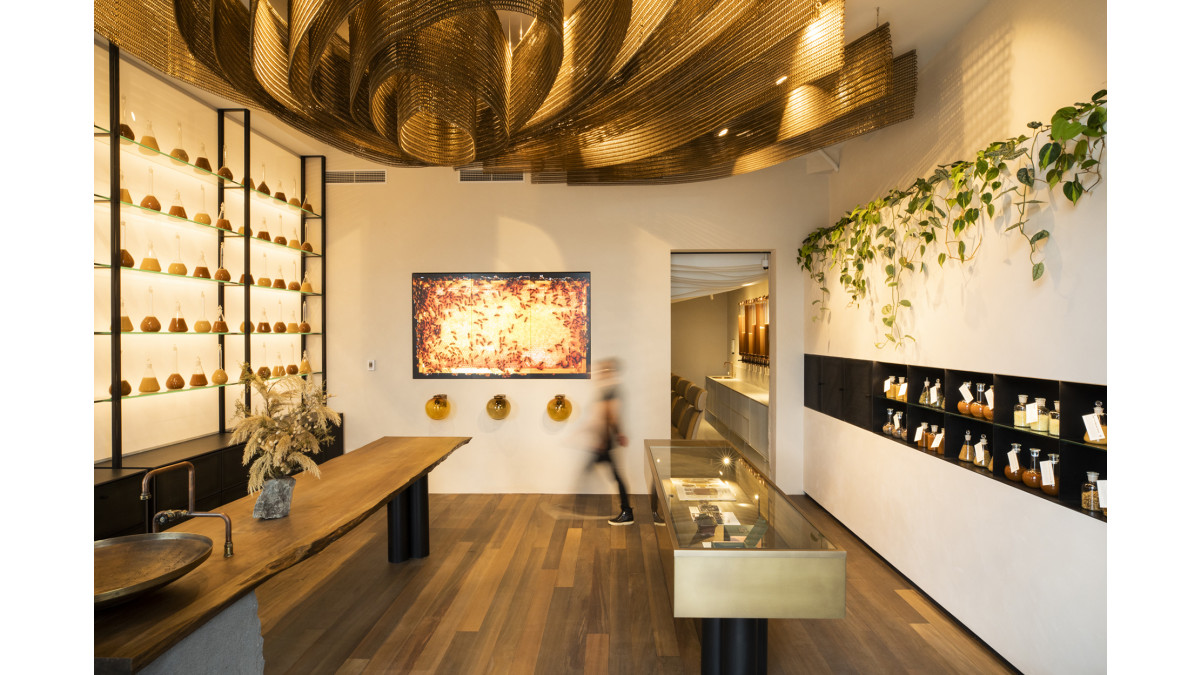

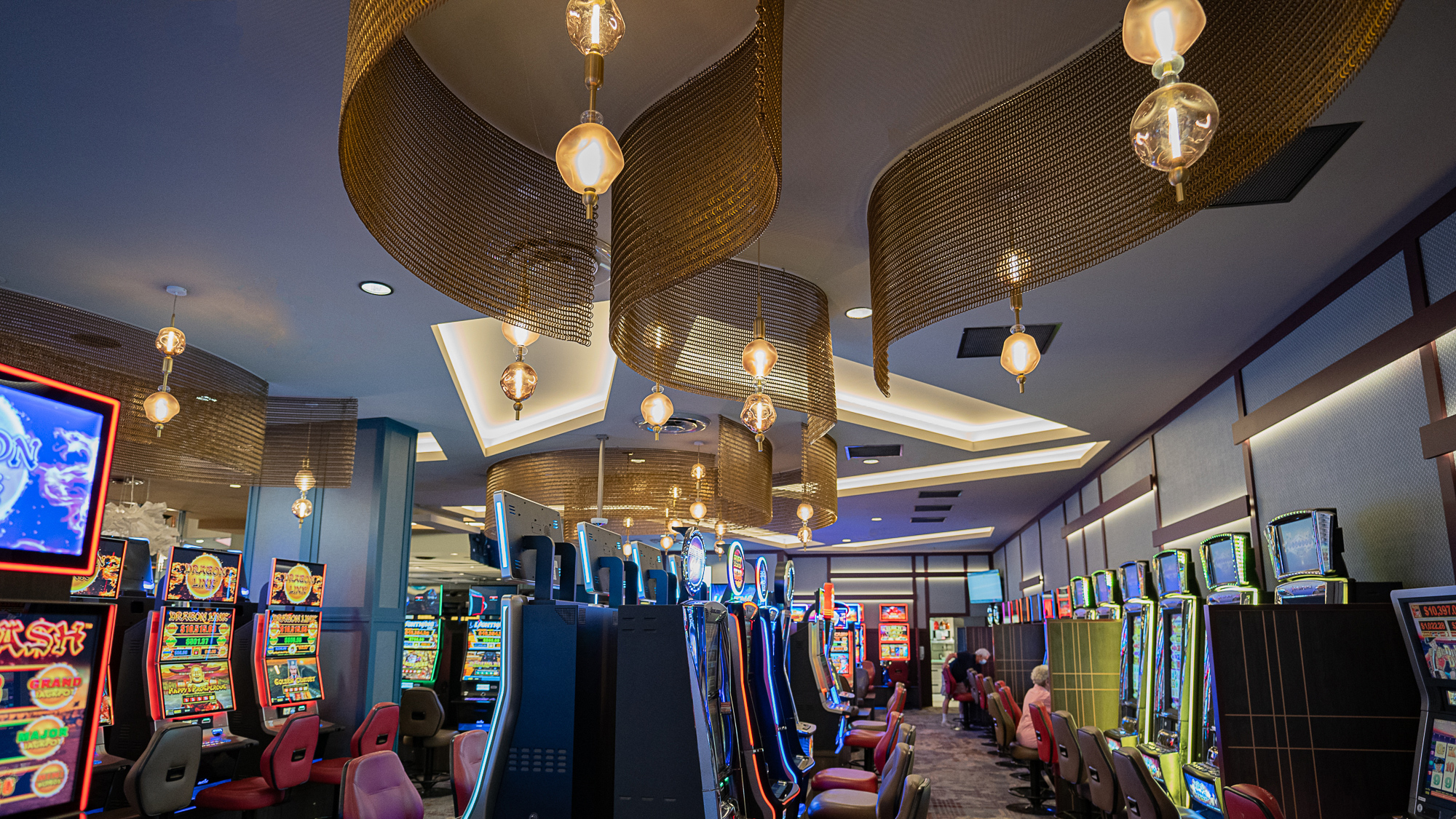

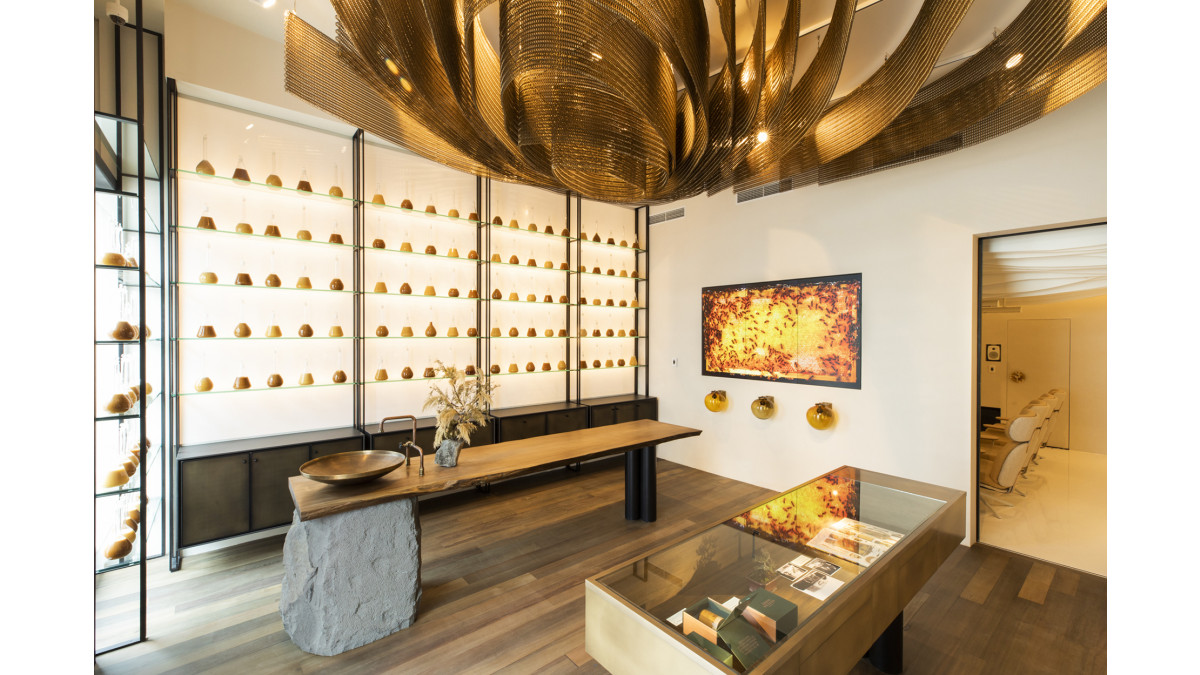

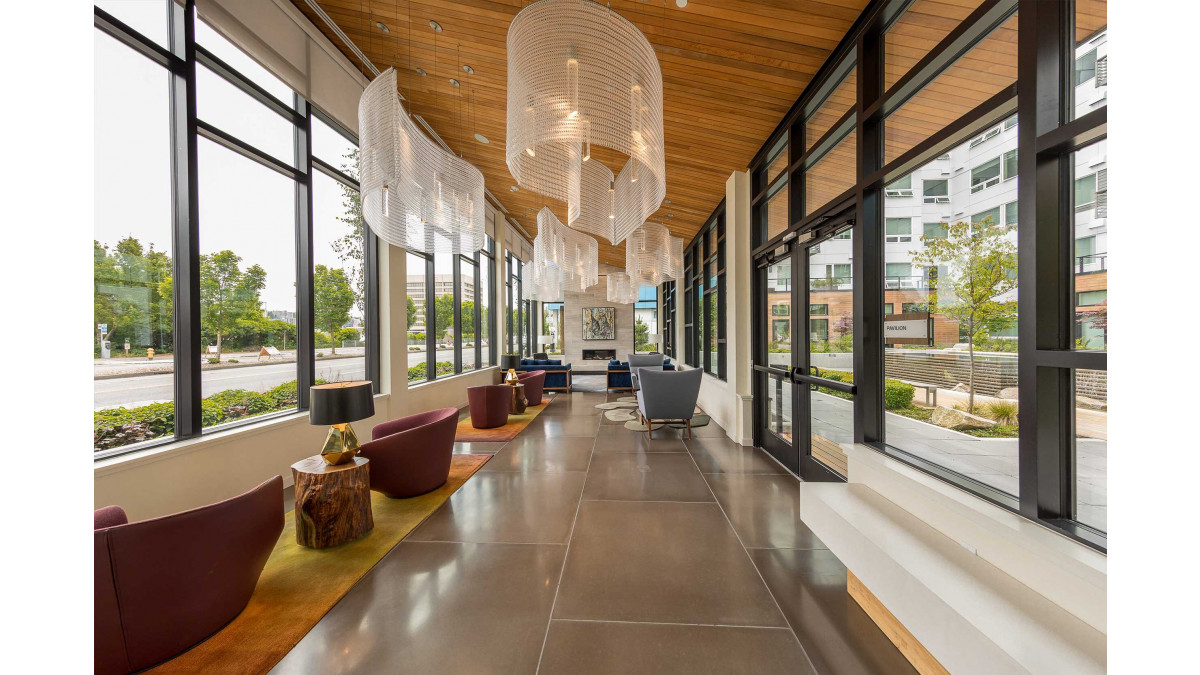

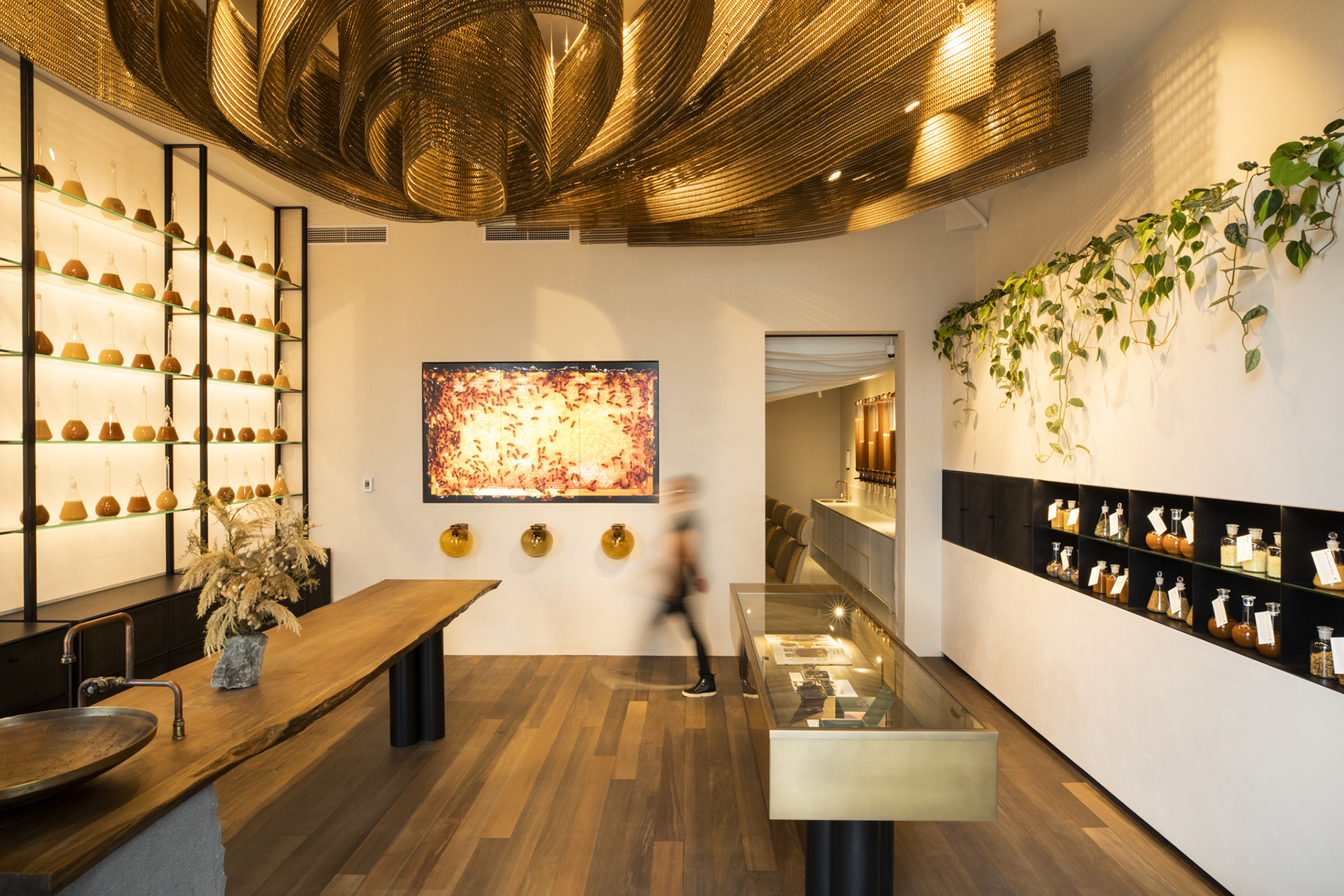

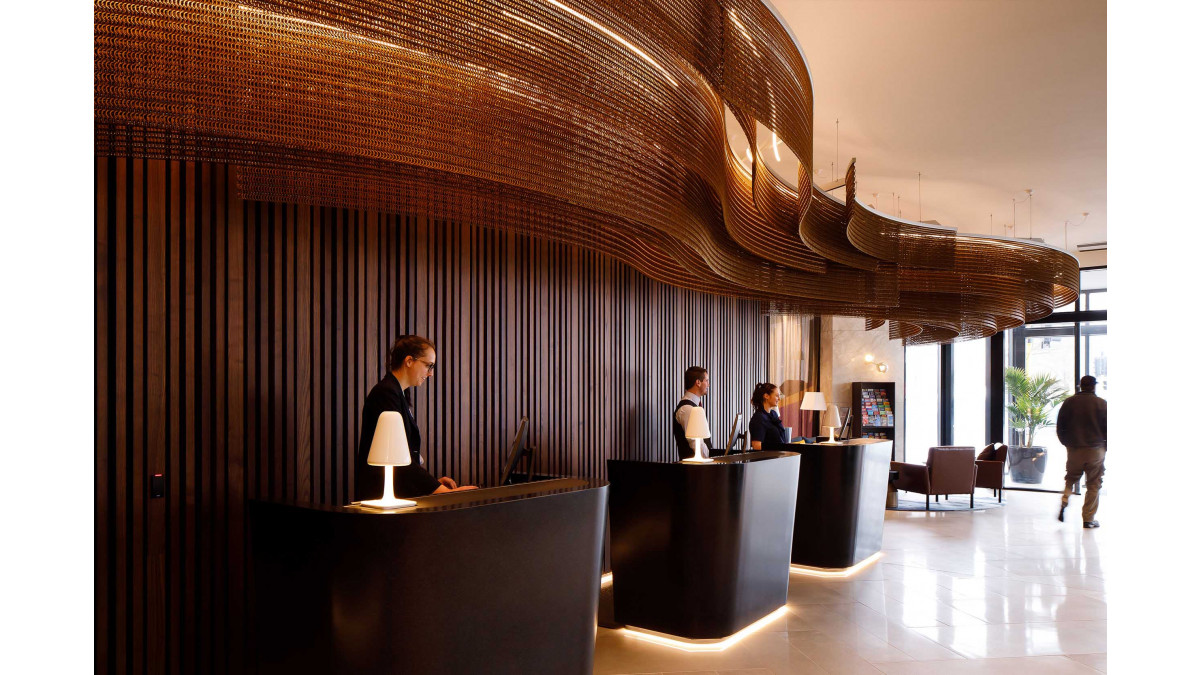

The lightweight nature of the mesh makes it perfect for large ceiling features, offering no size limitations it can be designed as one continuous feature or smaller features that can even be seamlessly joined for the creation of tubes and other organic features. The inclusion of lighting will turn designs into amazing light features.

Kaynemaile Architectural Mesh is a chainmail fabric consisting of interlinked rings connected by liquid-state assembly to form a flexible and seamless mesh. It is made from high grade engineering polycarbonate and used in the architecture and design industry.

Key Features
  • Unlimited Size and Scale
  • Rods and/or tracks are supplied with mesh/substrate by others
  • Mesh and all the hanging hardware needed to connect to your ceiling, spaceframe or attachment point are supplied
  • Fire and UV resistant
  • Strong and lightweight (3kg/m2)
  • Simple attachment systems for effective installation
  • Shaped ceiling features easily created
  • Exterior and Interior Colours: Bronze, Copper, Steel, Obsidian Black, Translucent Black, Silver, Champagne, Custom Colours
  • Interior Colours: Water Clear, Ice Blue, Flat White, Ruby Red, Jade Green, Azure Blue, Marine, Custom Colours
  • Locally manufactured in Petone, Wellington
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

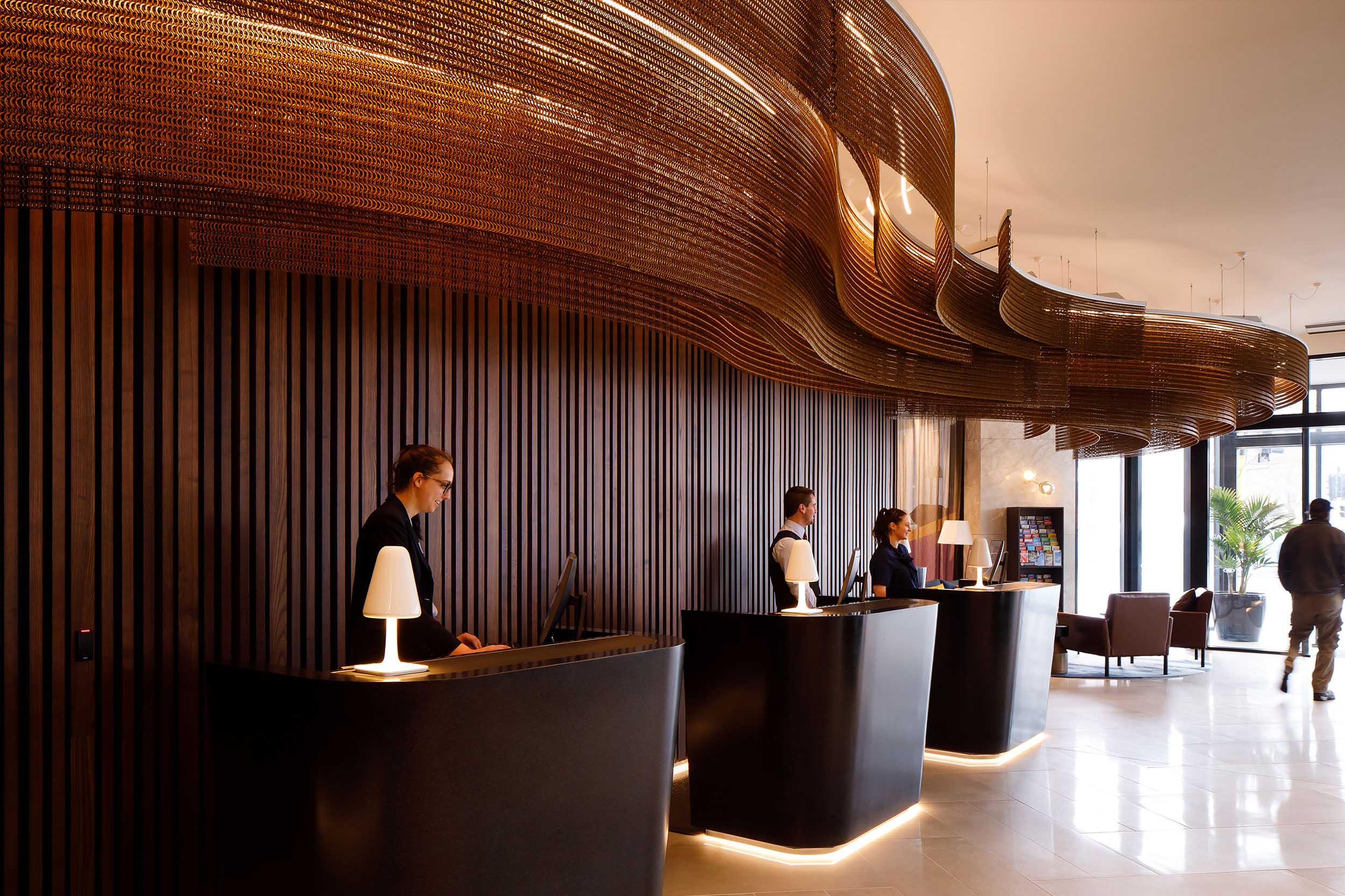

Kaynemaile interior ceiling features and custom lighting pieces are a simple, cost-effective way to create dramatic centrepieces for foyers, reception and entrance areas or anywhere you need a feature design element. Kaynemaile ceiling features are lightweight and work beautifully with feature lighting and can be used for indoor and outdoor areas.

Applications:

  • Custom ceiling features
  • Custom lighting features

It can be used in the following sectors:

  • Hospitality
  • Retail
  • Shopping centres
  • Airport
  • Sporting clubs and stadiums
  • Aged car
  • Bar & club
  • Institute



Limitations on Use
  • With Kaynemaile ceiling features the top line of each screen is horizontal
Statement of Building Code Compliance
  • Kaynemaile Architectural Mesh has achieved a Group 1S in the AS/ISO 9705 room test with a SMOGRA of 0.5m2/s2. UL94 FR-V0 material at 3mm that is rated self-extinguishing
Other Performance Attributes

Kaynemaile Architectural Mesh is strong and robust, liquid state assembly means each link is manufactured without any joins. The seam free links are interconnecting, production via this patented technique delivers an architectural mesh material of unlimited size.

Sunlight (UV) and exterior weathering:

  • UV stabilised Makrolon Polycarbonate.
  • Independently lab tested by Building Research Association of New Zealand (BRANZ).
  • Results show minimal structural/tensile deterioration of the mesh after 2000 hours of continuous testing in New Zealand’s harshest UV conditions—some of the toughest in the world.
  • All colours are light fastened, mineral-based pigments to maintain colour and recyclability. Real world full external exposure testing after 8 years, shows 95% original strength.

Tensile strength and impact resistance:

  • Astron burst testing with a point load area of approx. 32mm on small 140 x 140mm samples show a peak resistance of 279kg.
  • Note: The accumulated strength of seamless mesh increases proportionately with the size of the panel

Drag coefficient:

  • Cd = 0.8, which is 40% less than an equivalent two-dimensional or woven mesh.
  • Full wind tunnel test results for all angles available.
BRANZ Appraised
BRANZ Appraised
Independent Assessment
Independent Assessment
Test Results
Test Results
Interior Fire Rating 1S
1S
Documents
Technical Information: Kaynemaile Architectural Mesh
