Lockwood Lever & Push/Pull Furniture: 260 & 260SQ Series
ASSA ABLOY
All products

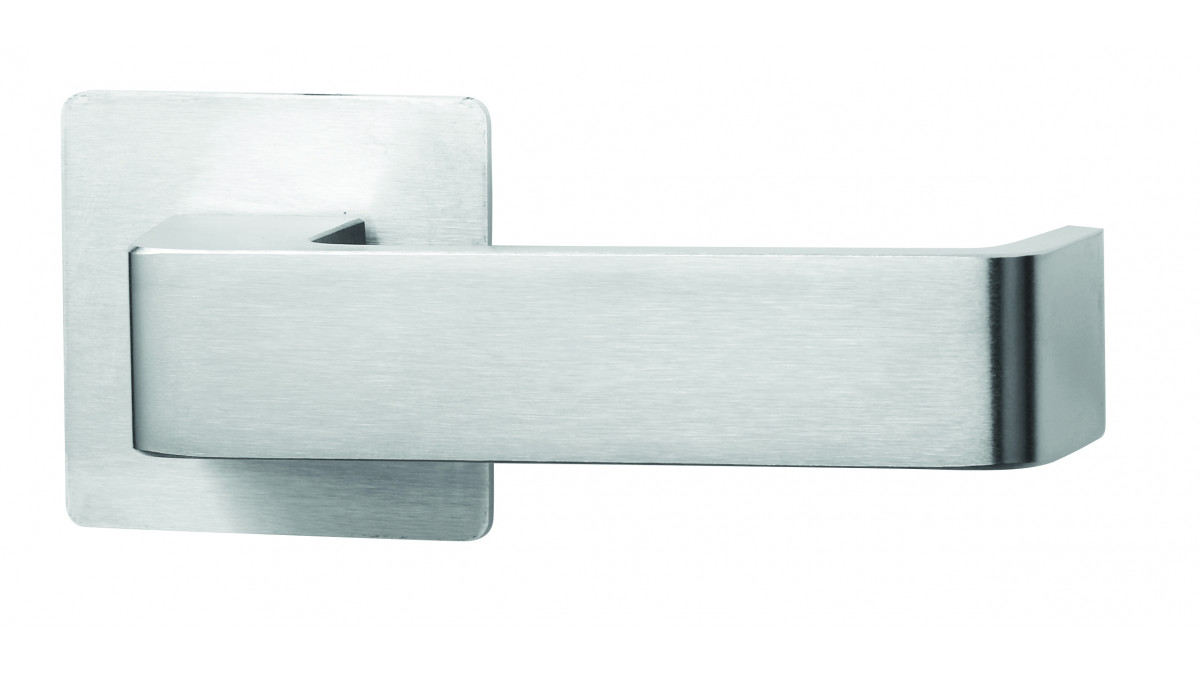

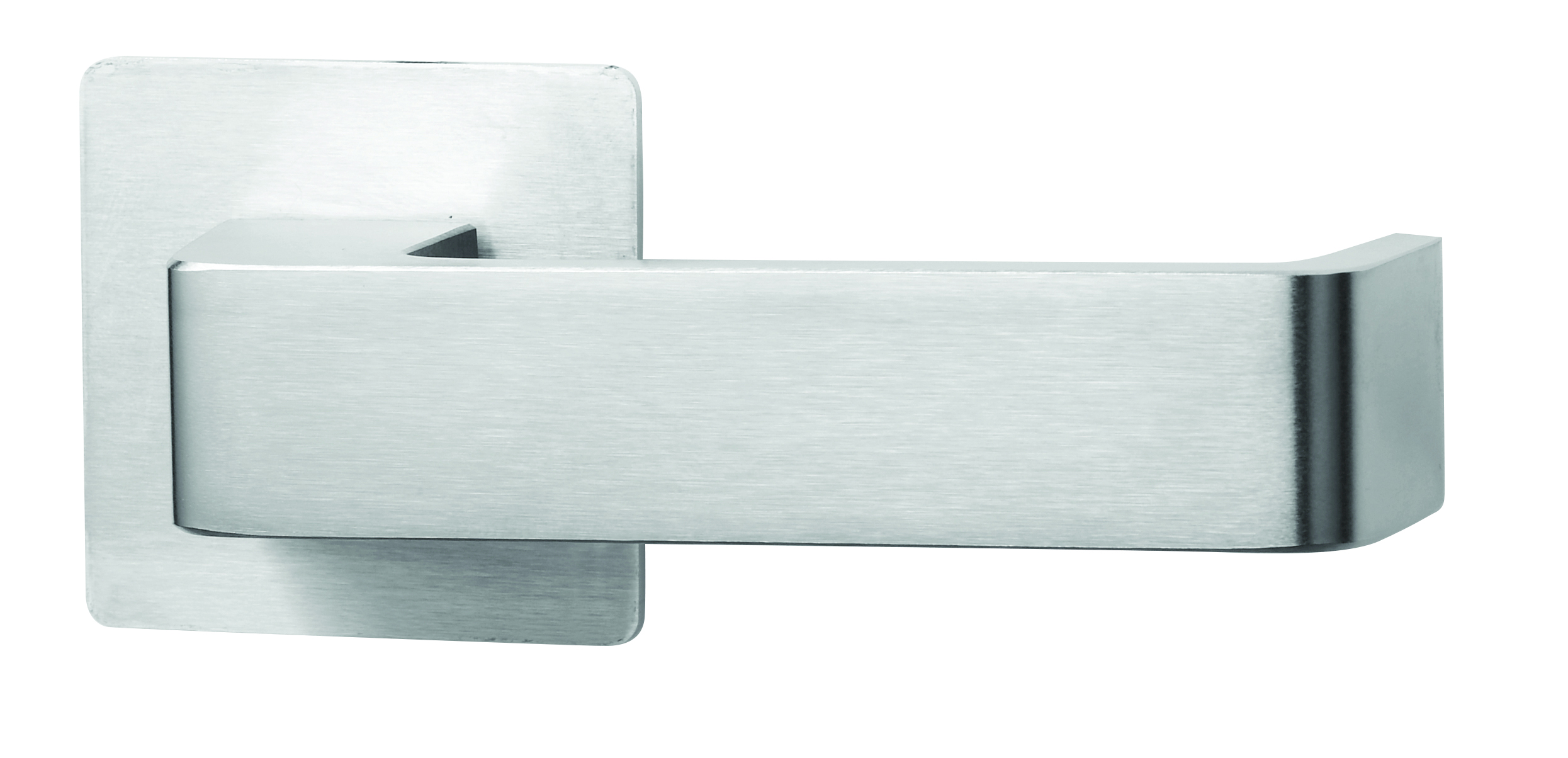

C 260SQ Series Square Rose Furniture 98 Lever

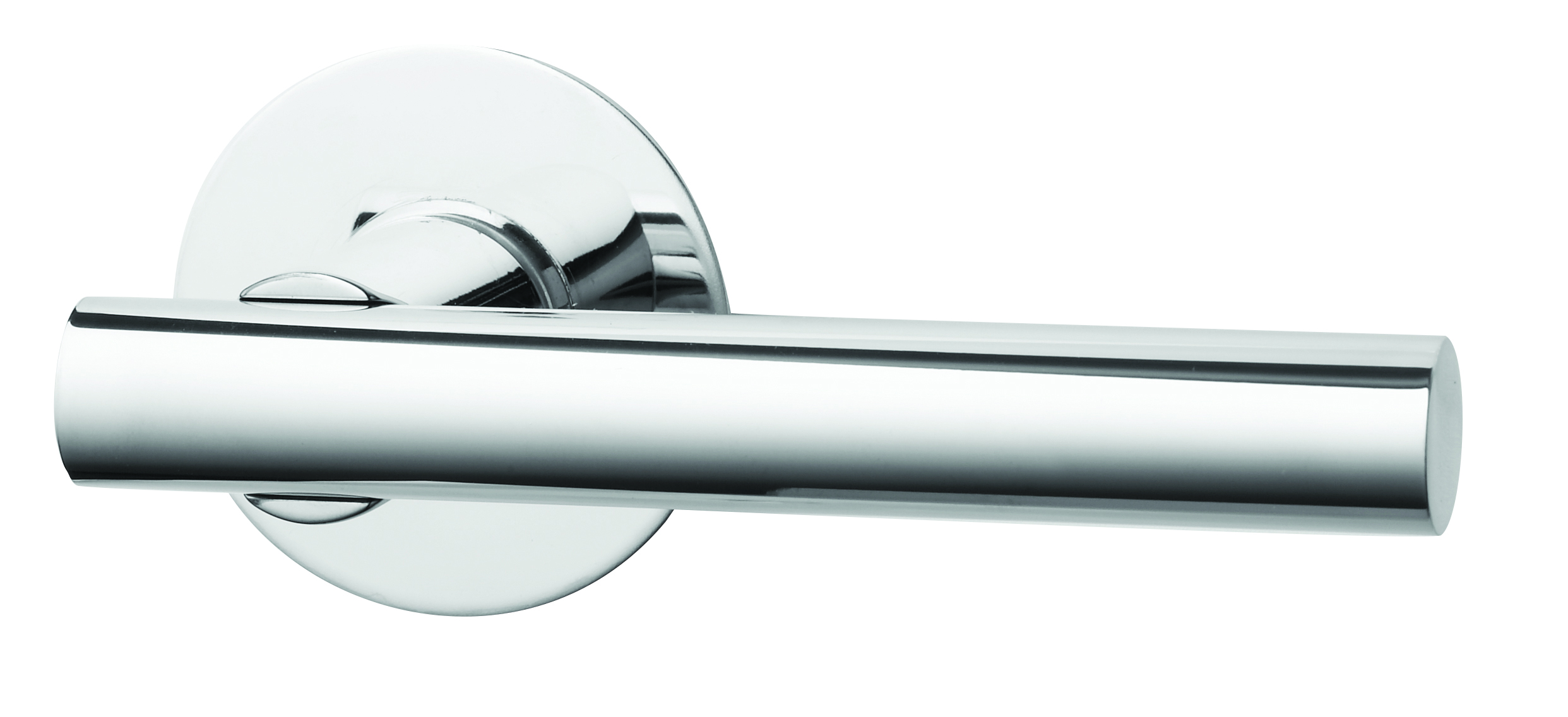

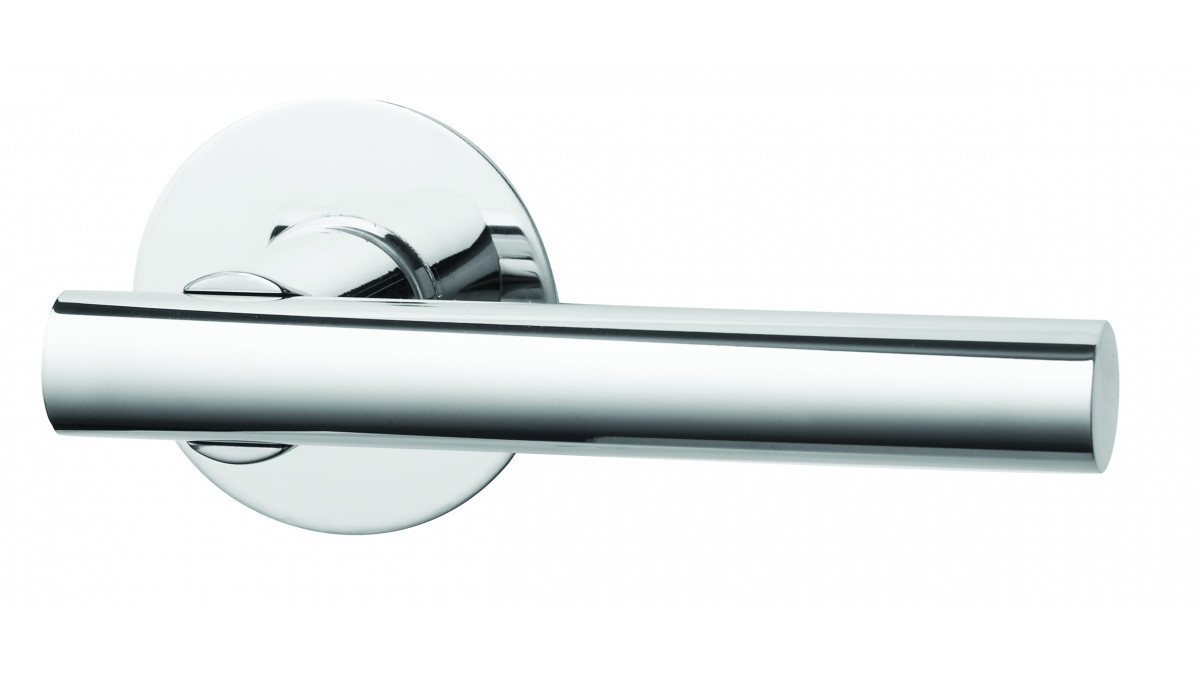

C 260 Series Round Rose Furniture 44 Lever PS
Description

The 260 Series Door Furniture has a 55mm round rose and the 260SQ Series Door Furniture has a 55mm x 2mm square rose.

Concealed fixed plates have studs with internal threads located on the rose, visible roses have corresponding countersunk holes and are fixed back to back through the door.

Designed for use with Lockwood 3570 Series Mortice Latches and with A5250 Tubular Latches.

Key Features

260 Series:

  • Dimensions: Lever Rose 55 x 3mm — aluminium & 55 x 2mm — stainless steel and brass / Escutcheon Rose 50 x 3mm — aluminium & 50 x 2mm — stainless steel and brass
  • Materials: Aluminium, stainless steel or brass
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • Finishes standard: Natural Anodised Aluminium (NT) / Stainless Steel (SS)
  • Finished non-standard: Polished Stainless Steel (PS) / Powdercoat (PC) / Marine Grade (MG) / Polished Brass (PB)

260SQ Series:

  • Dimensions: Lever Rose 55 x 2mm — stainless steel / Escutcheon Rose 50 x 2mm — stainless steel
  • Materials: Stainless steel
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • Finishes standard: Stainless Steel (SS)
  • Finished non-standard: Chrome Plate (CP) / Polished Brass (PB) / Polyester Powdercoat (PC)



Categories
Handles and Knobs
Ranges
Lever & Push/Pull Furniture
Scope of Use
  • Designed for use with Lockwood 3570 Series Mortice Latches and with A5250 Tubular Latches
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
Documents
ASSA ABLOY Lever & Push/Pull Furniture: 260 Series
URL
ASSA ABLOY Lever & Push/Pull Furniture: 260SQ Series
URL
