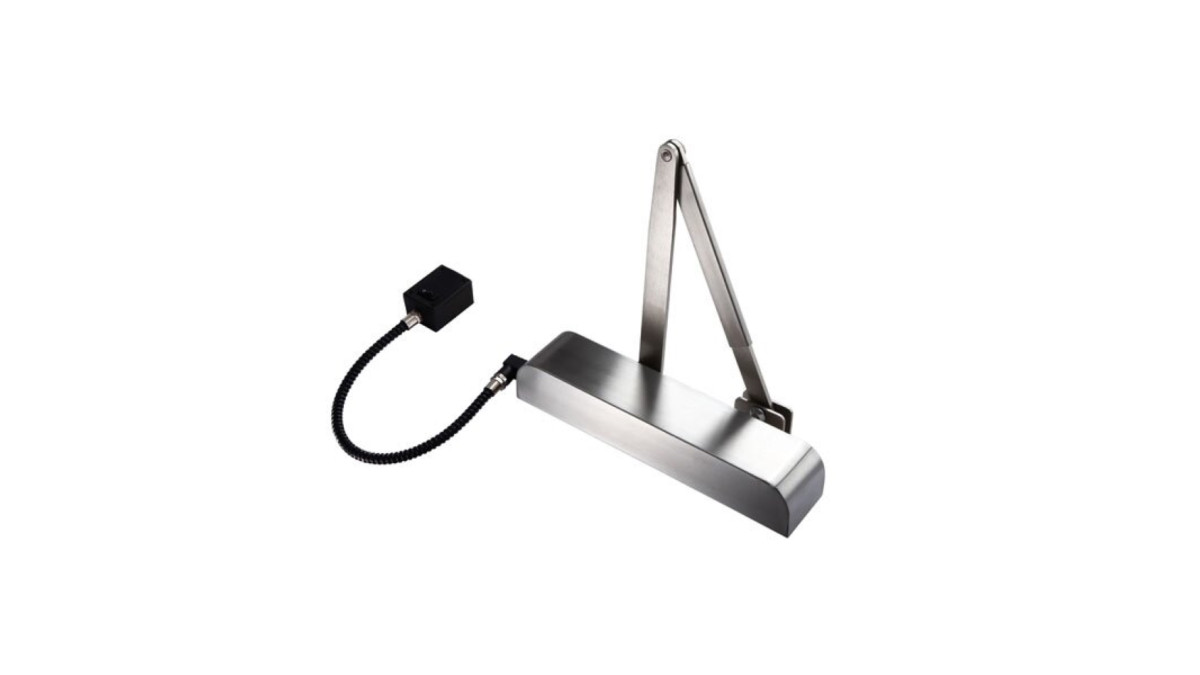

Lockwood Exidor 9880 Guardian E-Mag Free Swing Closer
ASSA ABLOY
All products
exidor 9880 guardian e mag
exidor 9880 guardian e mag2
exidor 9880 guardian e mag dimensions
exidor 9880 guardian e mag dimensions2
exidor 9880 guardian e mag parts
Description

Designed for care facilities, this innovative door closer enhances safety with its anti-slam feature and drift resistance. Enjoy adjustable latching and sweep speeds, plus elegant square cover; perfect for a secure and accessible environment

The swing-free mode of the Lockwood Exidor 9880 Guardian E-Mag closer can allow a door to slam shut. Whether this is accidental, deliberate, or just caused by a draught, it poses a real risk to frail residents. The Lockwood Exidor 9880 Guardian E-Mag closer closer has been specifically developed with an anti-slam function that controls and slows the motion of the door.

The Lockwood Exidor 9880 Guardian E-Mag closer offers a low-level control on the door, which stops it from drifting from its open position – eradicating the need to wedge doors open, yet still allowing the door to operate freely to the user. The Lockwood Exidor 9000 Series is supplied with a stylish and elegant radius cover and has a matching adjustable arm as standard.

Key Features
  • Anti-Slam Finger Protection — The swing free mode of a closer can allow a door to slam shut. Regardless as to whether this is accidental, deliberate or just caused by a draught, it poses a real risk to frail residents and care home workers alike. The Lockwood Exidor Guardian closer has been developed with an anti-slam function which controls and slows the motion of the door.
  • Drift Resistance — If a door is unbalanced it can naturally swing open or closed, or it can swing with a draught. This can result in a resident wedging the door open and invalidating it as a fire door. The Lockwood Guardian closer offers a low level control on the door, which stops it from drifting from its open position, at the same time as allowing it to operate freely to the user.
  • Maximum closing force EN4
  • Elegant square cover
  • Cam and roller mechanism
  • Adjustable latching speed
  • Adjustable sweep speed
  • Anti-slam for finger protection
  • Non-backcheck and non-delayed action
  • Detachable loop allows the loop and closer to be fitted separately for additional onsite flexibility in installation
  • Easy fit by mounting on the push or pull side, and supplied with brackets for either application
Categories
Door Closers
Ranges
Door Closers
Scope of Use

The Lockwood Exidor 9880 Guardian E-Mag closer is a swing-free door closer developed specifically to meet the needs of care home facilities.

In a class of its own, the Lockwood Exidor 9880 Guardian E-Mag closer offers specific features that reduce the risk of injury to residents as well as eradicating the need to wedge doors open.

  • Maximum closing force EN4
  • Opening angle 180°
  • Non-handed
  • Detachable loop allows the loop and closer to be fitted separately for additional onsite flexibility in installation
  • Easy fit by mounting on the push or pull side, and supplied with brackets for either application
  • Supplied with brackets for fig 1 and fig 6 fixing
  • Power size 4, power supply units are also available
  • Supplied in a trade pack

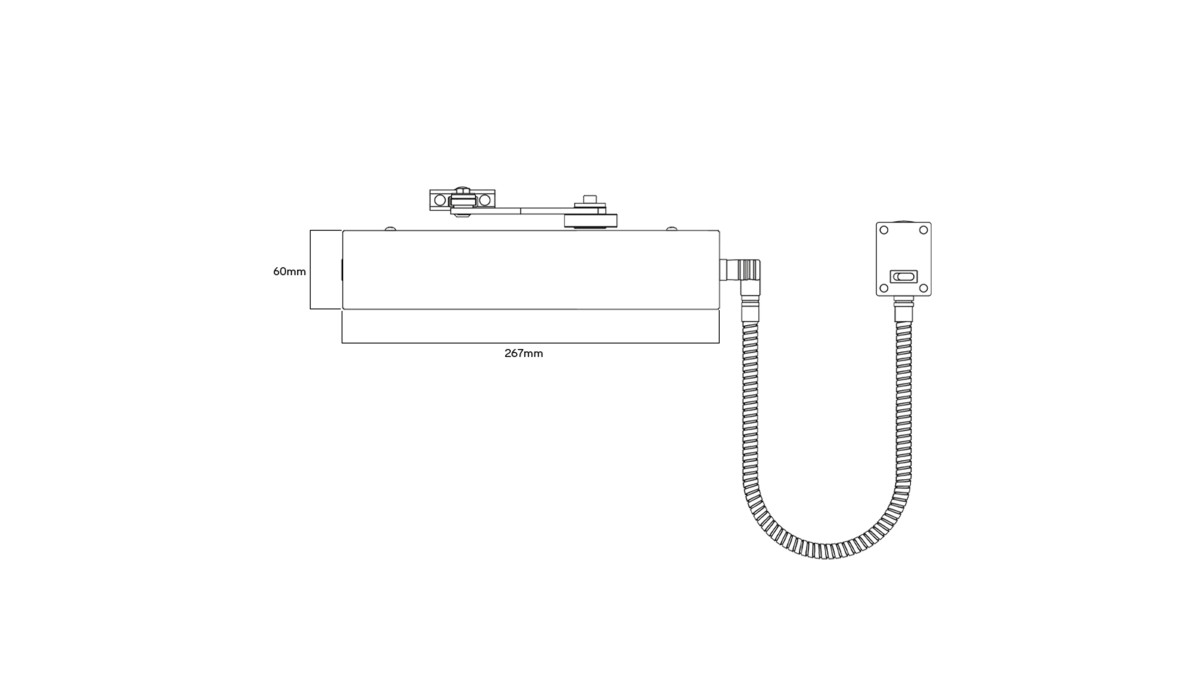

Dimensions:

  • Height: 60mm
  • Width: 267mm
  • Depth: 49mm
Limitations on Use

The Lockwood Exidor Guardian requires a 24V DC power supply and it is recommend to use the PSU2 and PSU4 power supply units.

  • Maximum door weight 80kg
  • Maximum door leaf width 1100mm
Other Performance Attributes
  • Maximum closing force EN4



Documents
Brochure: Surface Mounted Door Closures
pdf
