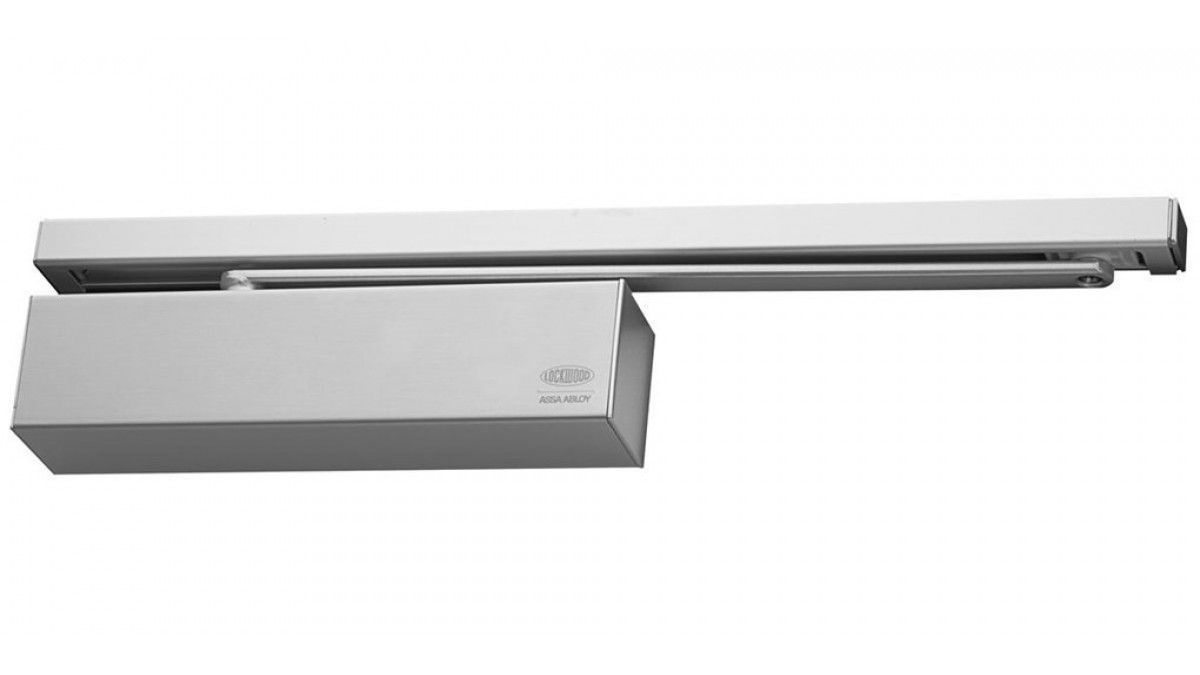

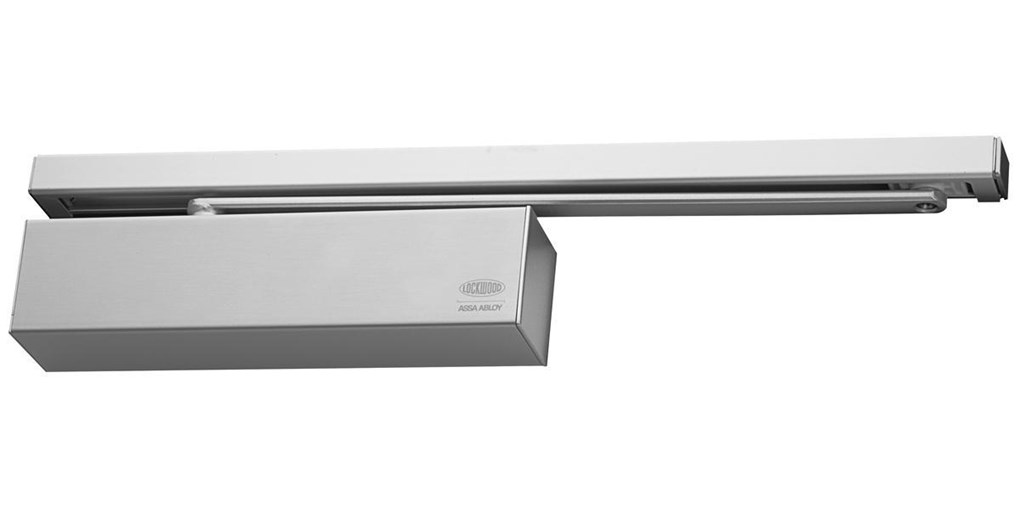

Lockwood Door Closers: 2615 CAM Action Door Closer with Slide Arm
Description

The Lockwood 2615 Series is a non-handed CAM Action Door Closer. Due to the CAM design this premium door closer is light to open but still strong enough to close a door (with the closing force being high enough for heavy duty applications). It can be adjusted to meet the requirements of a light door opening resistance and is ideal for both interior and exterior doors.

One model (2615) covers right hand and left hand applications, pull side/push side applications and also features an adjustable arm height. It is especially suitable for disabled toilet applications where a breakout feature is required, the double action of the mechanism allows the door to be operated in the opposite direction for easy access into the room.

The 2615 has a very high efficiency of 70%-80%.

Key Features
  • Power: EN adjustable 1 to 5
  • Back Check (BC): Adjustable
  • Hold open: Adjustable. Hold-open can be set at any angle up to 120° of opening
  • Handling: Non-handed. Suitable for left or right hand doors
  • Cover: Formed metal cover
  • Materials: Cast aluminium body manufactured from high-performance silicon alloy
  • Mechanism: Cam Doors
  • Mounting: Pull side, push side and over-door mounting
  • Valves: Two pressure relief valves are a standard feature to protect against abuse
  • Delayed action: Adjustable
  • Closing speed: Adjustable
  • Latching speed: Adjustable





Categories
Door Closers
Ranges
Door Closers
Scope of Use

The 2615 is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door.

Documents
Data Sheet
